Серия P3

Aluminum Professional Triple Section Multipurpose Ladder

Article:

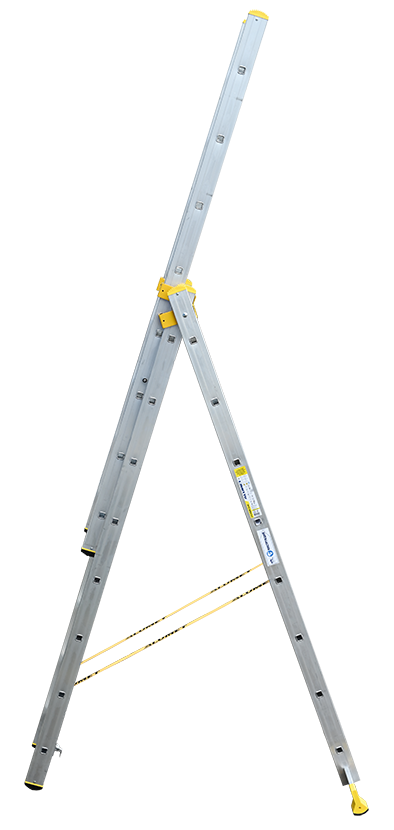

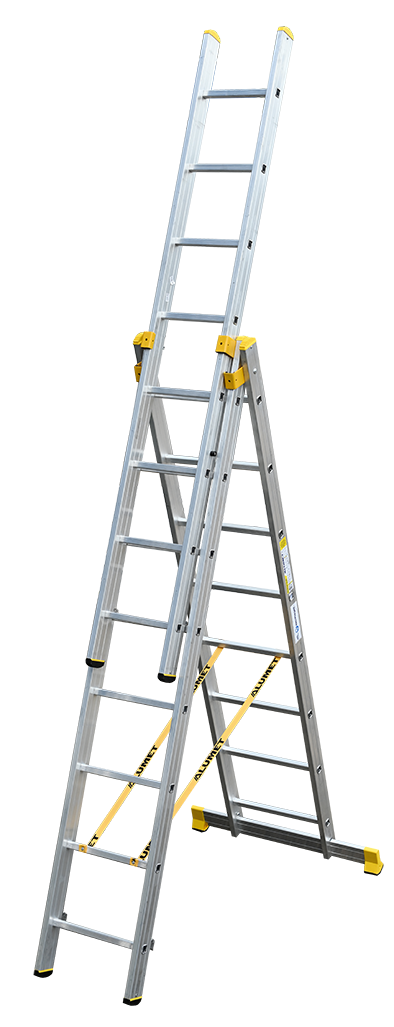

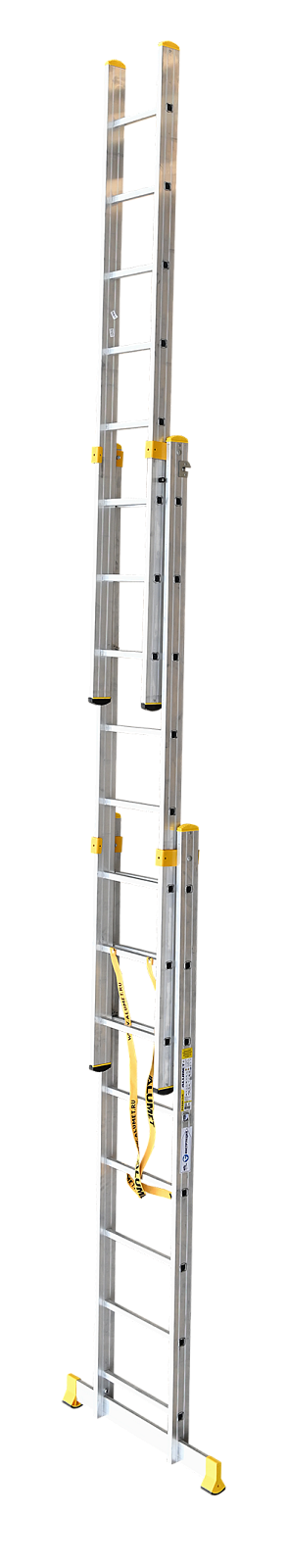

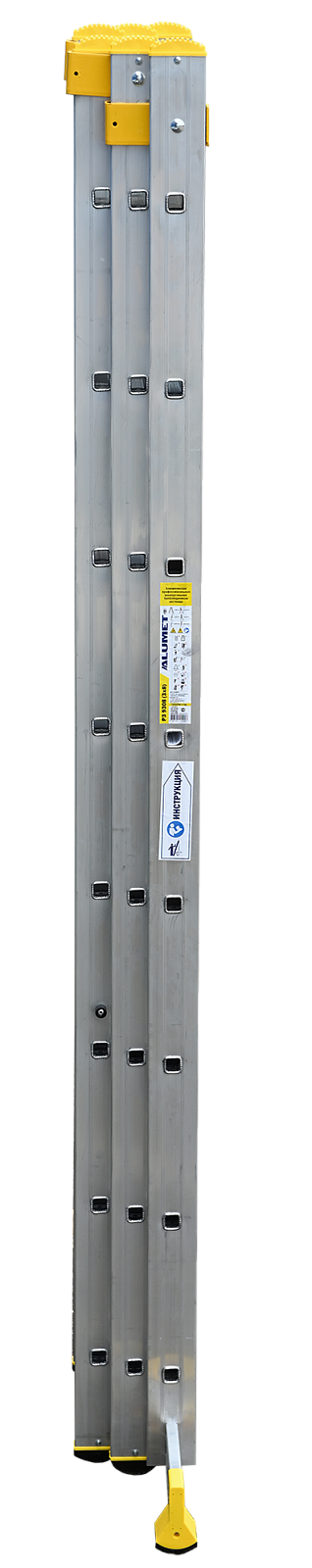

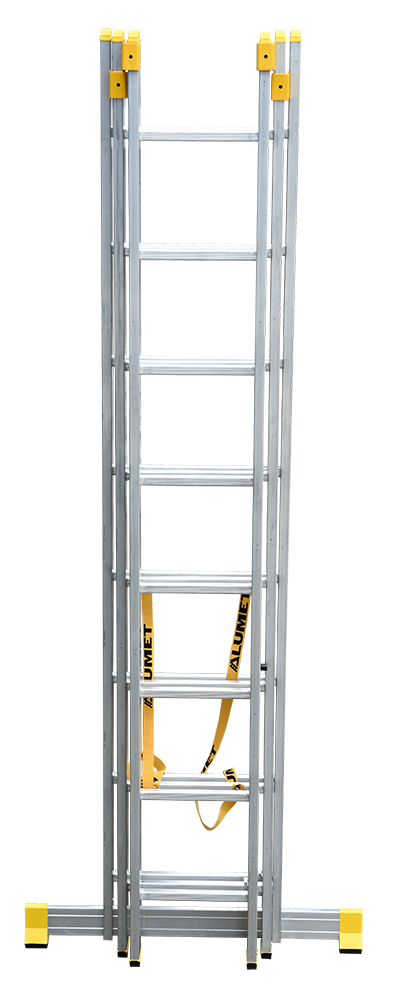

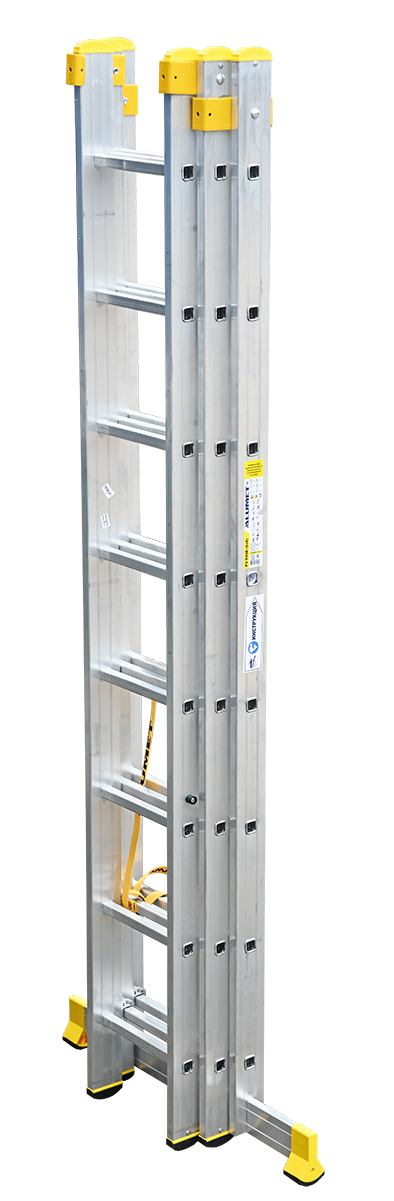

P3 9308

Vendor code P3 9308
Number of steps 3x8
Section length 2.40
Length of two sections 3.81
Length of three sections 5.21
Height max 3.30
Height of two sections 4.71
Höhe von drei Abschnitten 6.11
Width 0.33/0.41/0.48

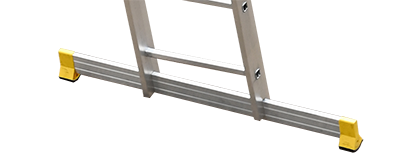

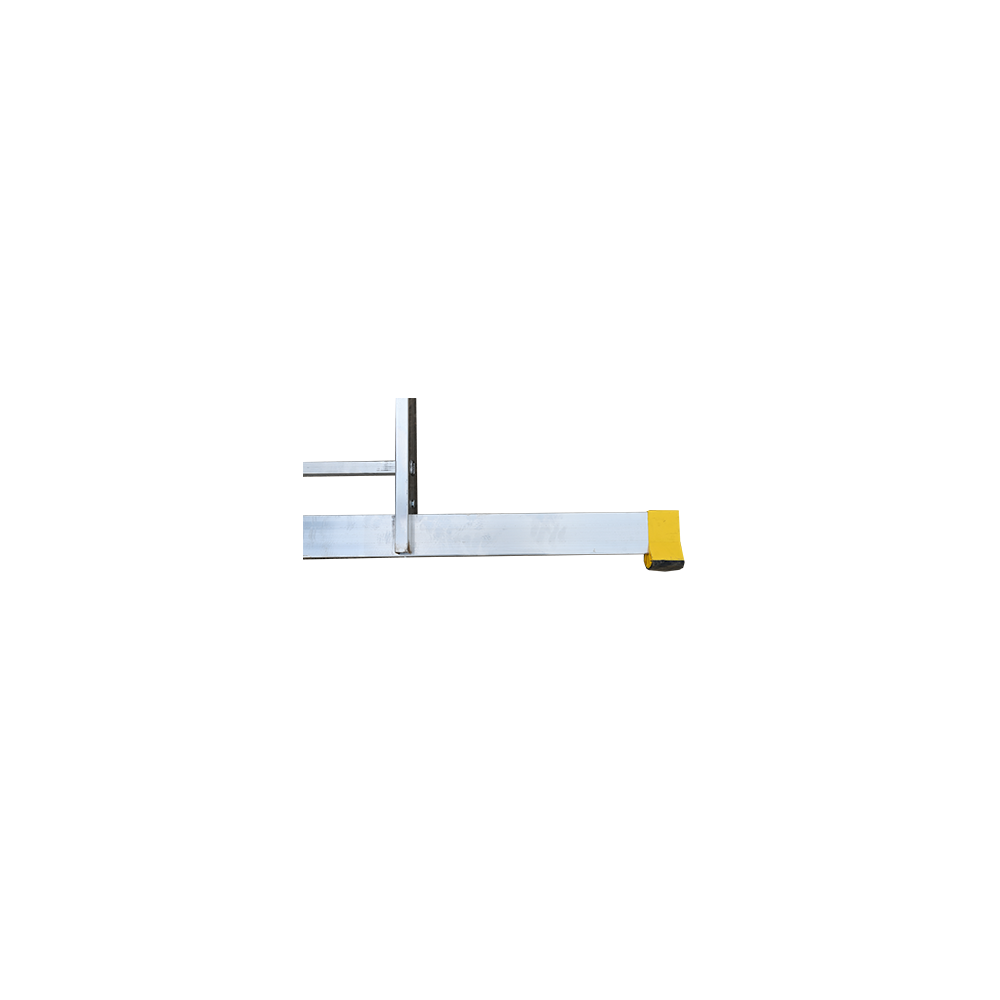

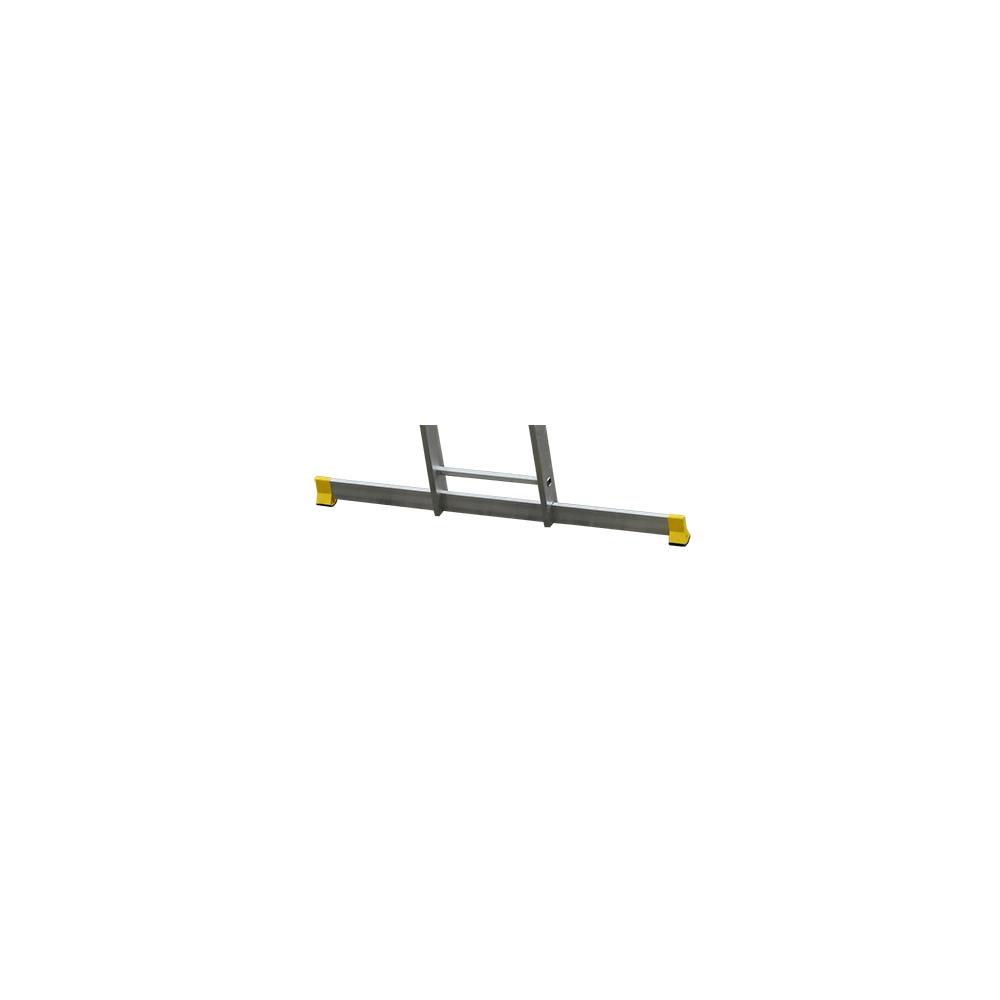

Stabilizer length 0.90
Profile 84x25

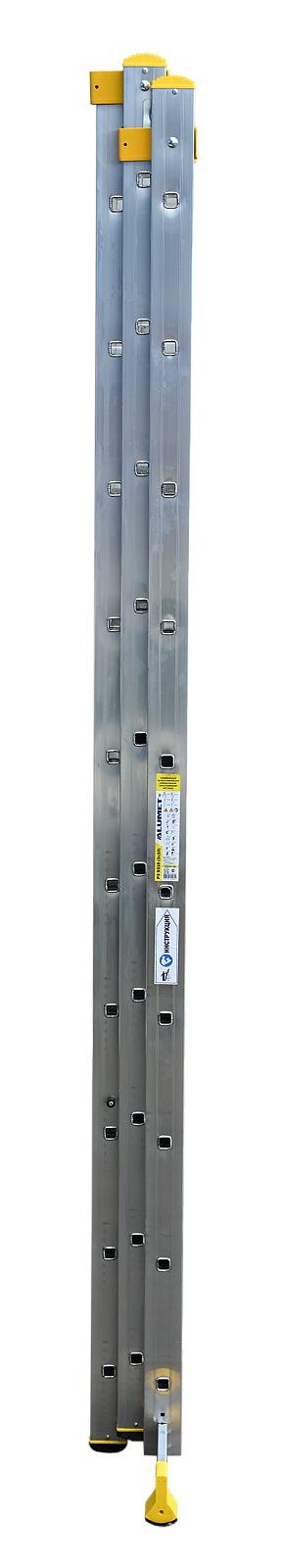

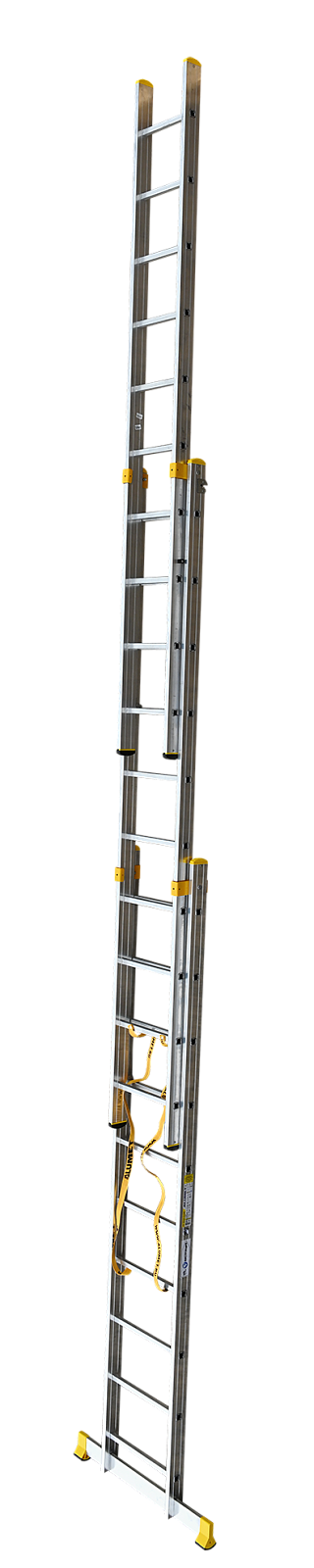

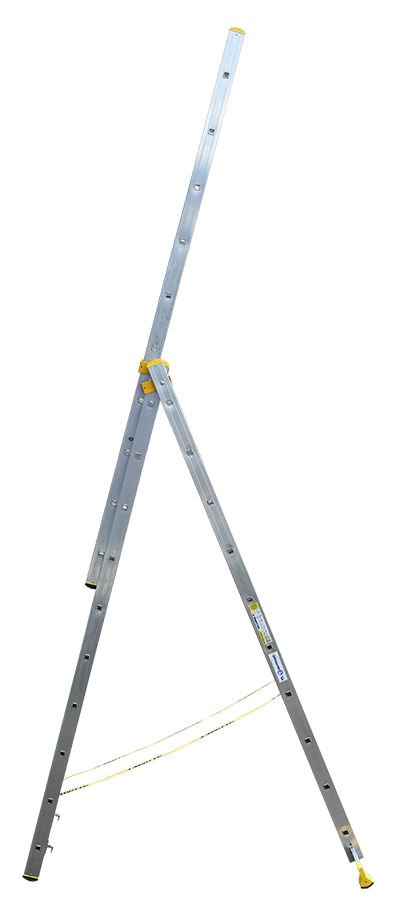

P3 9310

Vendor code P3 9310
Number of steps 3x10
Section length 2.96
Length of two sections 4.93
Length of three sections 6.89
Height max 3.86
Height of two sections 5.83
Höhe von drei Abschnitten 7.79
Width 0.33/0.41/0.48
Stabilizer length 0.90
Profile 84x25

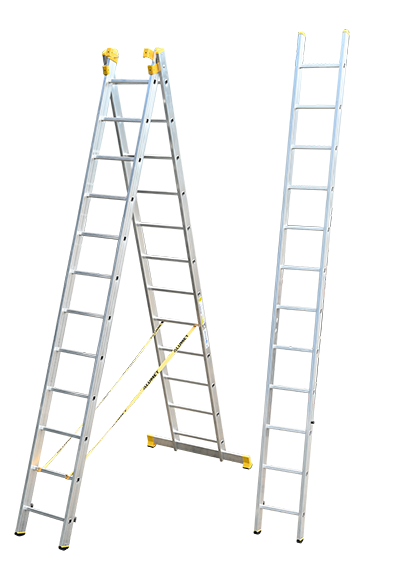

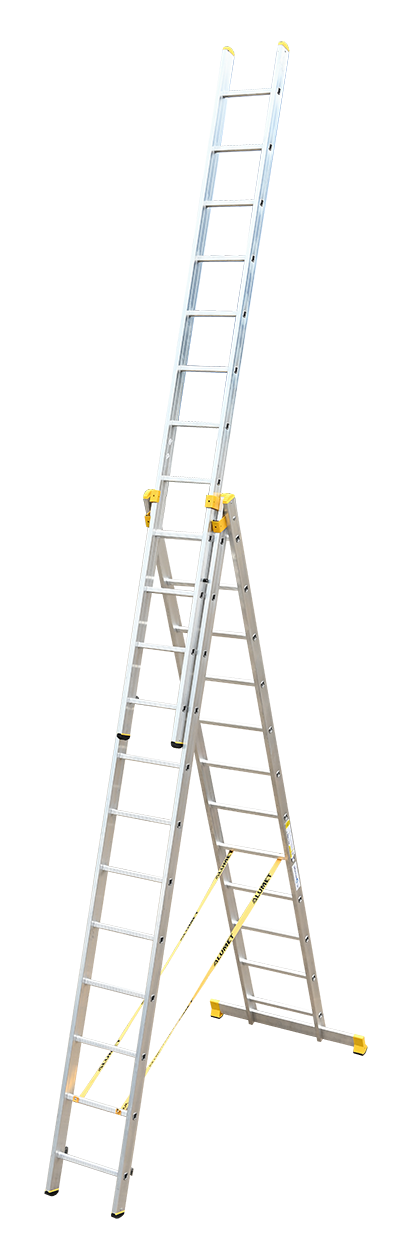

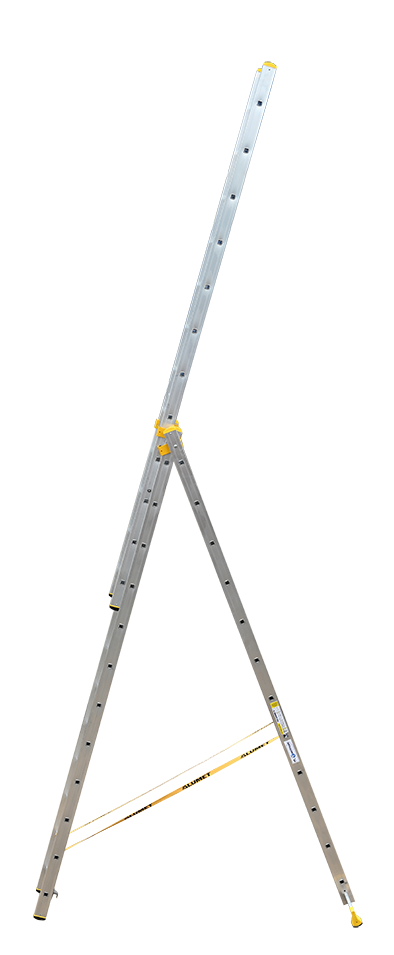

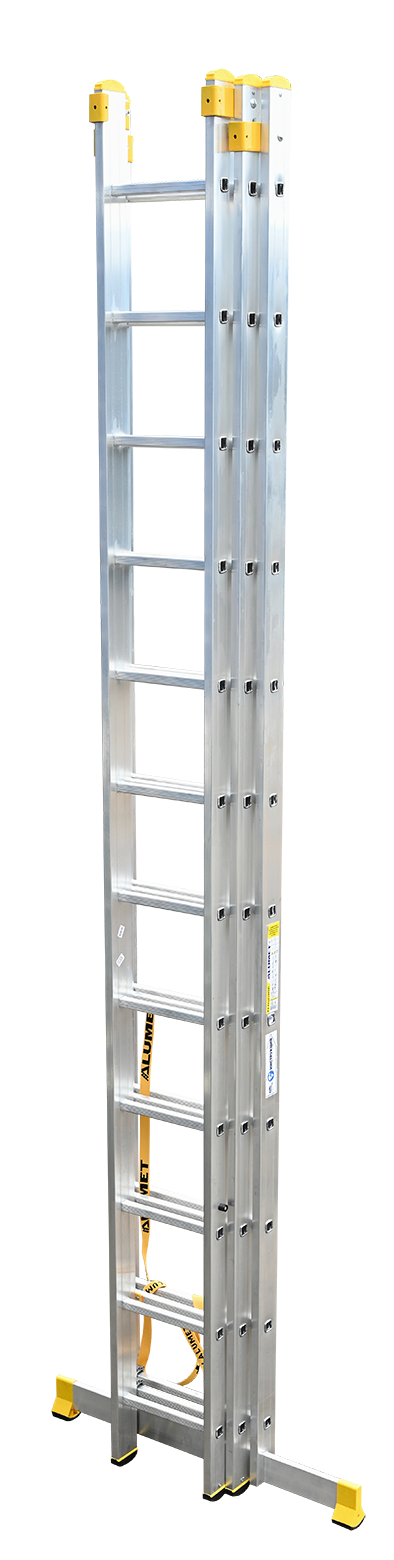

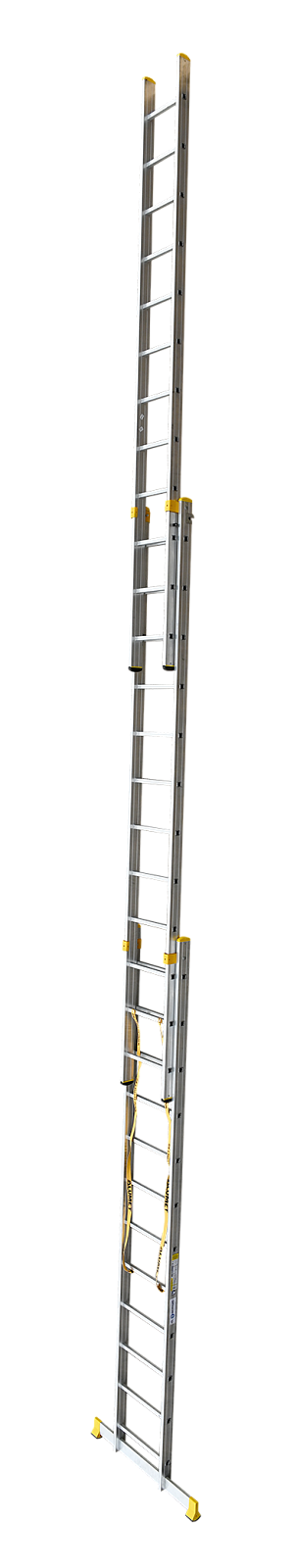

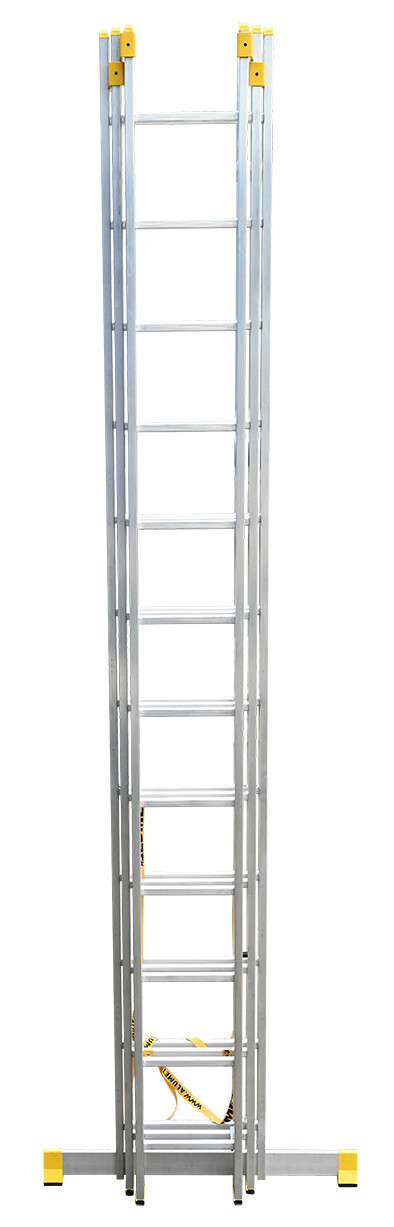

P3 9312

Vendor code P3 9312
Number of steps 3x12
Section length 3.52
Length of two sections 6.05
Length of three sections 8.57
Height max 4.42
Height of two sections 6.95
Höhe von drei Abschnitten 9.47
Width 0.33/0.41/0.48
Stabilizer length 1.00
Profile 84x25

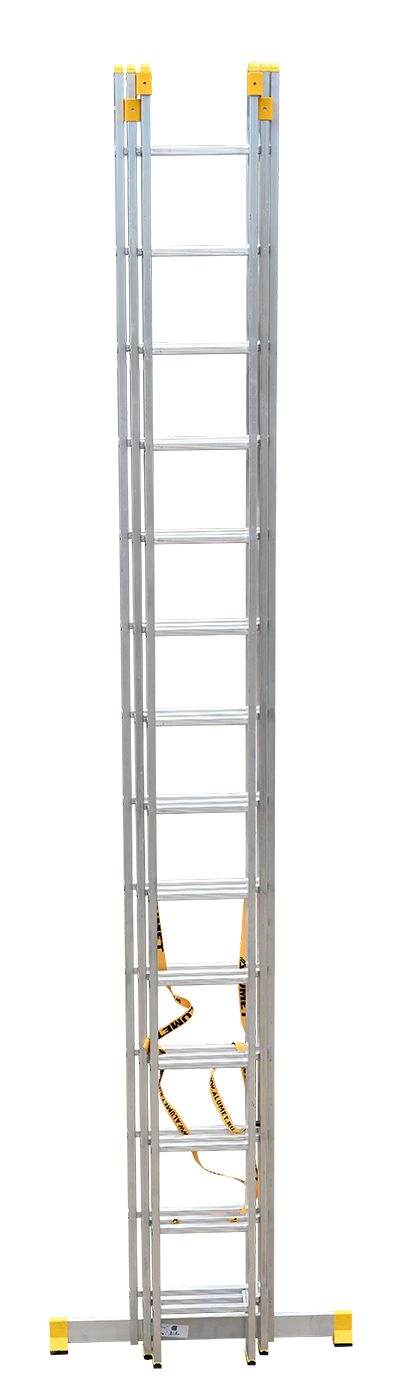

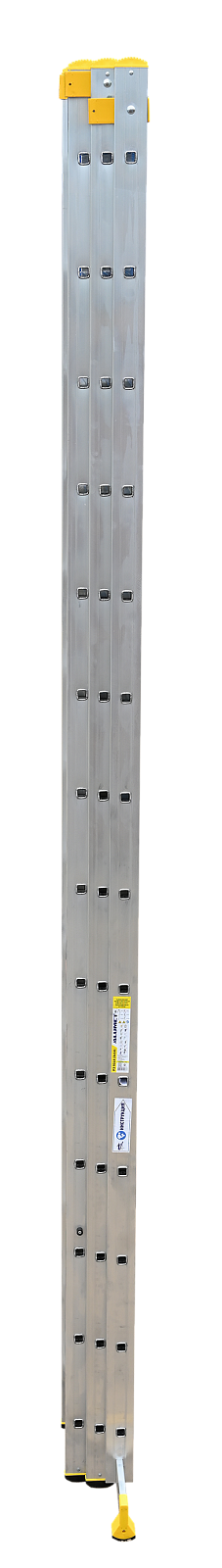

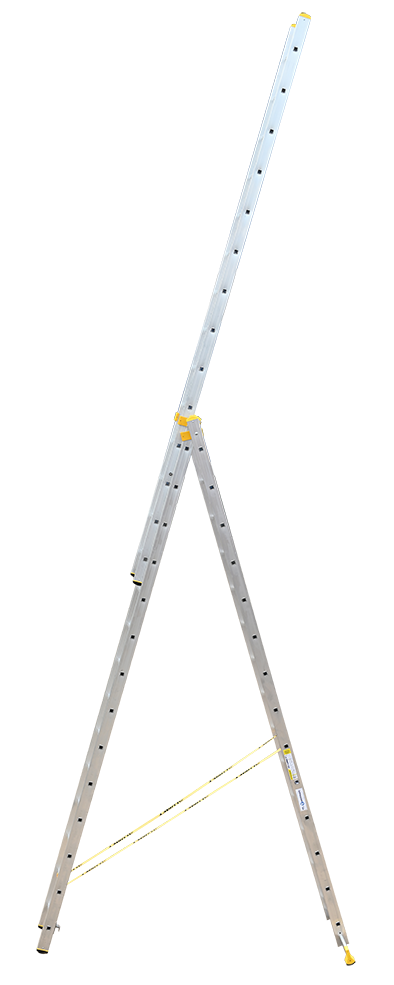

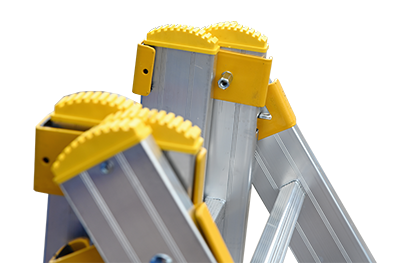

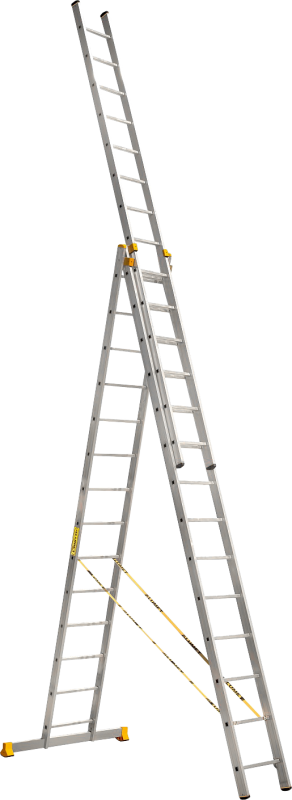

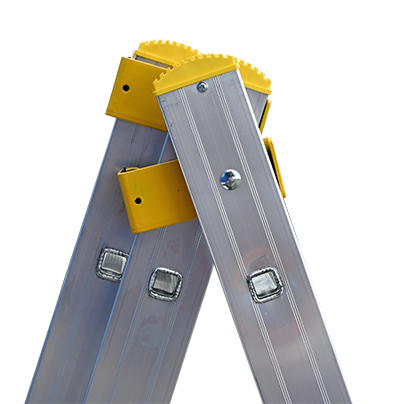

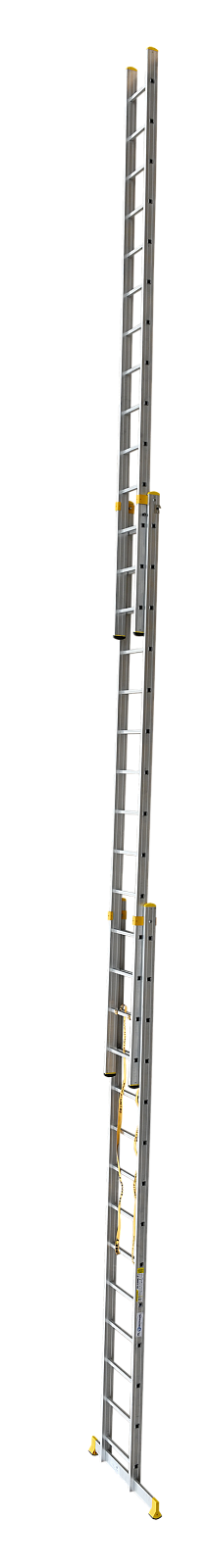

P3 9314

Vendor code P3 9314
Number of steps 3x14
Section length 4.08
Length of two sections 7.17
Length of three sections 10.25
Height max 4.98
Height of two sections 8.07
Höhe von drei Abschnitten 11.15
Width 0.33/0.41/0.48
Stabilizer length 1.00
Profile 84x25

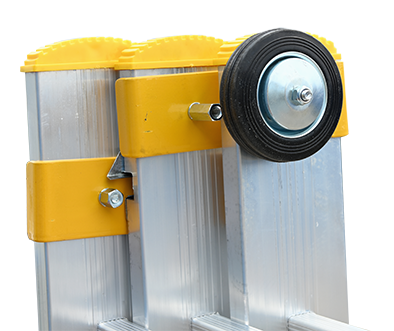

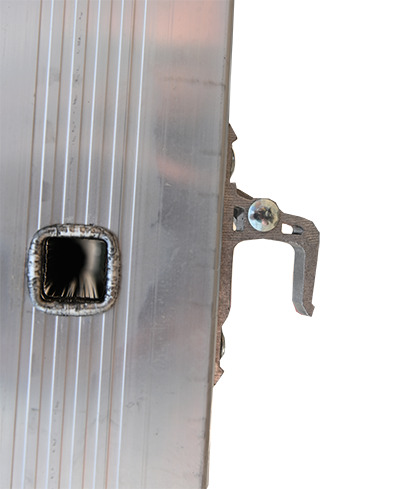

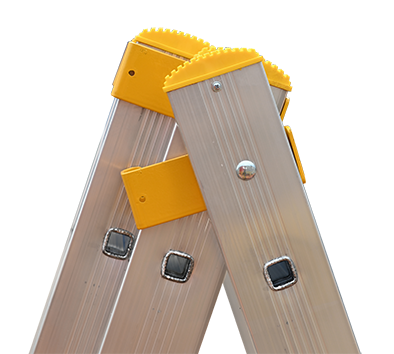

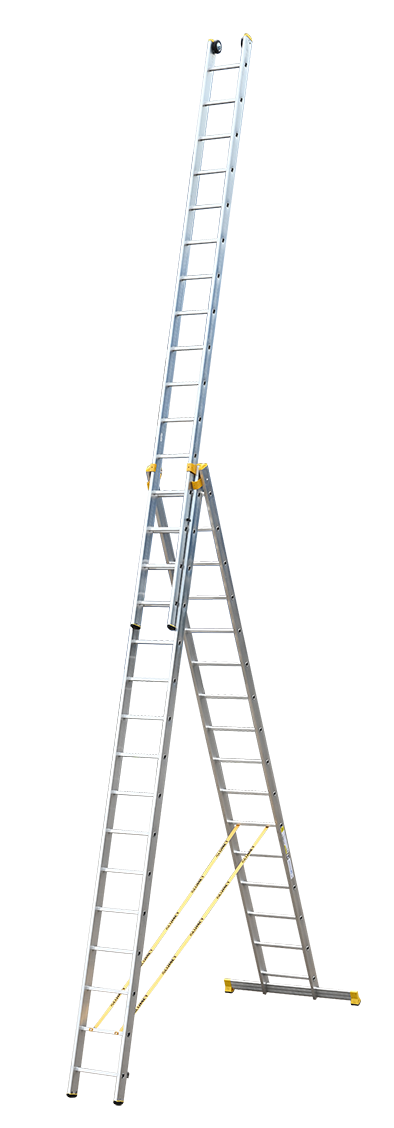

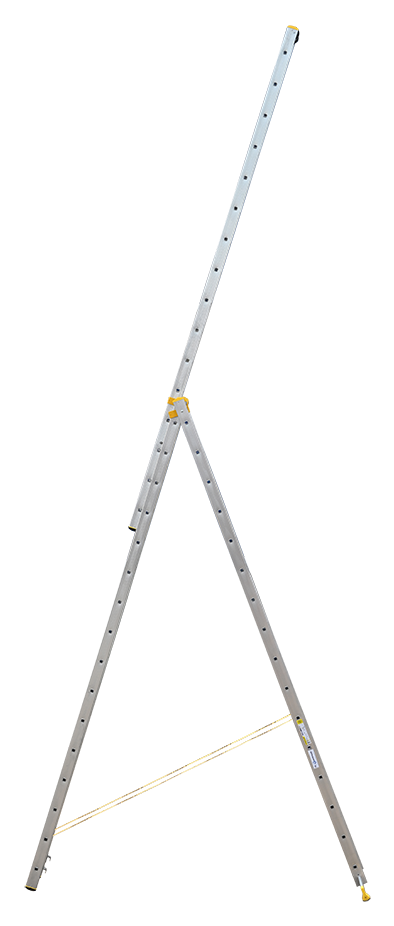

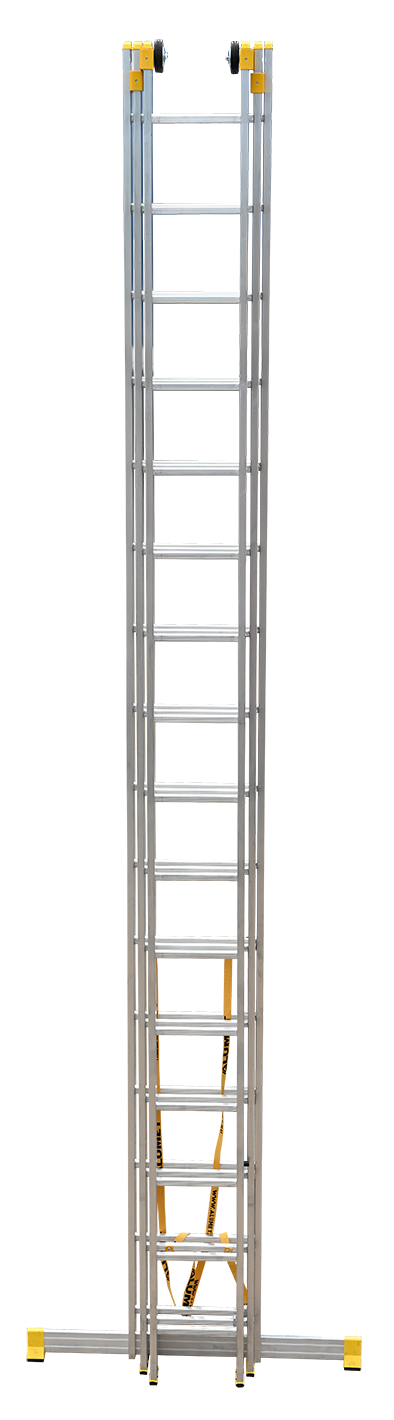

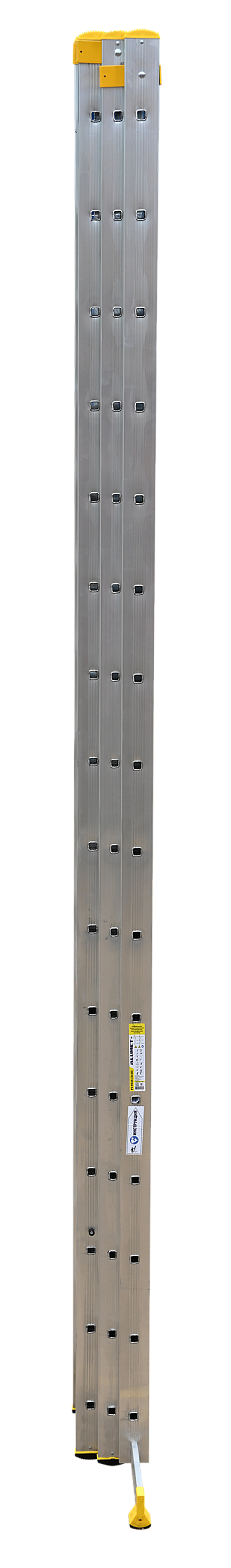

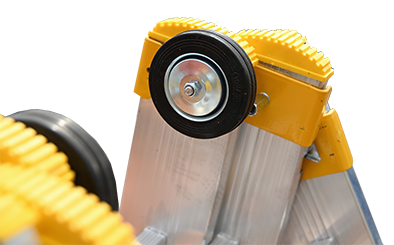

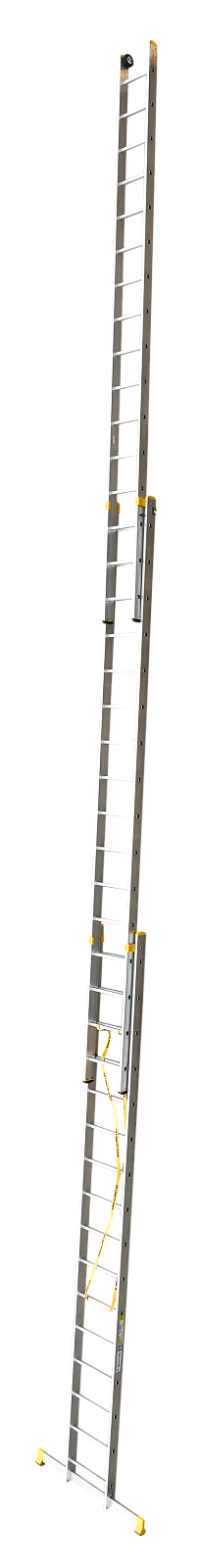

P3 9316*

Vendor code P3 9316*
Number of steps 3x16
Section length 4.64
Length of two sections 8.29
Length of three sections 11.93
Height max 5.54
Height of two sections 9.19
Höhe von drei Abschnitten 12.83
Width 0.33/0.41/0.48
Stabilizer length 1.20
Profile 100x25

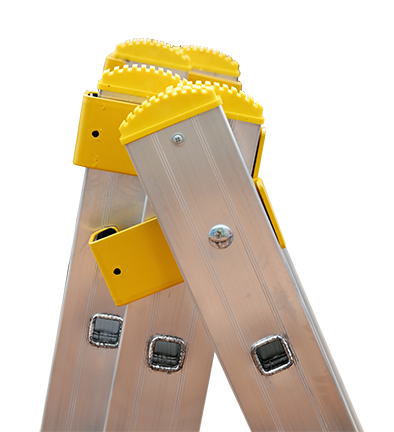

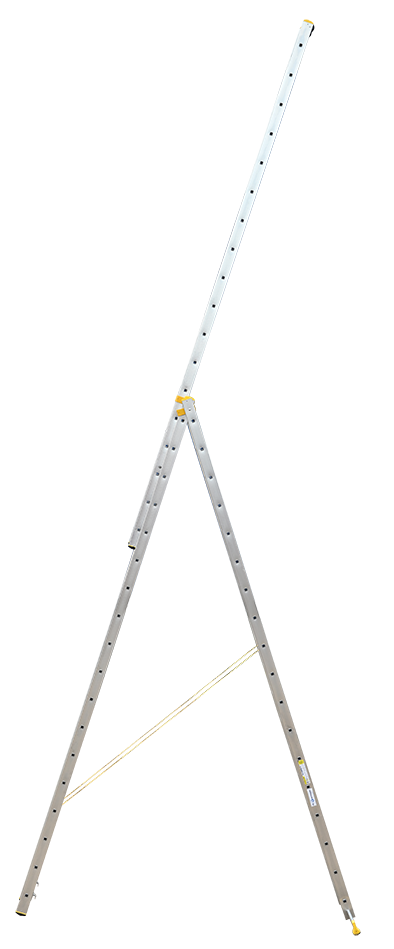

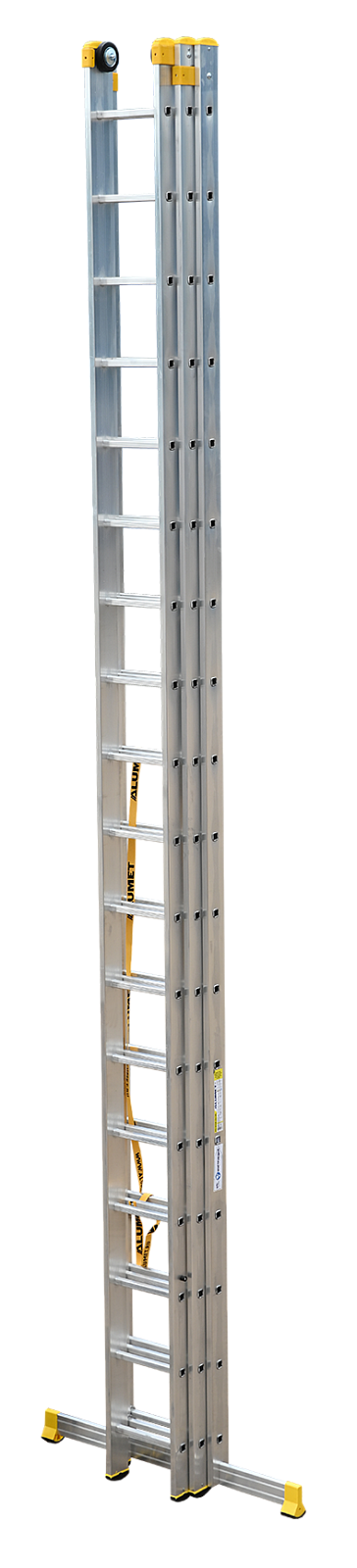

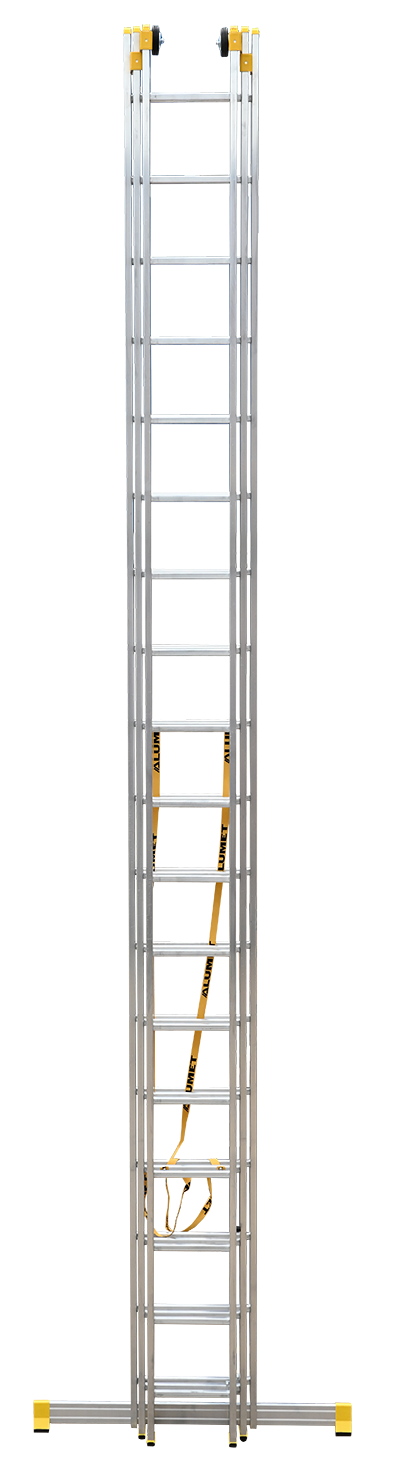

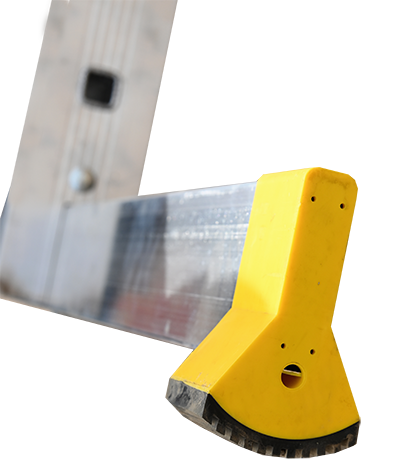

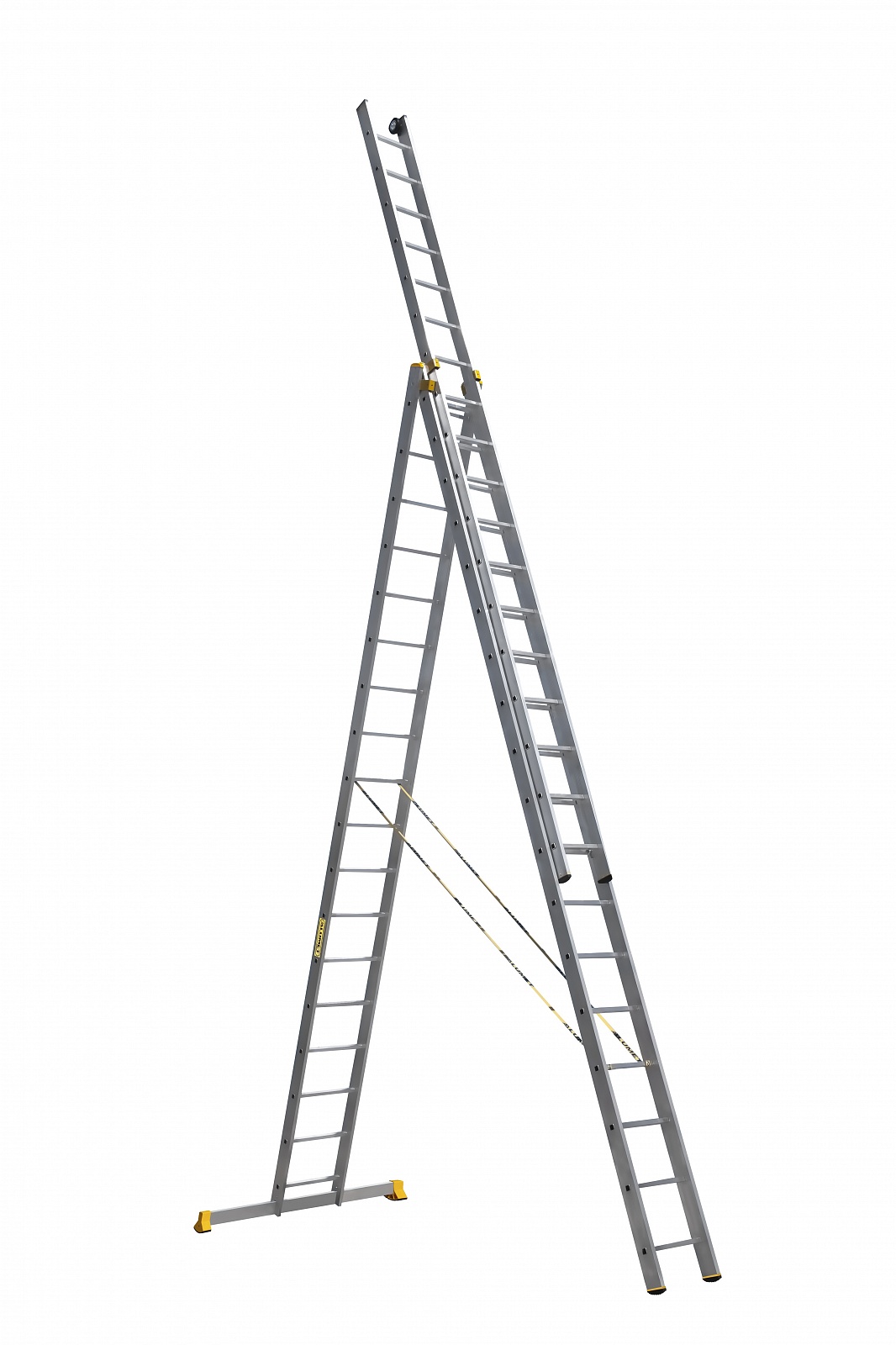

P3 9318*

Vendor code P3 9318*
Number of steps 3x18
Section length 5.20
Length of two sections 9.41
Length of three sections 13.61
Height max 6.10
Height of two sections 10.31
Höhe von drei Abschnitten 14.51
Width 0.33/0.41/0.48
Stabilizer length 1.20
Profile 100x25

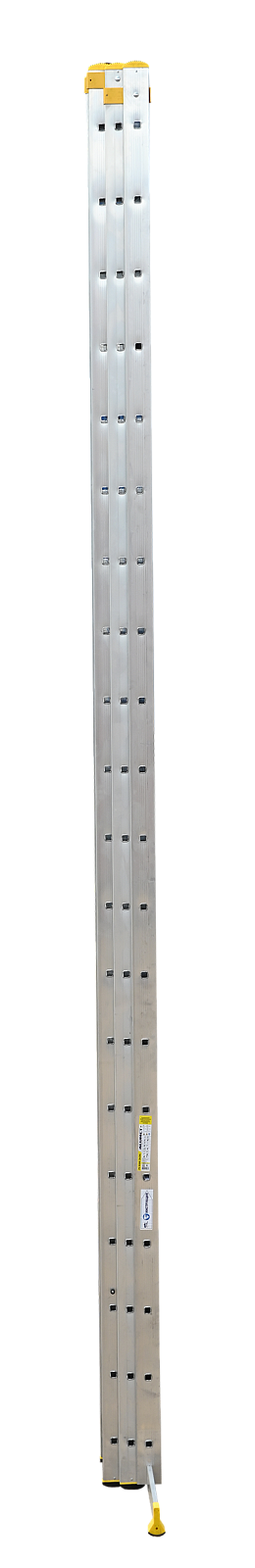

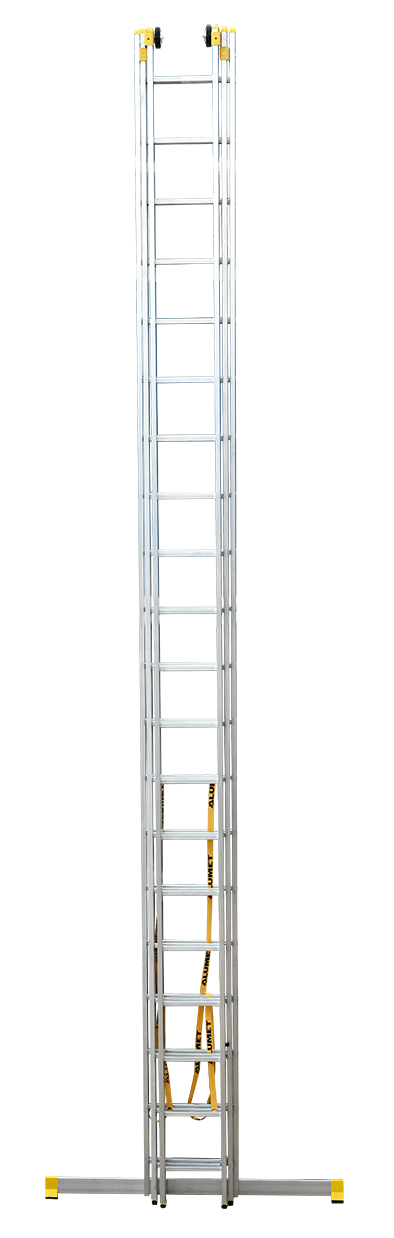

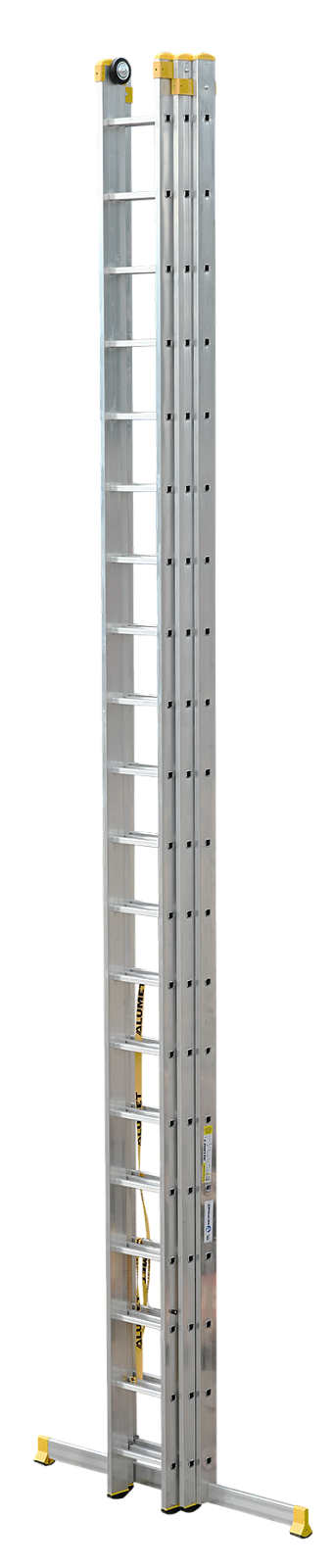

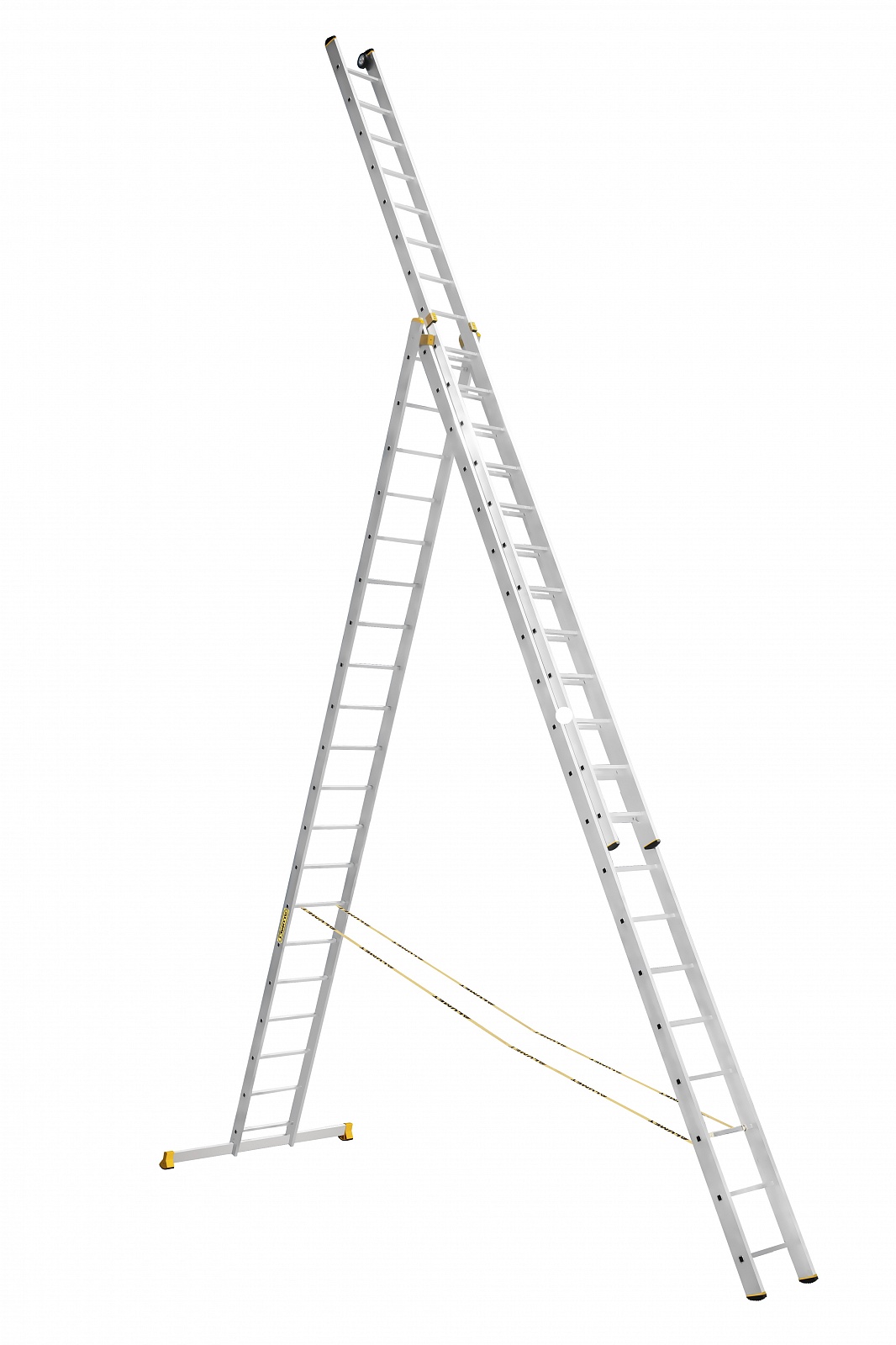

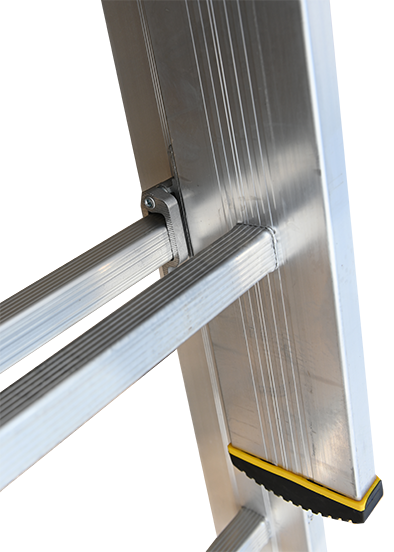

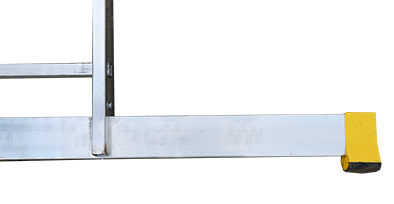

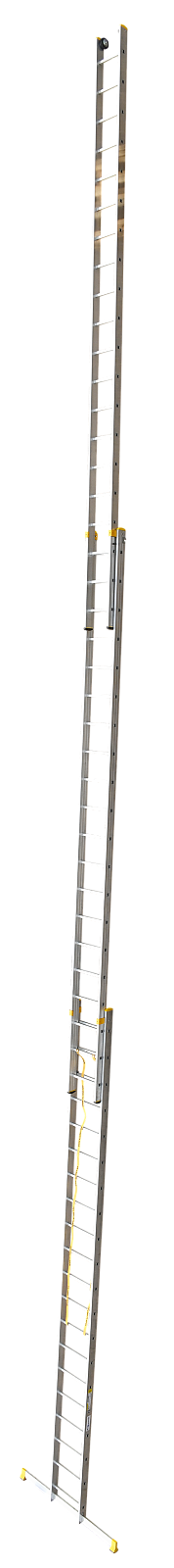

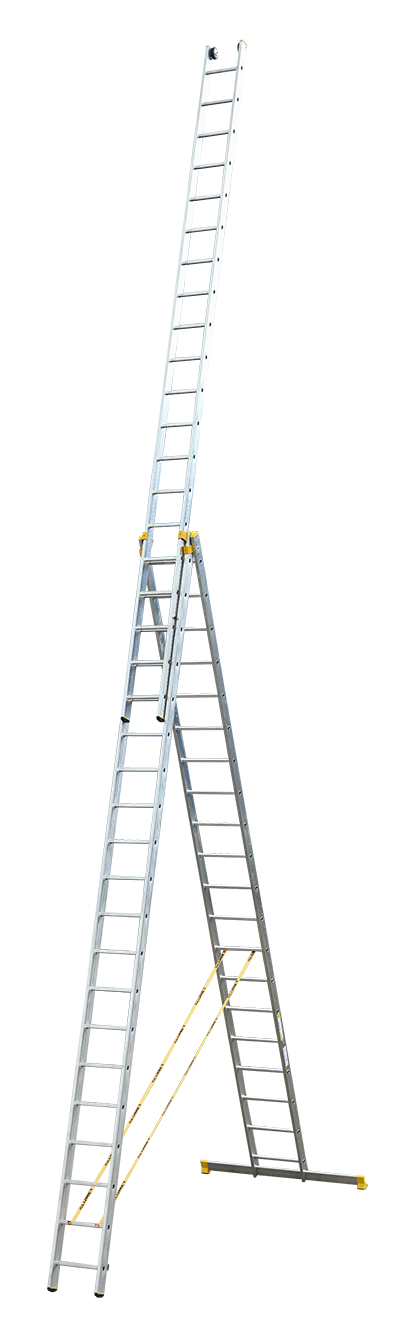

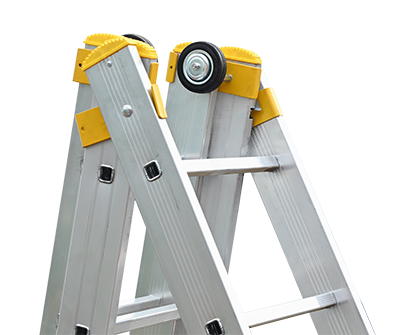

P3 9320*

Vendor code P3 9320*
Number of steps 3x20
Section length 5.76
Length of two sections 10.53
Length of three sections 15.29
Height max 6.66
Height of two sections 11.43
Höhe von drei Abschnitten 16.19
Width 0.33/0.41/0.48
Stabilizer length 1.50
Profile 104x25

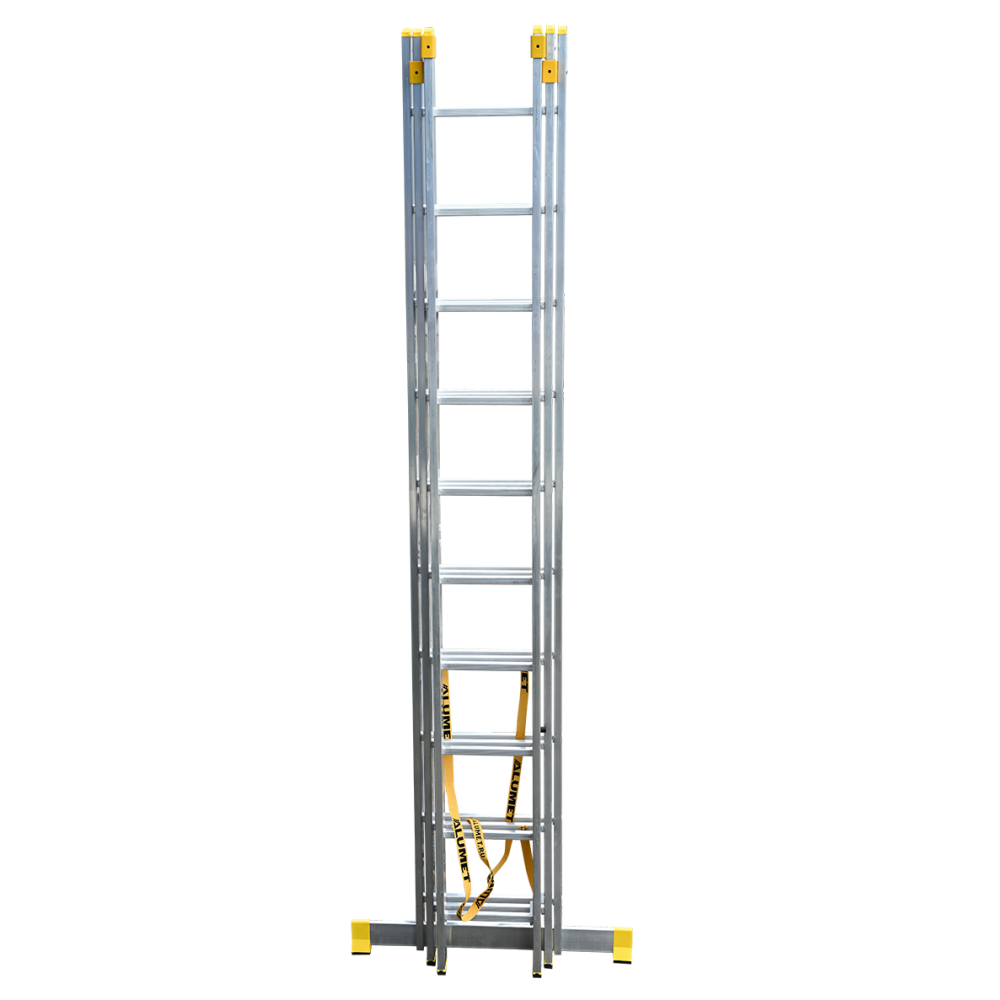

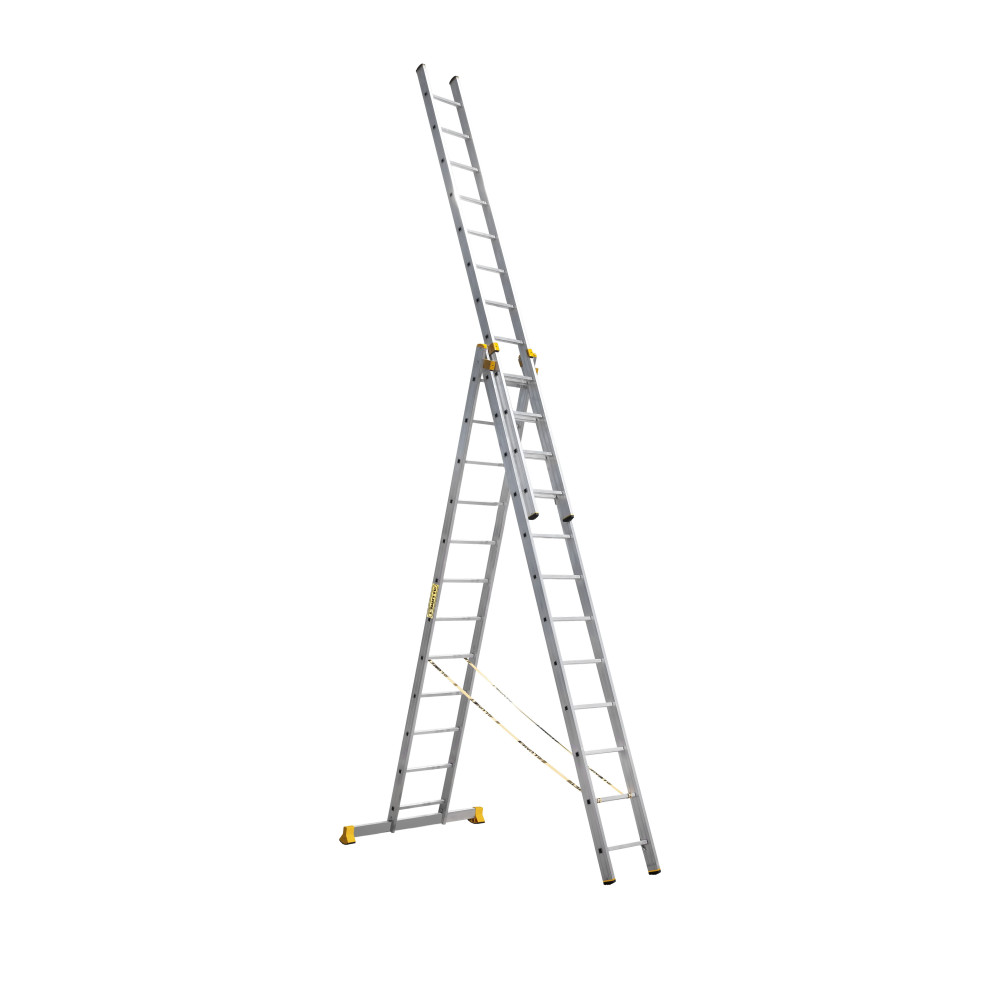

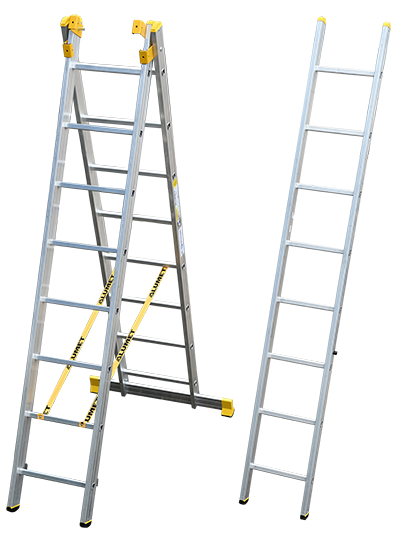

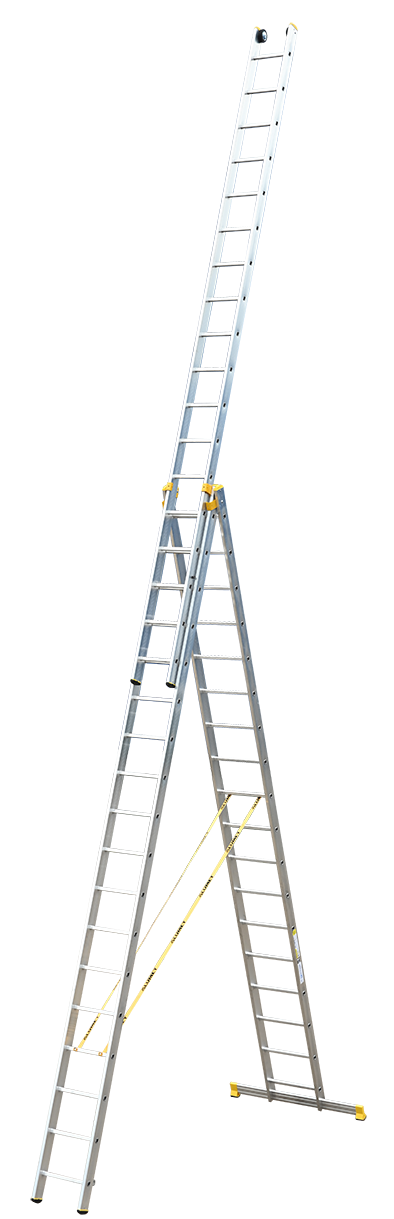

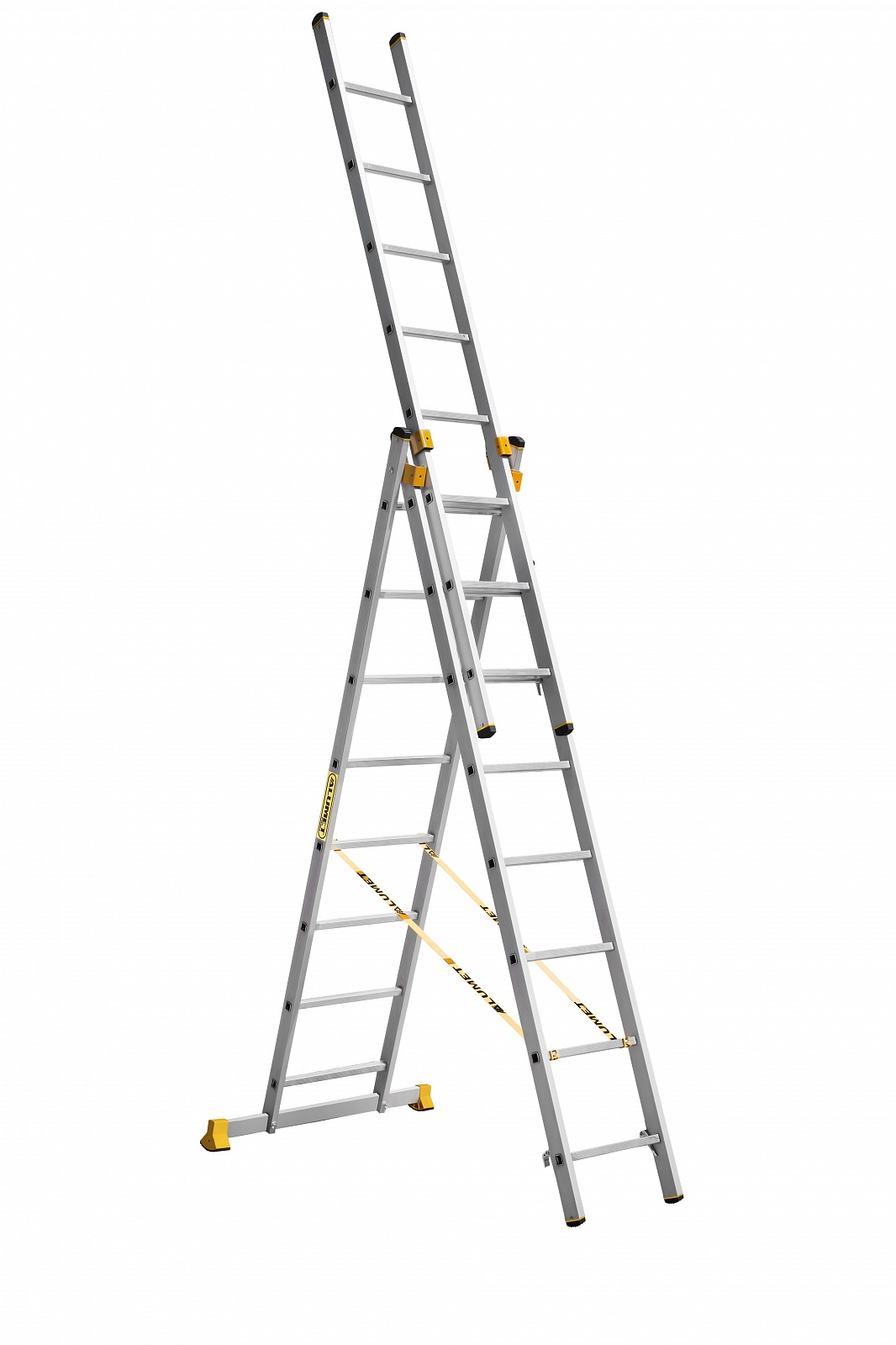

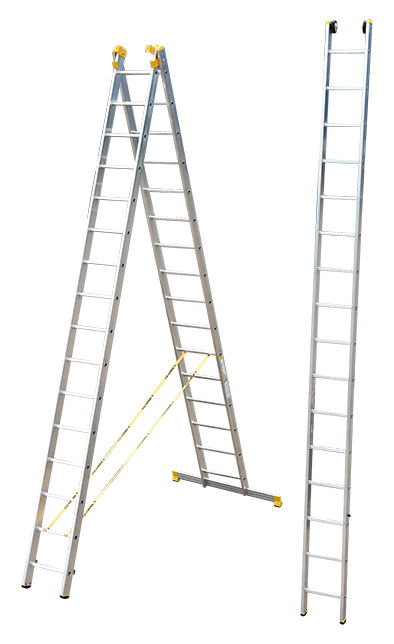

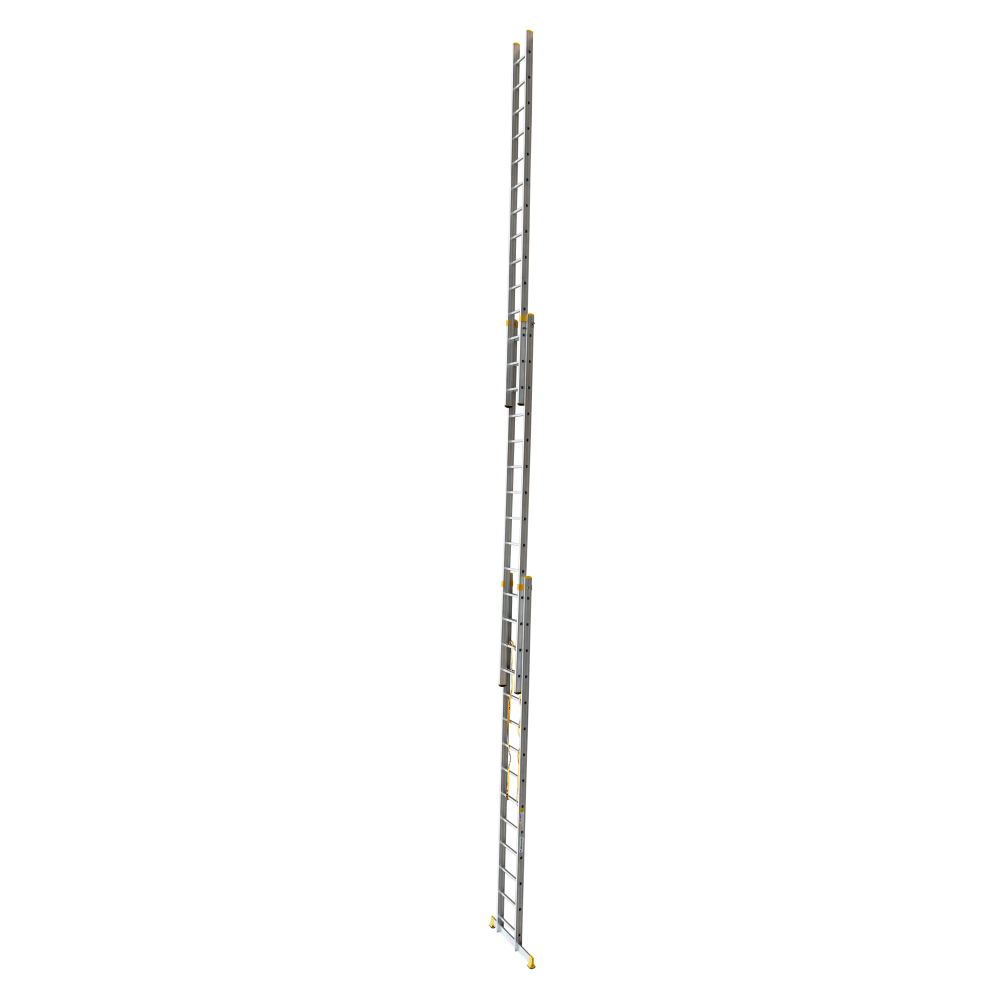

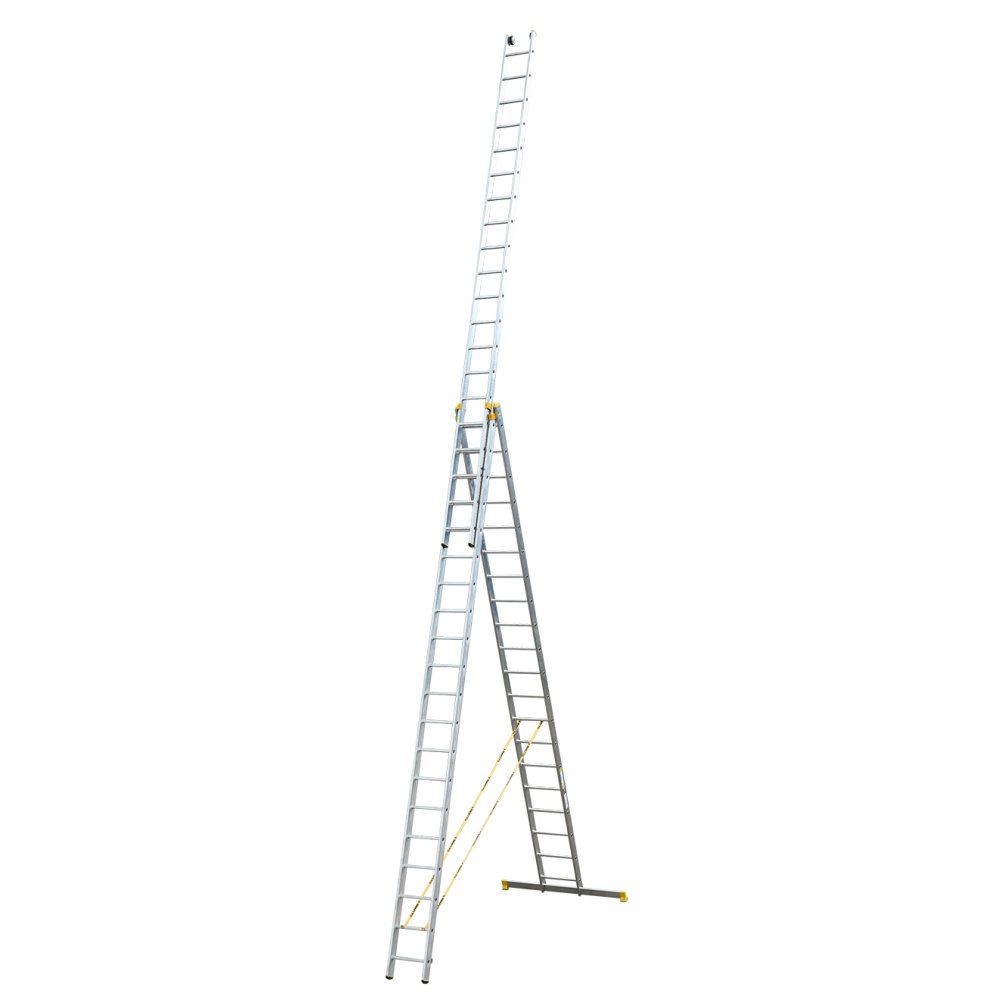

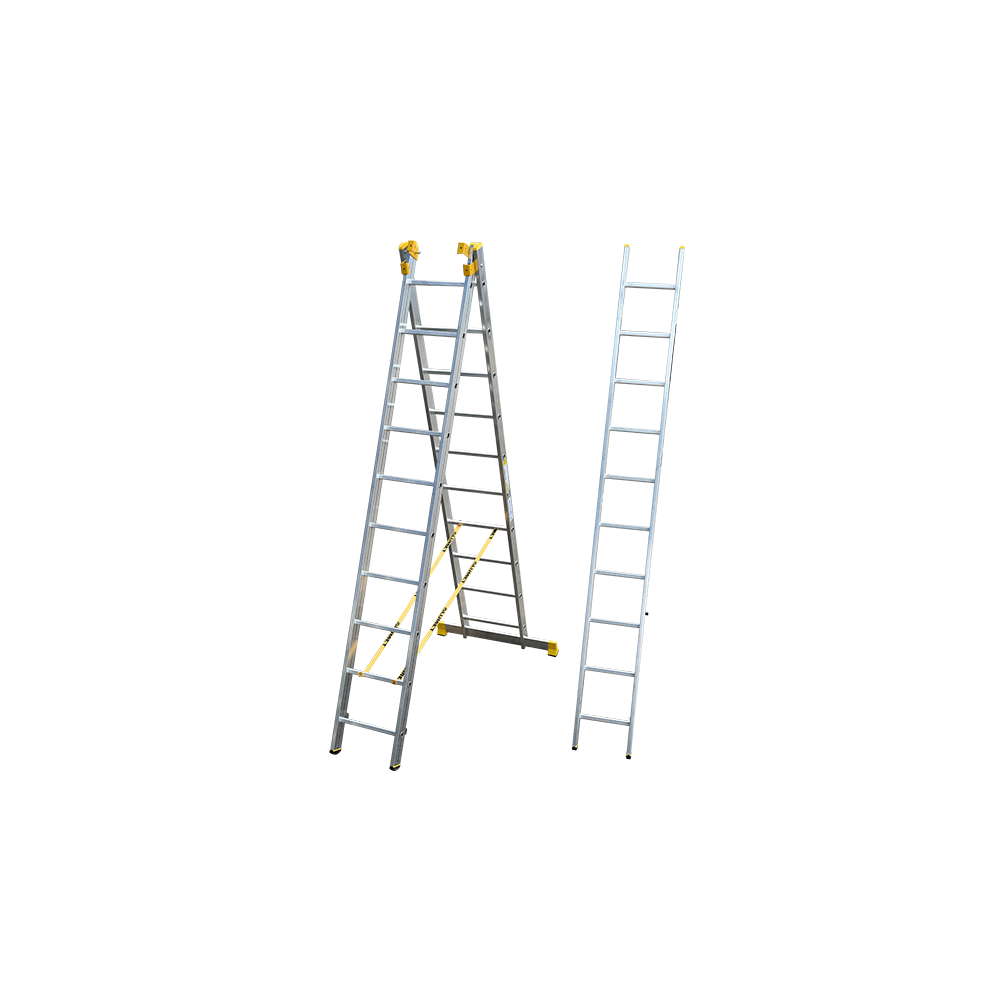

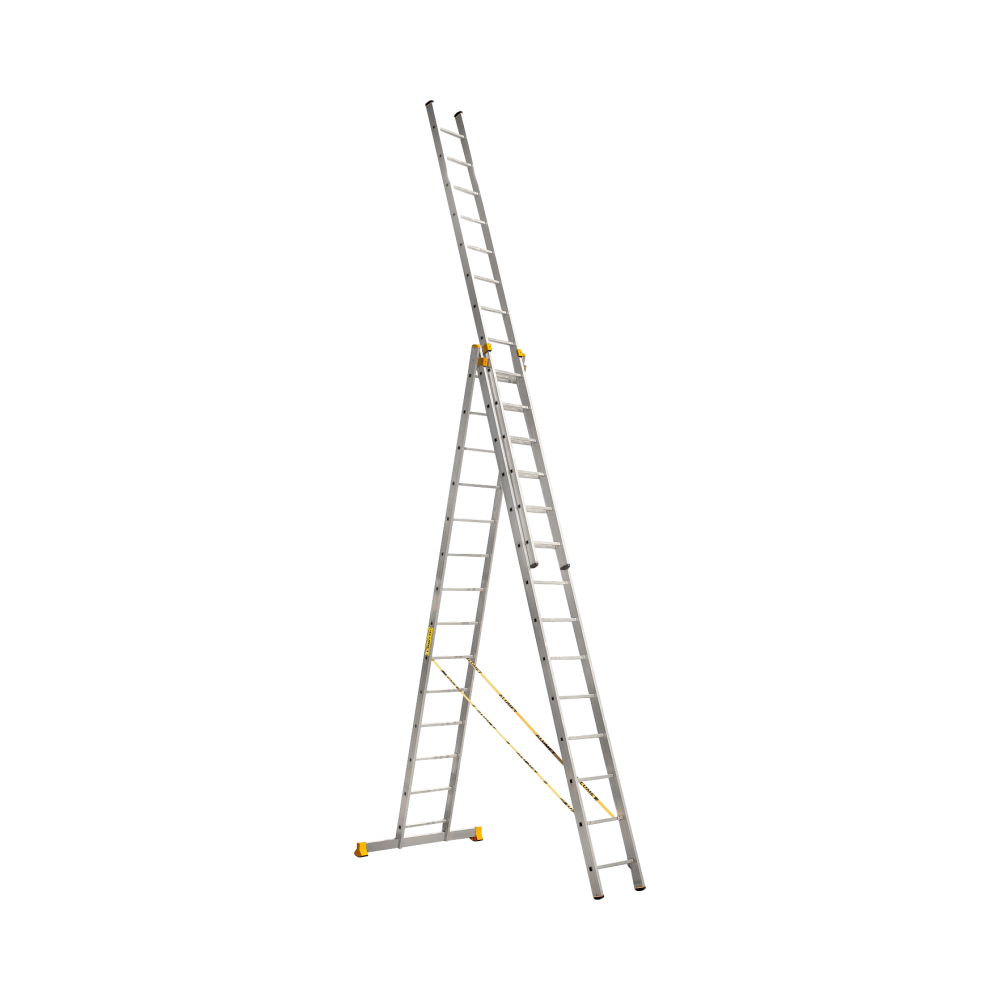

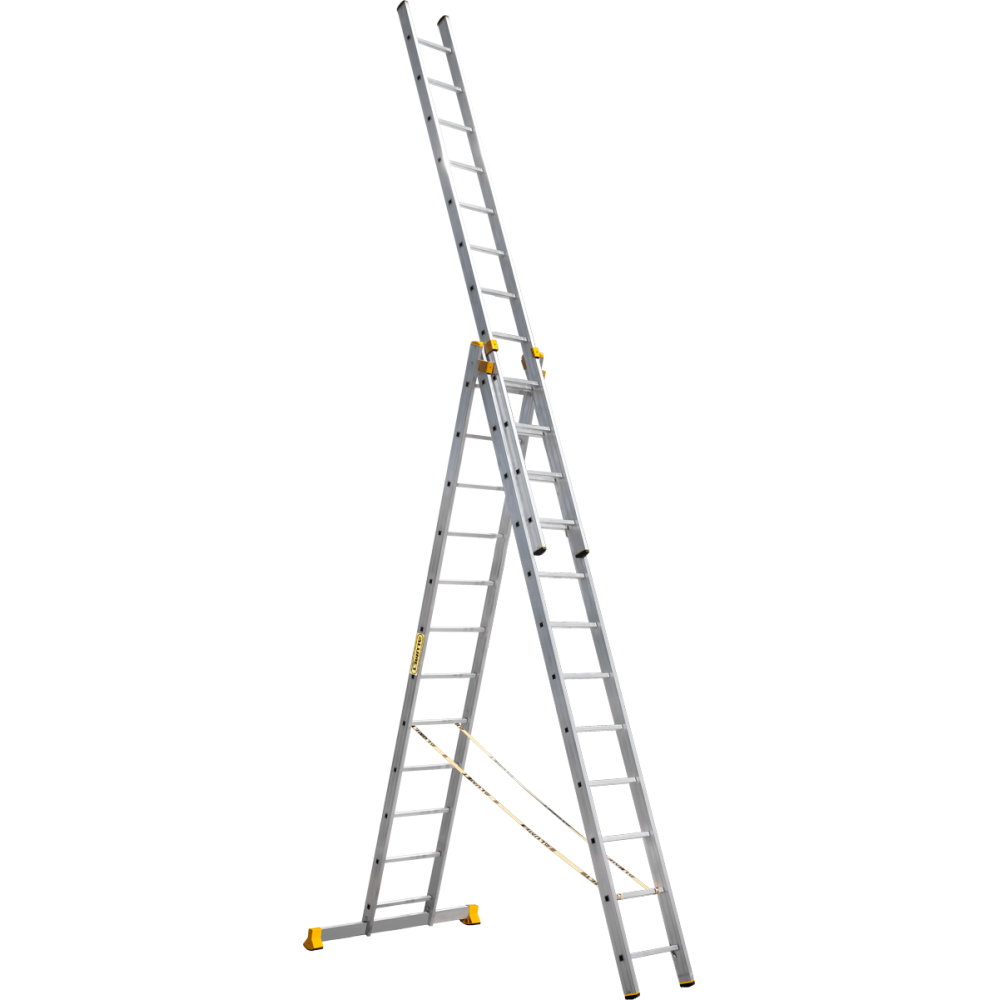

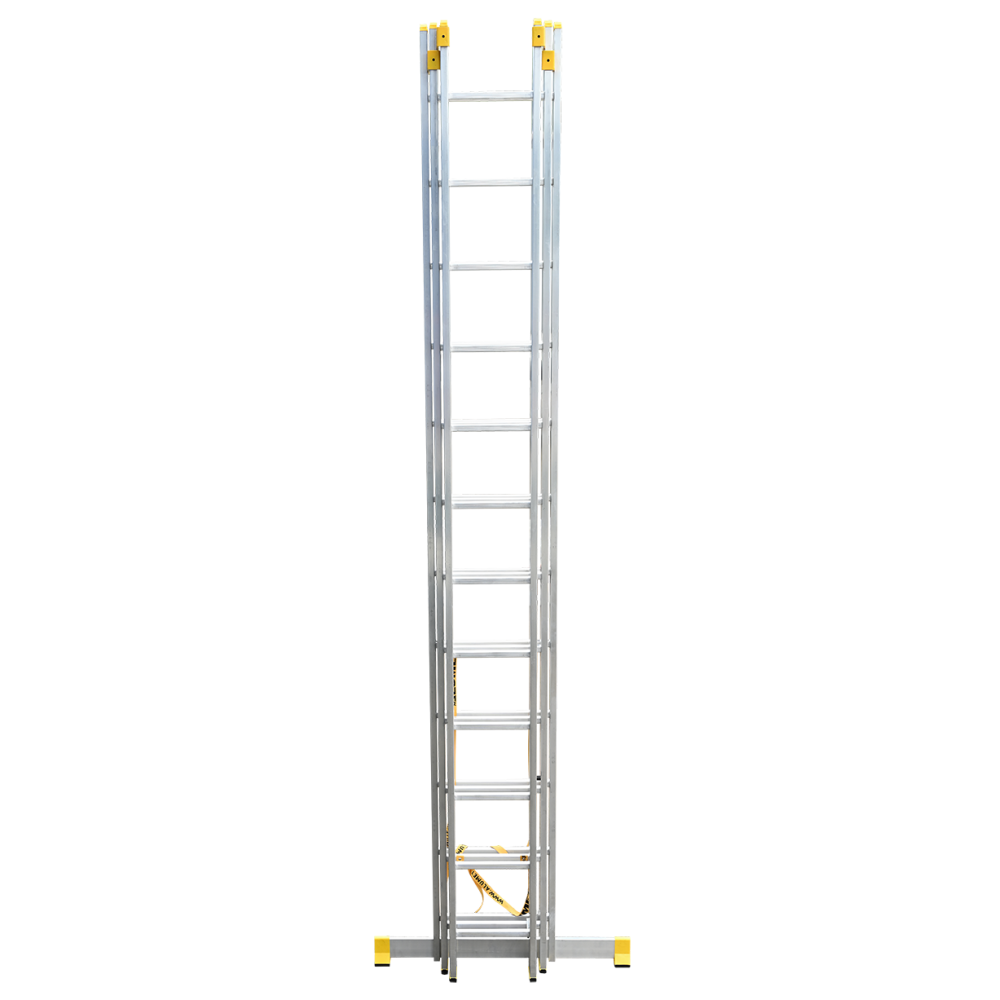

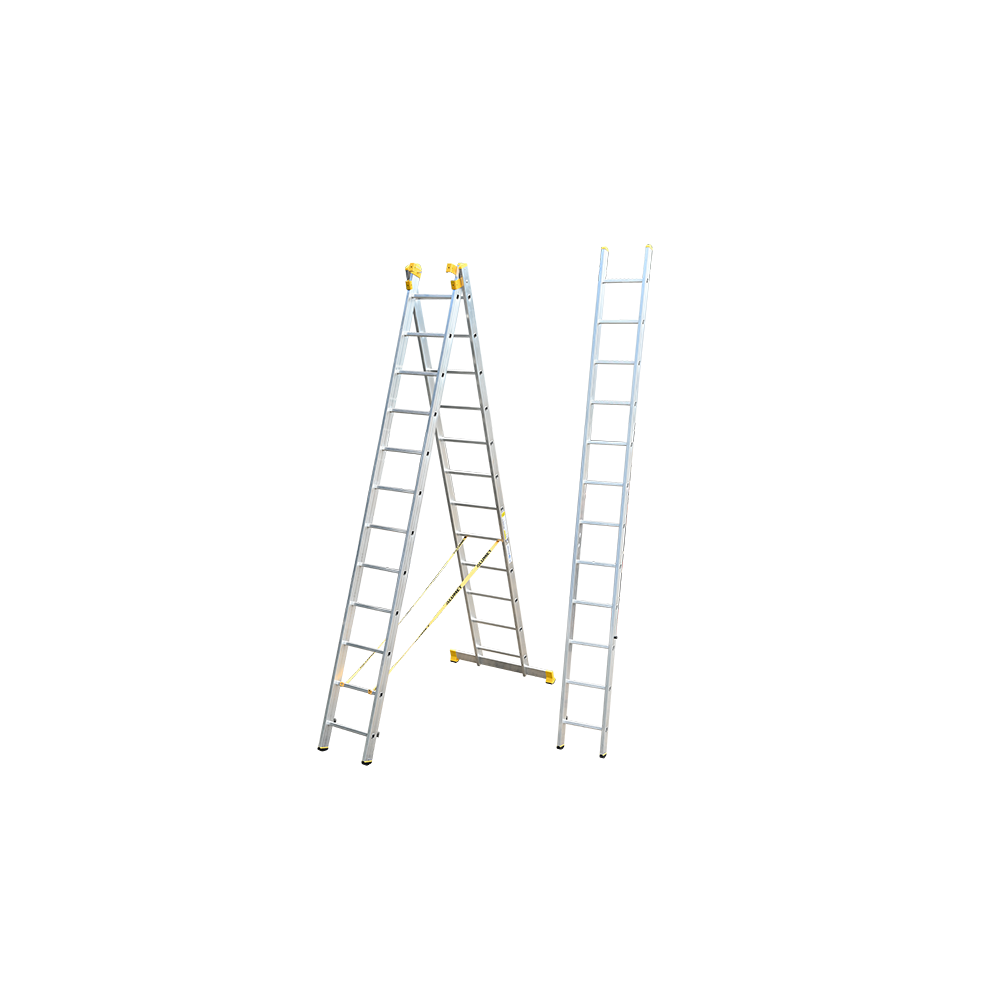

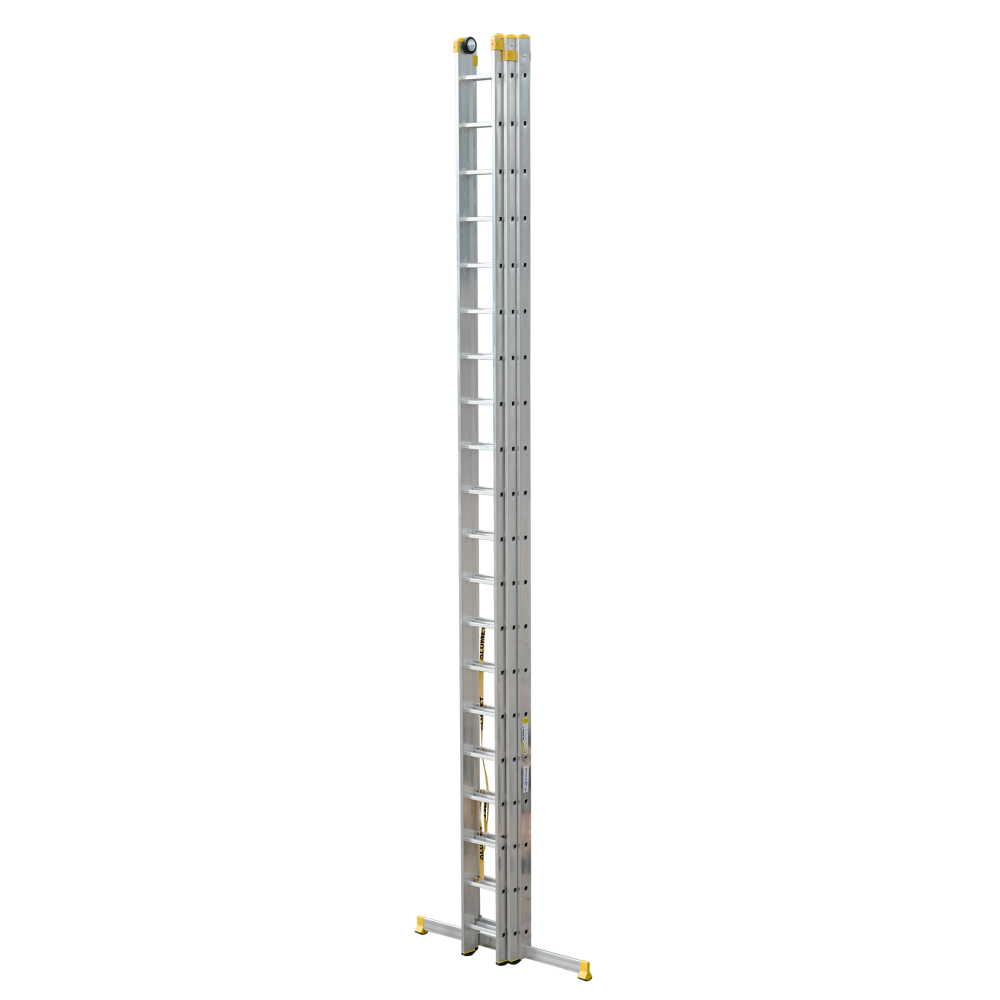

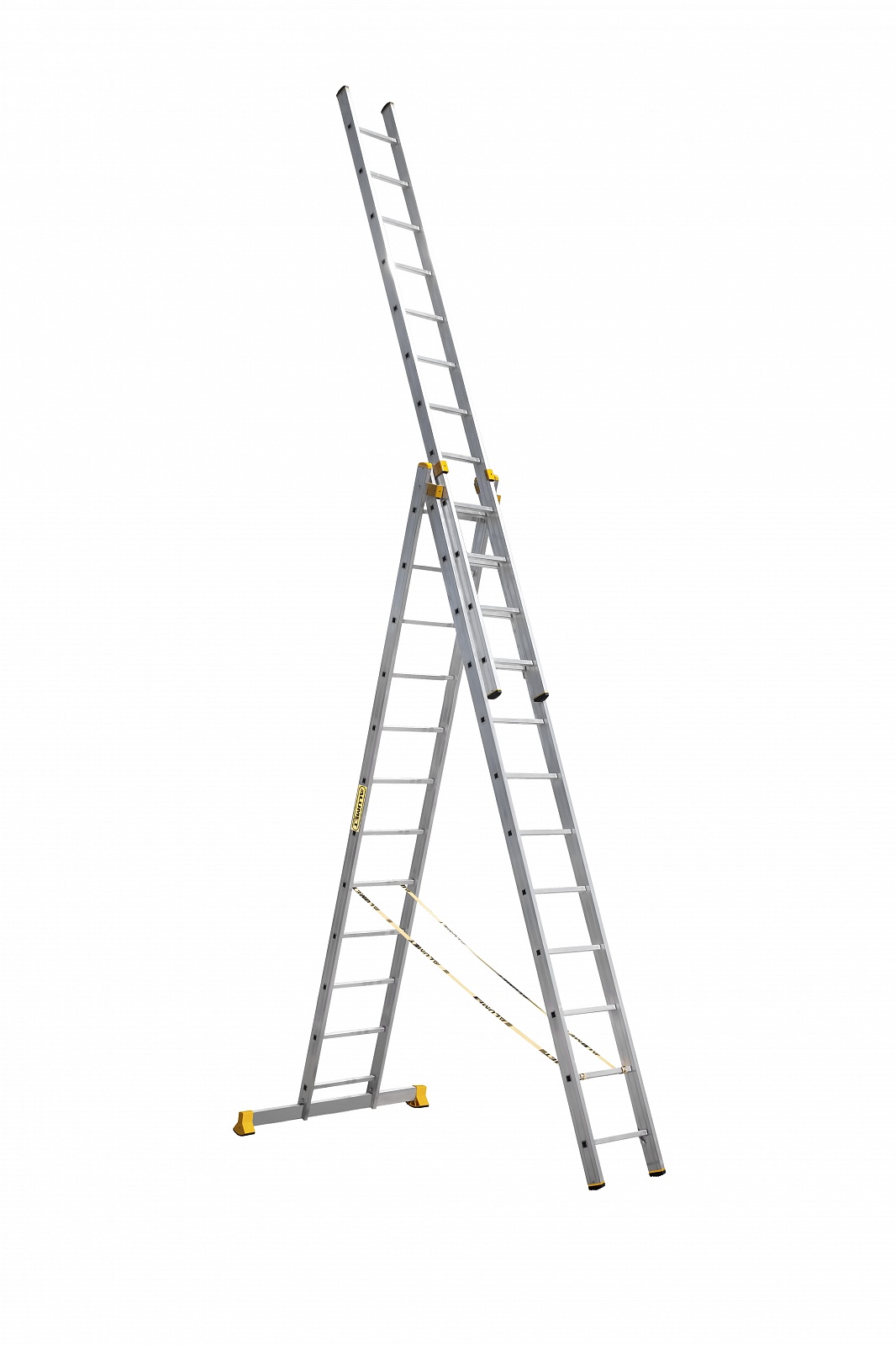

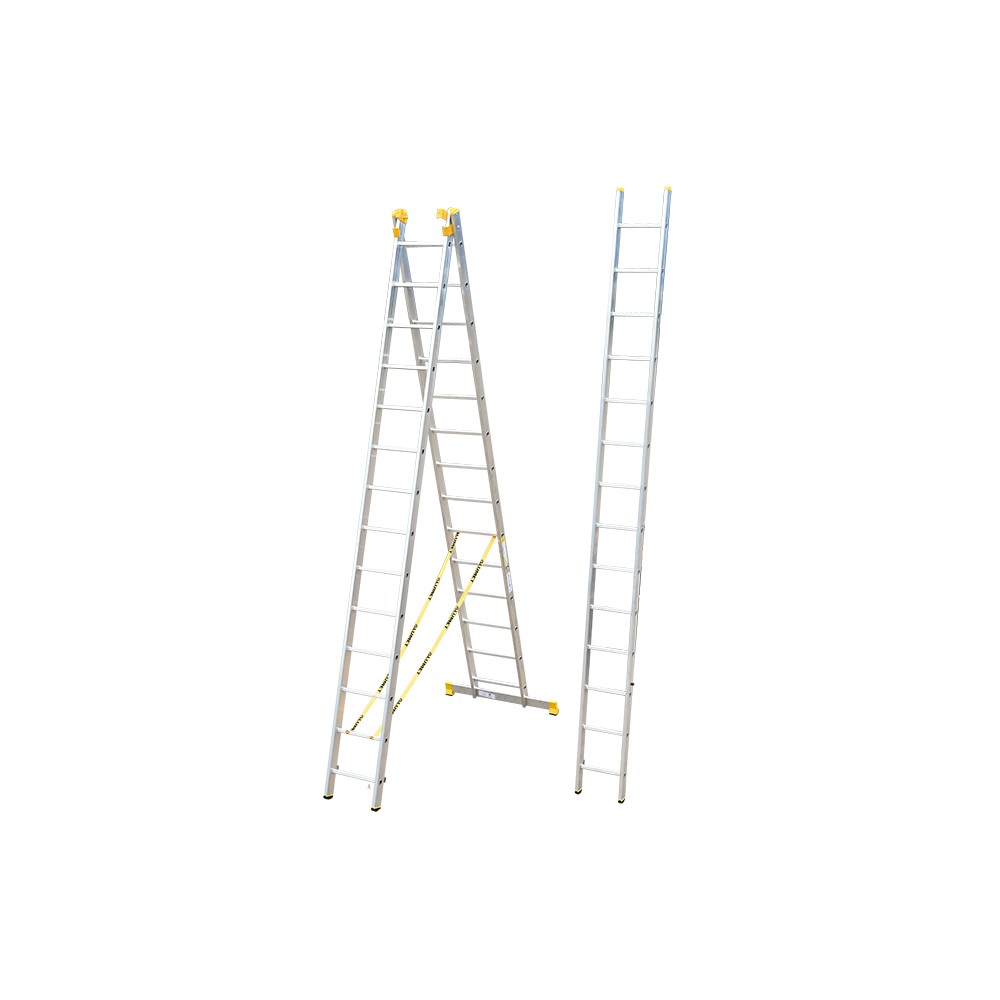

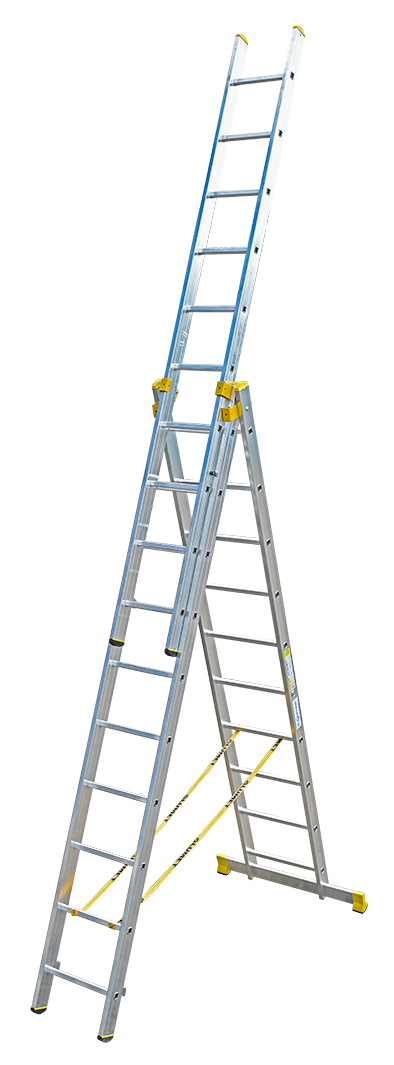

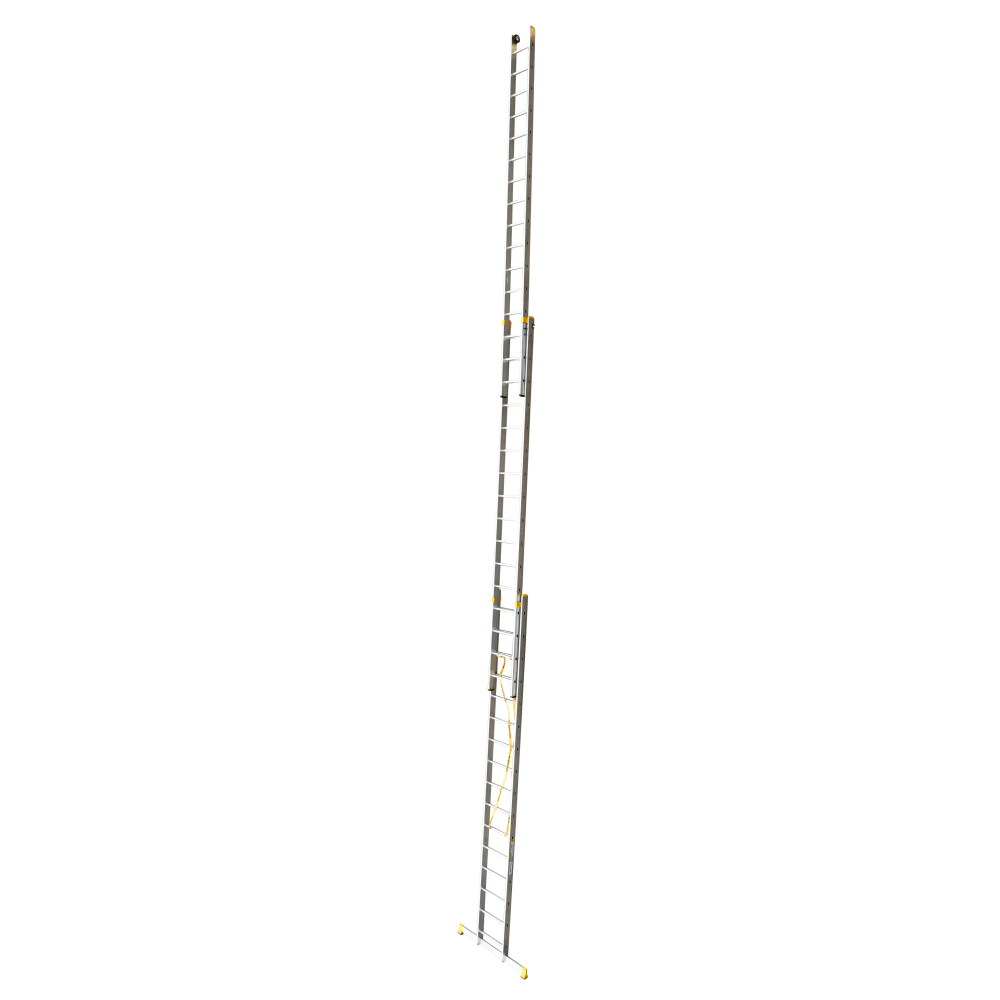

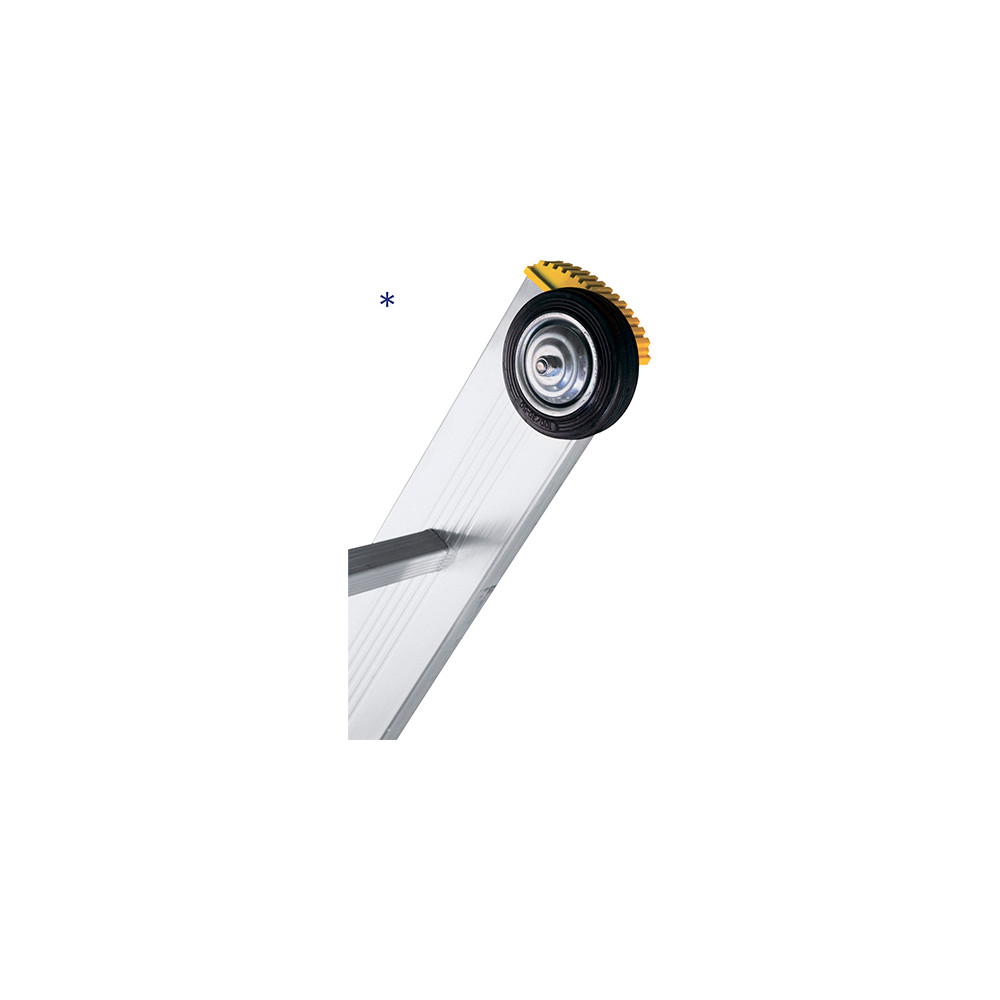

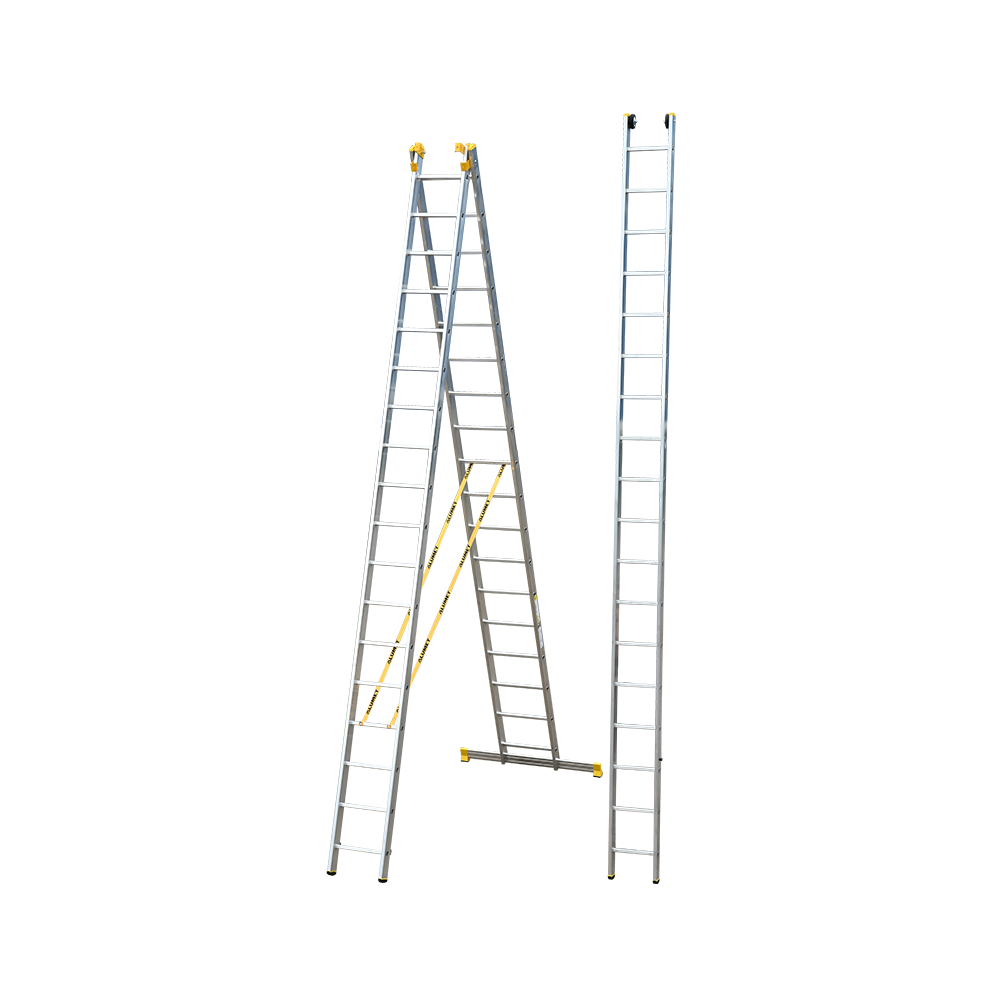

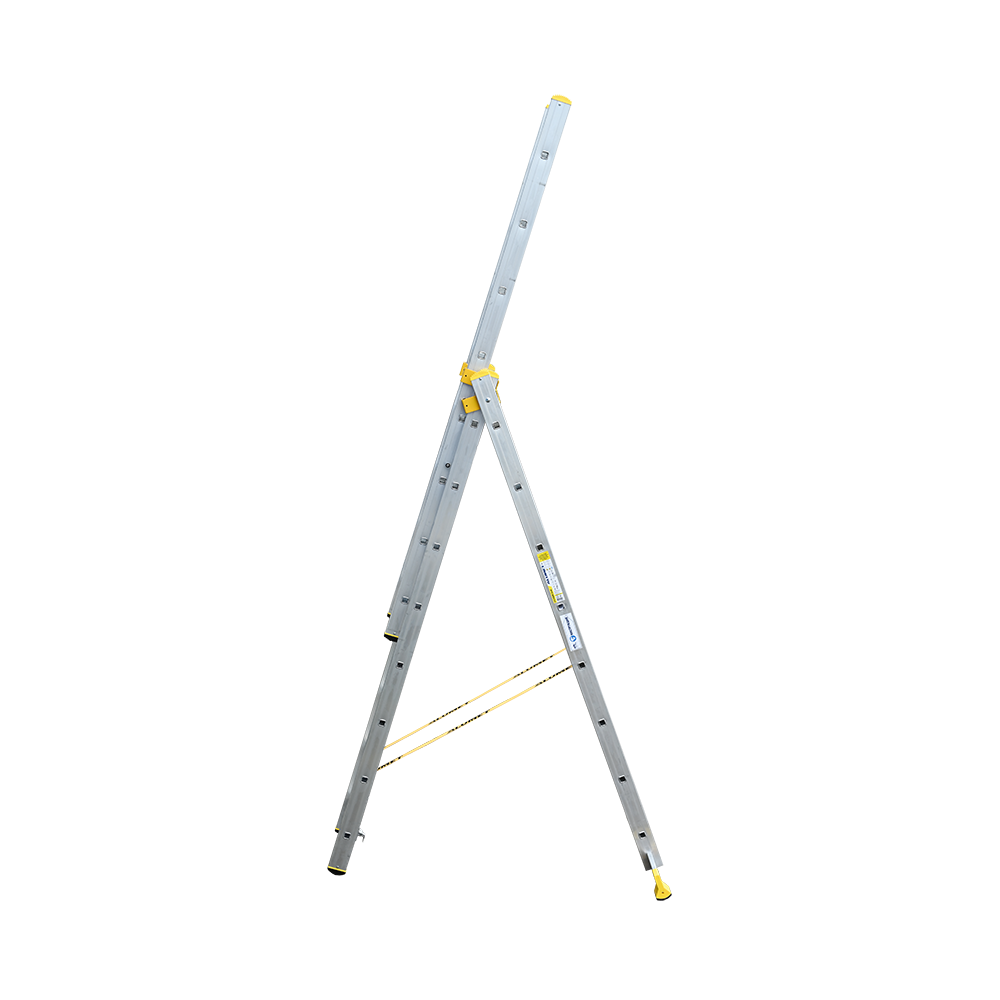

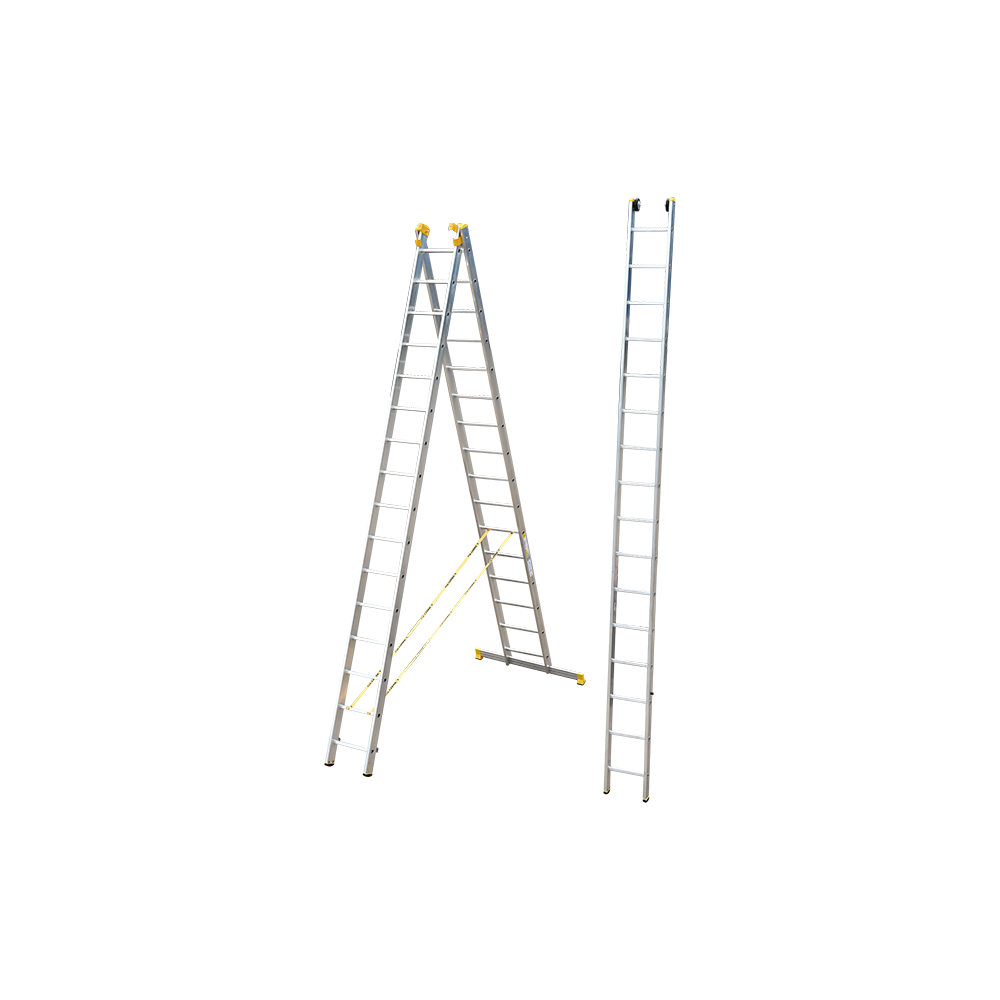

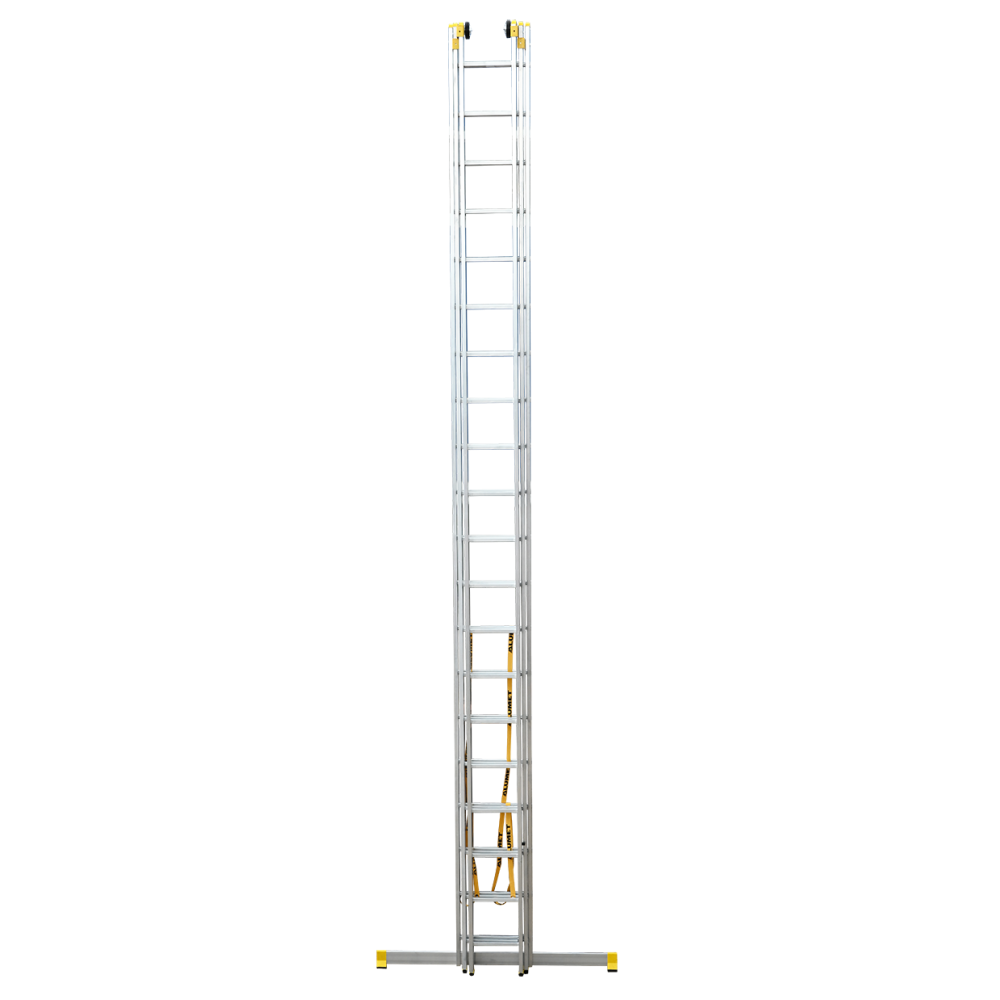

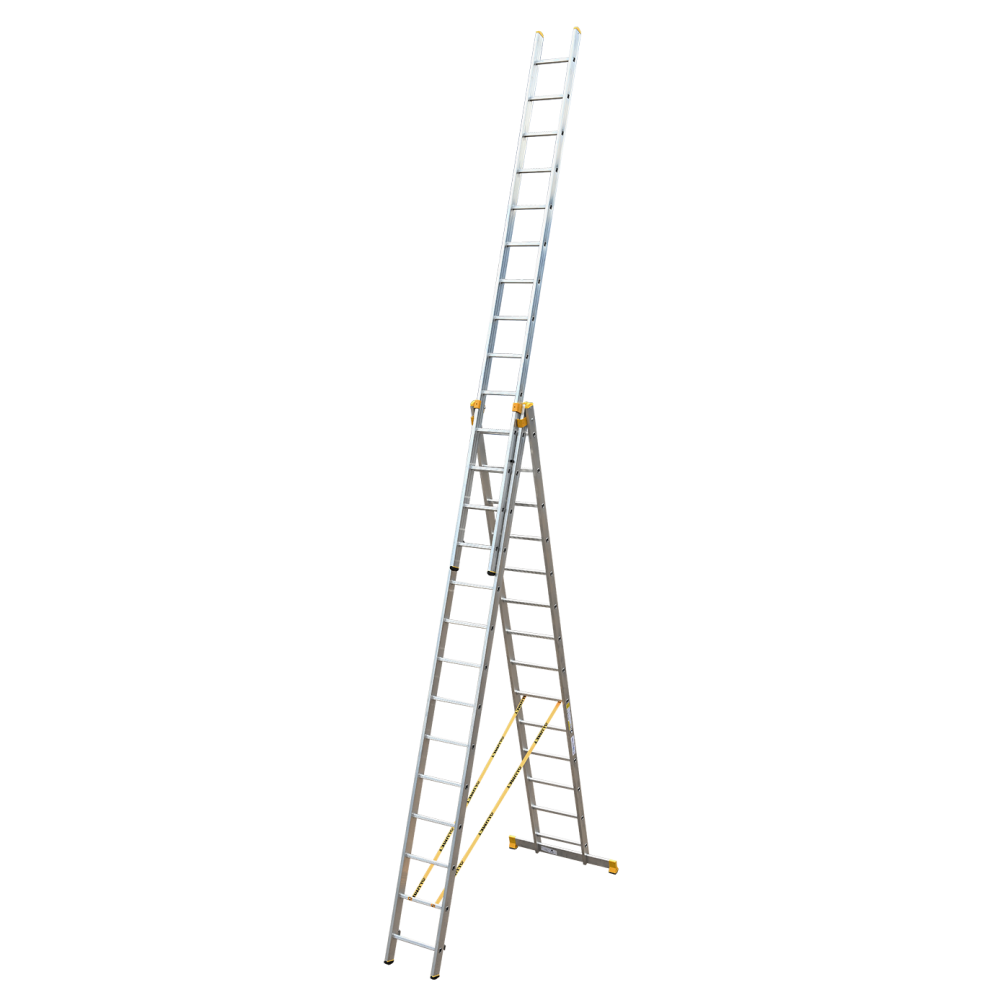

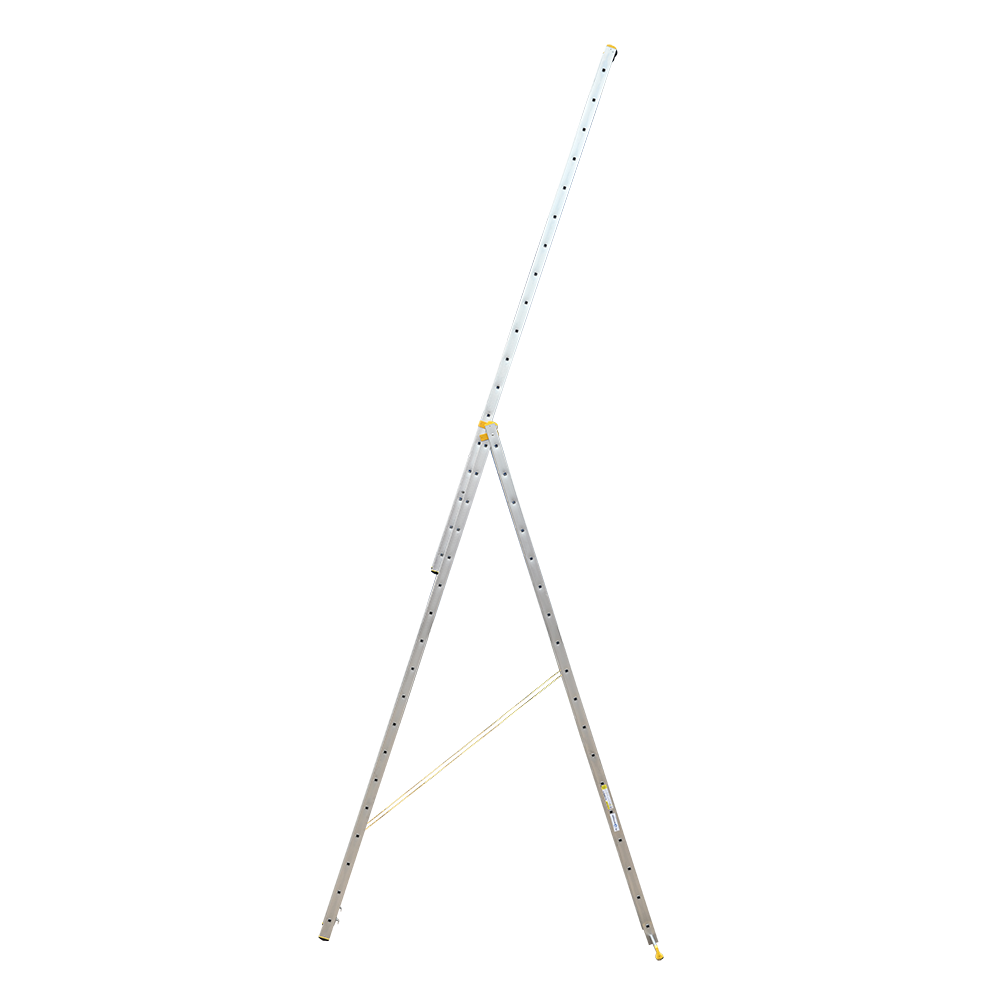

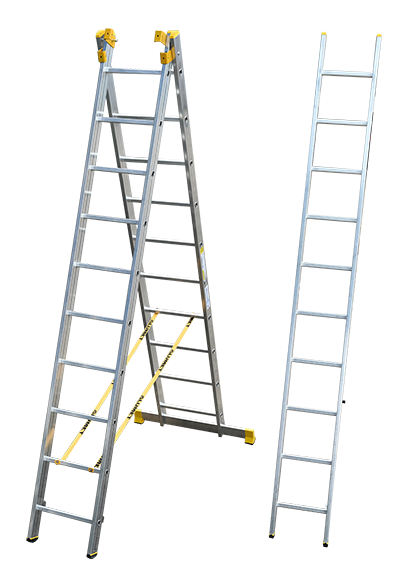

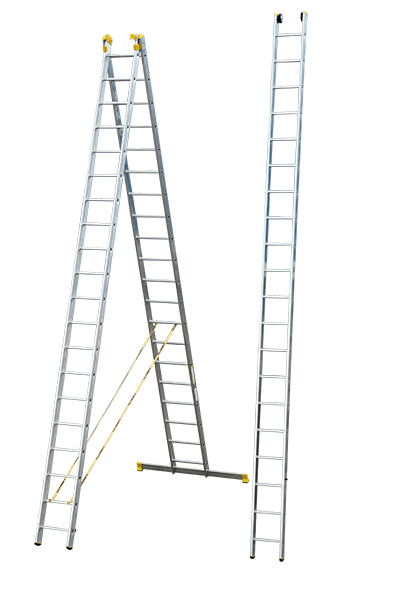

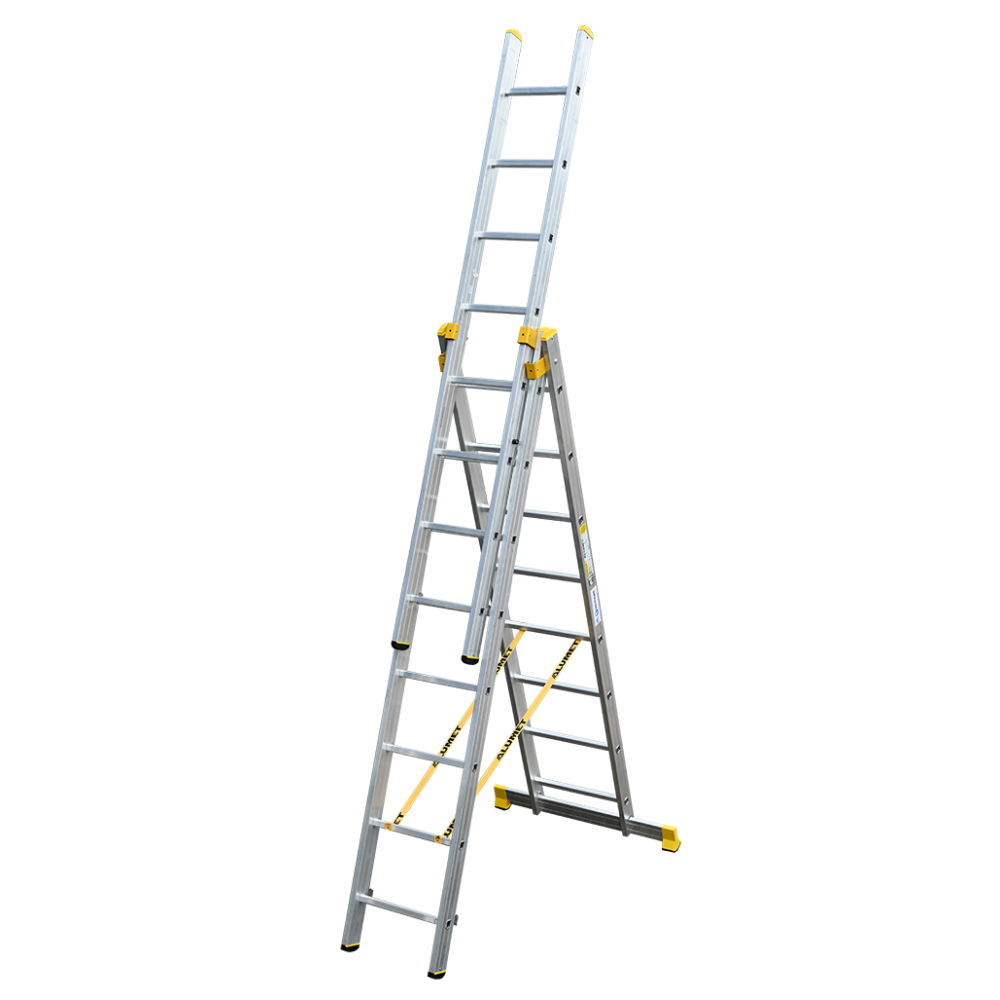

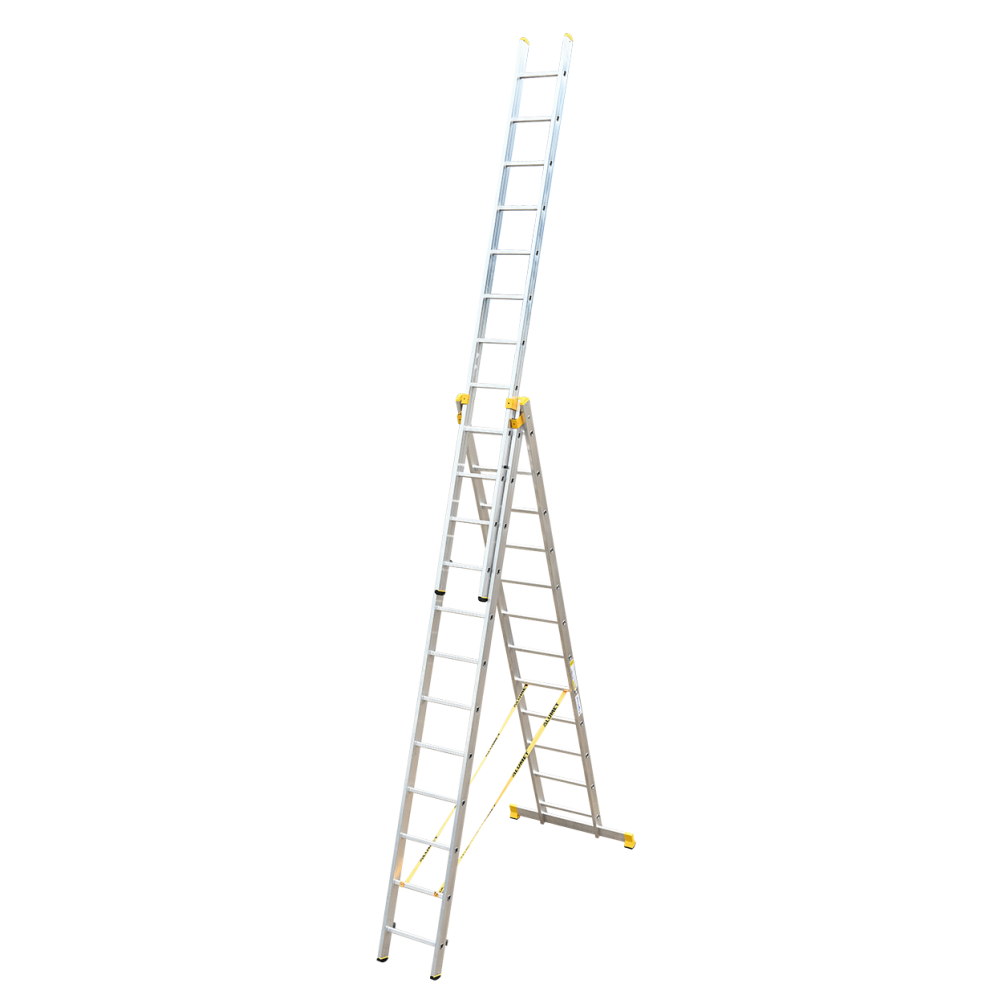

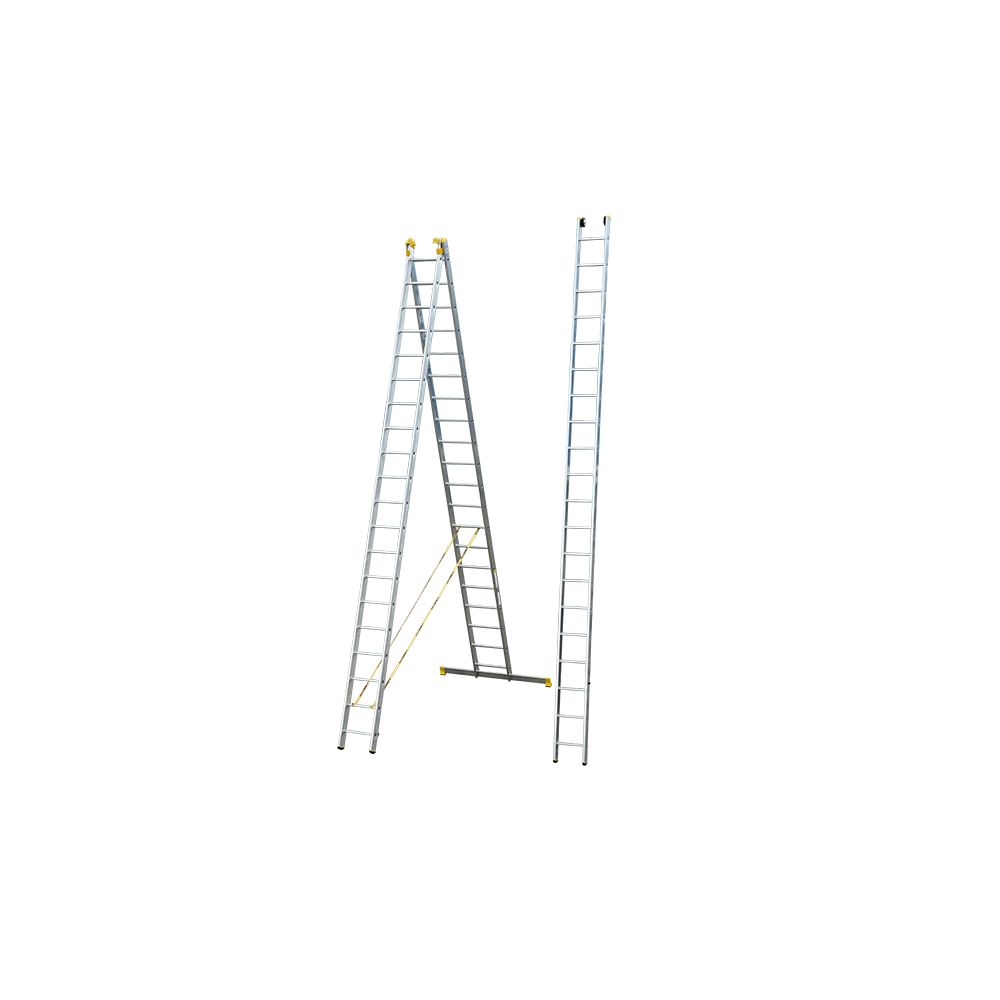

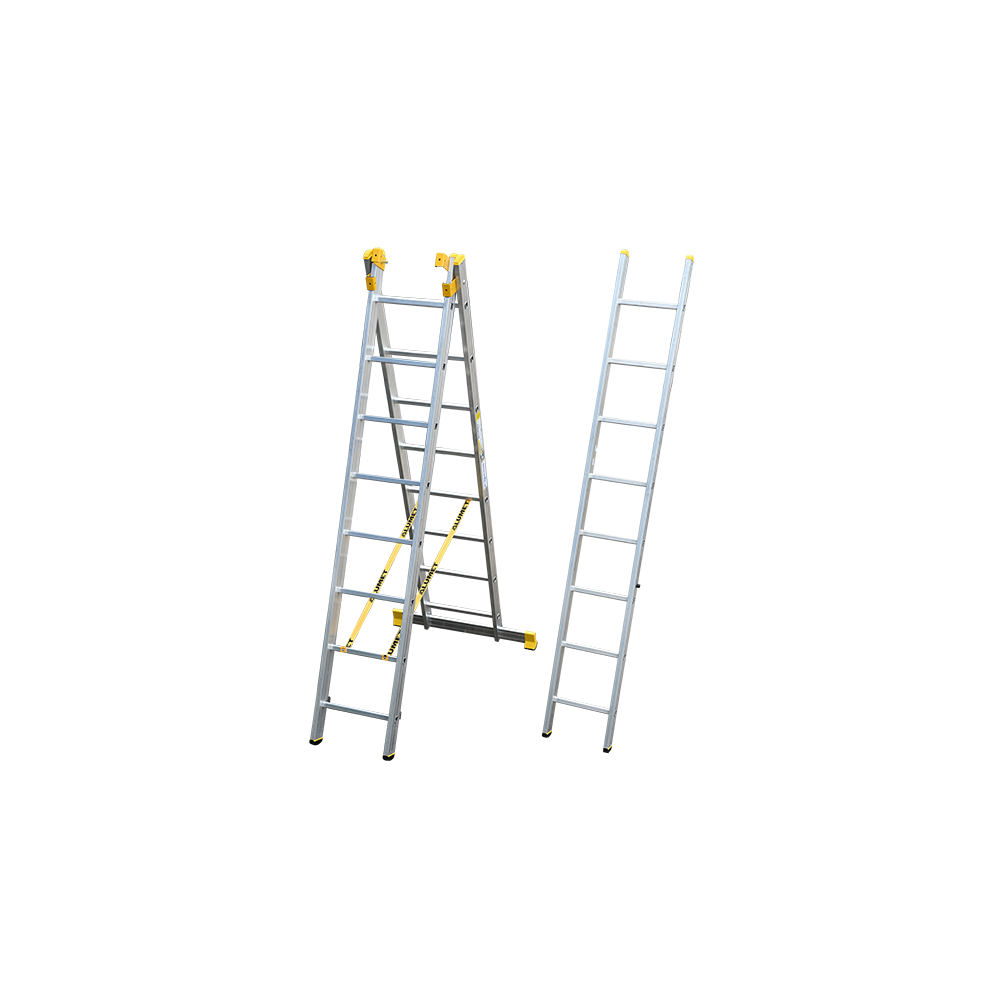

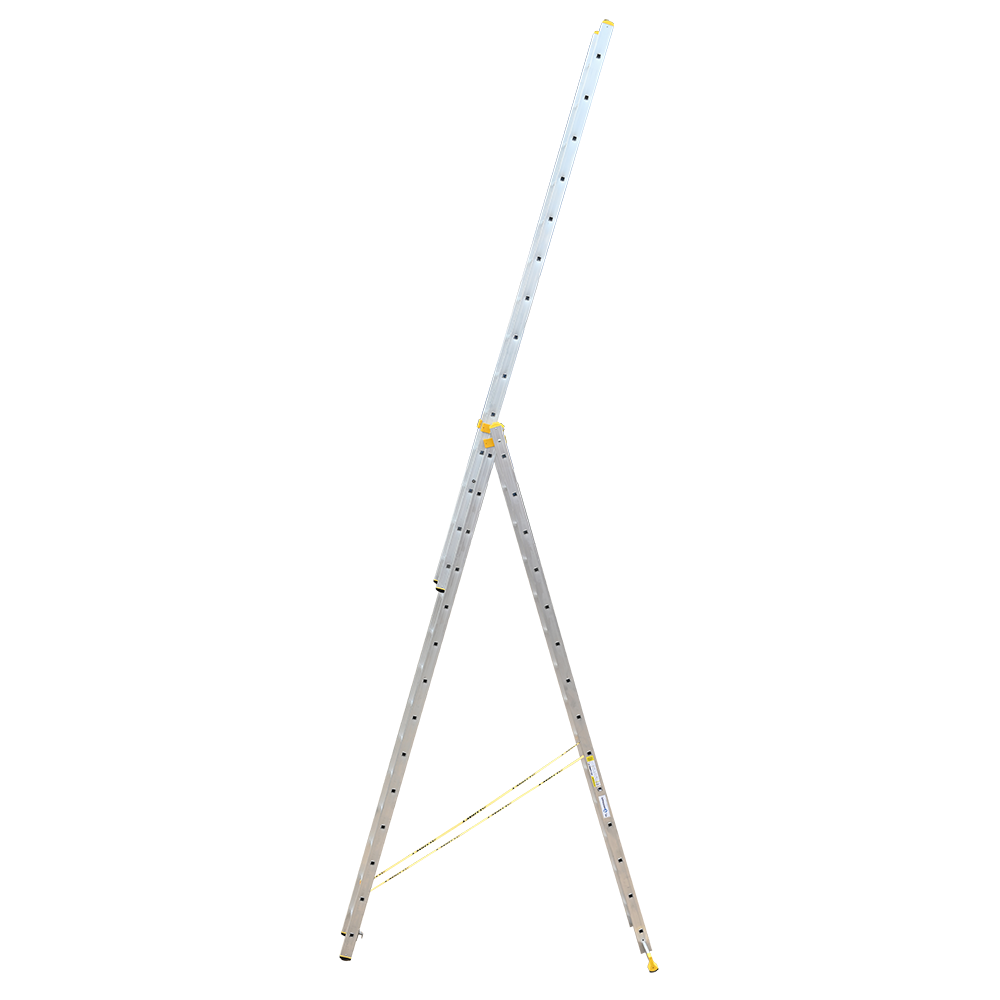

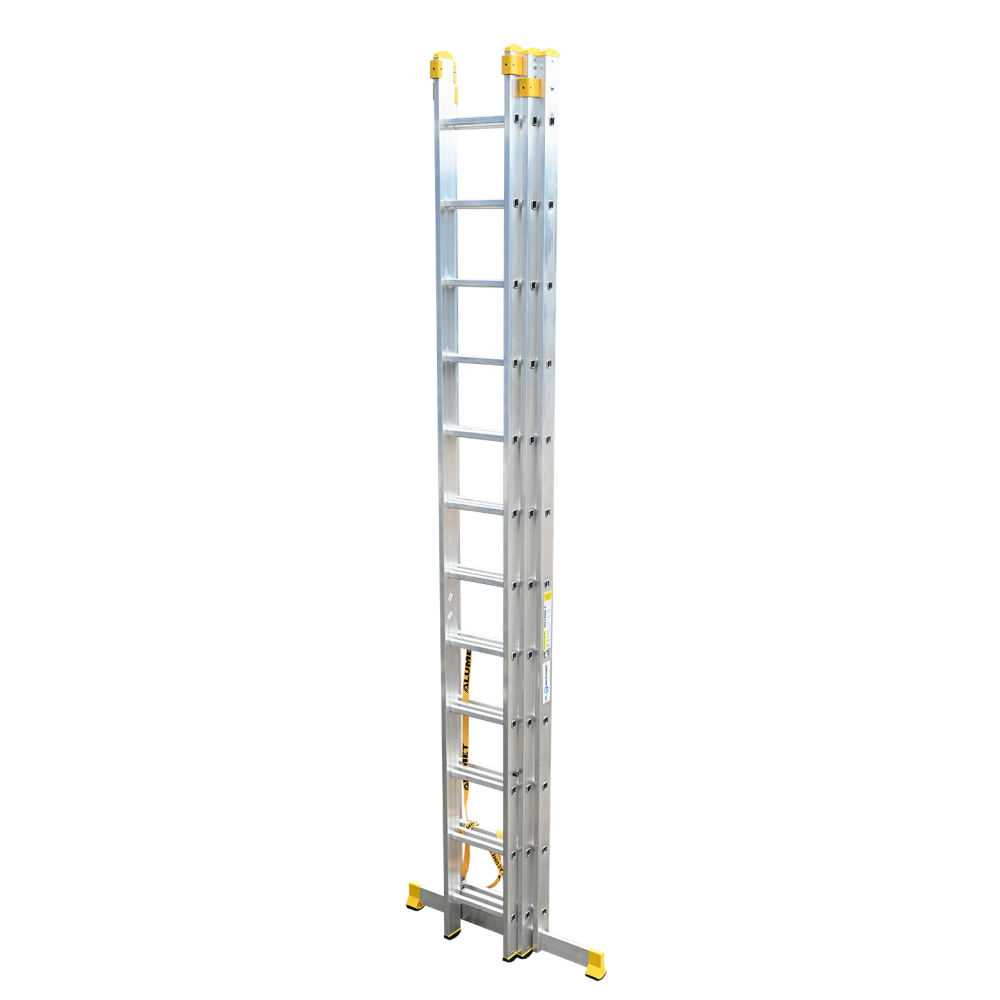

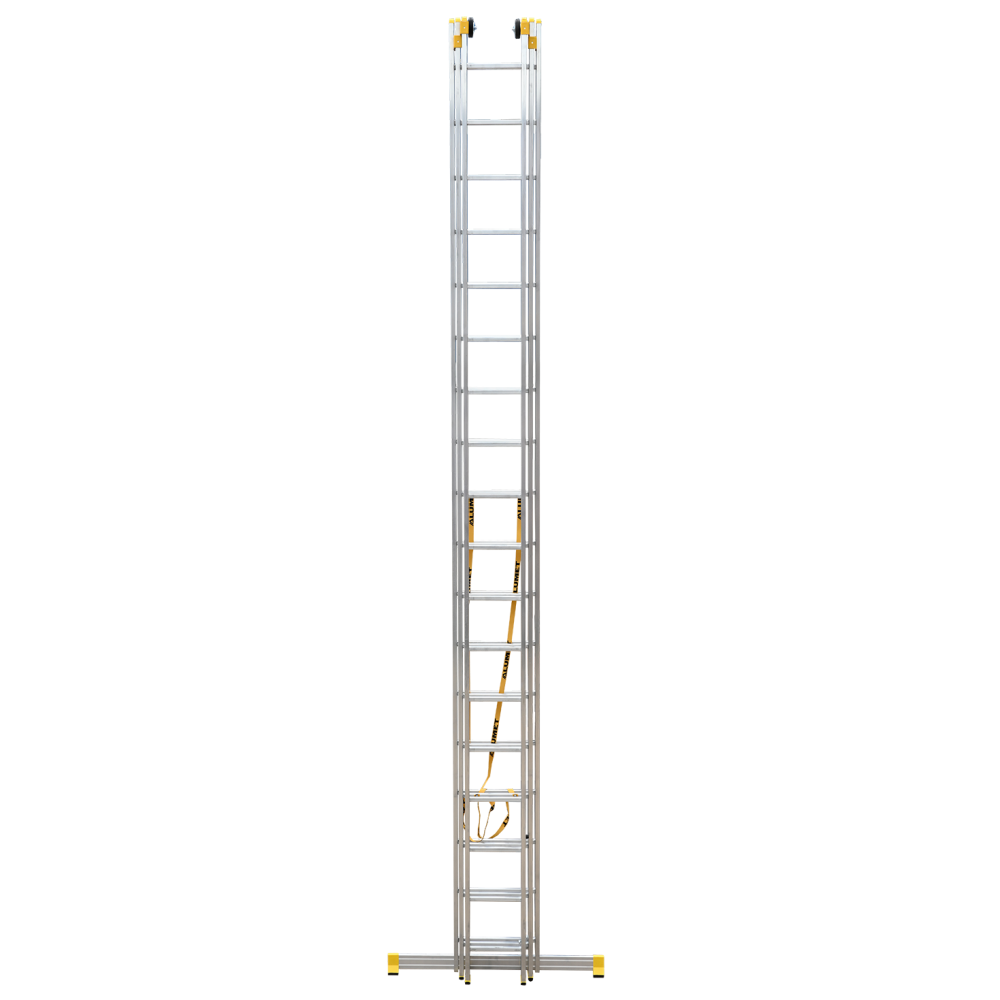

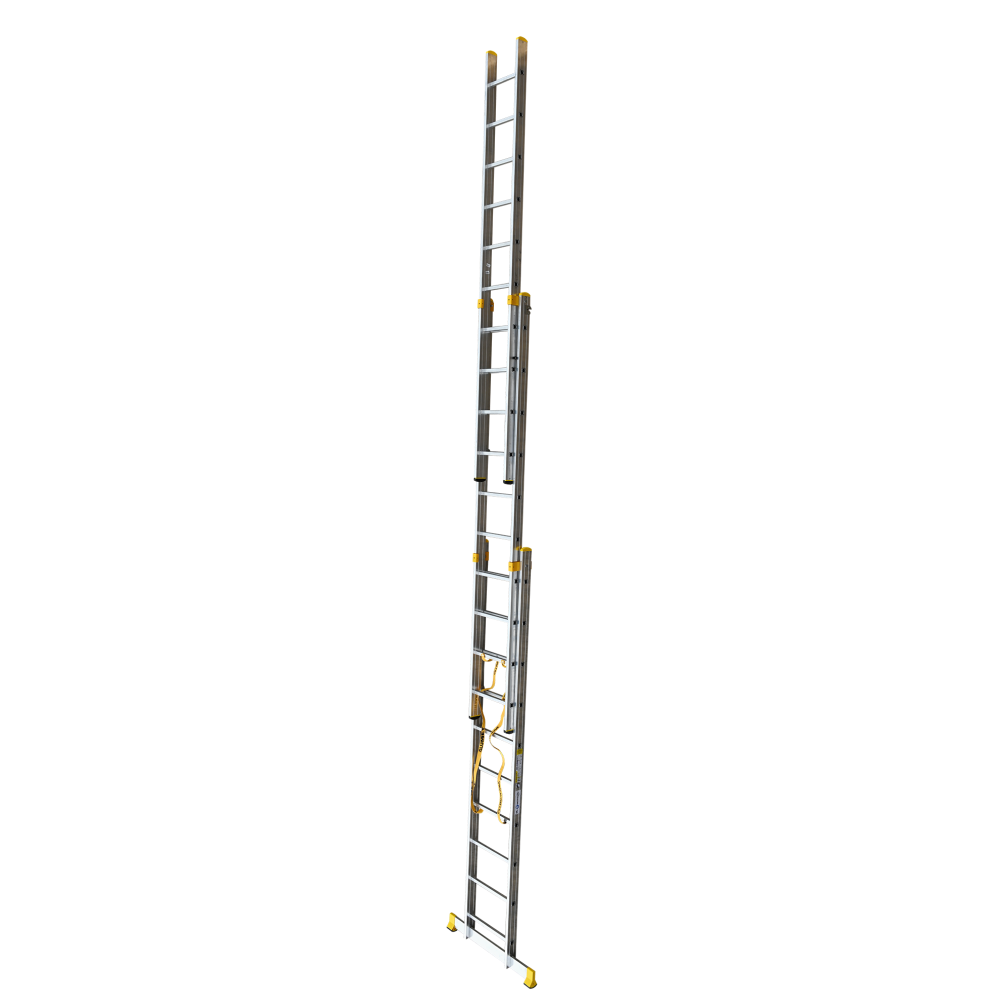

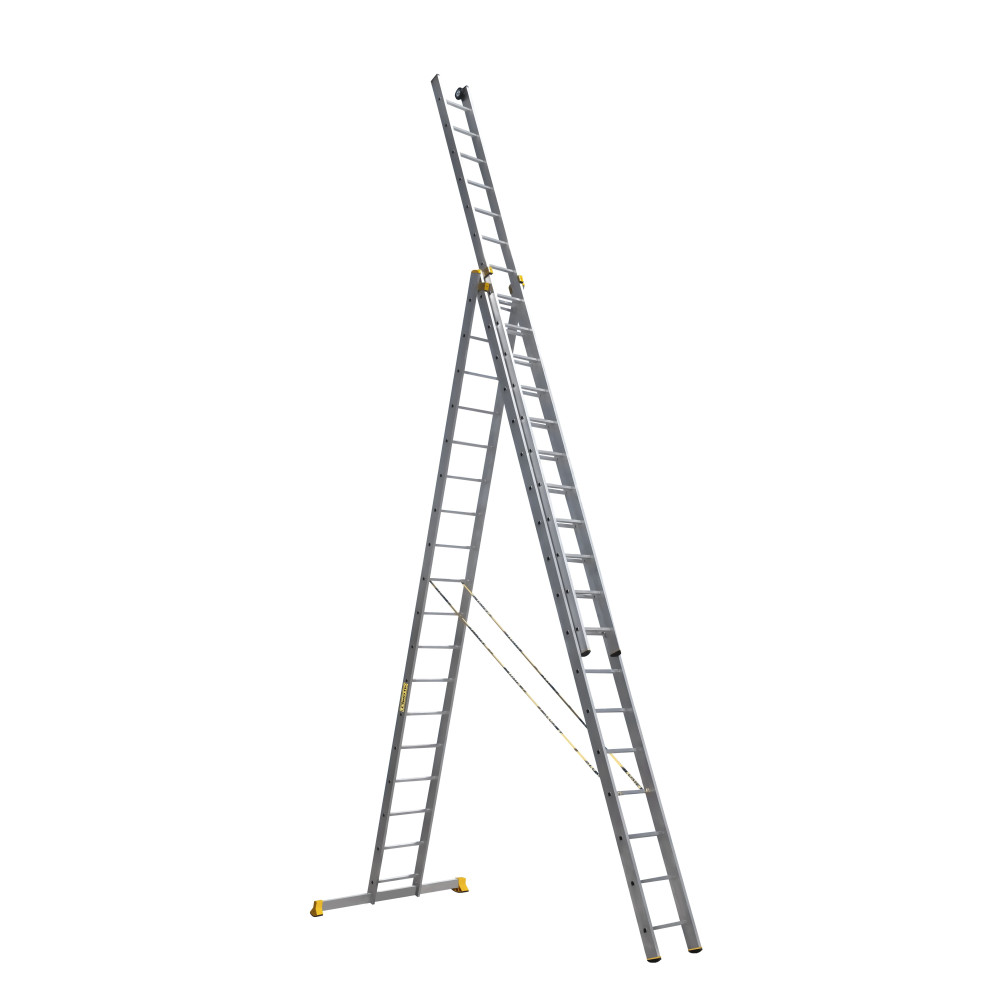

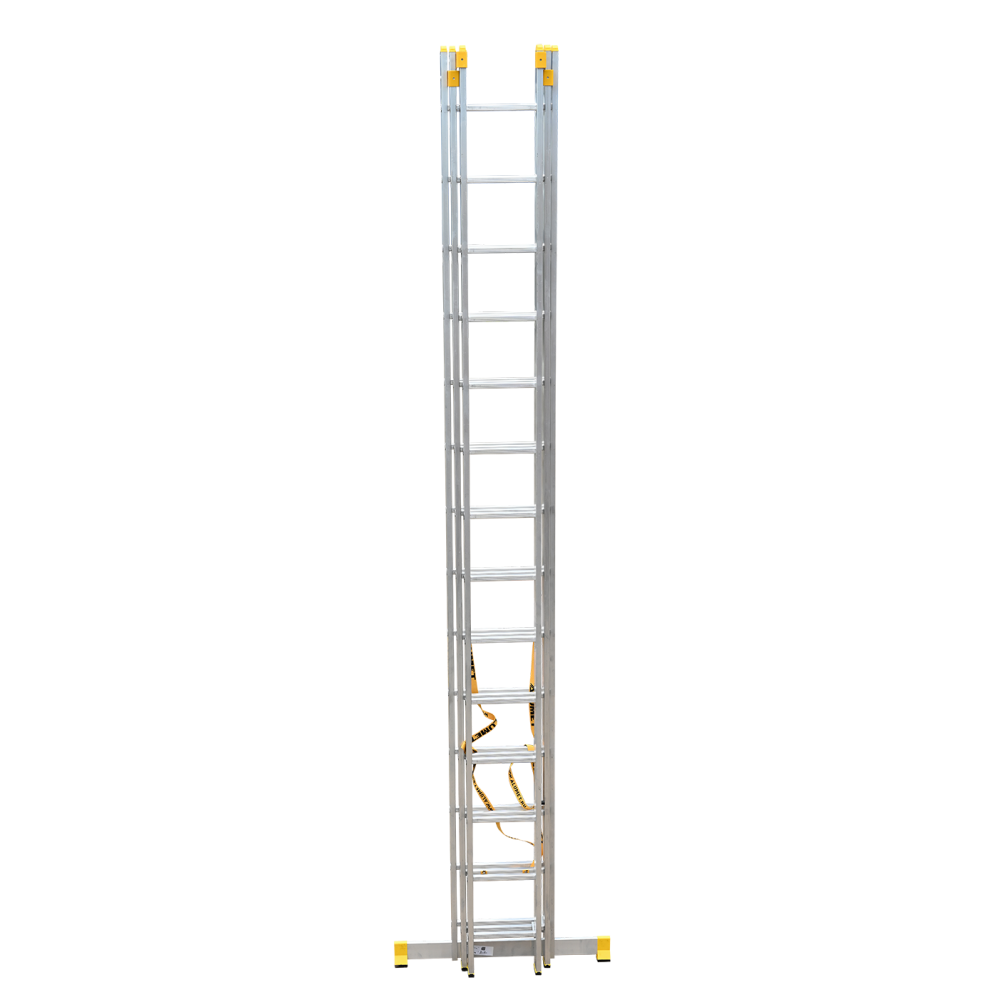

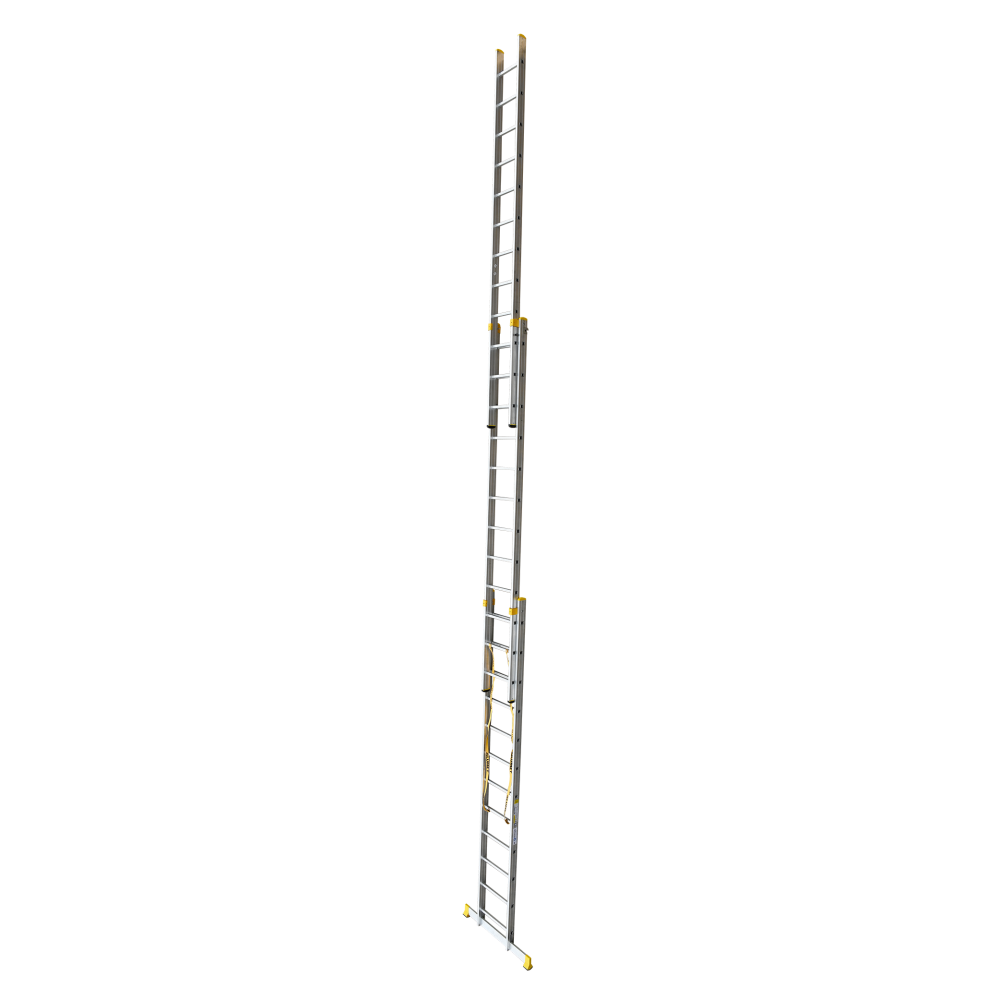

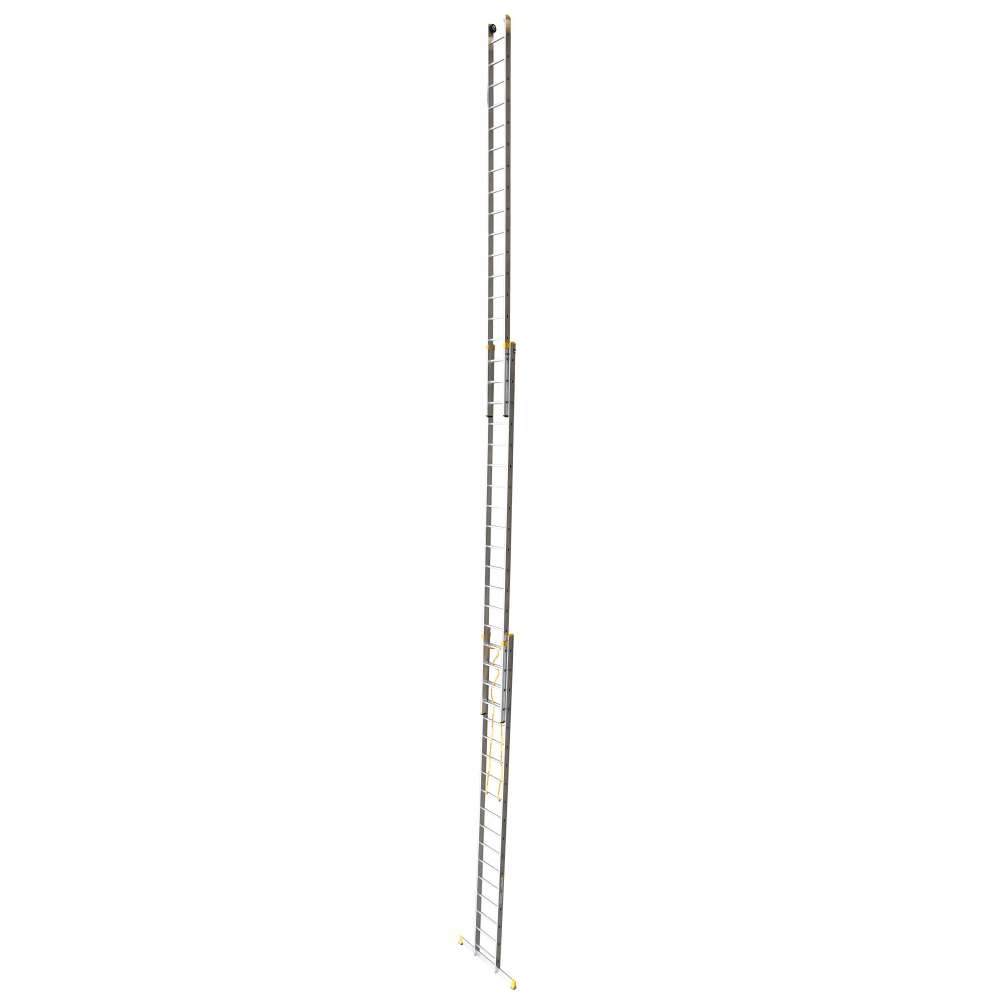

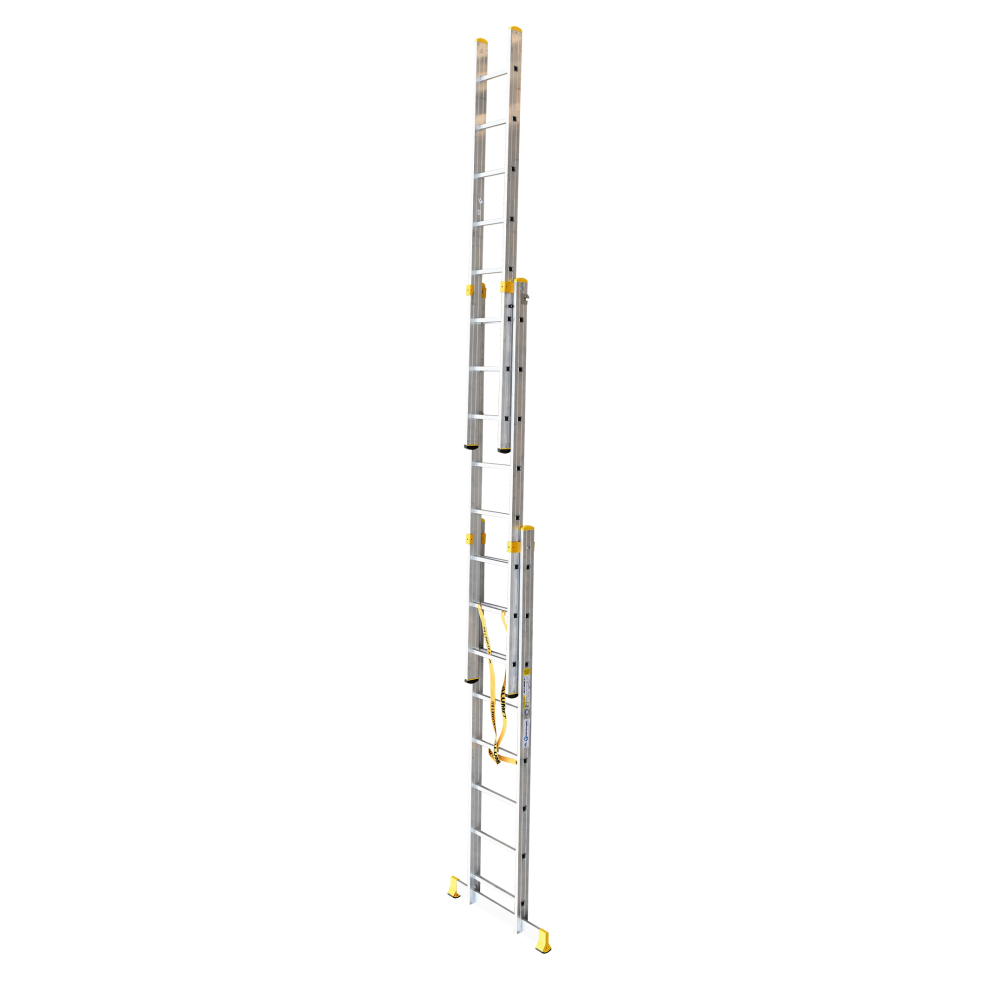

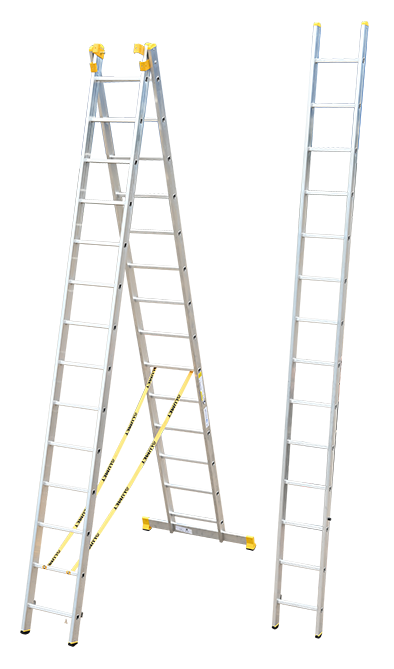

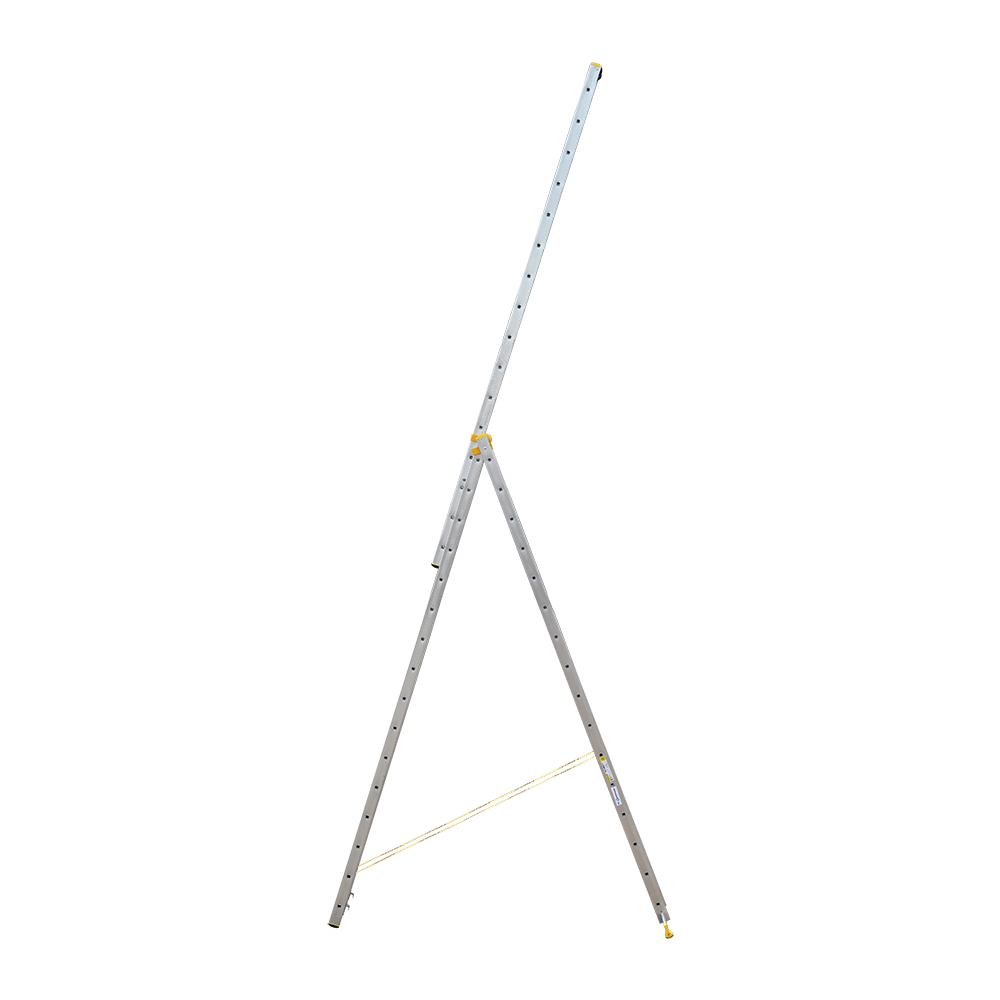

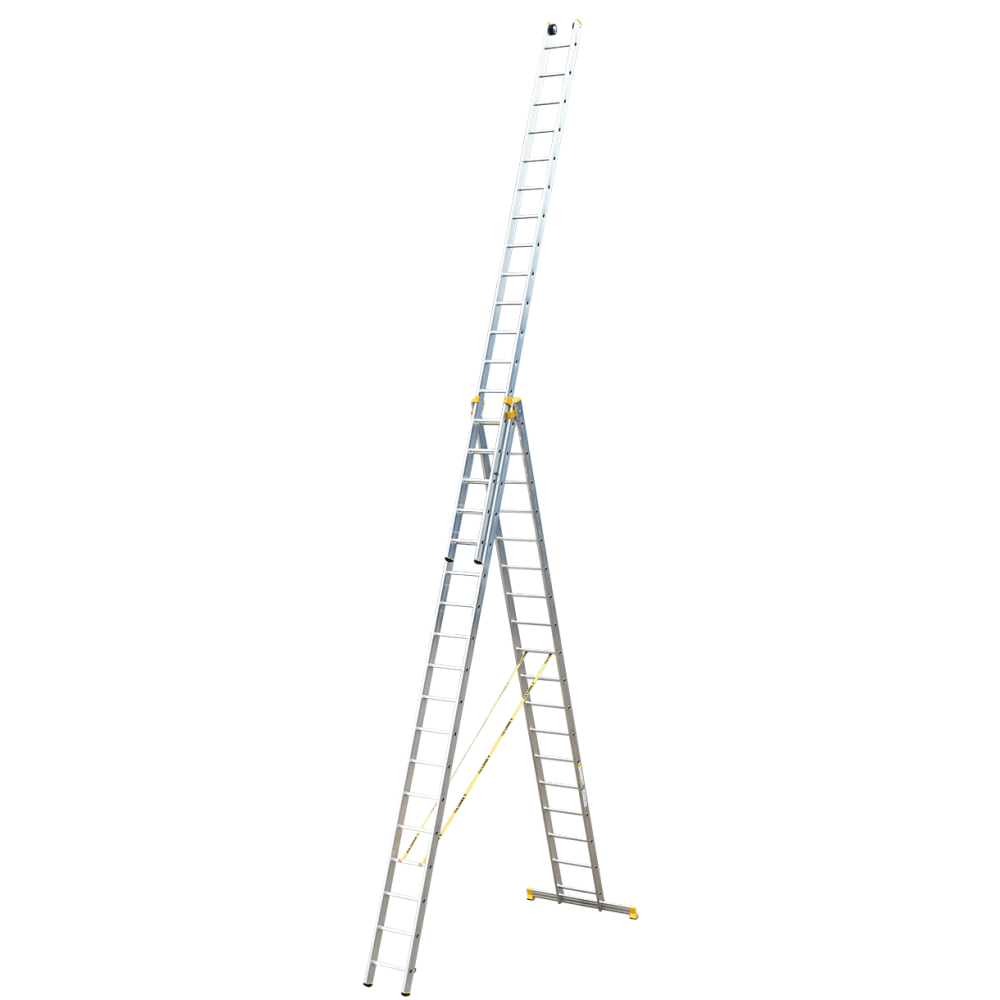

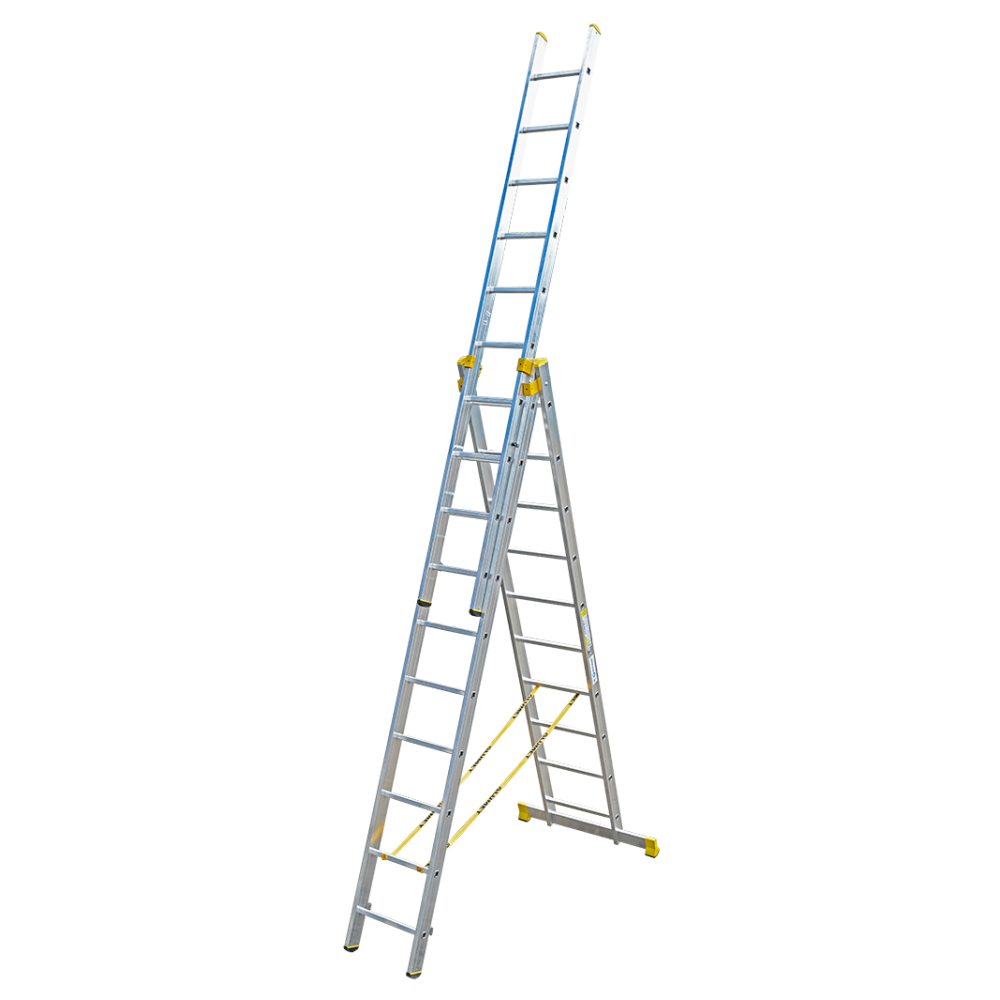

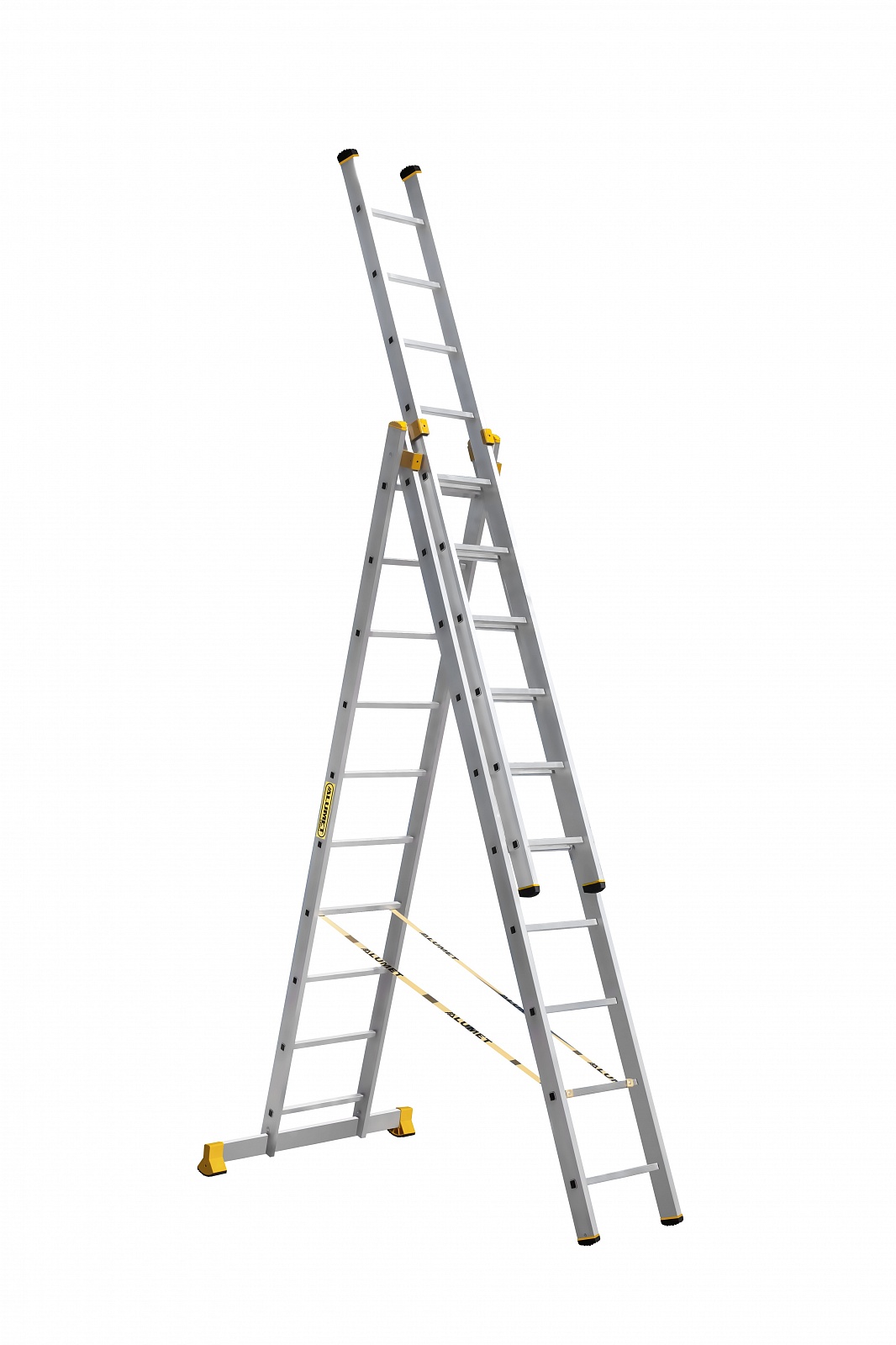

This versatile ladder can be used as a triple section extension ladder, as well as a self-supporting step ladder (in the shape of an inverted Russian letter ‘У’). Moreover, the third section is removable, and it can be used separately as a straight ladder, while the remaining part can be used as a double multipurpose ladder. This ladder is by right the most multipurpose of all, and despite the necessary pairwise overlap of sections both in the ‘extension ladder’ and the ‘step ladder’ configurations, which complicates the design, makes the ladder heavier and therefore increases its cost, it is the most popular option due to its exceptional versatility. PS Particular care should be taken with models 9316, 9318, and 9320. Thus, in the working position ‘ʎ’, ‘inverted Russian У’ or ‘step ladder’, when a worker extends the third section to fix it at a certain height, he may be ‘outweighed’ by the already extended part of the third section. The worker must be prepared for this and additionally insured against falling in accordance with section ‘4. Some general safety measures’. It is often not possible to extend all three sections to make an extension ladder, while holding the ladder at an angle of 65-75 degrees to the object (for example, when it is necessary to lean the ladder against a roof edge). In such cases, the ladder of a required length is assembled on the ground and setup into working position with the help of additional means (a winch, ropes, etc.). It is not a quick procedure, but necessary to ensure safety of primary and secondary workers.

Technical specifications

Vendor code	Number of steps	Section length	Length of two sections	Length of three sections	Height max	Height of two sections	Höhe von drei Abschnitten	Width	Stabilizer length	Profile	Weight
P3 9308	3x8	2.40	3.81	5.21	3.30	4.71	6.11	0.33/0.41/0.48	0.90	84x25	18.0
P3 9310	3x10	2.96	4.93	6.89	3.86	5.83	7.79	0.33/0.41/0.48	0.90	84x25	22.2
P3 9312	3x12	3.52	6.05	8.57	4.42	6.95	9.47	0.33/0.41/0.48	1.00	84x25	26.3
P3 9314	3x14	4.08	7.17	10.25	4.98	8.07	11.15	0.33/0.41/0.48	1.00	84x25	29.9
P3 9316*	3x16	4.64	8.29	11.93	5.54	9.19	12.83	0.33/0.41/0.48	1.20	100x25	36.6
P3 9318*	3x18	5.20	9.41	13.61	6.10	10.31	14.51	0.33/0.41/0.48	1.20	100x25	40.5
P3 9320*	3x20	5.76	10.53	15.29	6.66	11.43	16.19	0.33/0.41/0.48	1.50	104x25	47.0
