Серия T4

Professional Aluminum Four Section Hinged Multipurpose Ladder (Transformer)

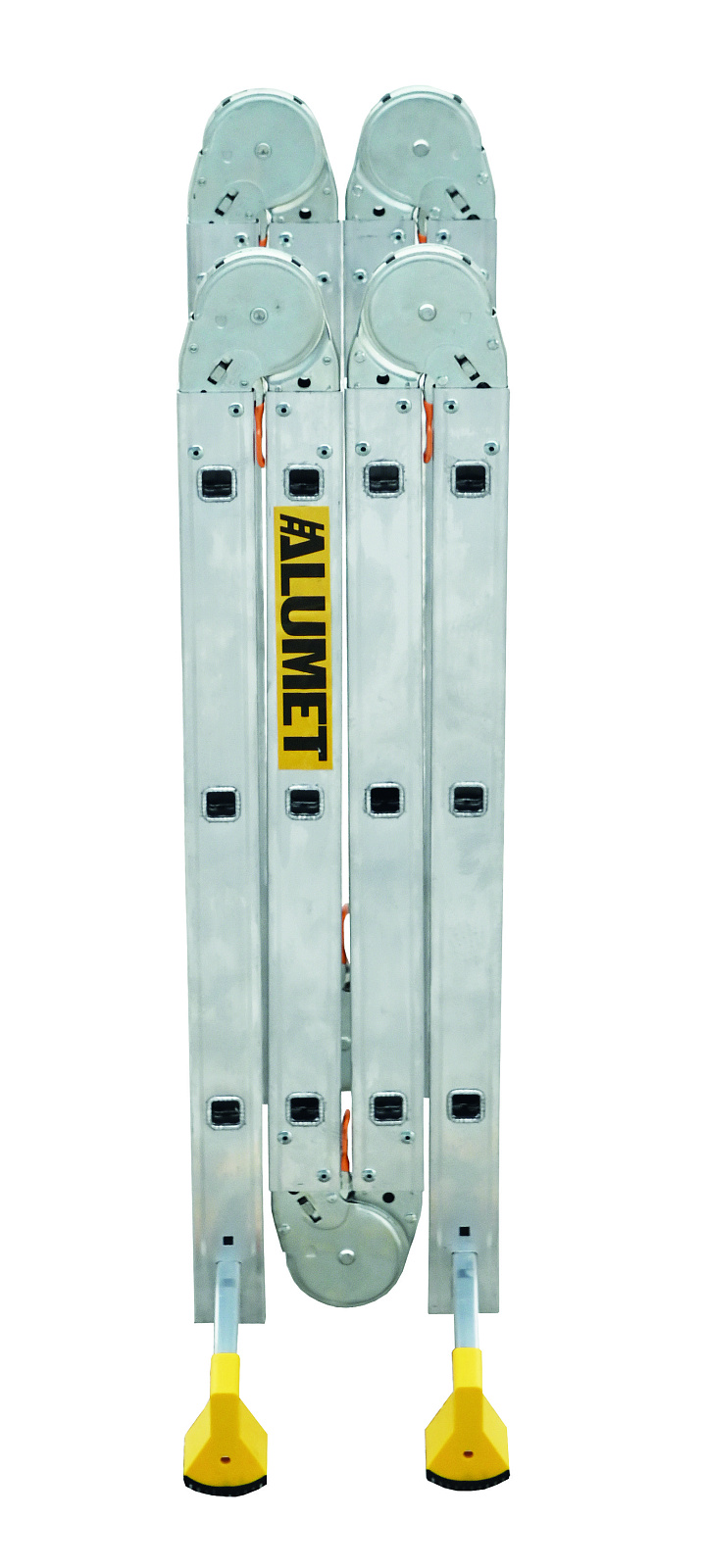

Article:

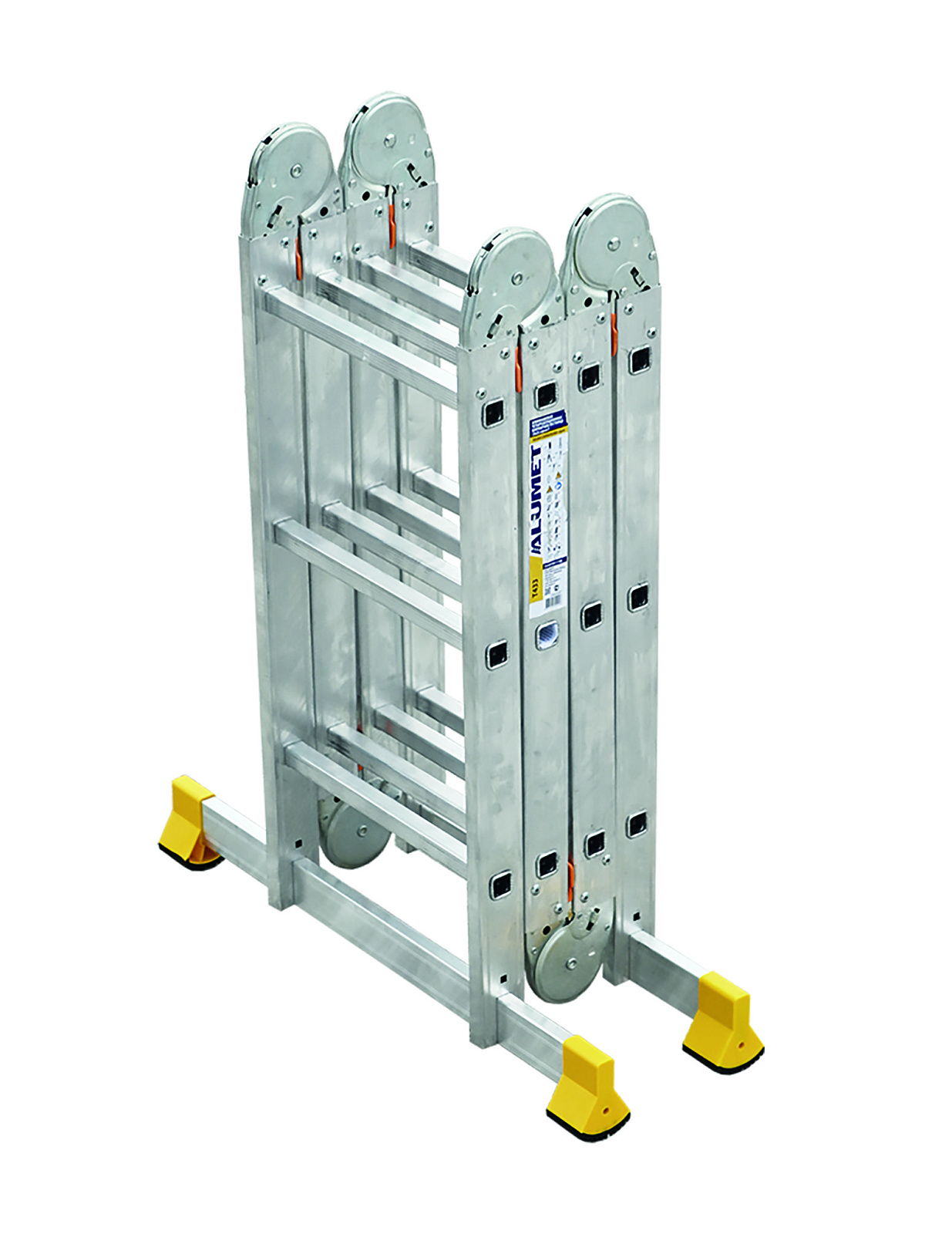

T433

Vendor code T433
Number of steps 4x3
Length folded 0.98
Folded width 0.27
Height 1.73
Length of four sections 3.55
Height max 2.63
Height max 4.45
Width 0.41

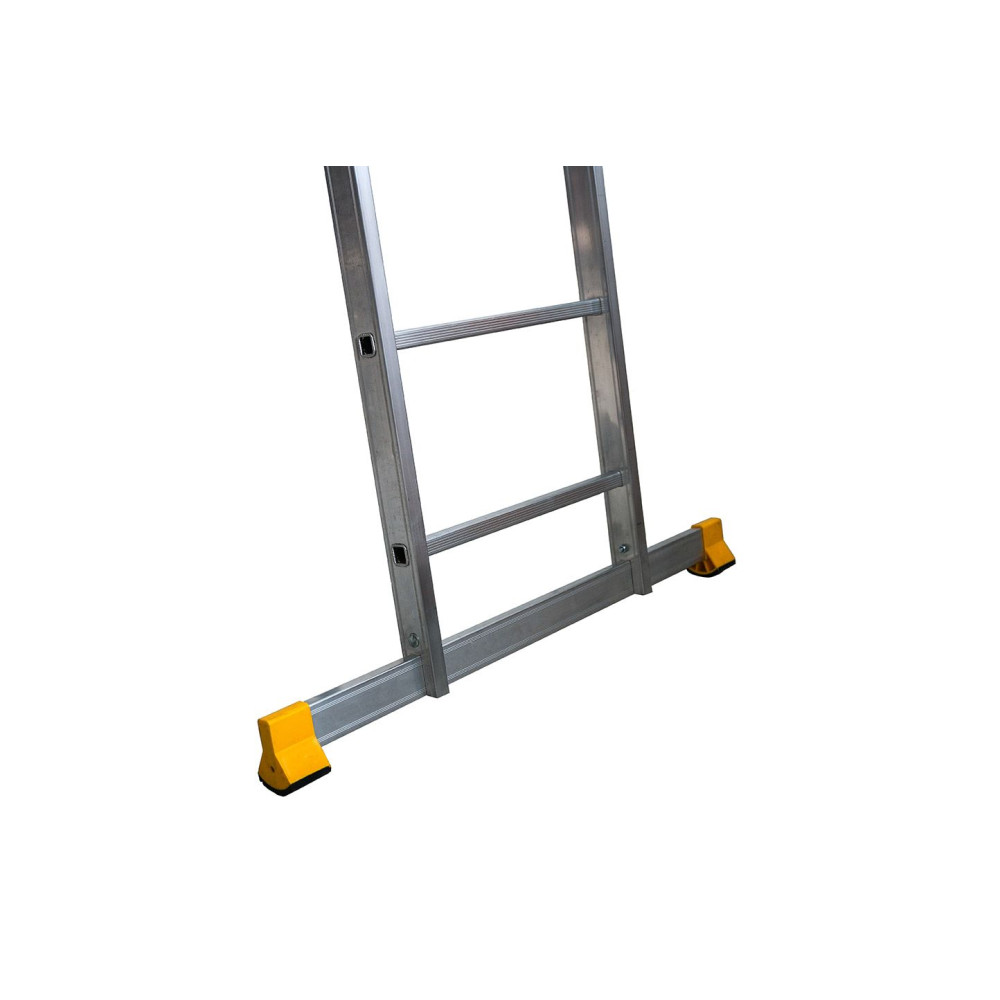

Stabilizer length 0.8

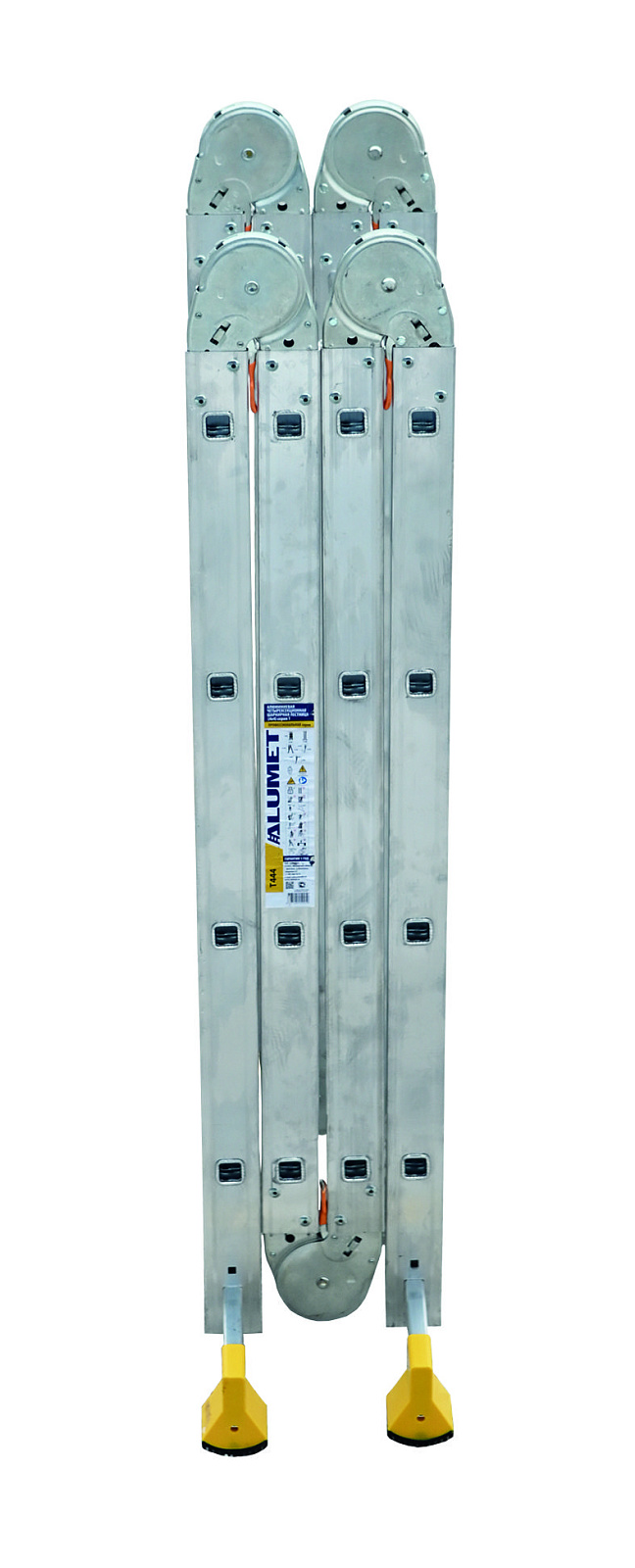

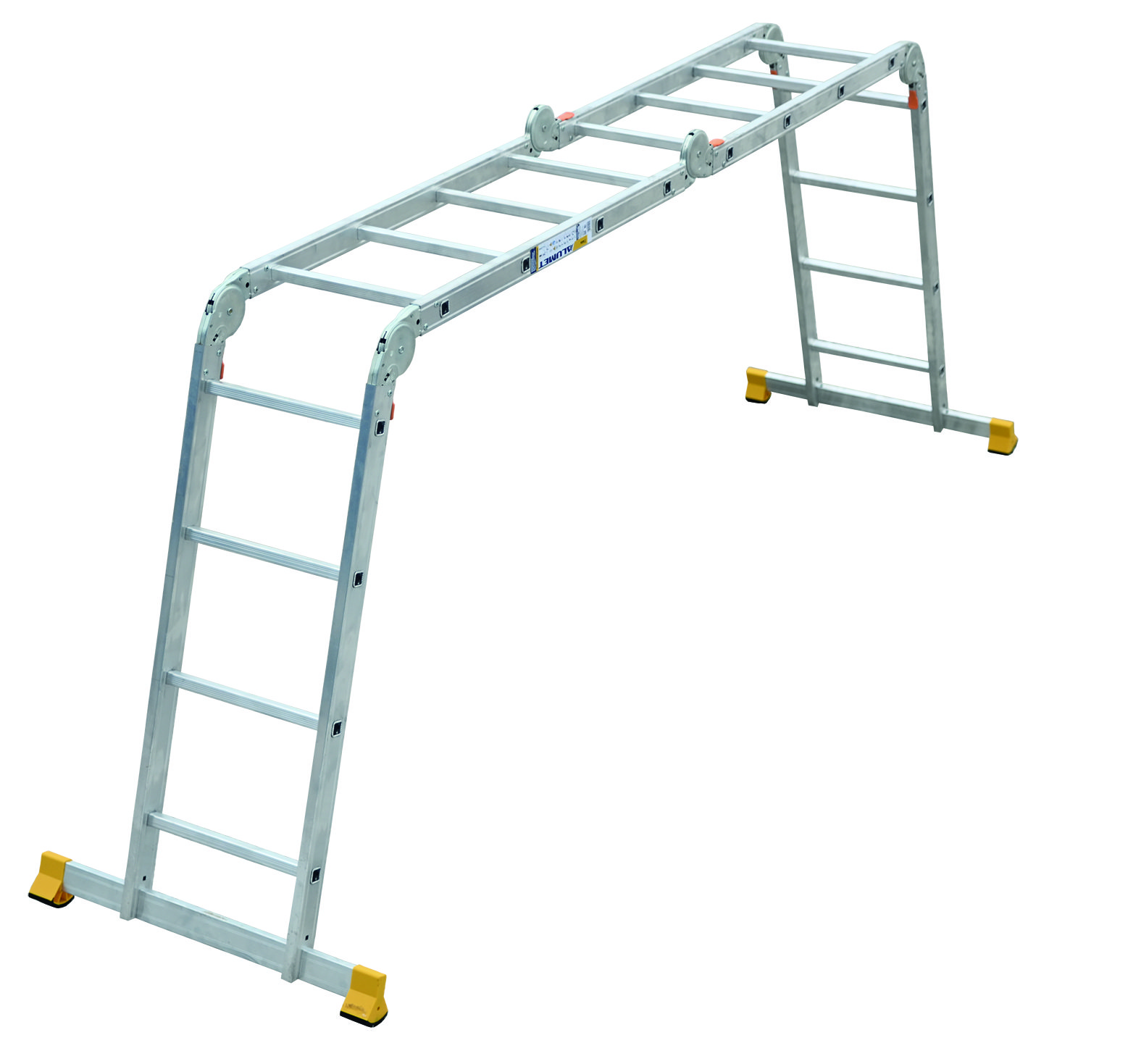

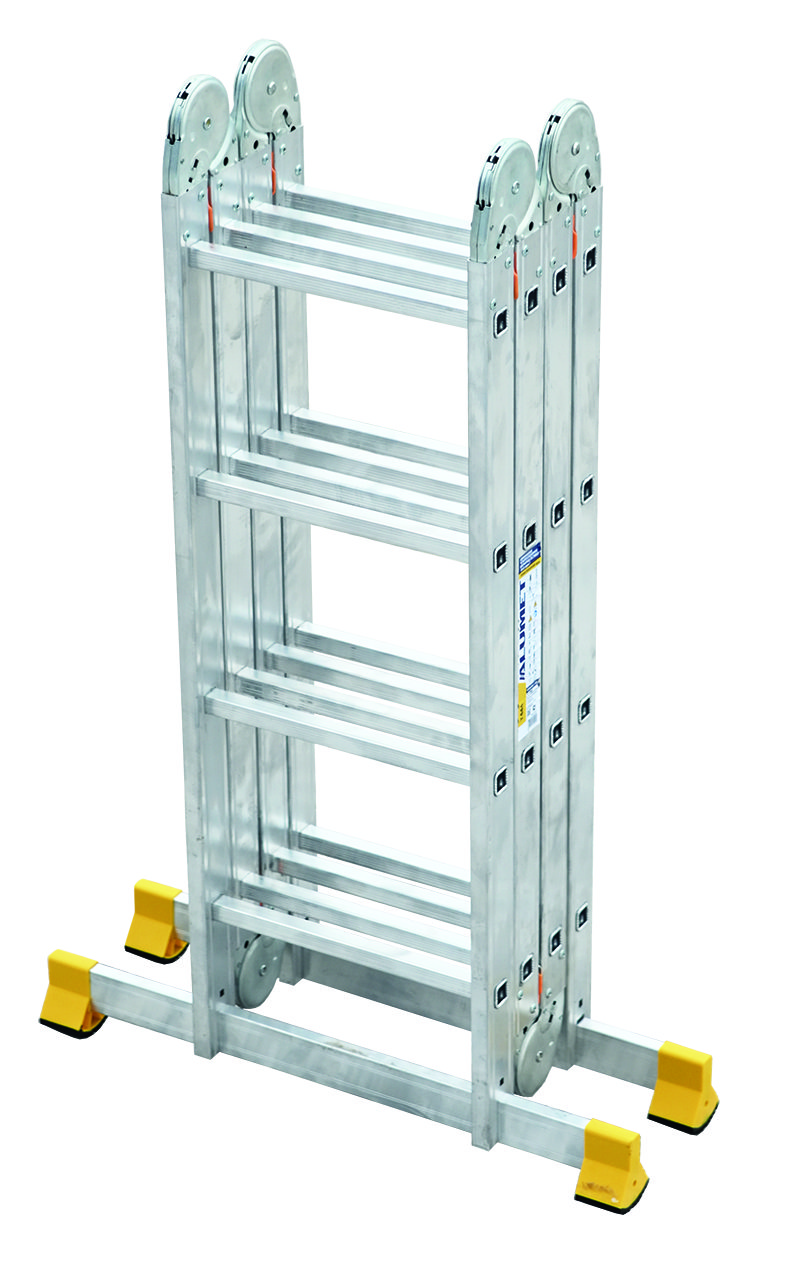

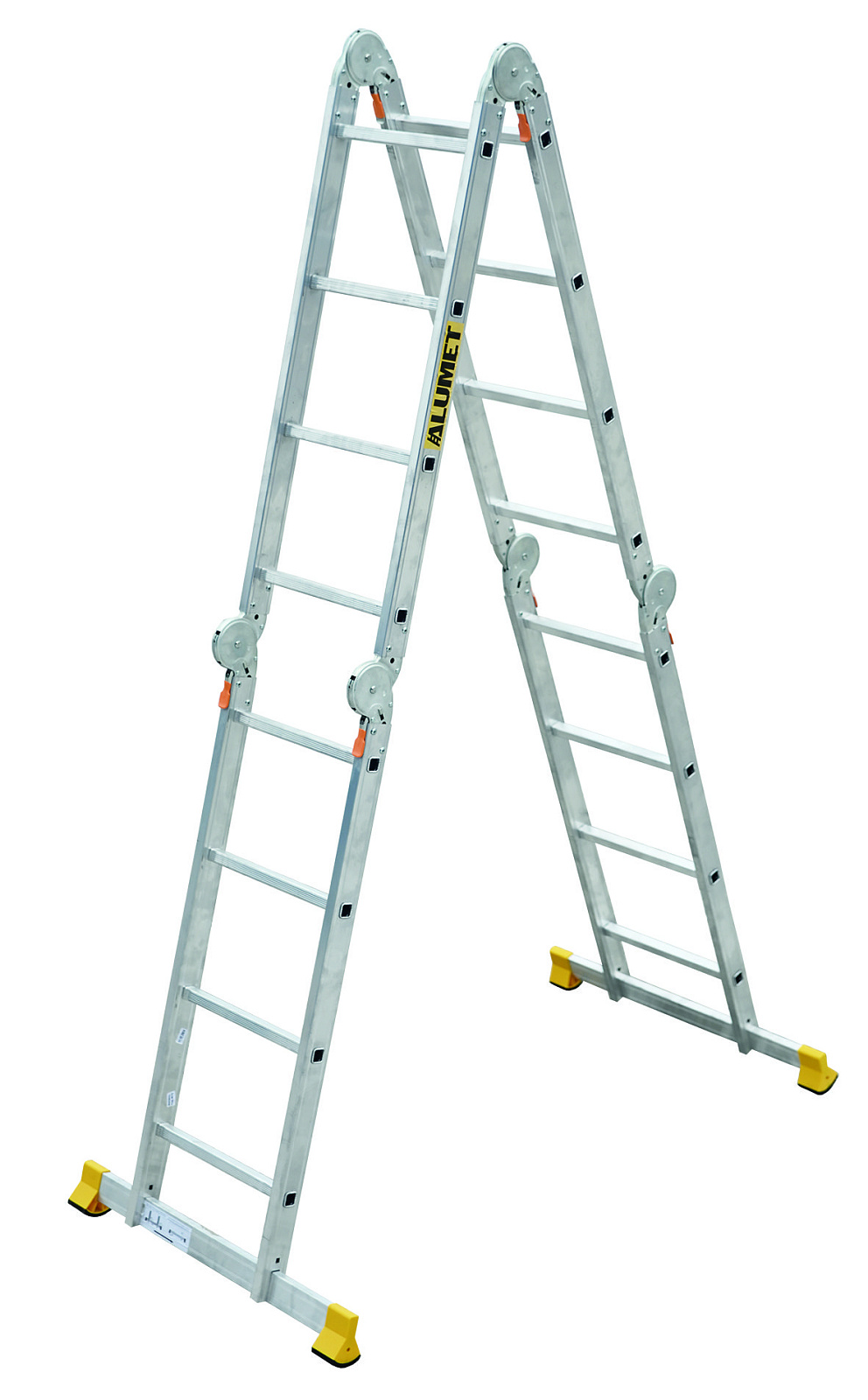

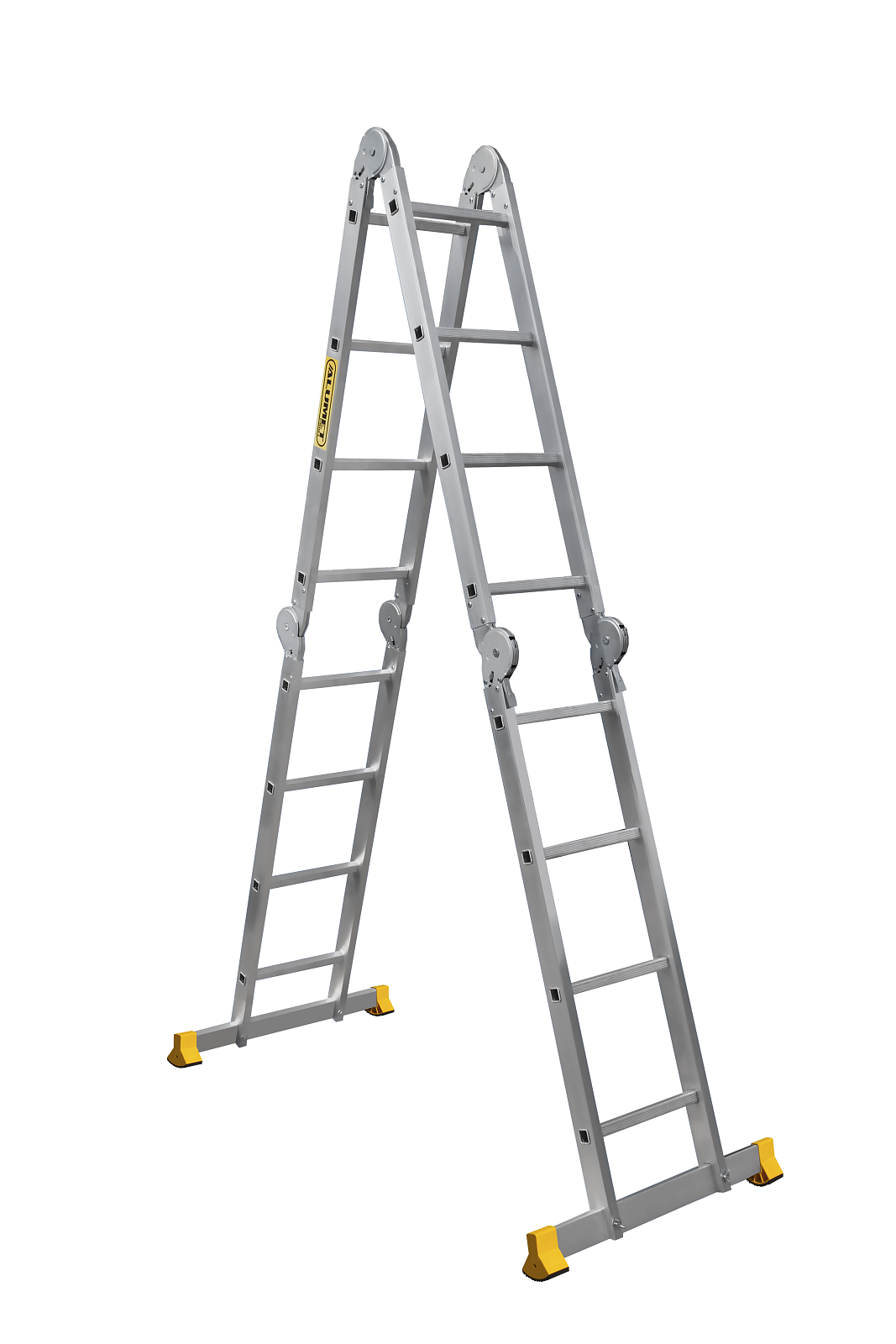

T444

Vendor code T444
Number of steps 4x4
Length folded 1.26
Folded width 0.27
Height 2.27
Length of four sections 4.67
Height max 3.17
Height max 5.77
Width 0.41
Stabilizer length 0.8

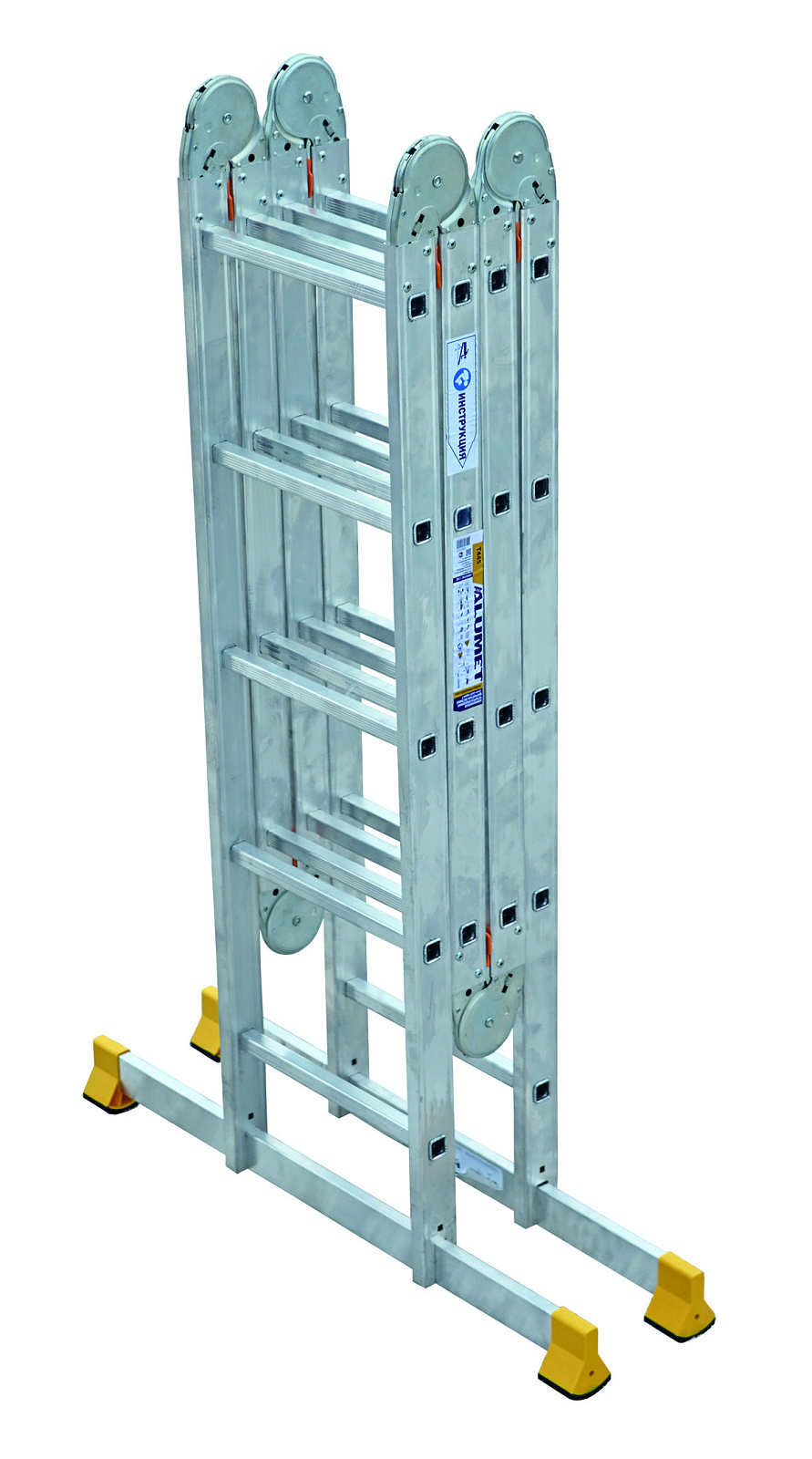

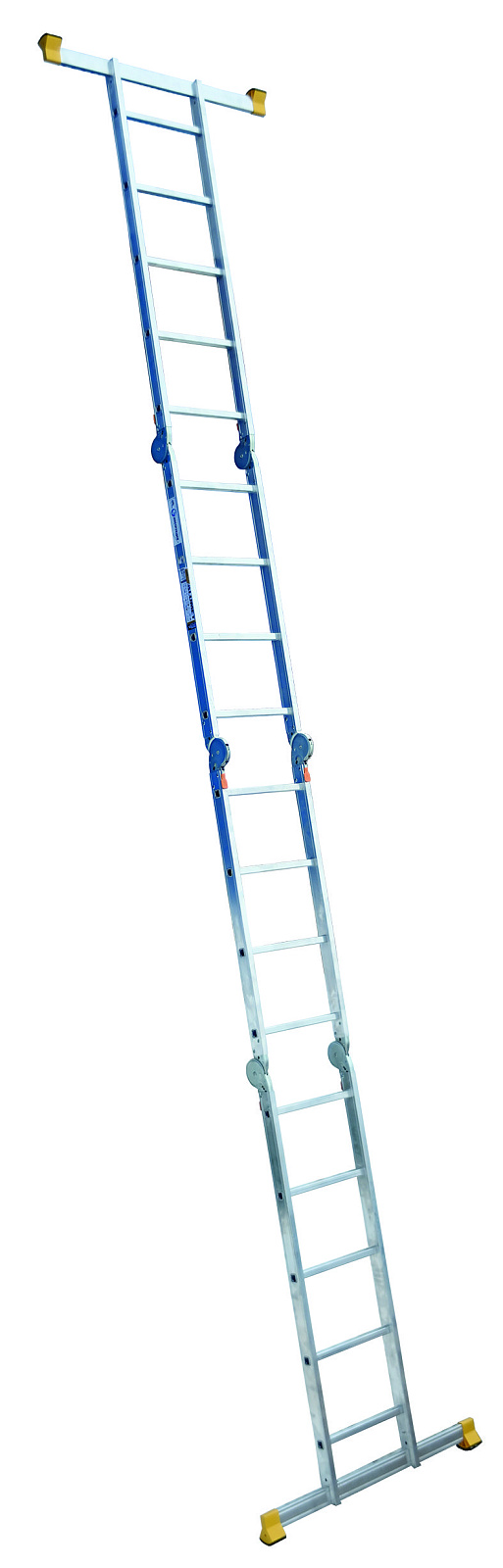

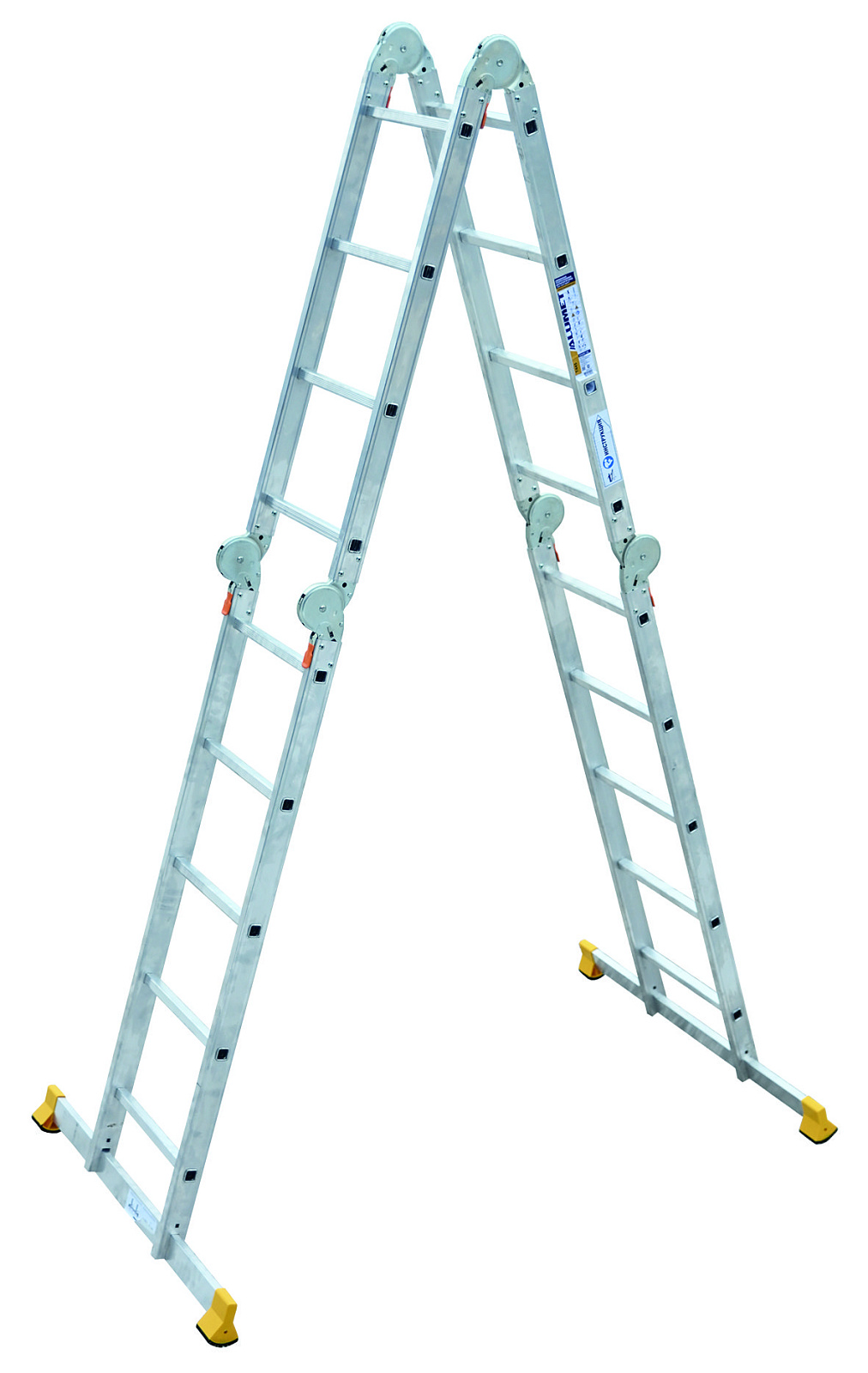

T445

Vendor code T445
Number of steps 2x4+2x5
Length folded 1.54
Folded width 0.27
Height 2.54
Length of four sections 5.23
Height max 3.44
Height max 6.13
Width 0.41
Stabilizer length 1.0

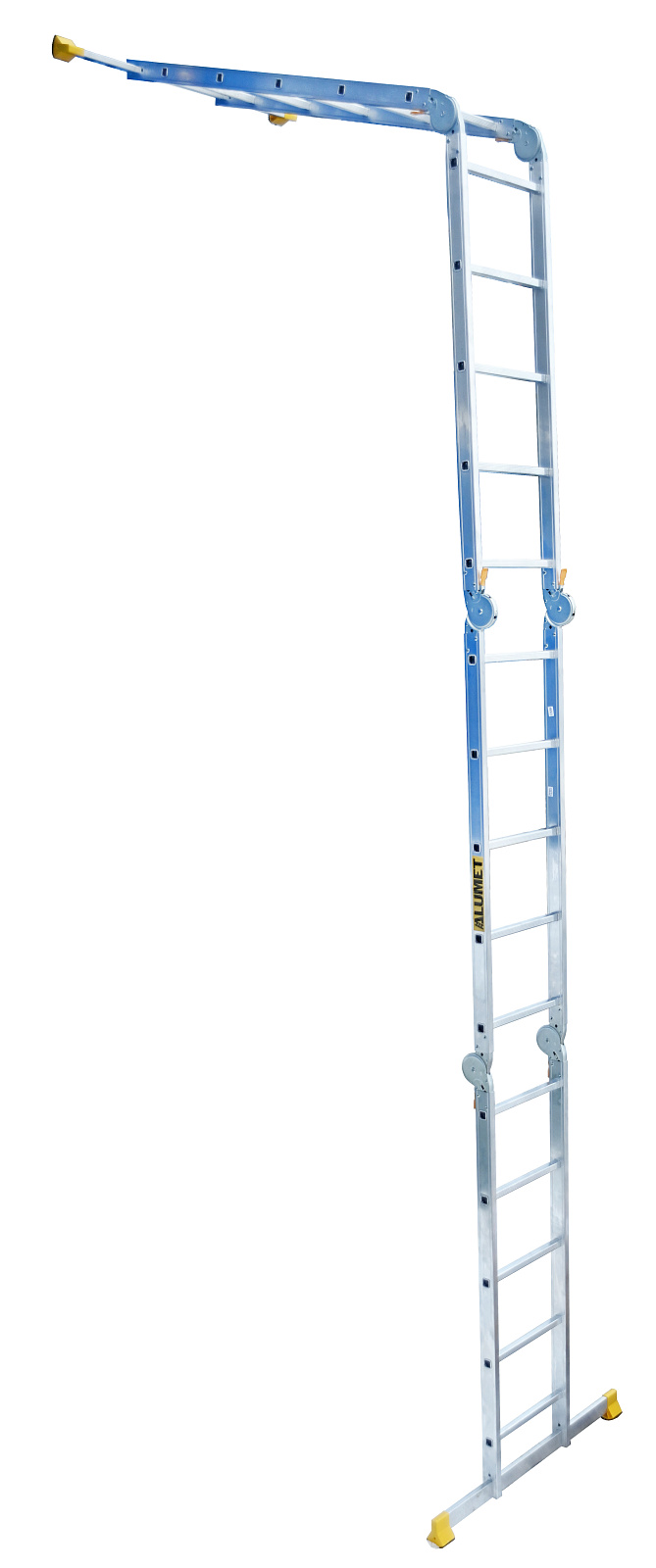

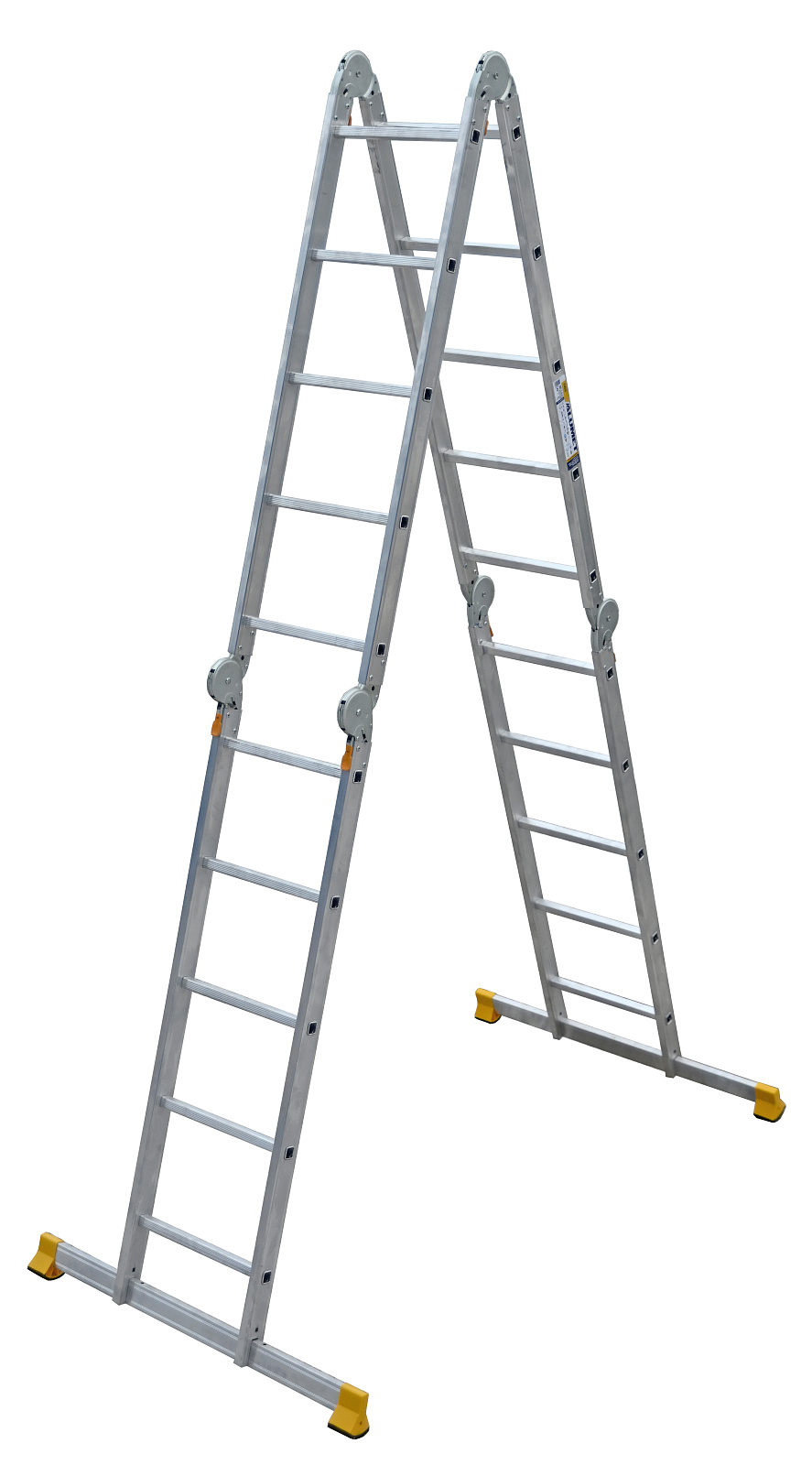

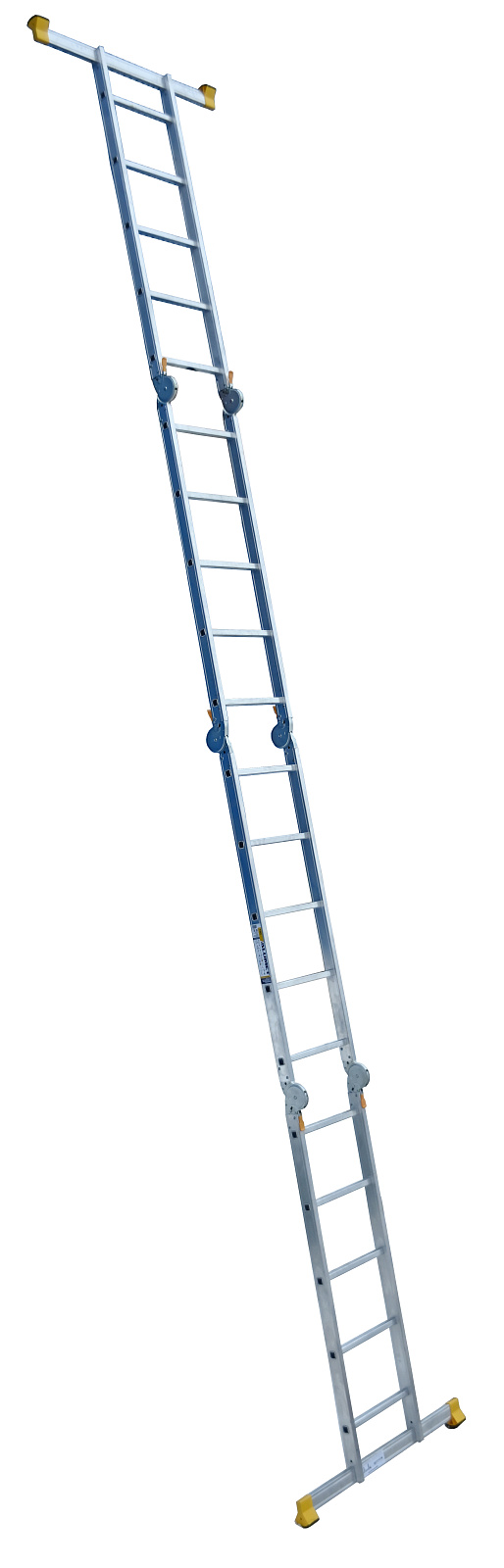

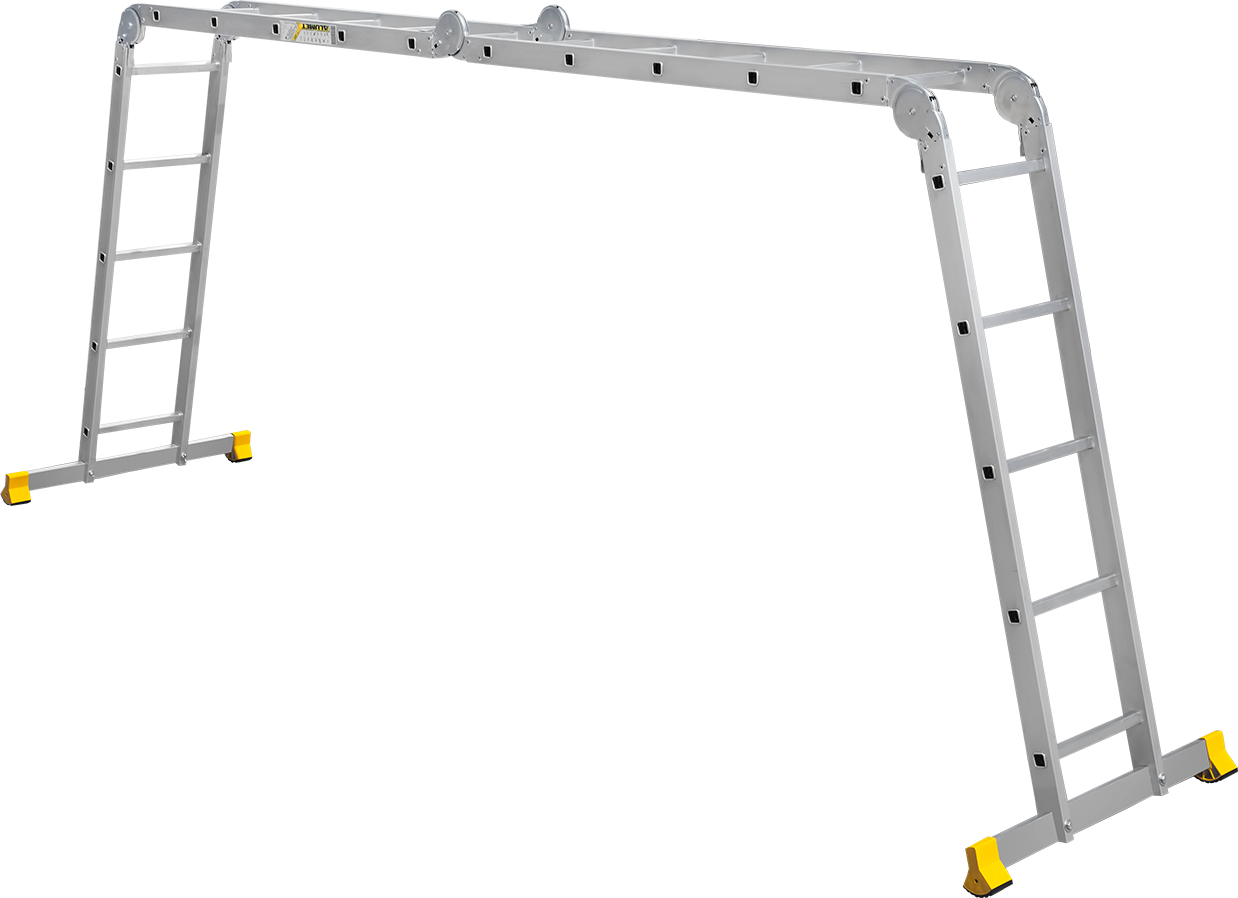

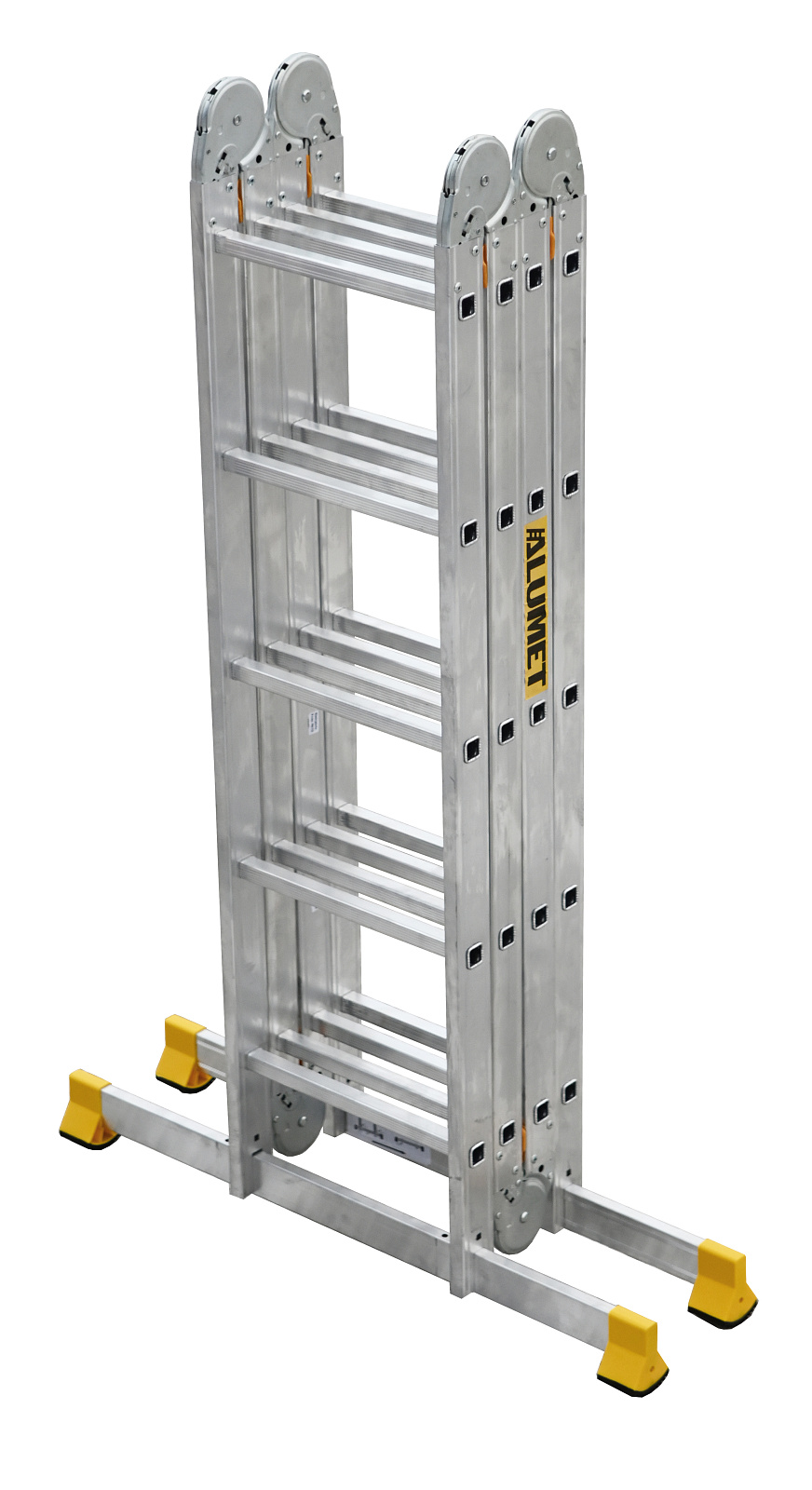

T455

Vendor code T455
Number of steps 4x5
Length folded 1.54
Folded width 0.27
Height 2.8
Length of four sections 5.79
Height max 3.7
Height max 6.69
Width 0.41
Stabilizer length 1.0

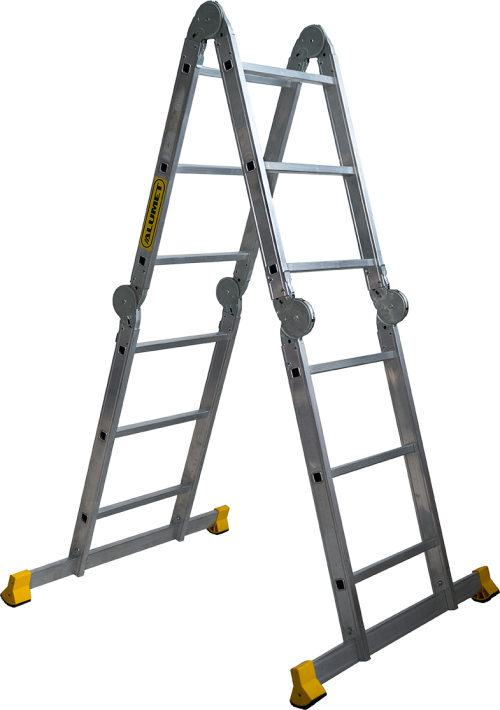

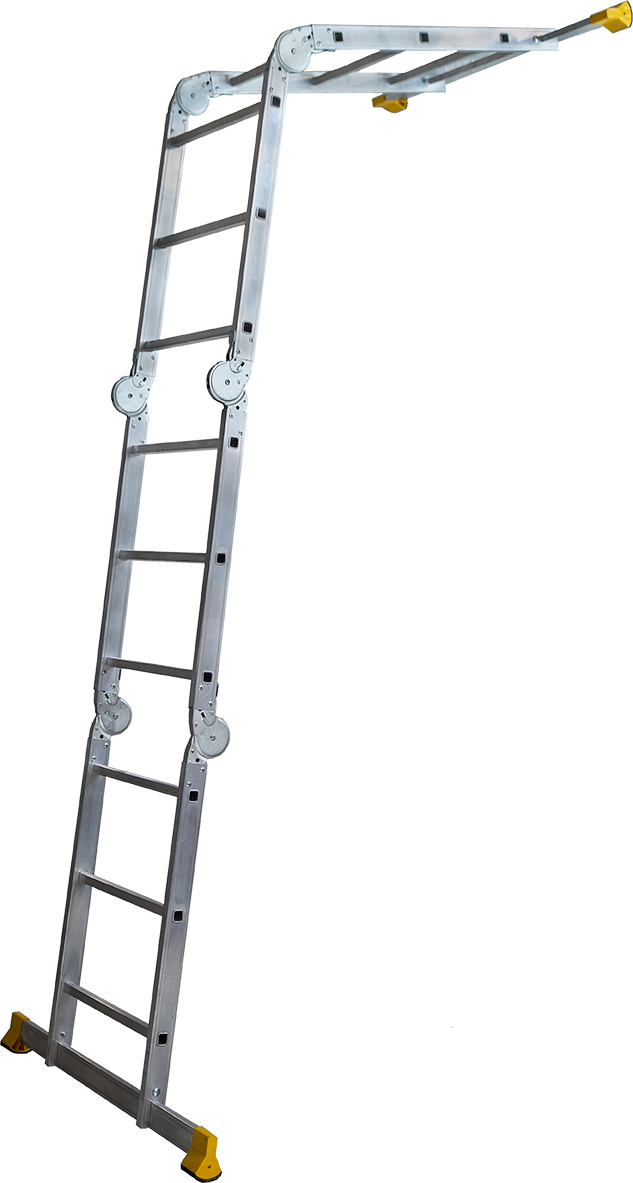

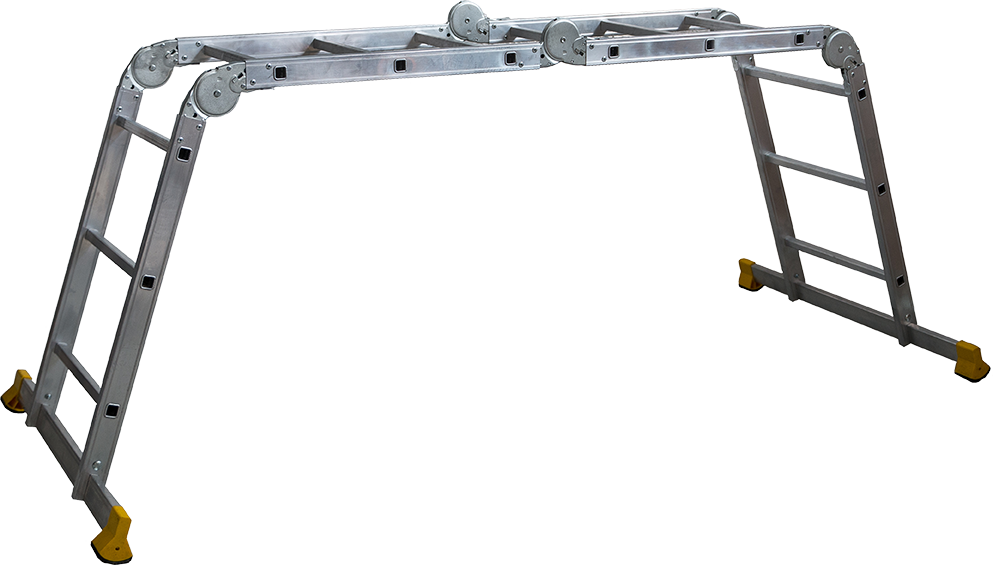

TW1 433

Vendor code TW1 433
Number of steps 4x3
Length folded 0.98
Folded width 0.27
Height 1.73
Length of four sections 3.55
Height max 2.63
Height max 4.45
Width 0.5
Stabilizer length 1

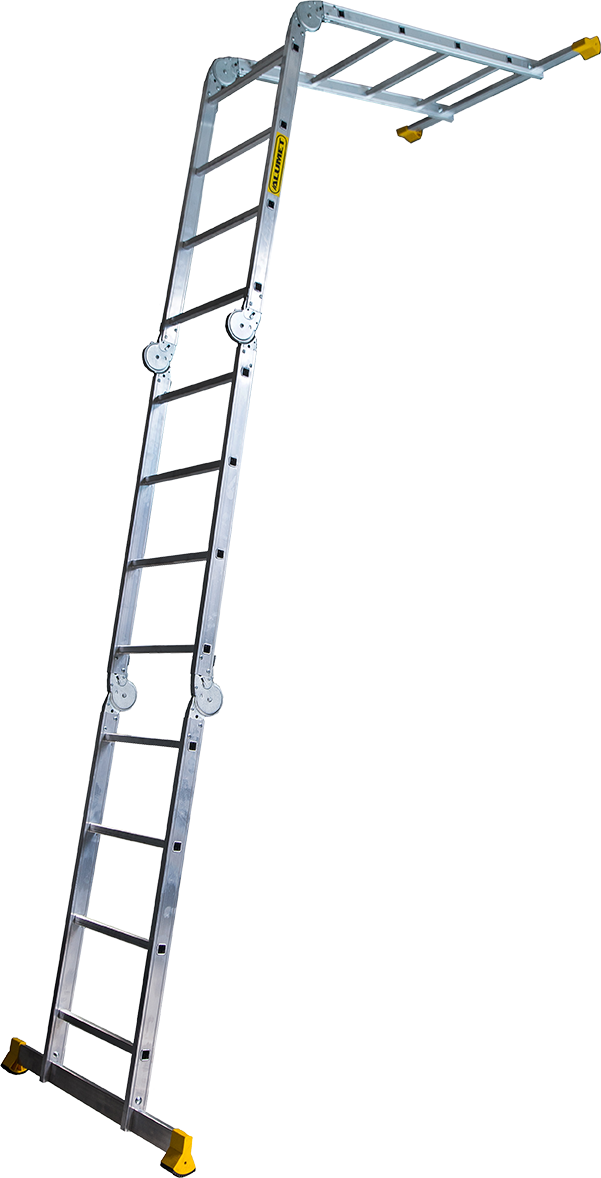

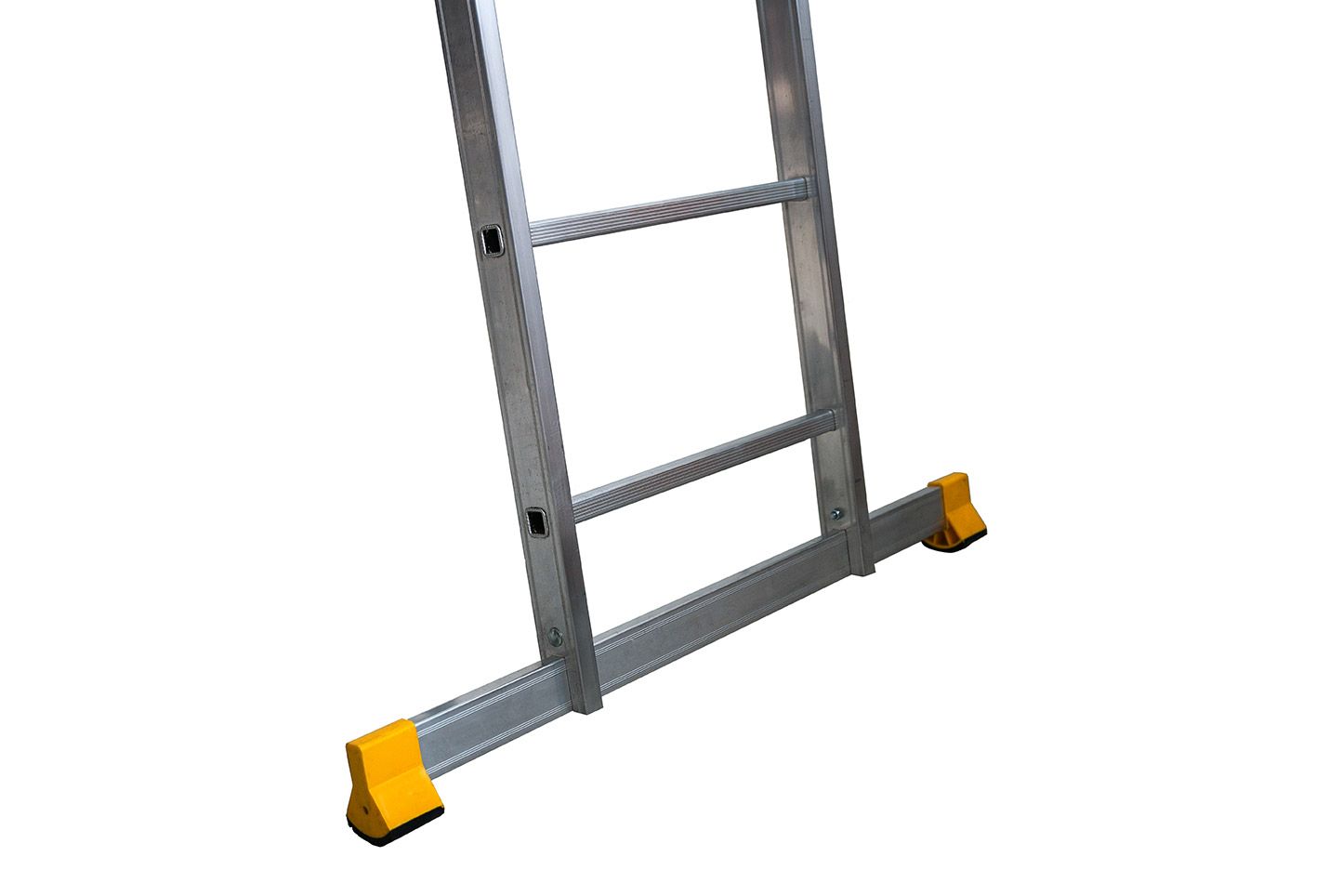

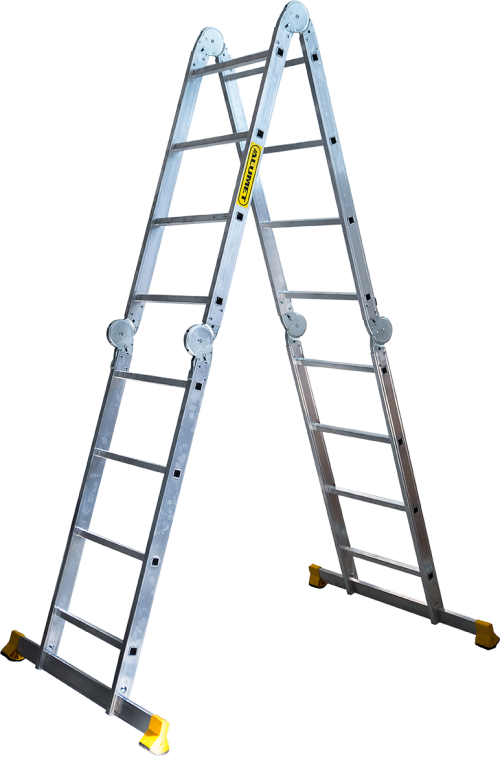

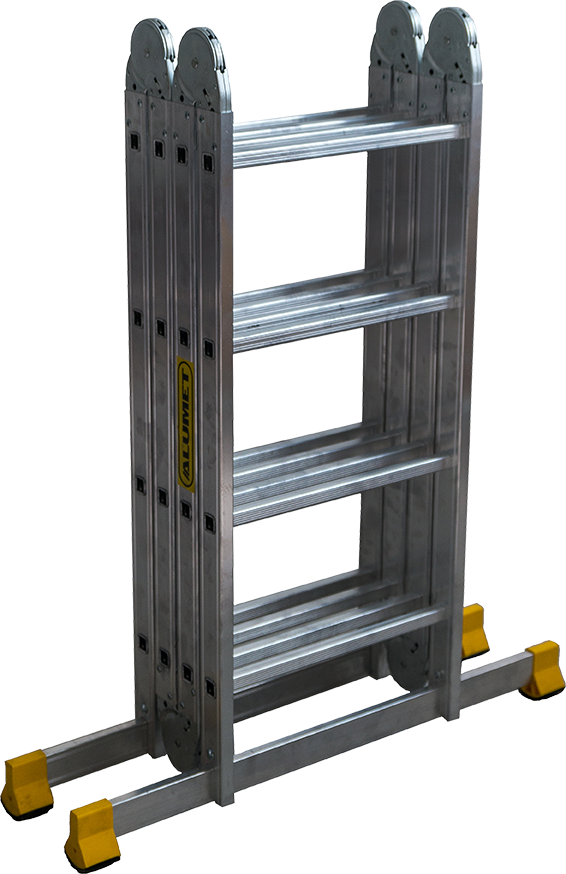

TW1 444

Vendor code TW1 444
Number of steps 4x4
Length folded 1.26
Folded width 0.27
Height 2.27
Length of four sections 4.67
Height max 3.17
Height max 5.57
Width 0.5
Stabilizer length 1

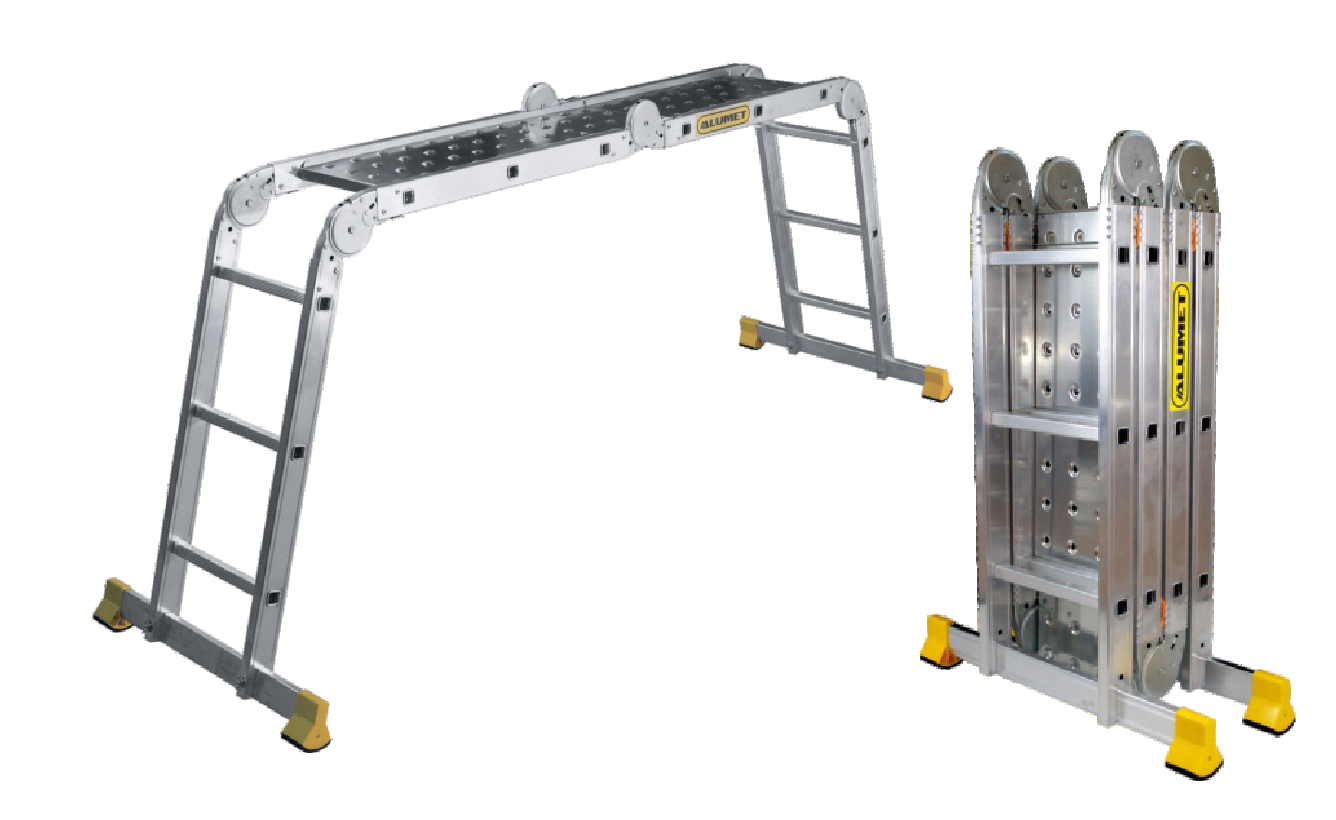

T433SP

Vendor code T433SP
Number of steps 4x3
Length folded 0.98
Folded width 0.26
Height 1.73
Length of four sections 3.55
Height max 2.83
Height max 4.65
Width 0.33
Stabilizer length 0.7

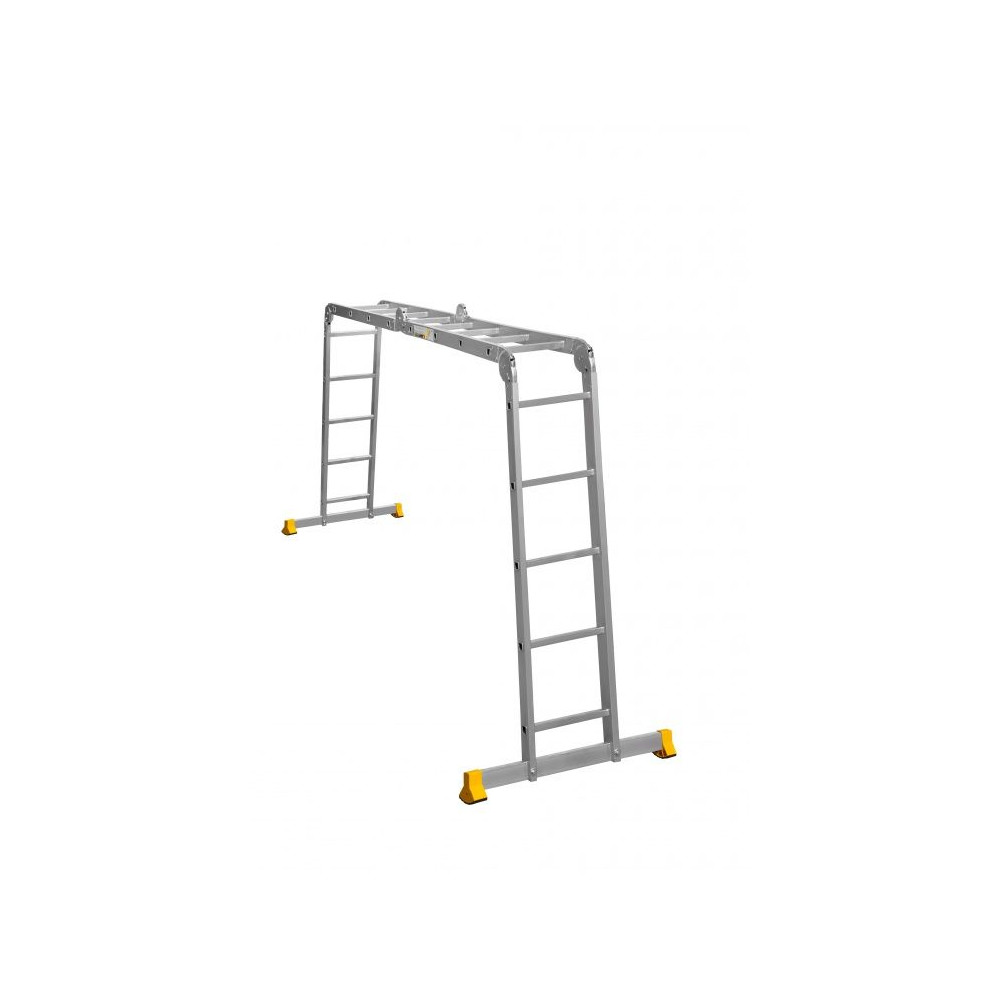

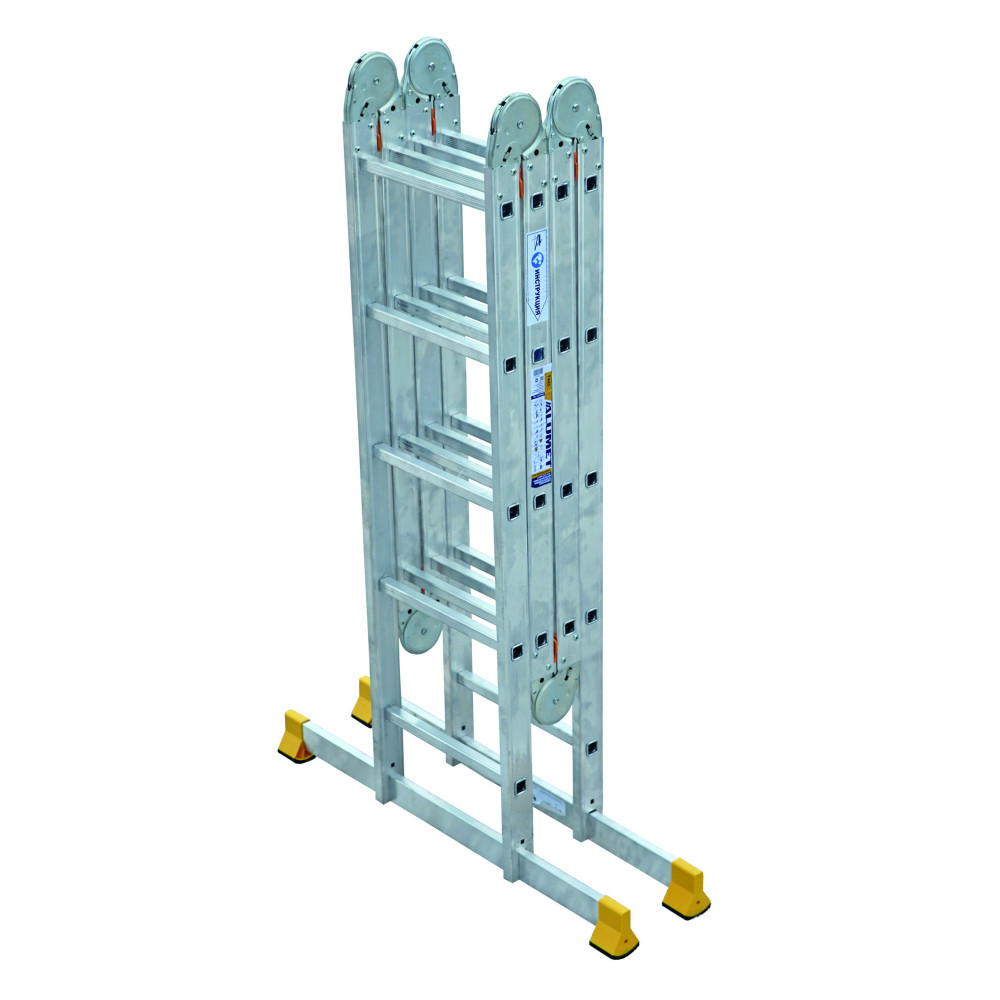

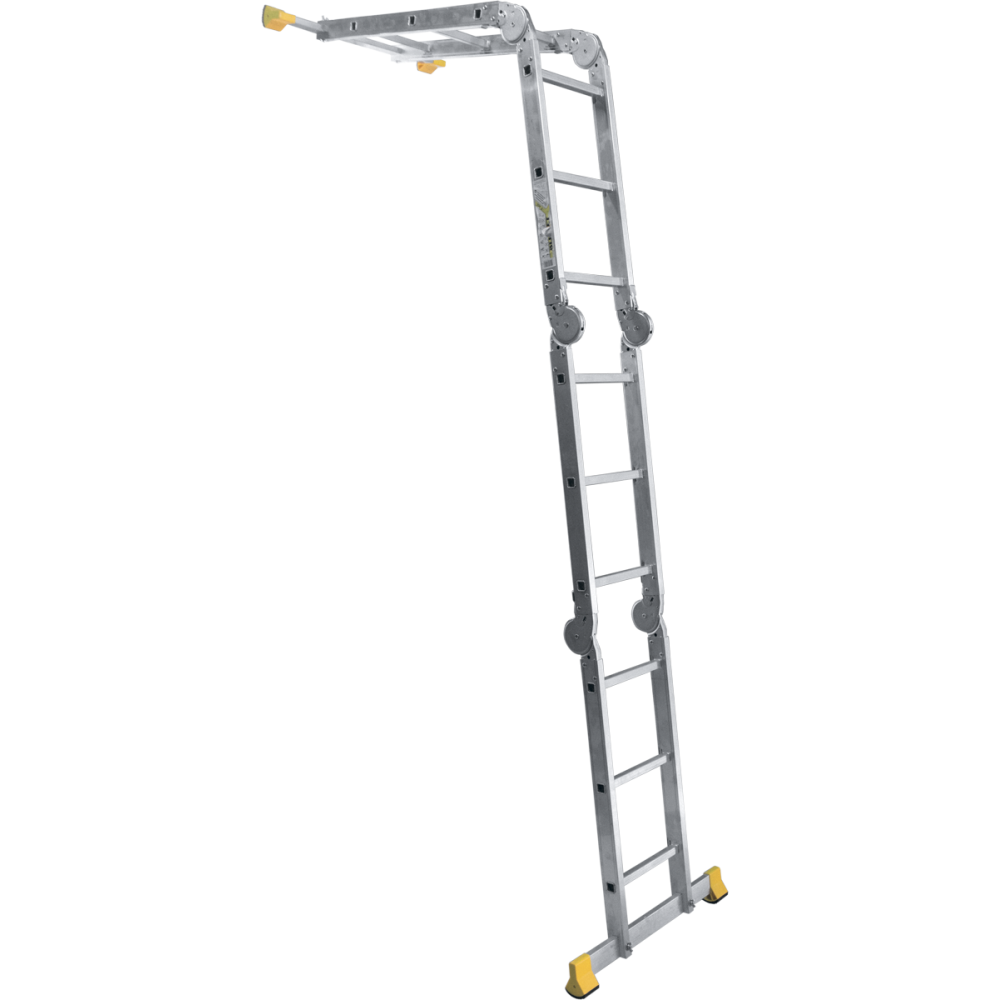

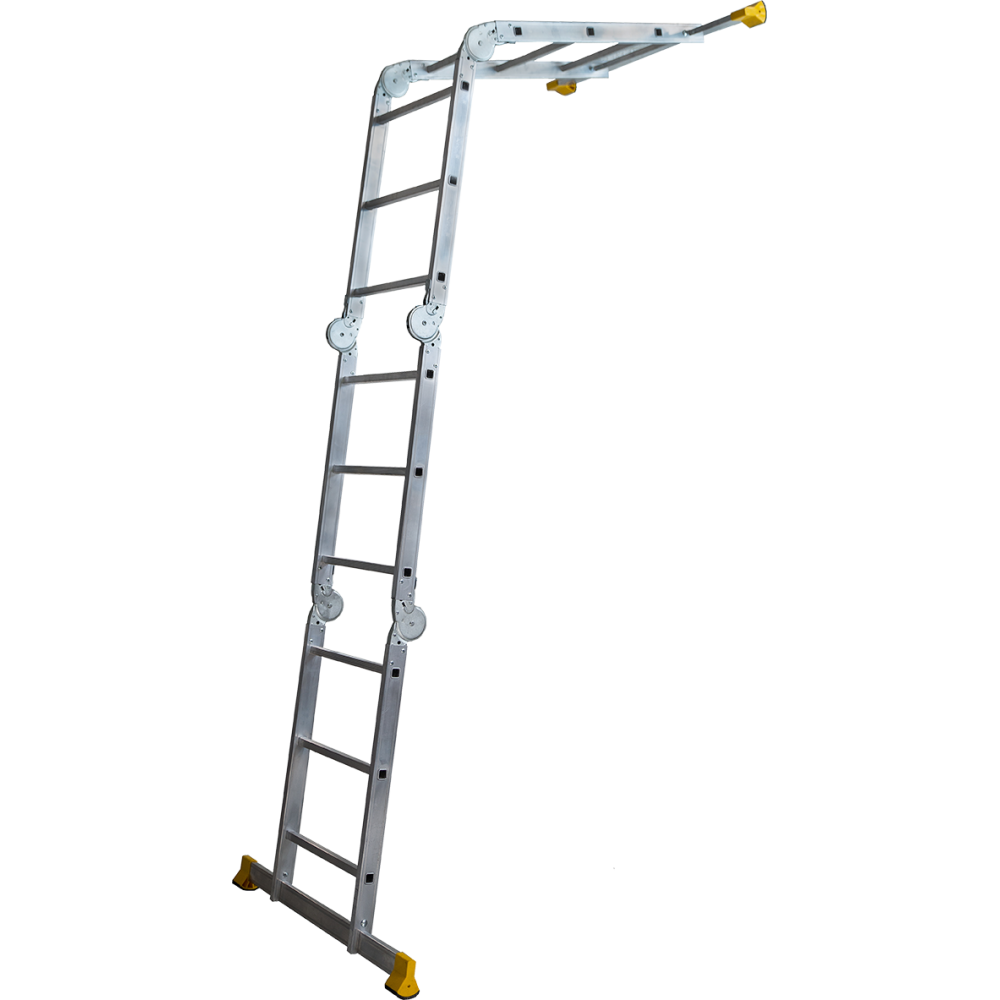

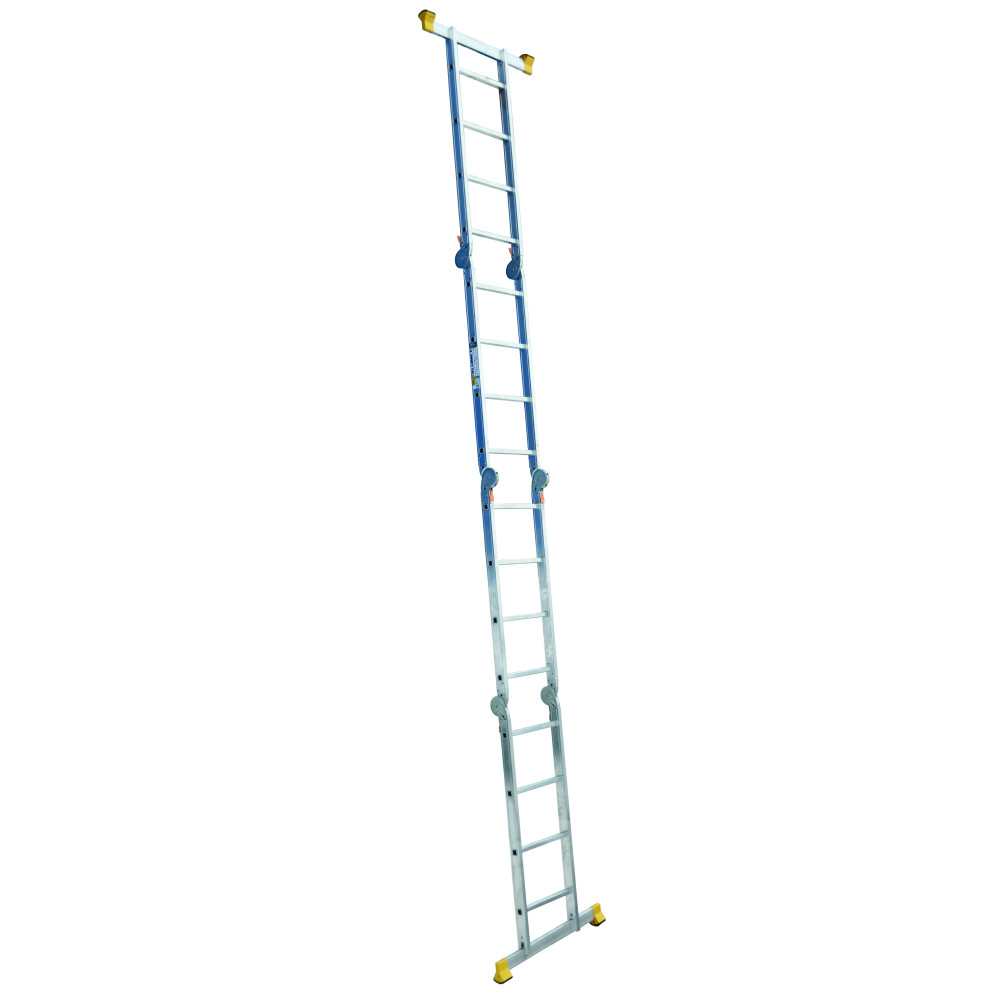

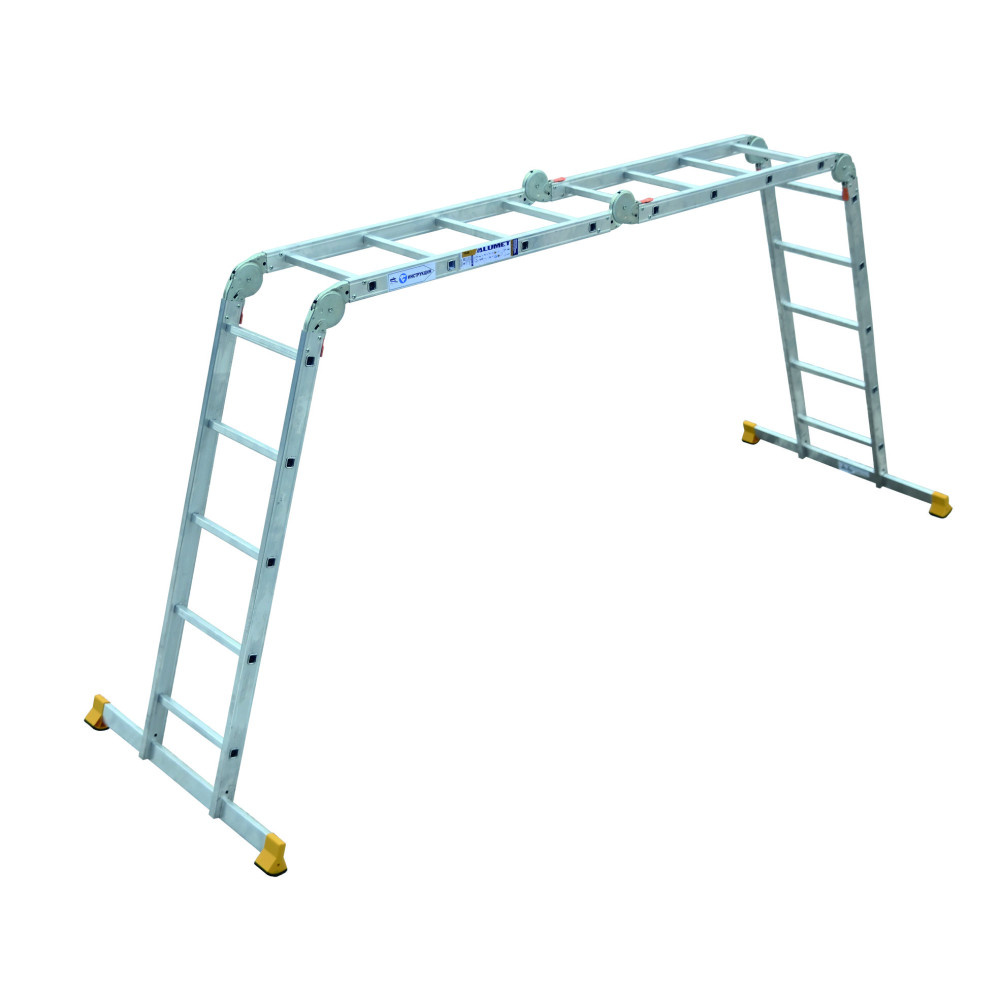

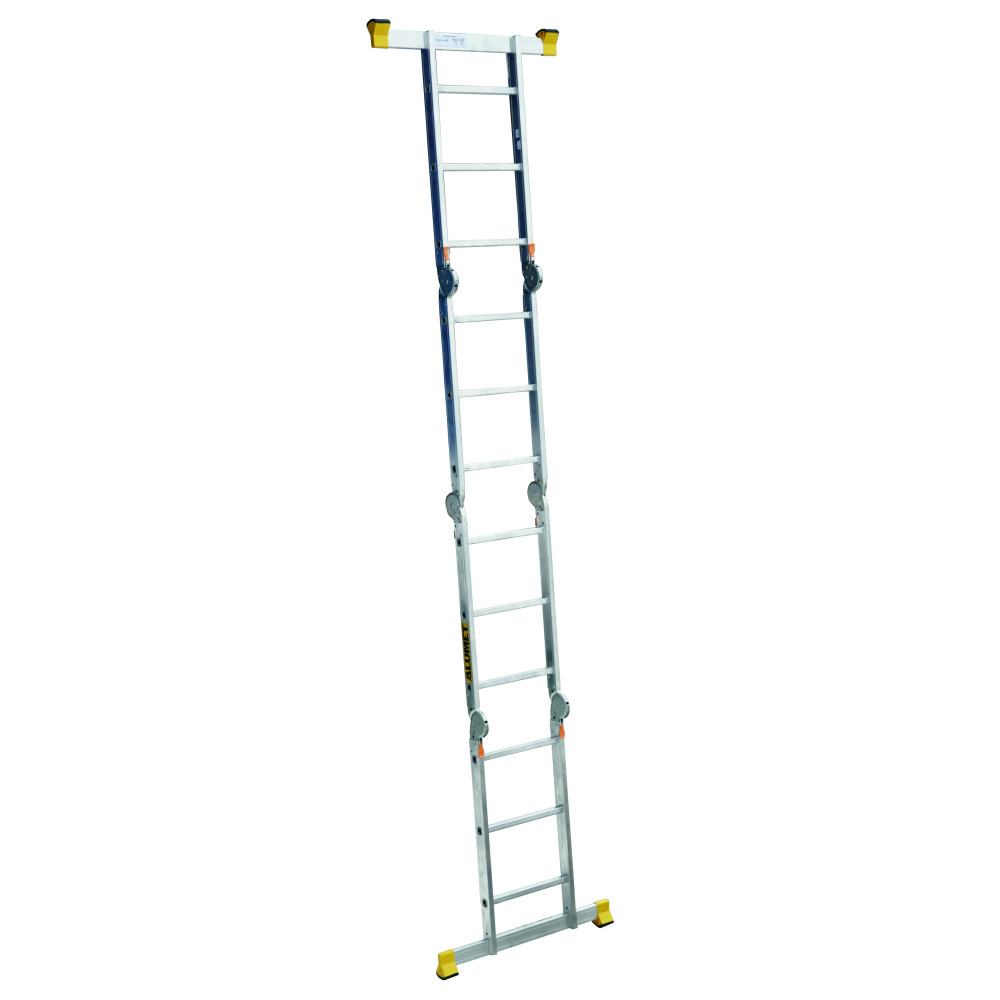

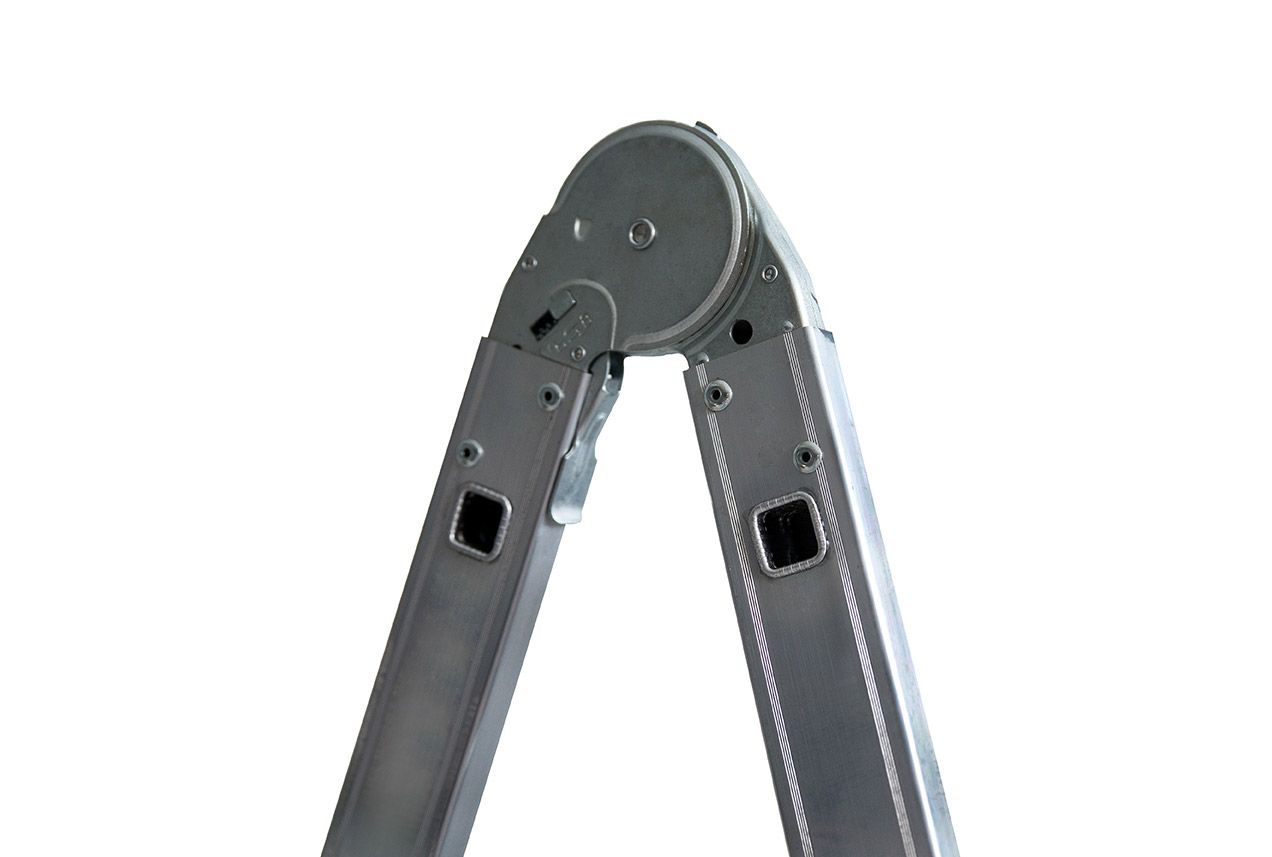

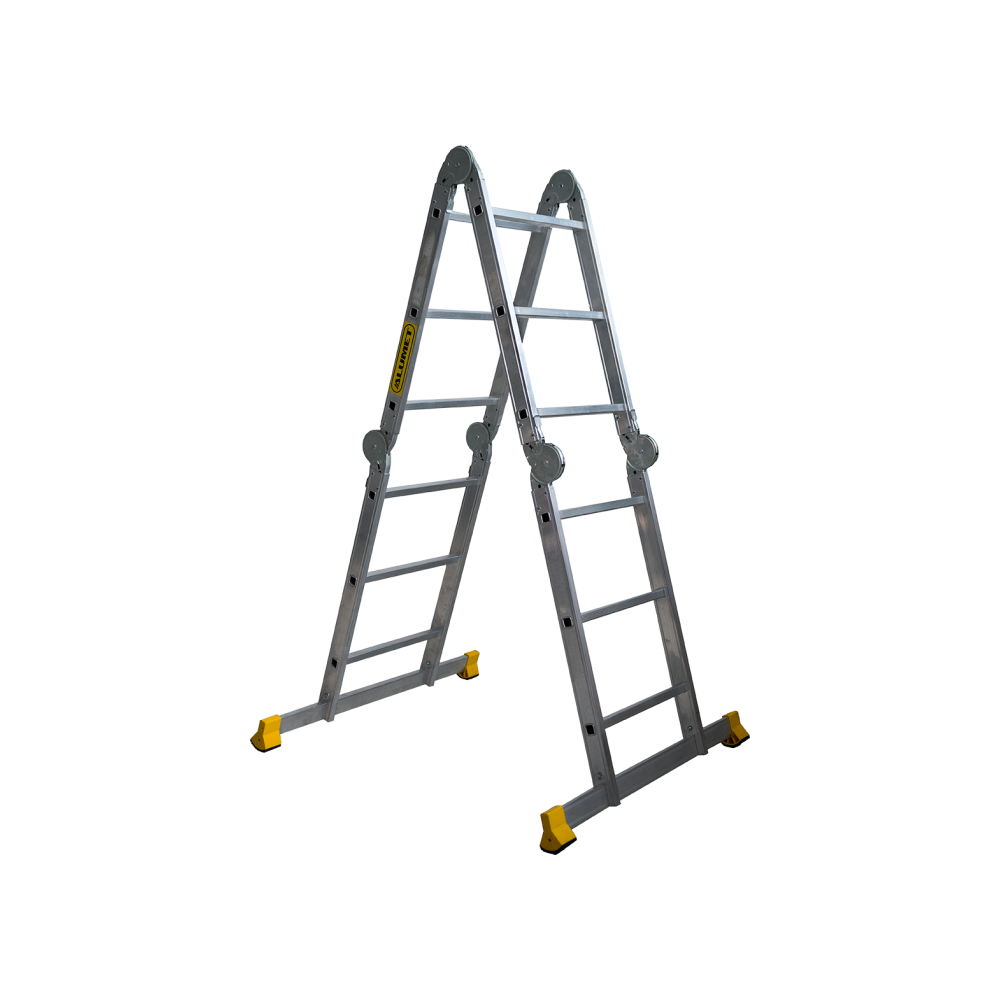

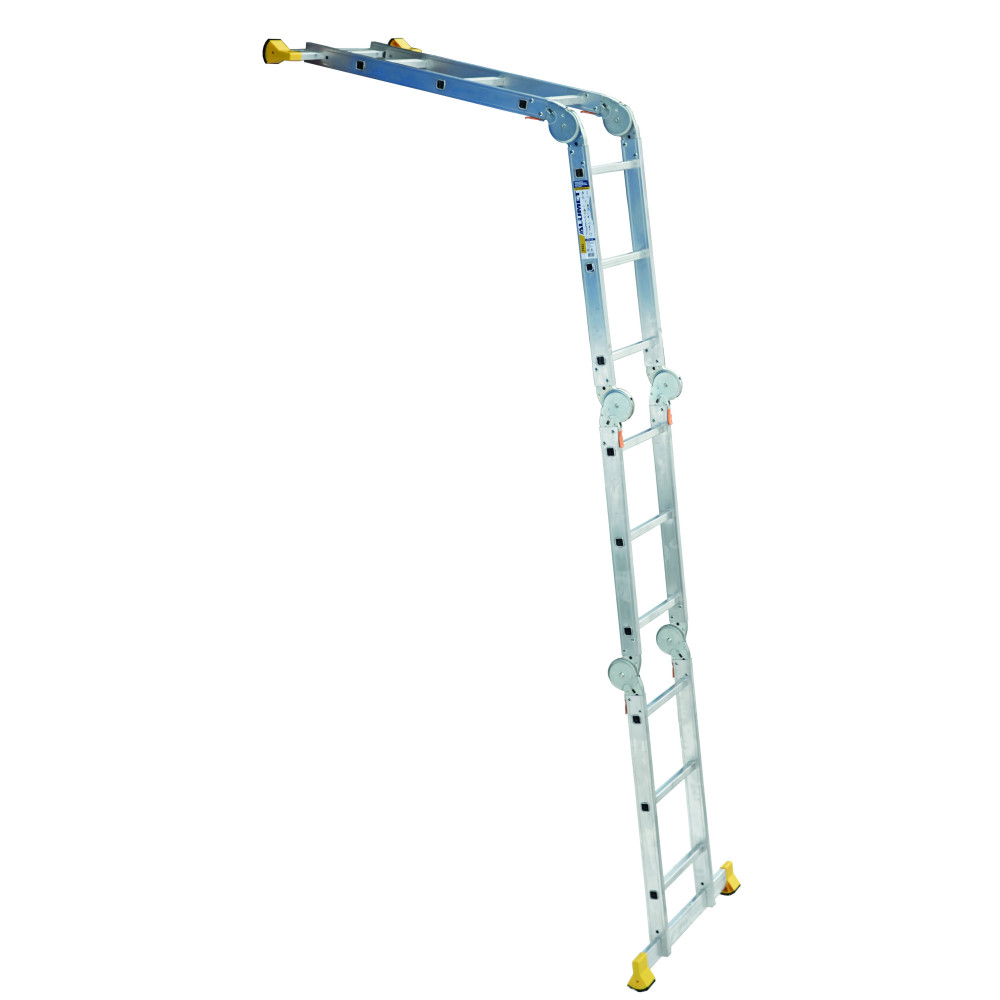

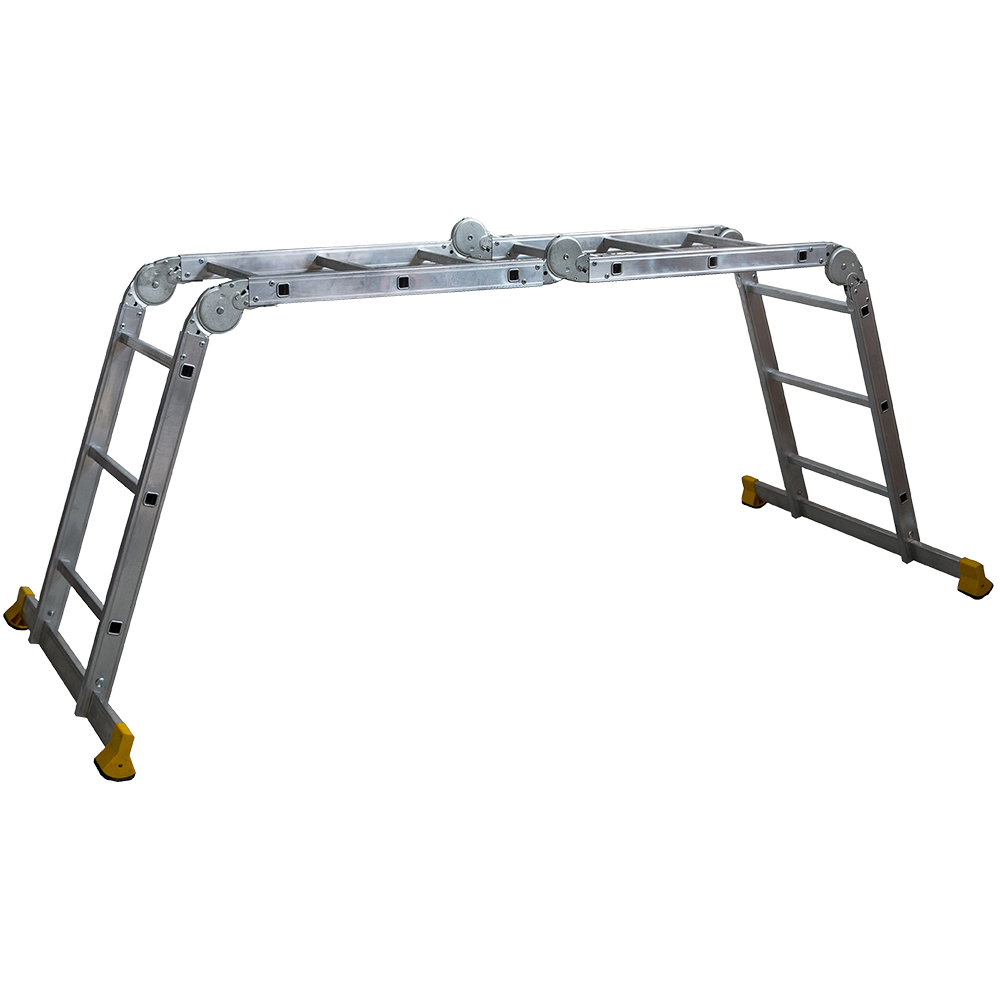

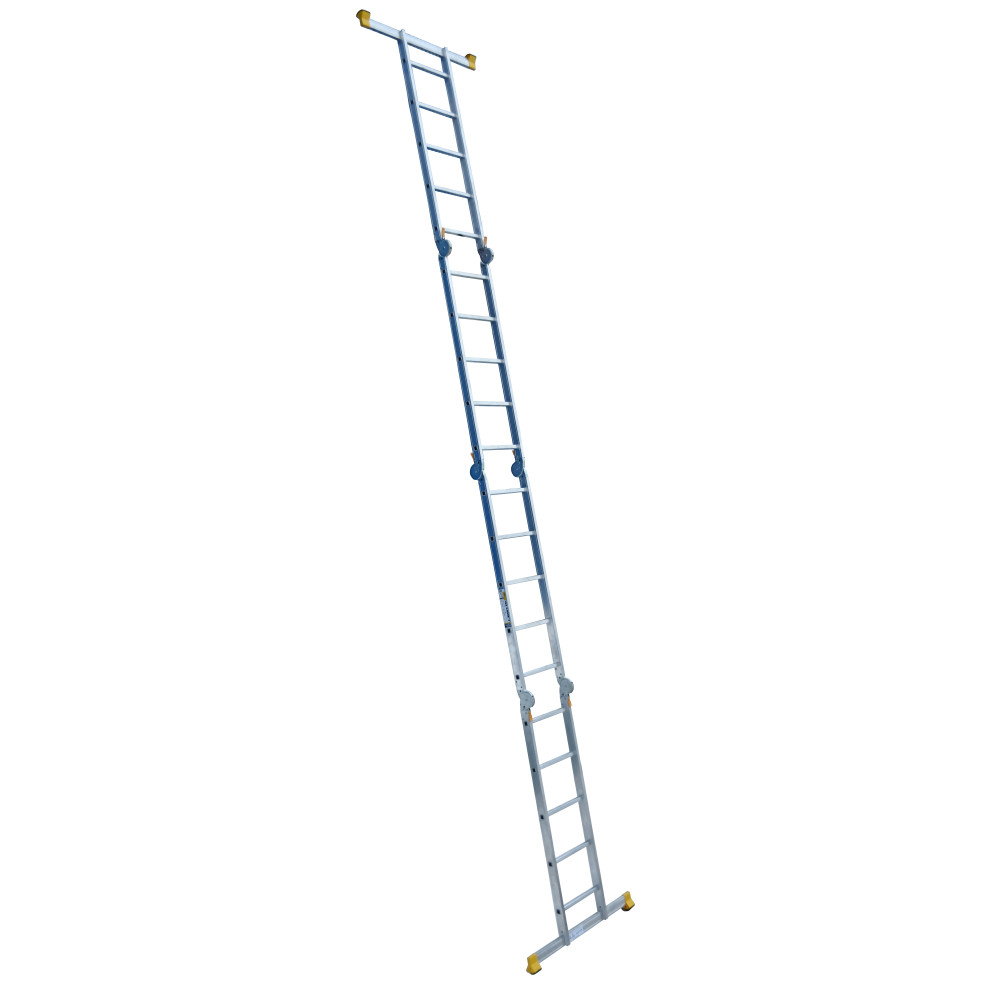

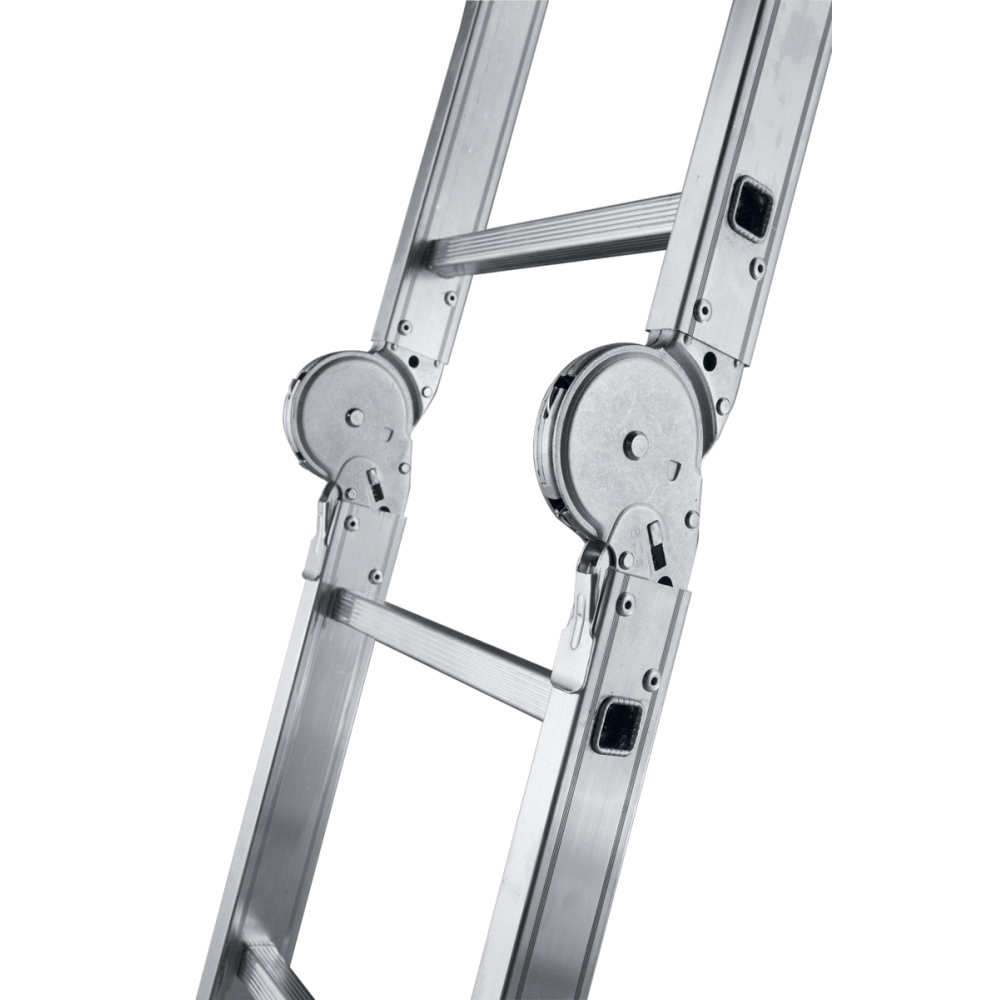

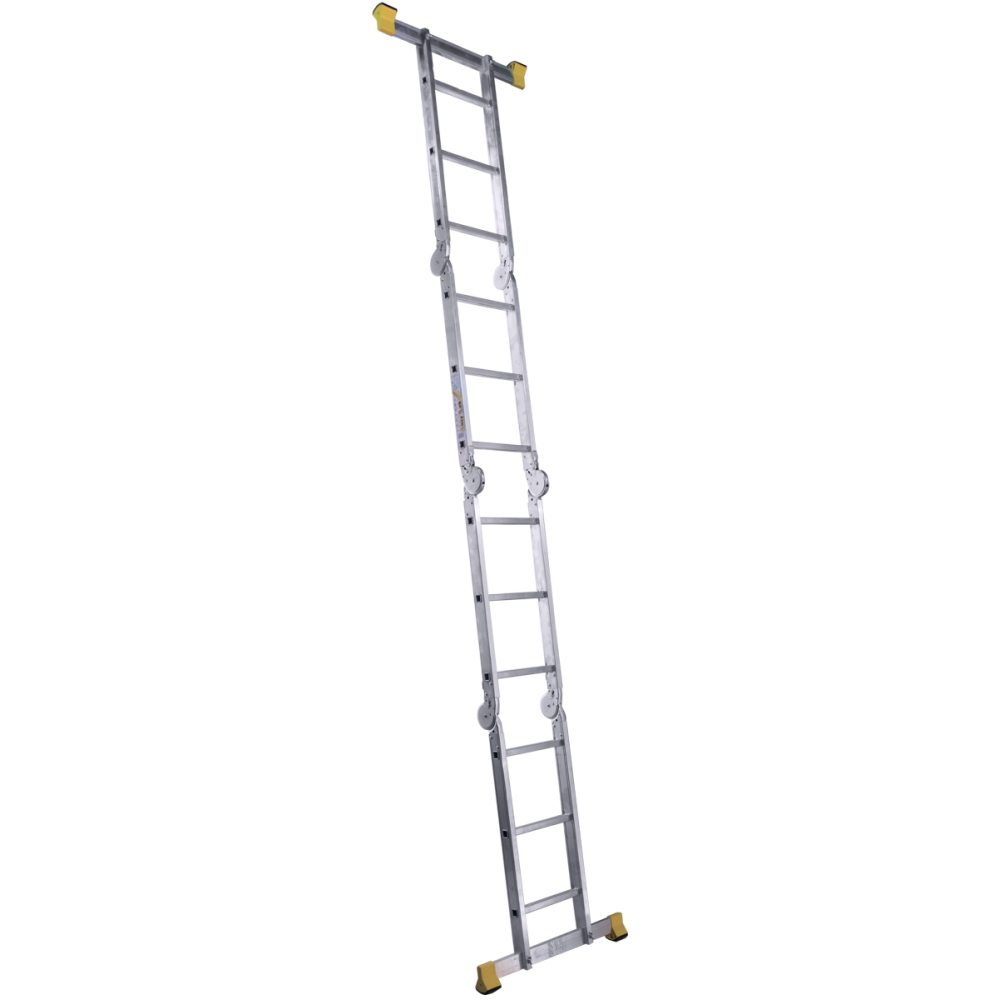

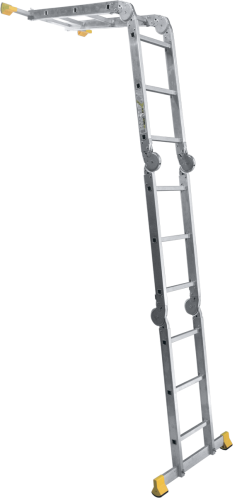

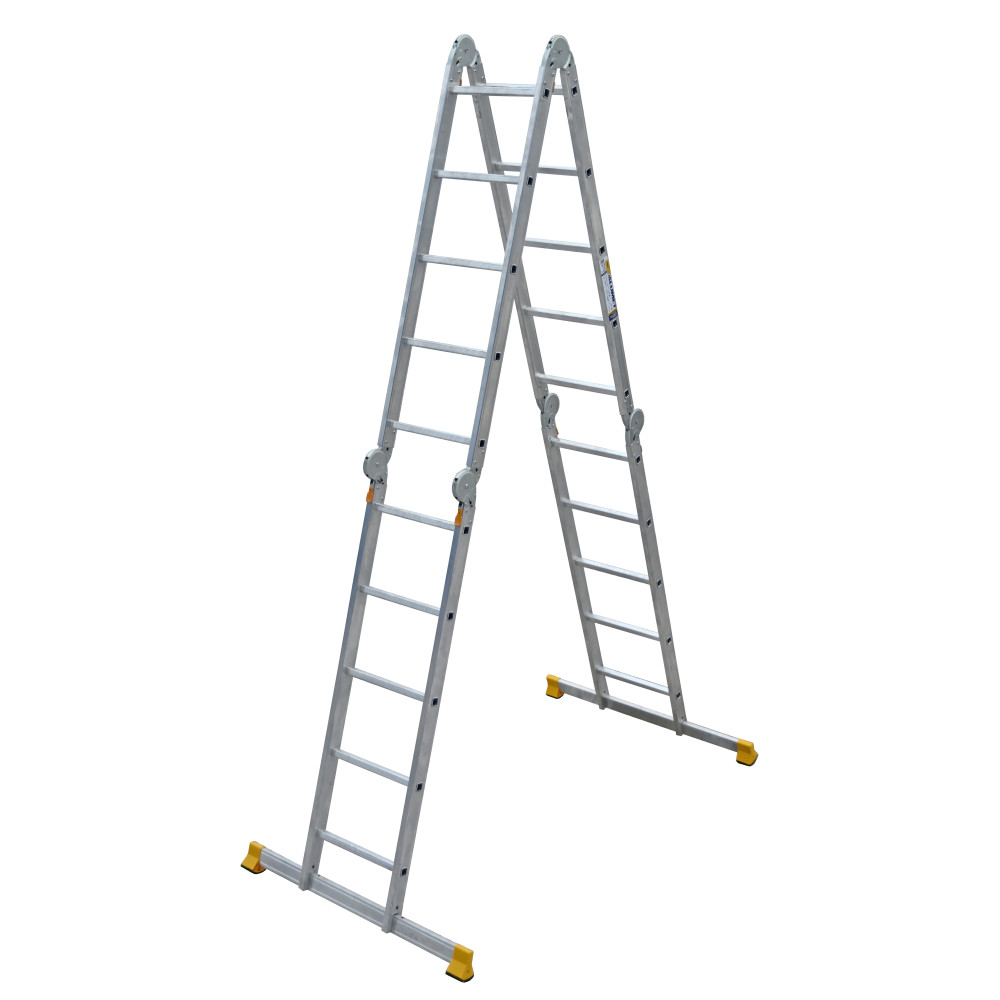

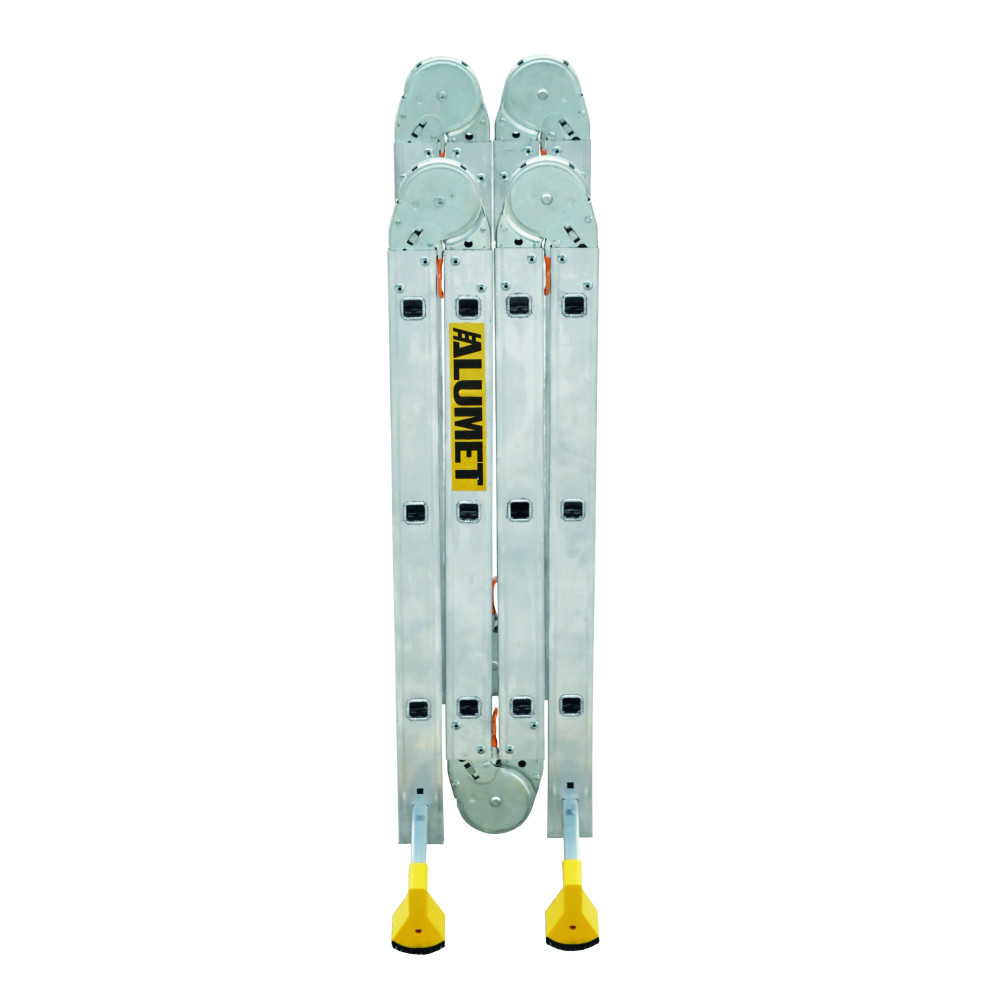

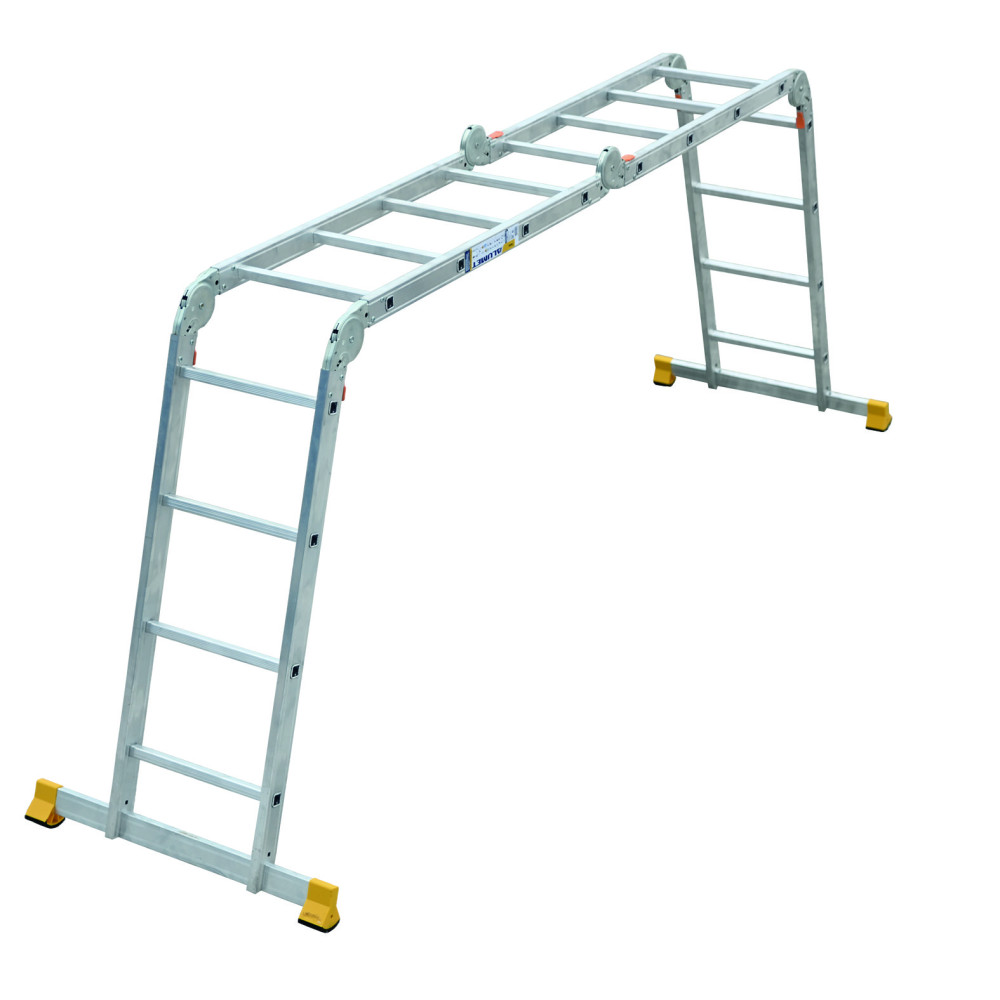

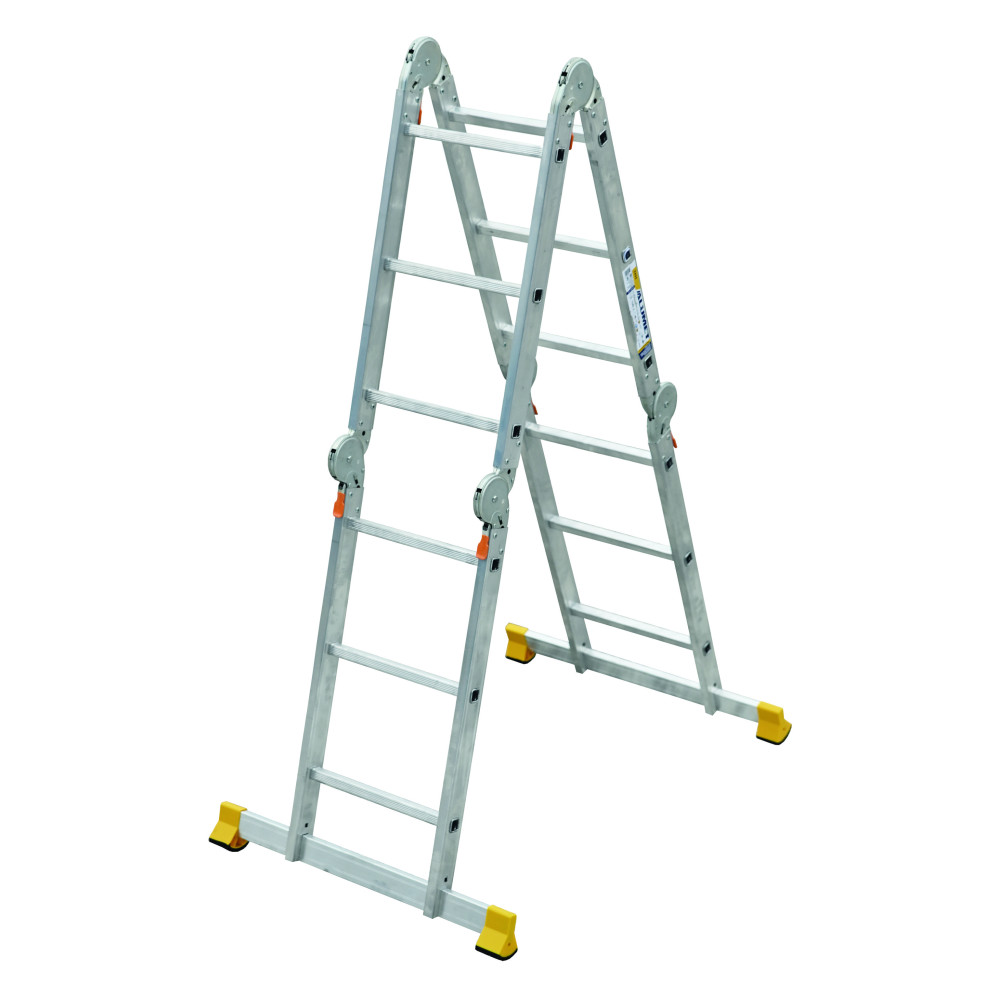

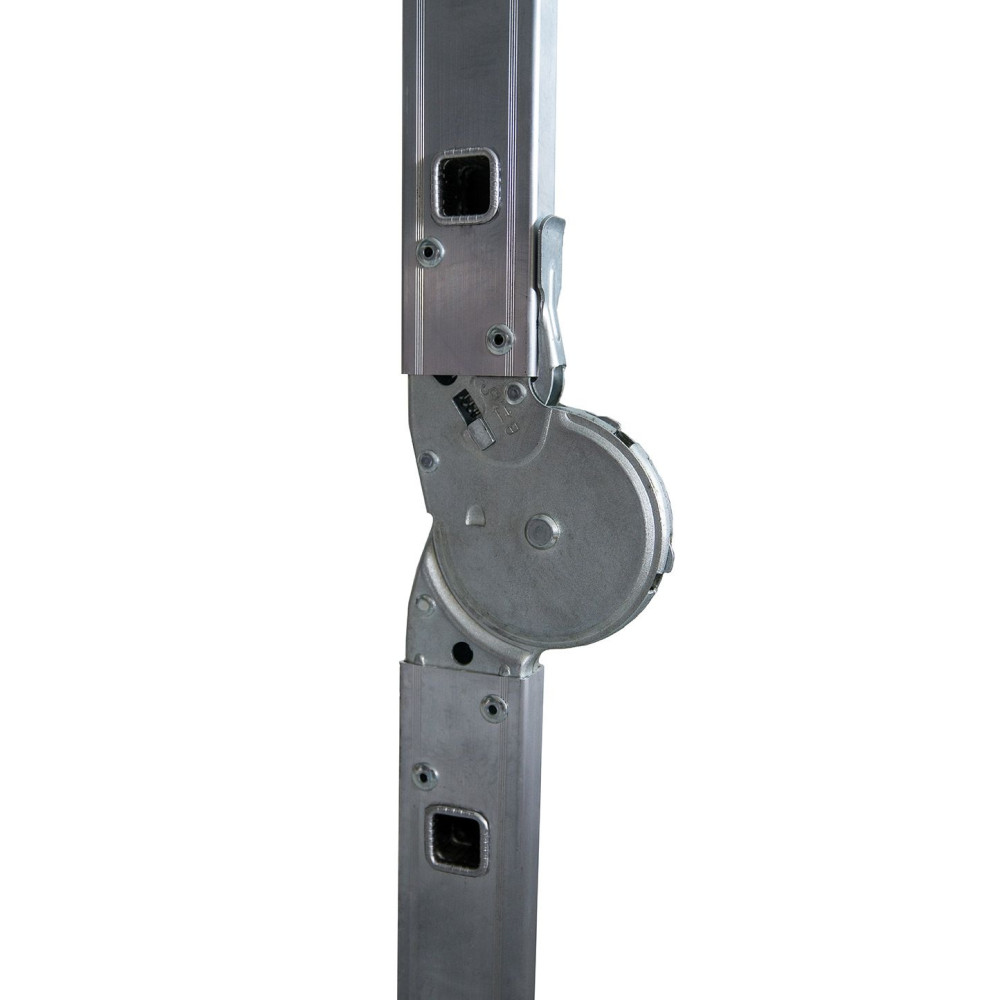

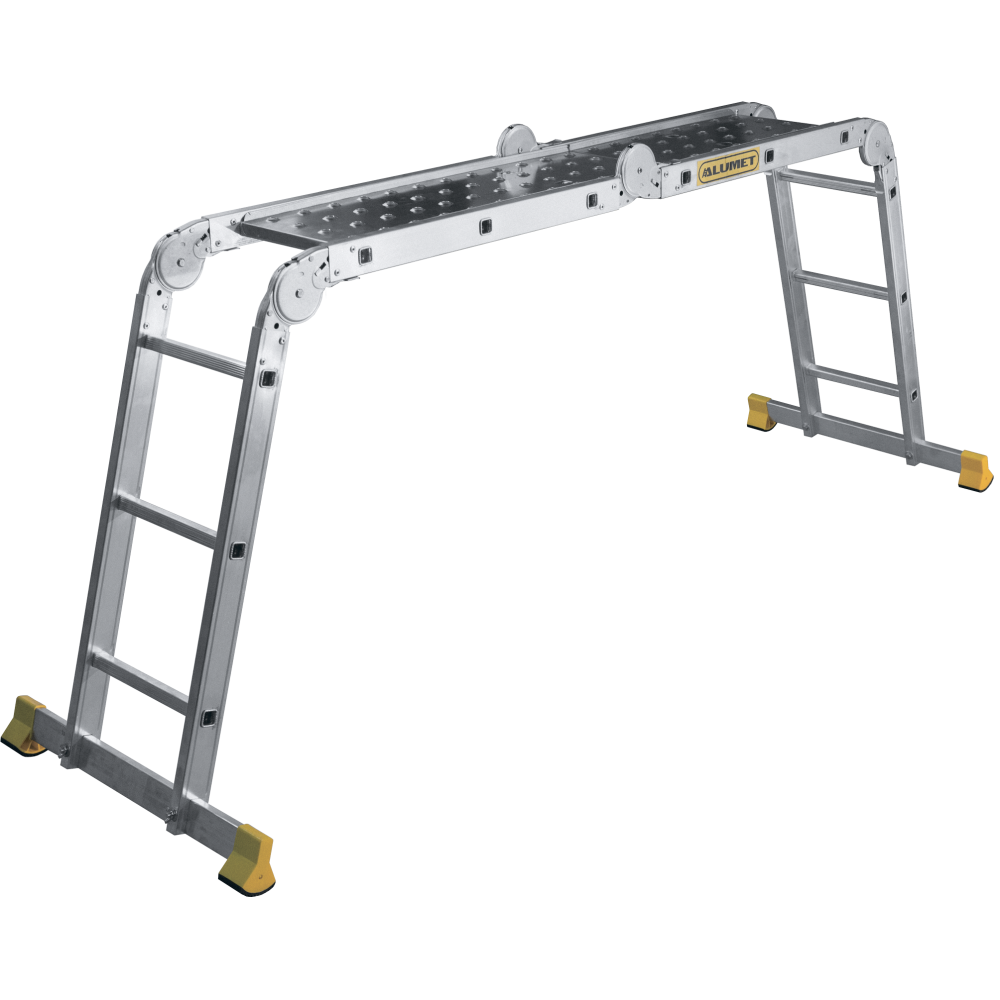

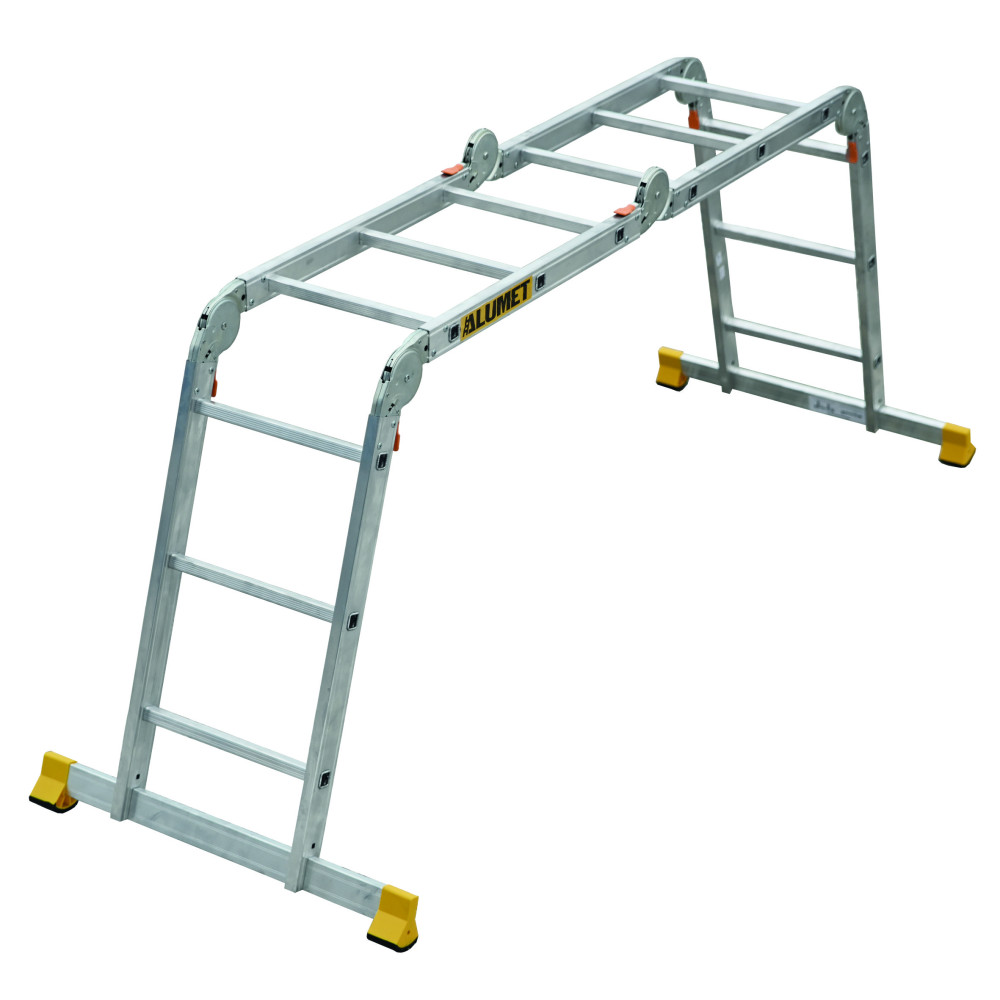

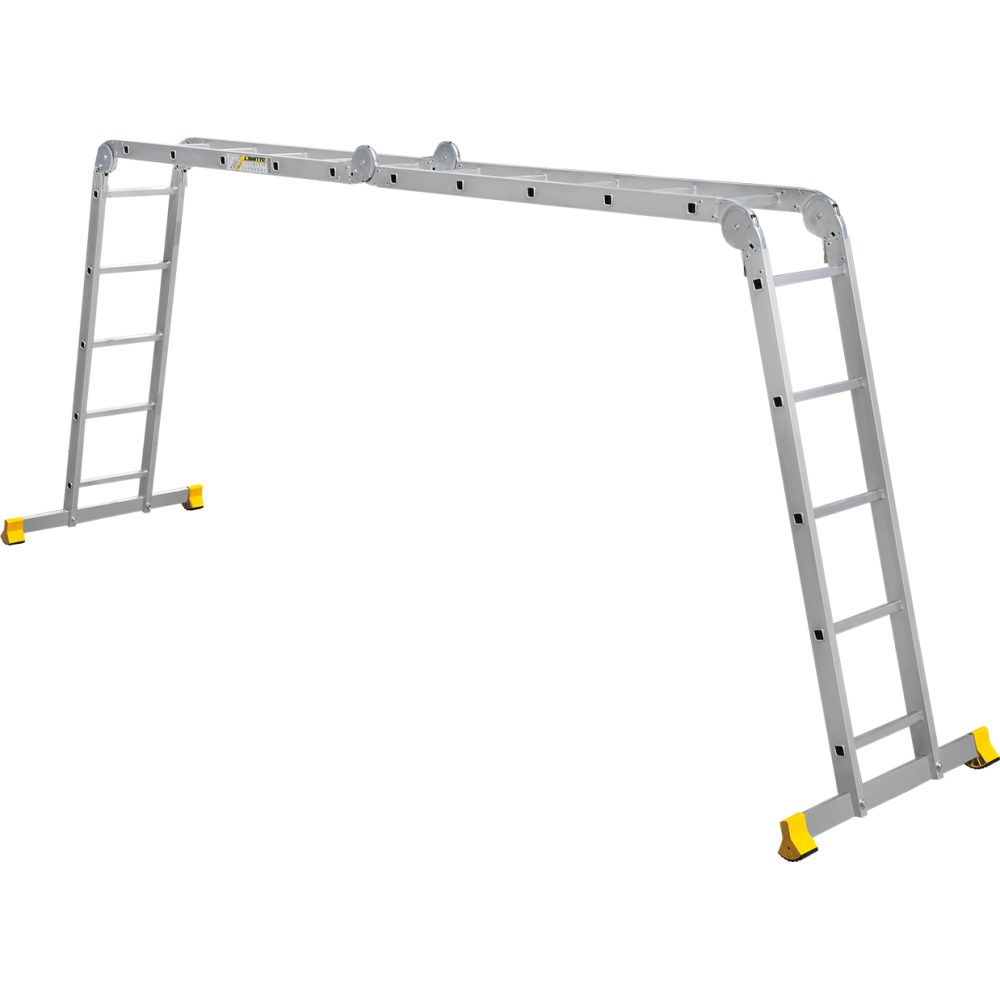

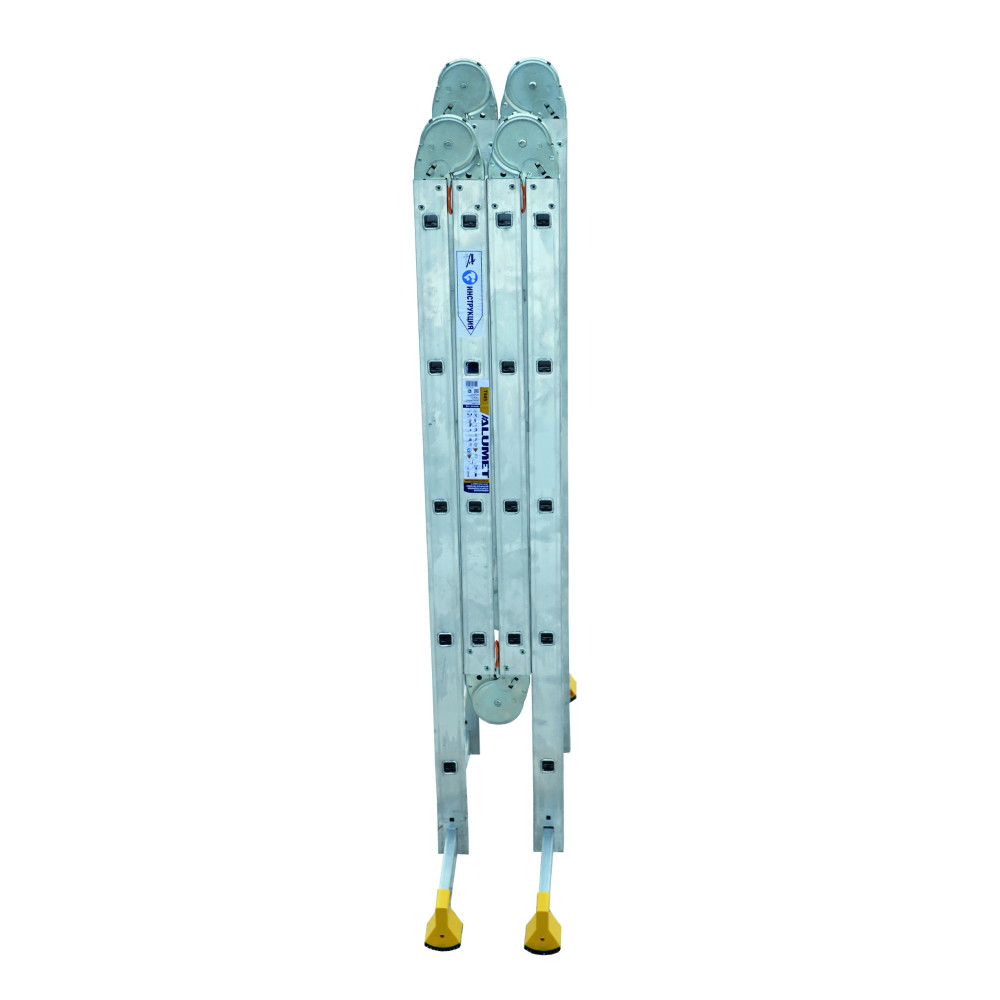

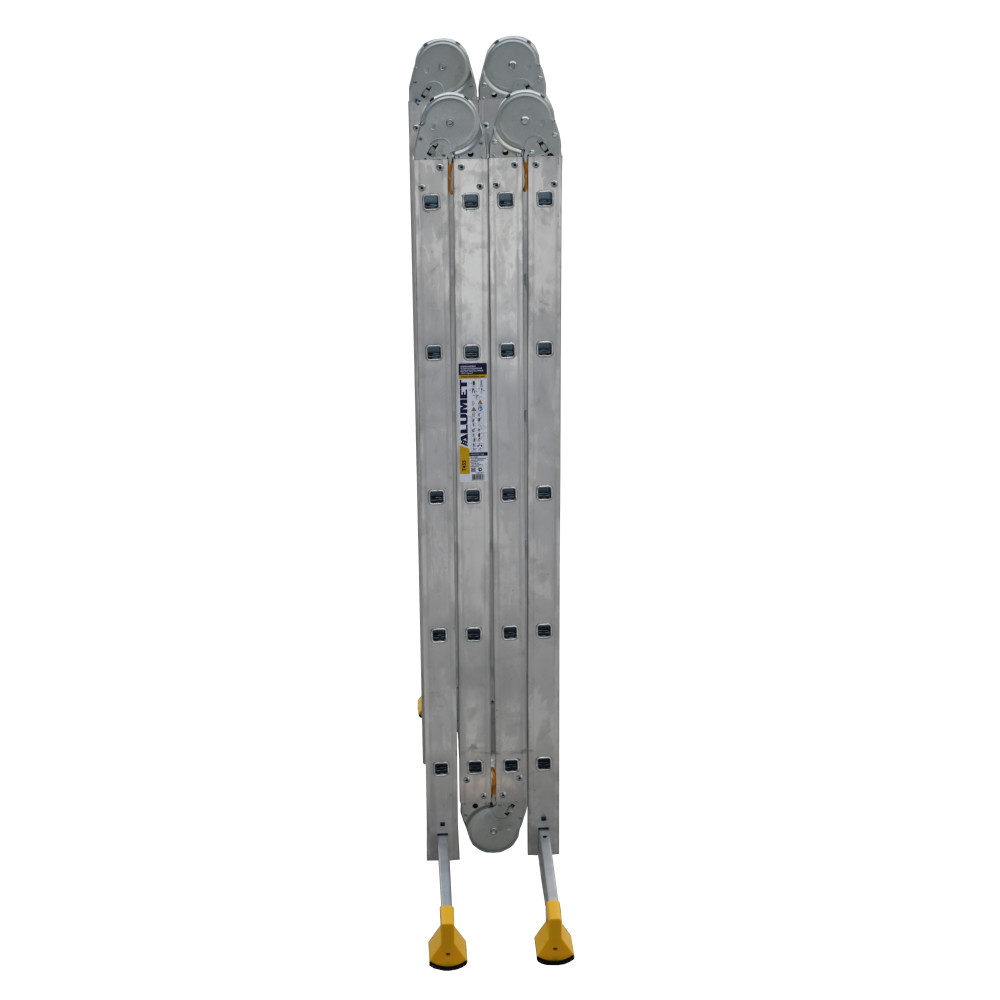

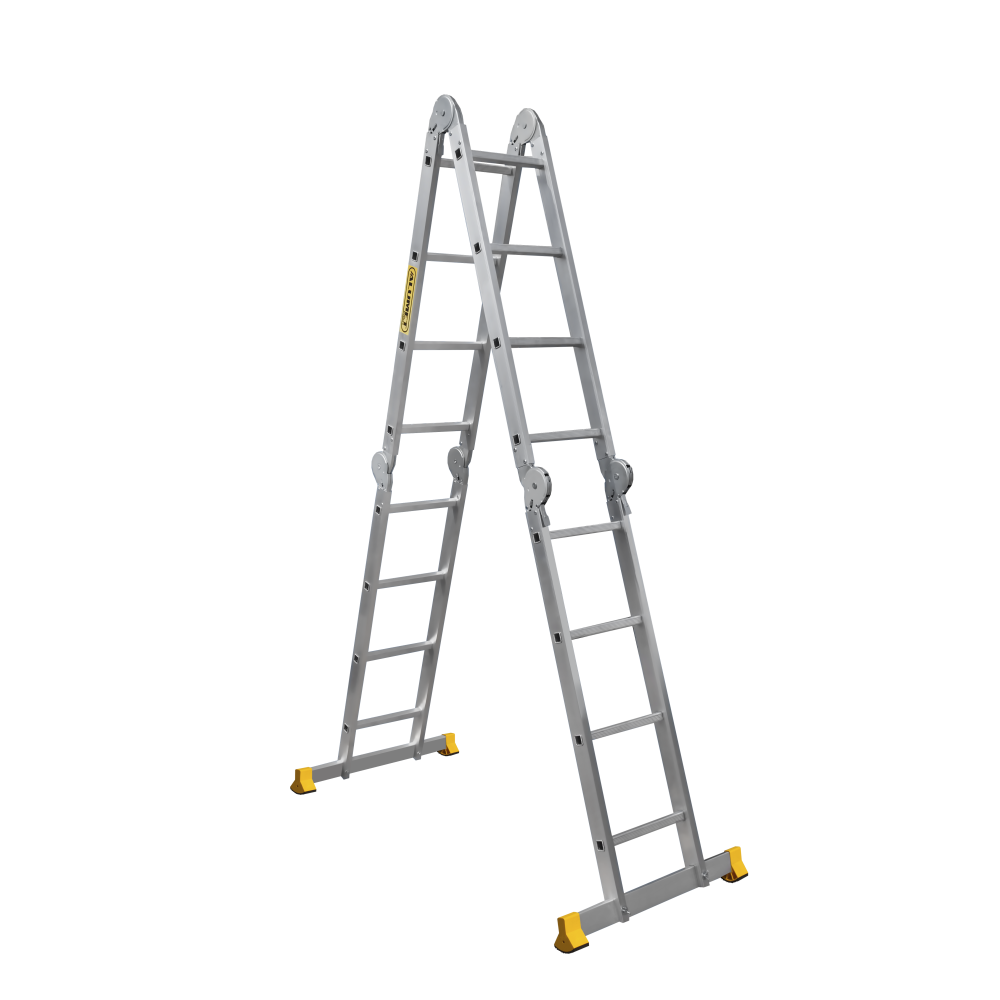

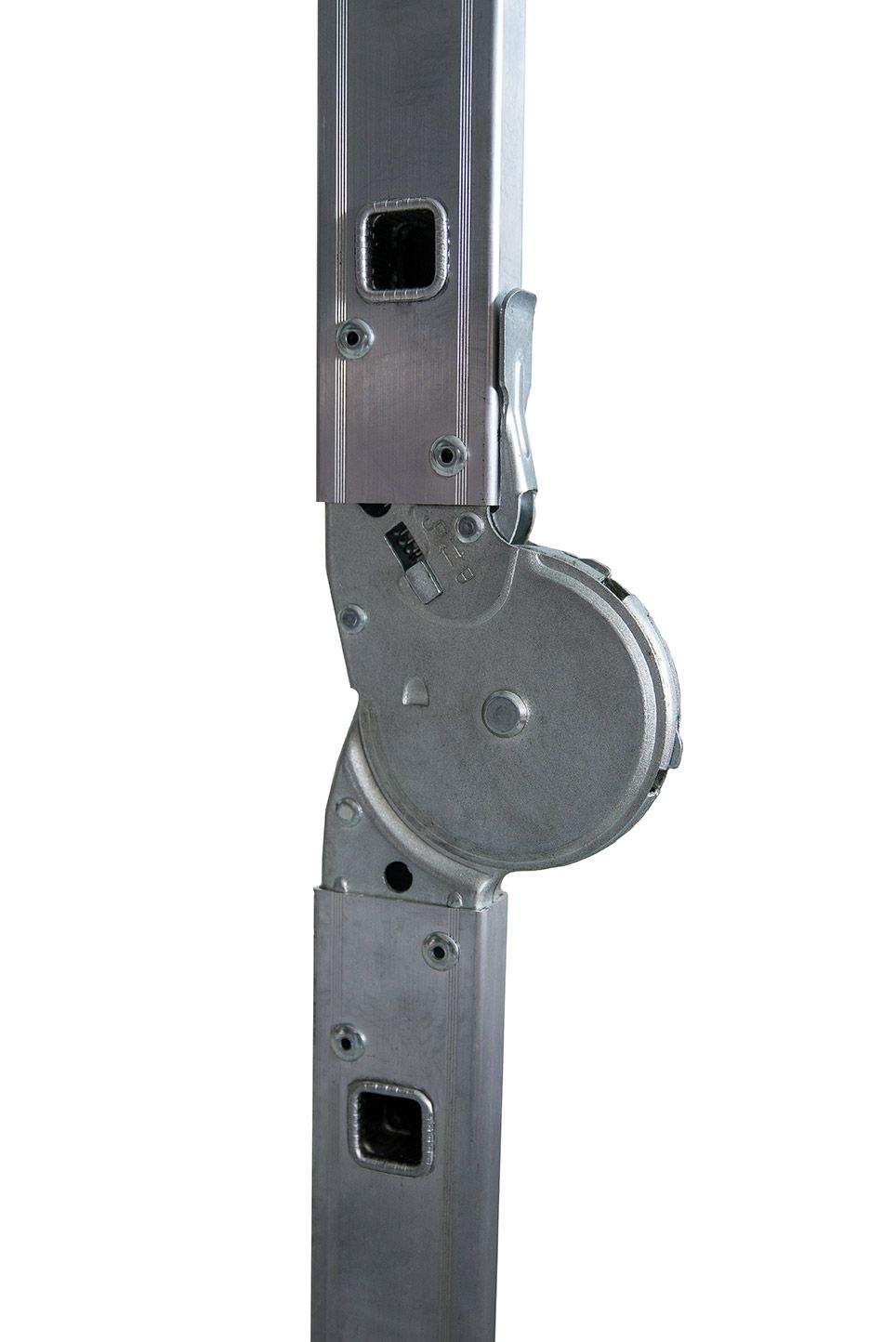

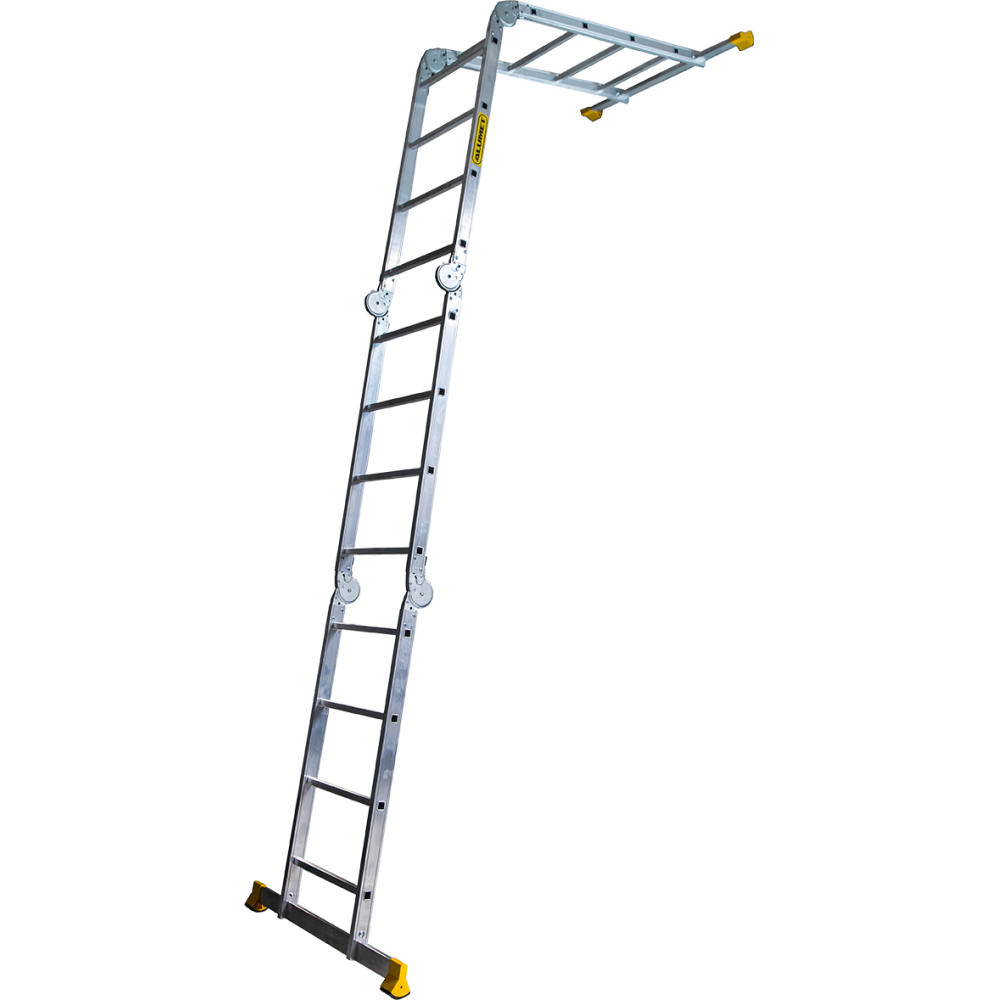

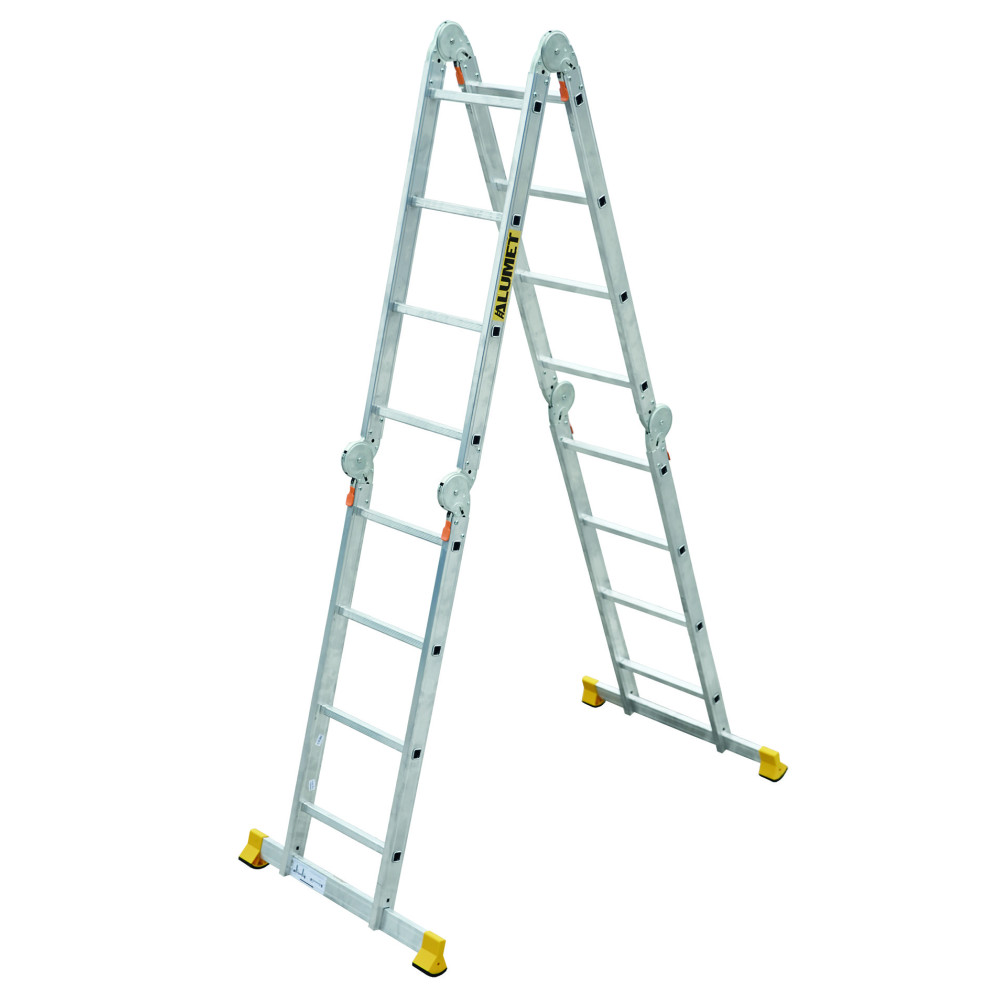

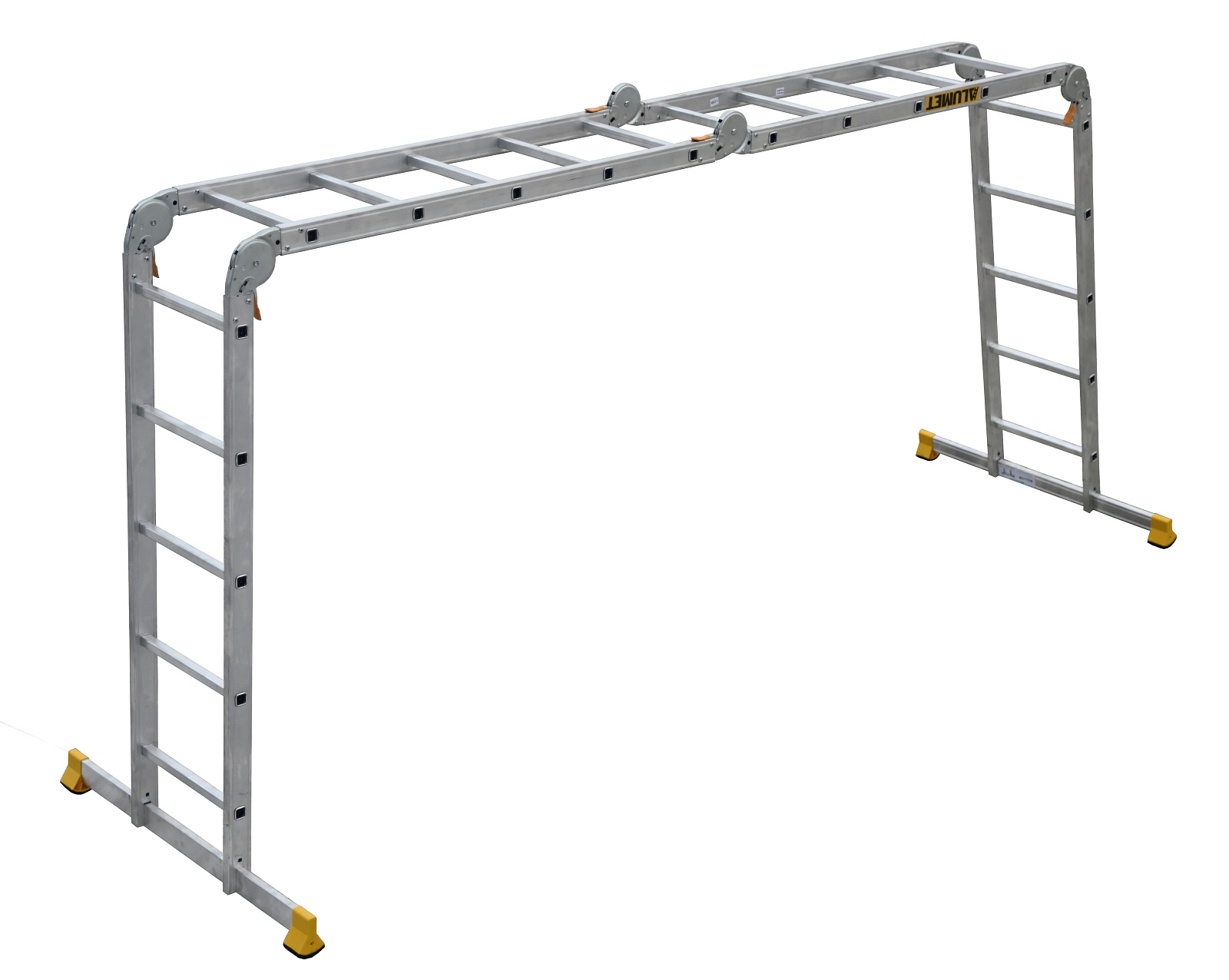

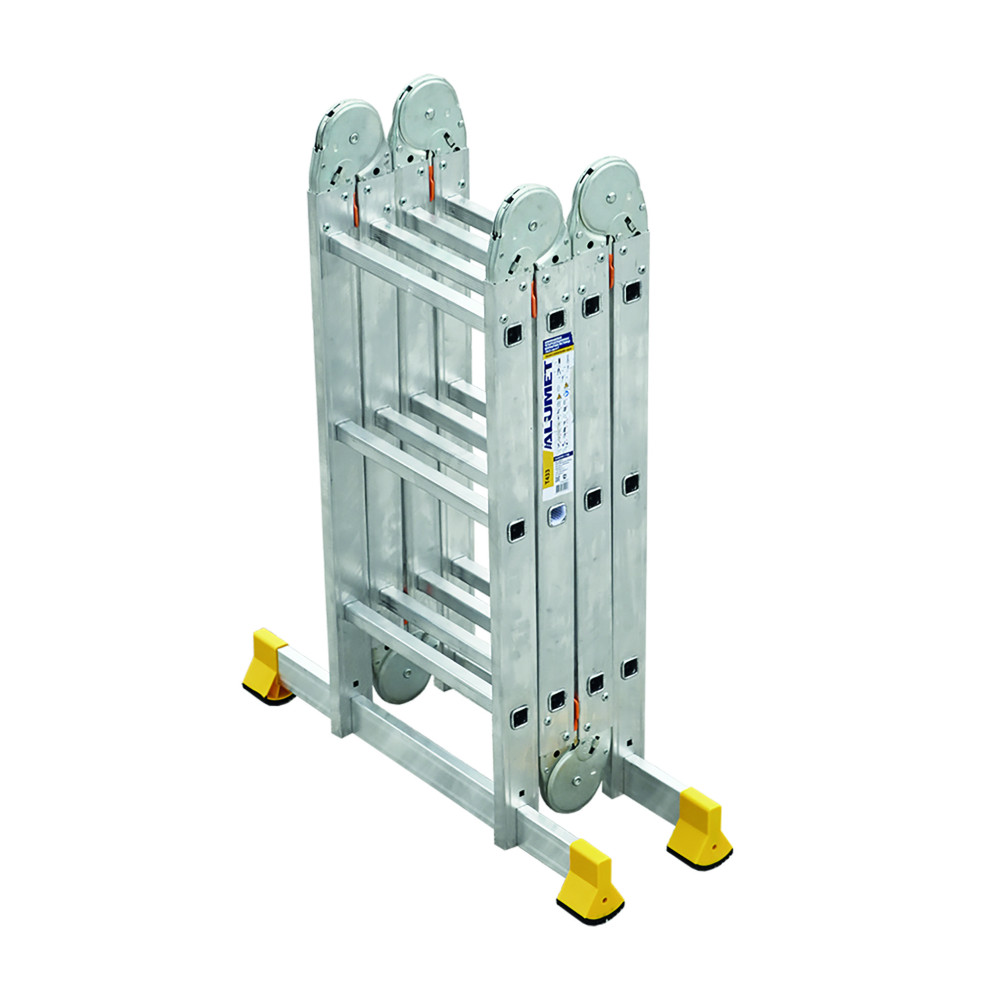

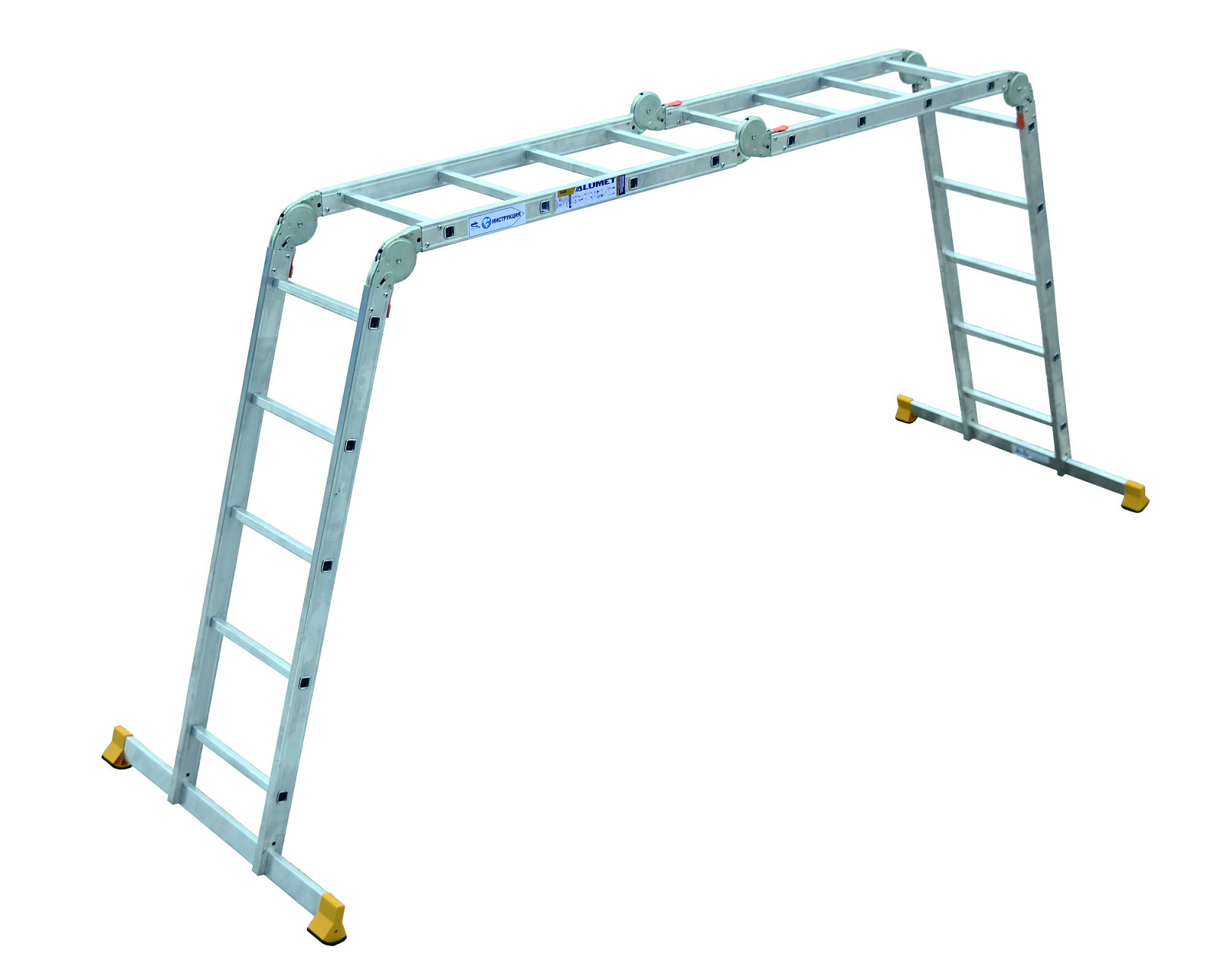

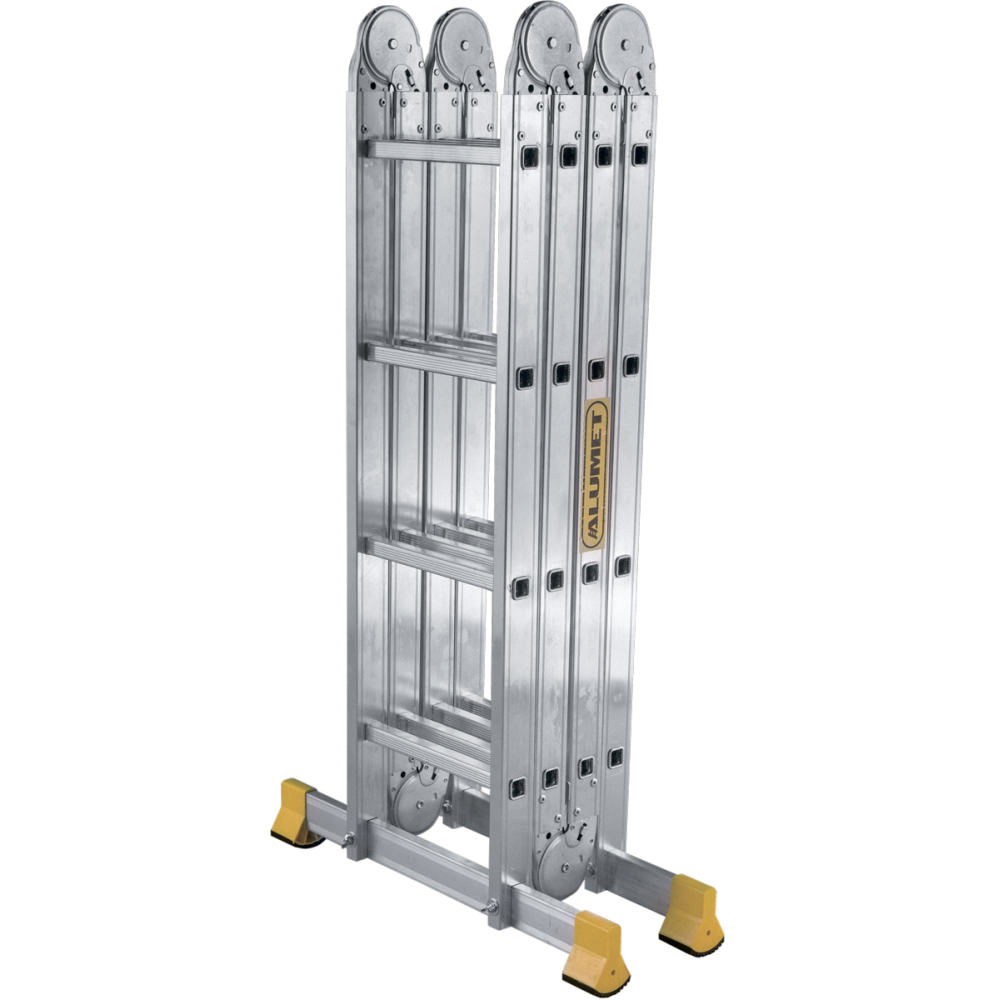

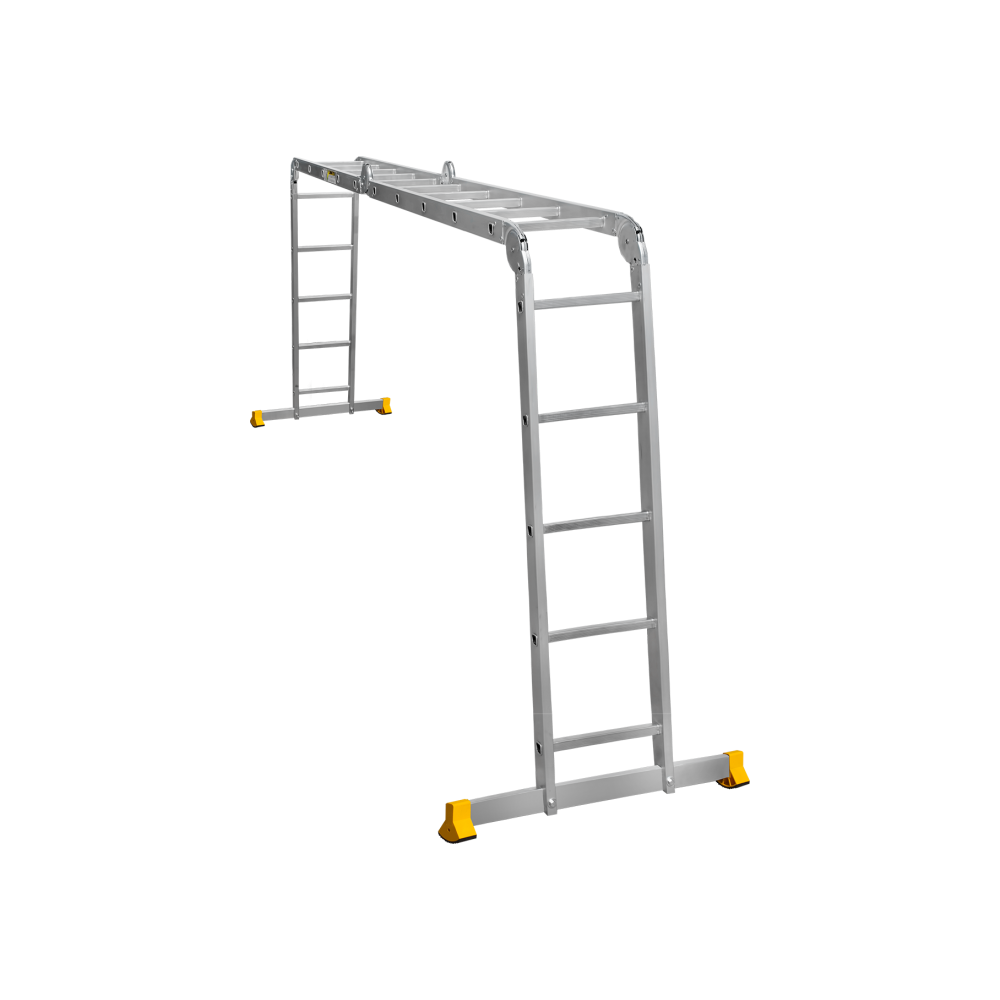

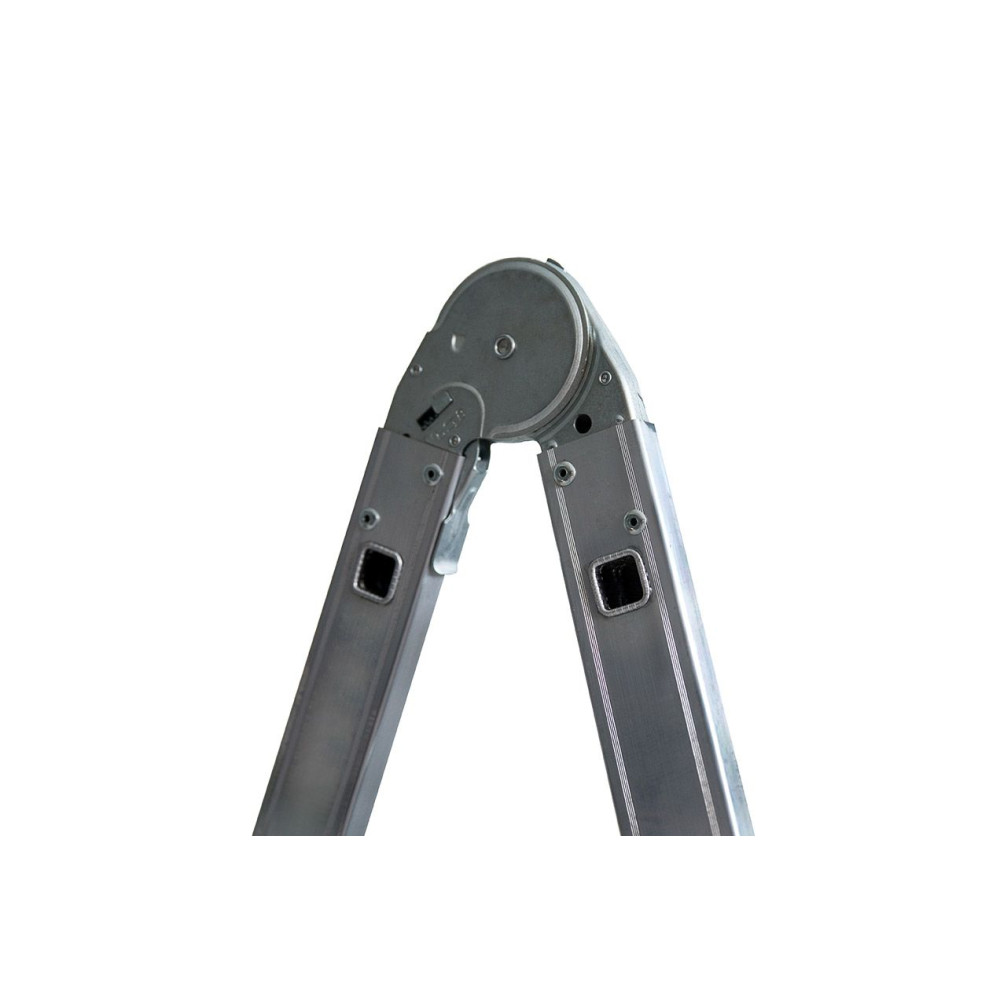

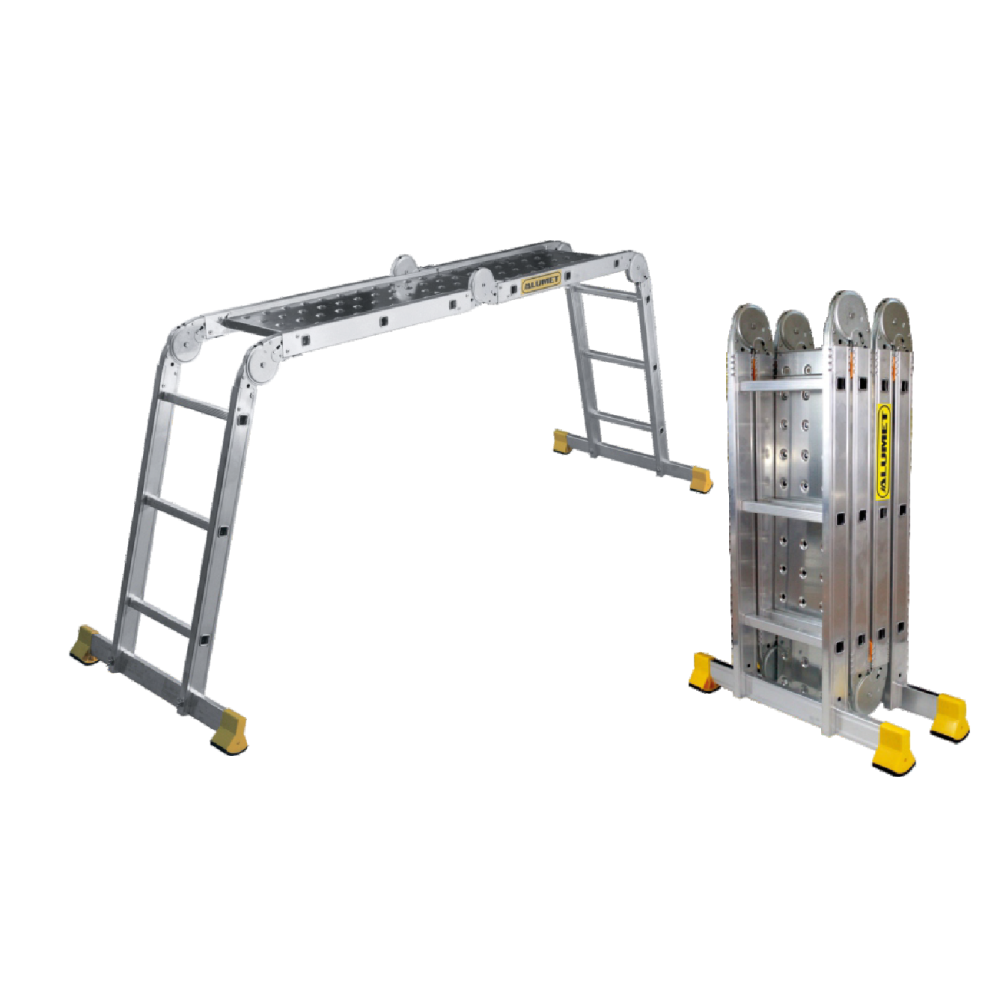

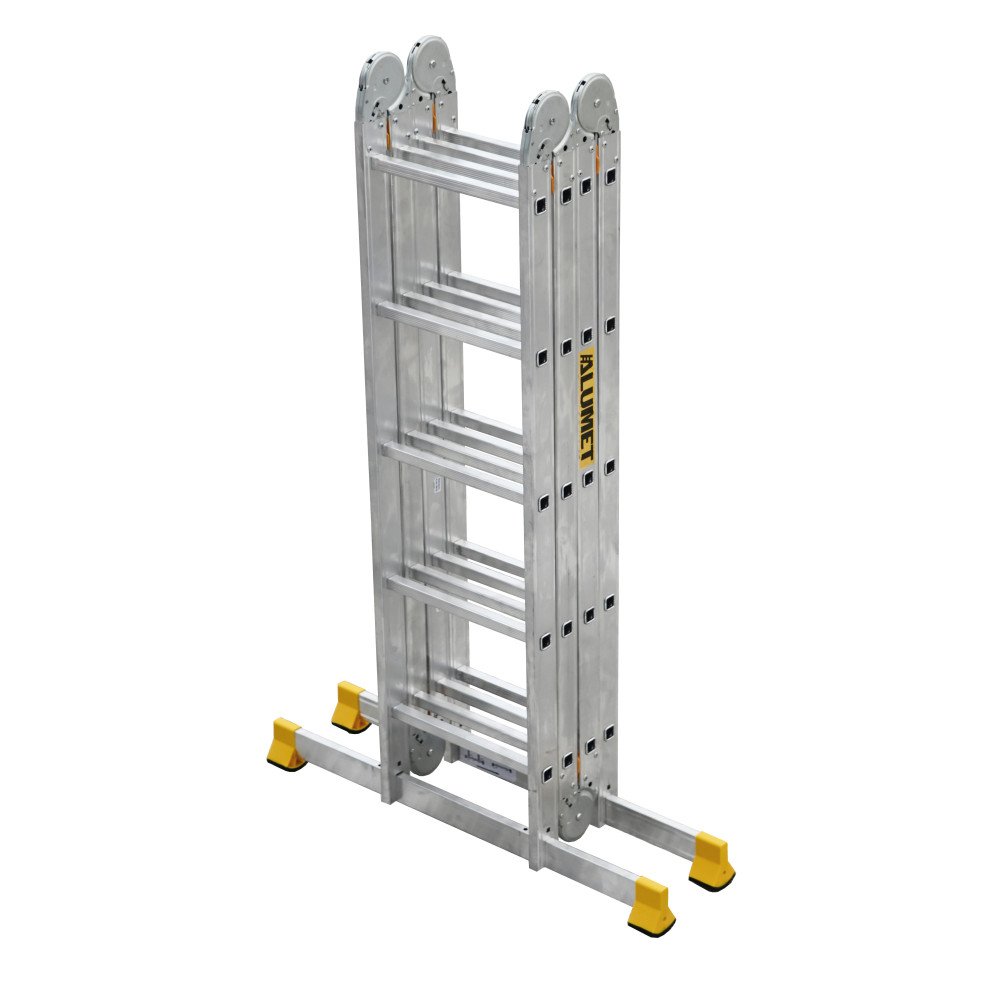

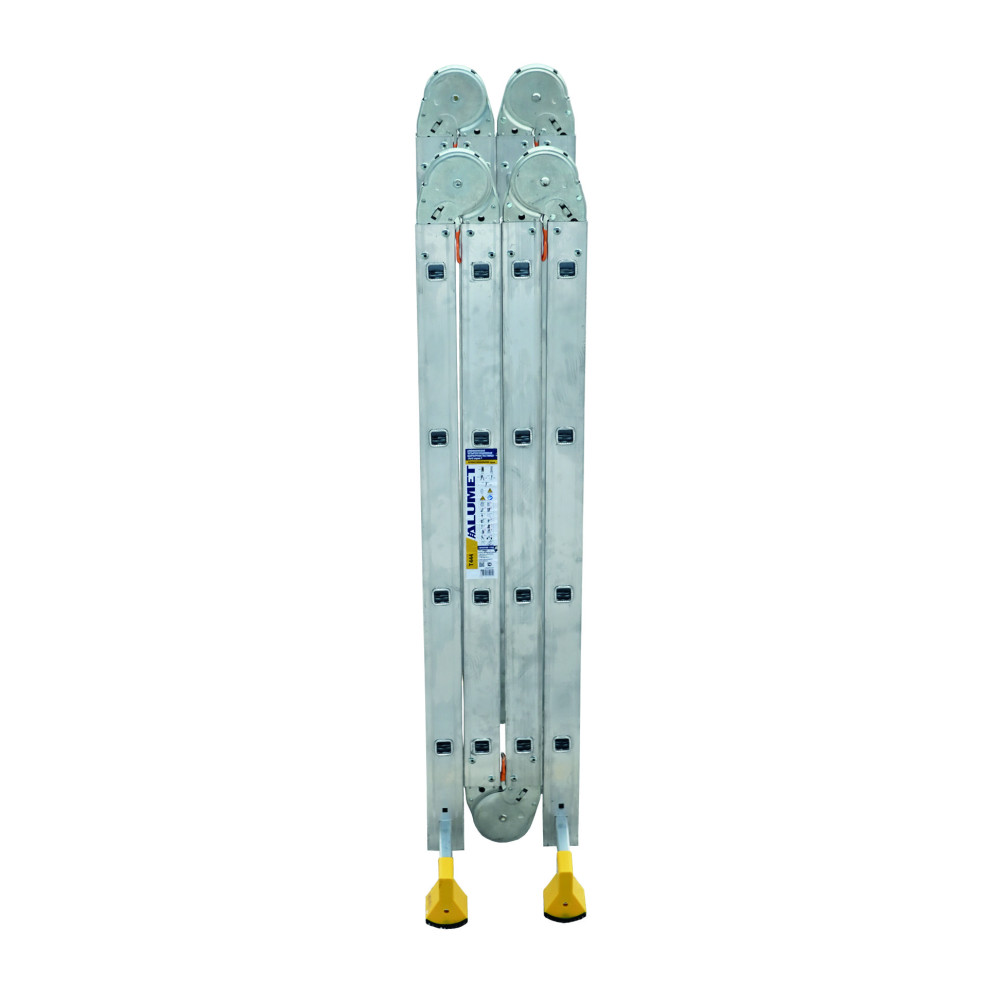

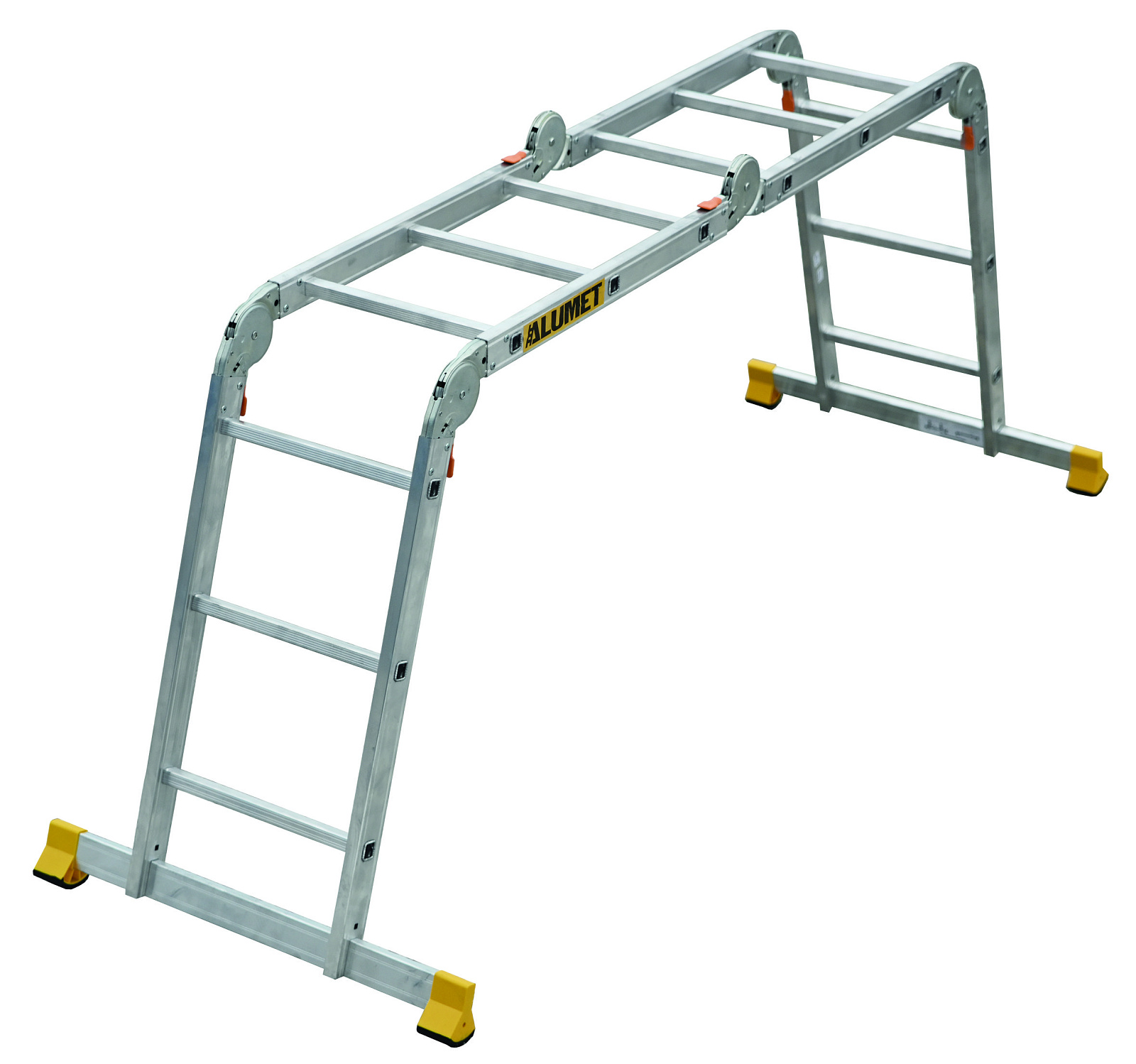

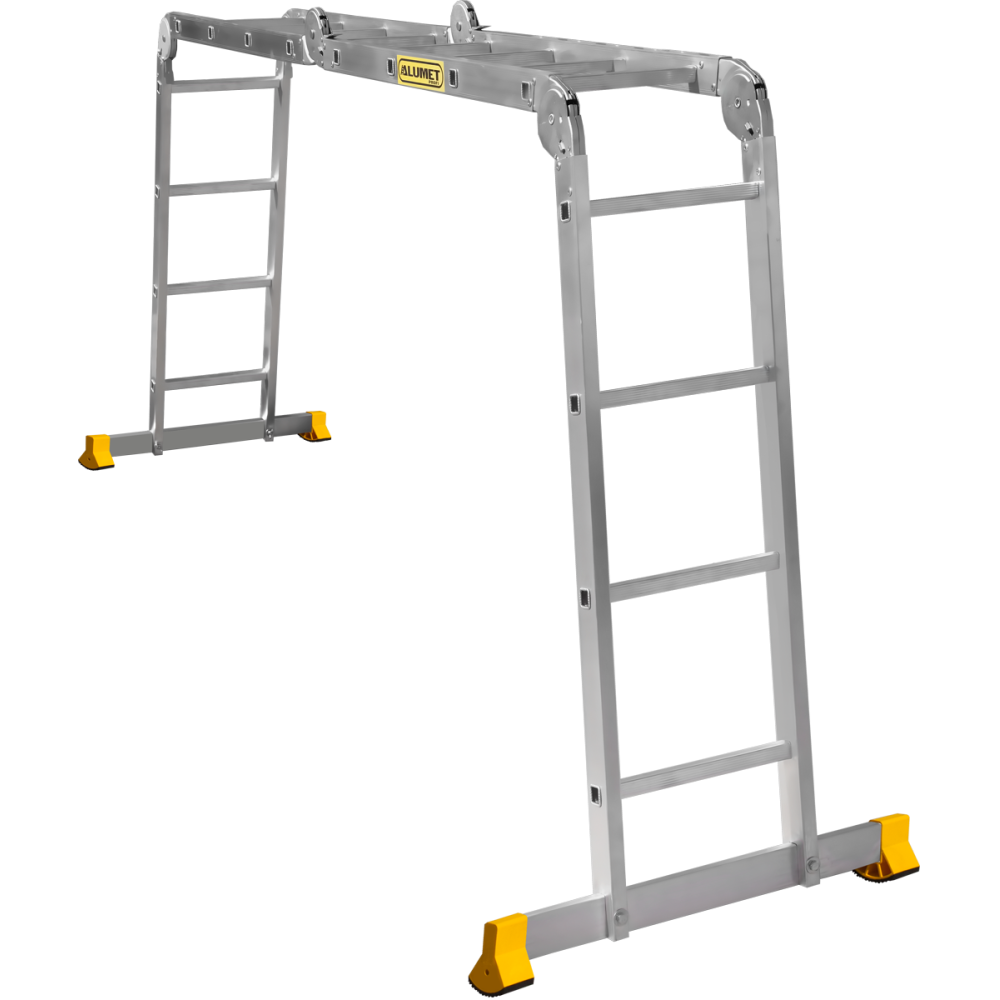

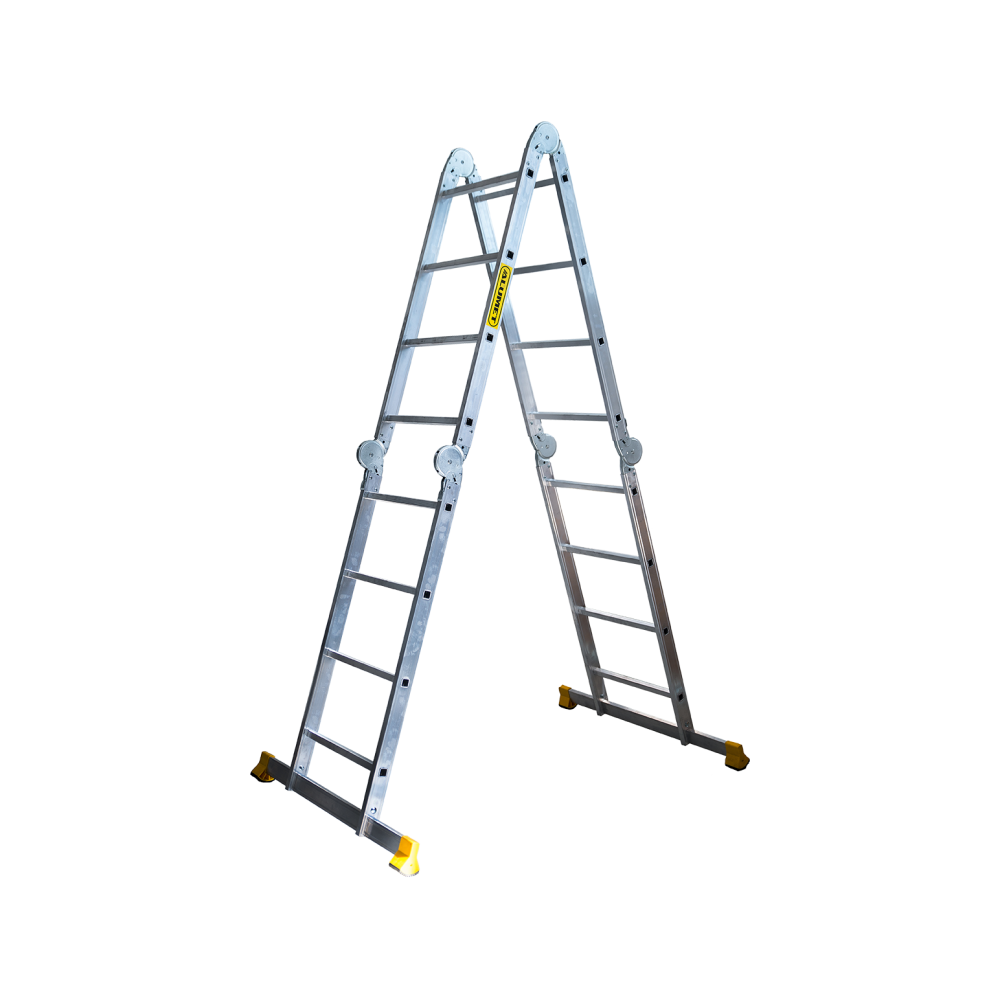

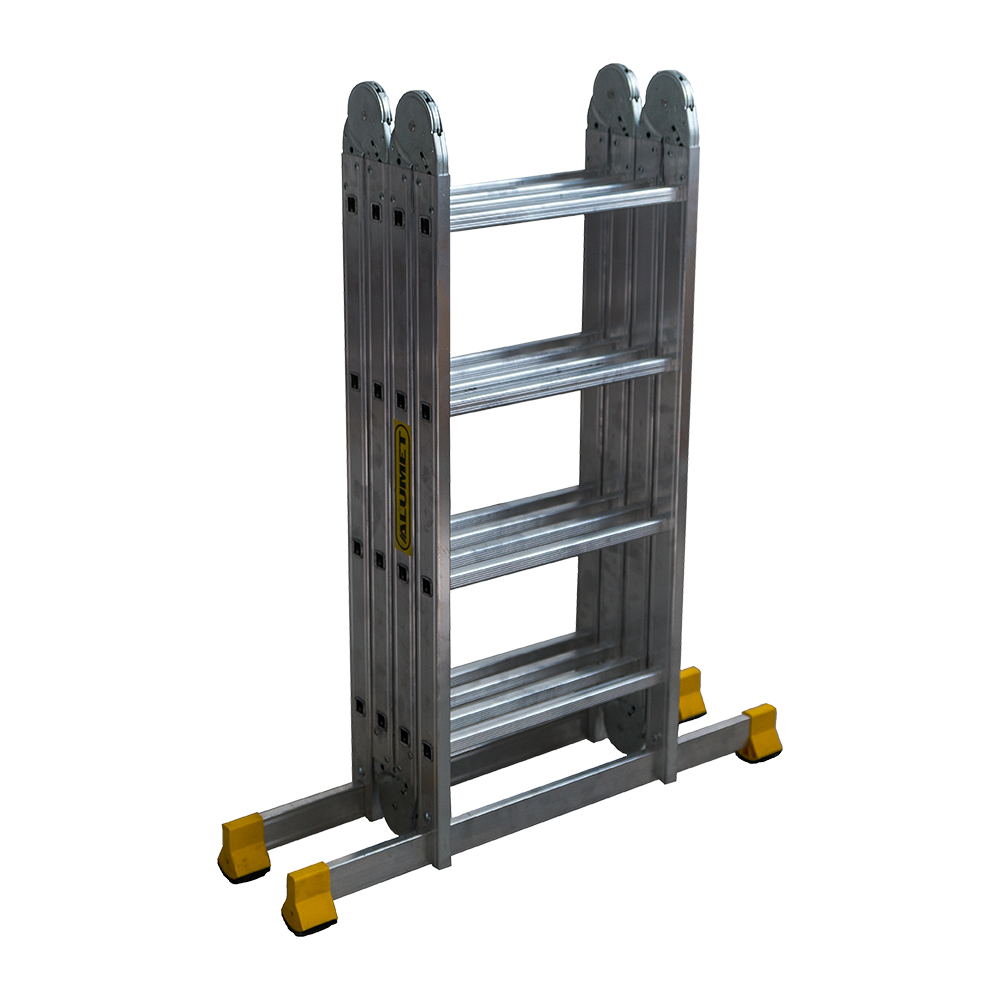

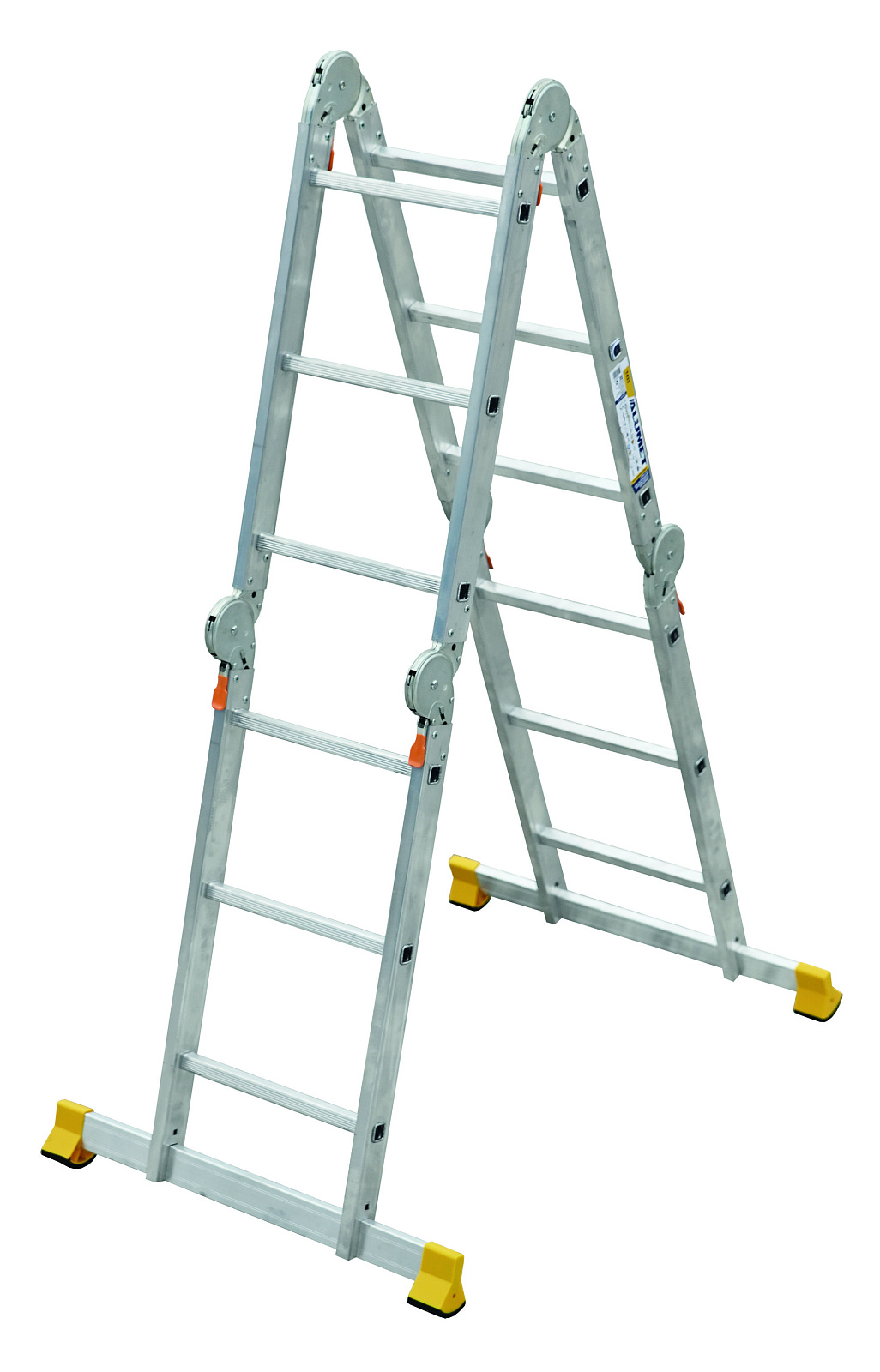

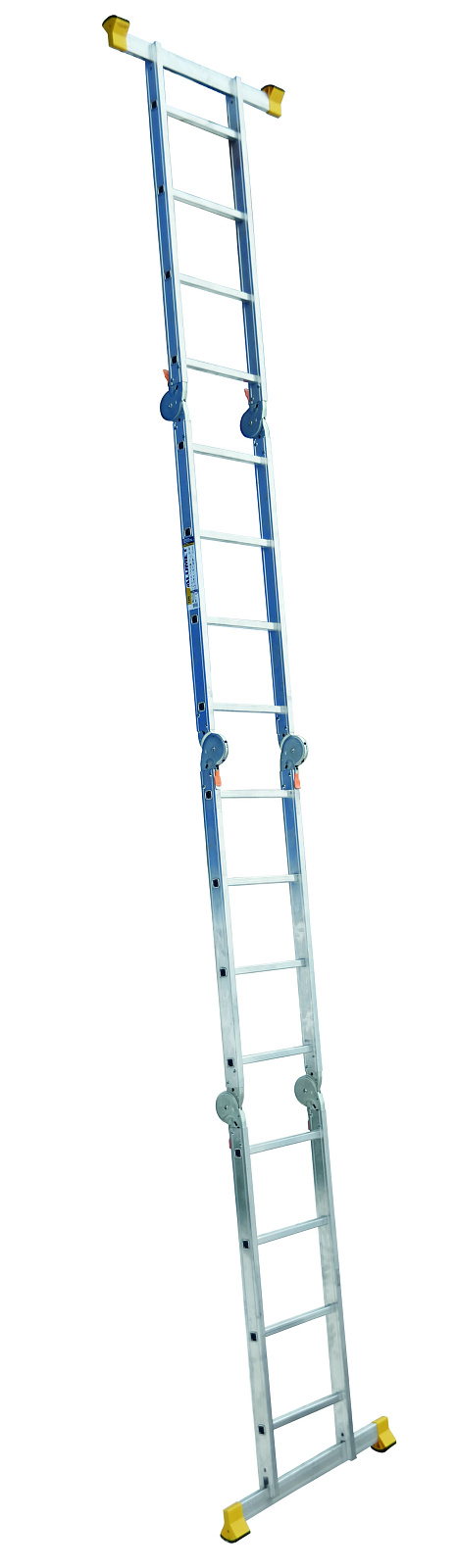

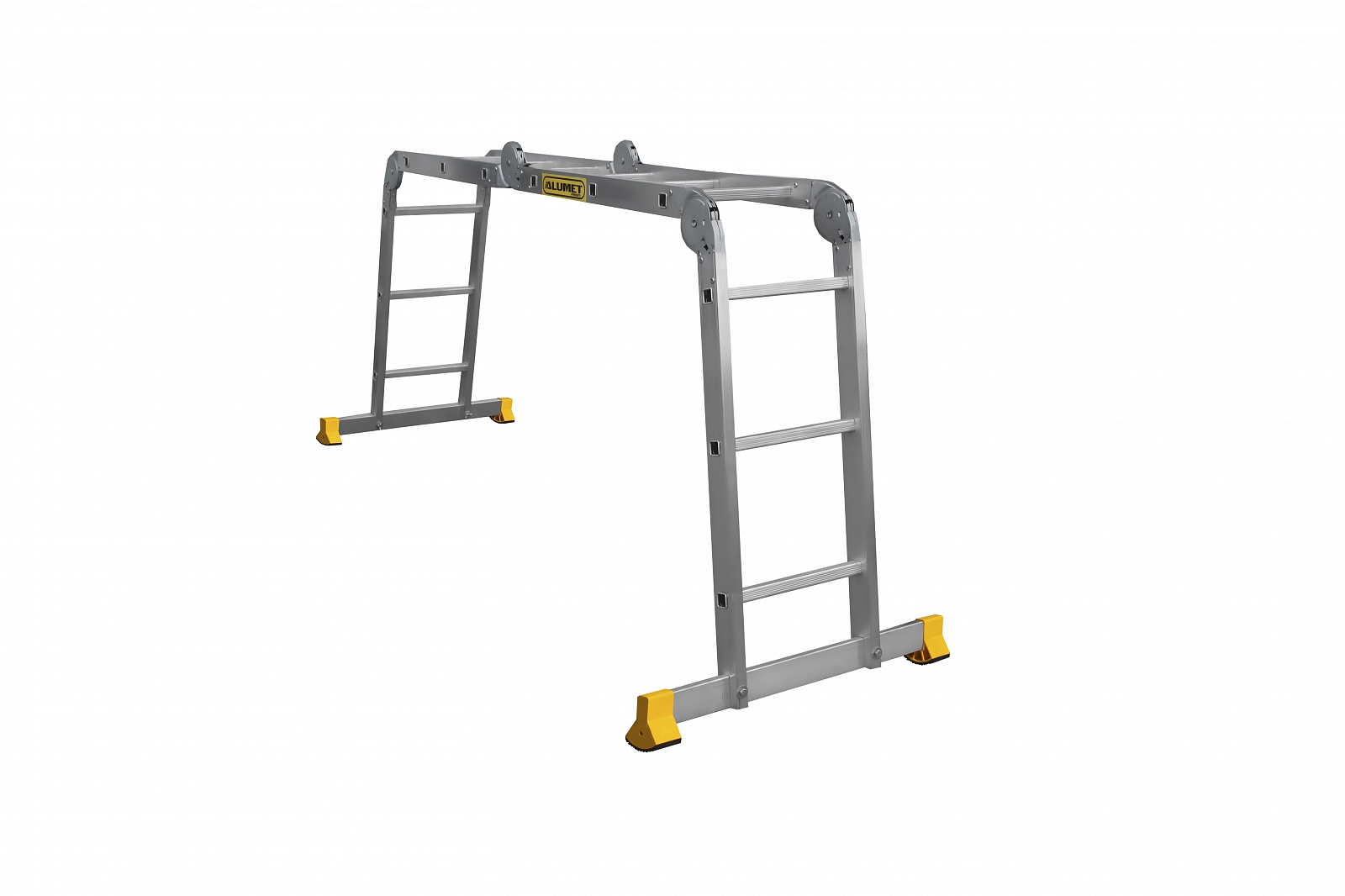

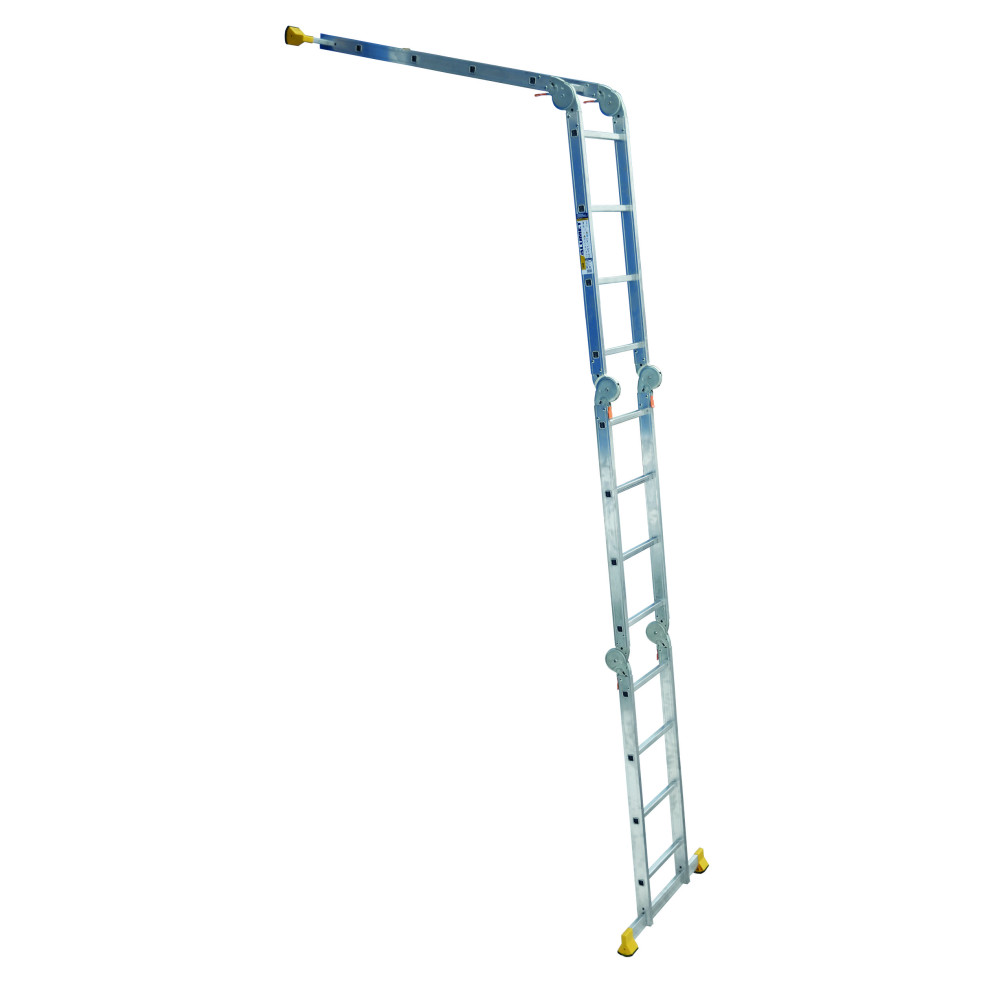

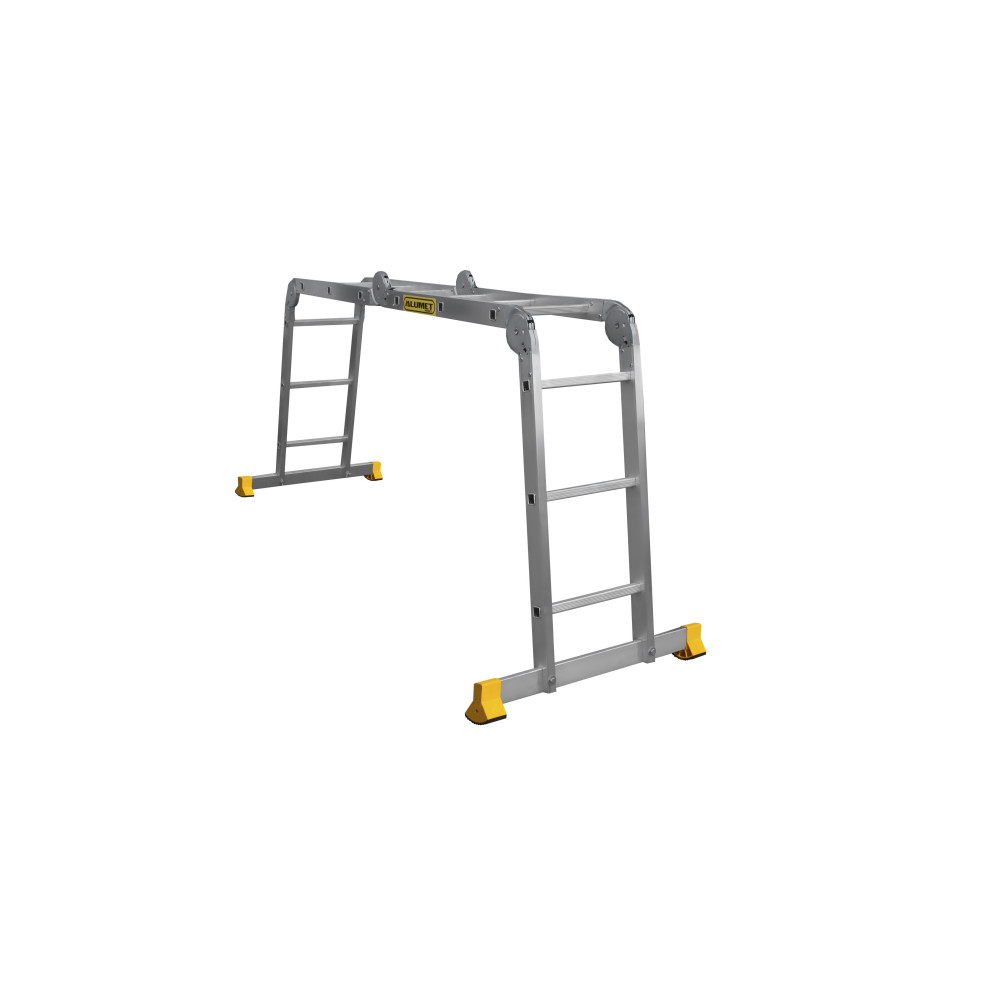

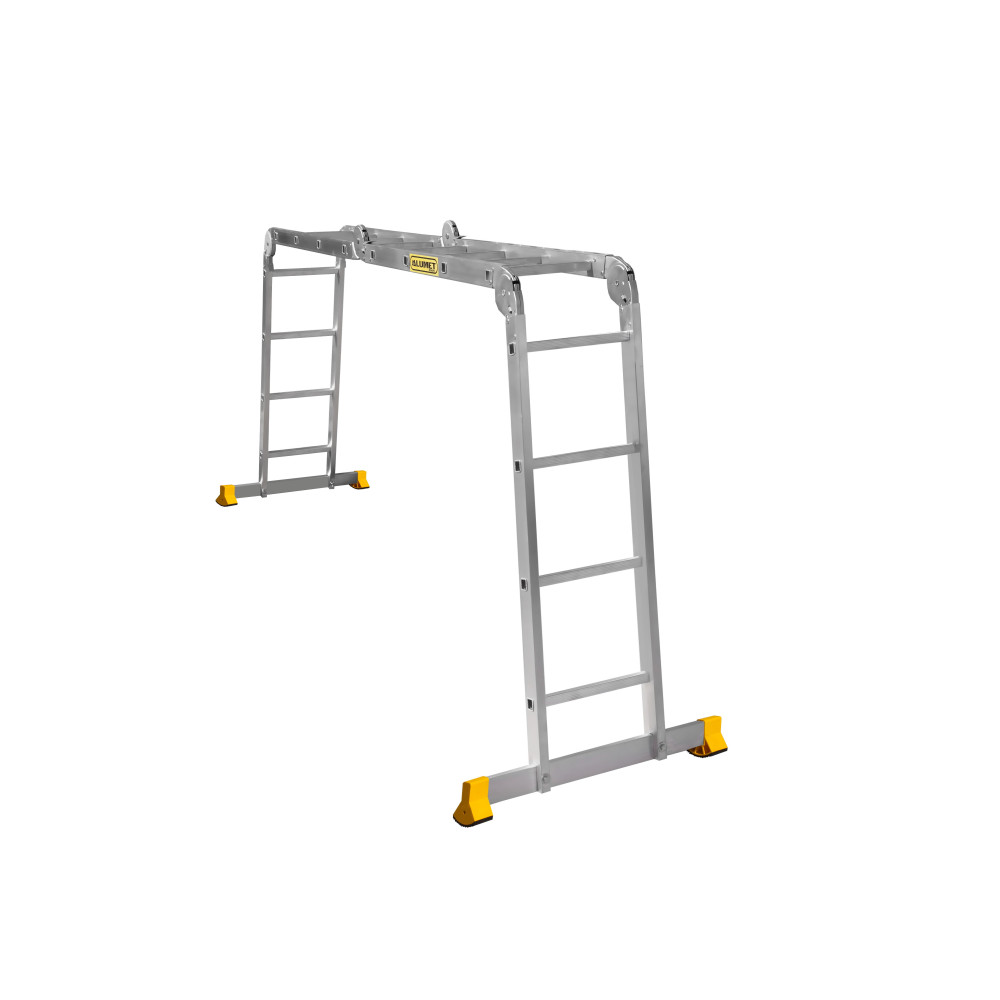

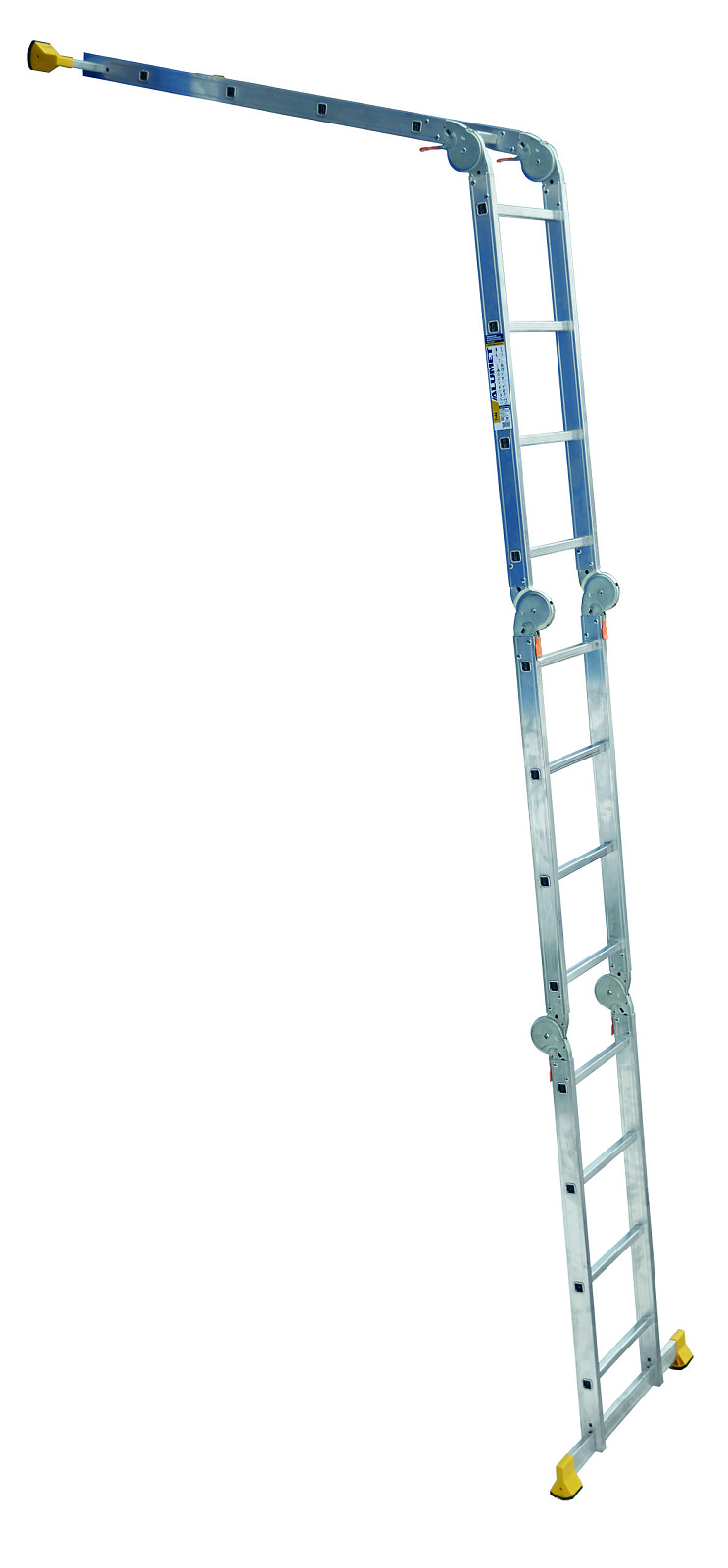

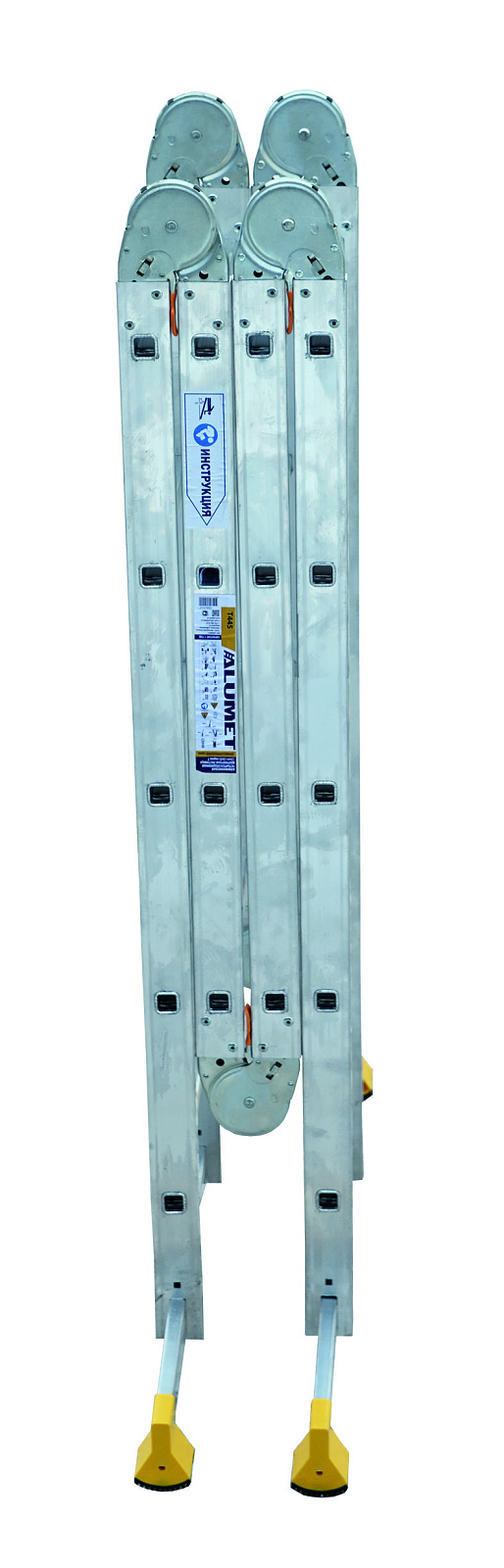

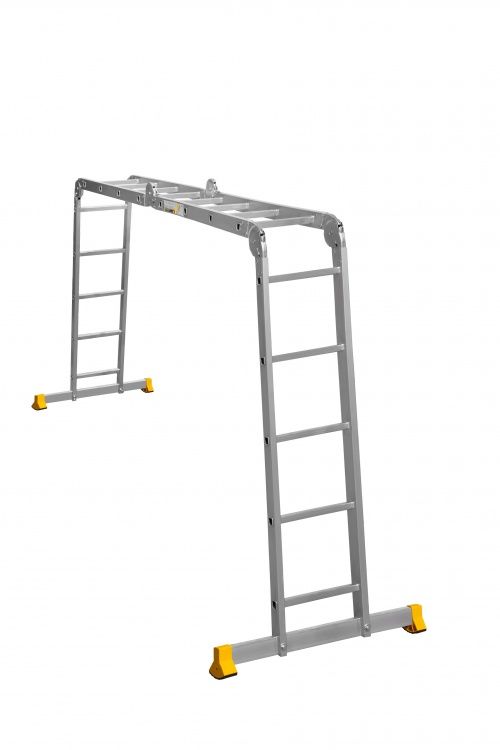

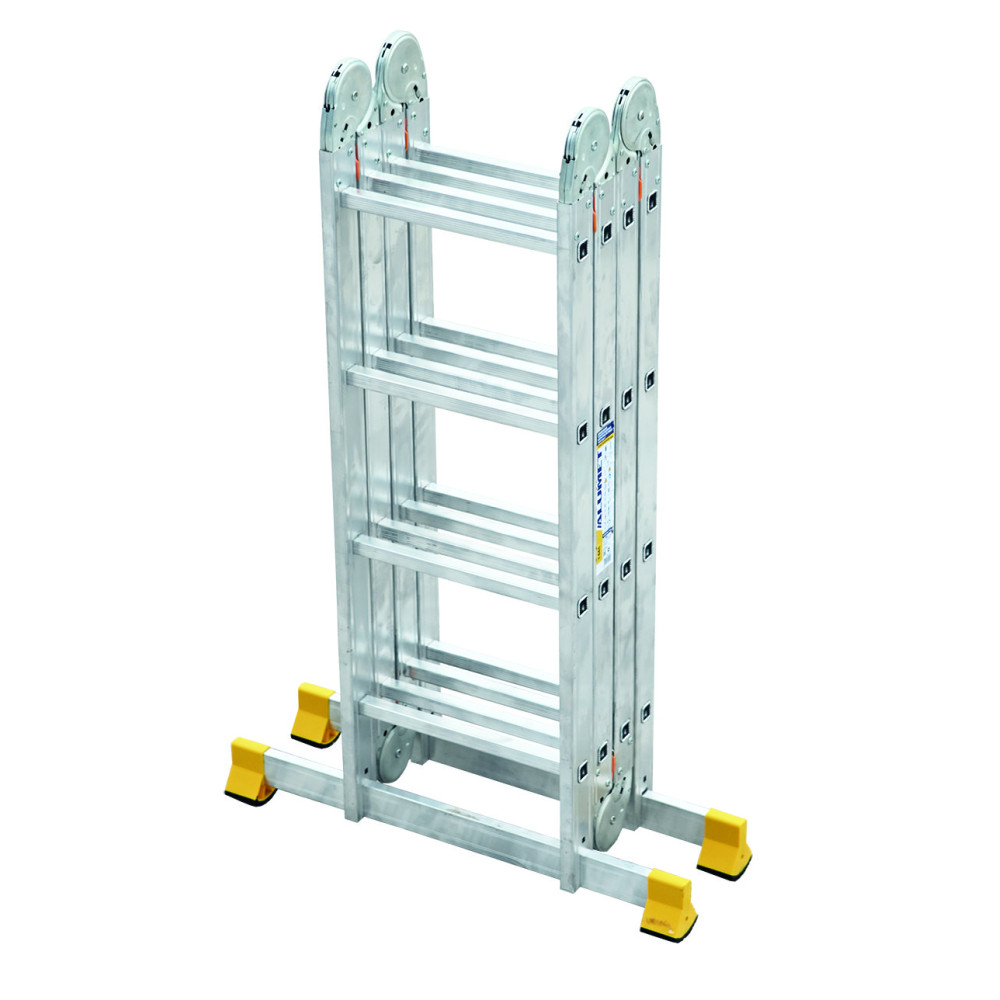

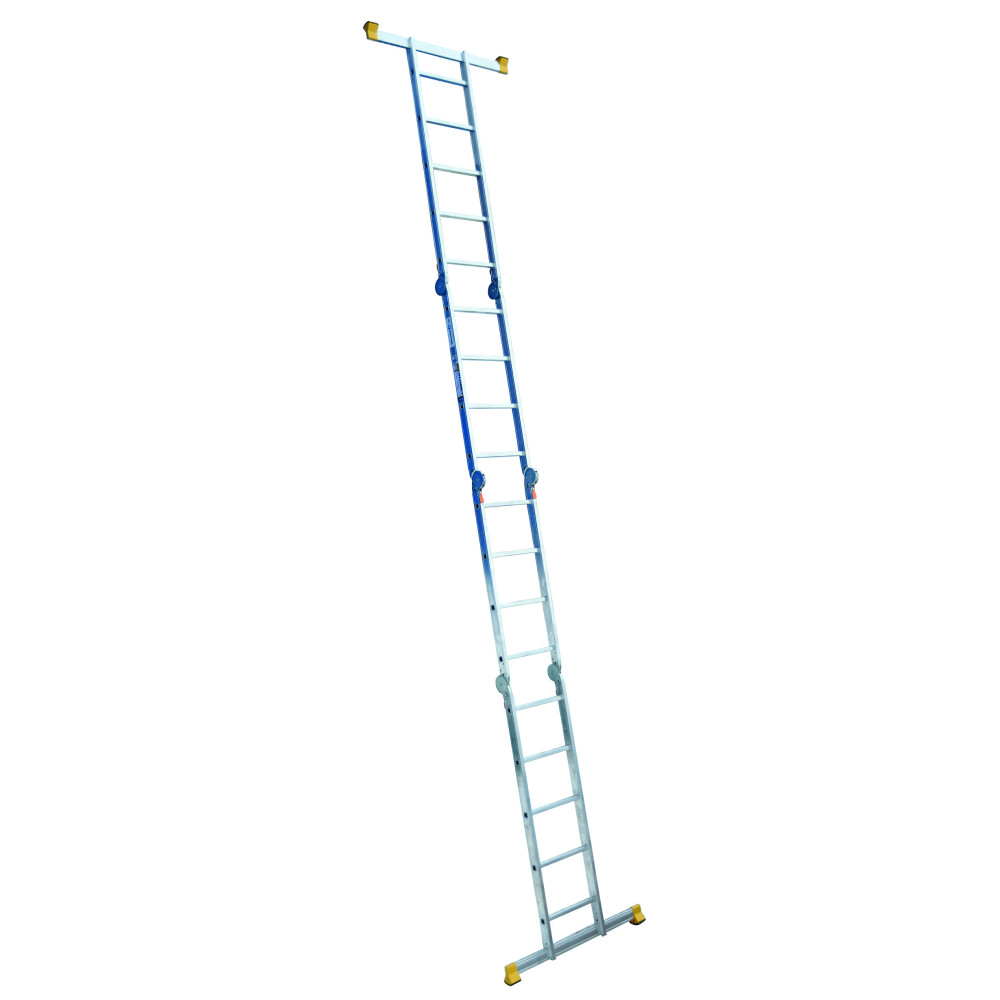

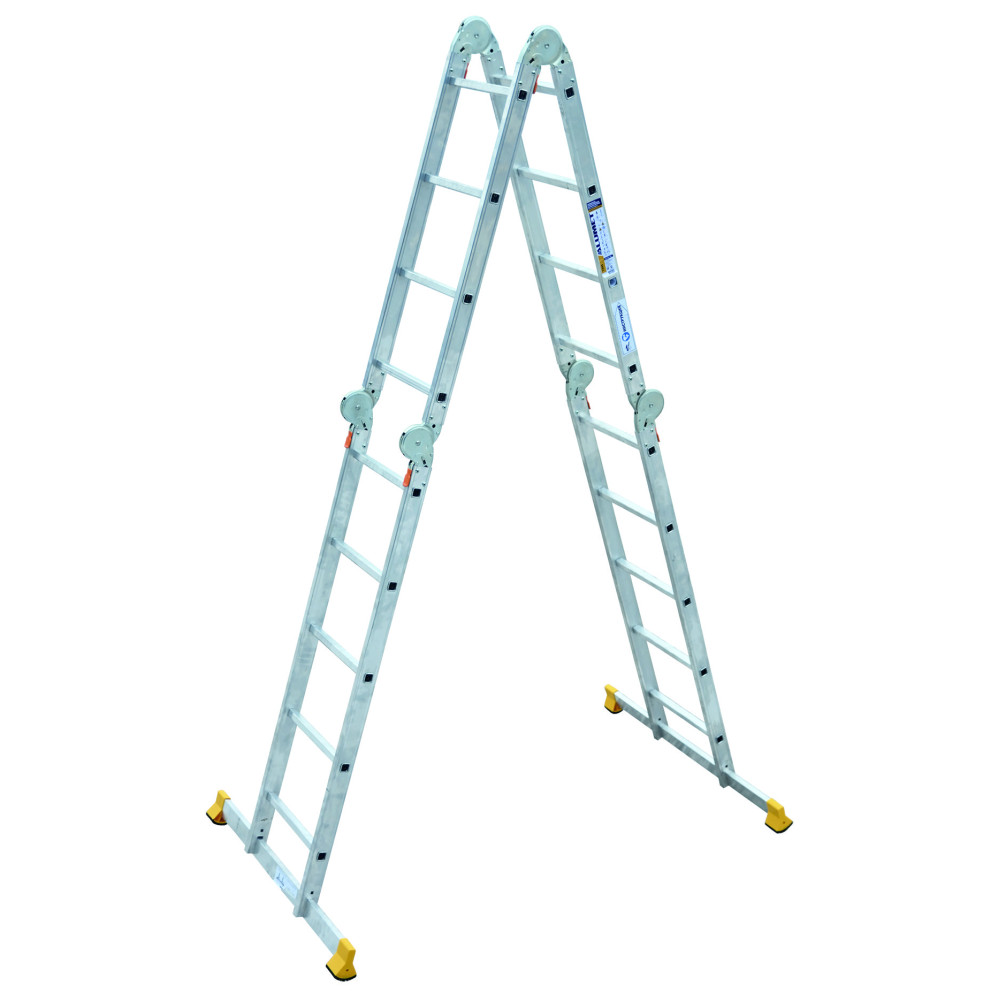

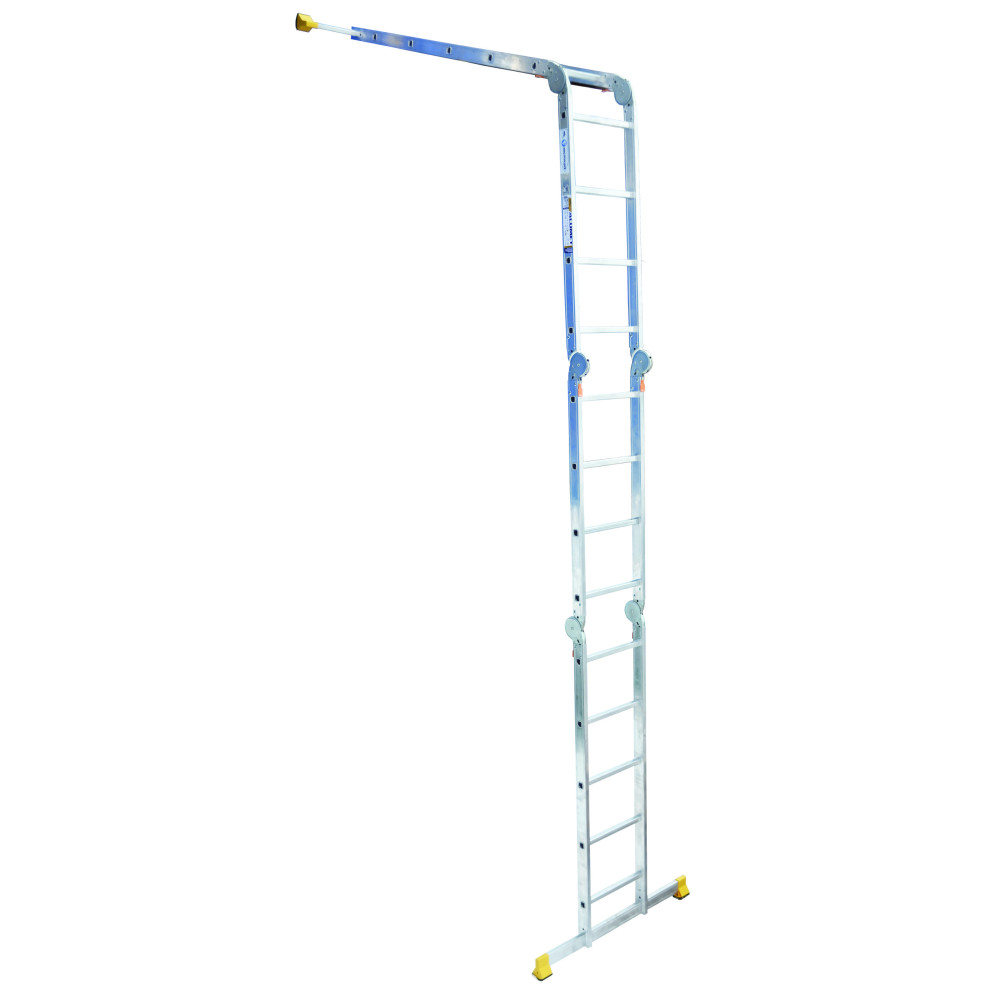

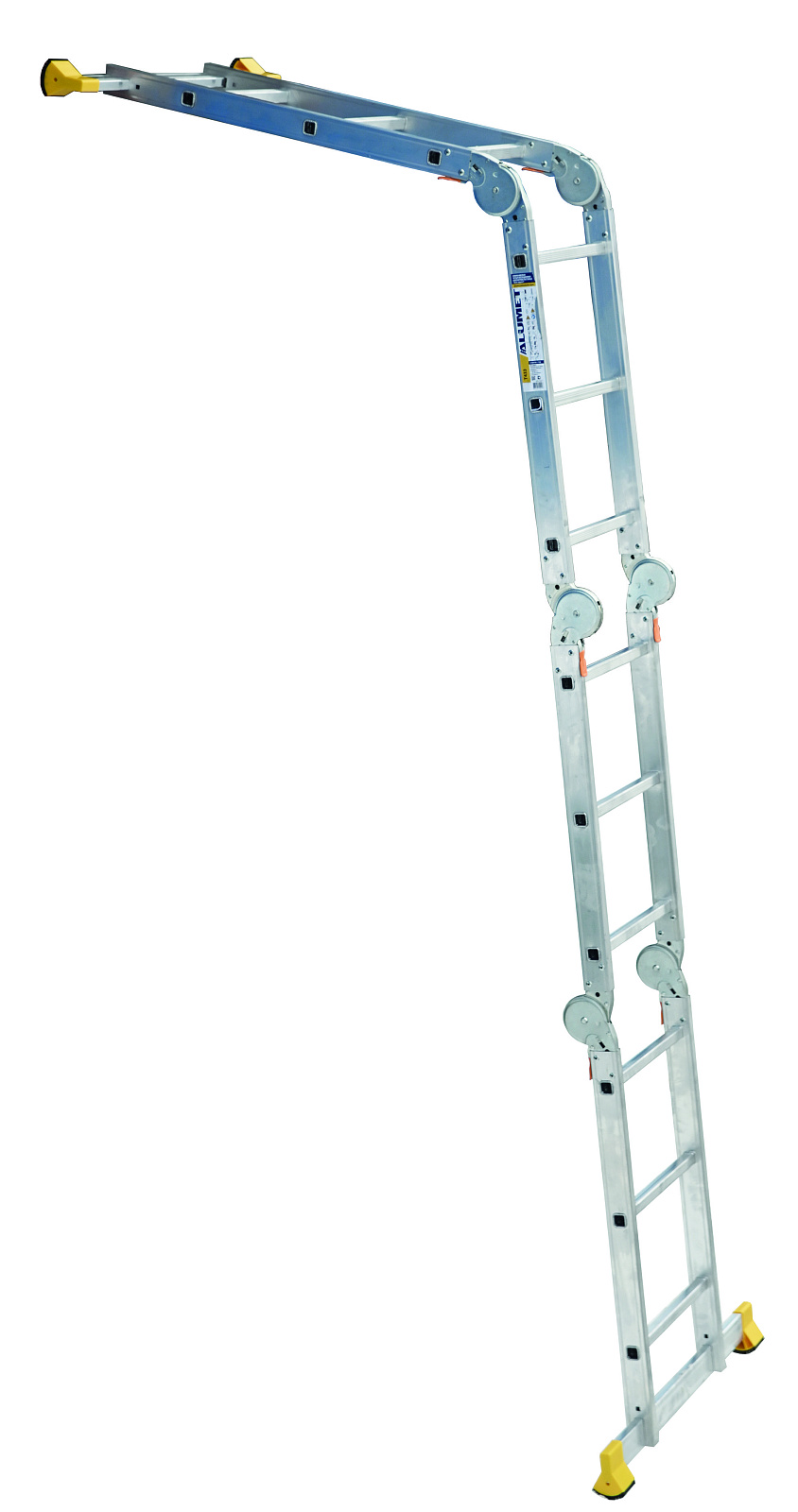

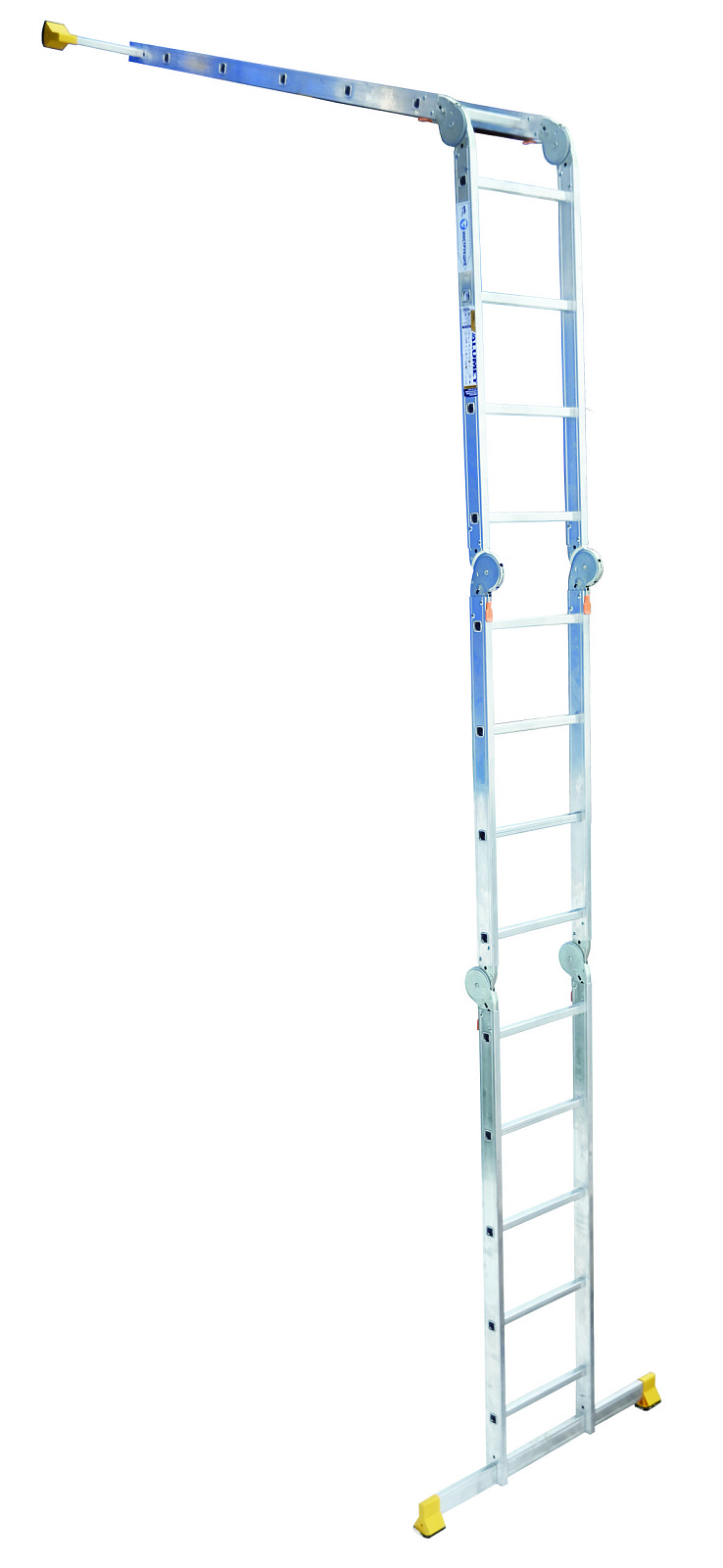

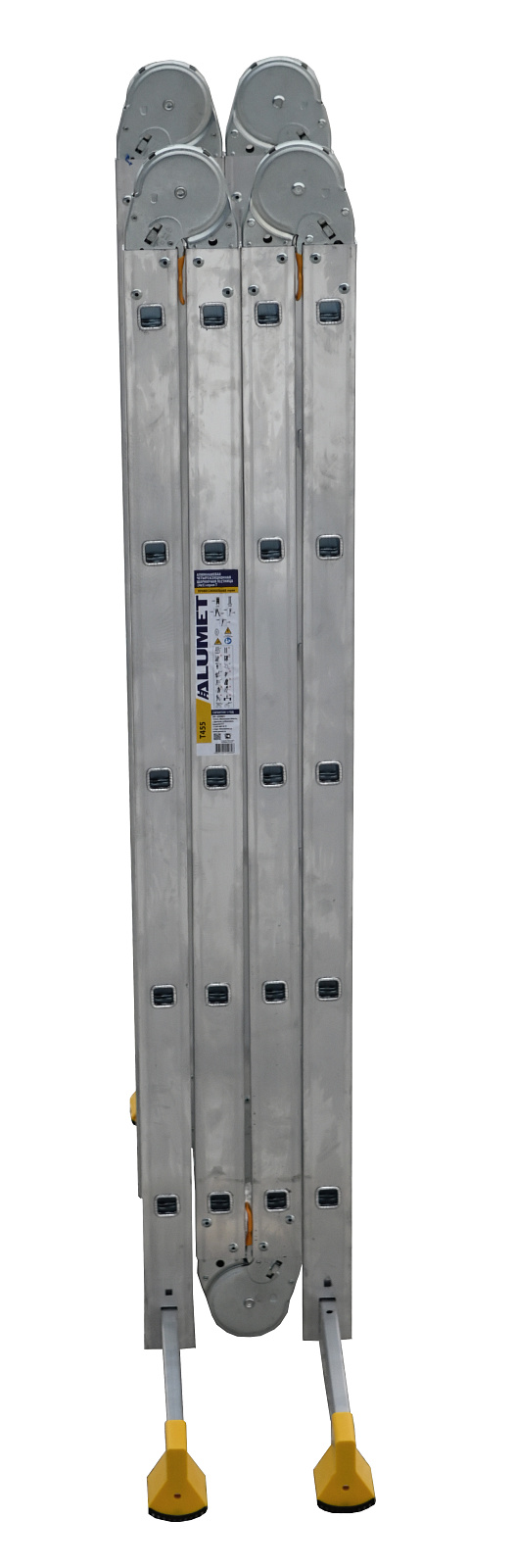

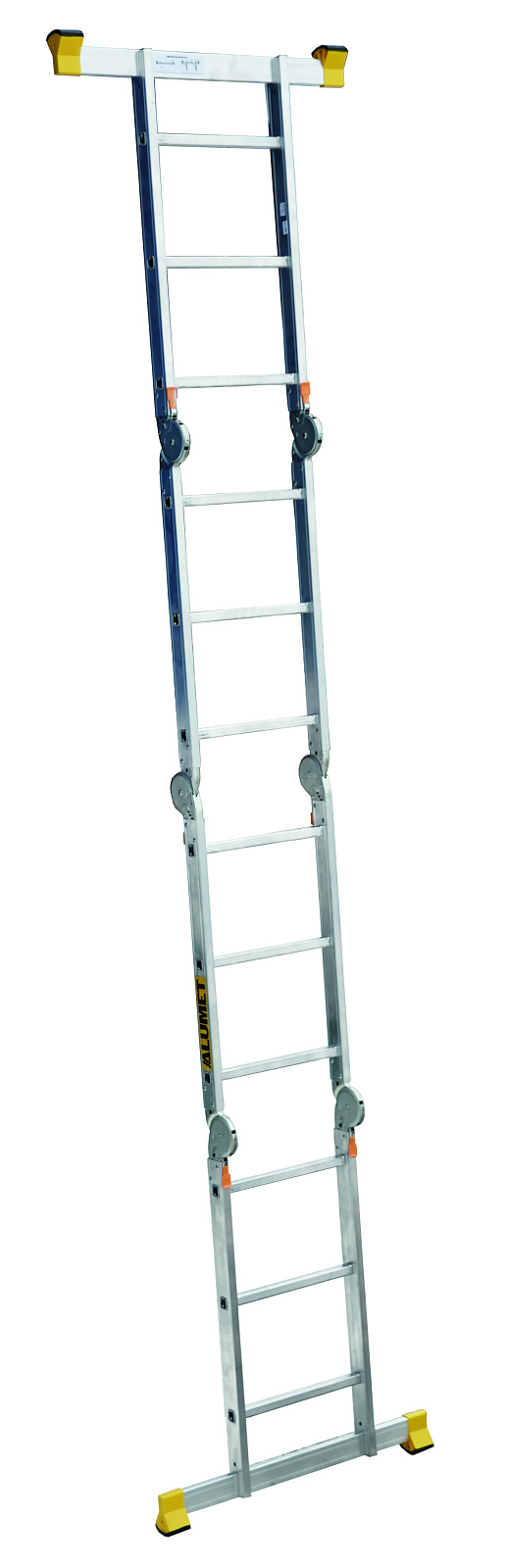

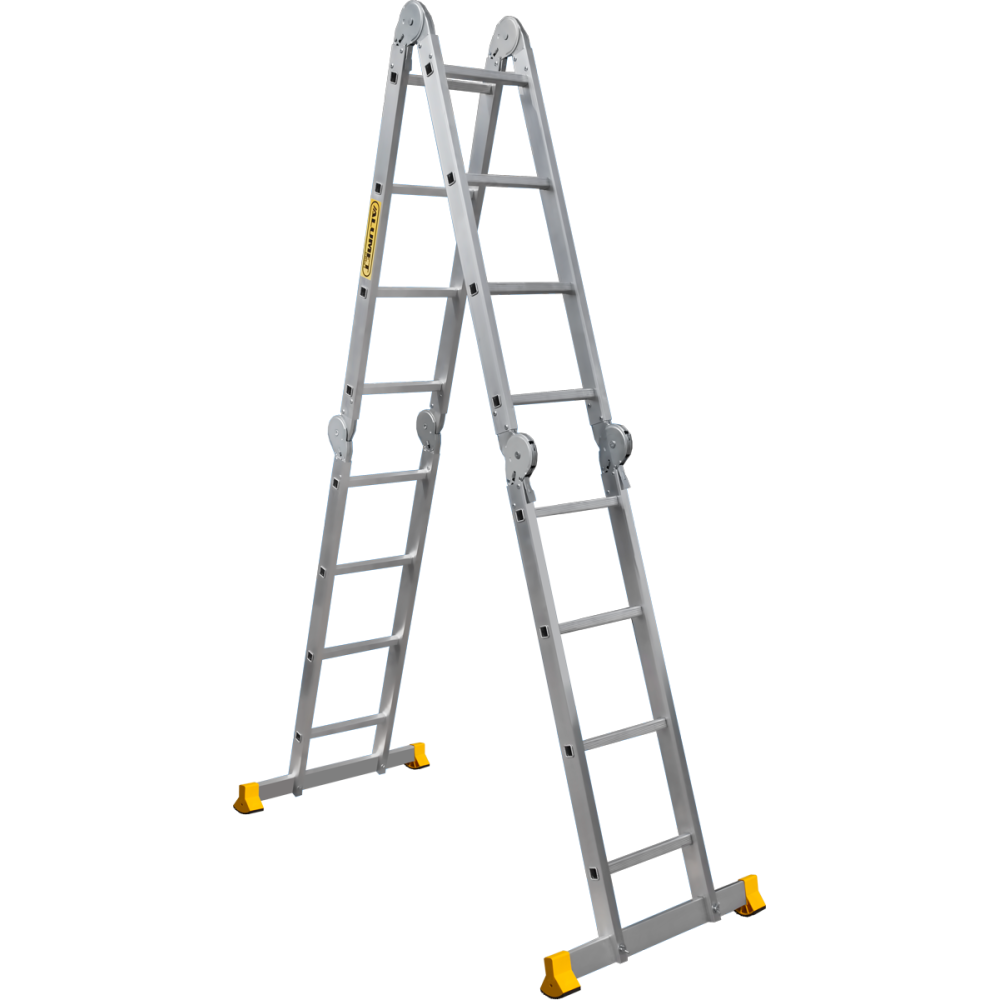

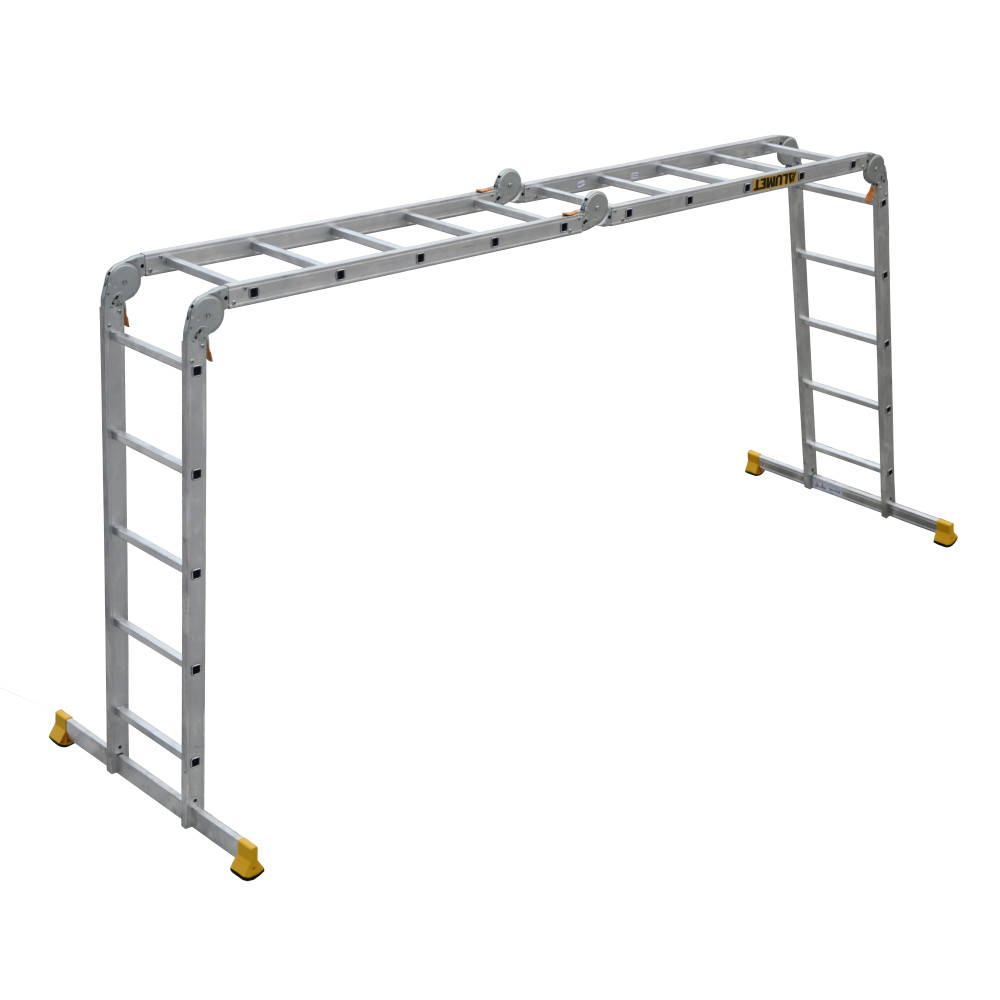

The ladder consists of four sections, interconnected by steel ladder hinges with fixing angles of 35, 105 and 180 degrees. Therefore, such ladder can take various shapes, such as shown in the Figure. The main advantage of the ladder is not its multiple setup options and ‘platform’ configuration, but compactness in the assembled (transport) state, which allows it to be transported inside the car with a closed trunk. Most often, the transformer is used as a straight ladder or as a twin step ladder. The ‘platform’ configuration is used extremely rarely, although the possibility of such use often plays a decisive role in choosing a ladder when purchasing it. To use a T model ladder in the ‘platform’ configuration, it is necessary to additionally purchase a standard scaffold, working without which is not recommended. To use a TL model ladder in the ‘platform’ configuration is prohibited. The ladder is noticeably (almost 6 kg) heavier than the straight ladder of the same length of H1 or P1 series due to six massive steel hinges and, for the same reason, is significantly more expensive.

Technical specifications

Vendor code	Number of steps	Length folded	Folded width	Height	Length of four sections	Height max	Height max	Width	Stabilizer length	Weight
T433	4x3	0.98	0.27	1.73	3.55	2.63	4.45	0.41	0.8	13.4
T444	4x4	1.26	0.27	2.27	4.67	3.17	5.77	0.41	0.8	15.4
T445	2x4+2x5	1.54	0.27	2.54	5.23	3.44	6.13	0.41	1.0	16.6
T455	4x5	1.54	0.27	2.8	5.79	3.7	6.69	0.41	1.0	17.6
TW1 433	4x3	0.98	0.27	1.73	3.55	2.63	4.45	0.5	1	13.9
TW1 444	4x4	1.26	0.27	2.27	4.67	3.17	5.57	0.5	1	15.9

Vendor code	Number of steps	Length folded	Folded width	Height	Length of four sections	Height max	Height max	Width	Stabilizer length	Weight
T433SP	4x3	0.98	0.26	1.73	3.55	2.83	4.65	0.33	0.7	16.3
