Серия TL

Aluminum Four Section Hinged Multipurpose Ladder (Transformer)

Article:

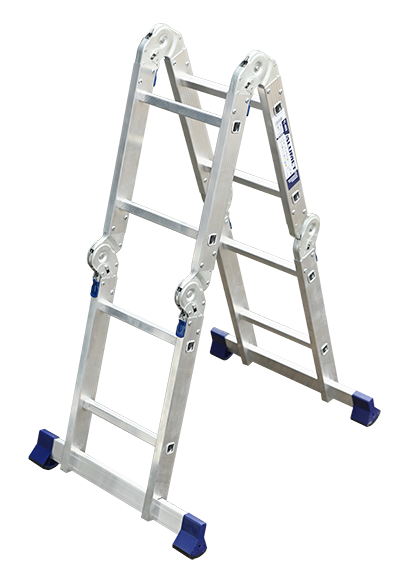

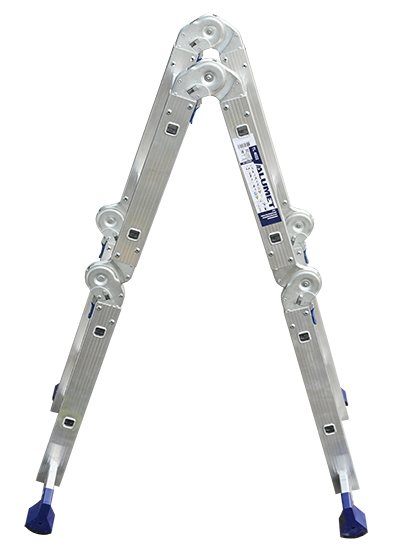

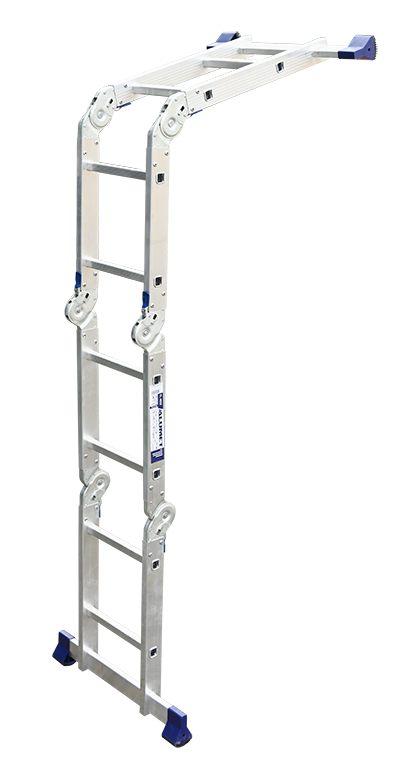

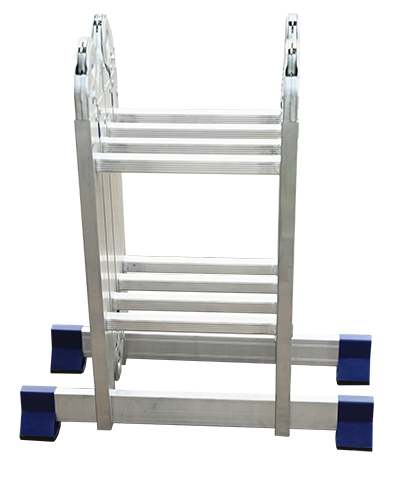

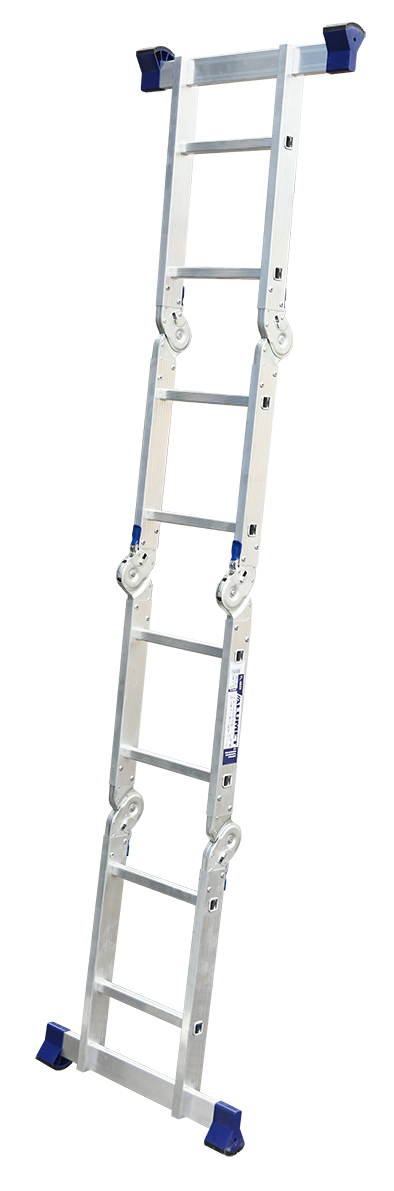

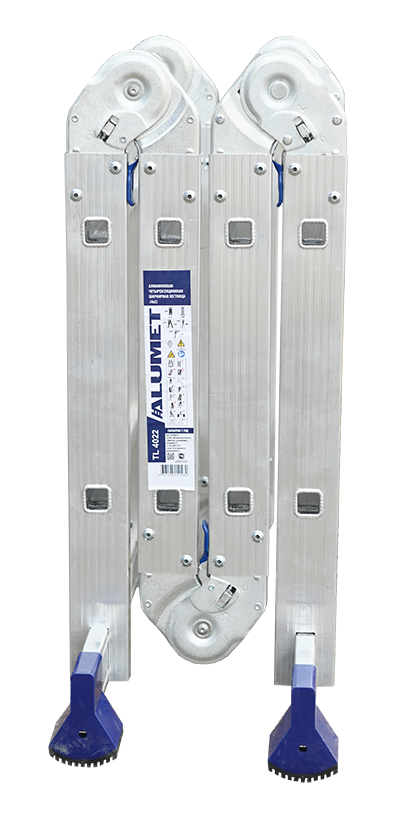

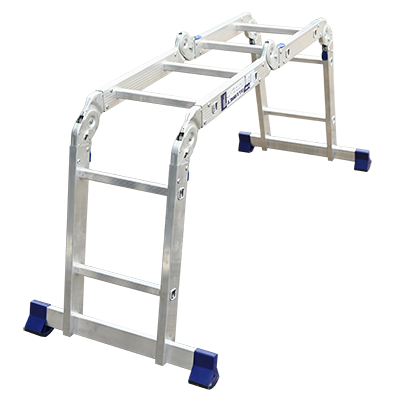

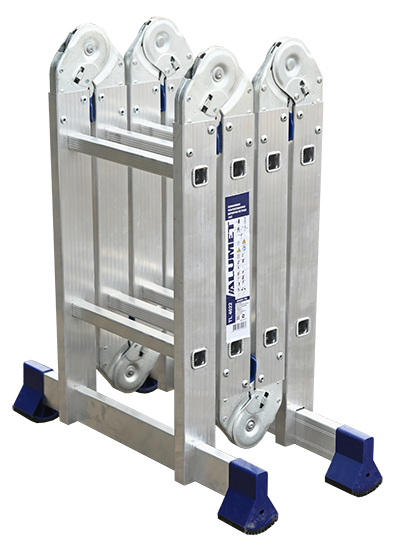

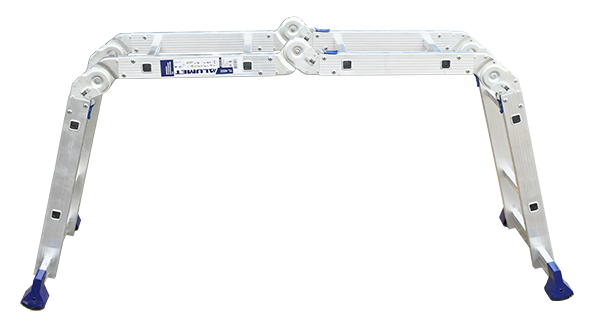

TL 4022

Vendor code TL 4022
Number of steps 4x2
Length folded 0.66
Folded width 0.27
Height 1.18
Length of four sections 2.4
Height max 2.28
Height max 3.5
Width 0.39
Stabilizer length 0.7

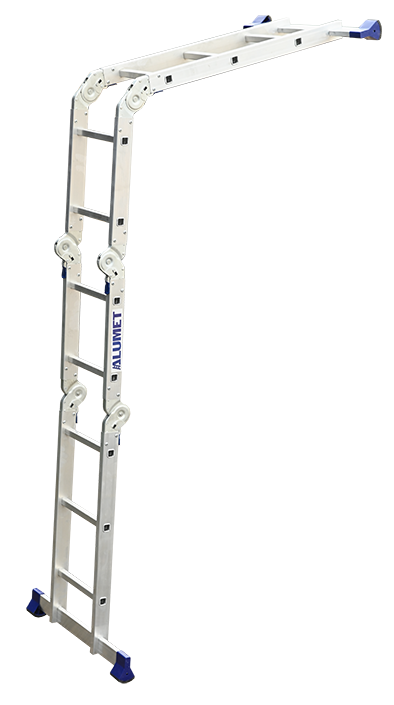

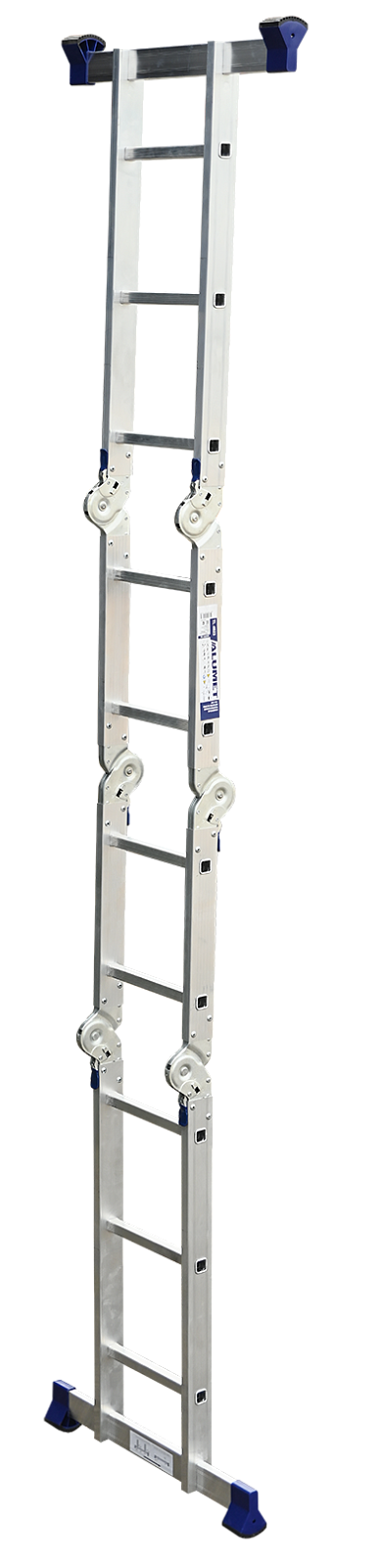

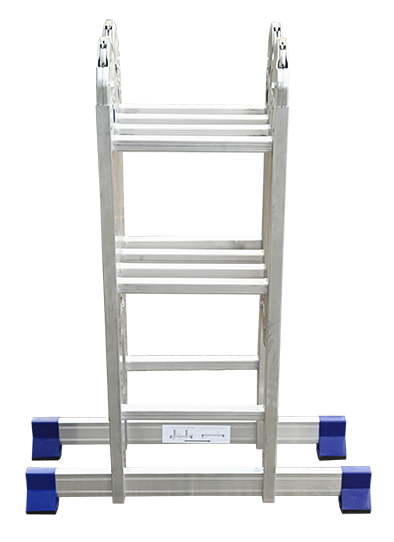

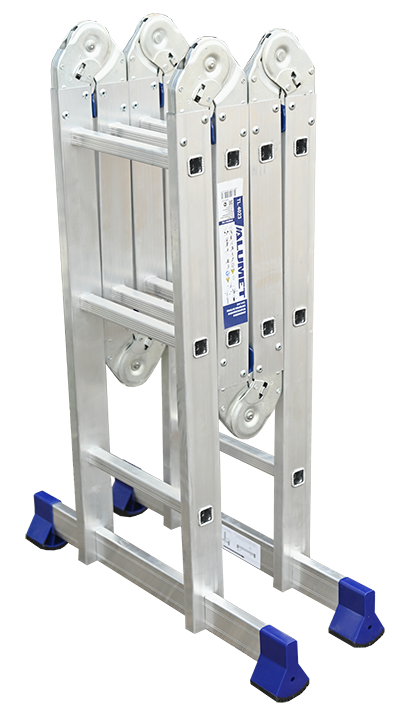

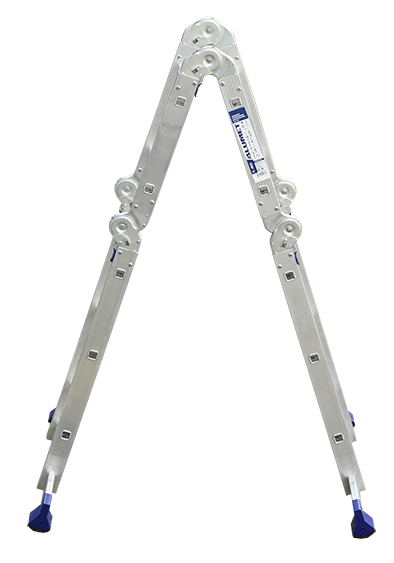

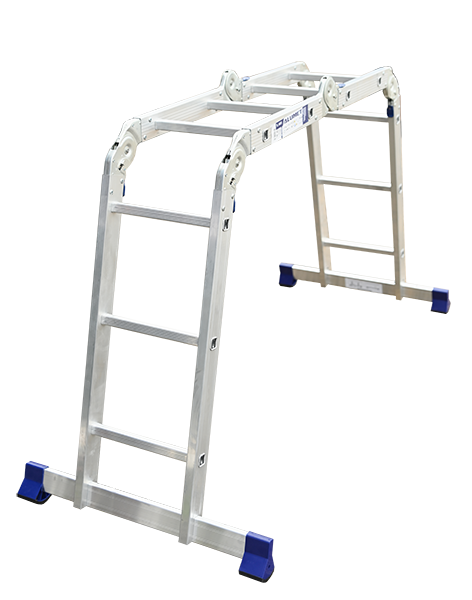

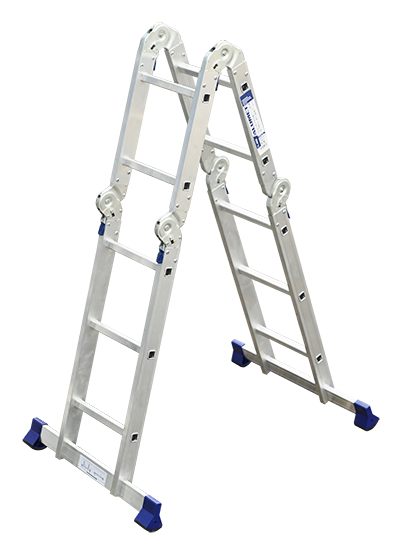

TL 4023

Vendor code TL 4023
Number of steps 2x2+2x3
Length folded 0.94
Folded width 0.27
Height 1.44
Length of four sections 2.96
Height max 2.54
Height max 4.06
Width 0.39
Stabilizer length 0.7

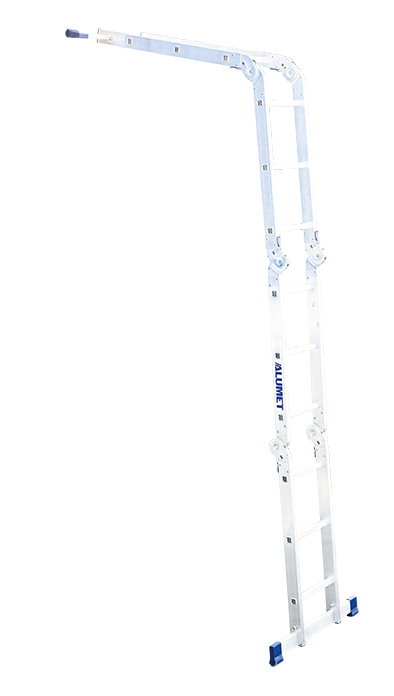

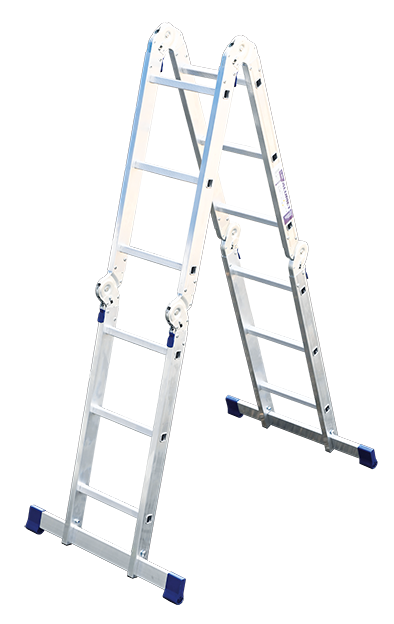

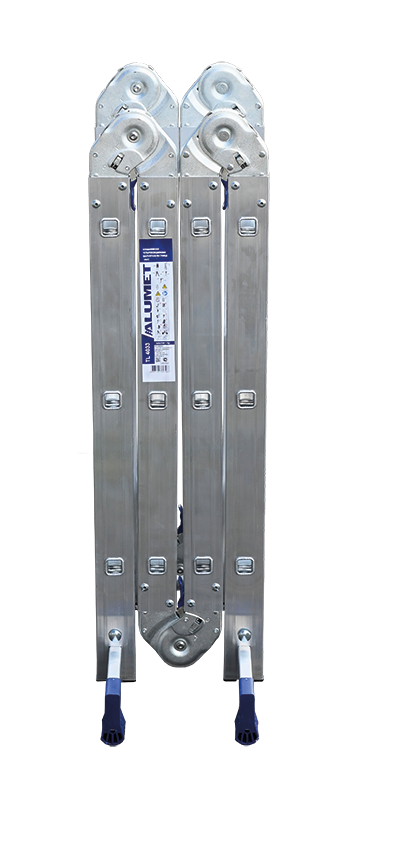

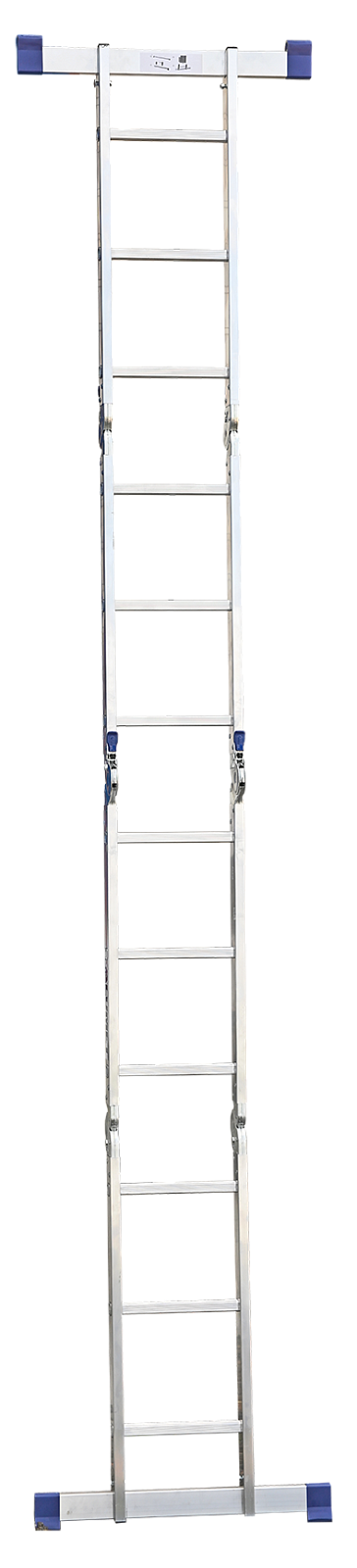

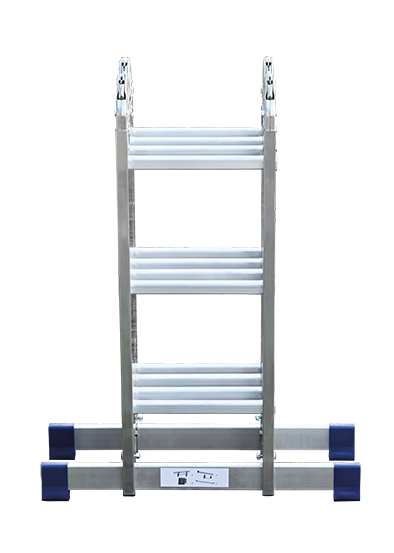

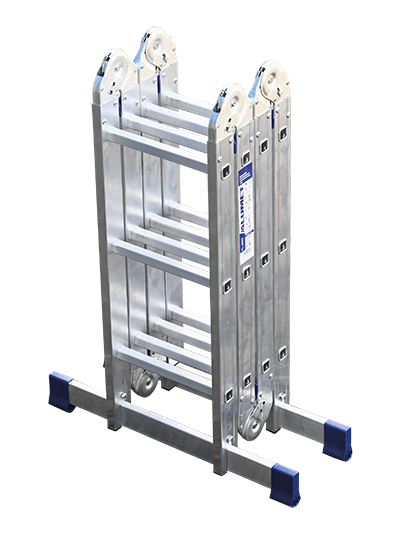

TL 4033

Vendor code TL 4033
Number of steps 4x3
Length folded 0.94
Folded width 0.27
Height 1.71
Length of four sections 3.52
Height max 2.81
Height max 4.62
Width 0.39
Stabilizer length 0.7

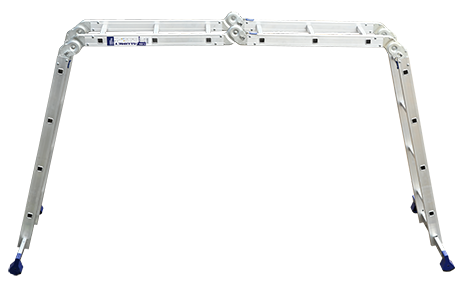

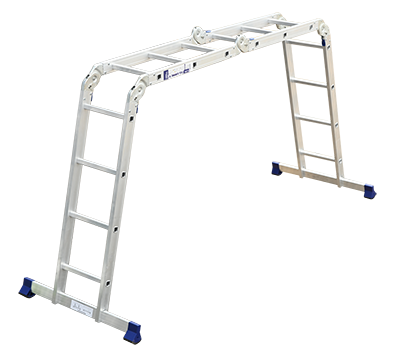

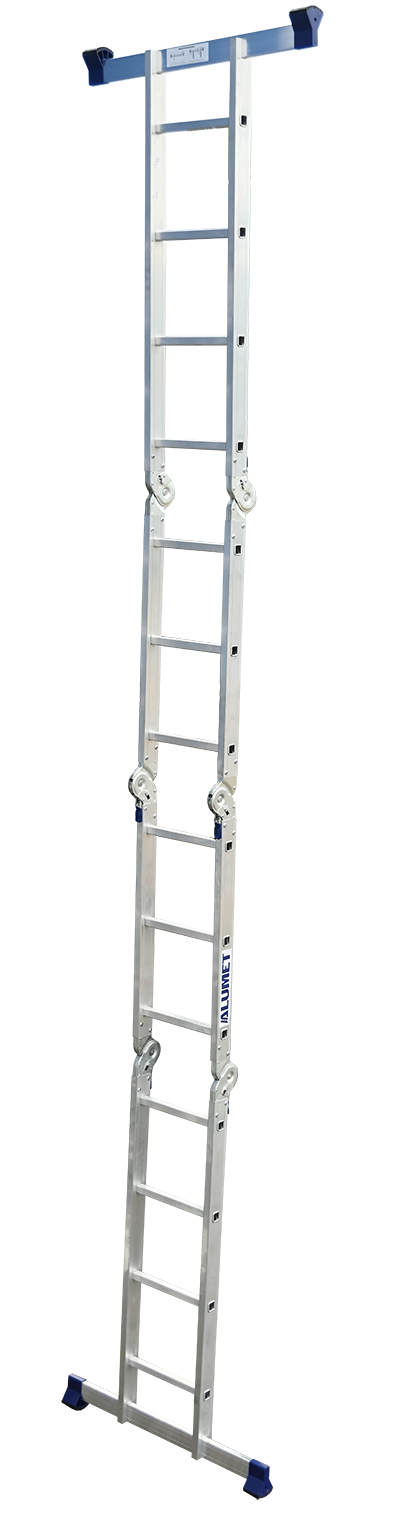

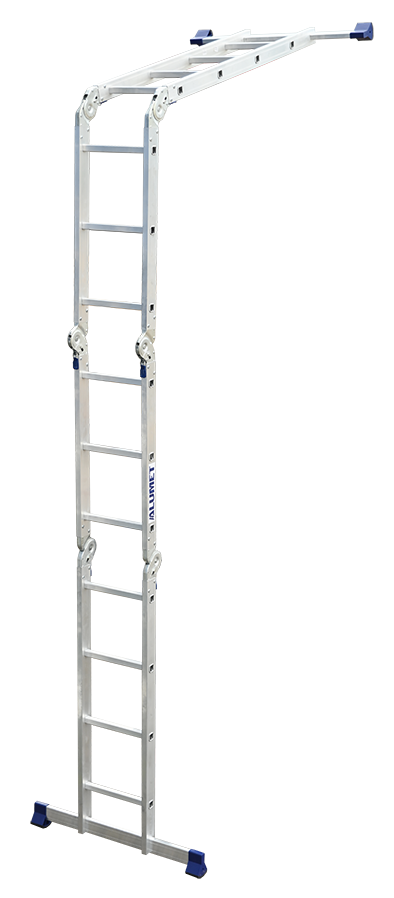

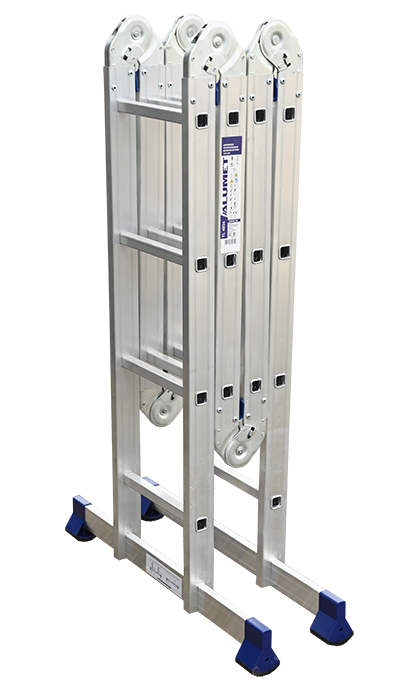

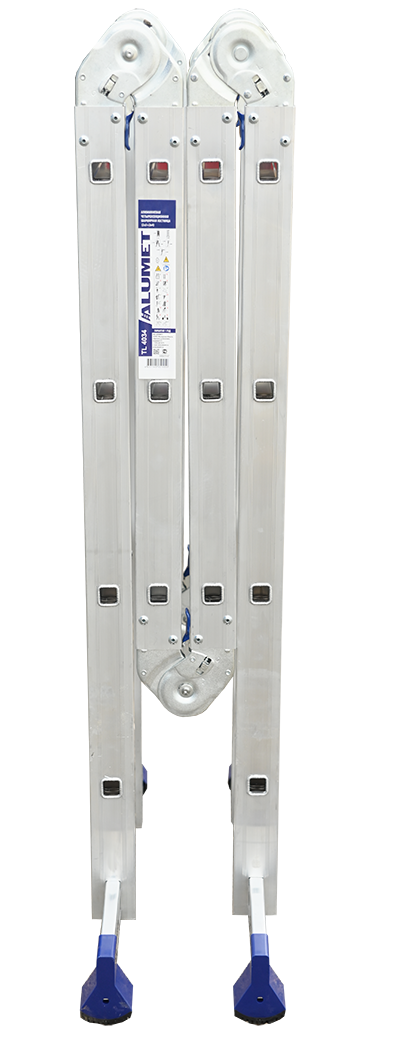

TL 4034

Vendor code TL 4034
Number of steps 2x3+2x4
Length folded 1.22
Folded width 0.27
Height 1.98
Length of four sections 4.08
Height max 3.08
Height max 5.18
Width 0.39
Stabilizer length 0.7

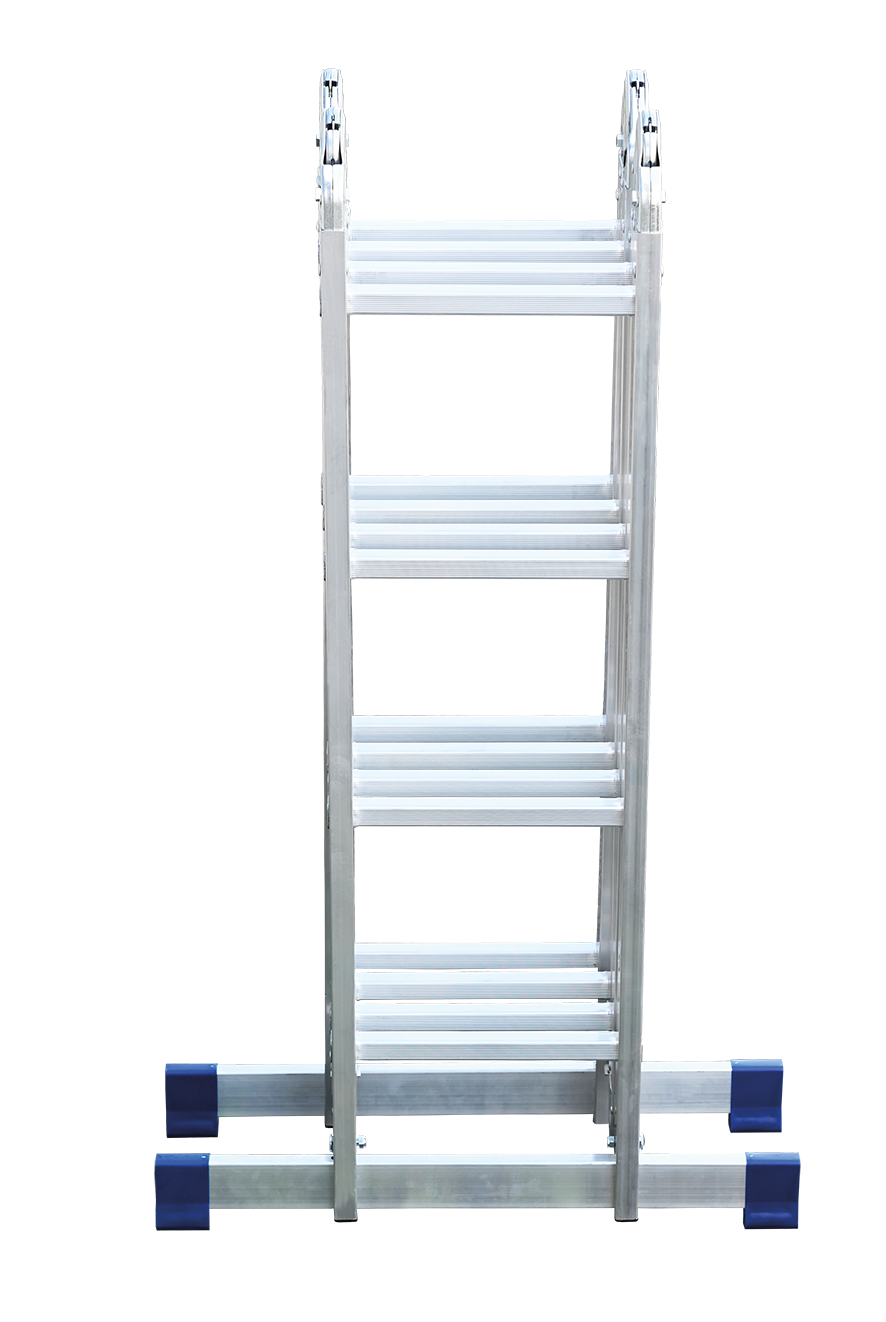

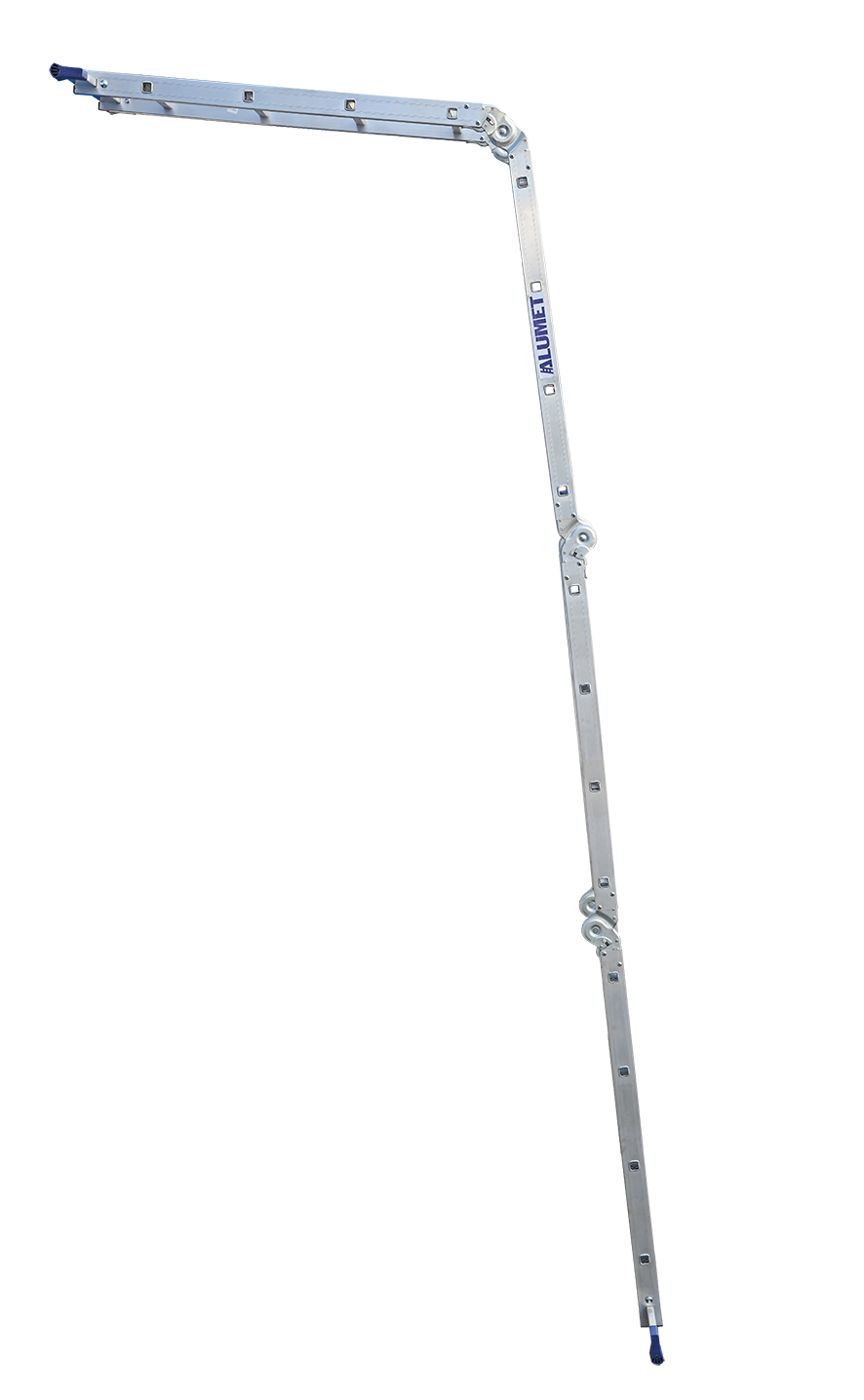

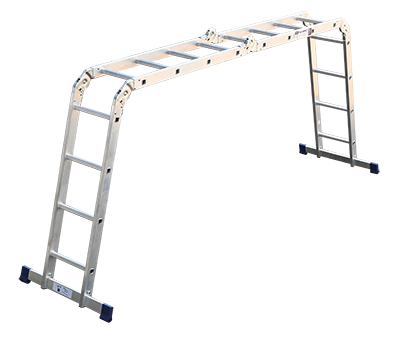

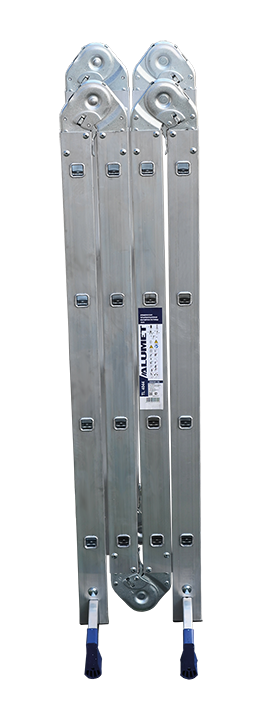

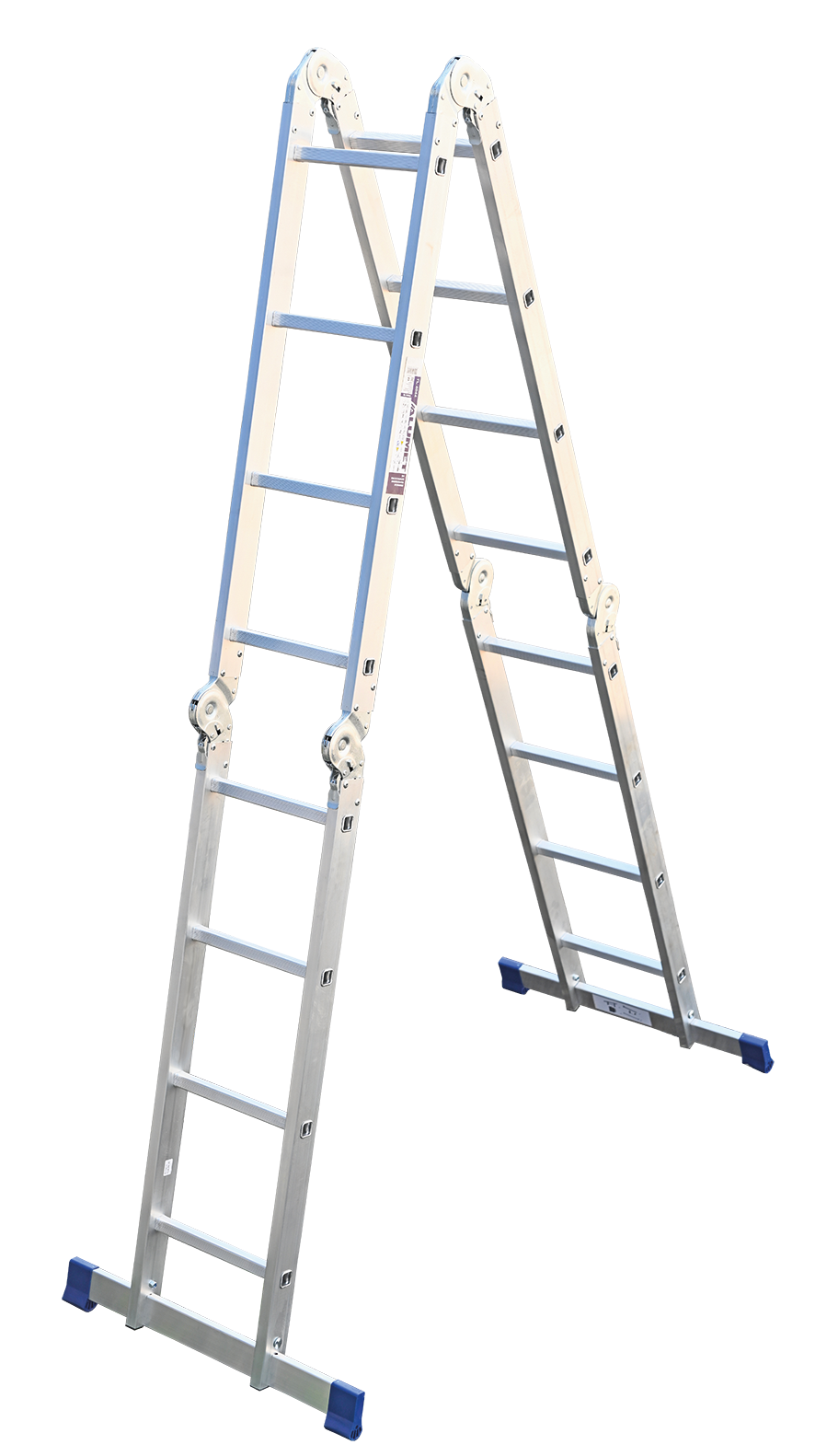

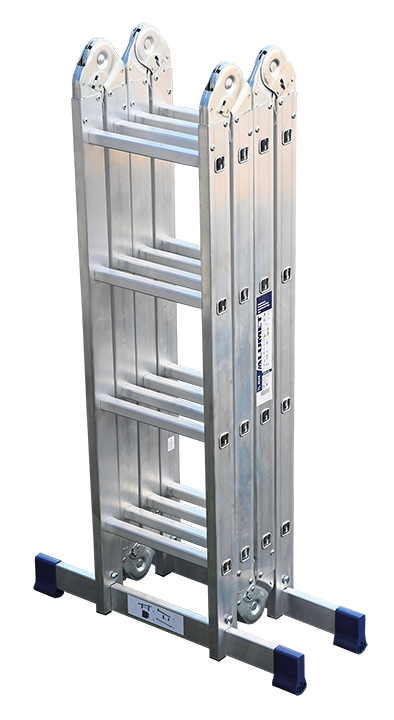

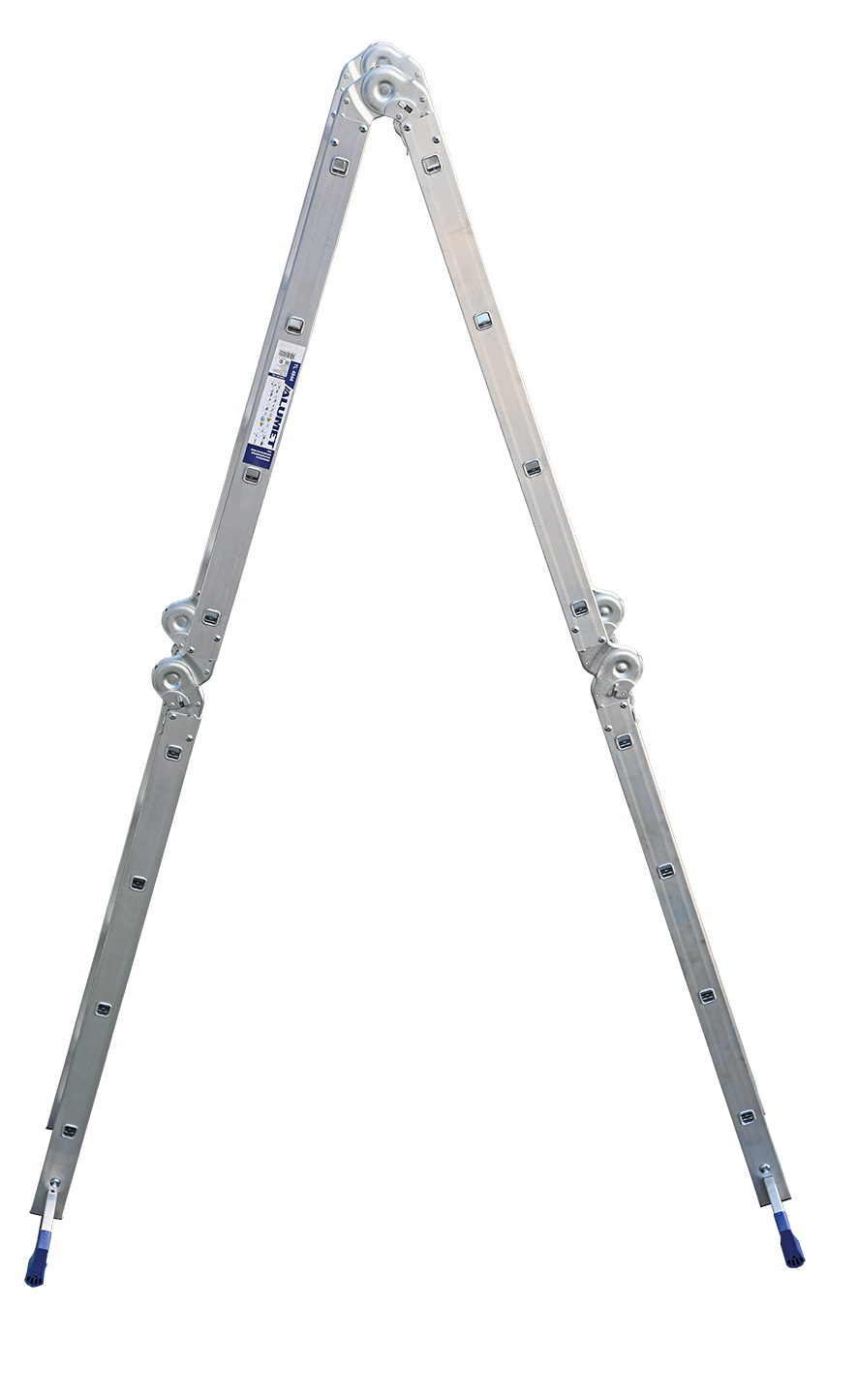

TL 4044

Vendor code TL 4044
Number of steps 4x4
Length folded 1.22
Folded width 0.27
Height 2.24
Length of four sections 4.64
Height max 3.34
Height max 5.74
Width 0.39
Stabilizer length 0.7

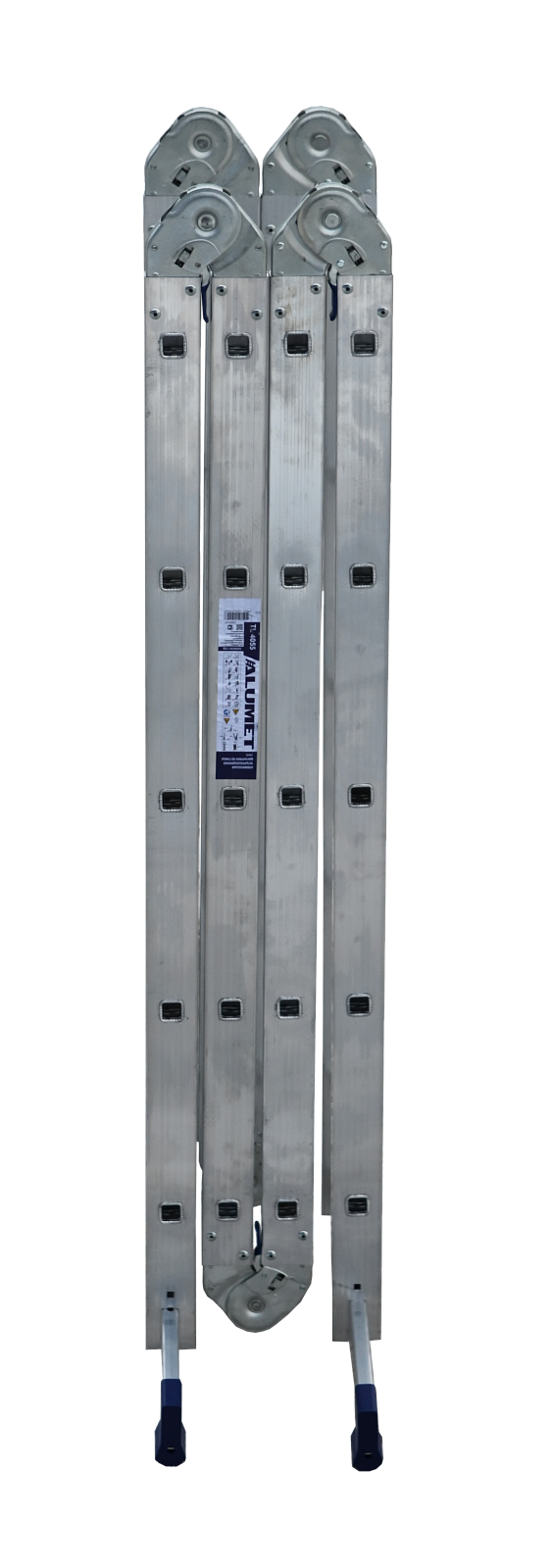

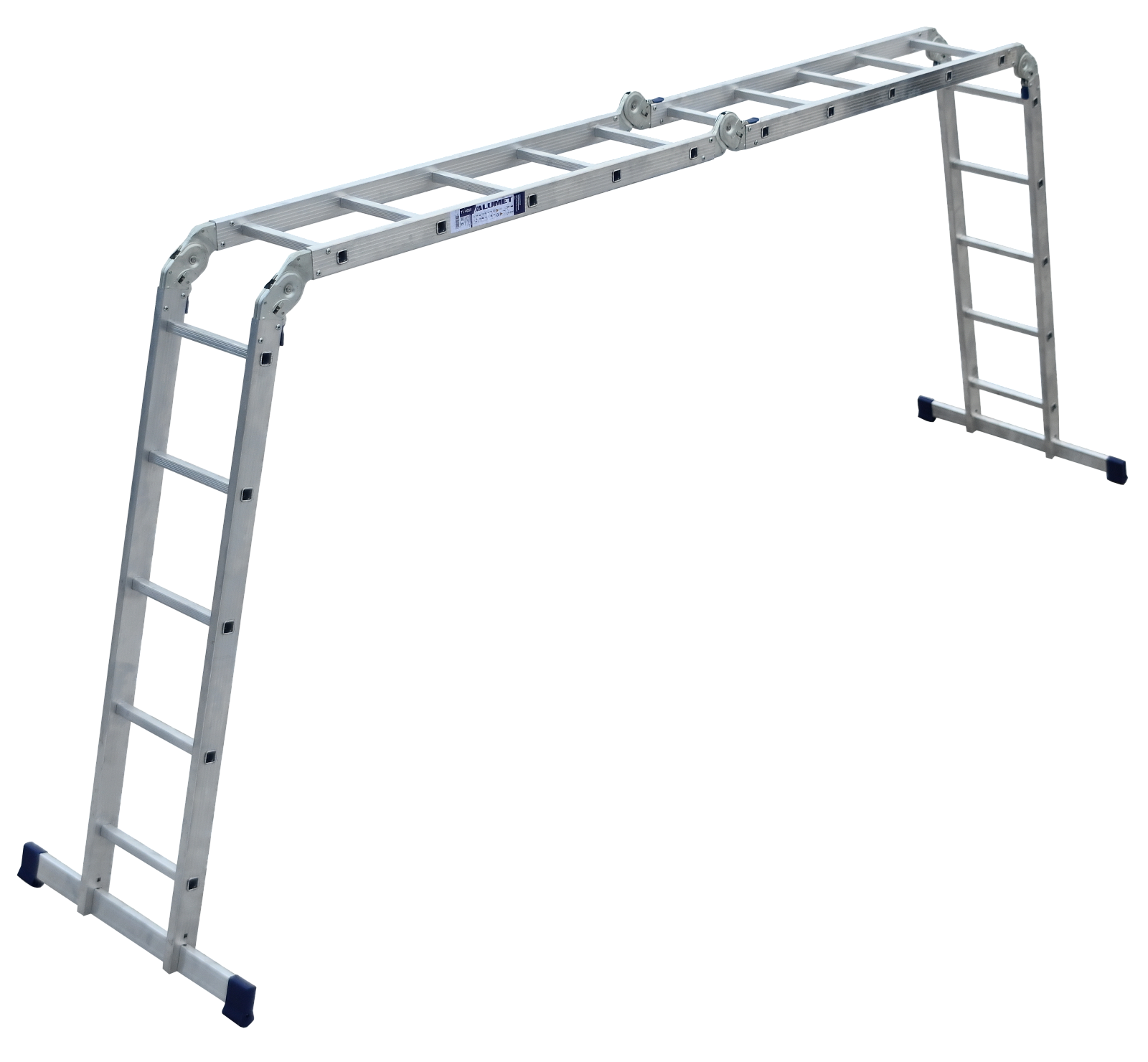

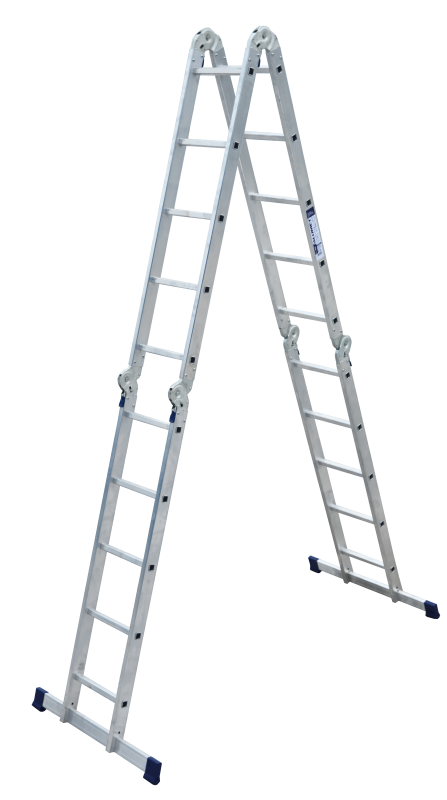

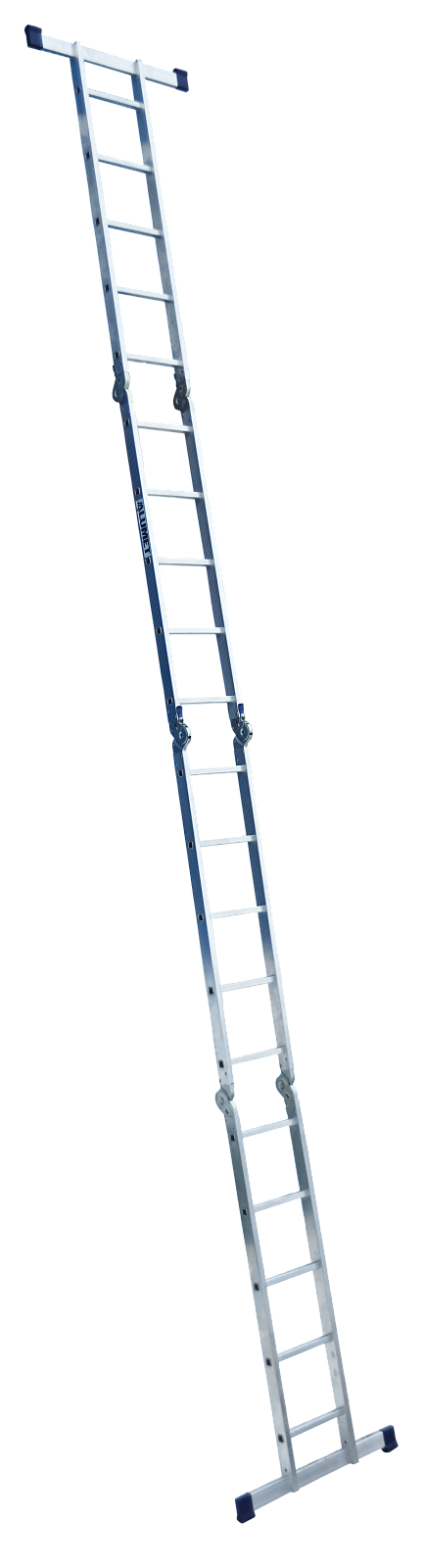

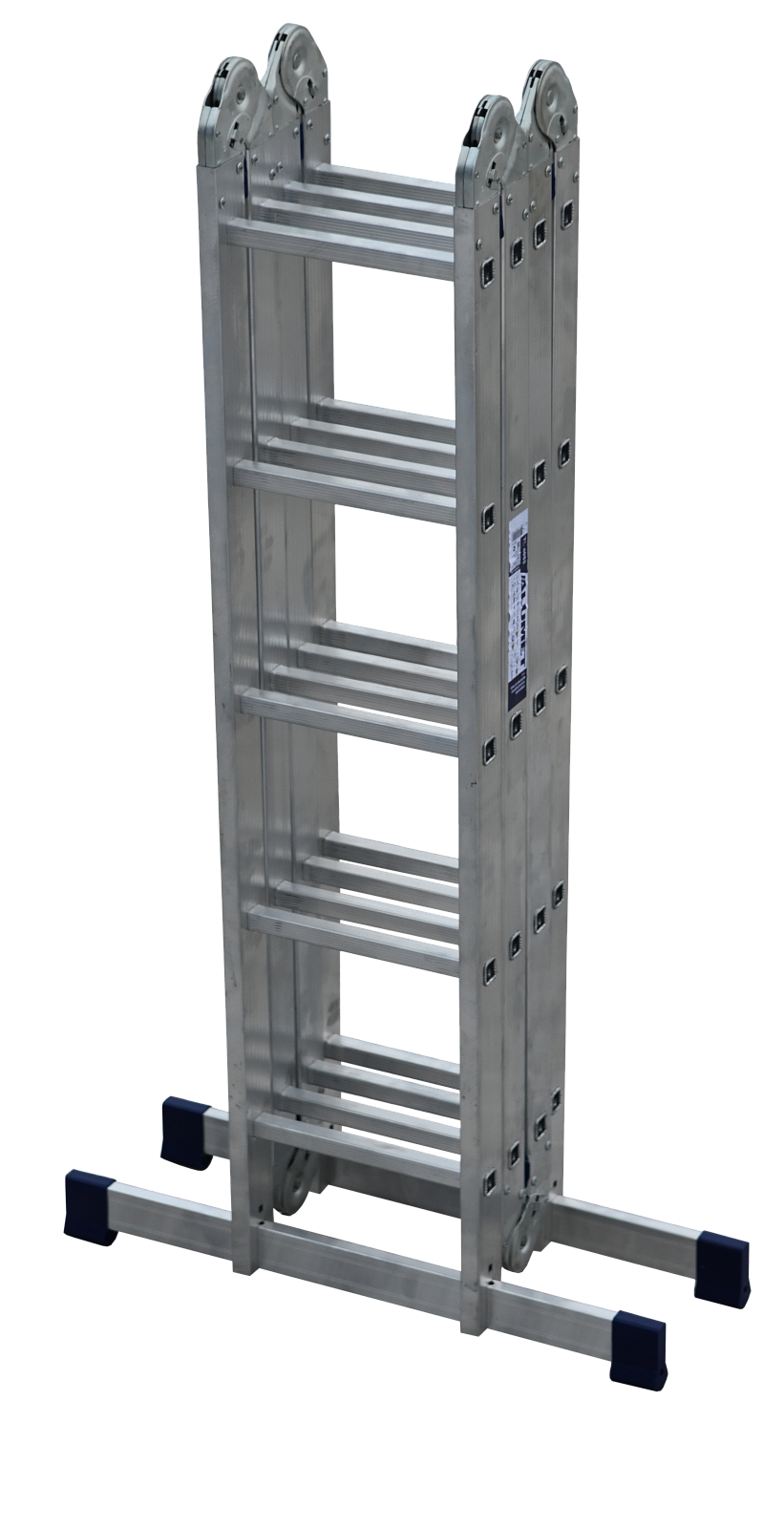

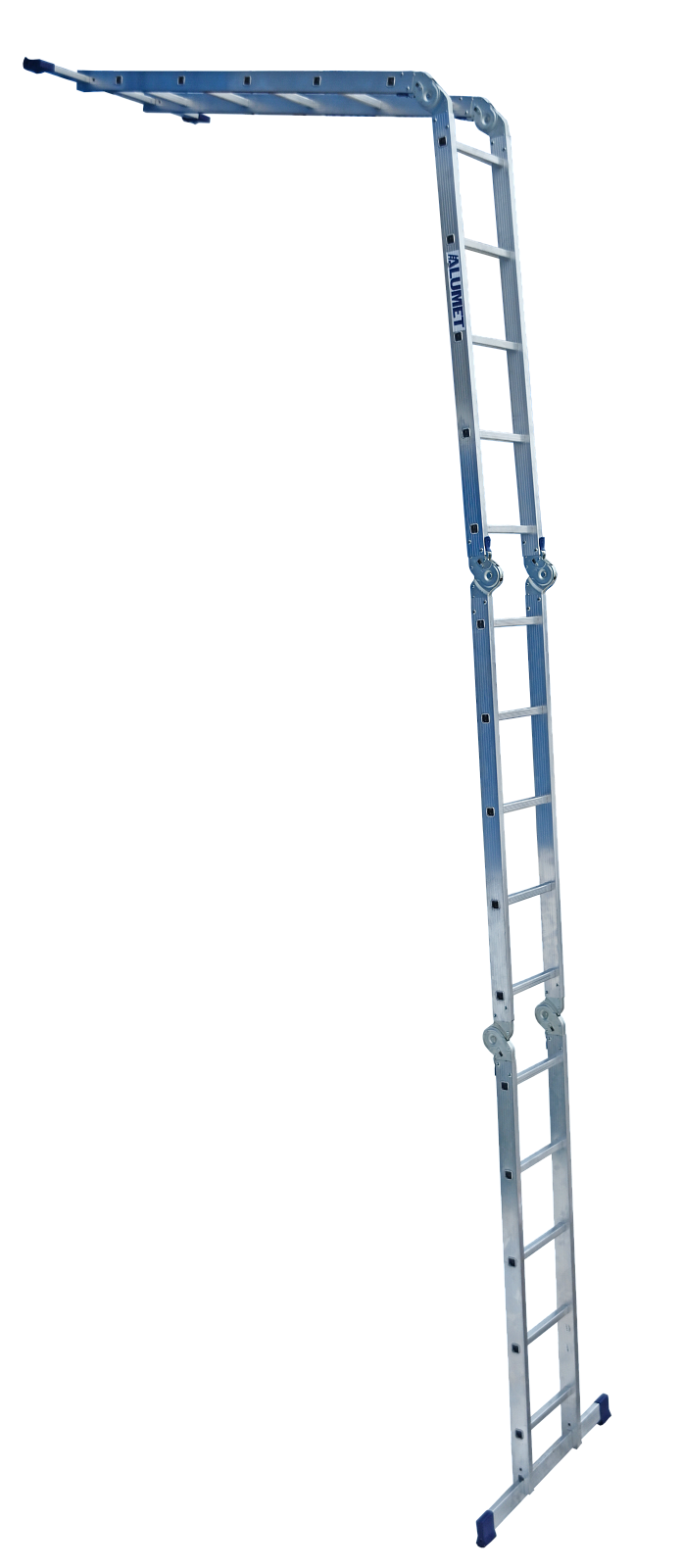

TL 4055

Vendor code TL 4055
Number of steps 4x5
Length folded 1.52
Folded width 0.27
Height 2.78
Length of four sections 5.76
Height max 3.88
Height max 6.86
Width 0.39
Stabilizer length 0.8

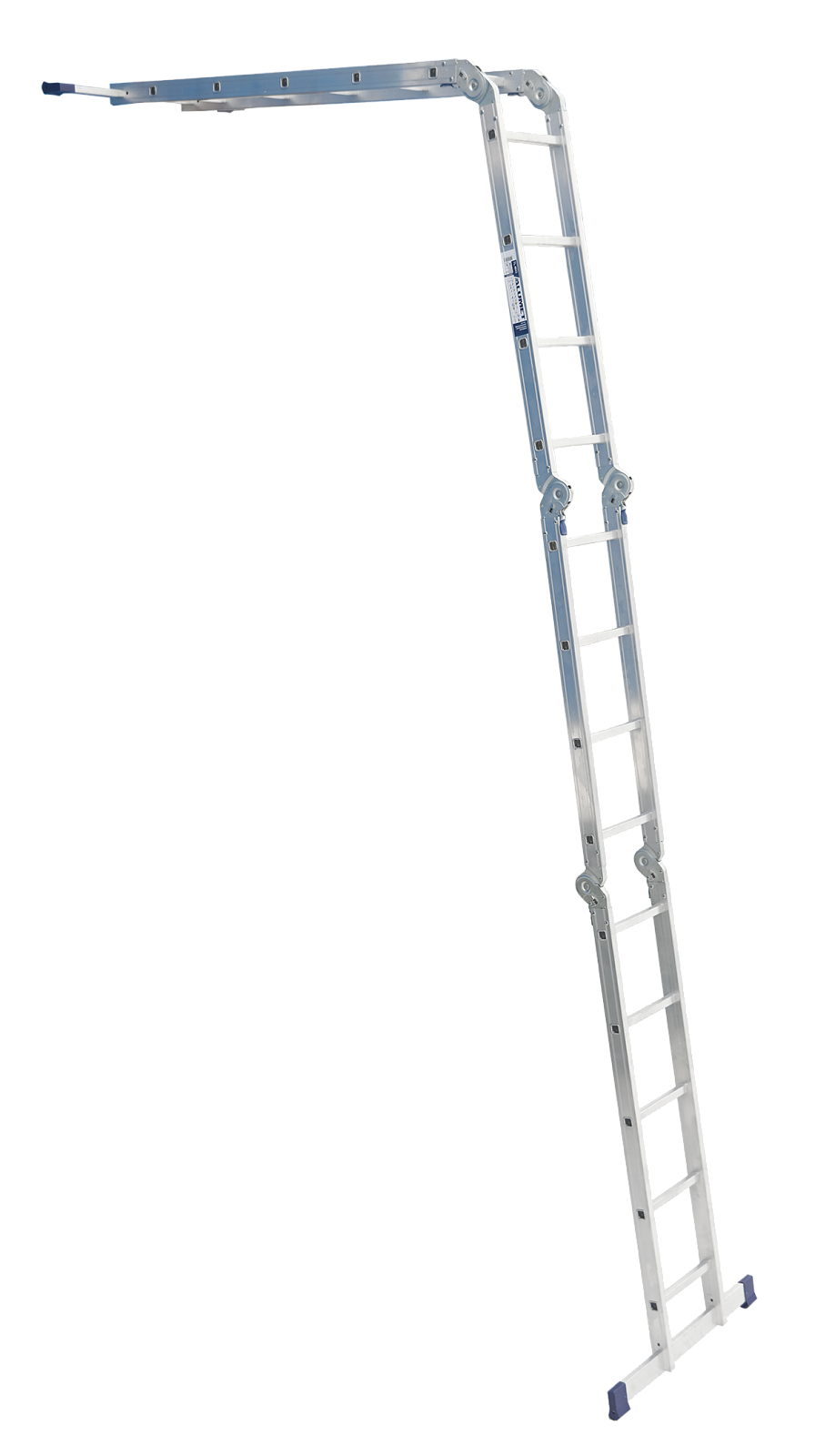

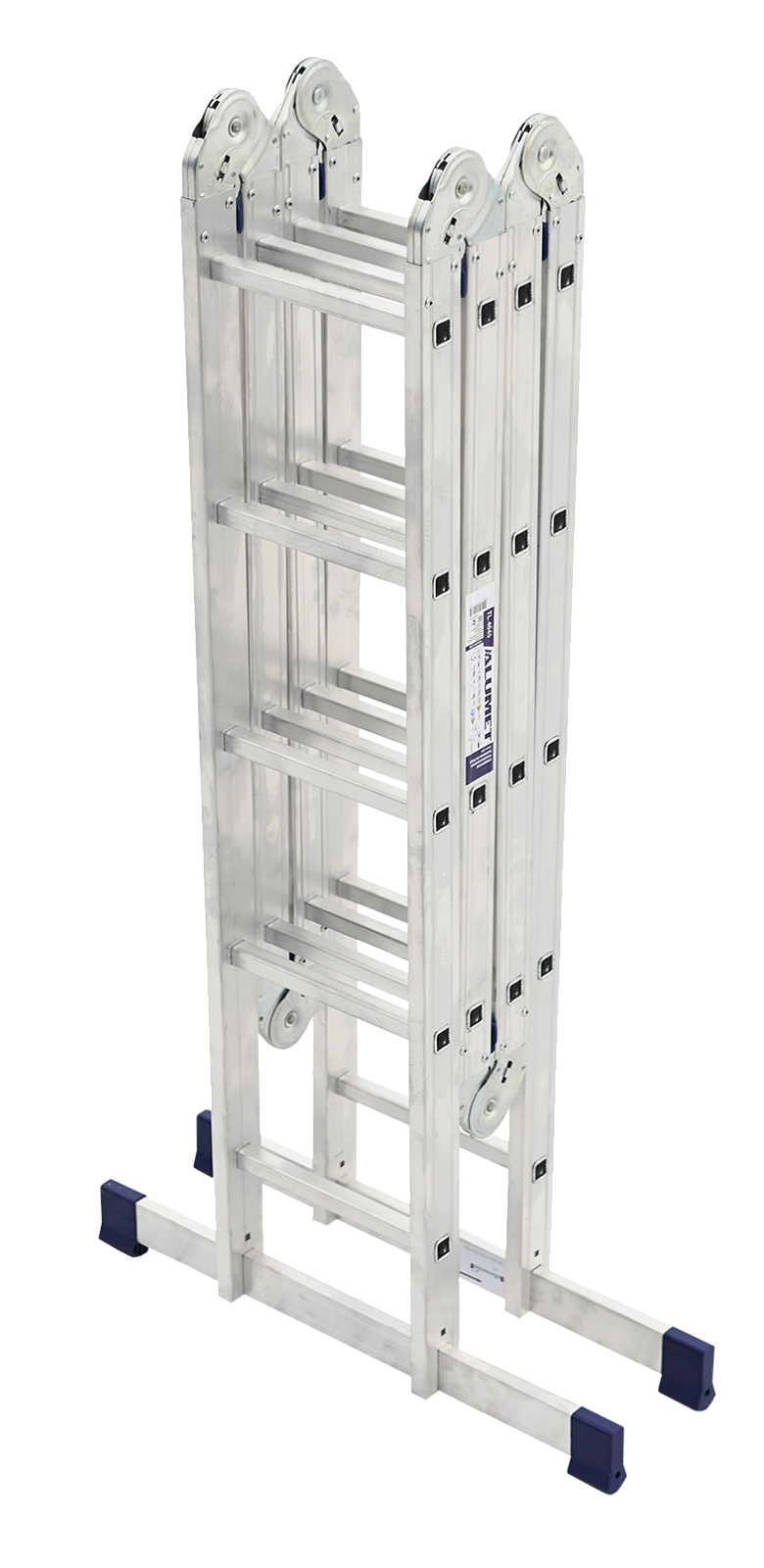

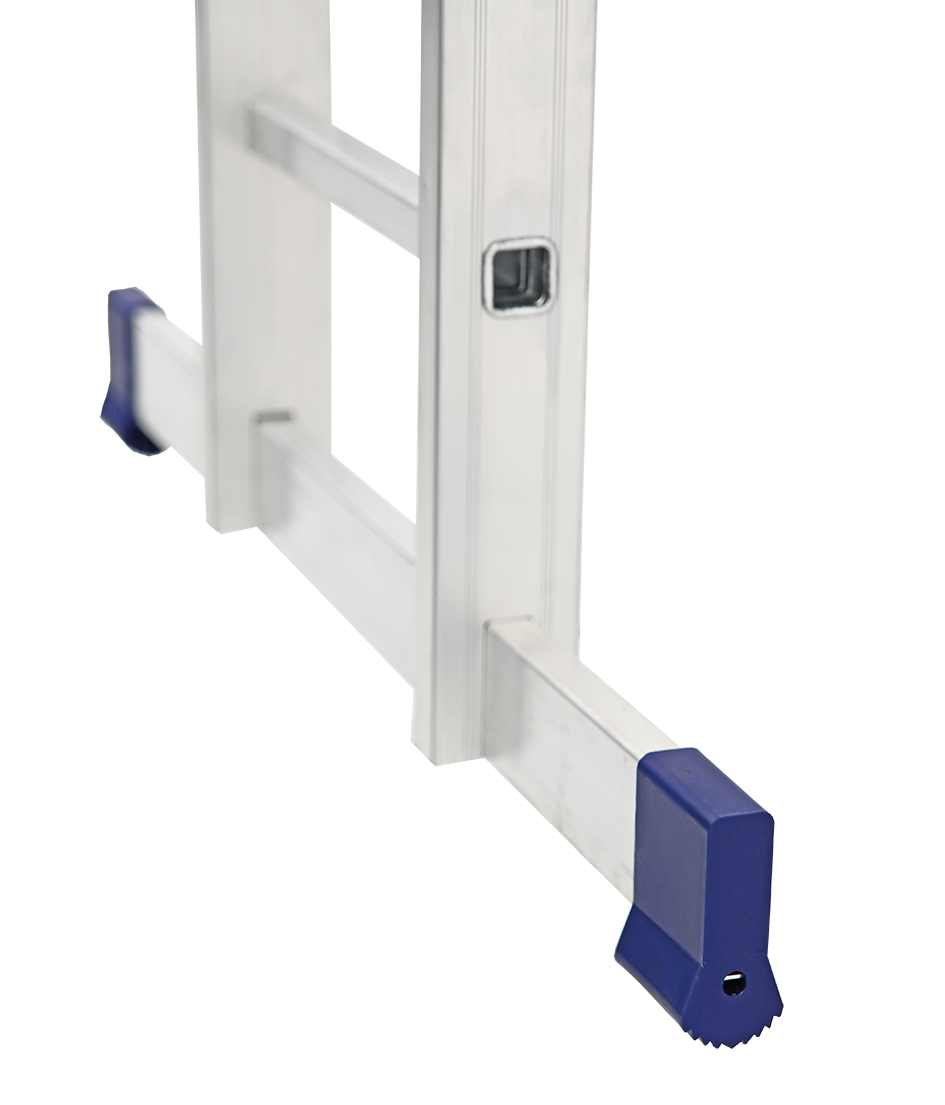

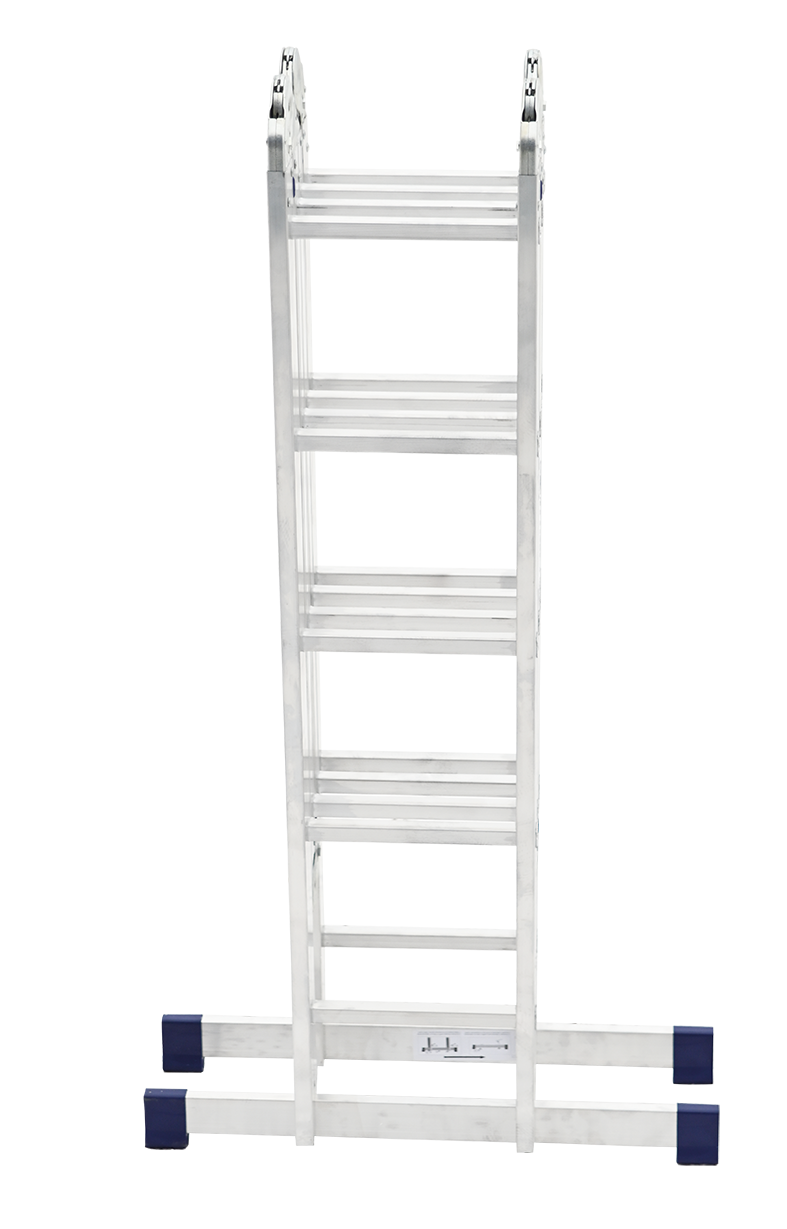

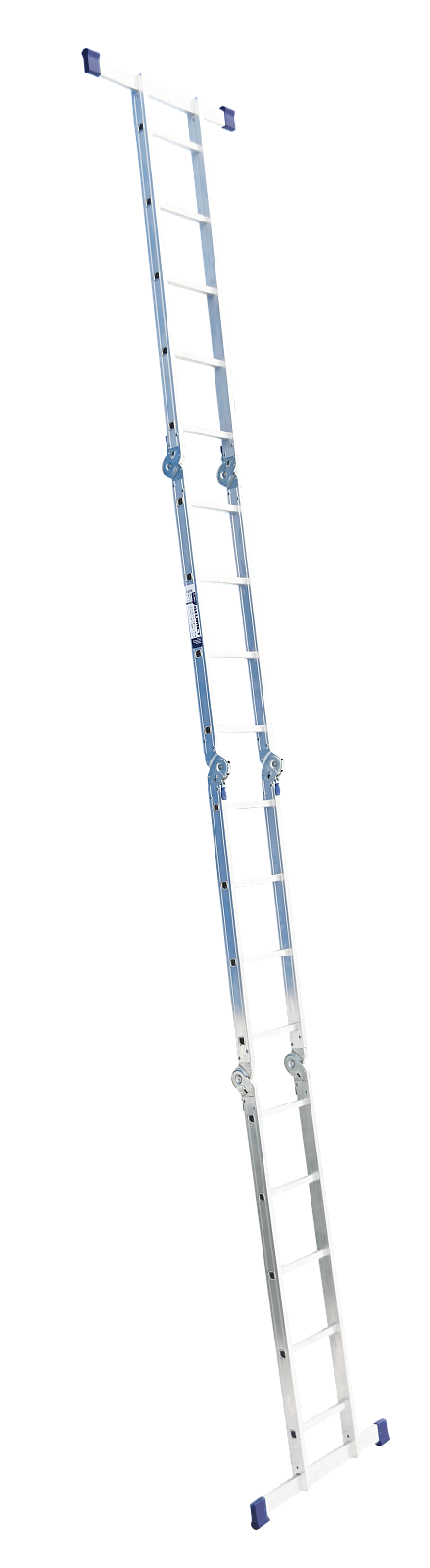

TL 4045

Vendor code TL 4045
Number of steps 2x4+2x5
Length folded 1.52
Folded width 0.27
Height 2.51
Length of four sections 5.20
Height max 3.61
Height max 6.30
Width 0.39
Stabilizer length 0.8

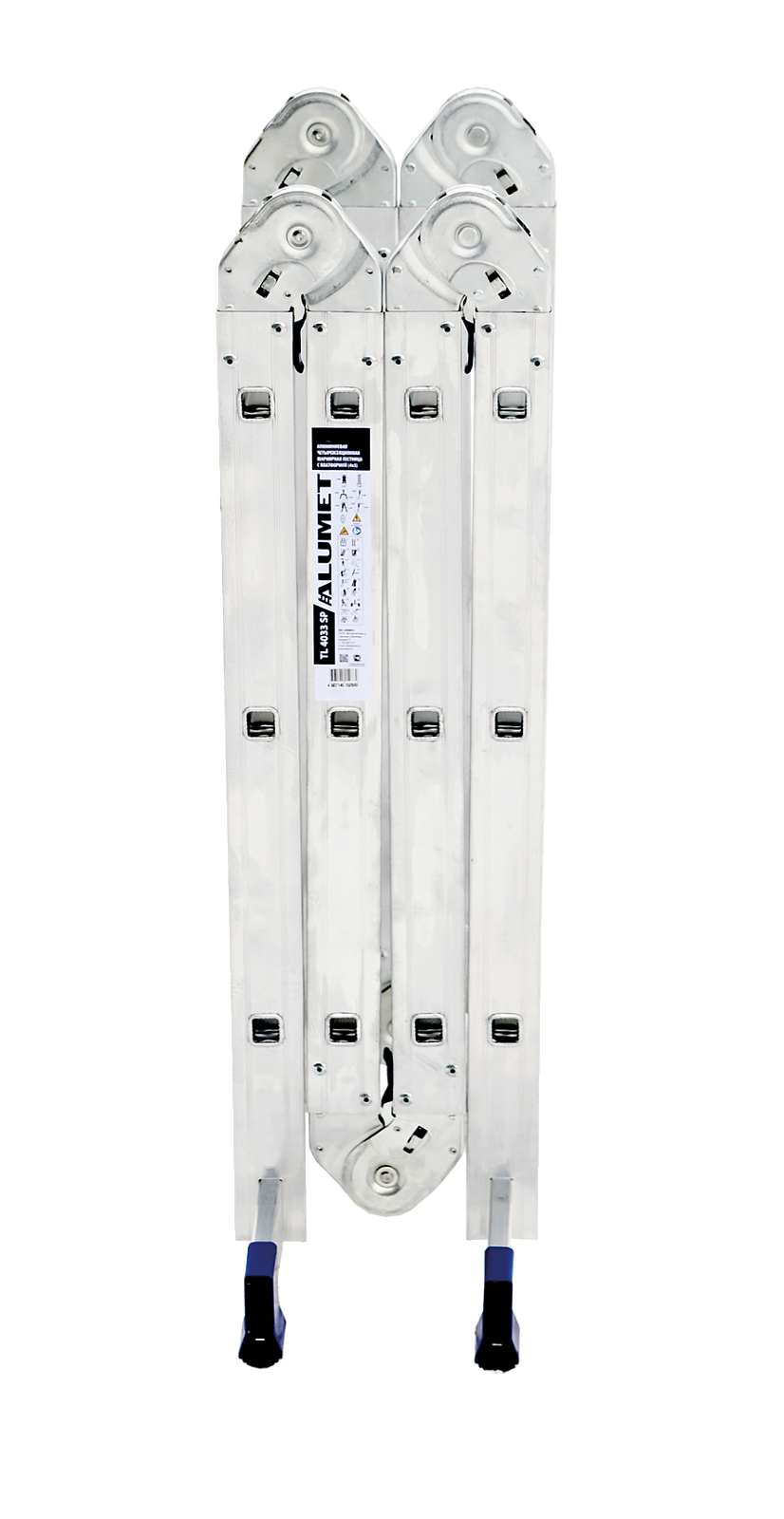

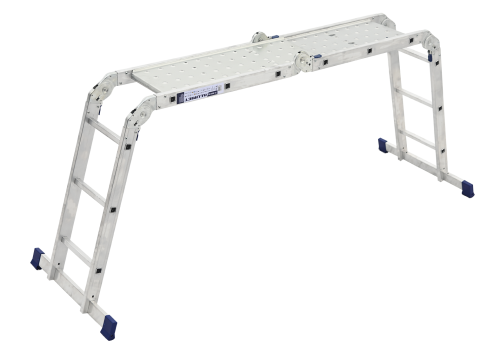

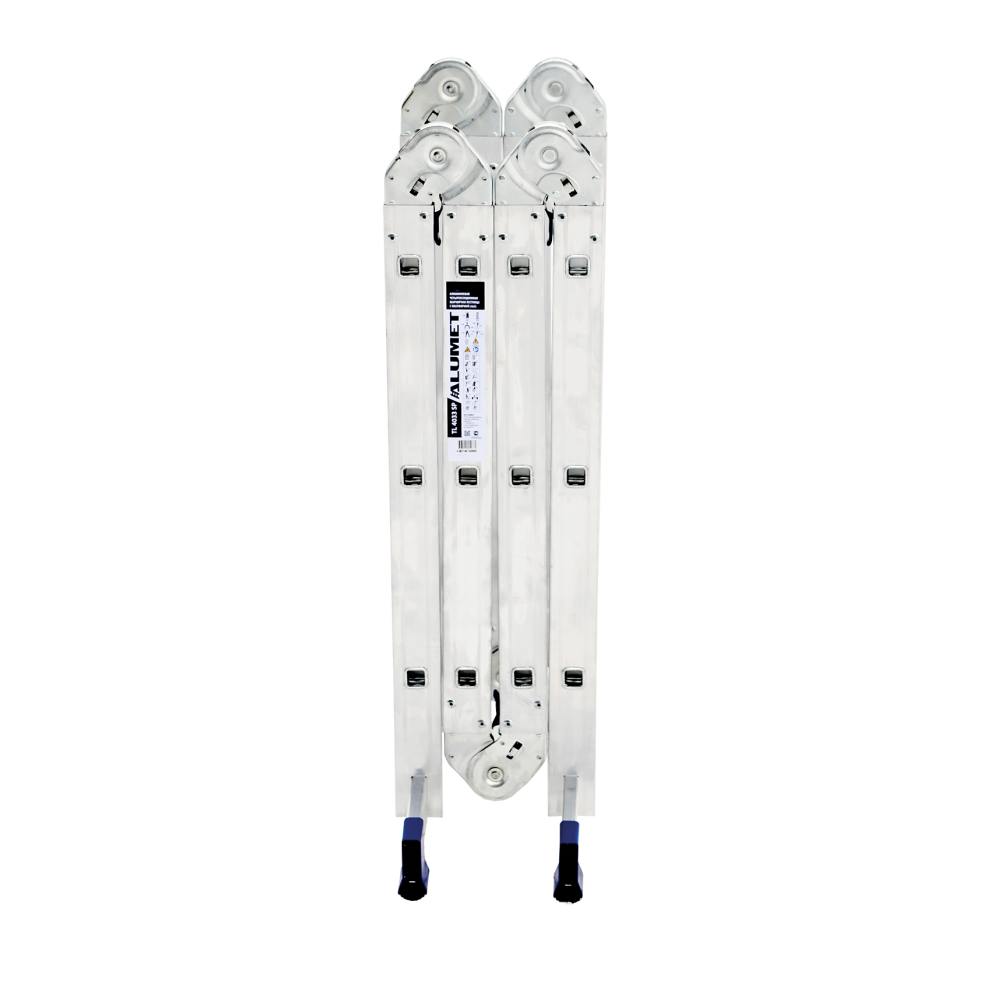

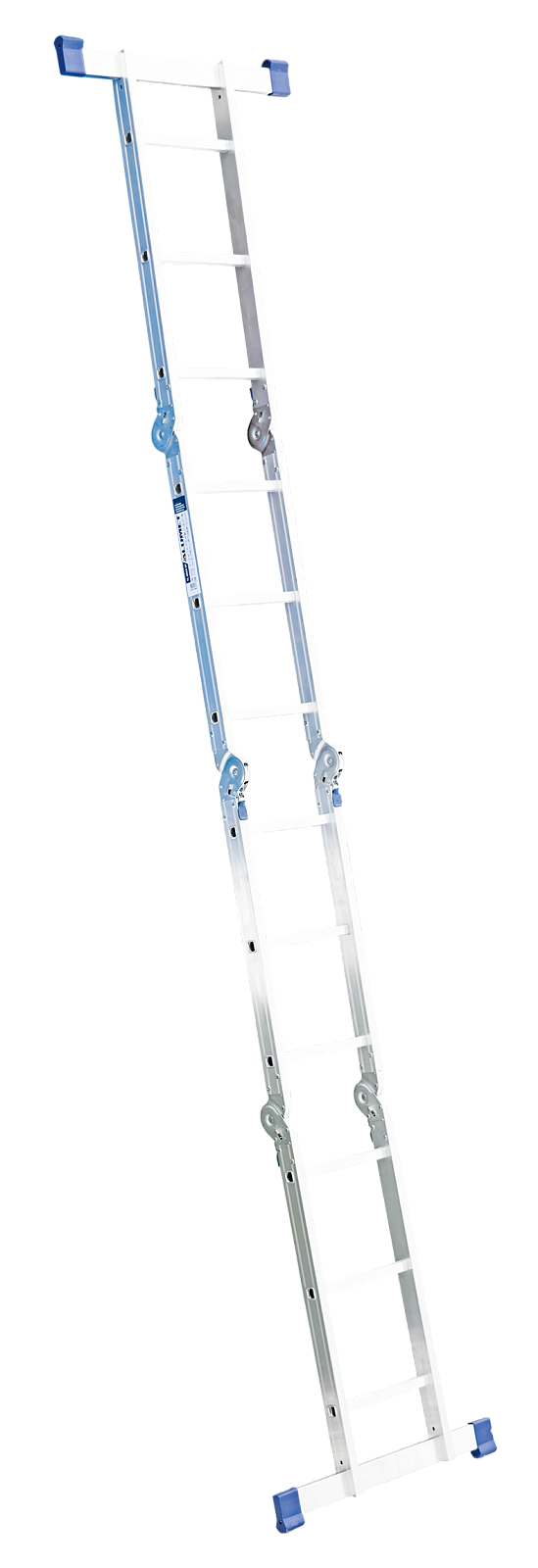

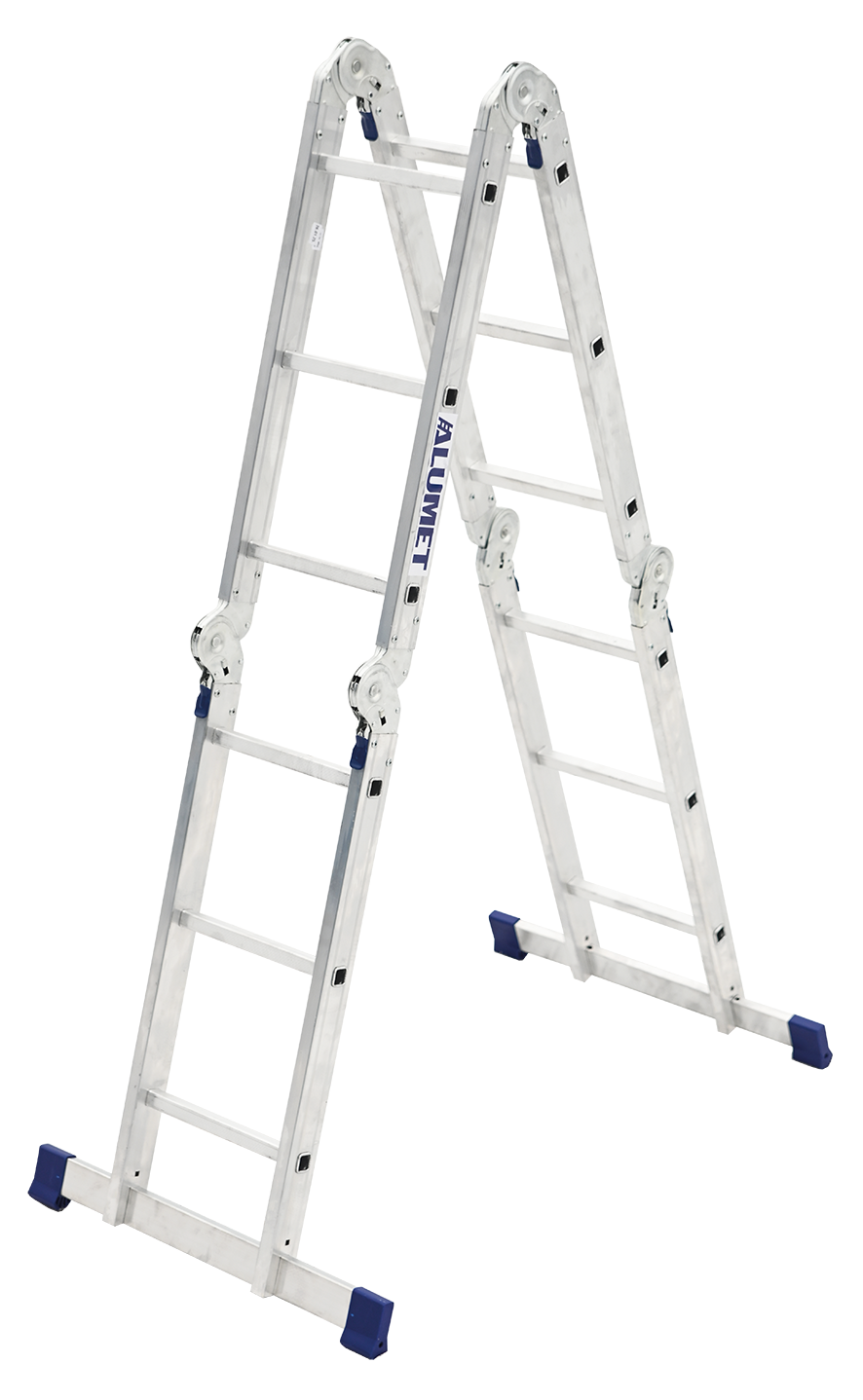

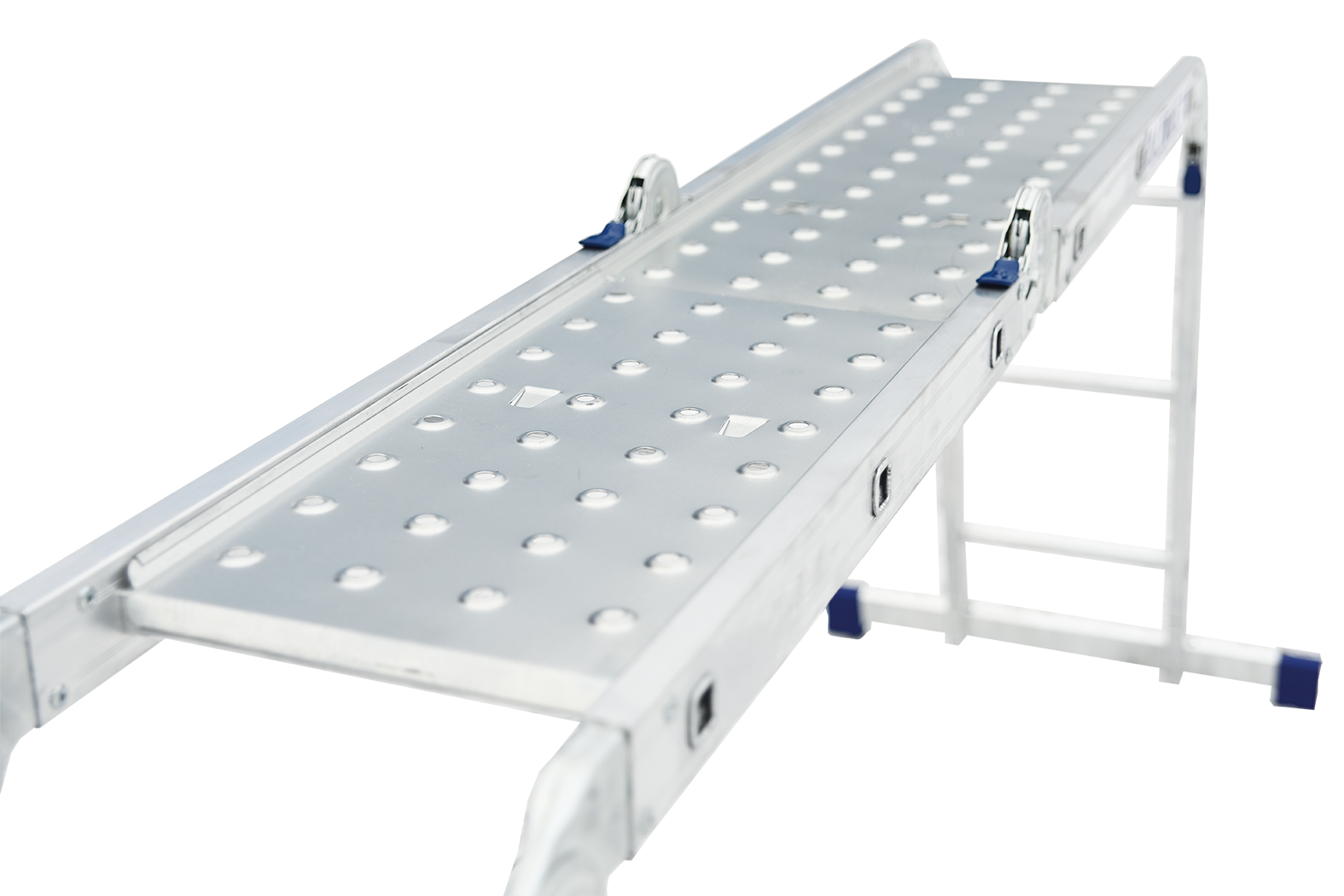

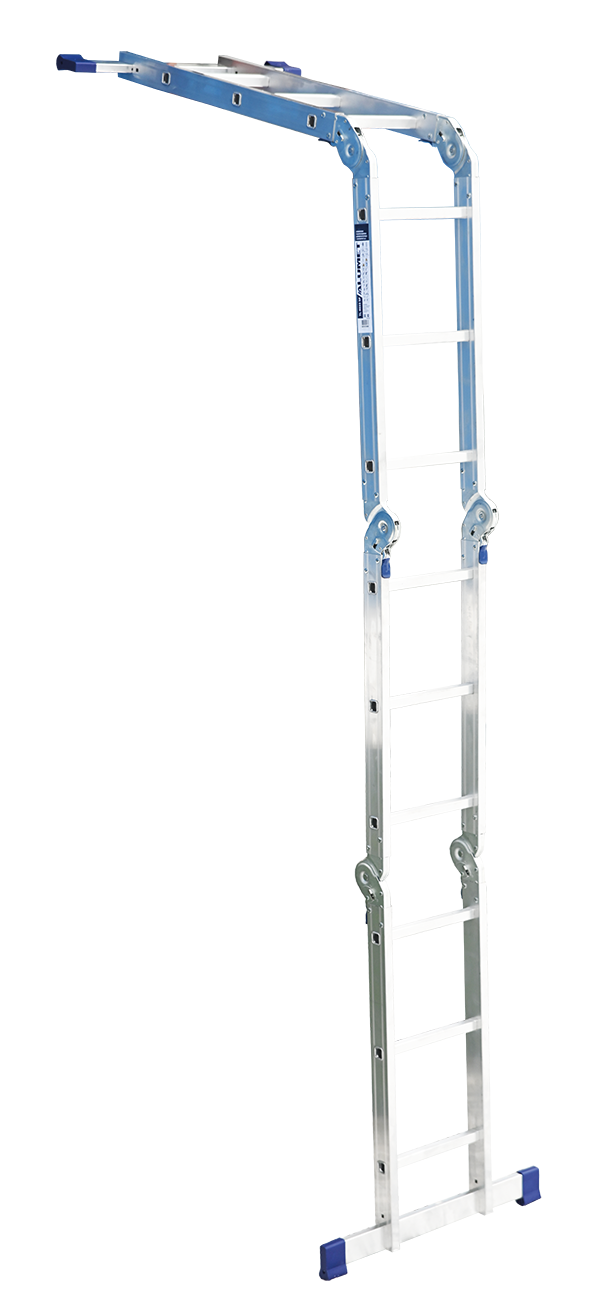

TL 4033SP

Vendor code TL 4033SP
Number of steps 4x3
Length folded 0.94
Folded width 0.27
Height 1.71
Length of four sections 3.52
Height max 2.81
Height max 4.62
Width 0.33
Stabilizer length 0.7

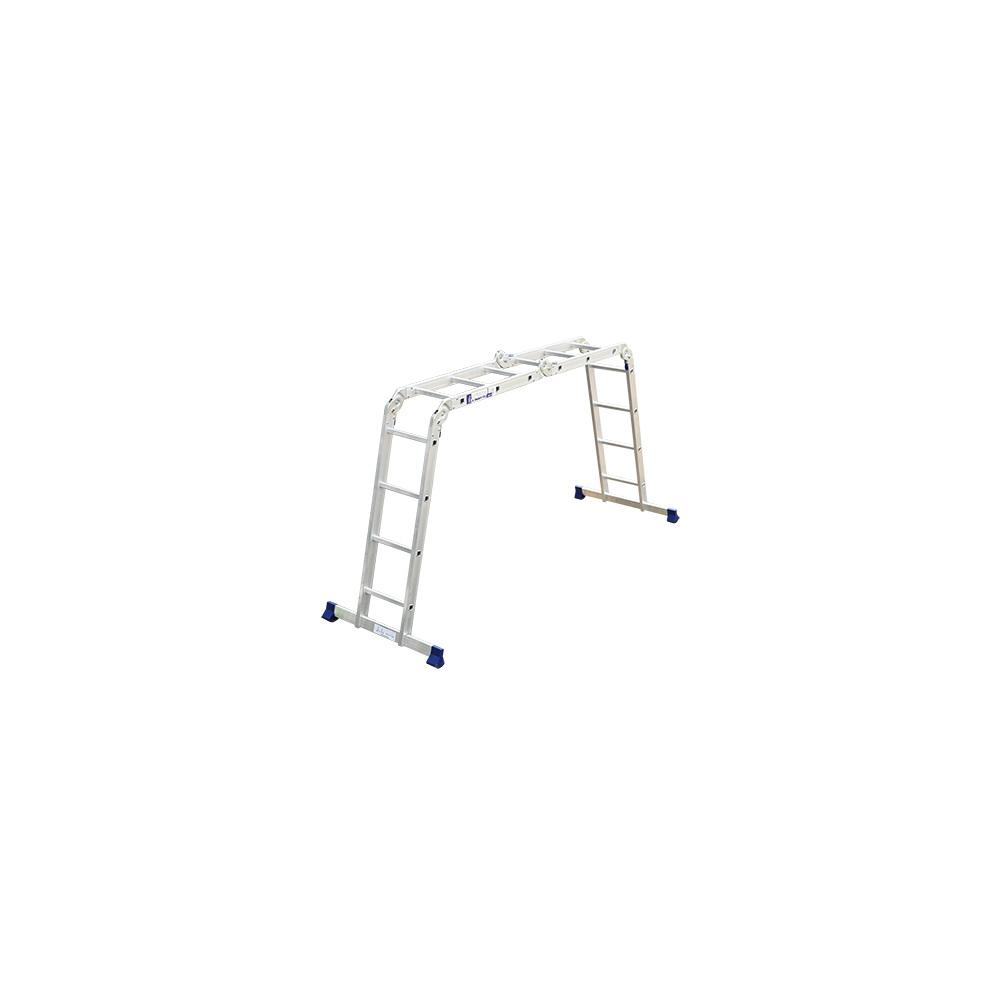

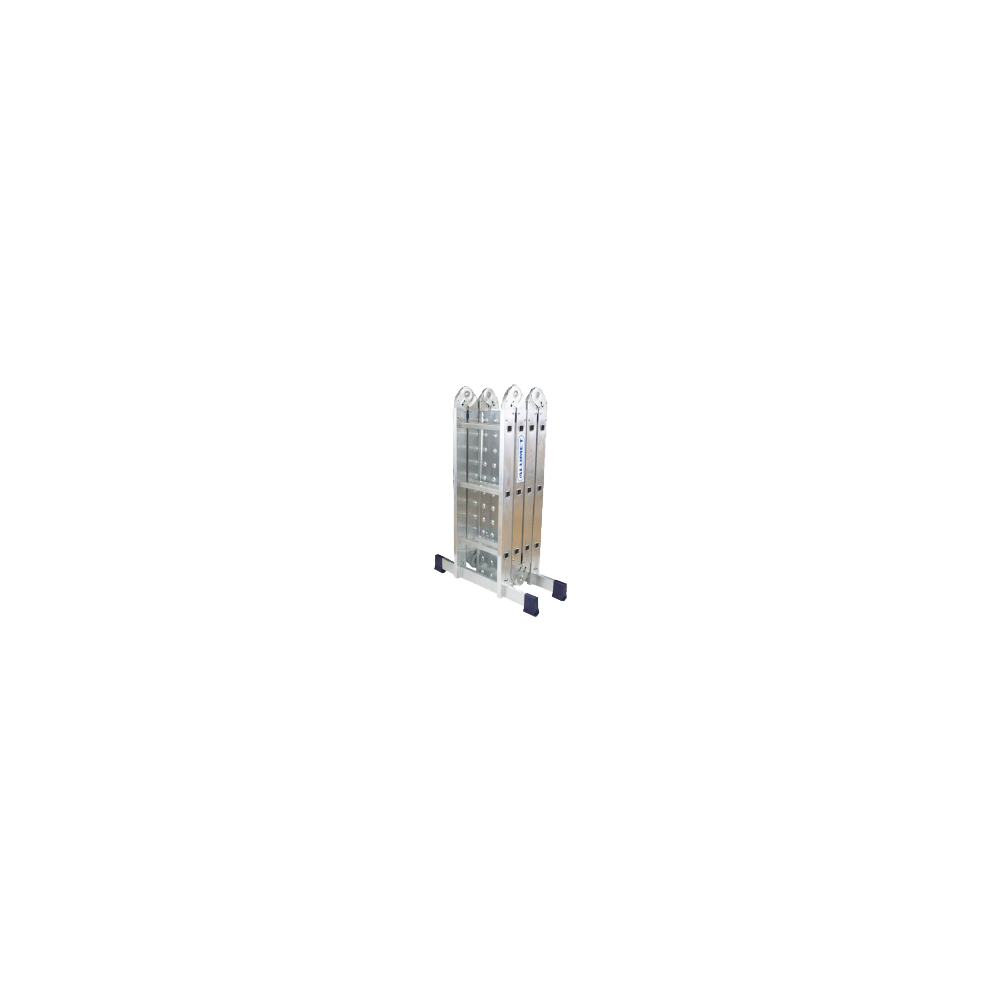

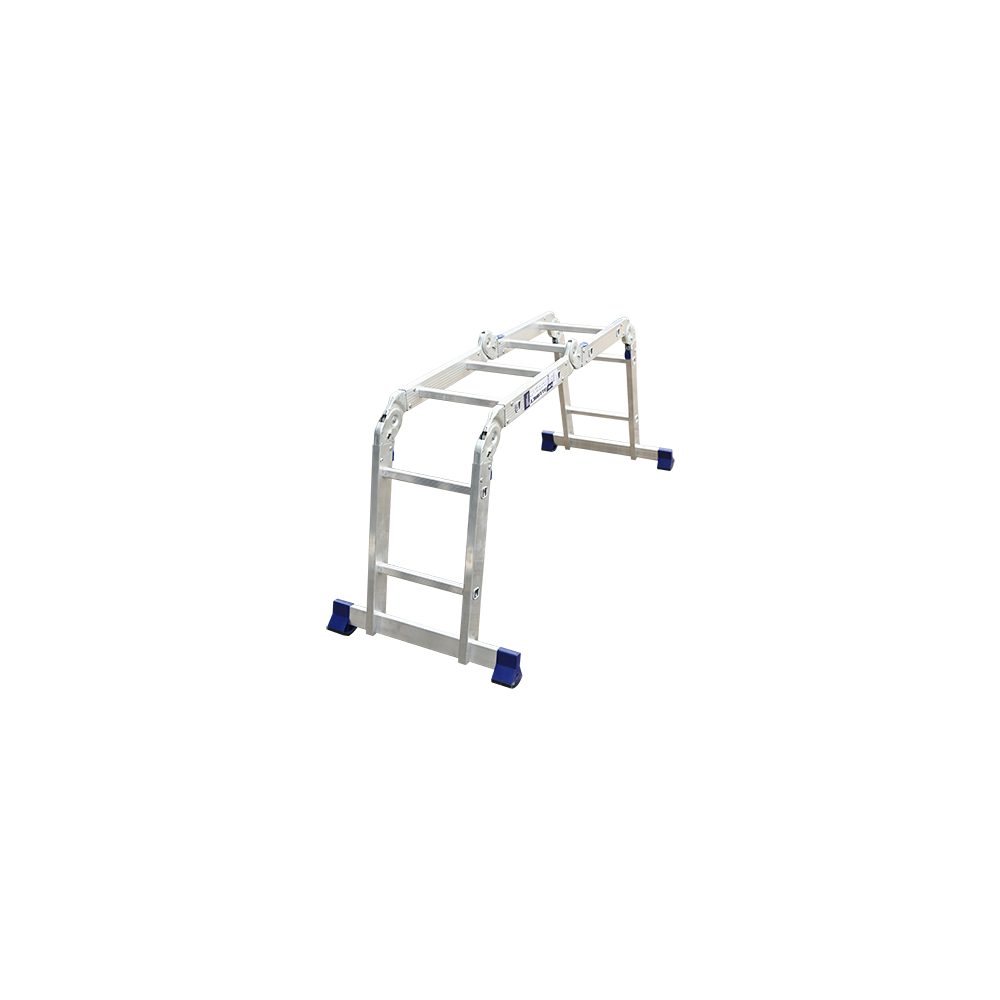

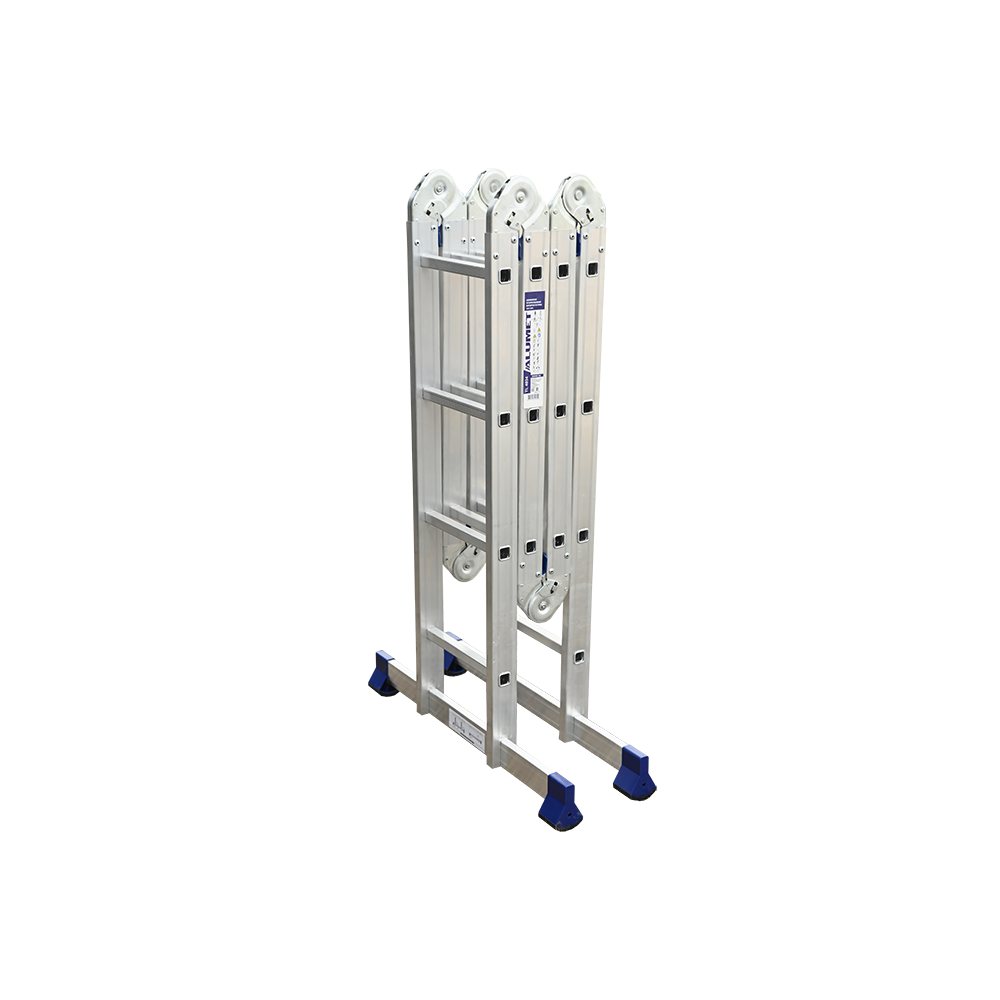

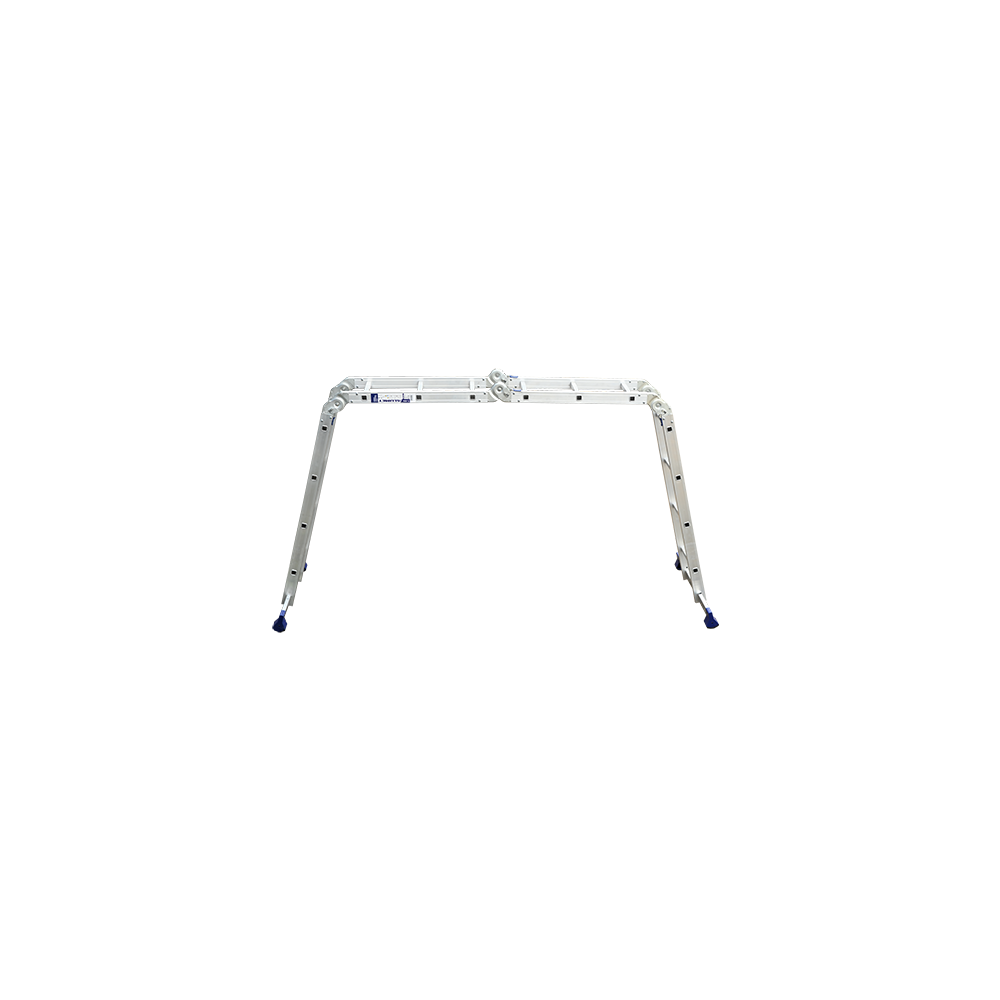

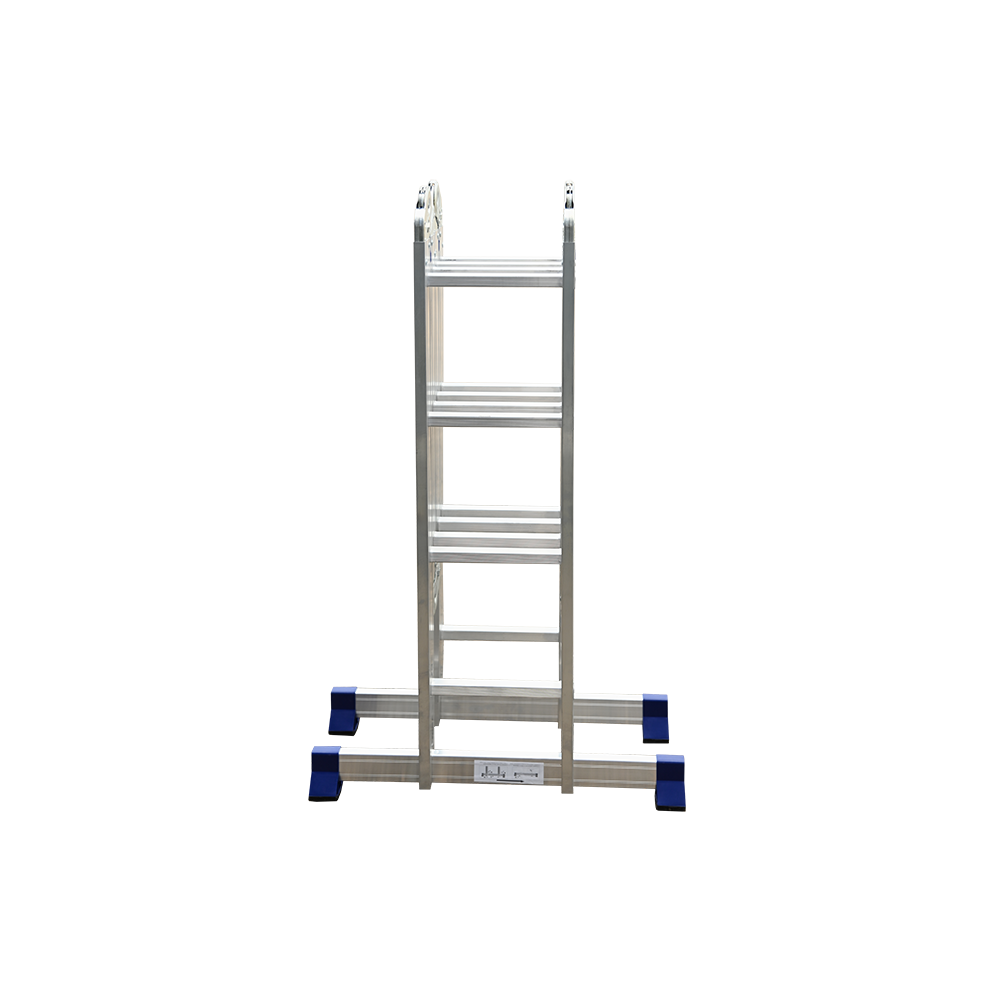

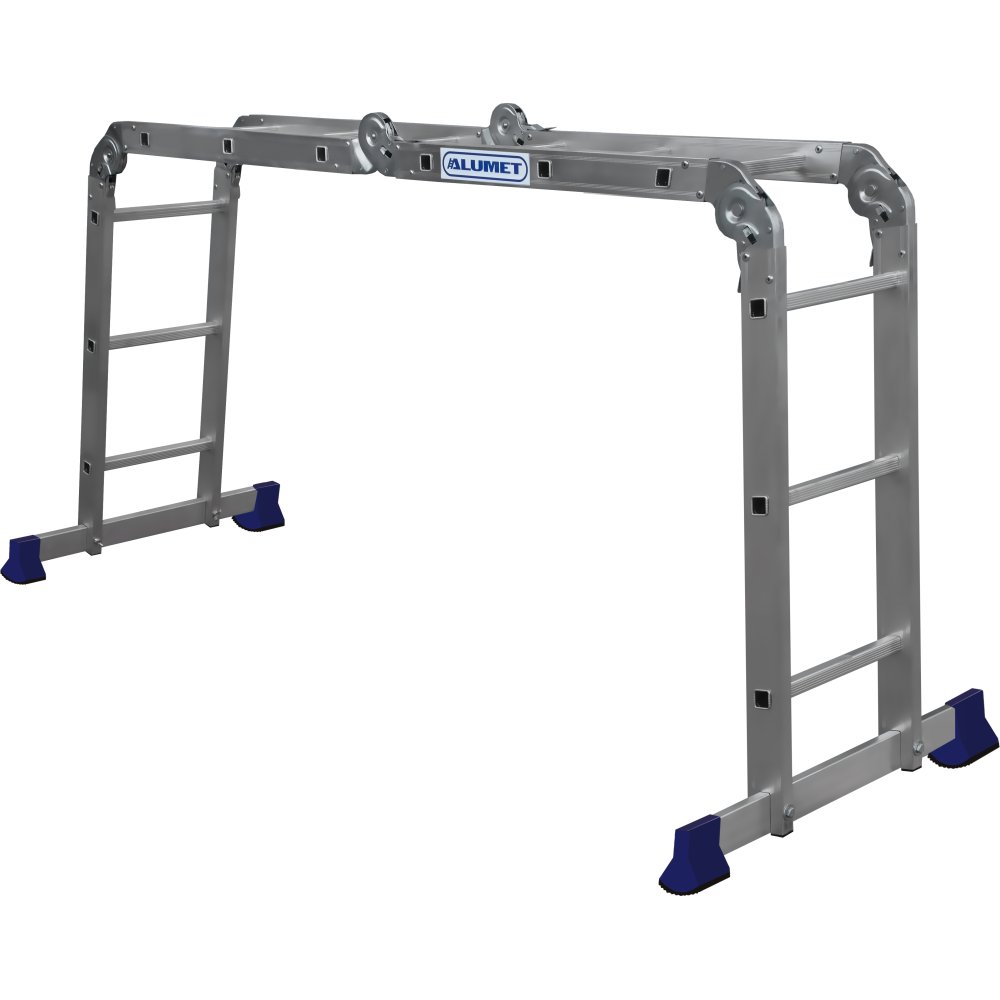

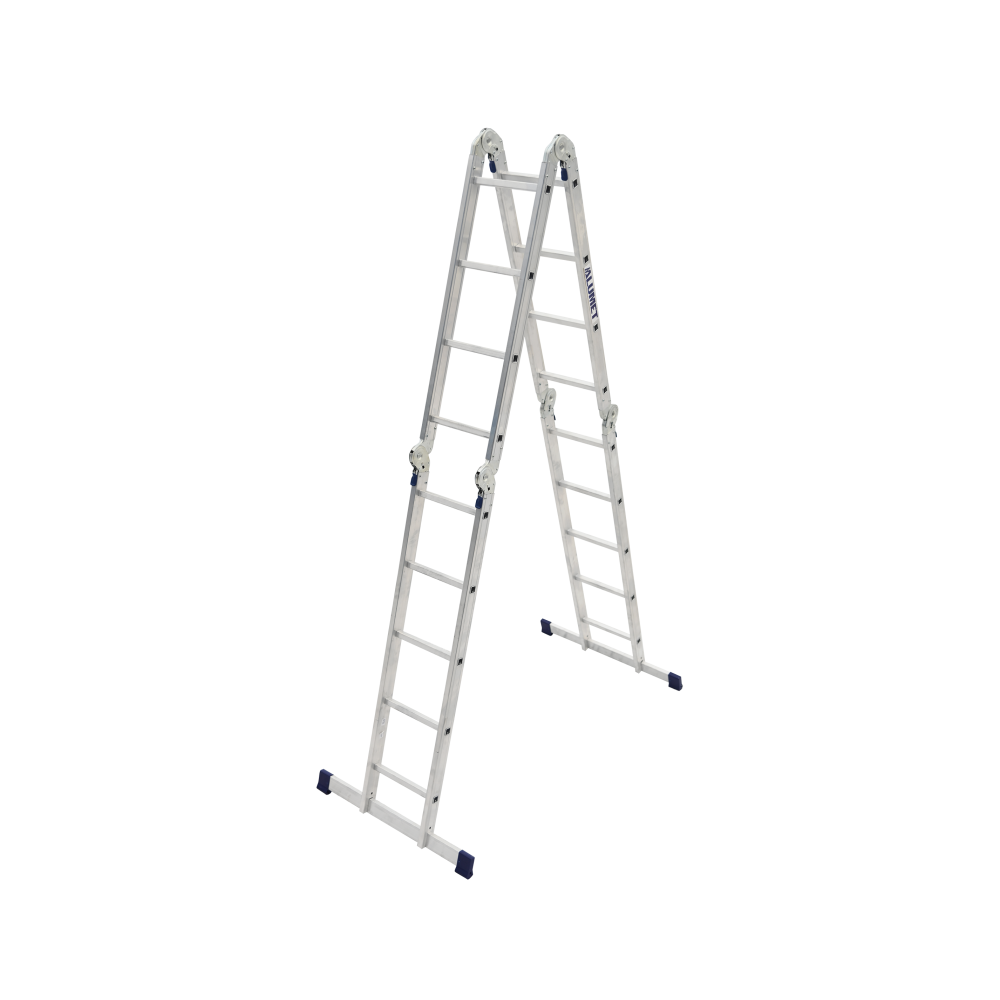

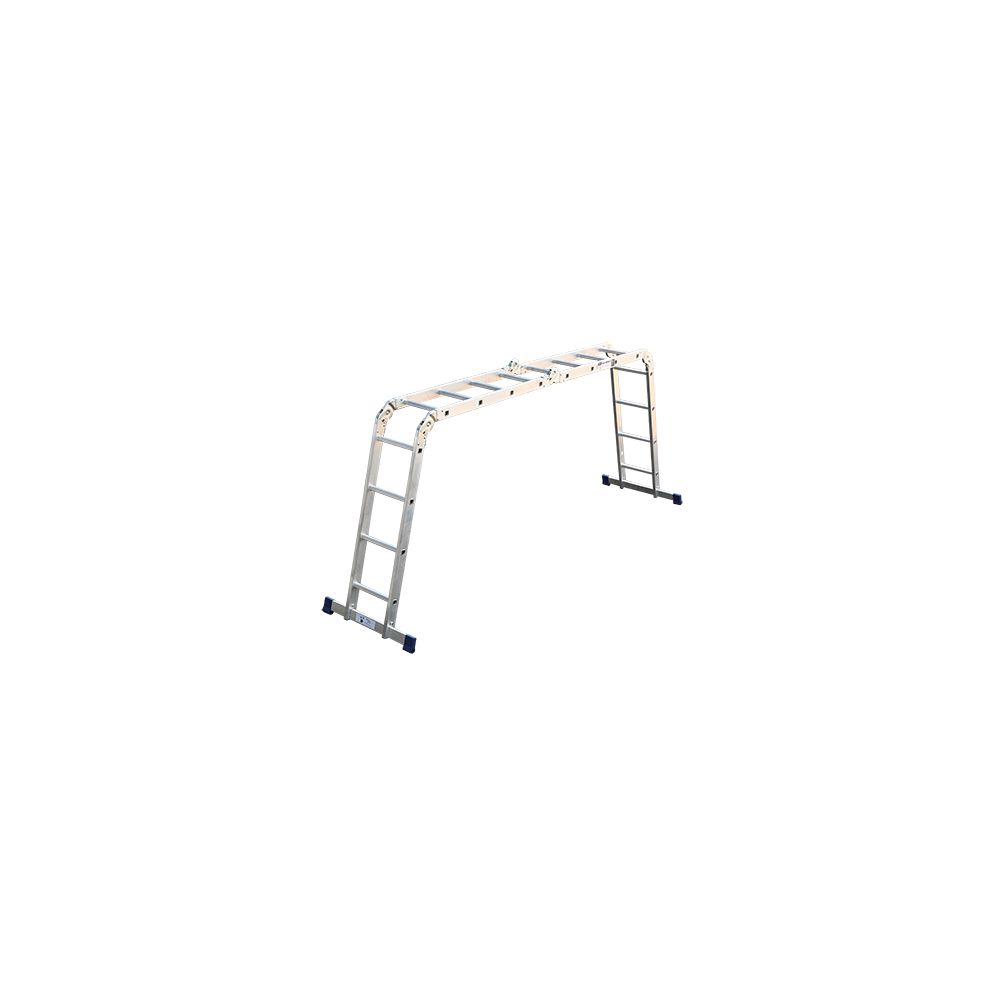

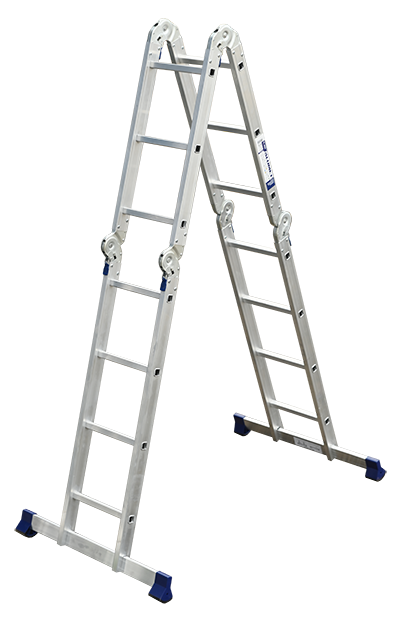

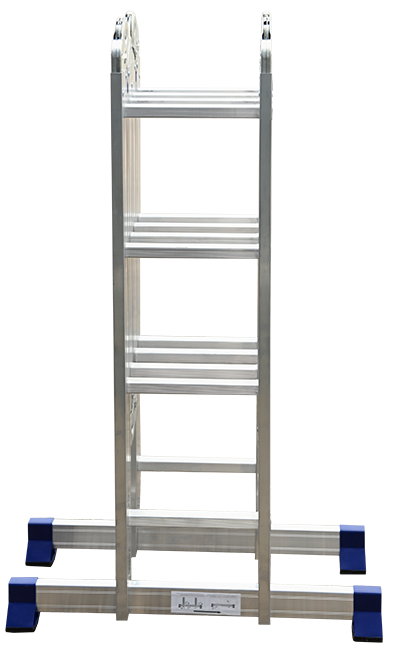

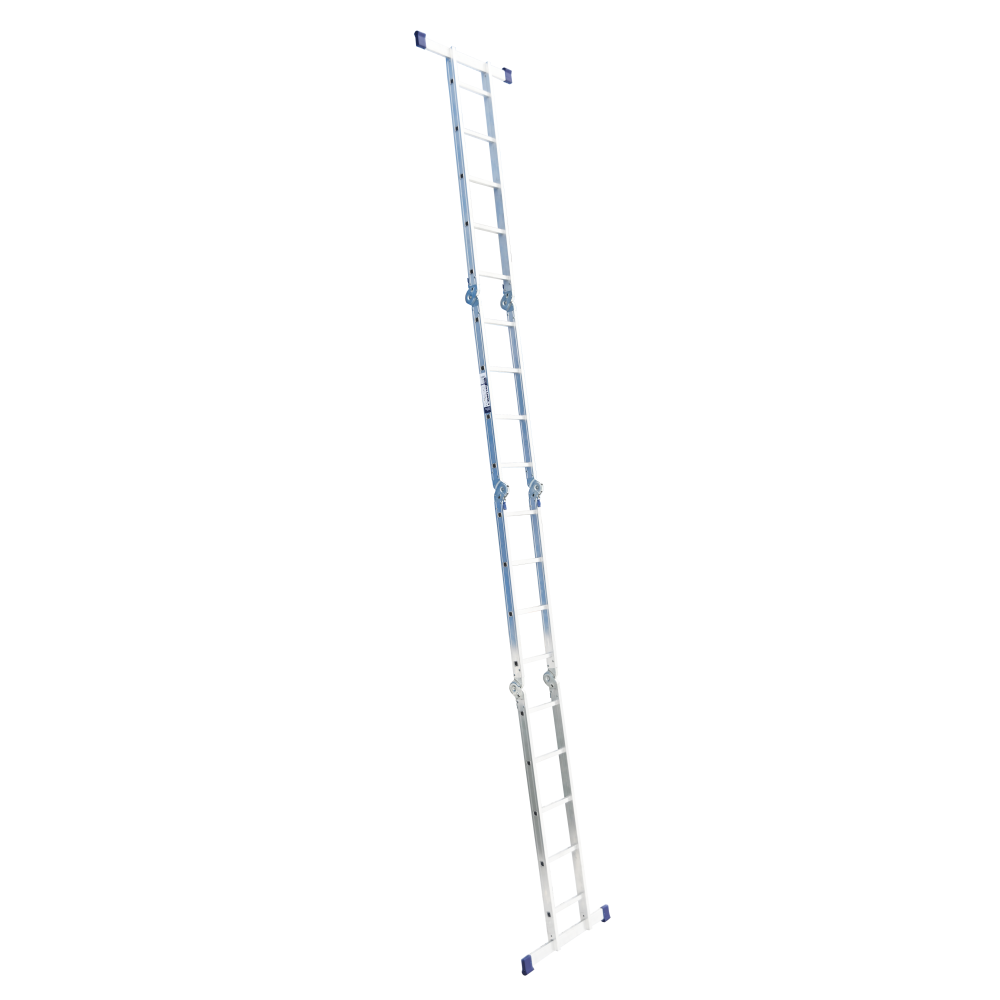

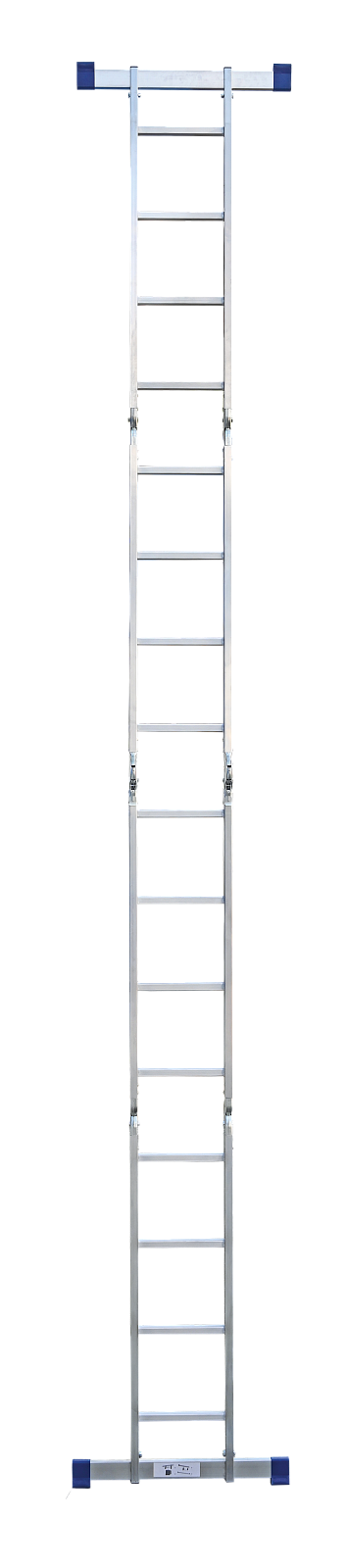

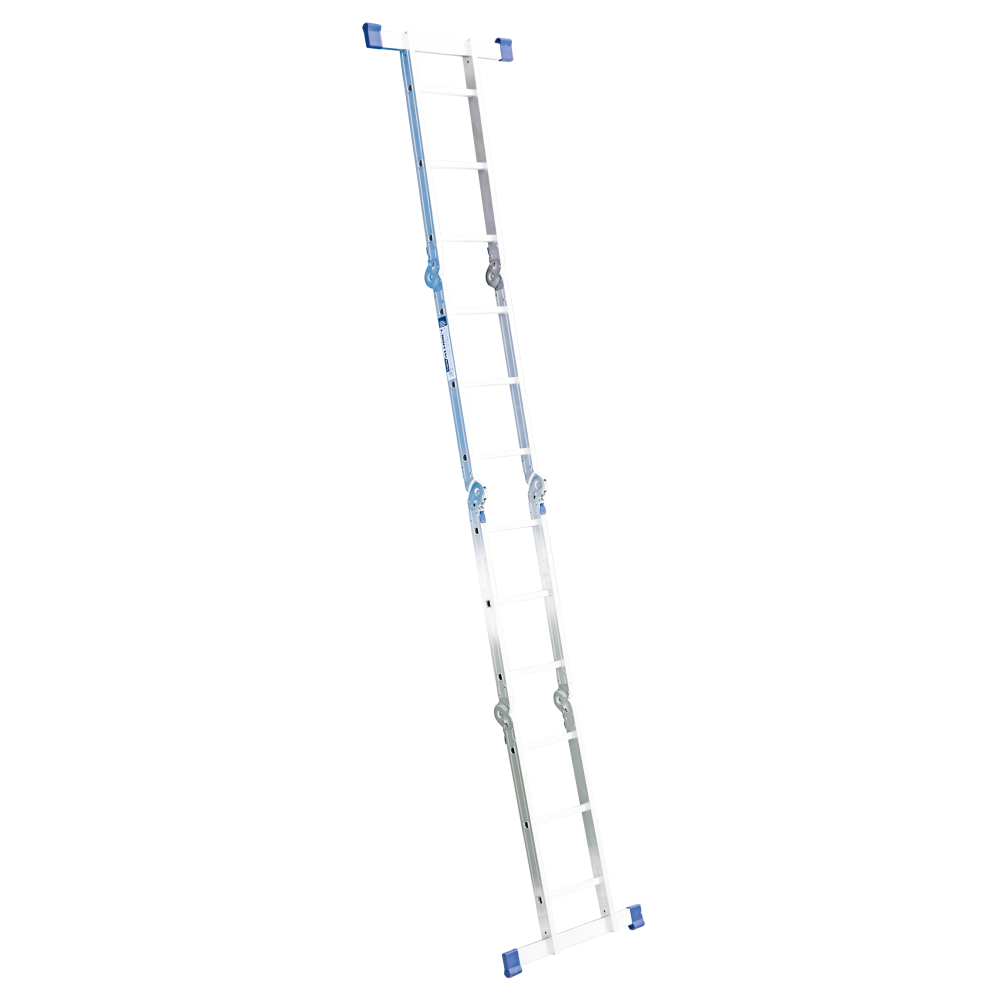

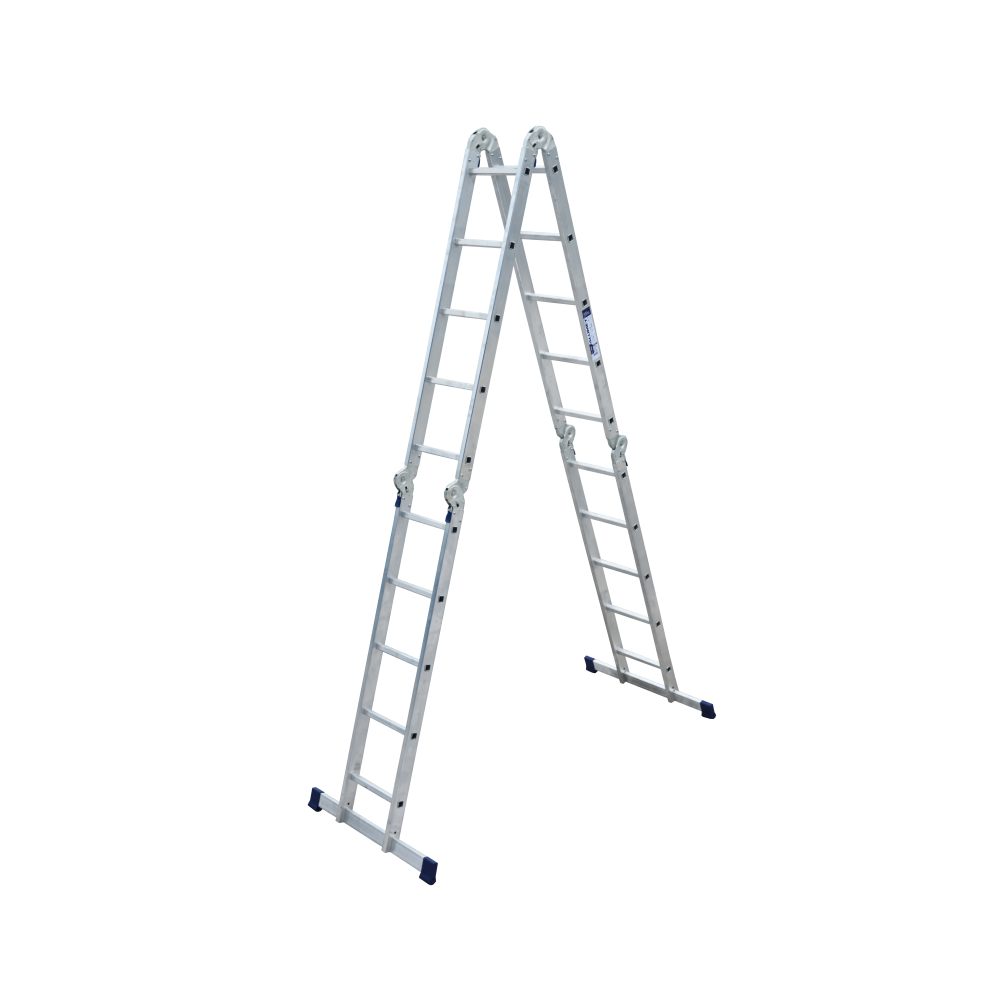

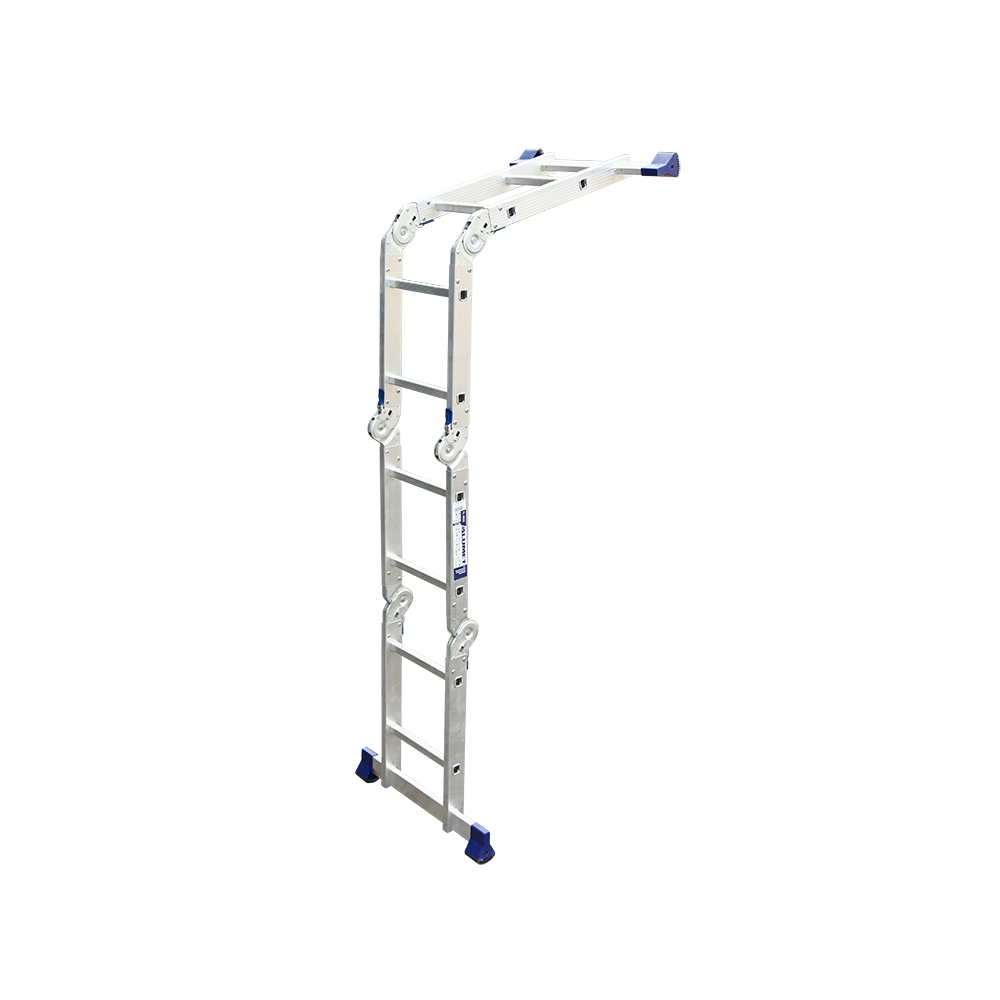

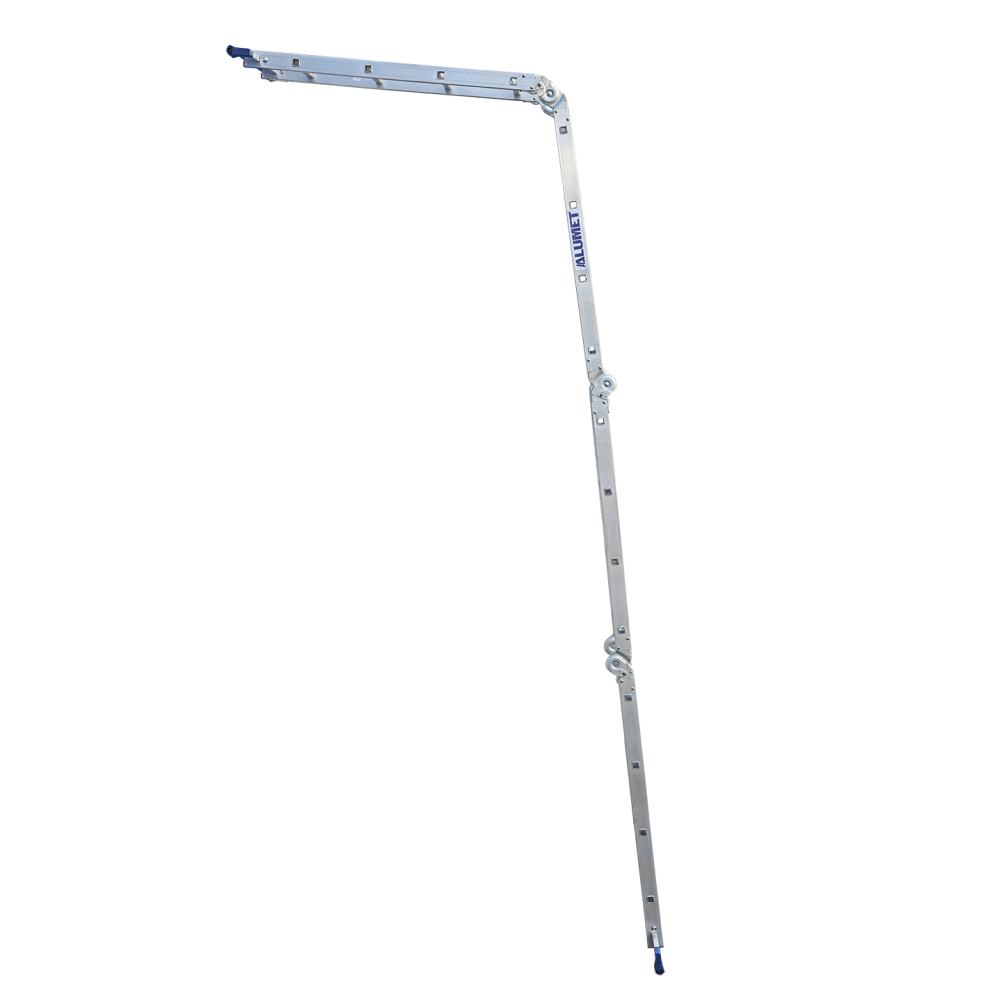

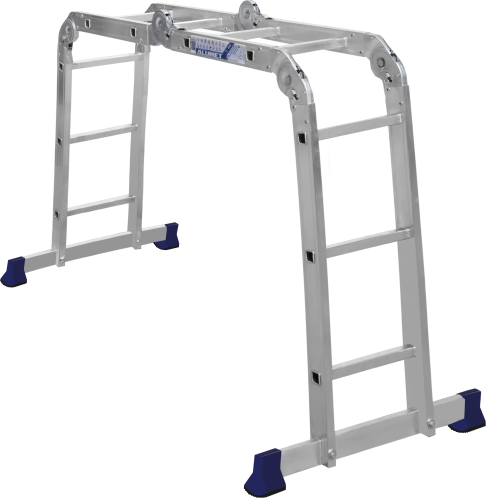

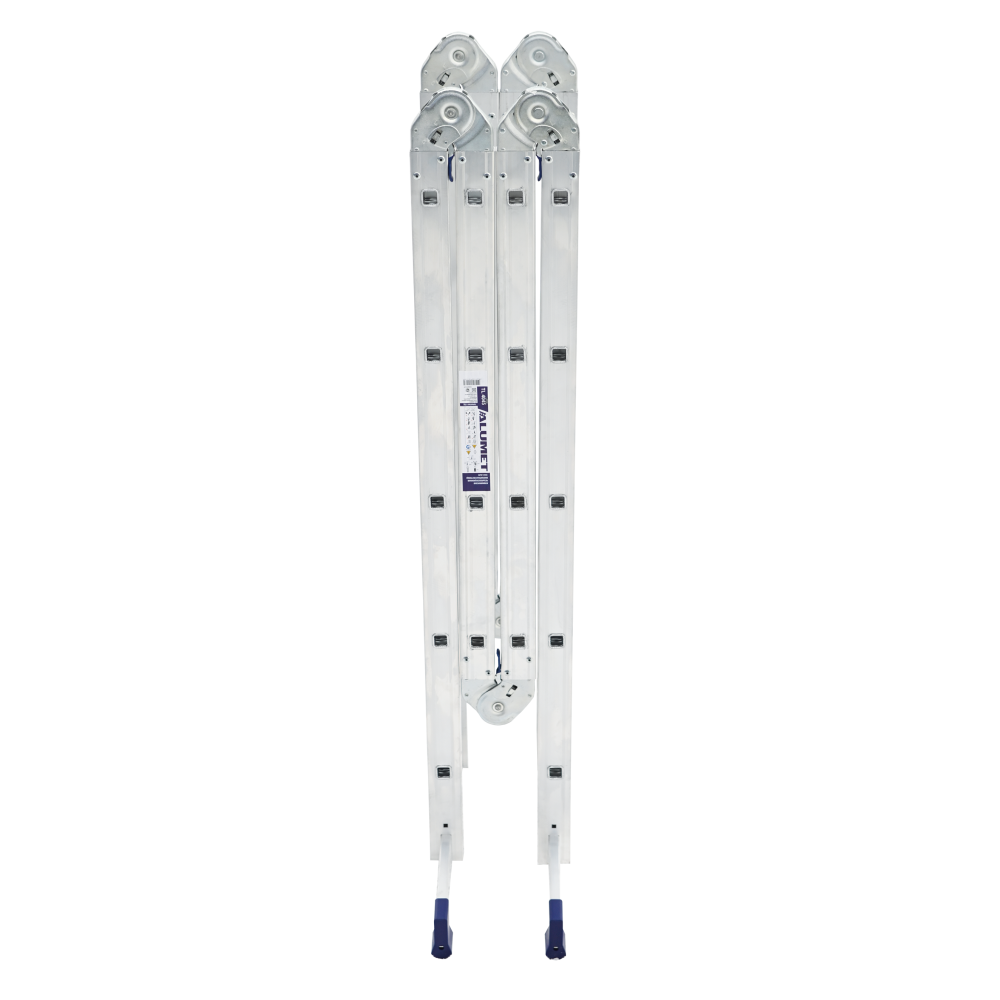

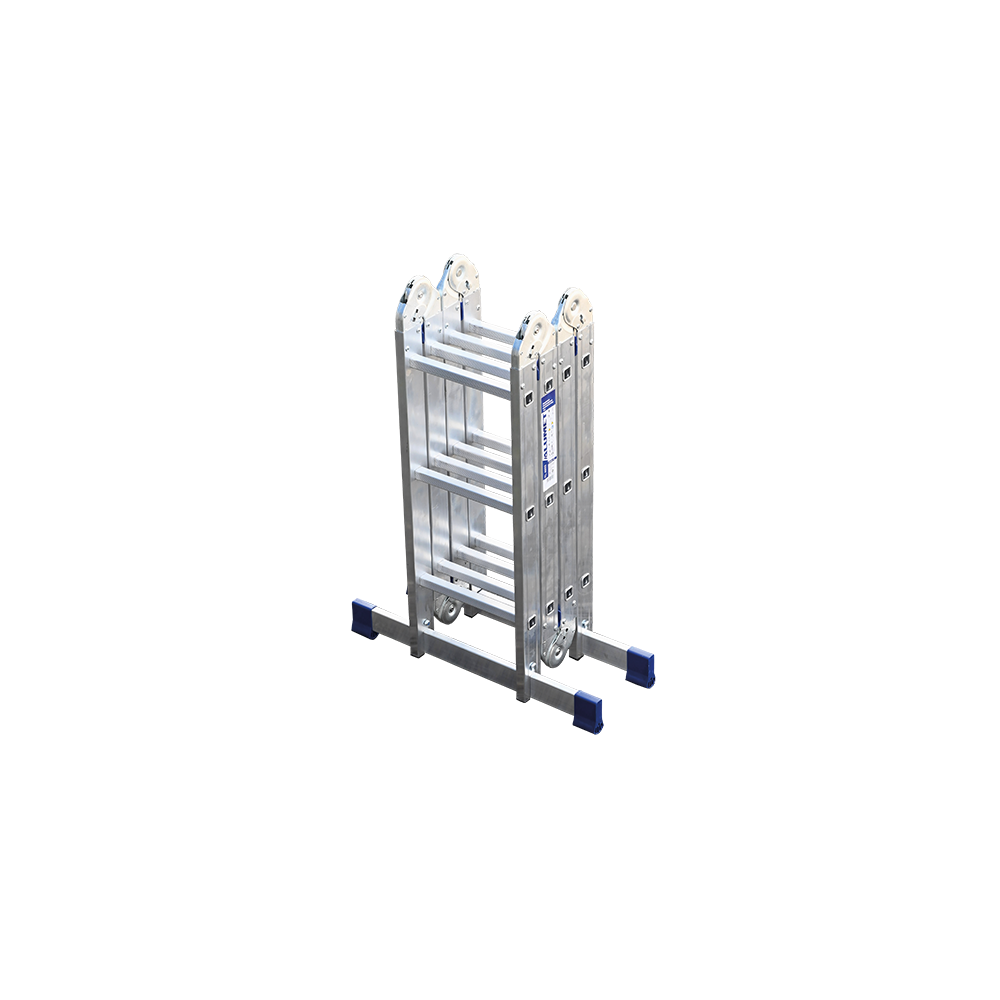

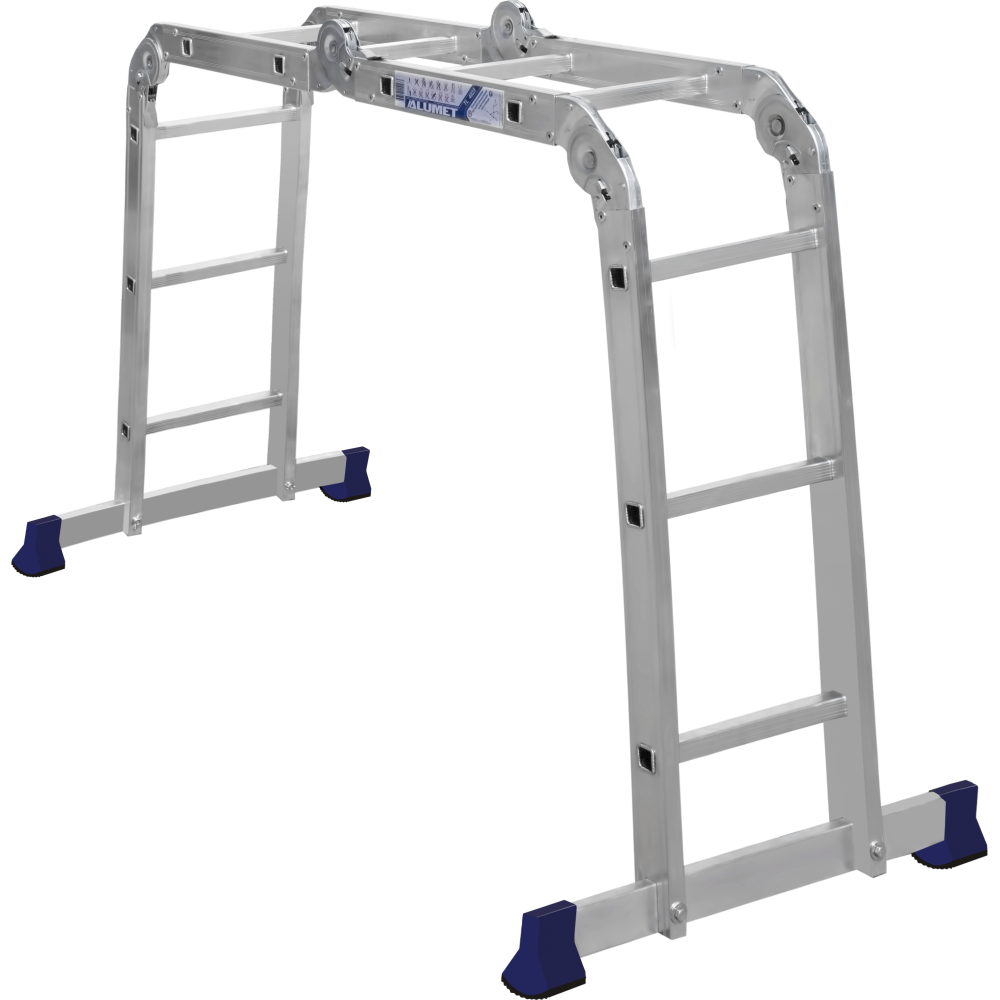

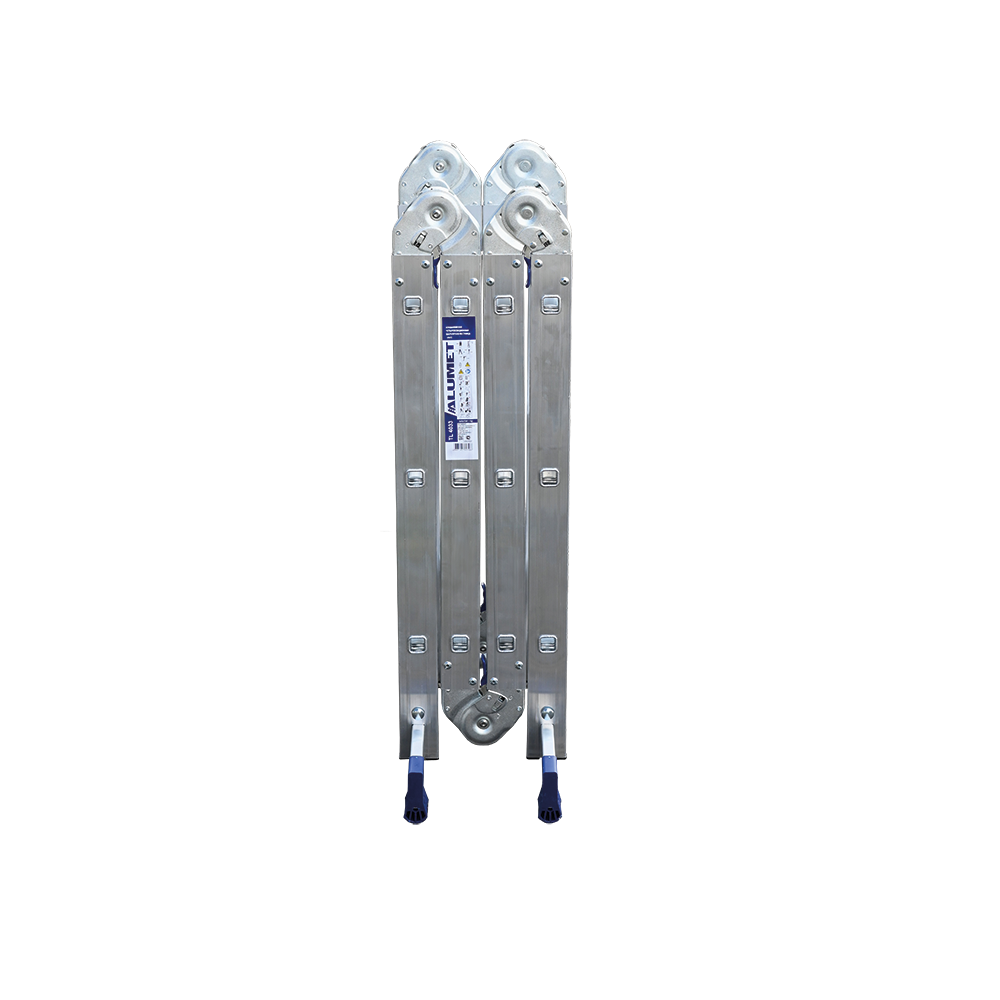

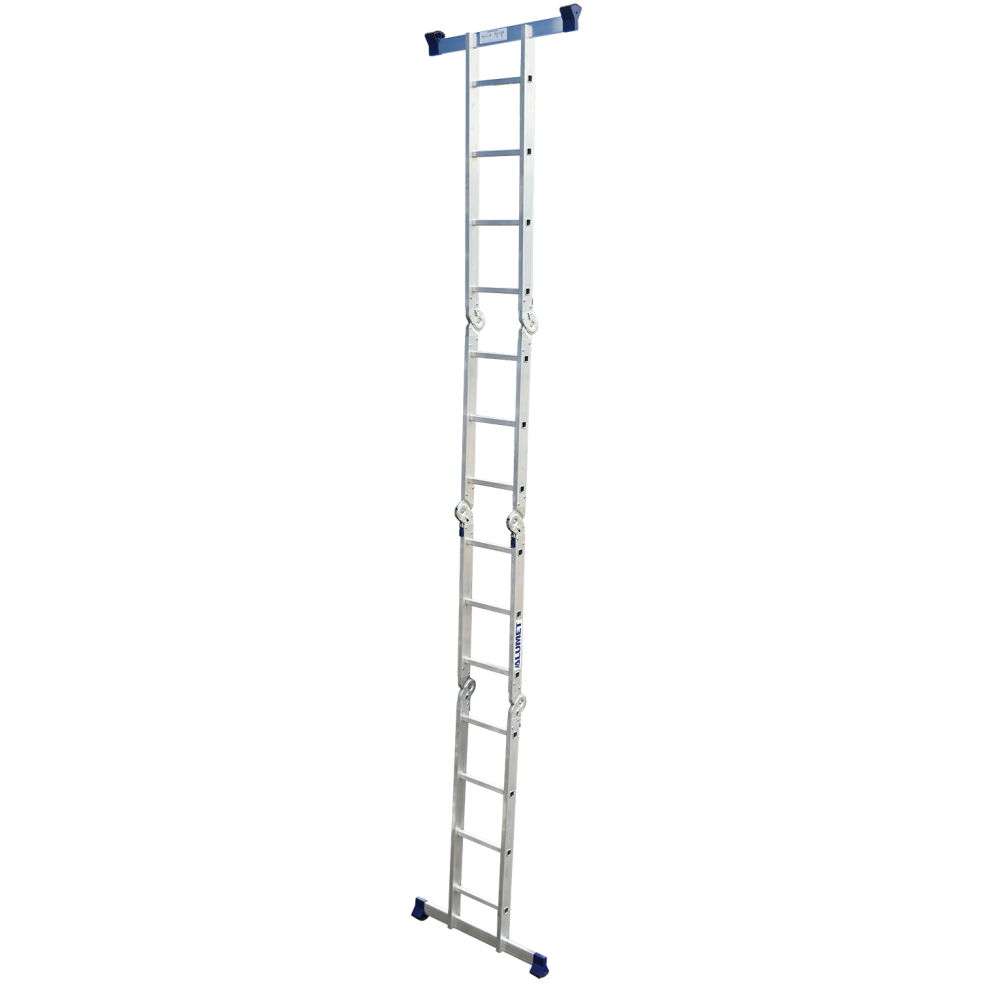

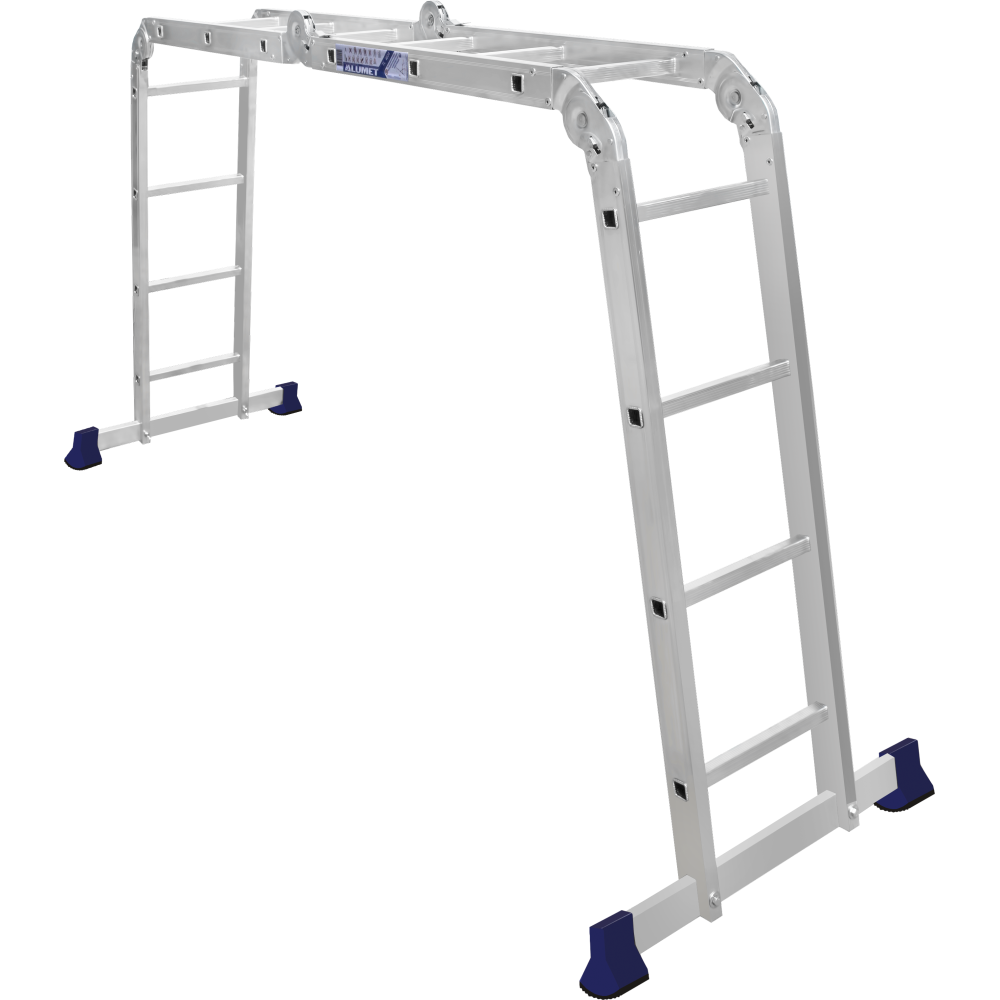

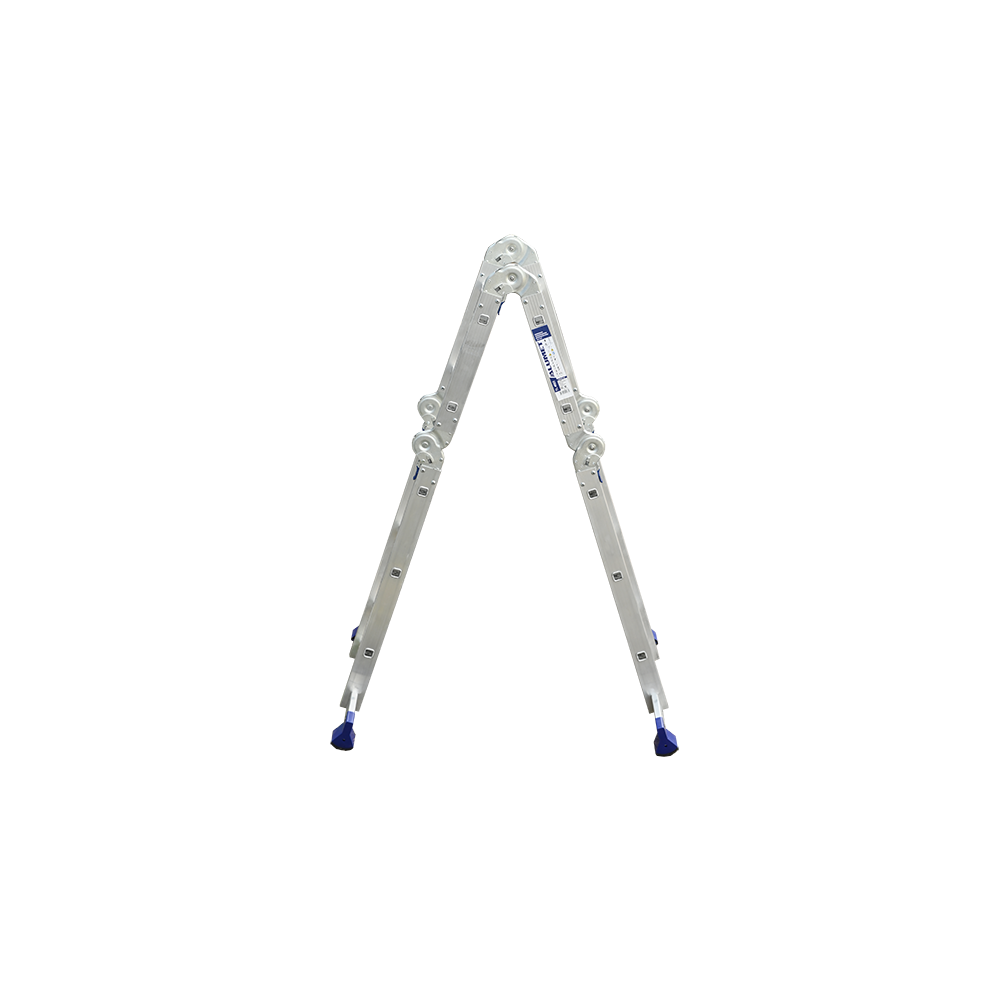

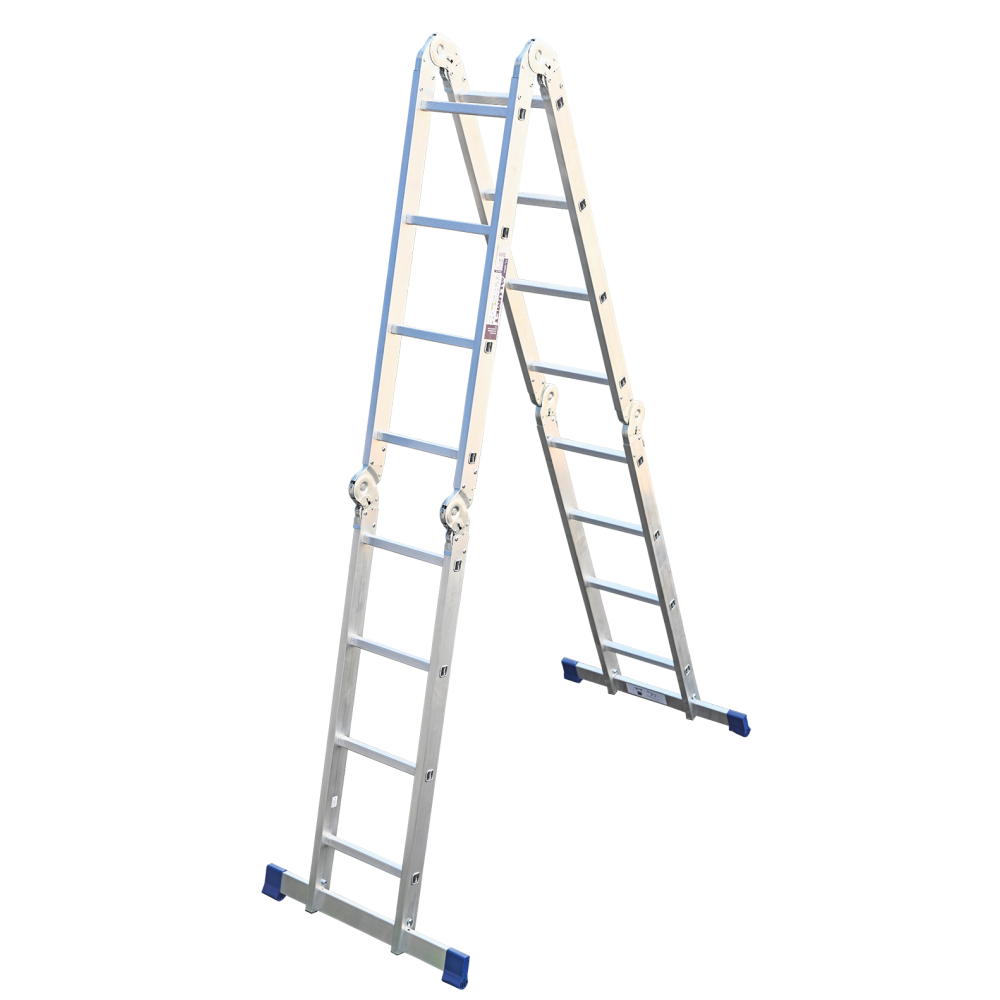

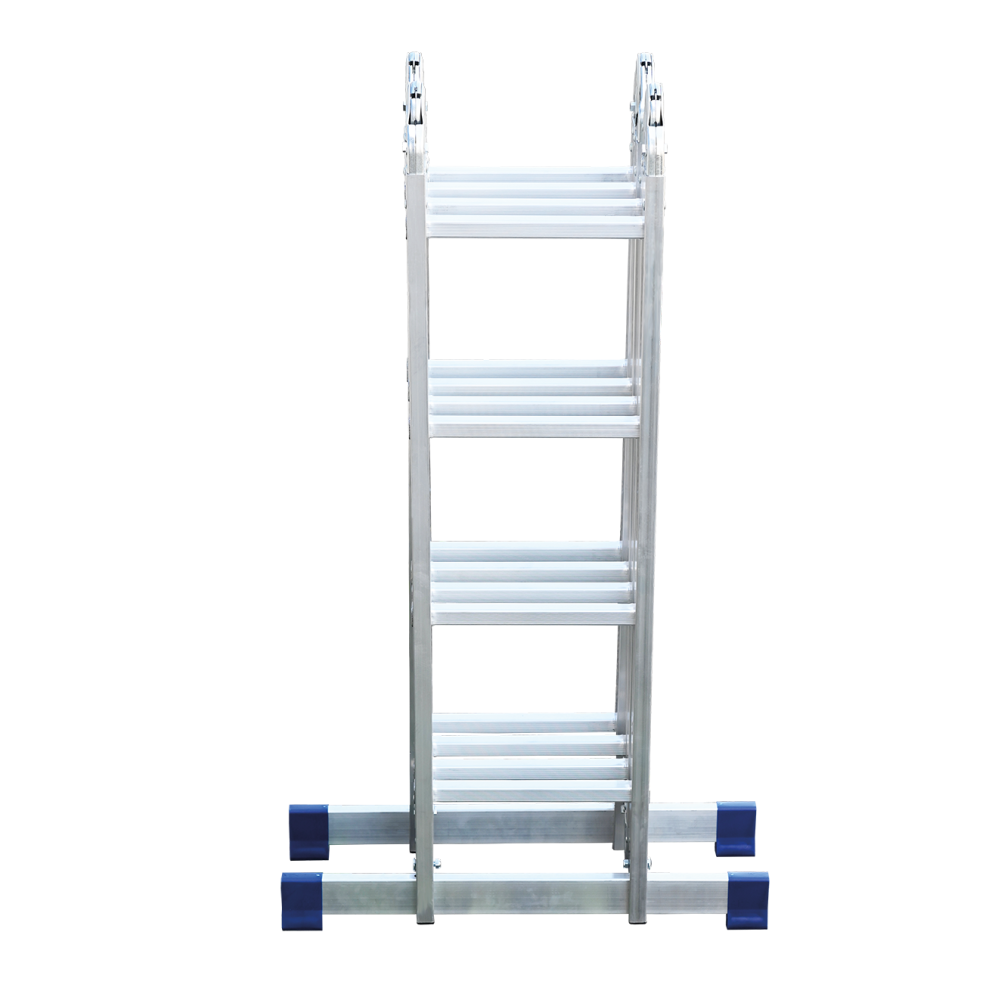

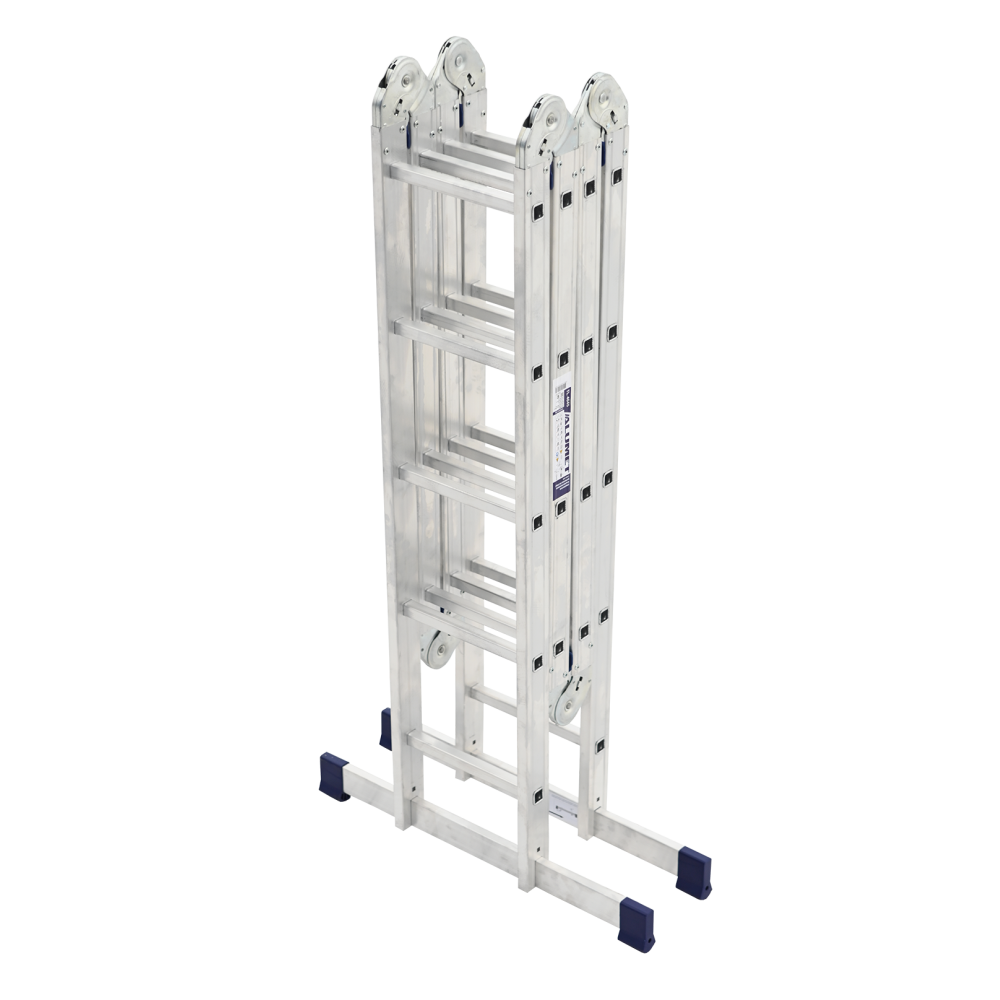

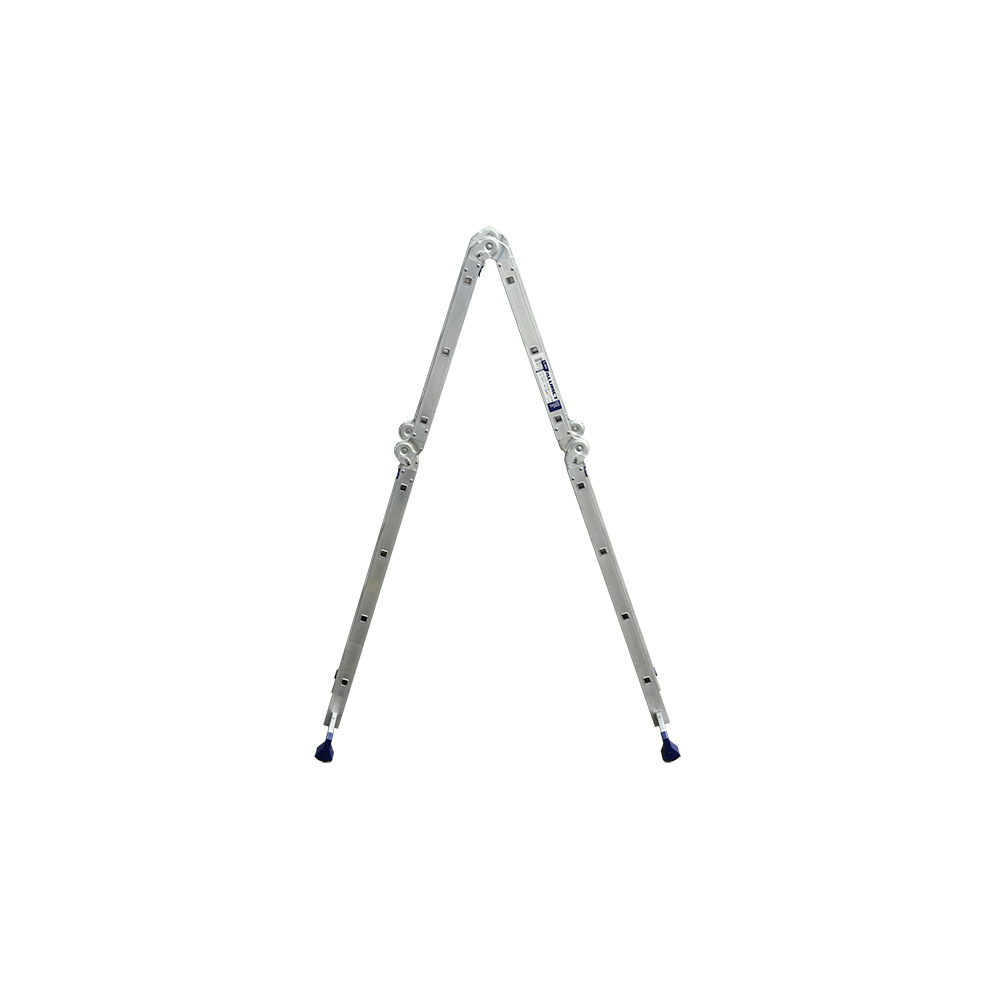

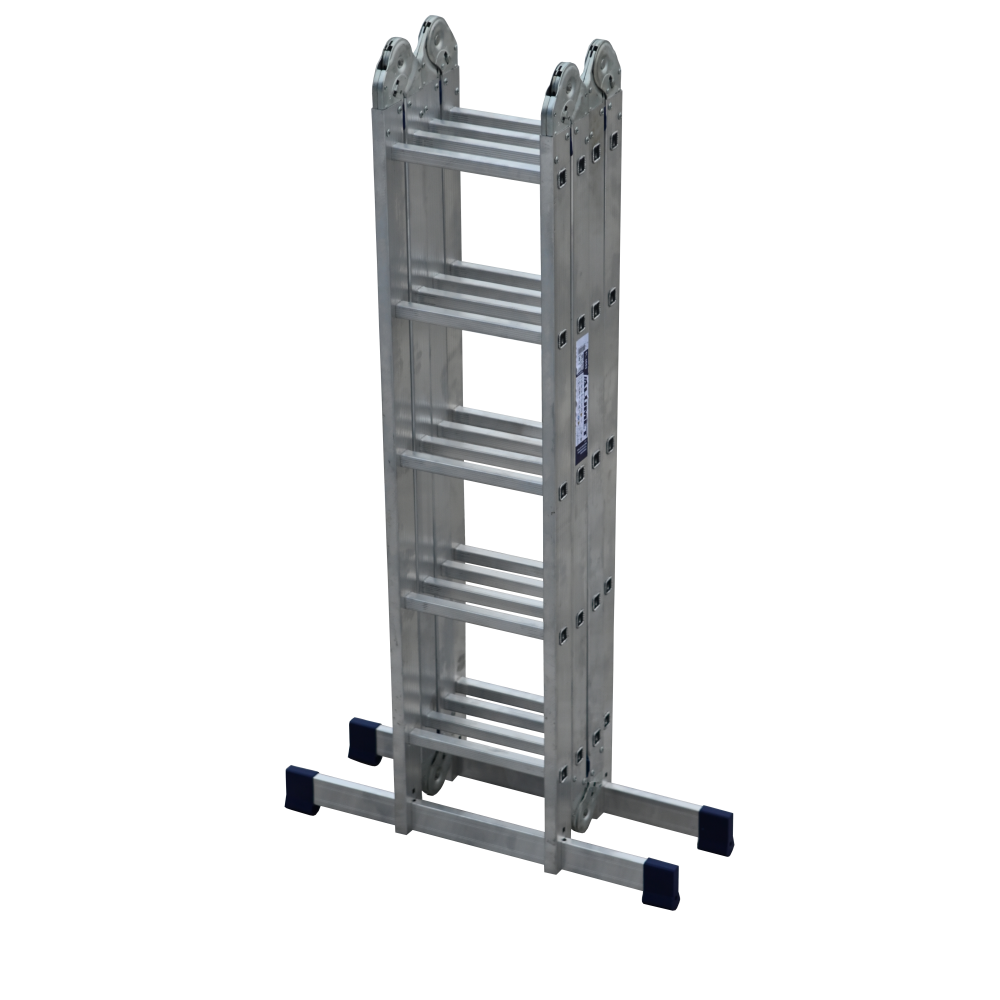

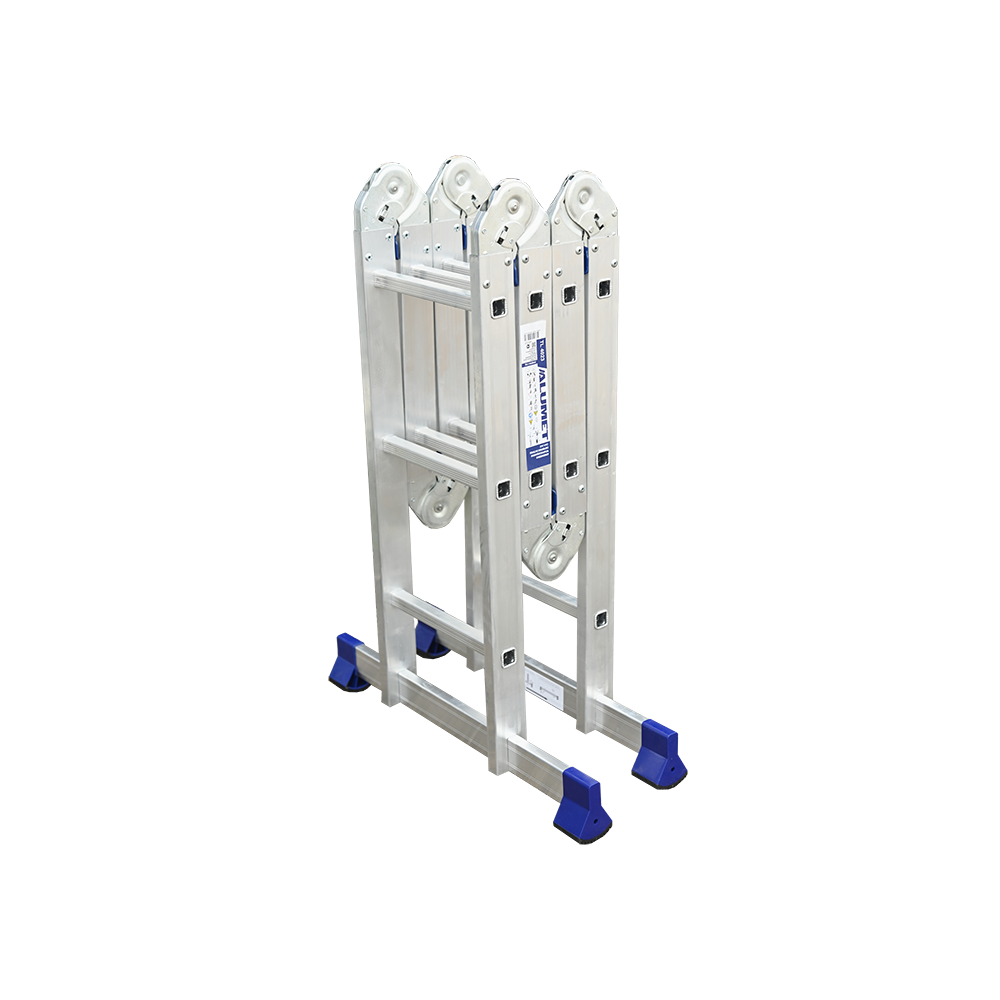

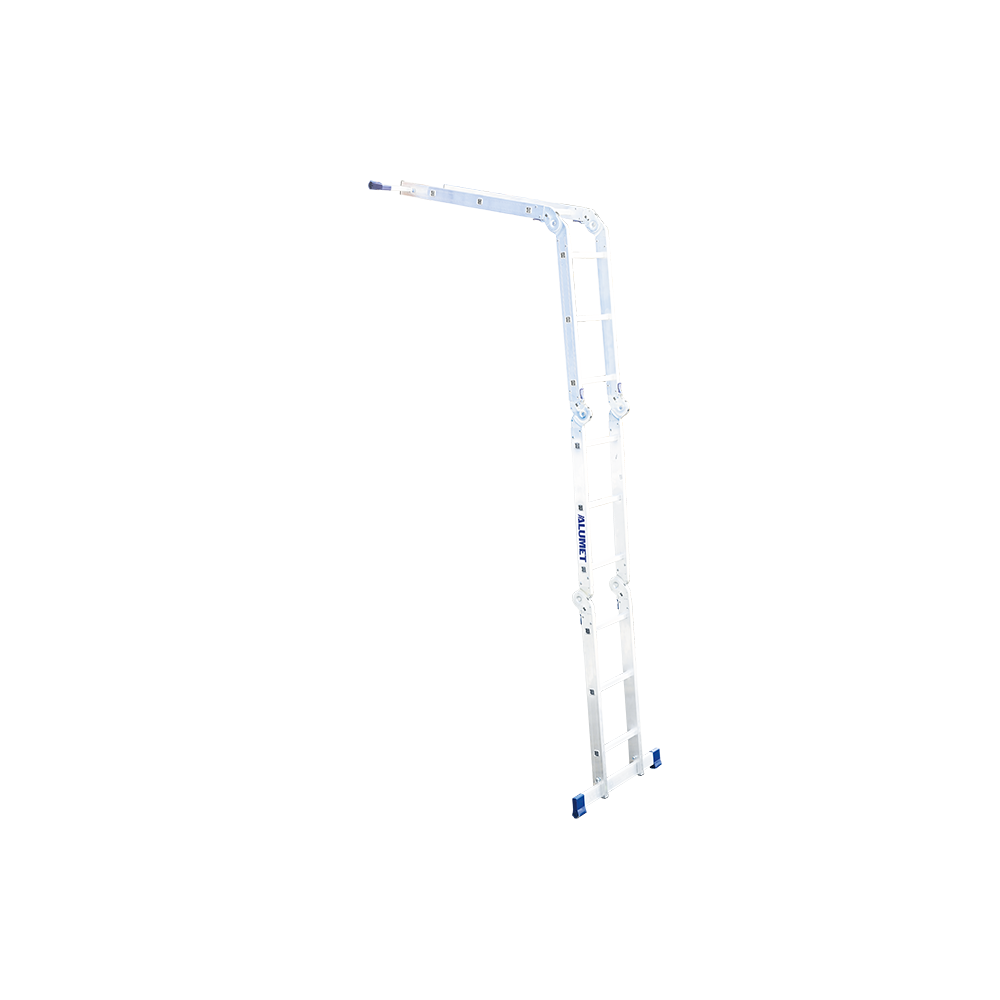

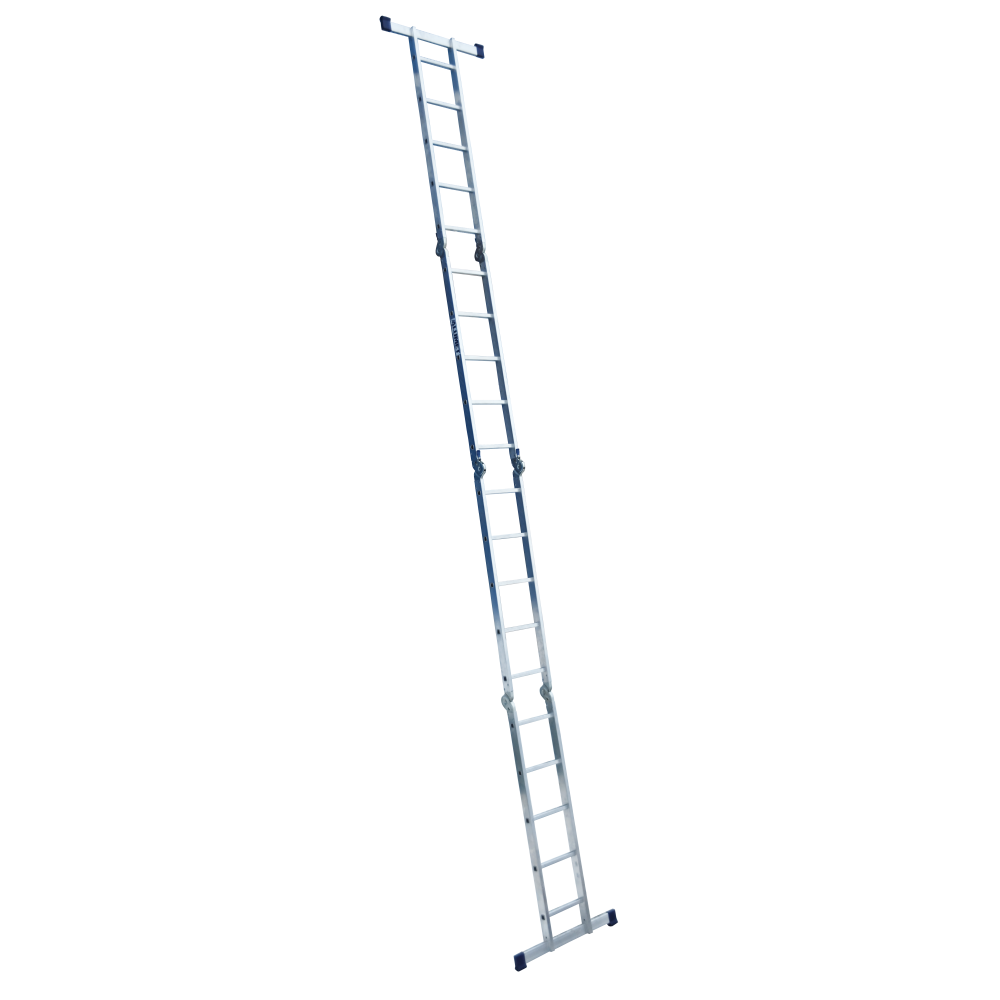

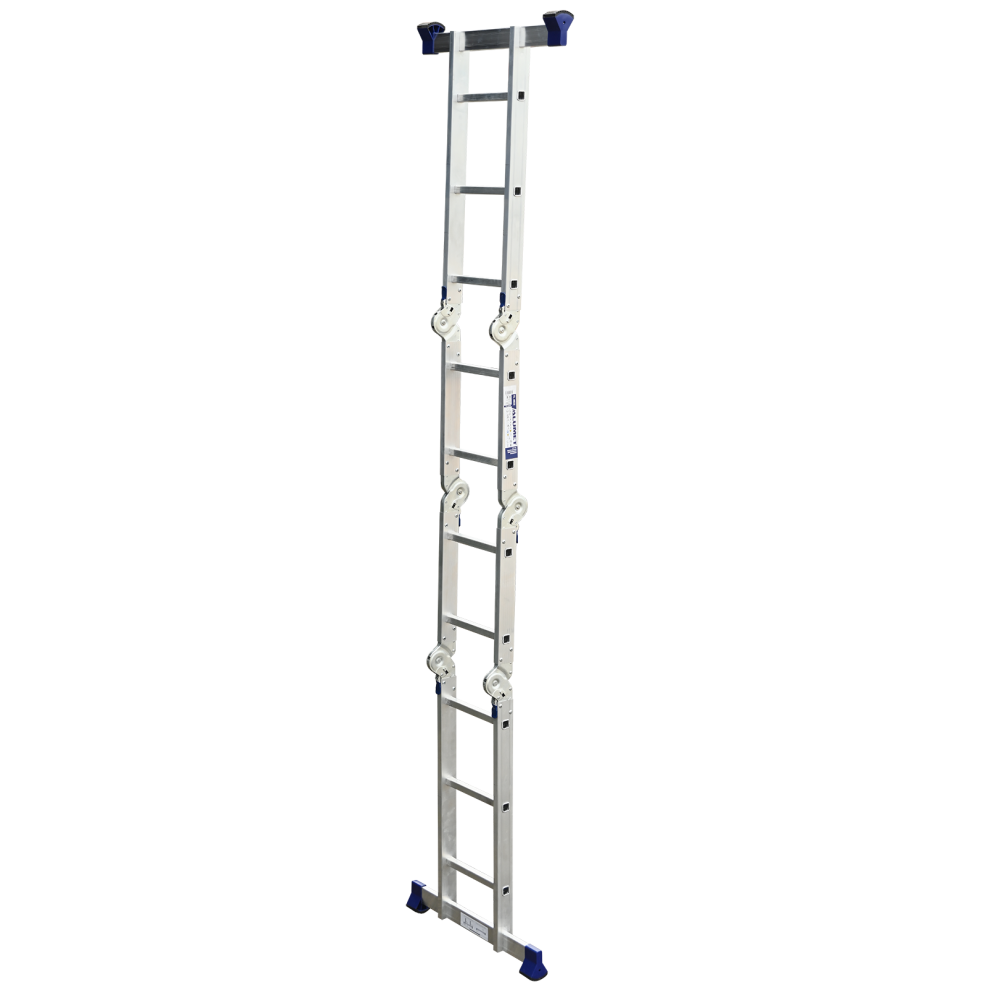

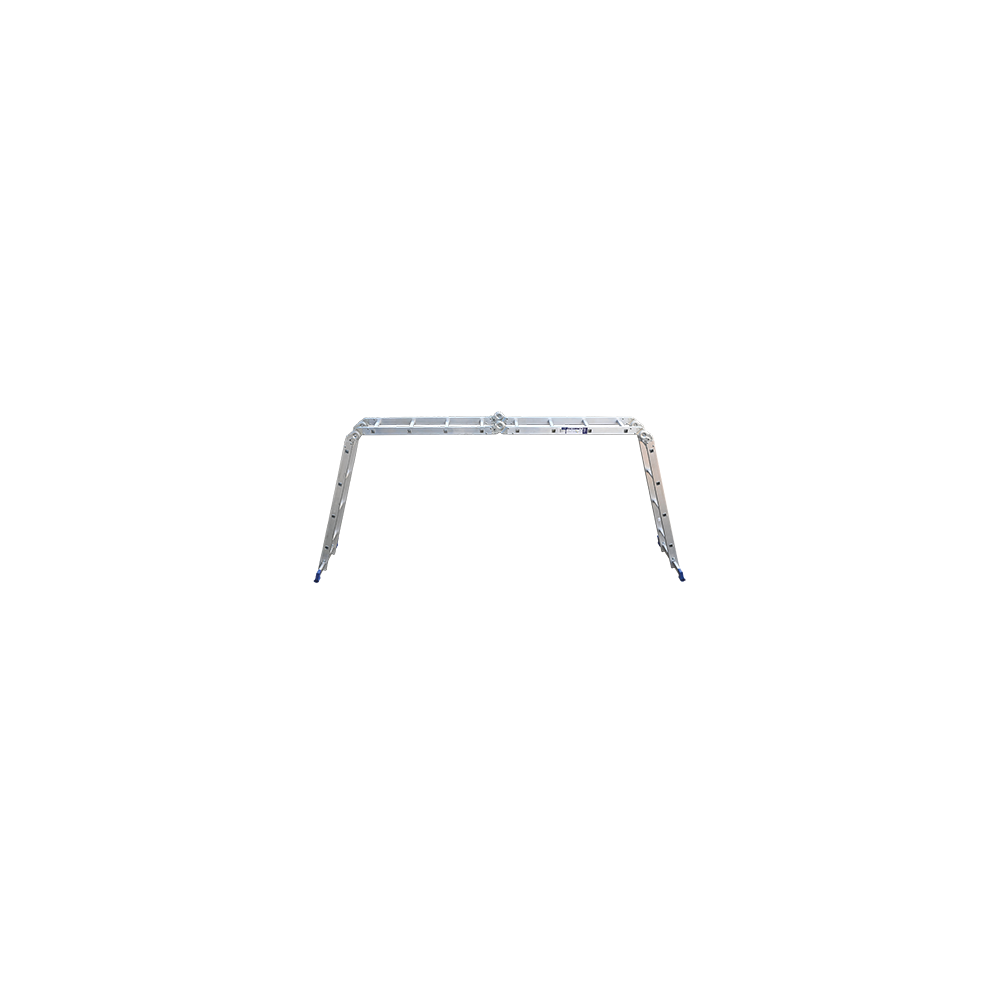

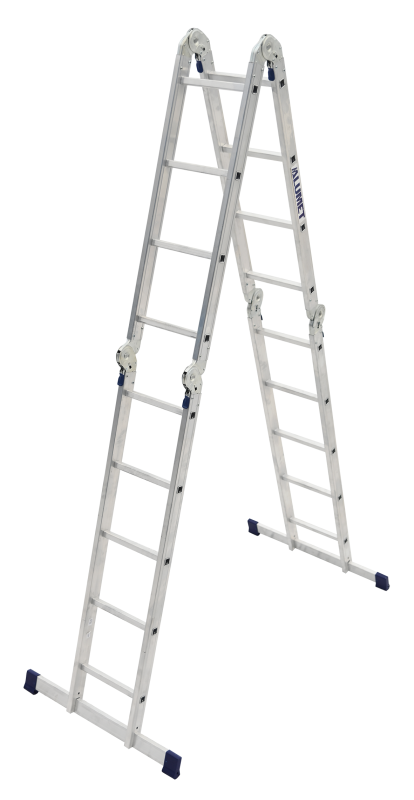

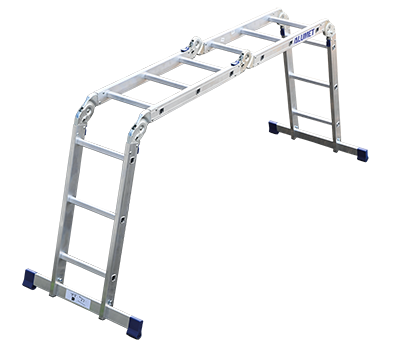

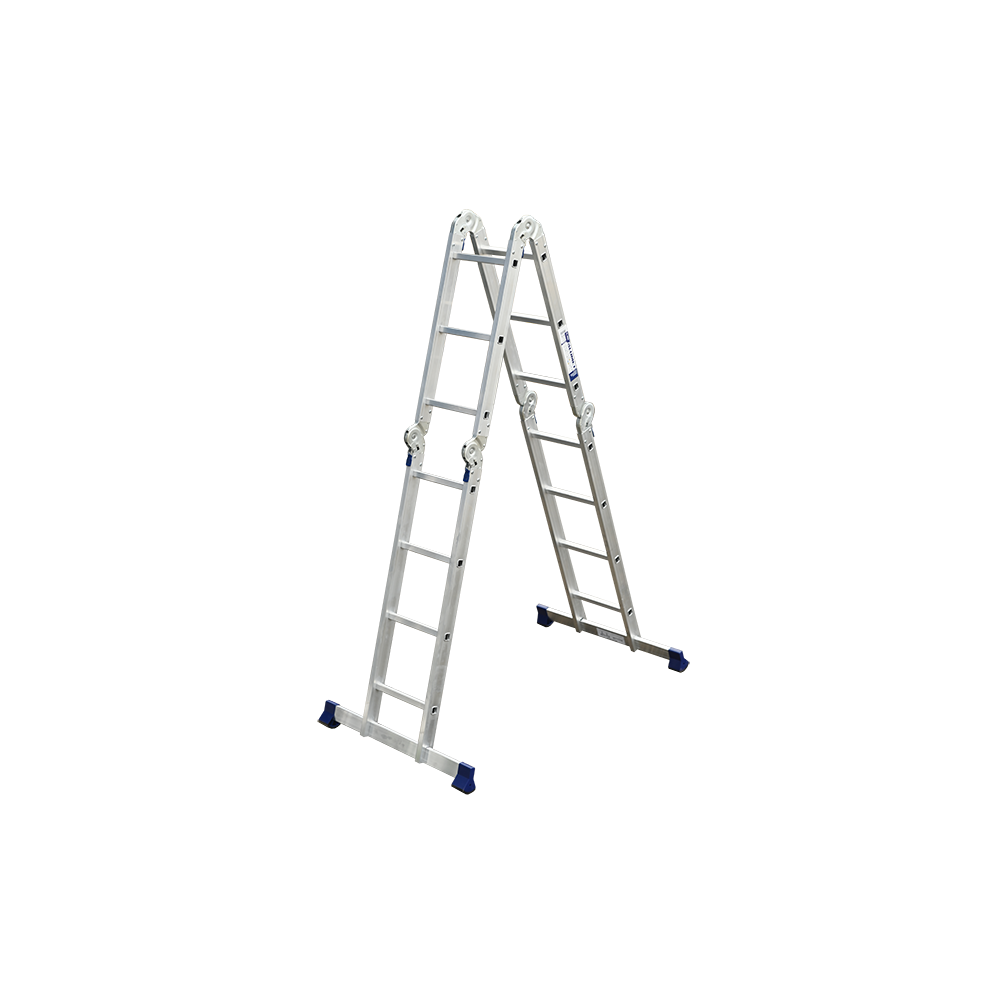

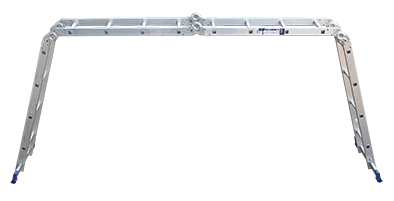

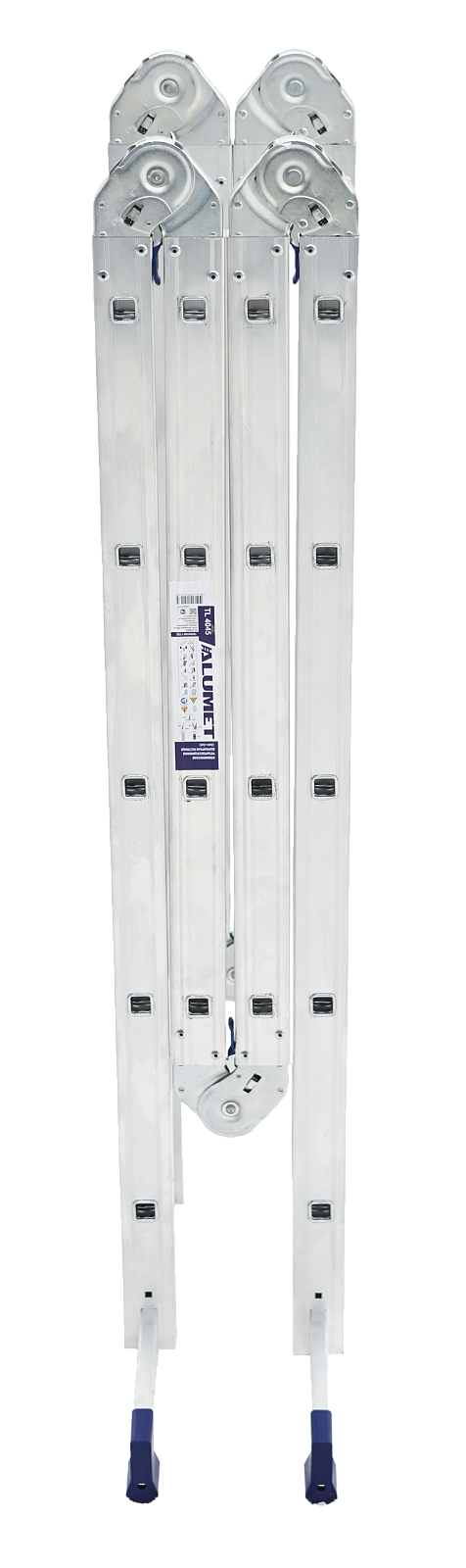

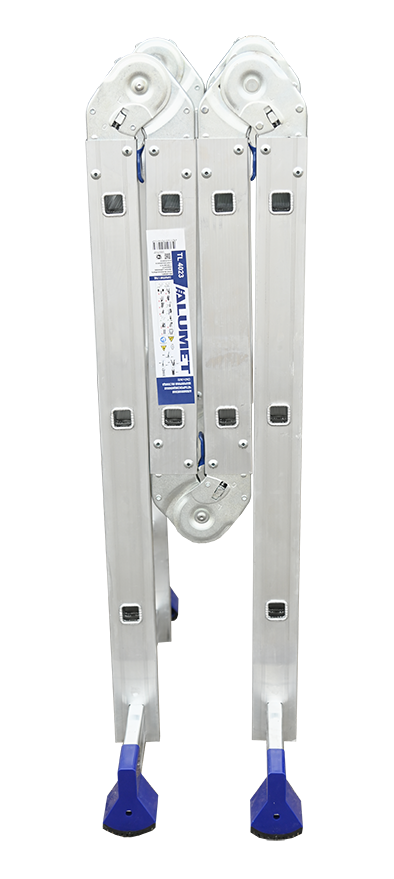

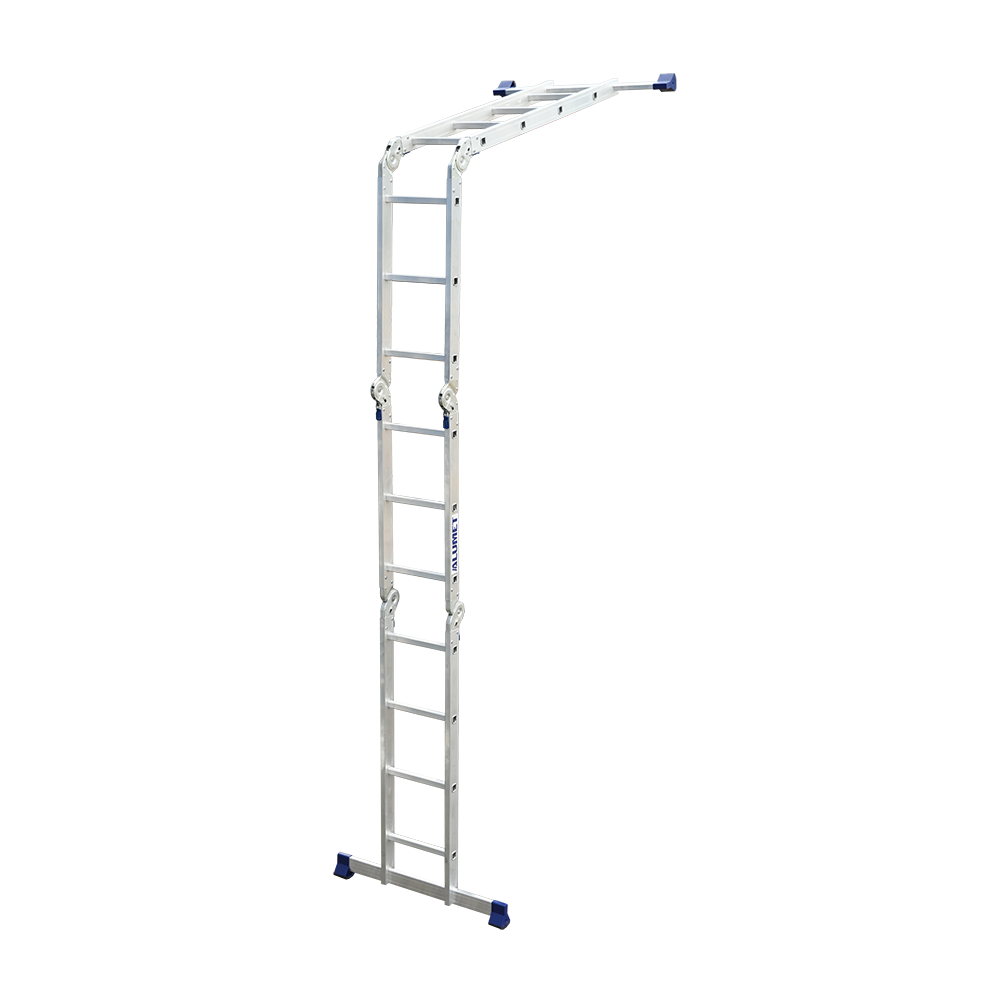

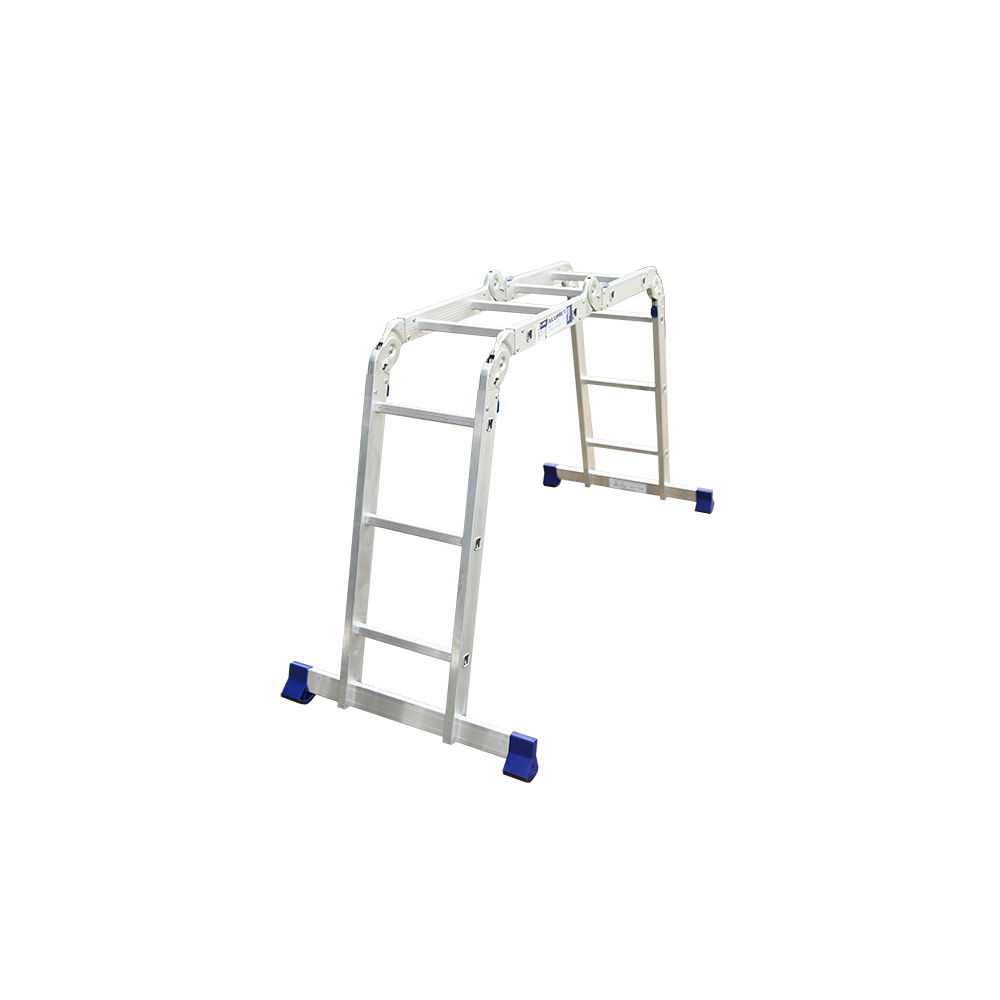

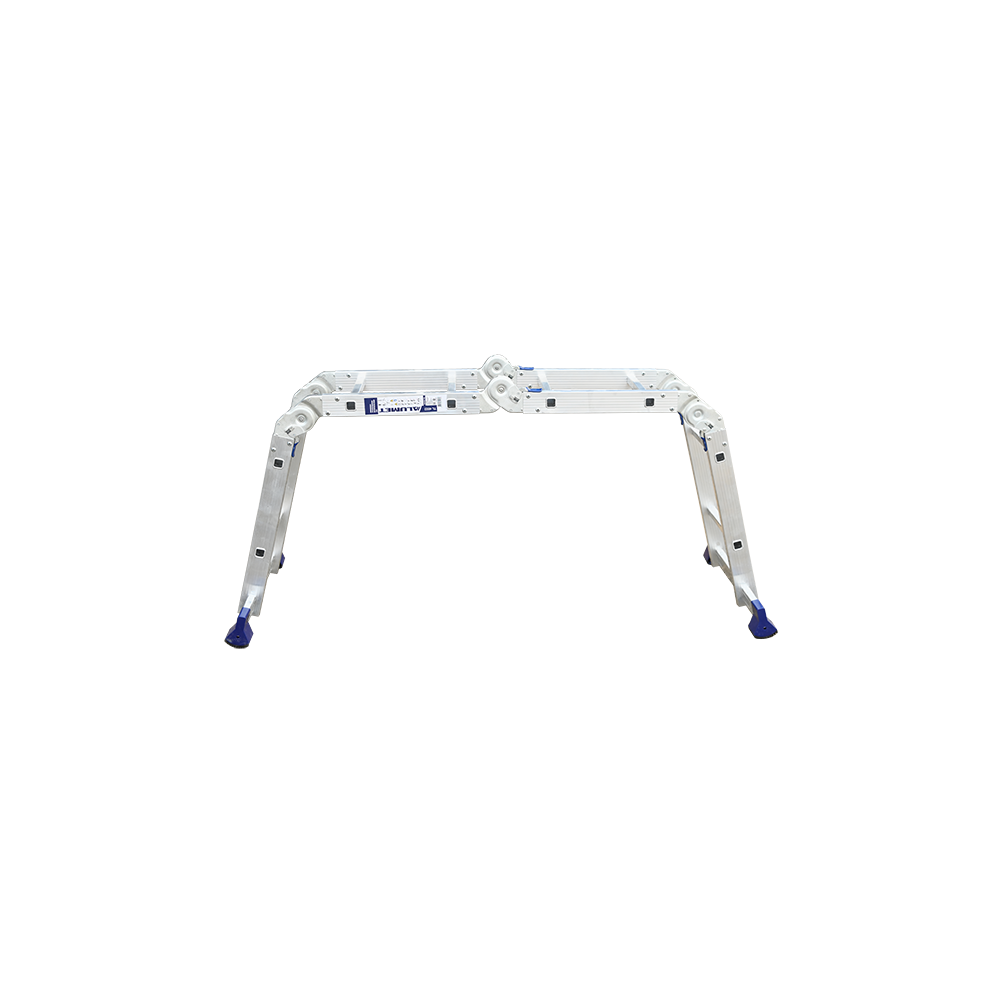

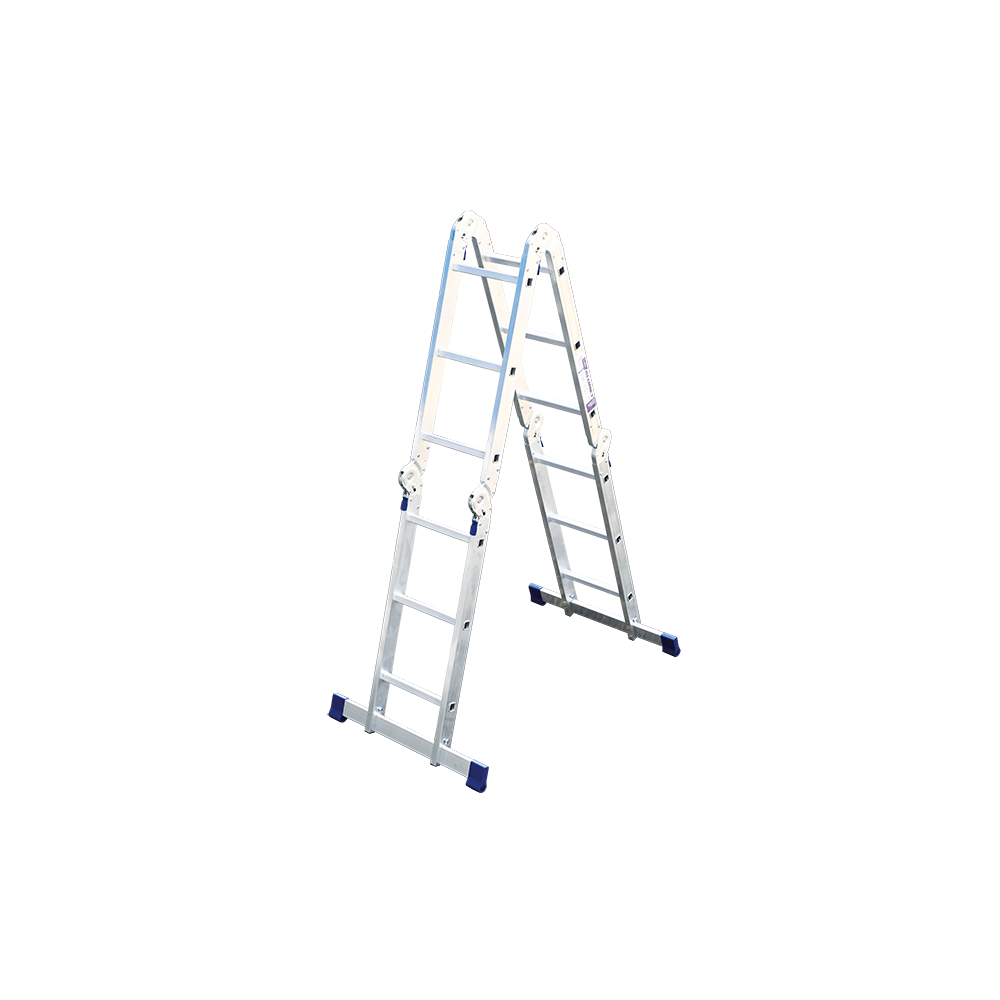

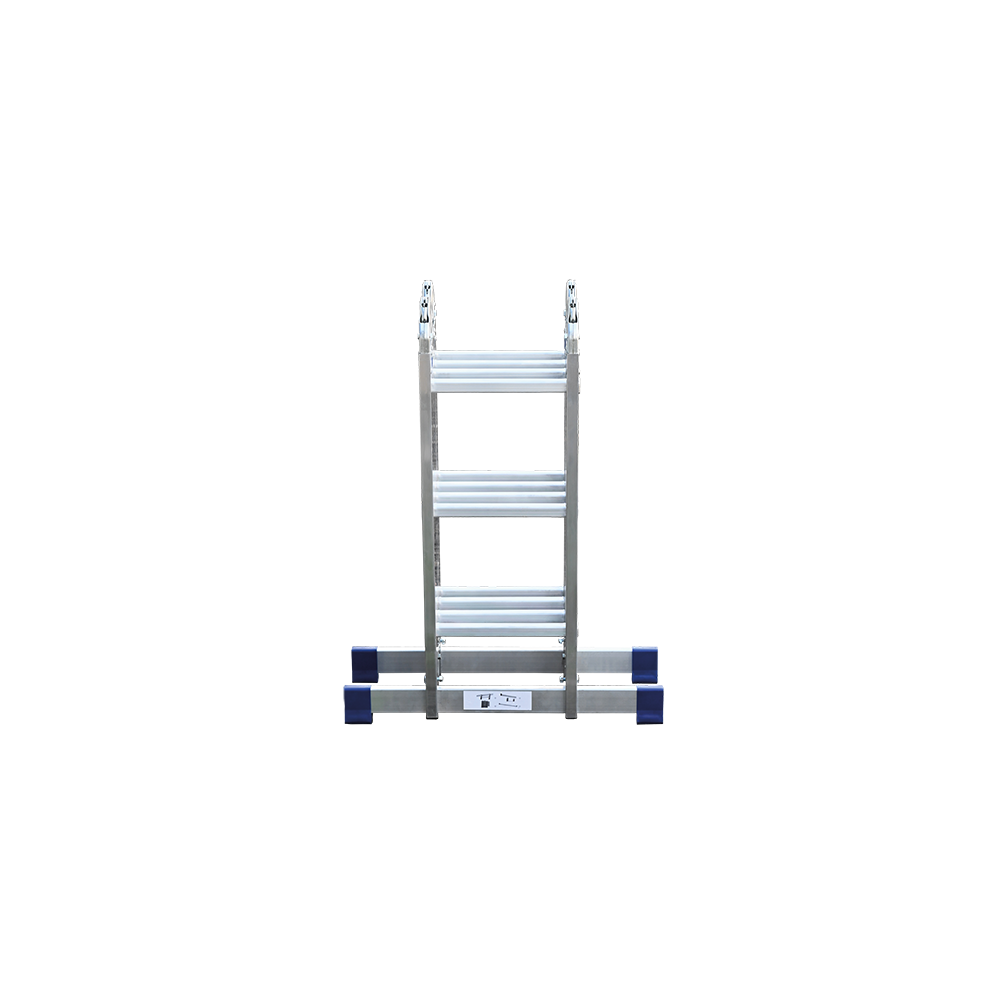

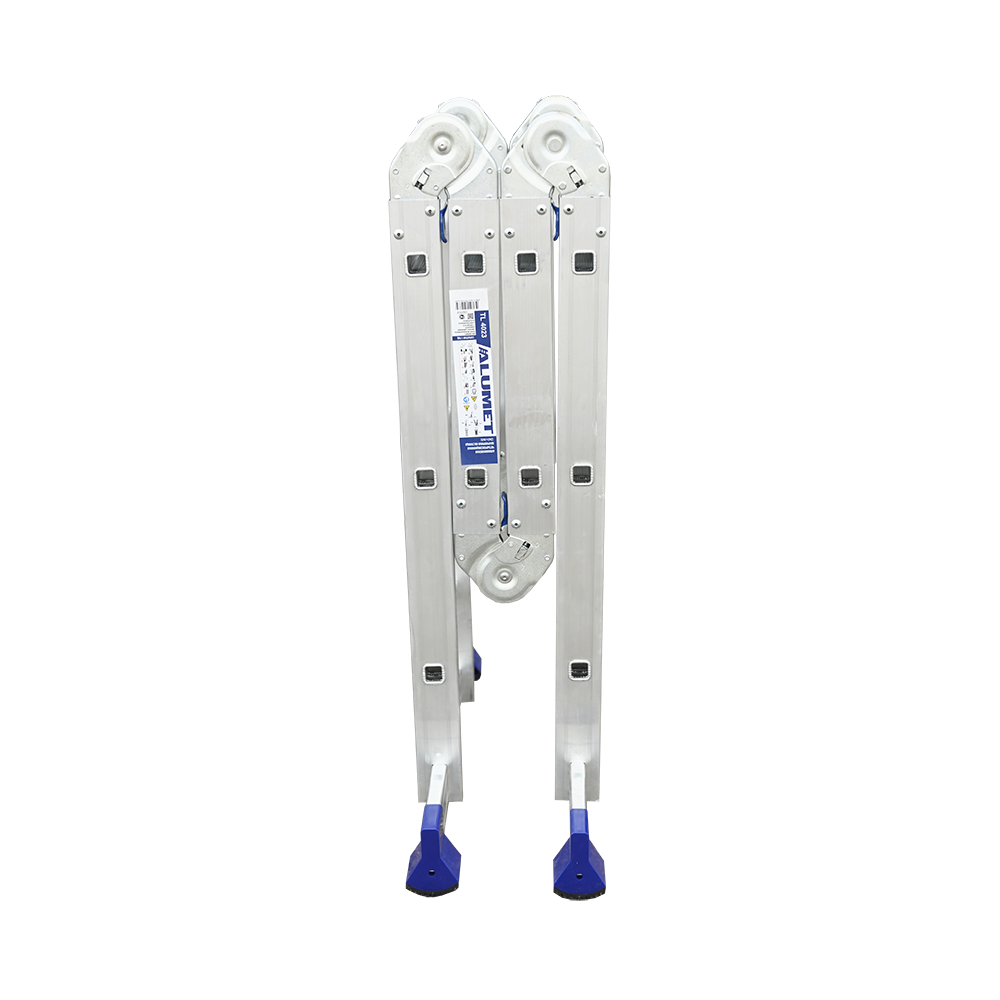

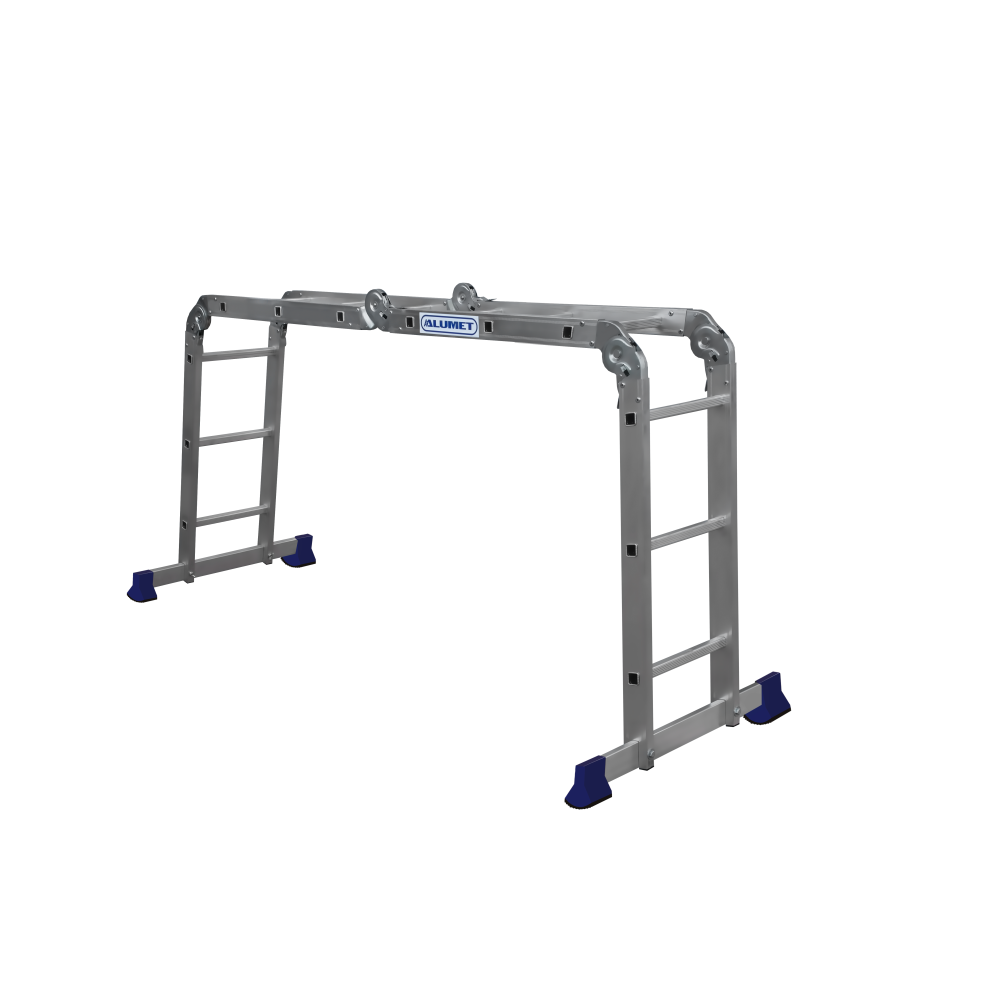

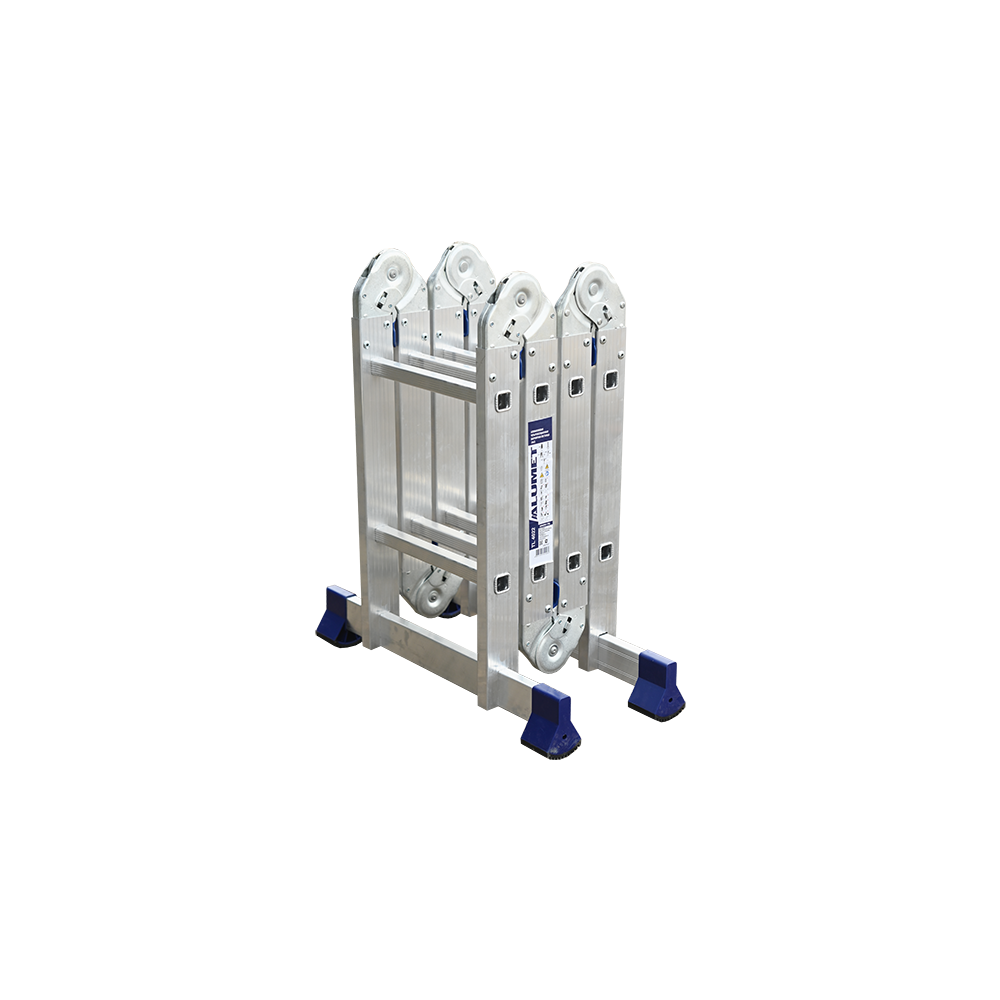

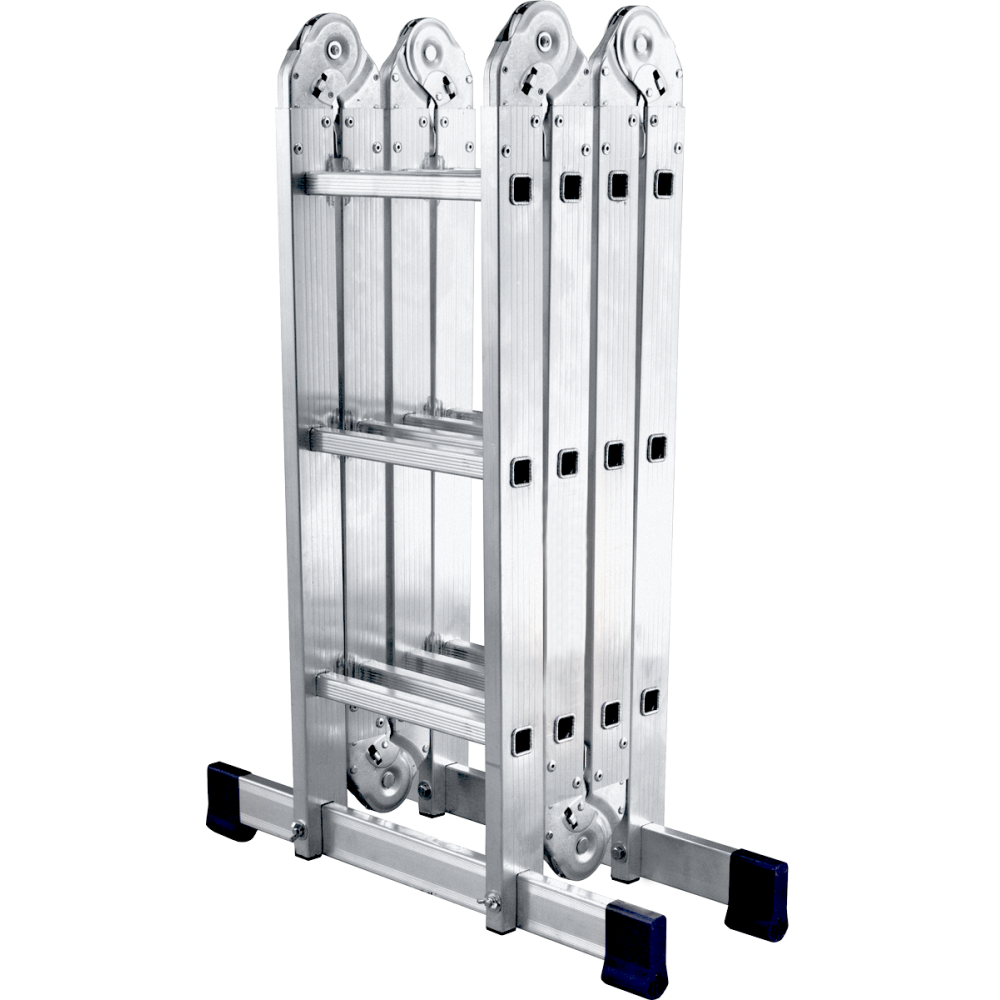

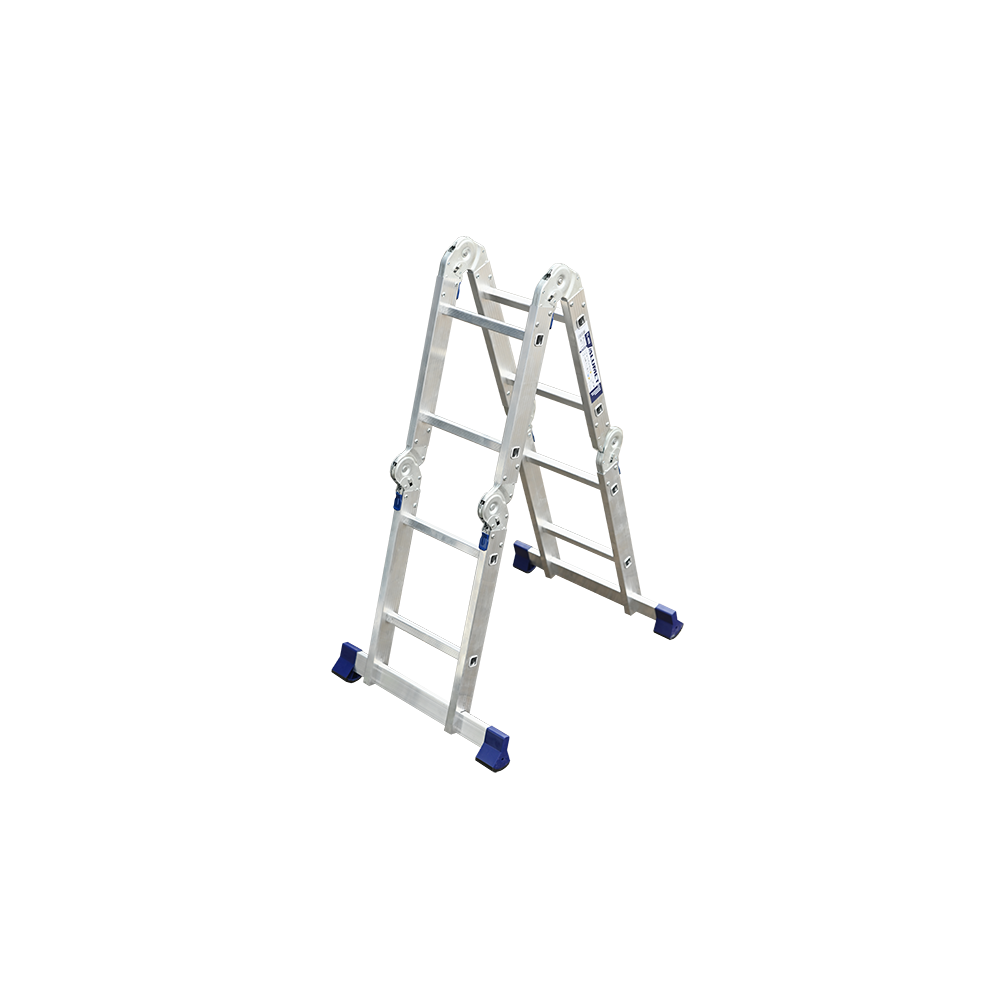

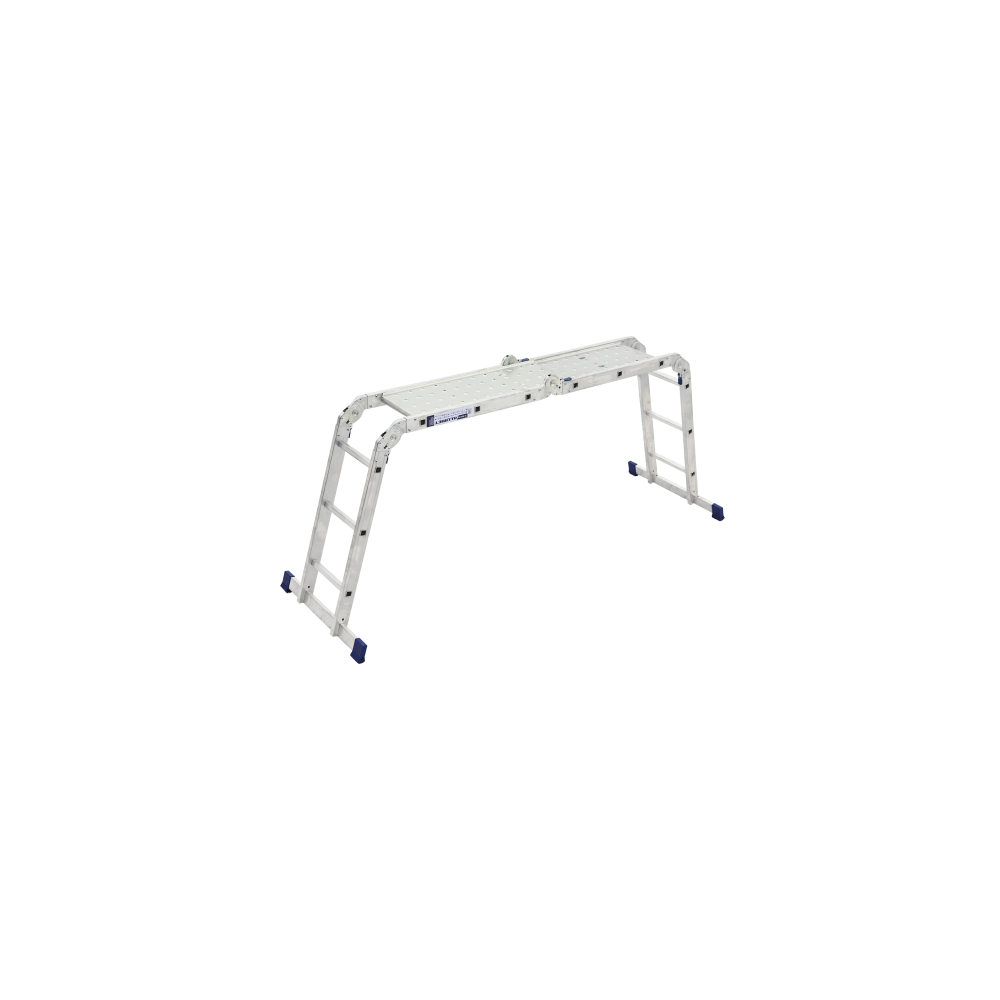

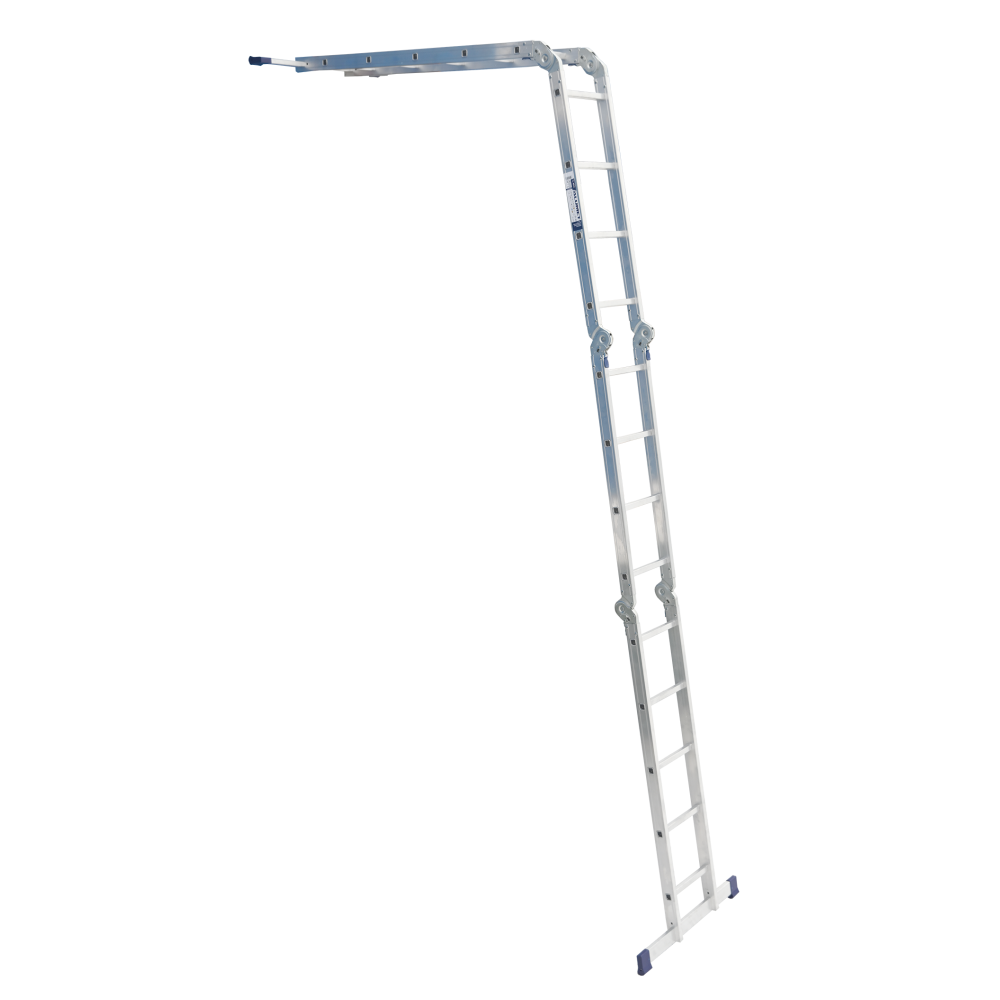

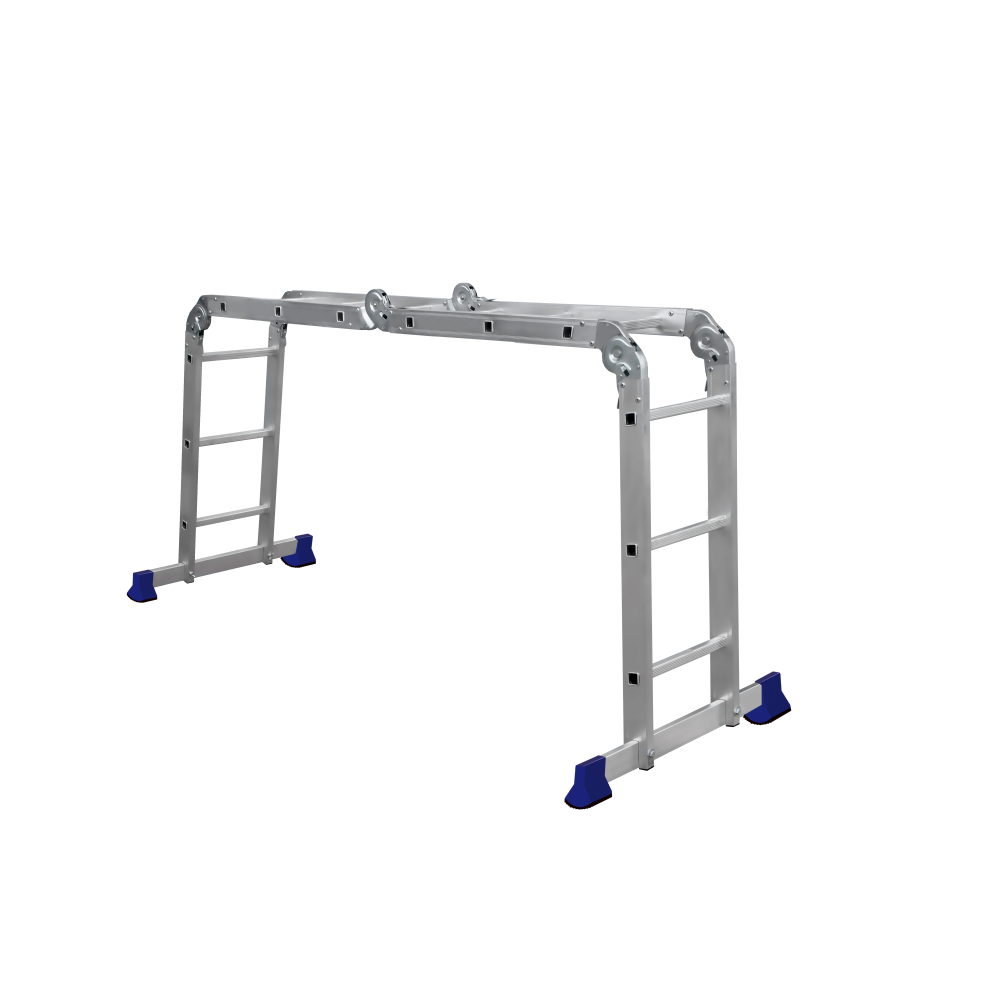

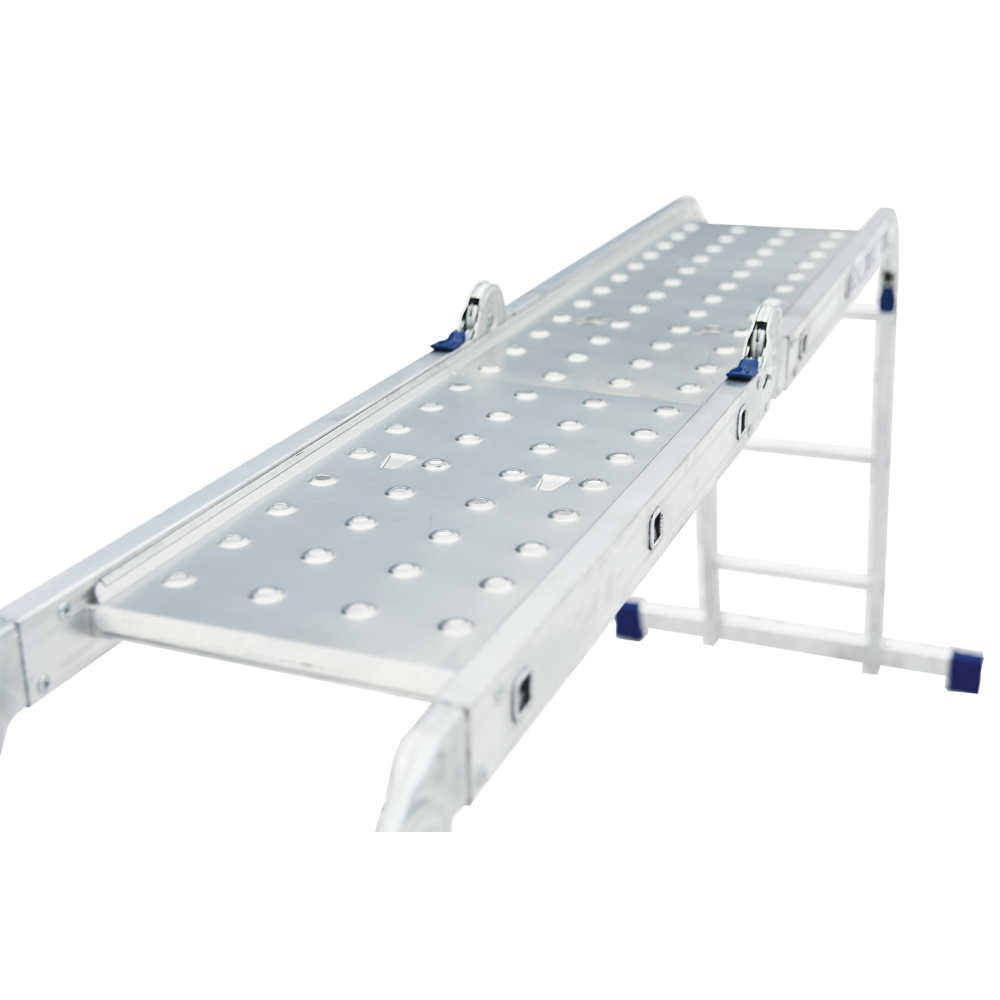

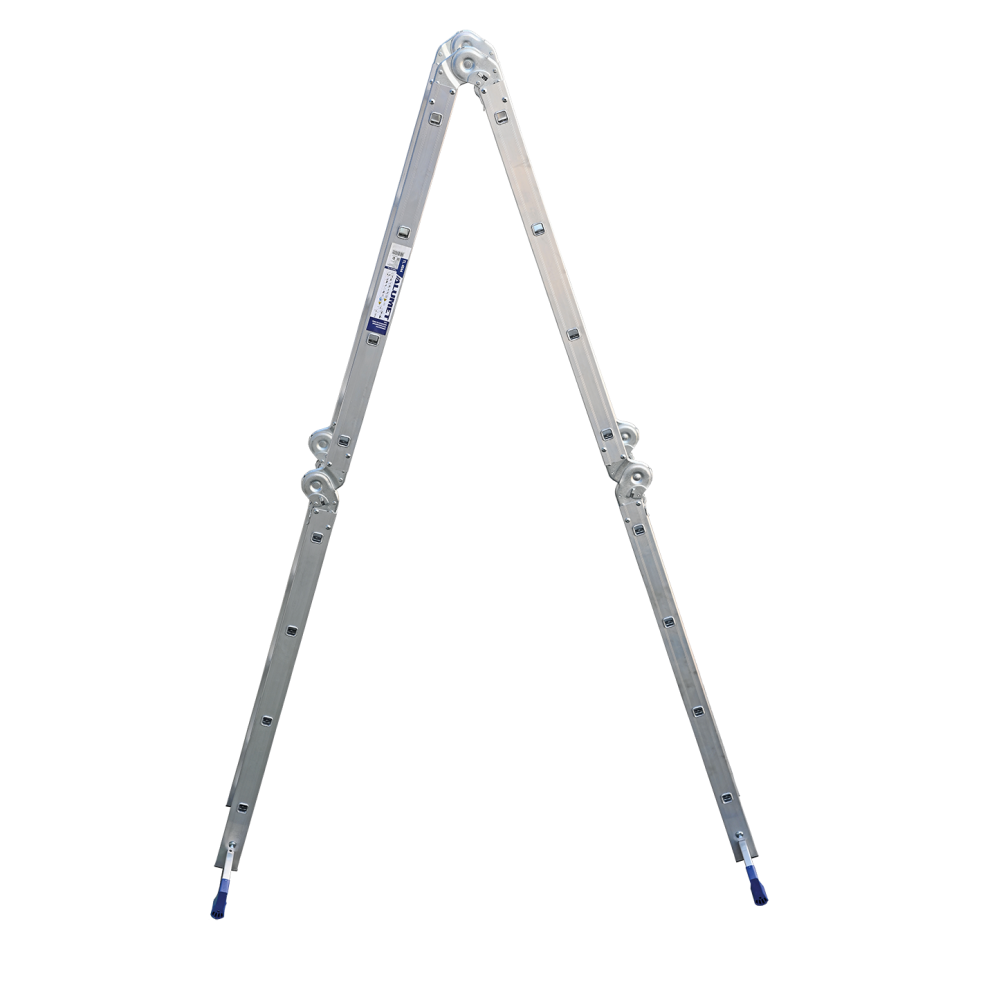

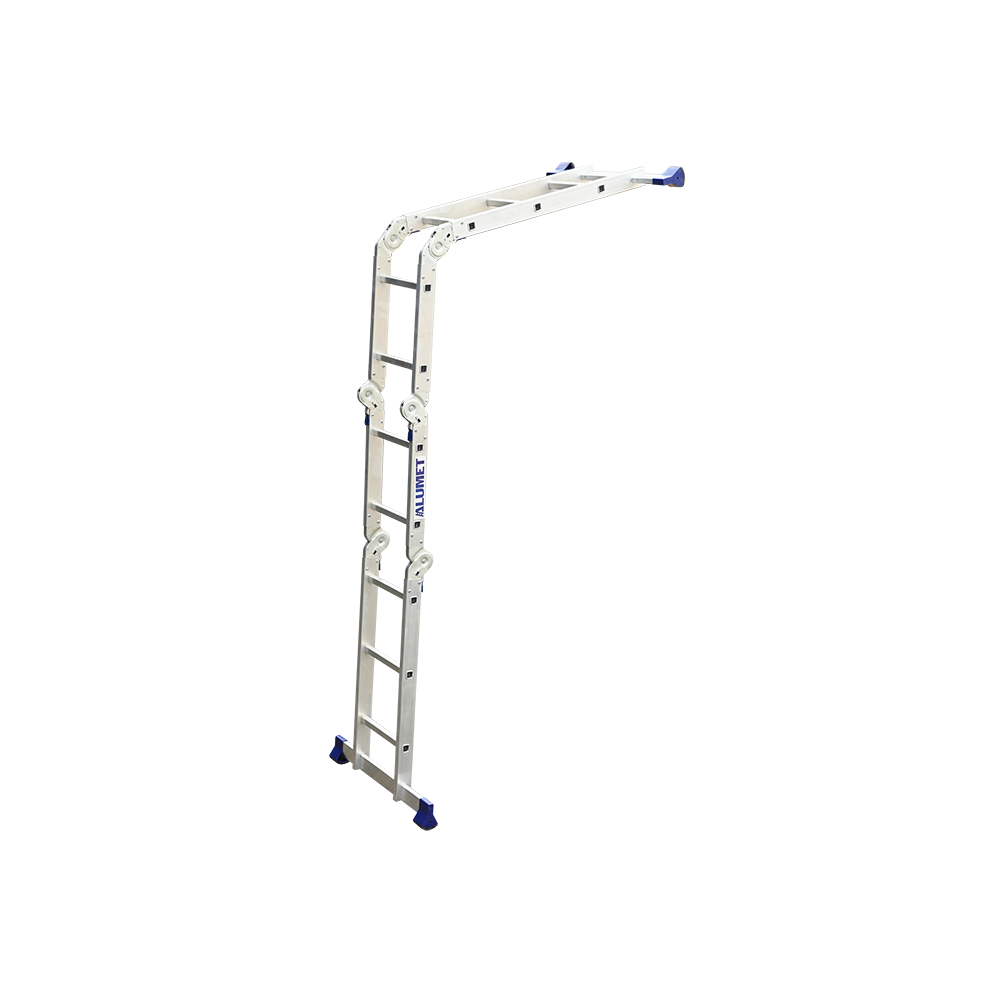

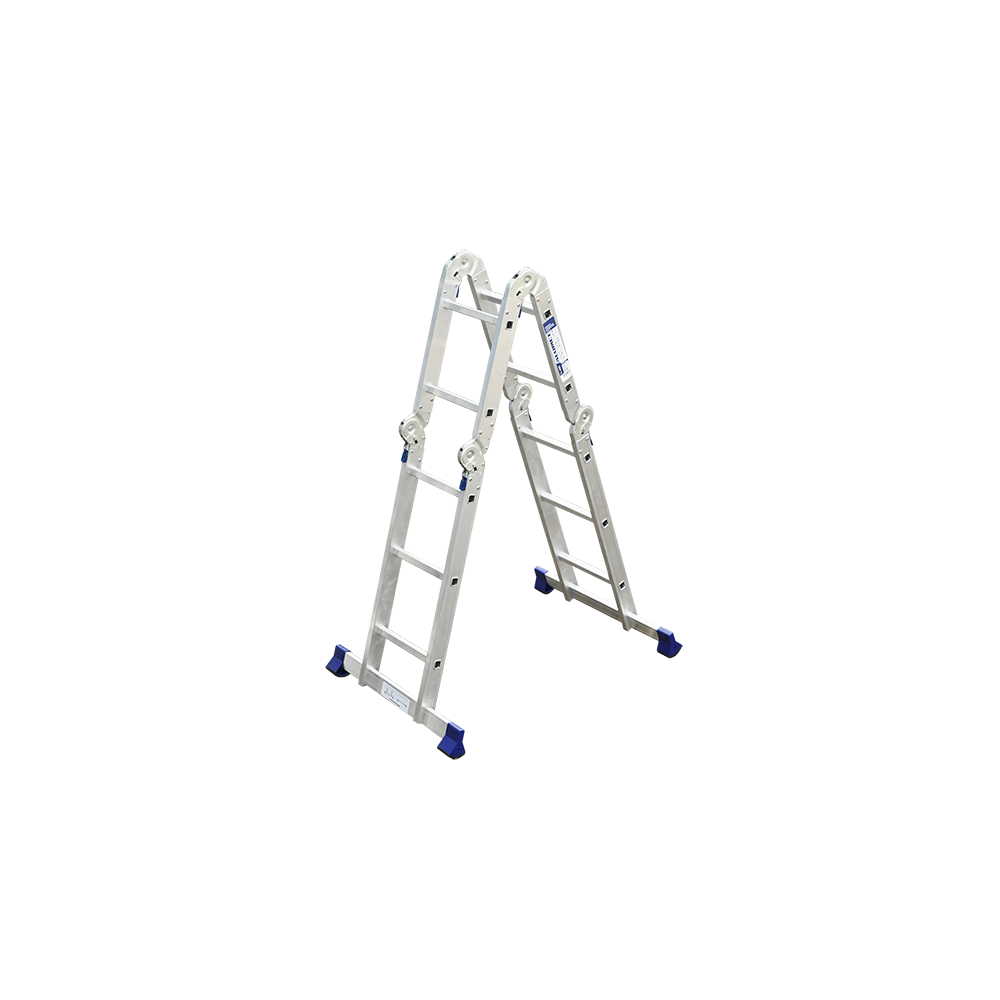

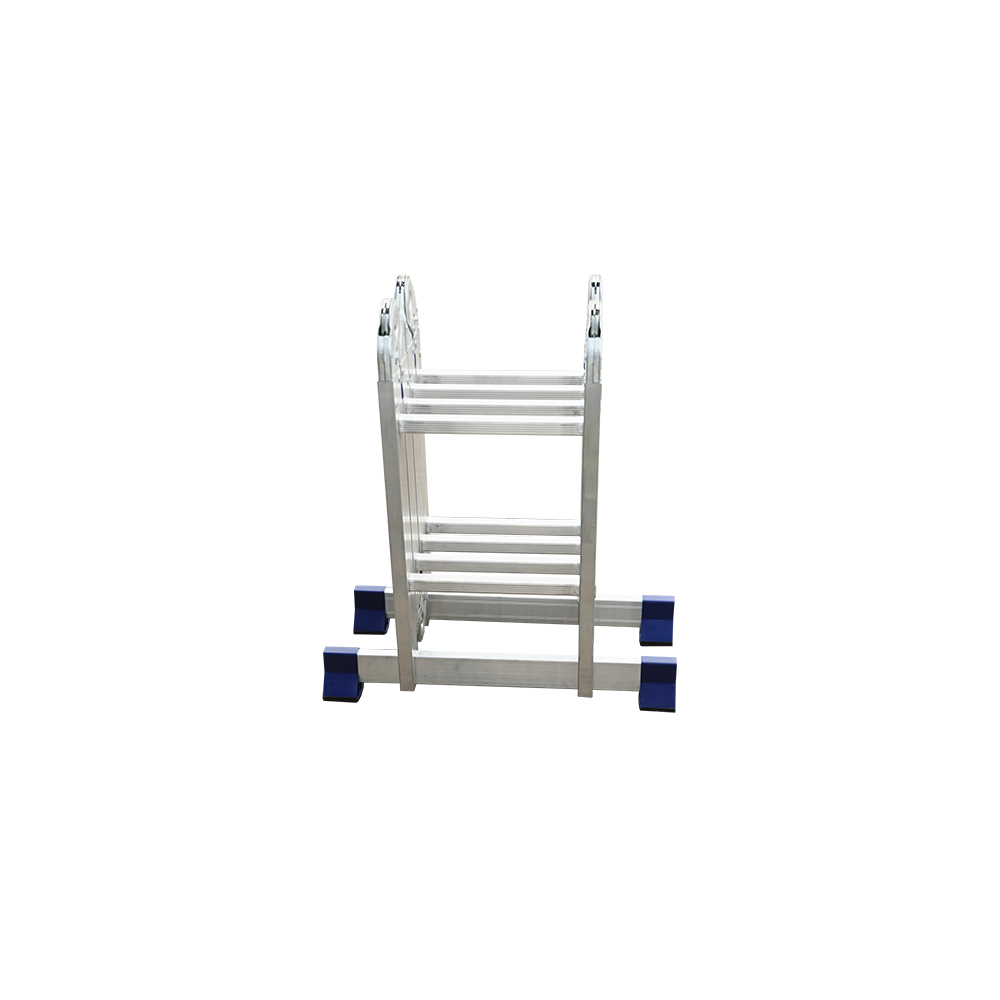

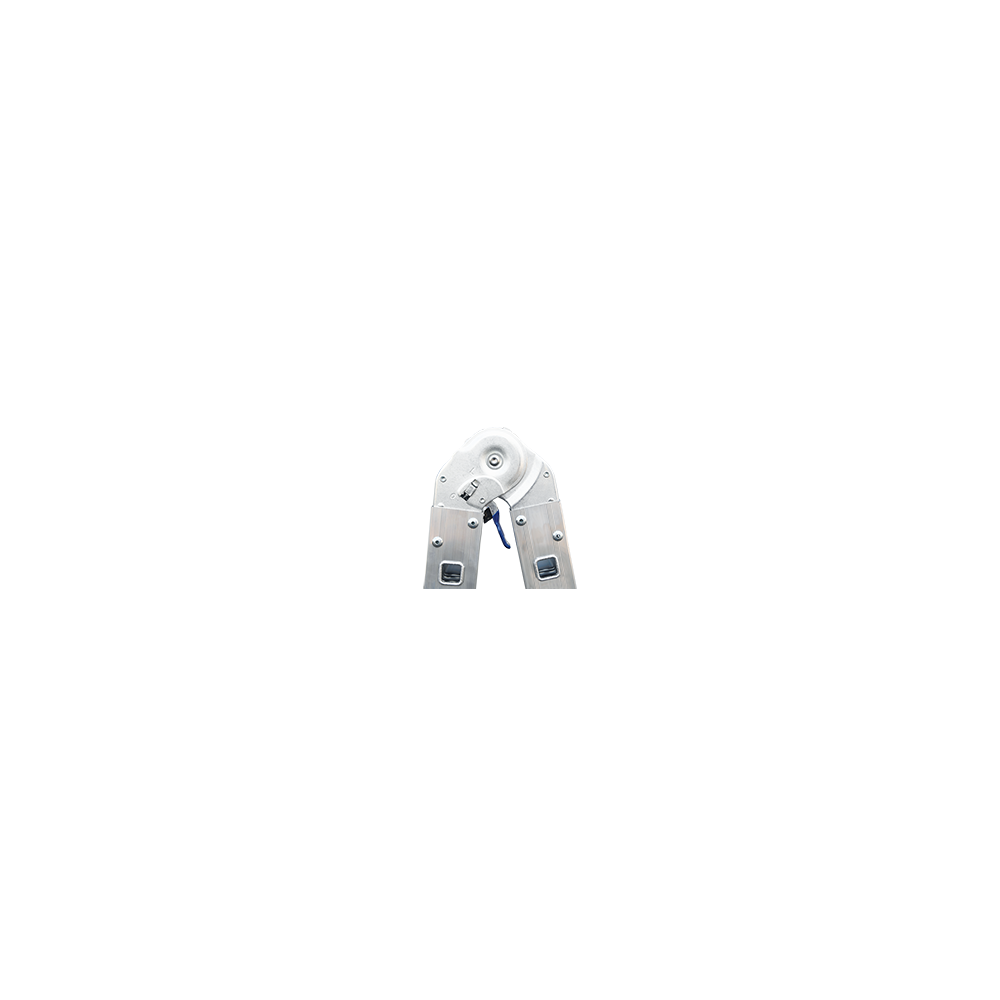

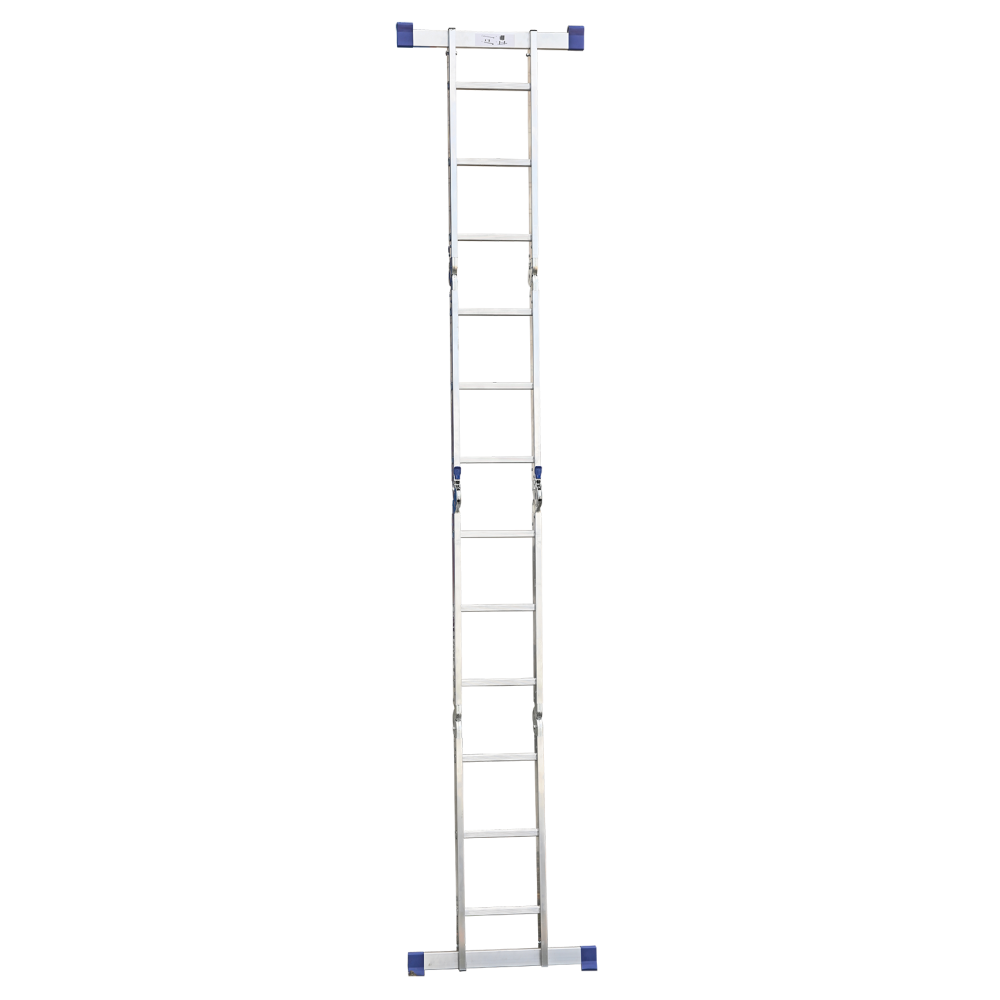

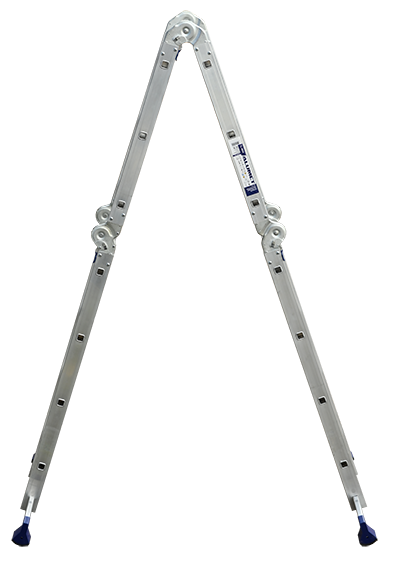

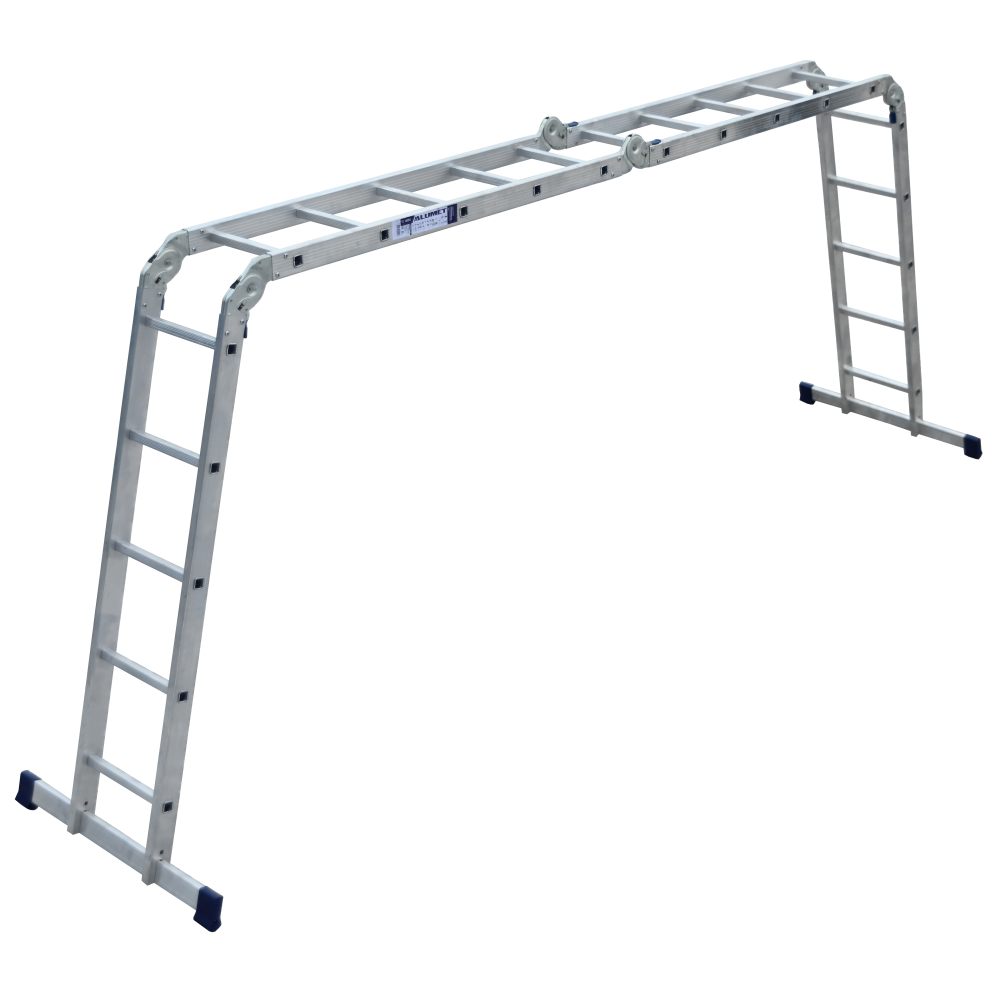

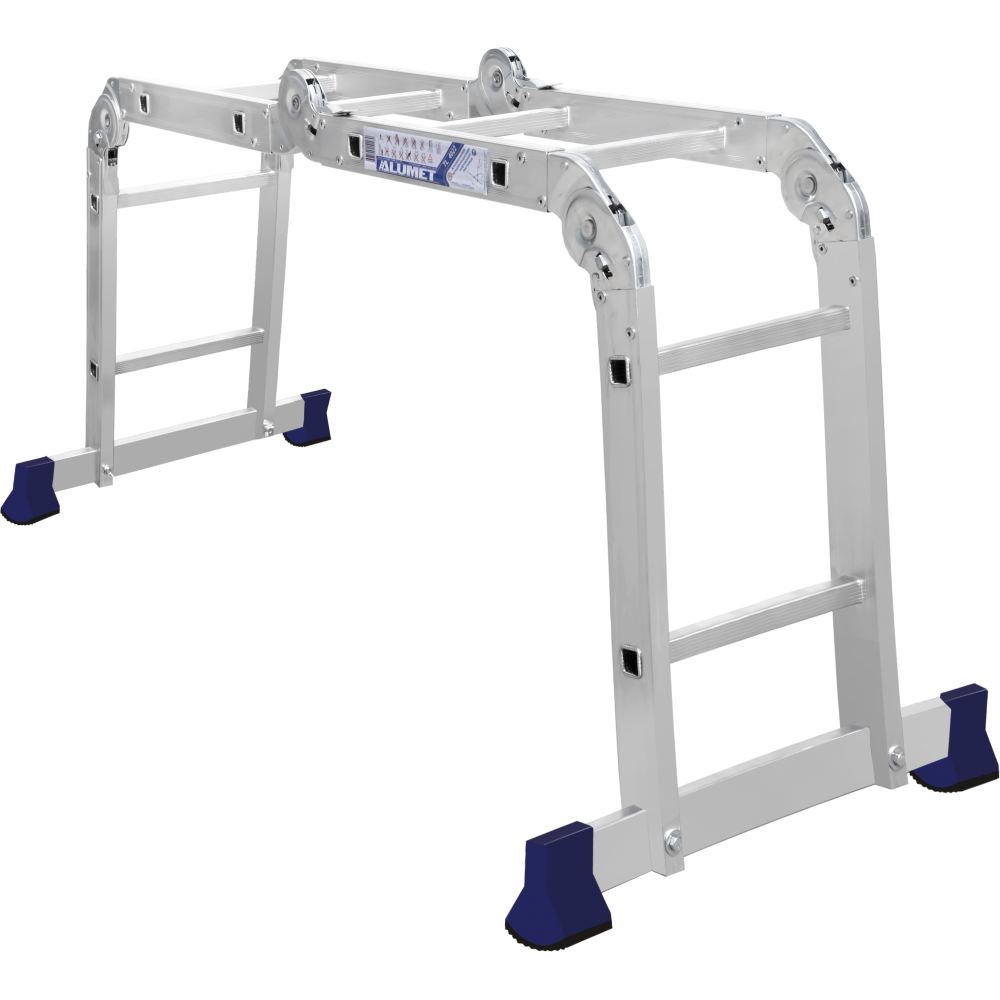

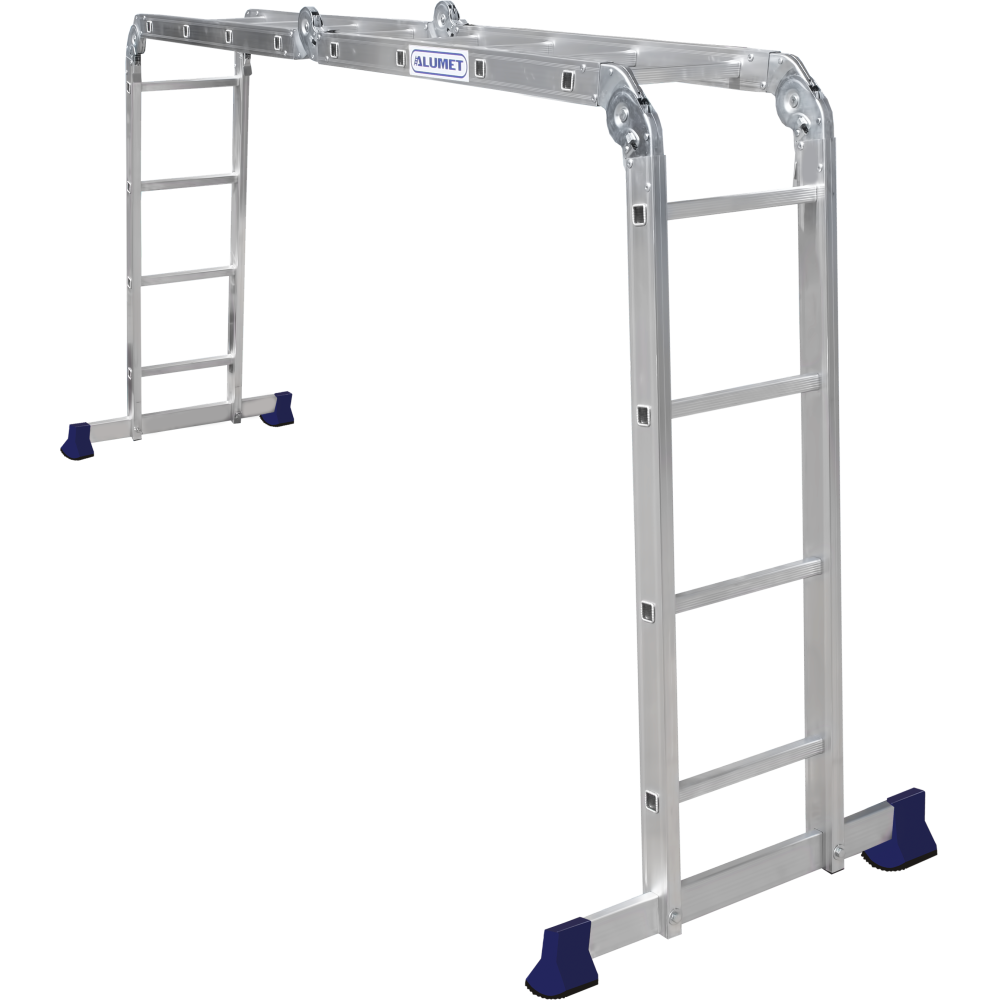

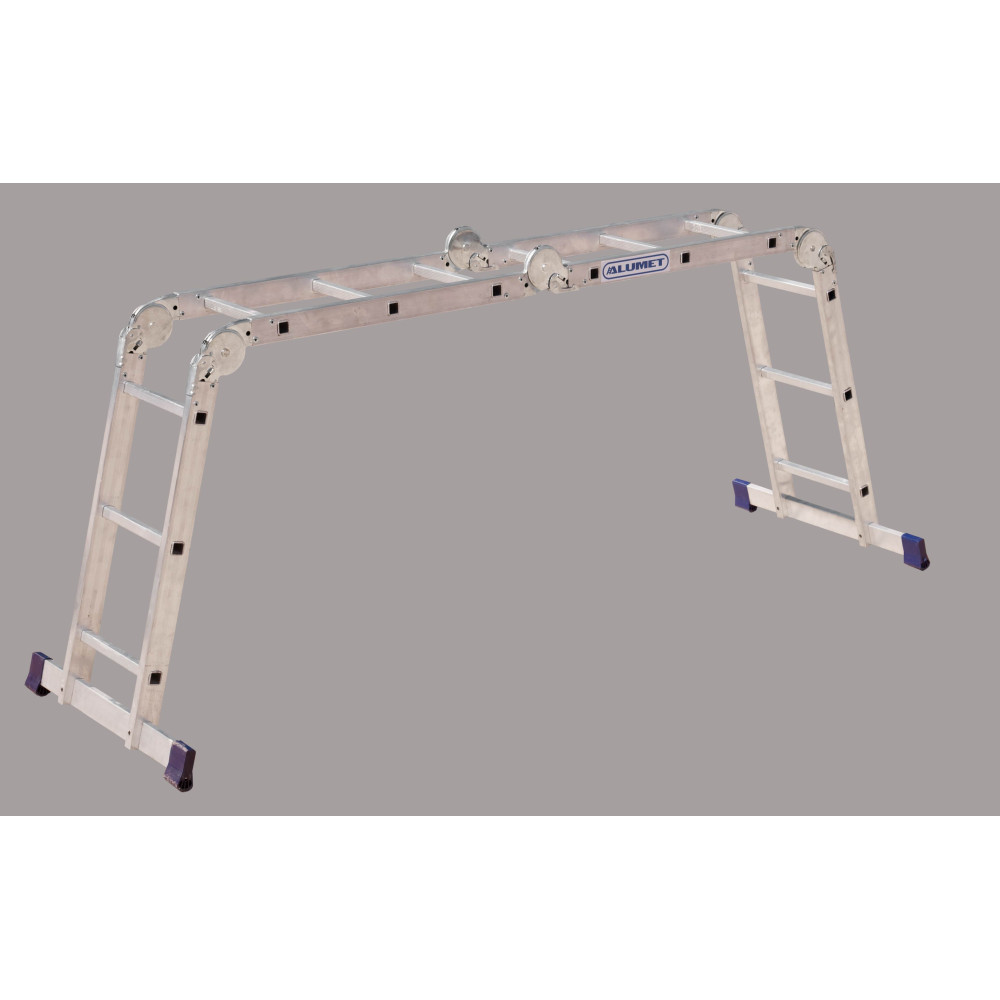

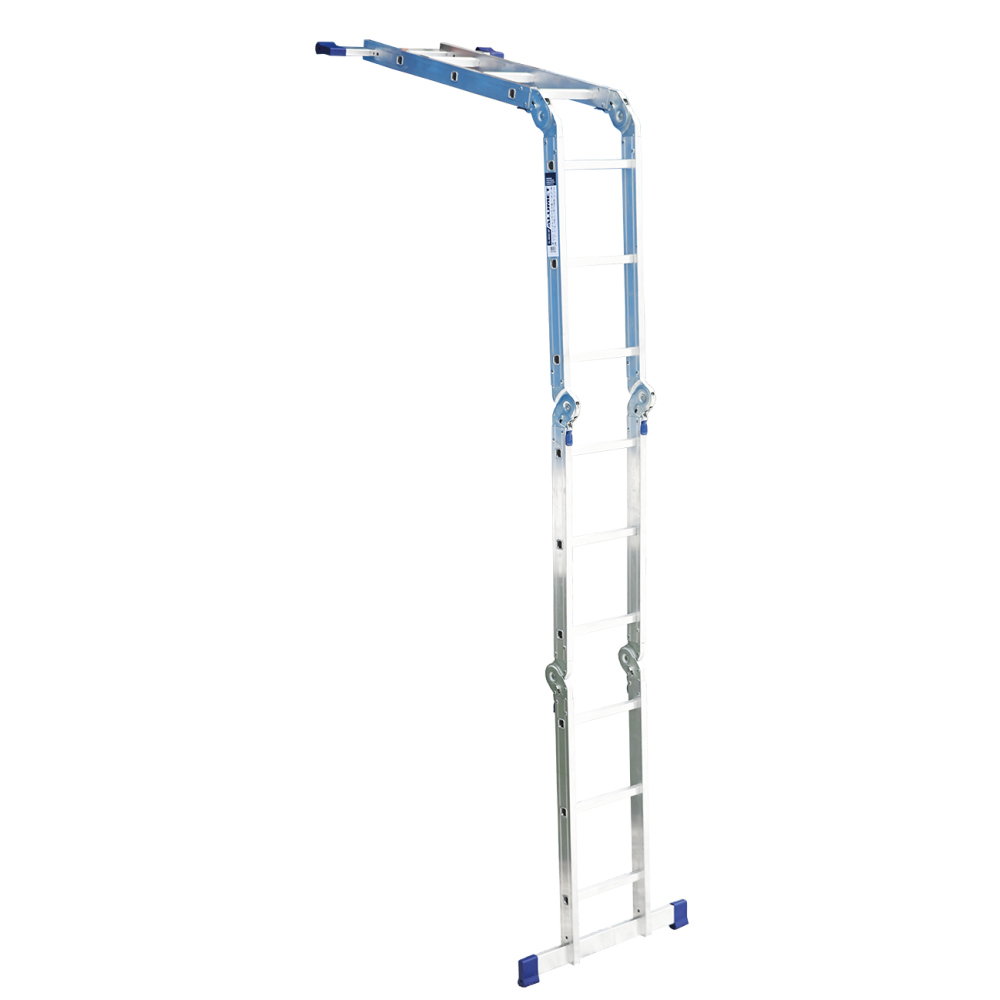

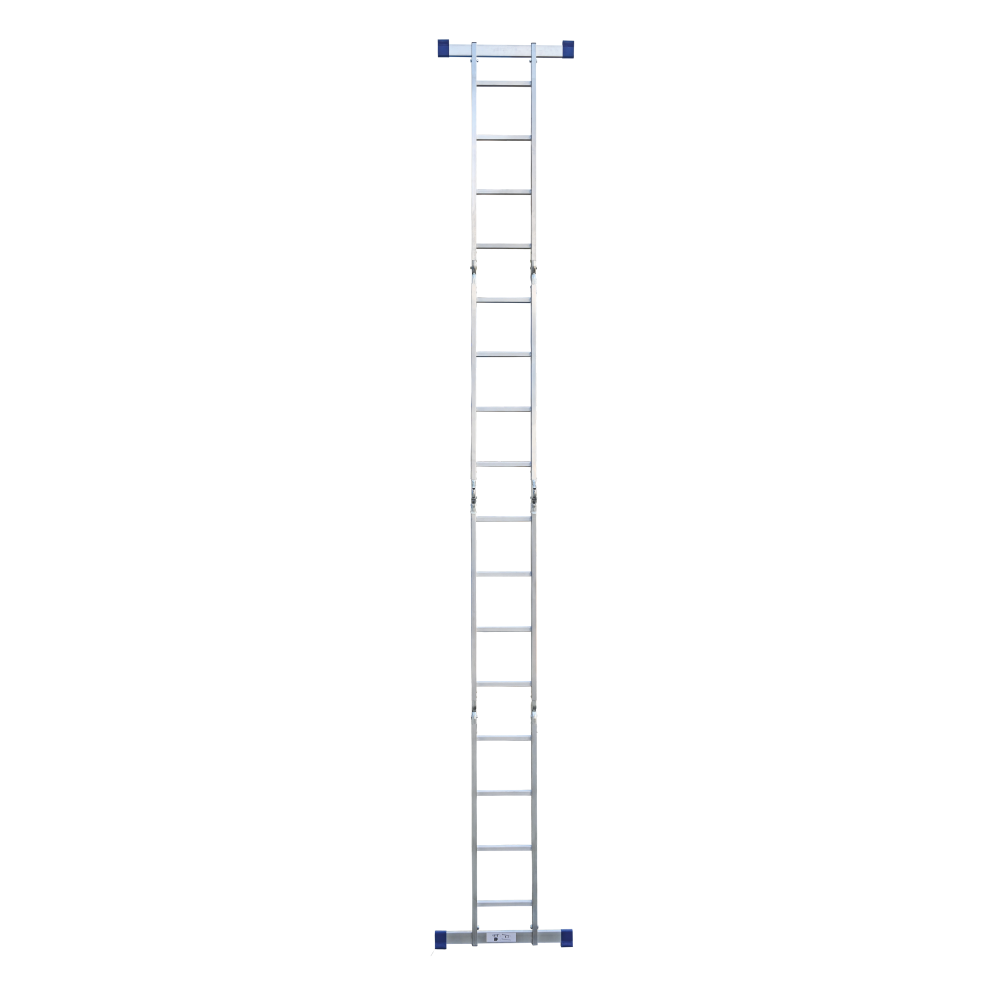

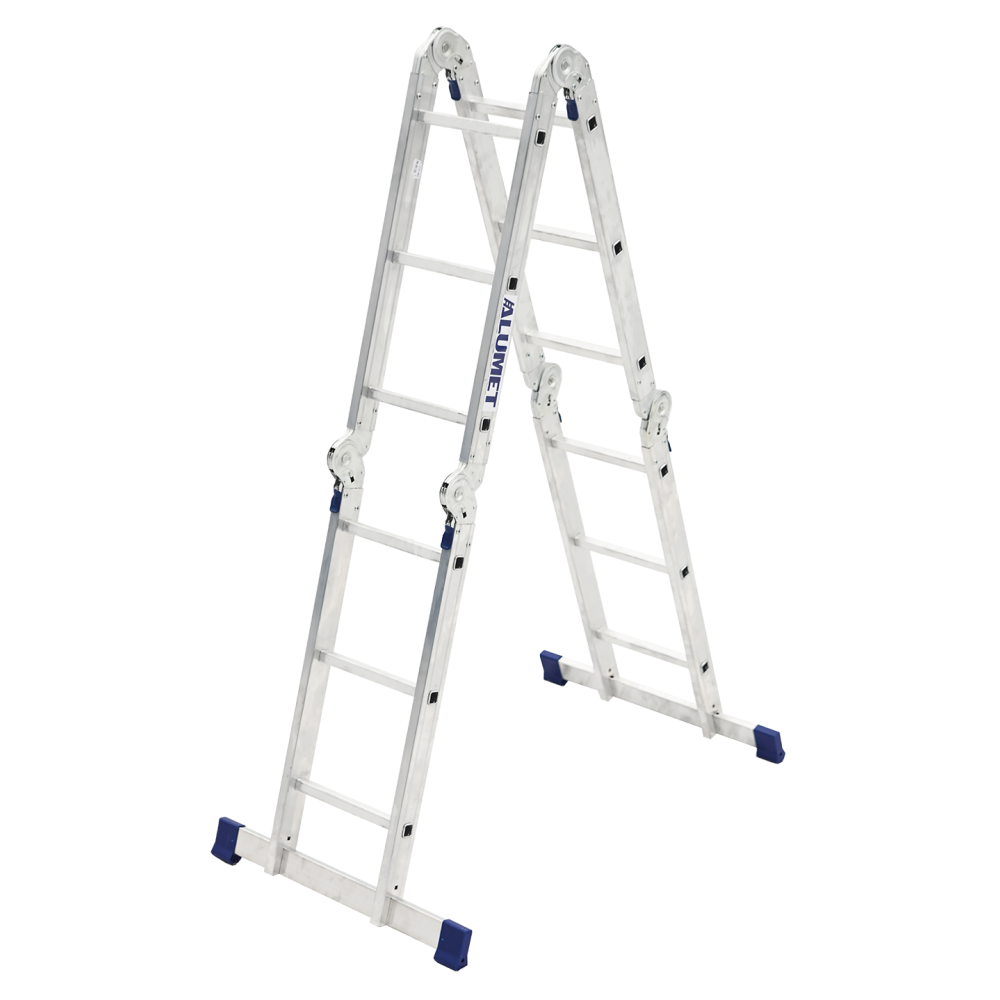

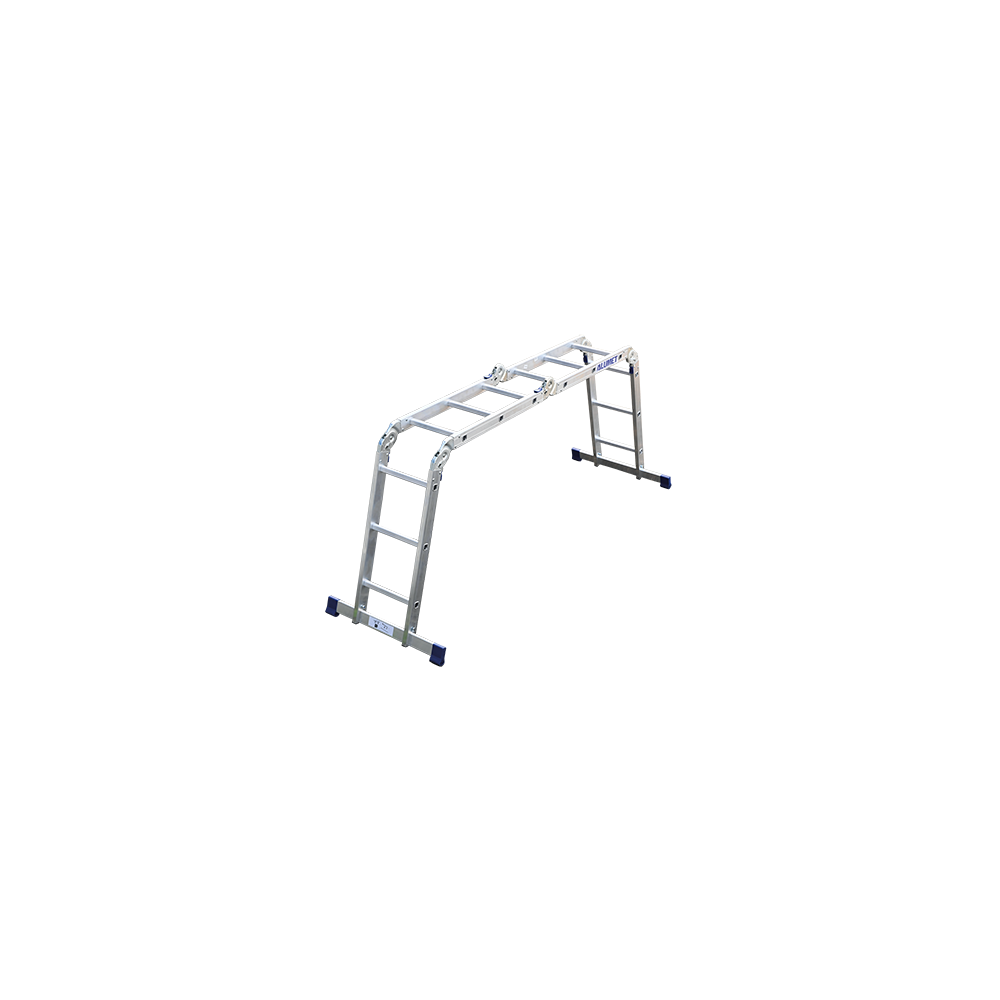

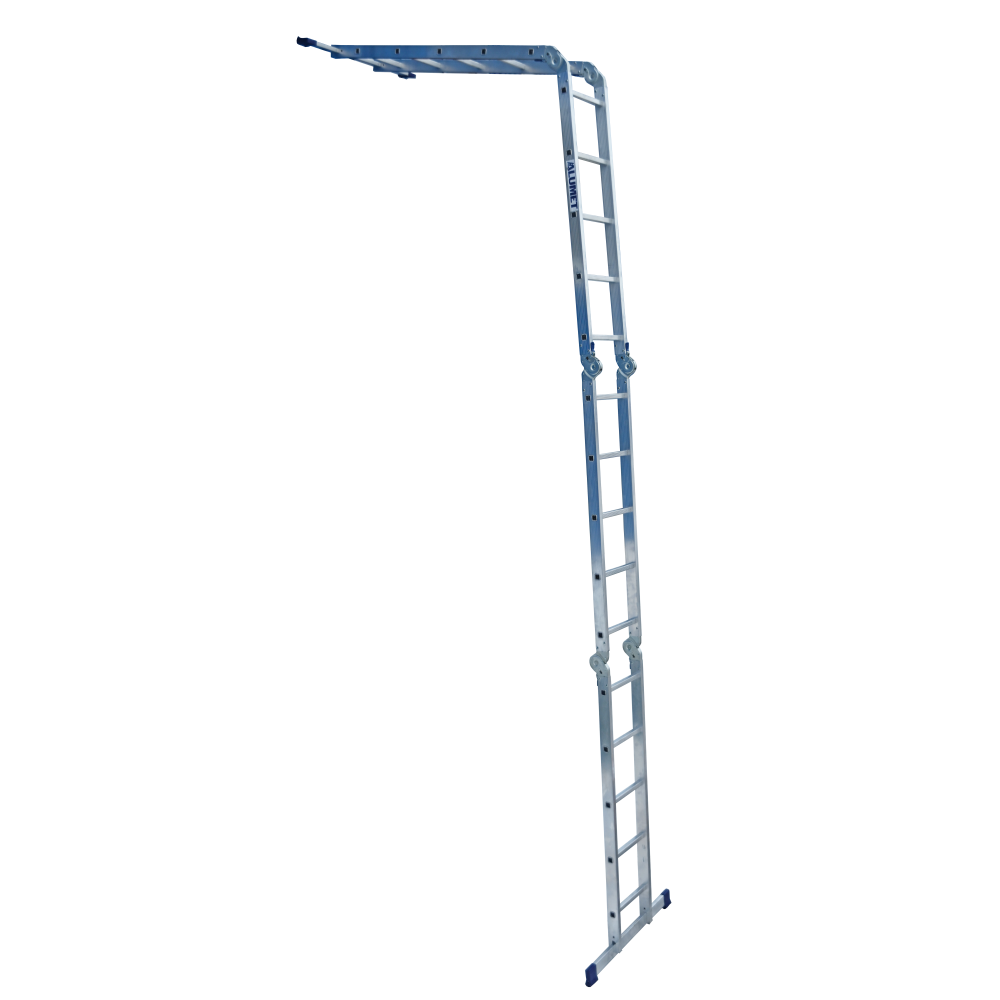

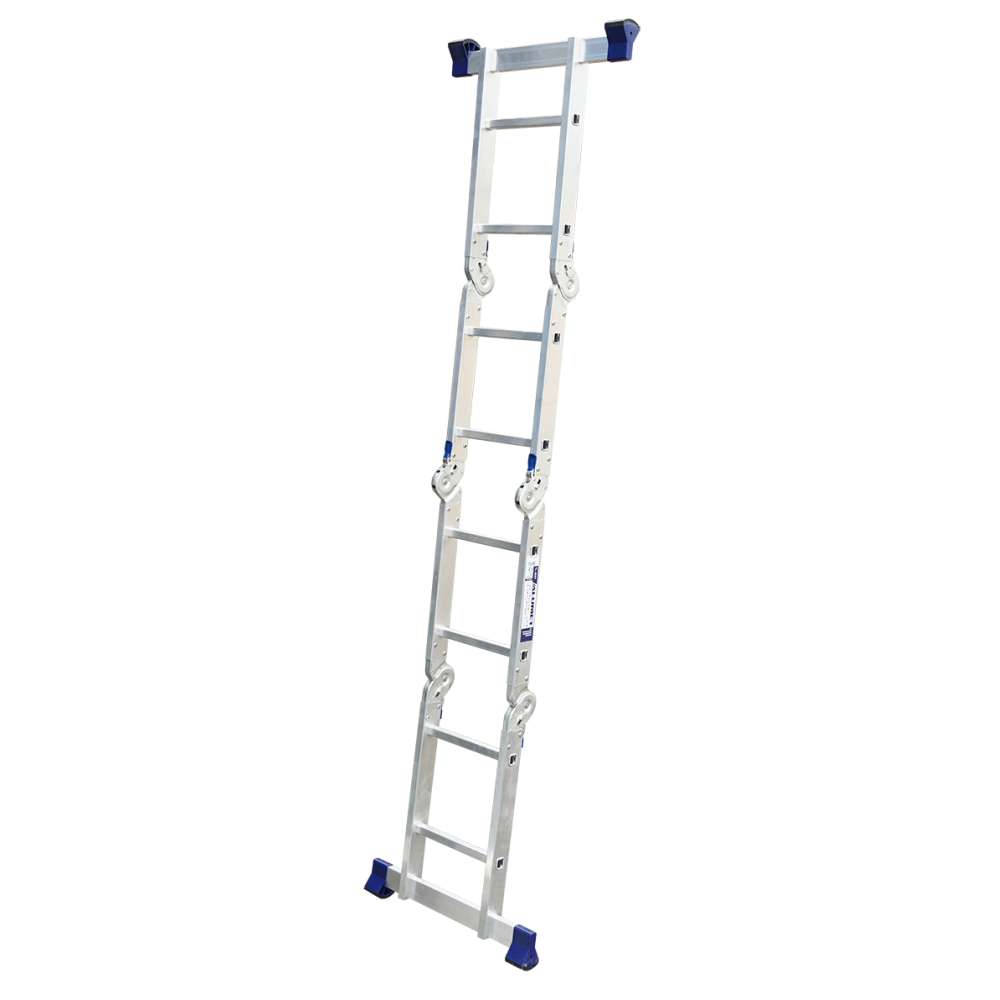

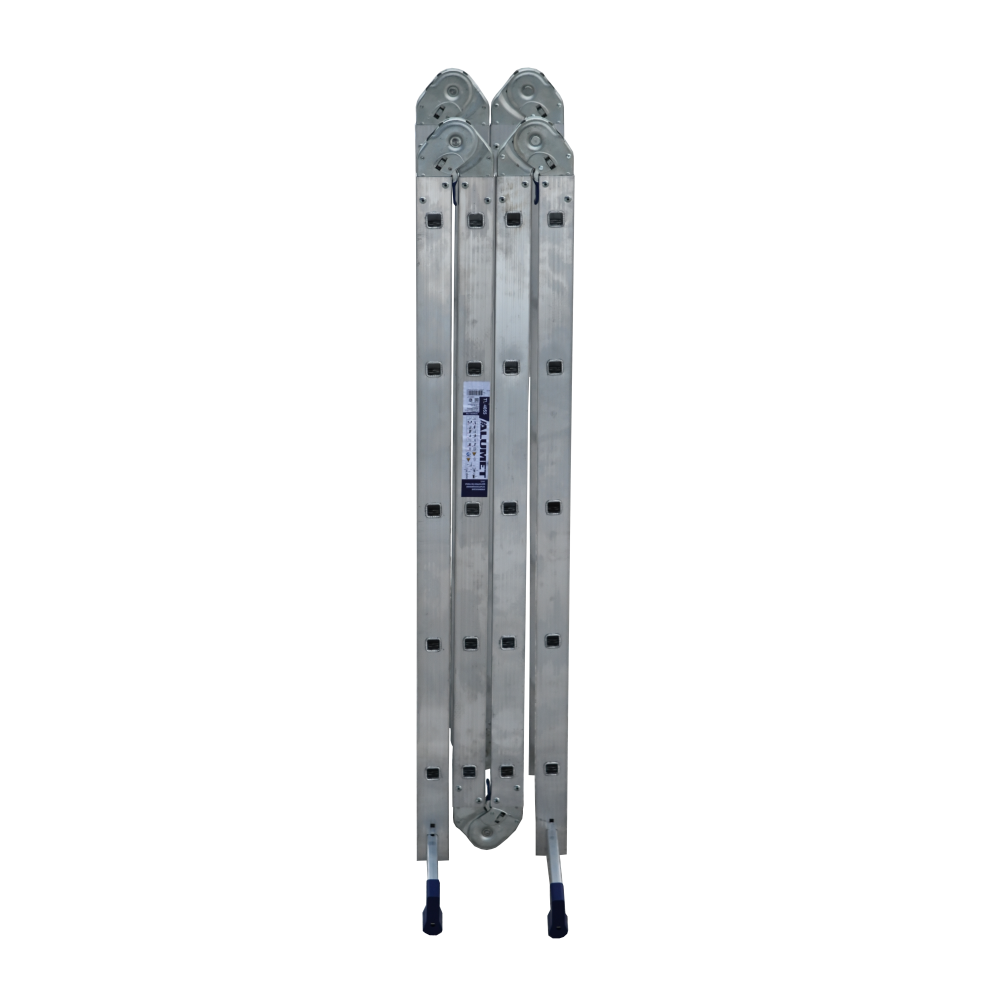

The ladder consists of four sections, interconnected by steel ladder hinges with fixing angles of 35, 105 and 180 degrees. Therefore, such ladder can take various shapes, such as shown in the Figure. The main advantage of the ladder is not its multiple setup options and ‘platform’ configuration, but compactness in the assembled (transport) state, which allows it to be transported inside the car with a closed trunk. Most often, the transformer is used as a straight ladder or as a twin step ladder. The ‘platform’ configuration is used extremely rarely, although the possibility of such use often plays a decisive role in choosing a ladder when purchasing it. To use a T model ladder in the ‘platform’ configuration, it is necessary to additionally purchase a standard scaffold, working without which is not recommended. To use a TL model ladder in the ‘platform’ configuration is prohibited. The ladder is noticeably (almost 6 kg) heavier than the straight ladder of the same length of H1 or P1 series due to six massive steel hinges and, for the same reason, is significantly more expensive.

Technical specifications

Vendor code	Number of steps	Length folded	Folded width	Height	Length of four sections	Height max	Height max	Width	Stabilizer length	Weight
TL 4022	4x2	0.66	0.27	1.18	2.4	2.28	3.5	0.39	0.7	9.6
TL 4023	2x2+2x3	0.94	0.27	1.44	2.96	2.54	4.06	0.39	0.7	10.4
TL 4033	4x3	0.94	0.27	1.71	3.52	2.81	4.62	0.39	0.7	11.2
TL 4034	2x3+2x4	1.22	0.27	1.98	4.08	3.08	5.18	0.39	0.7	11.9
TL 4044	4x4	1.22	0.27	2.24	4.64	3.34	5.74	0.39	0.7	12.9
TL 4055	4x5	1.52	0.27	2.78	5.76	3.88	6.86	0.39	0.8	15.5
TL 4045	2x4+2x5	1.52	0.27	2.51	5.20	3.61	6.30	0.39	0.8	14.9

Vendor code	Number of steps	Length folded	Folded width	Height	Length of four sections	Height max	Height max	Width	Stabilizer length	Weight
TL 4033SP	4x3	0.94	0.27	1.71	3.52	2.81	4.62	0.33	0.7	14.3
