Steel Step Ladder

Article:

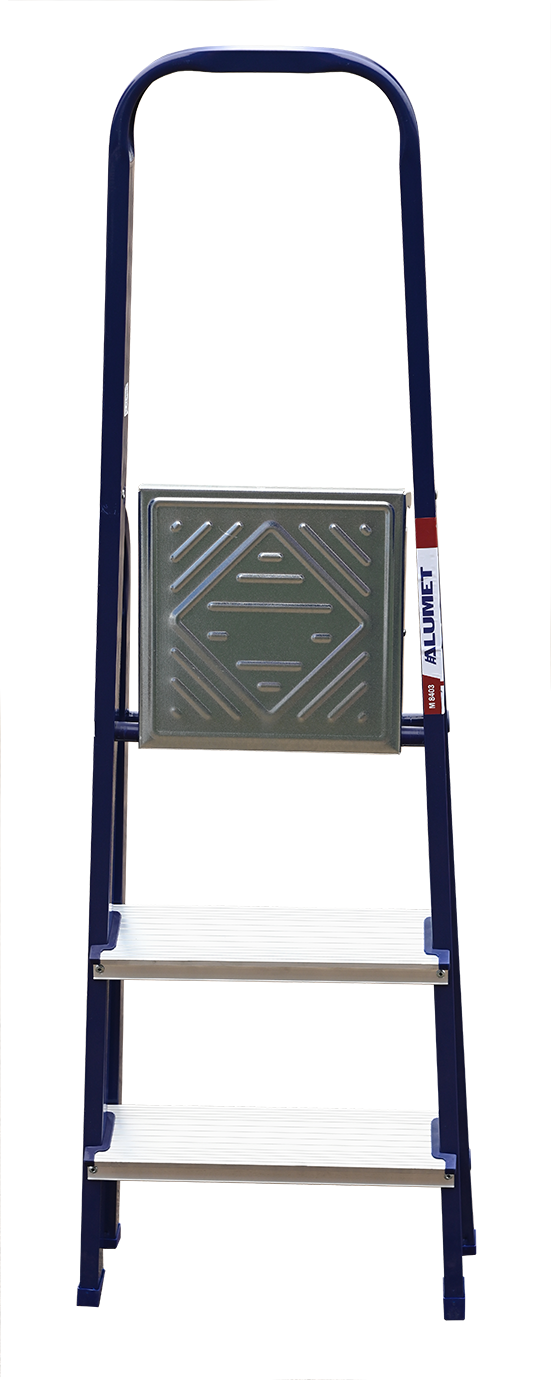

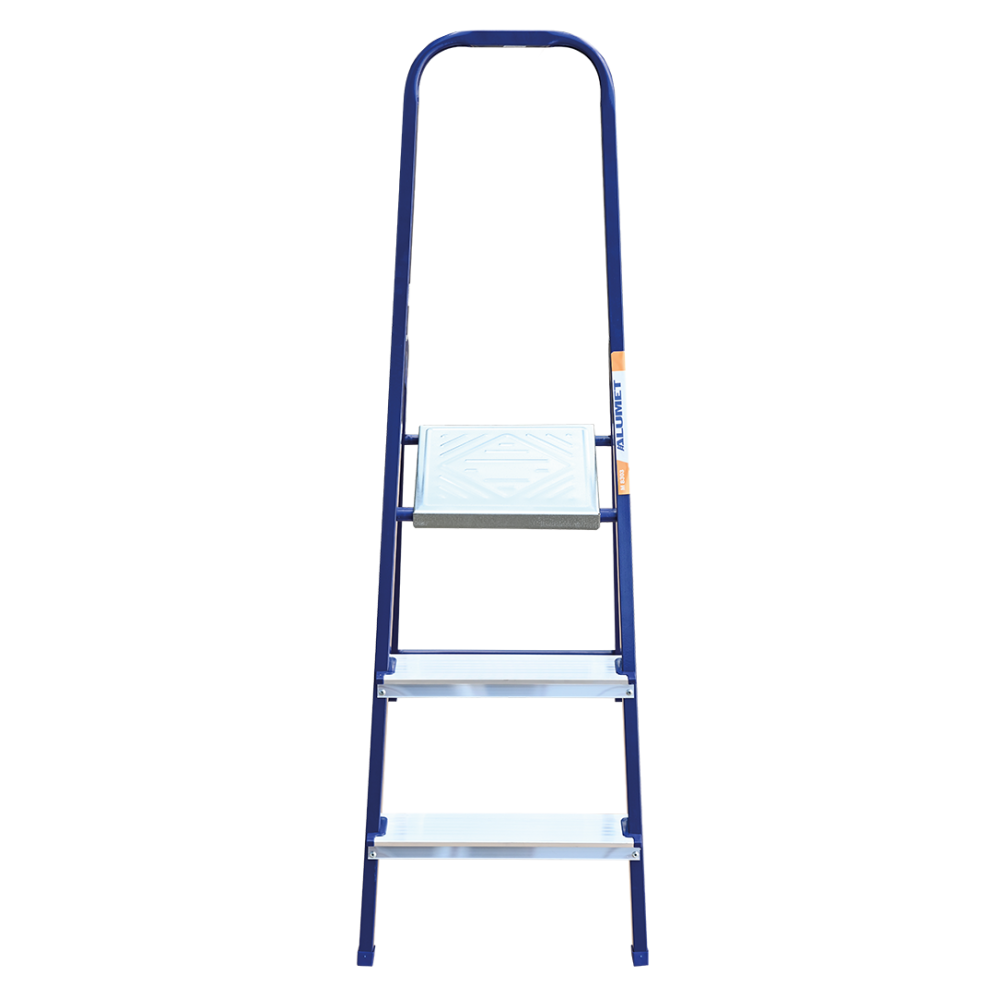

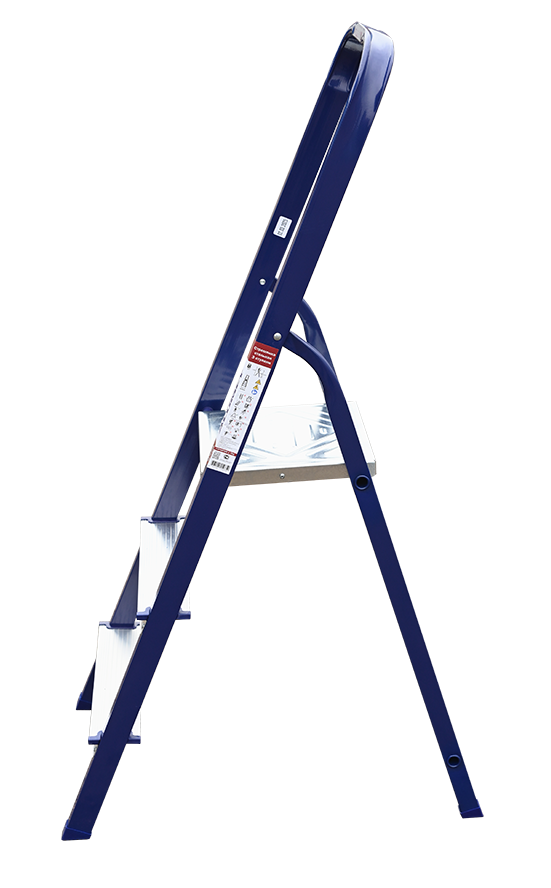

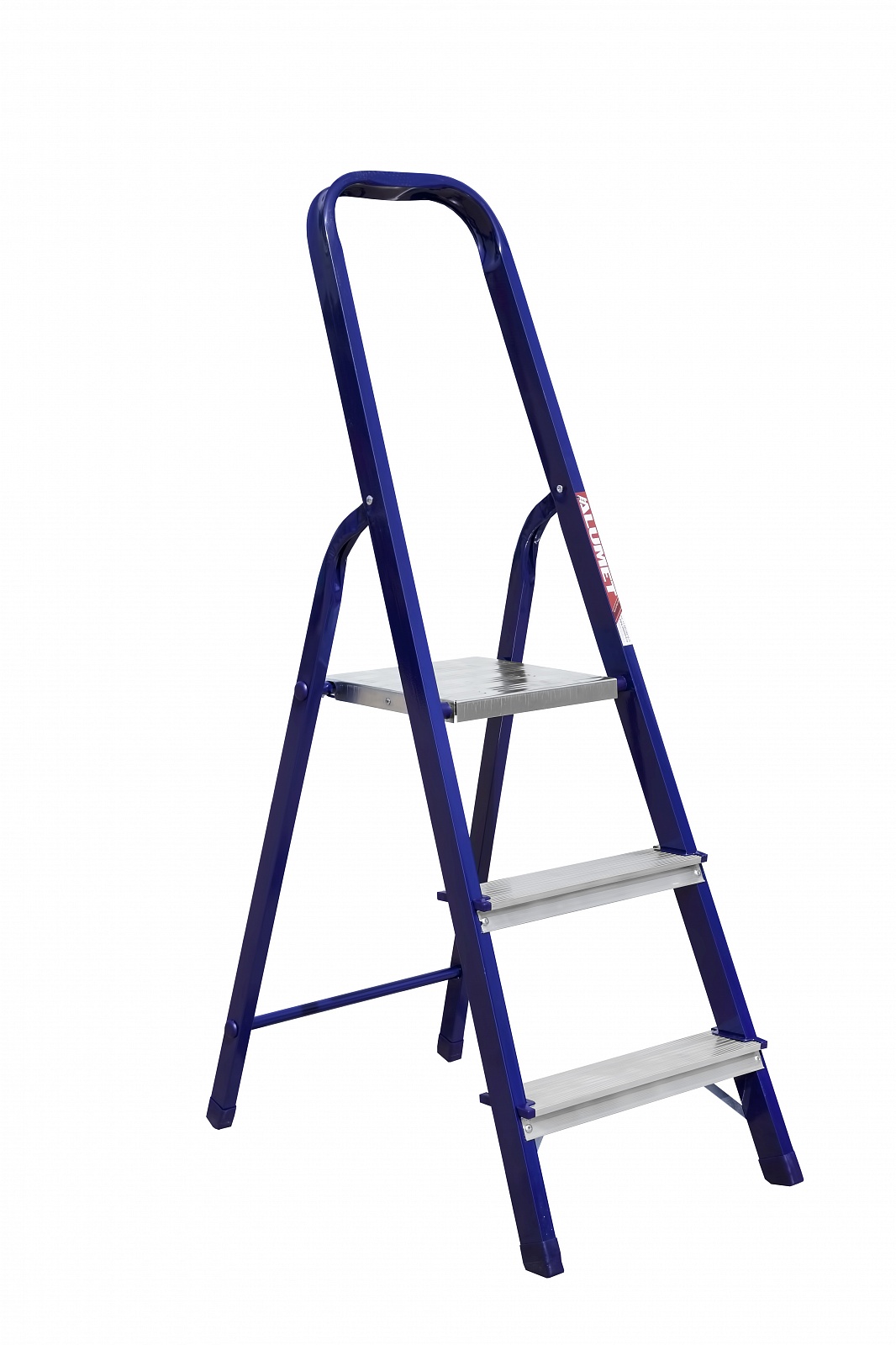

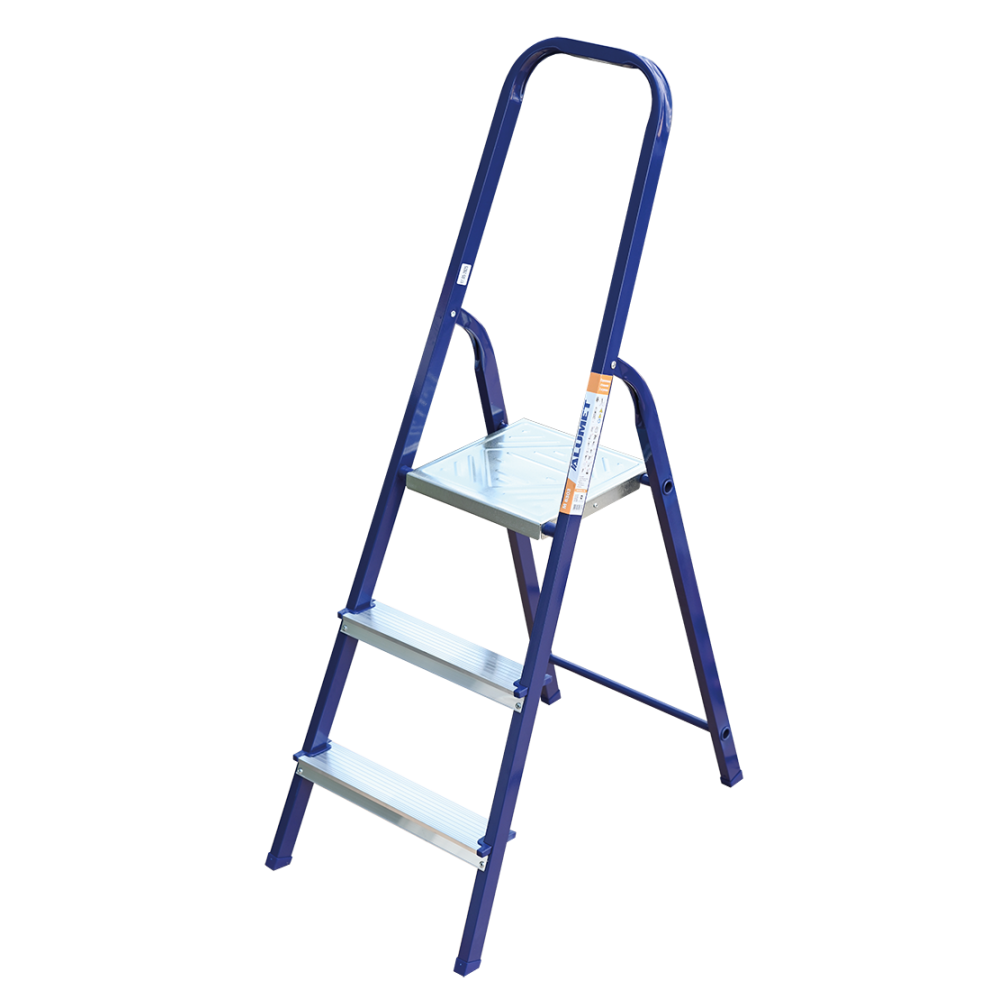

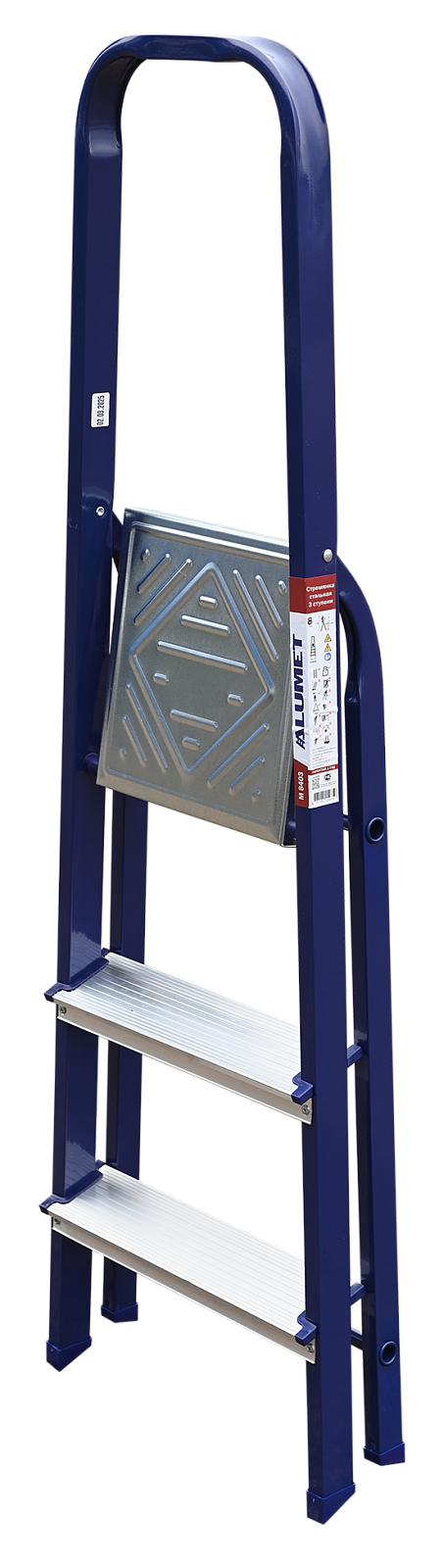

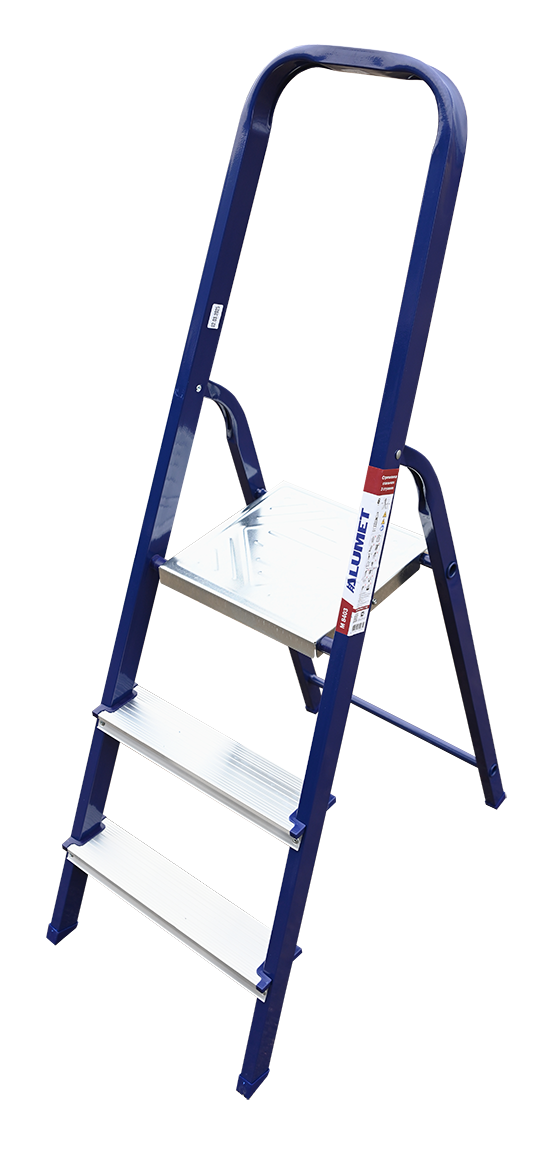

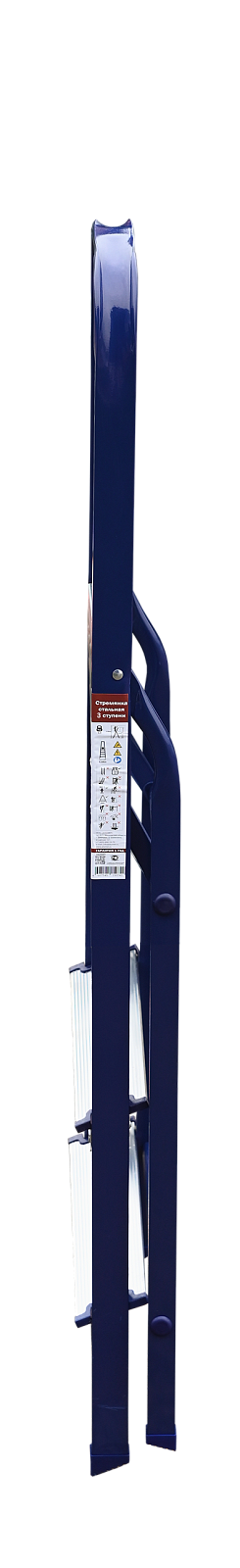

M 8403

Vendor code M 8403
Number of steps 3
Height 0.60
Length 1.31
Height max 2.70
Width 0.42
Front arch profile 40x20
Rear leg profile 30x20

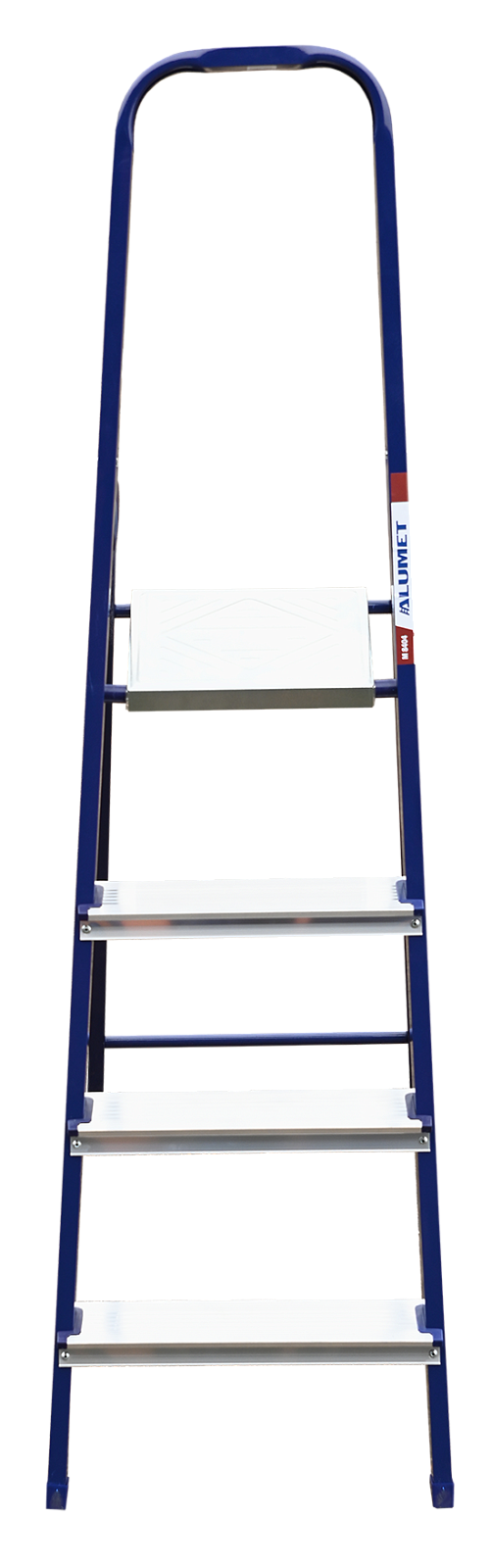

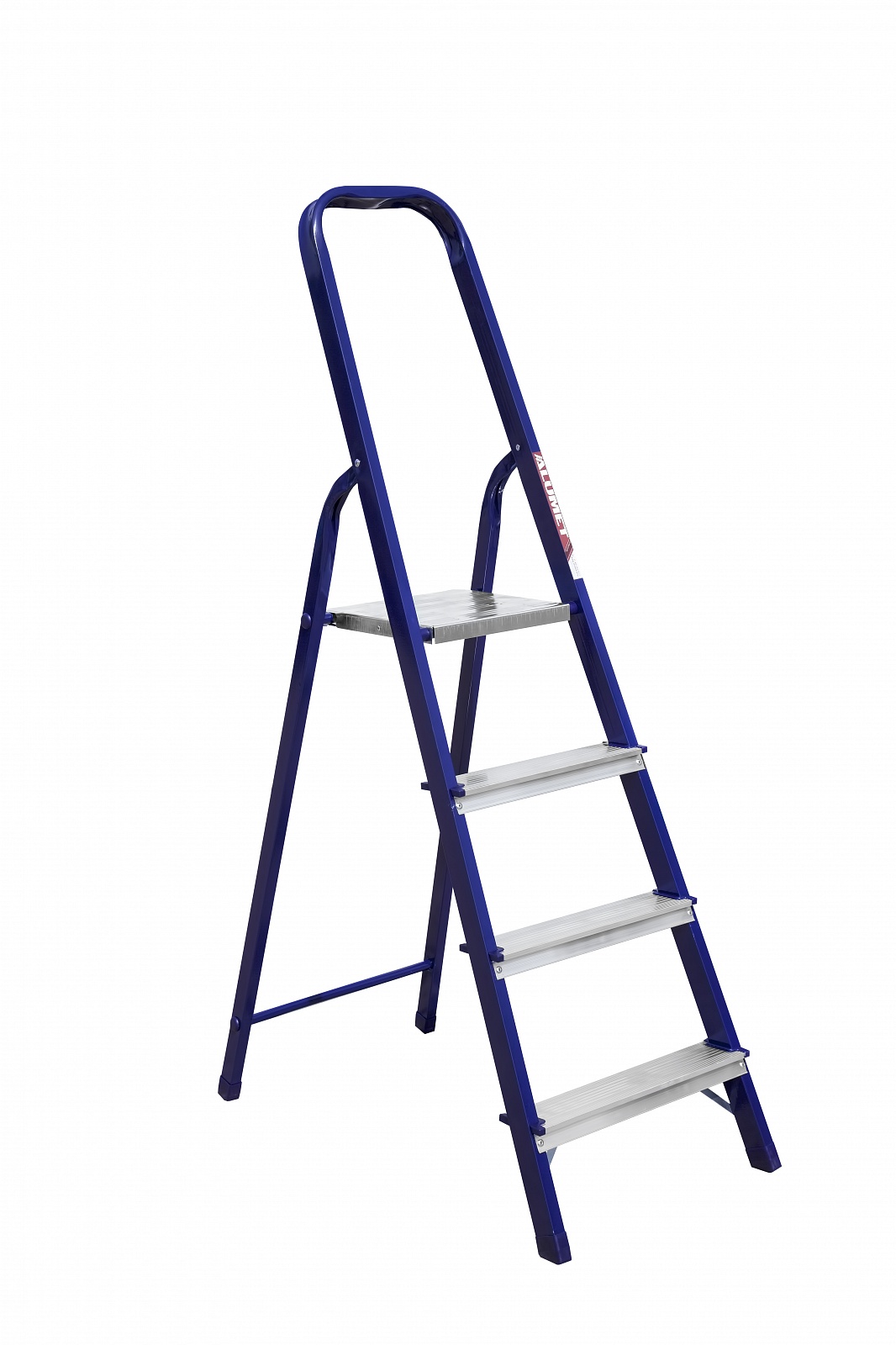

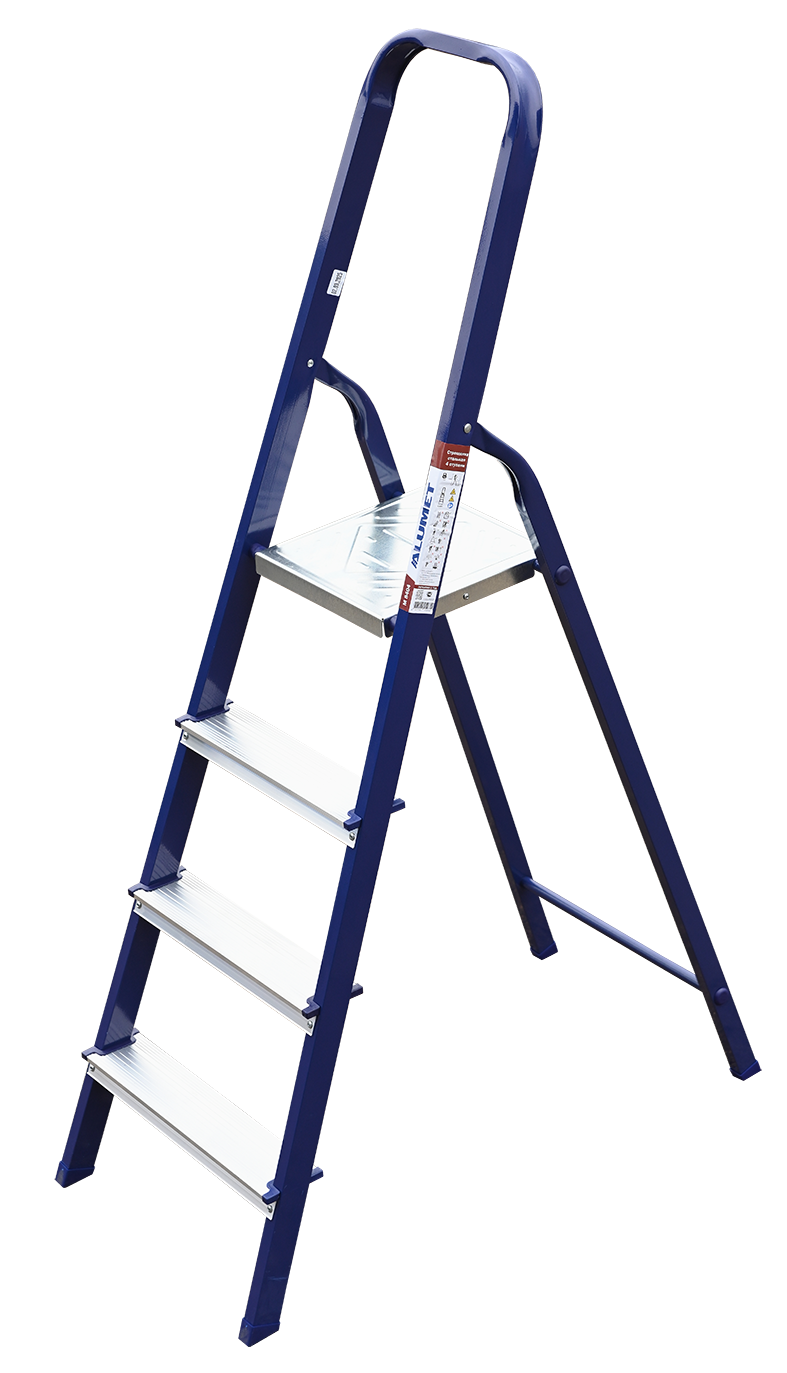

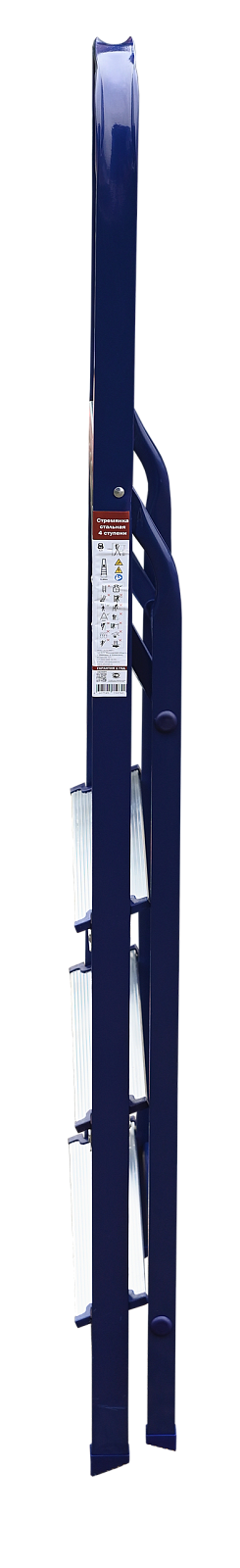

M 8404

Vendor code M 8404
Number of steps 4
Height 0.81
Length 1.54
Height max 2.91
Width 0.44
Front arch profile 40x20
Rear leg profile 30x20

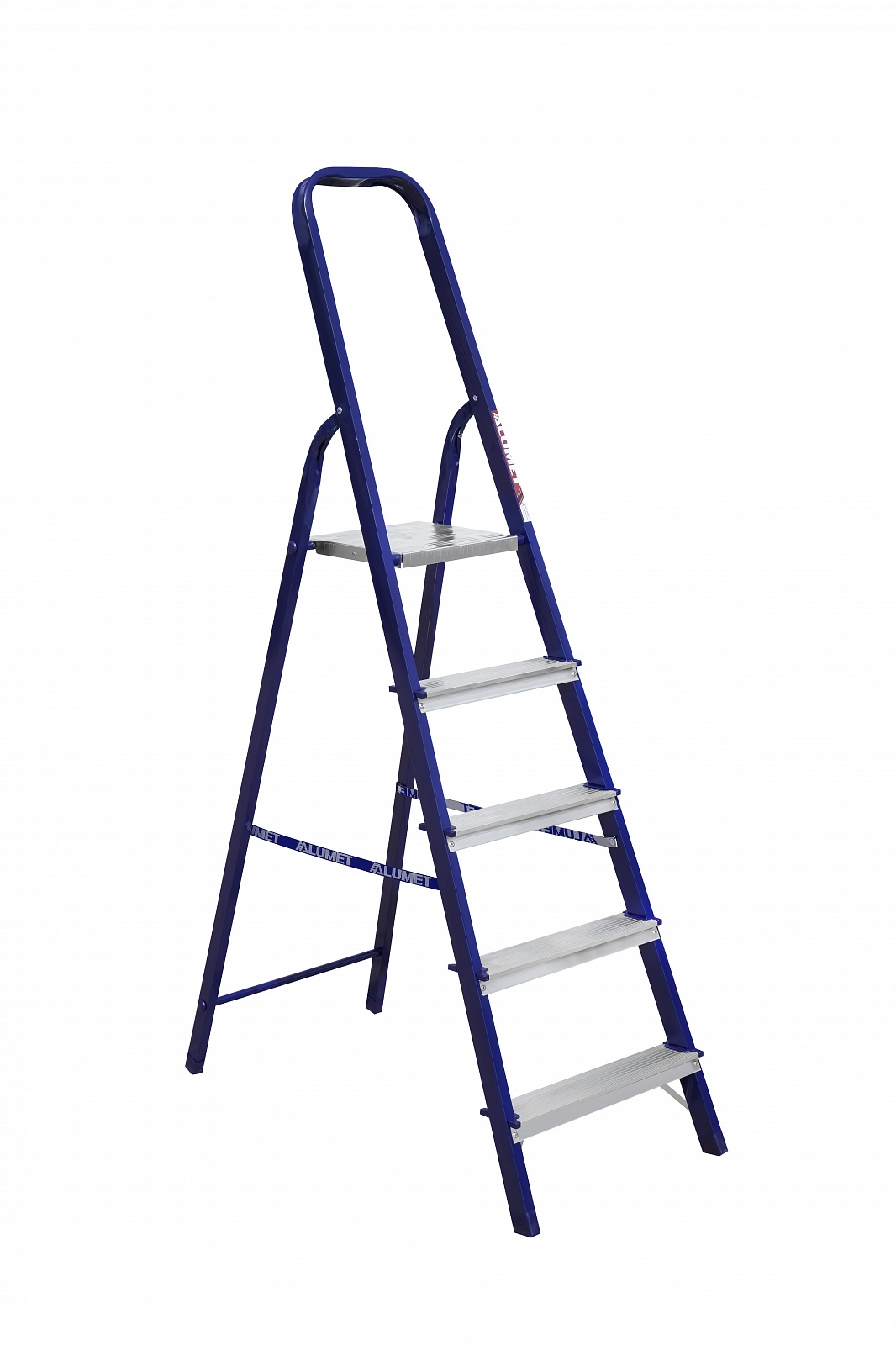

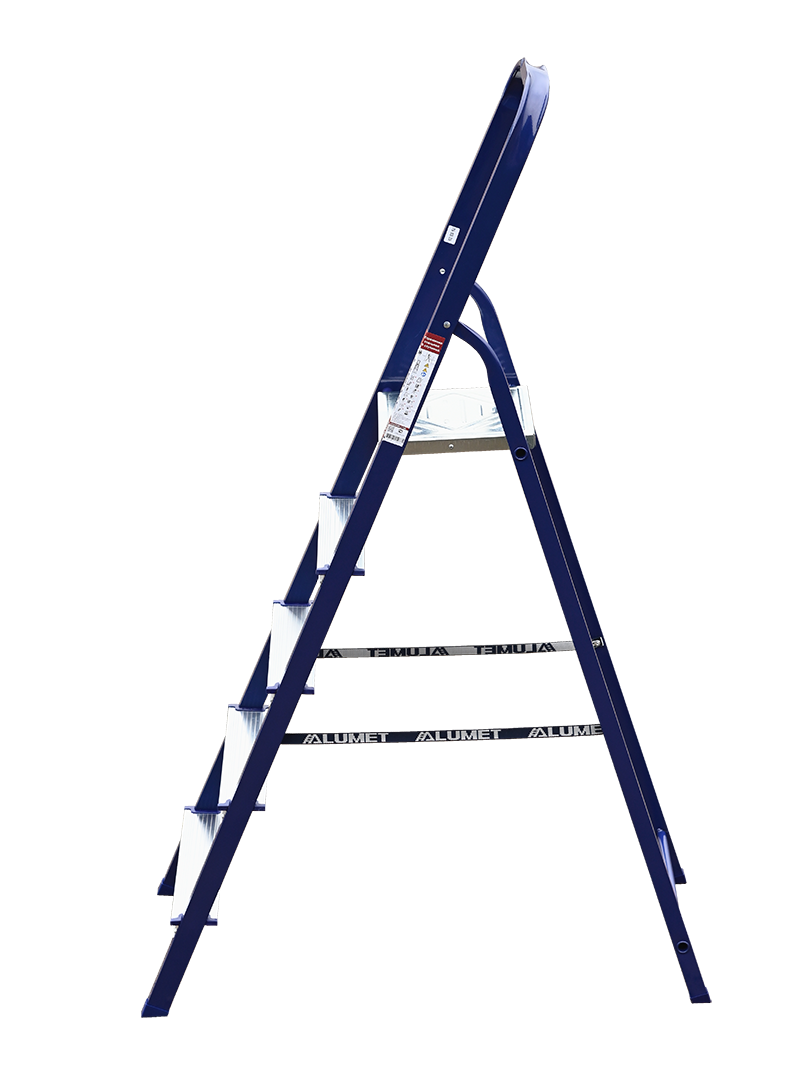

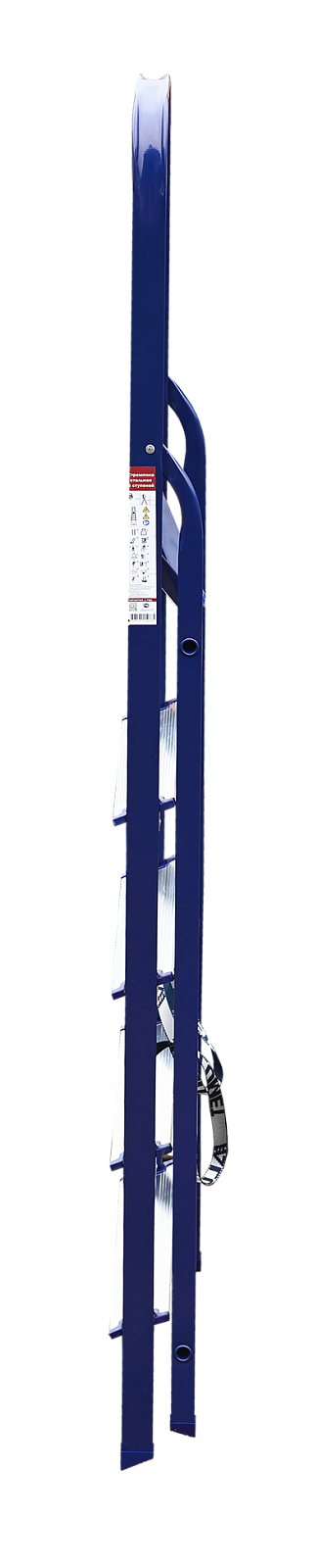

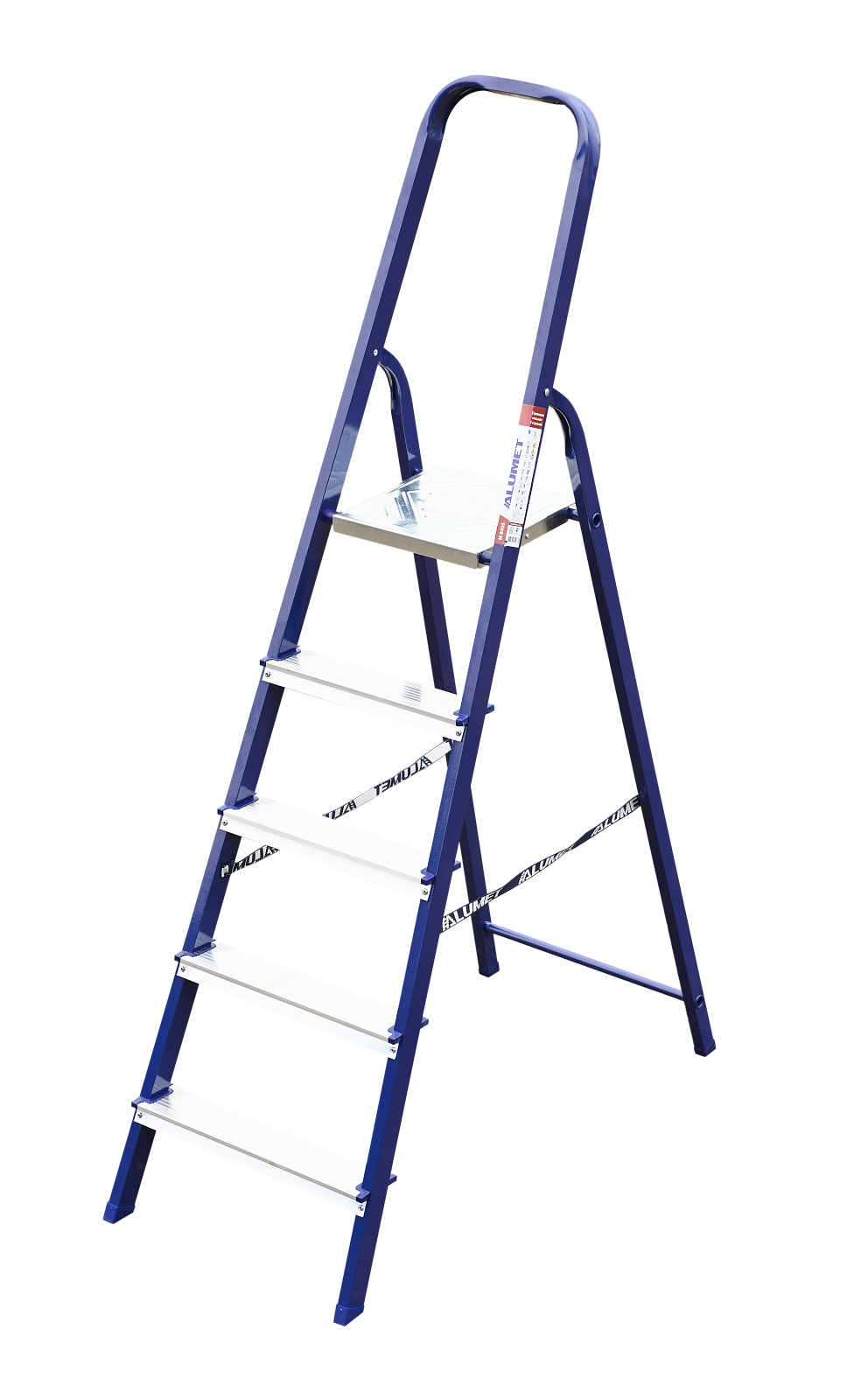

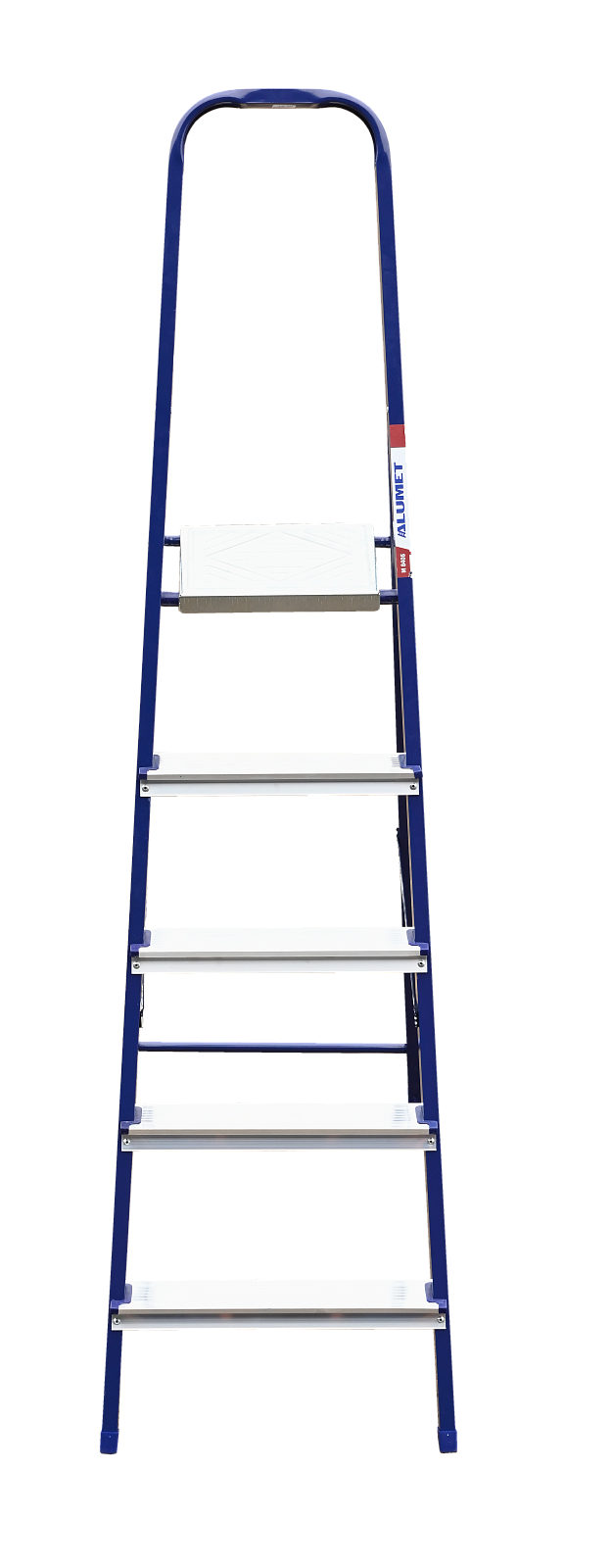

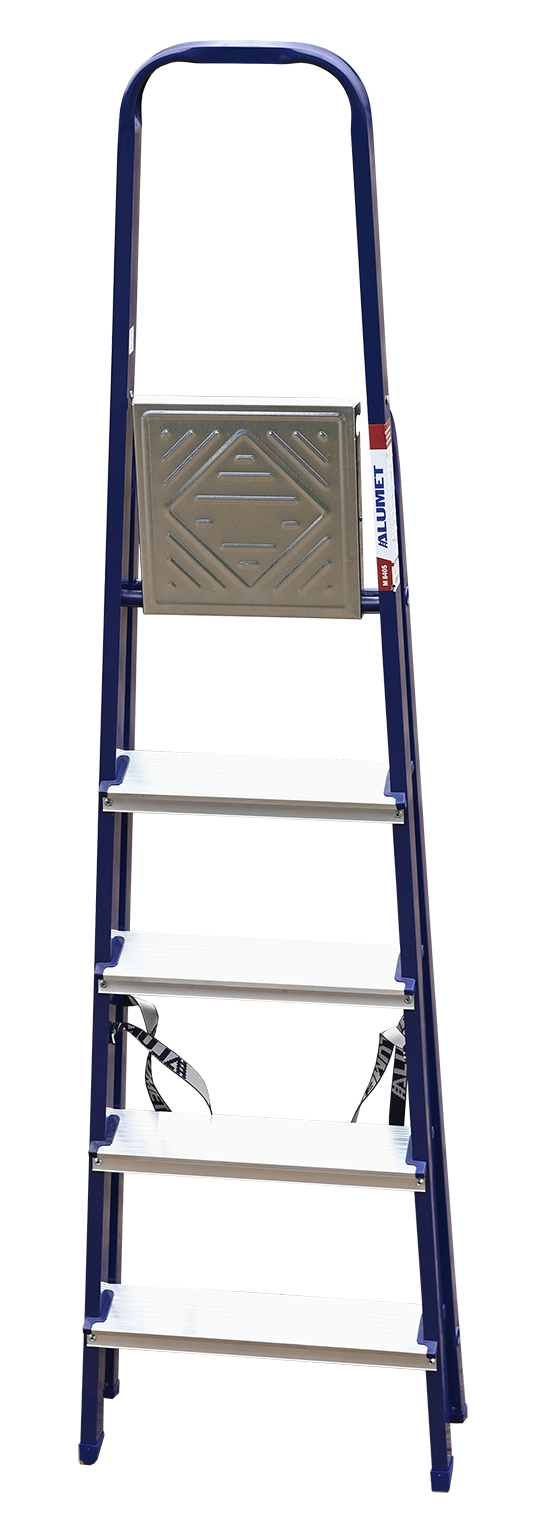

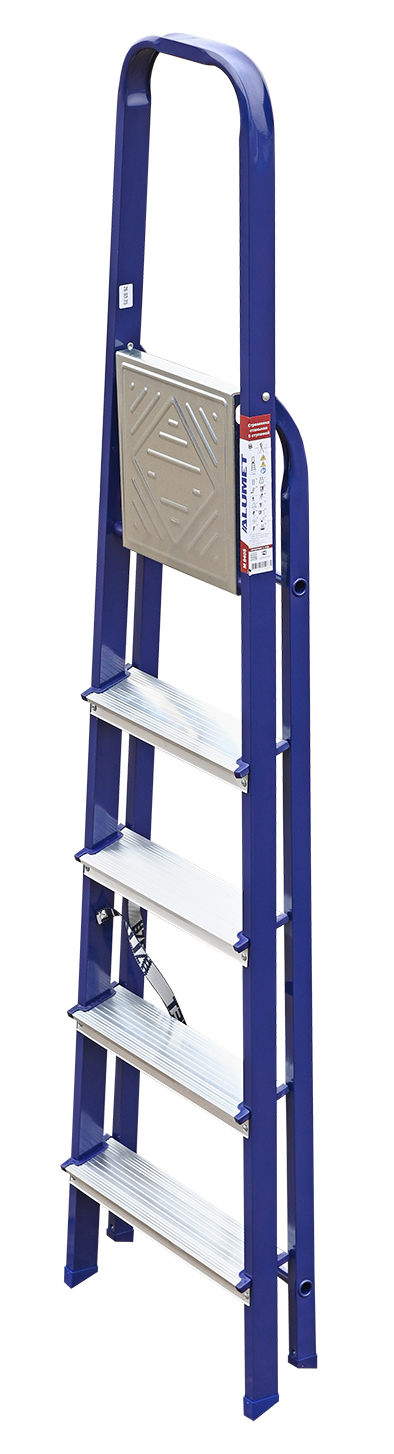

M 8405

Vendor code M 8405
Number of steps 5
Height 1.02
Length 1.77
Height max 3.12
Width 0.46
Front arch profile 40x20
Rear leg profile 30x20

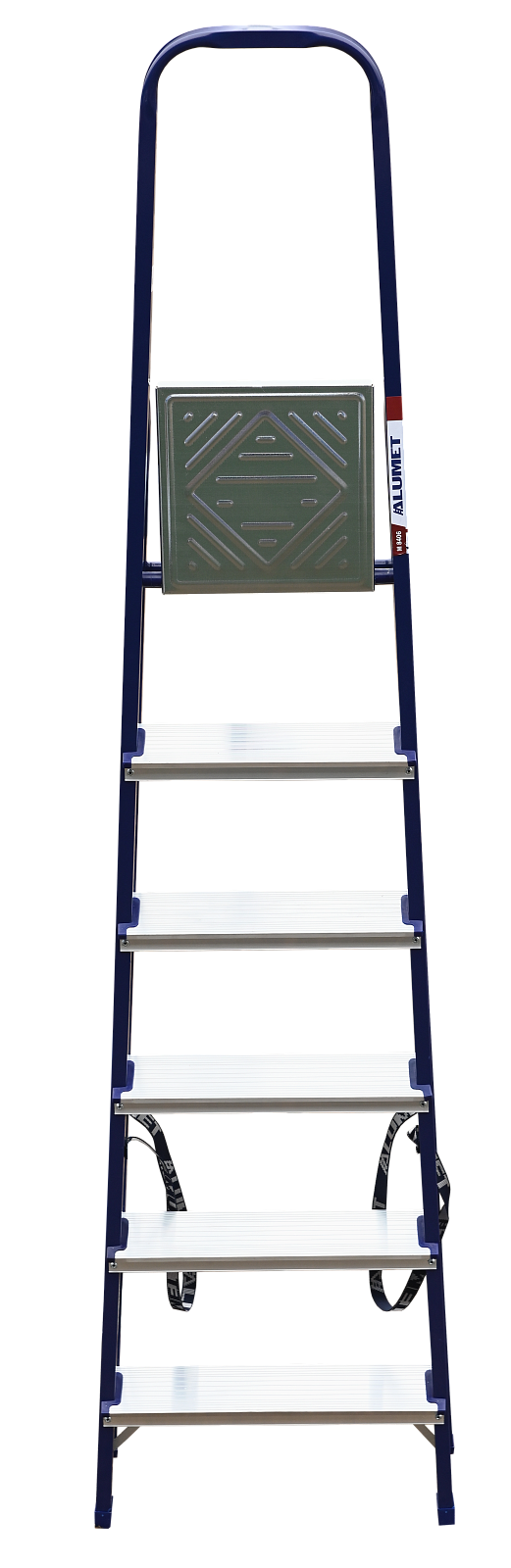

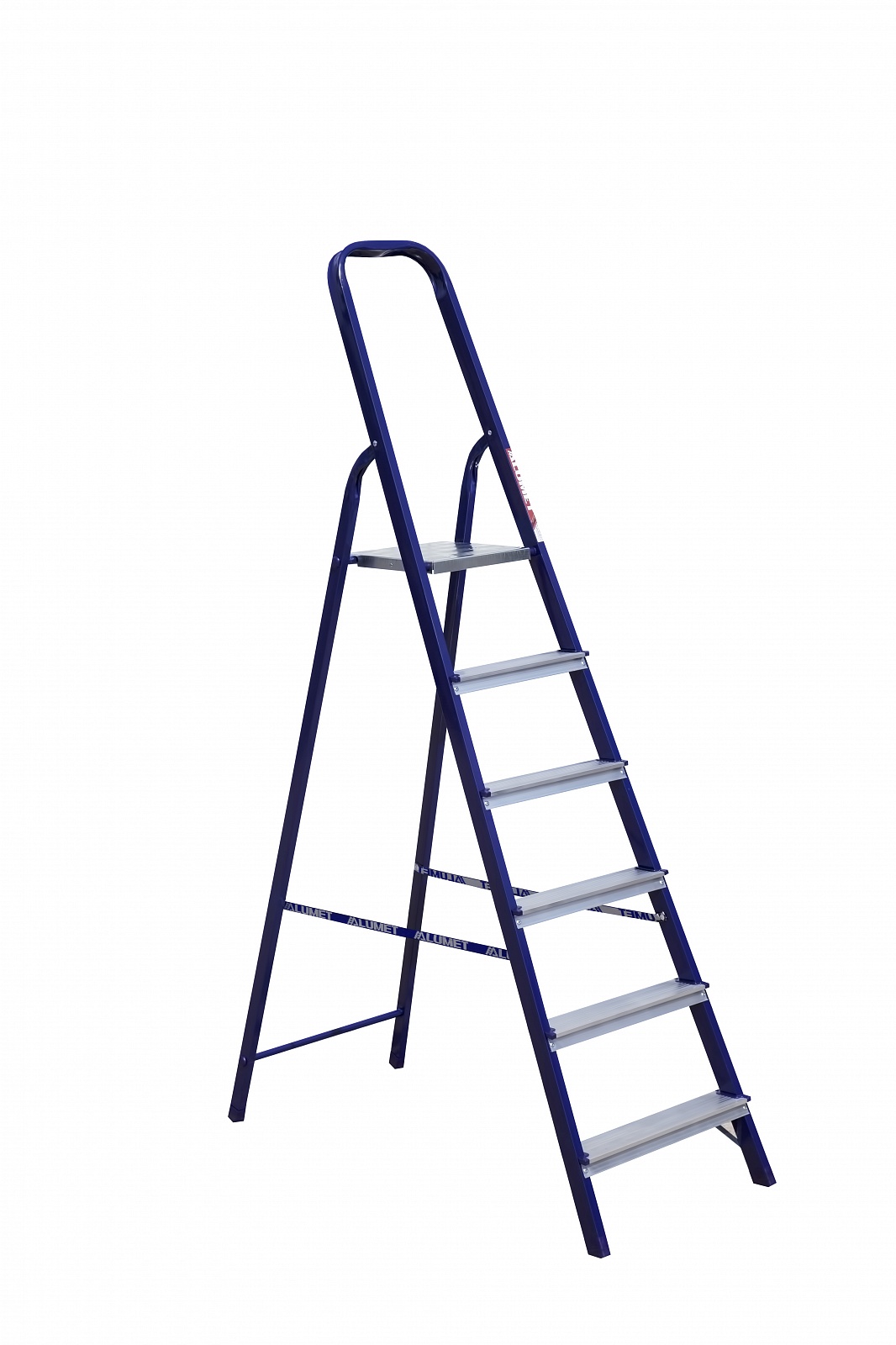

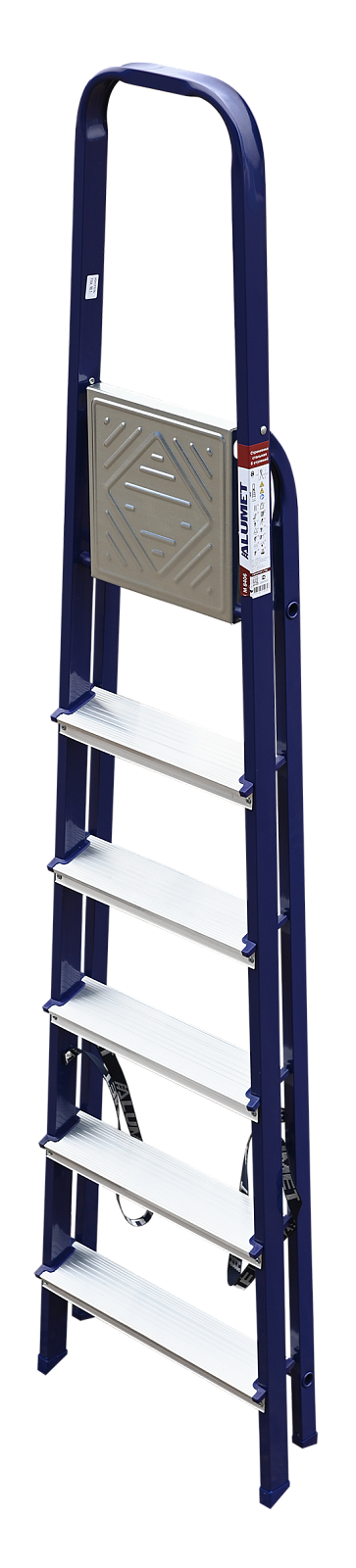

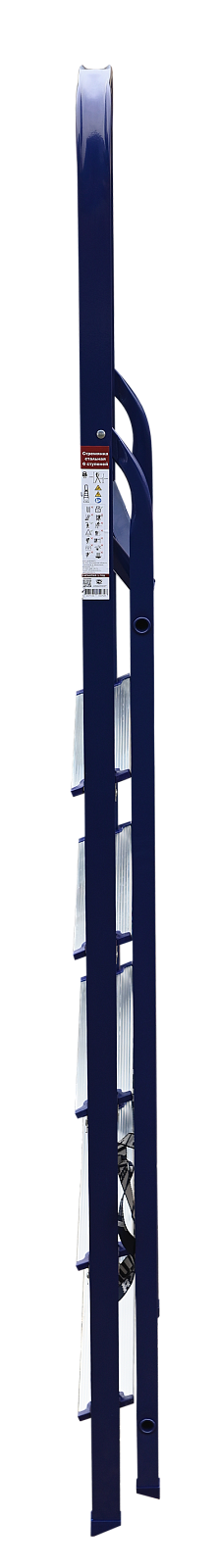

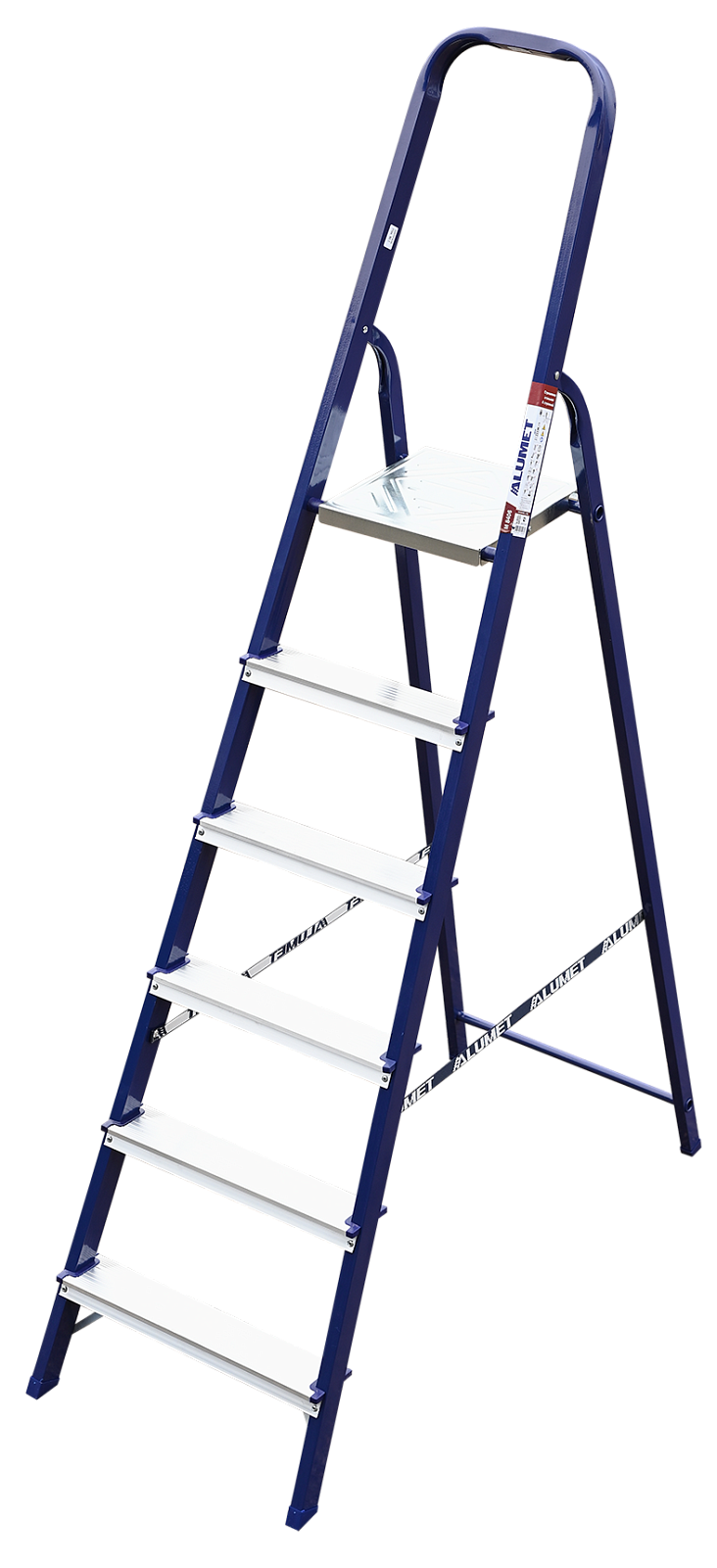

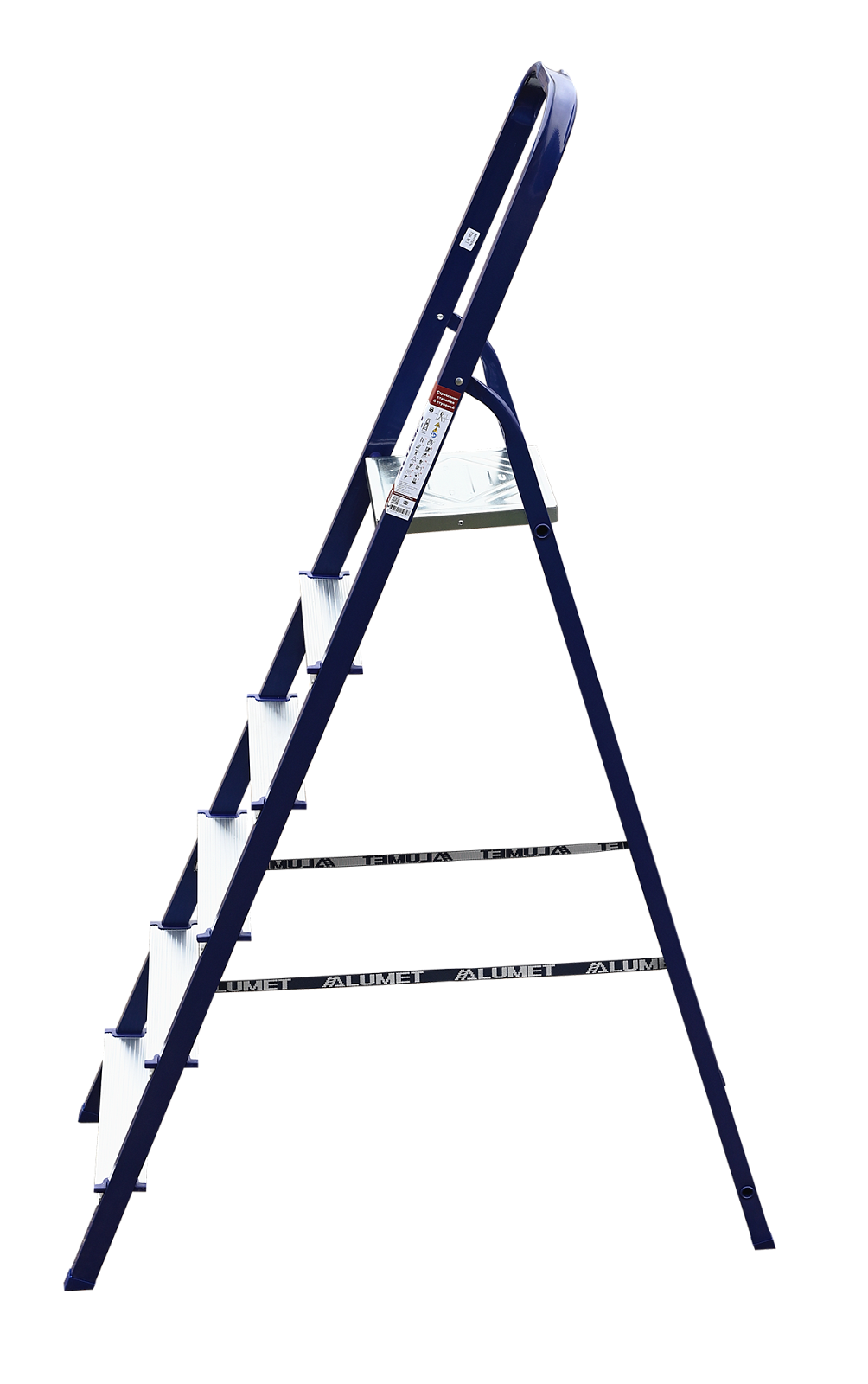

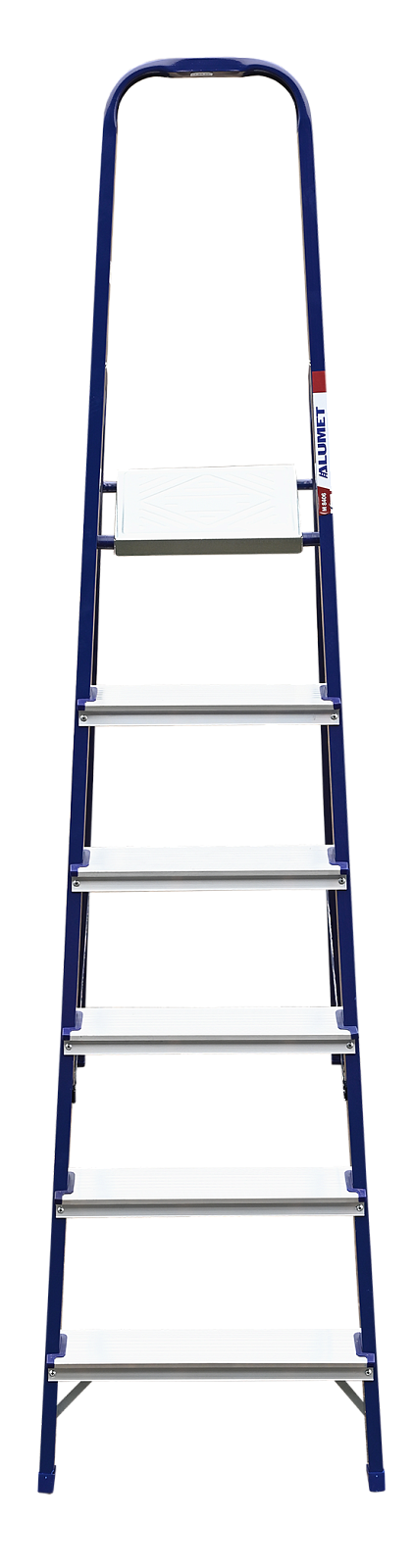

M 8406

Vendor code M 8406
Number of steps 6
Height 1.23
Length 2.00
Height max 3.33
Width 0.49
Front arch profile 40x20
Rear leg profile 30x20

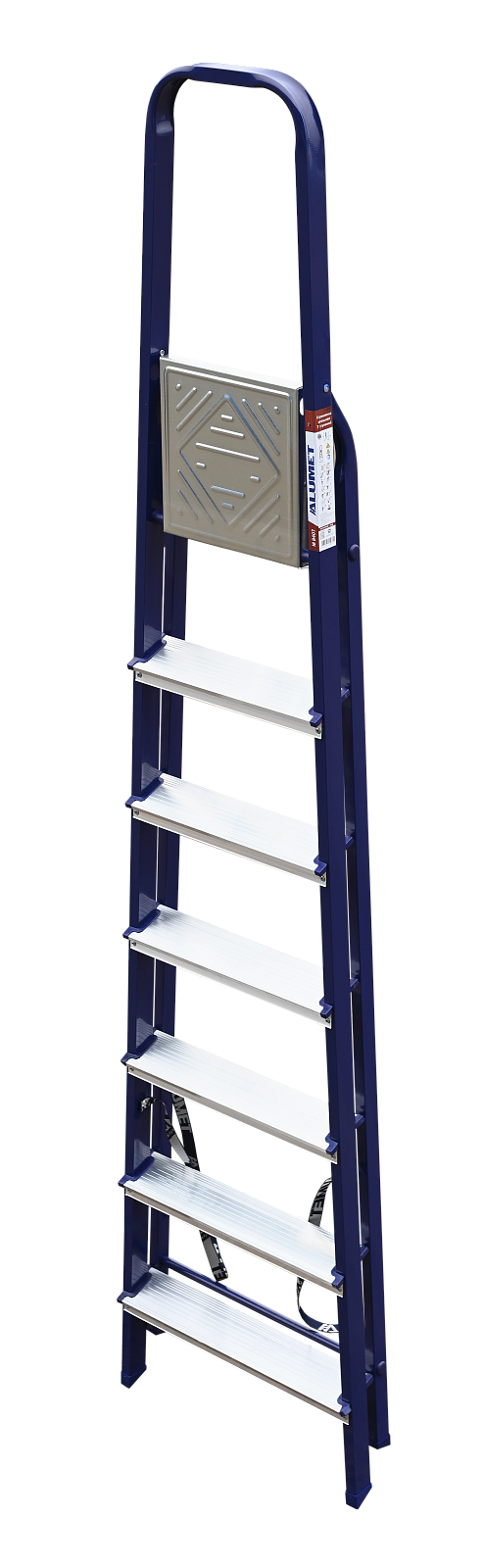

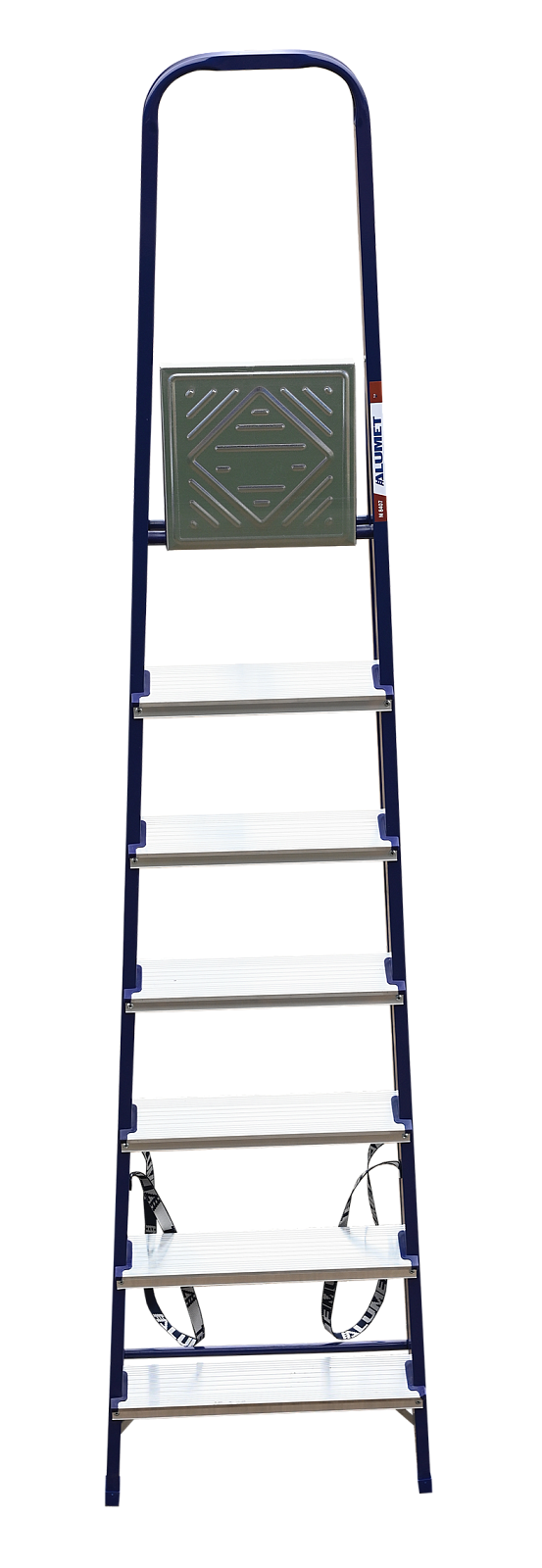

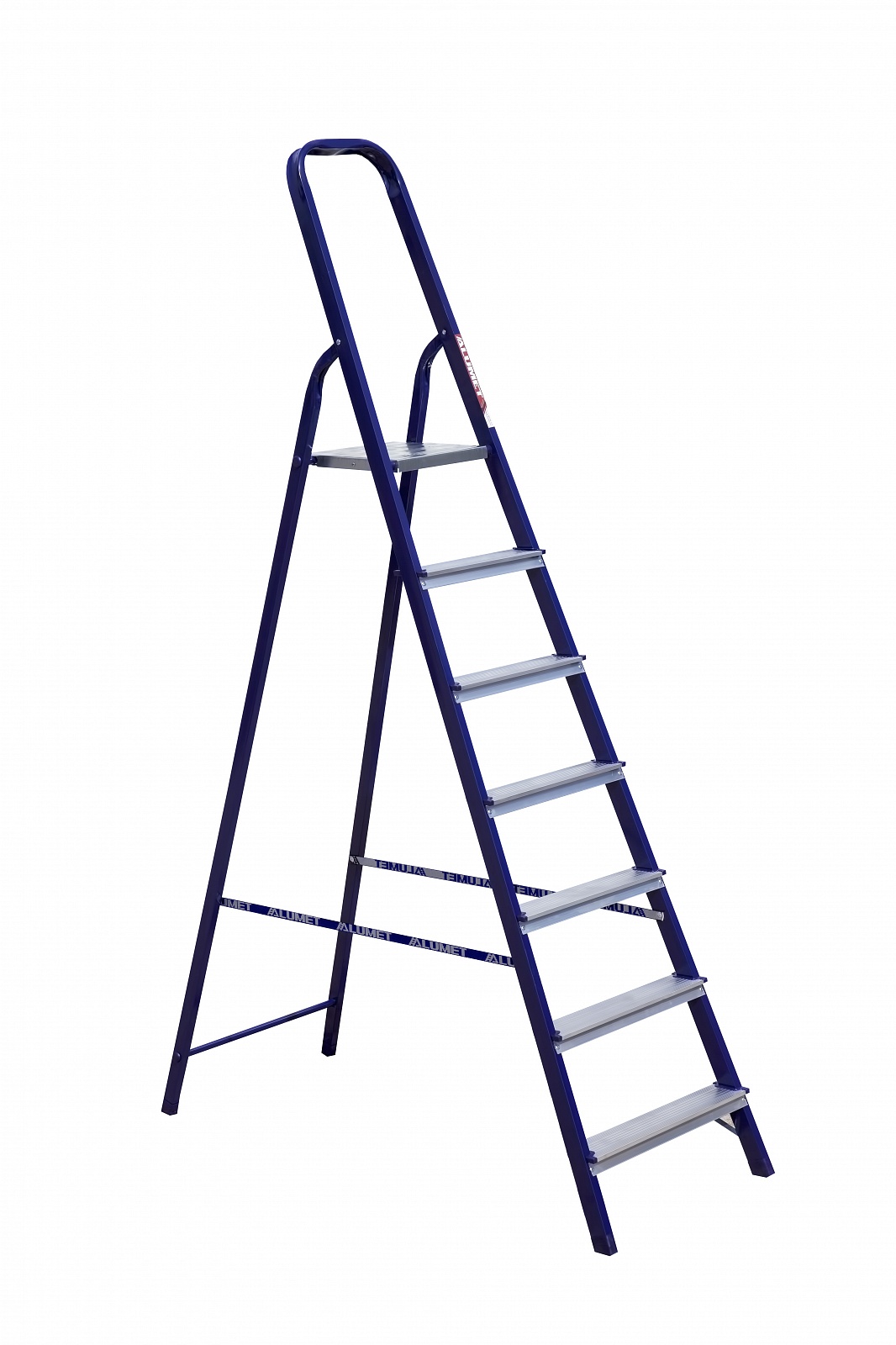

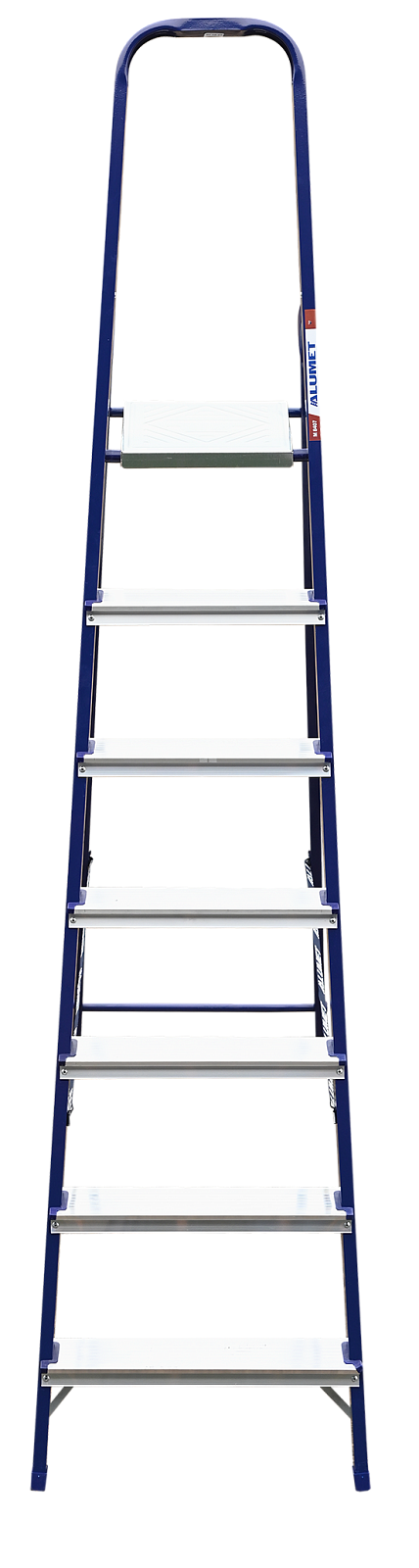

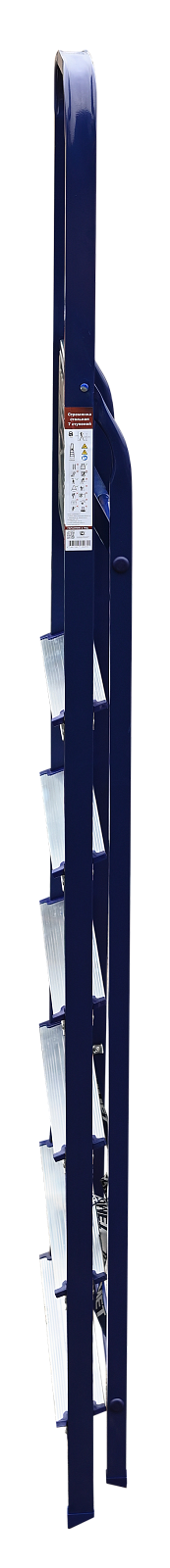

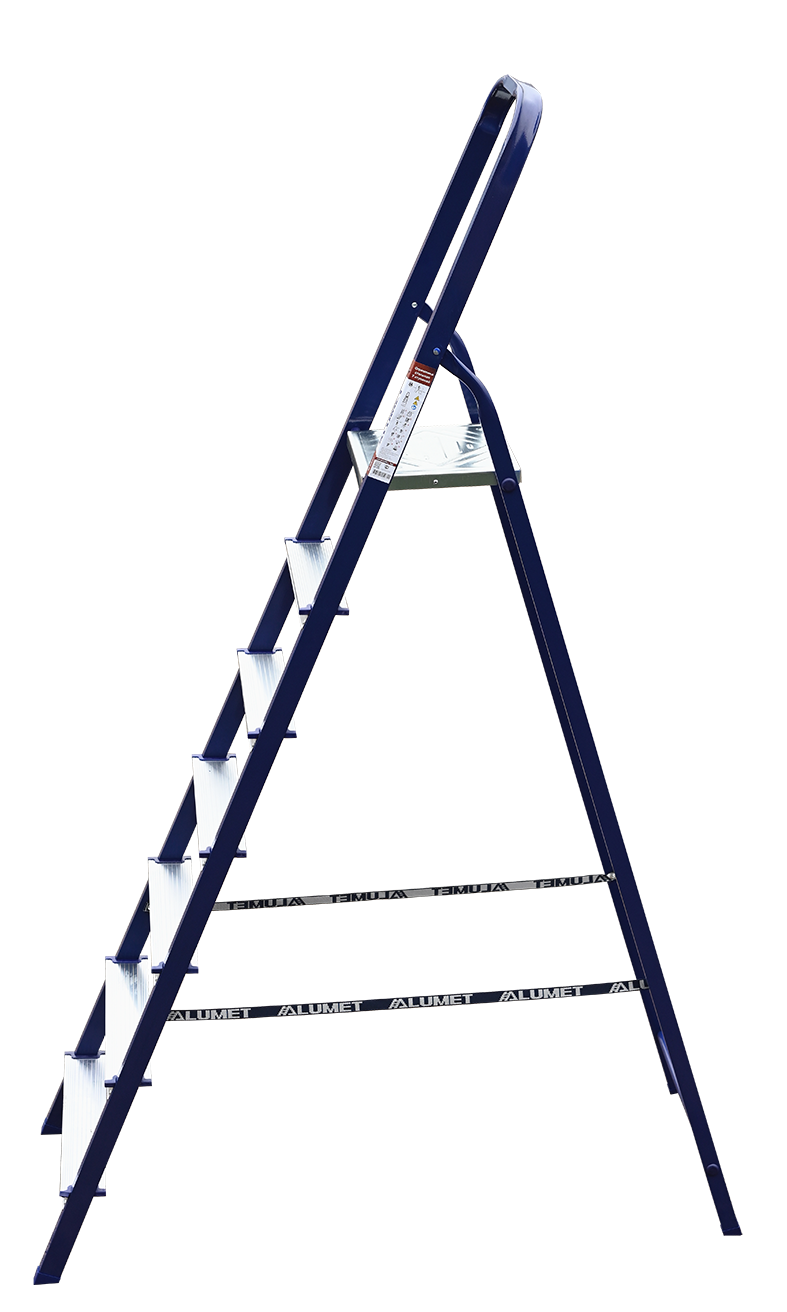

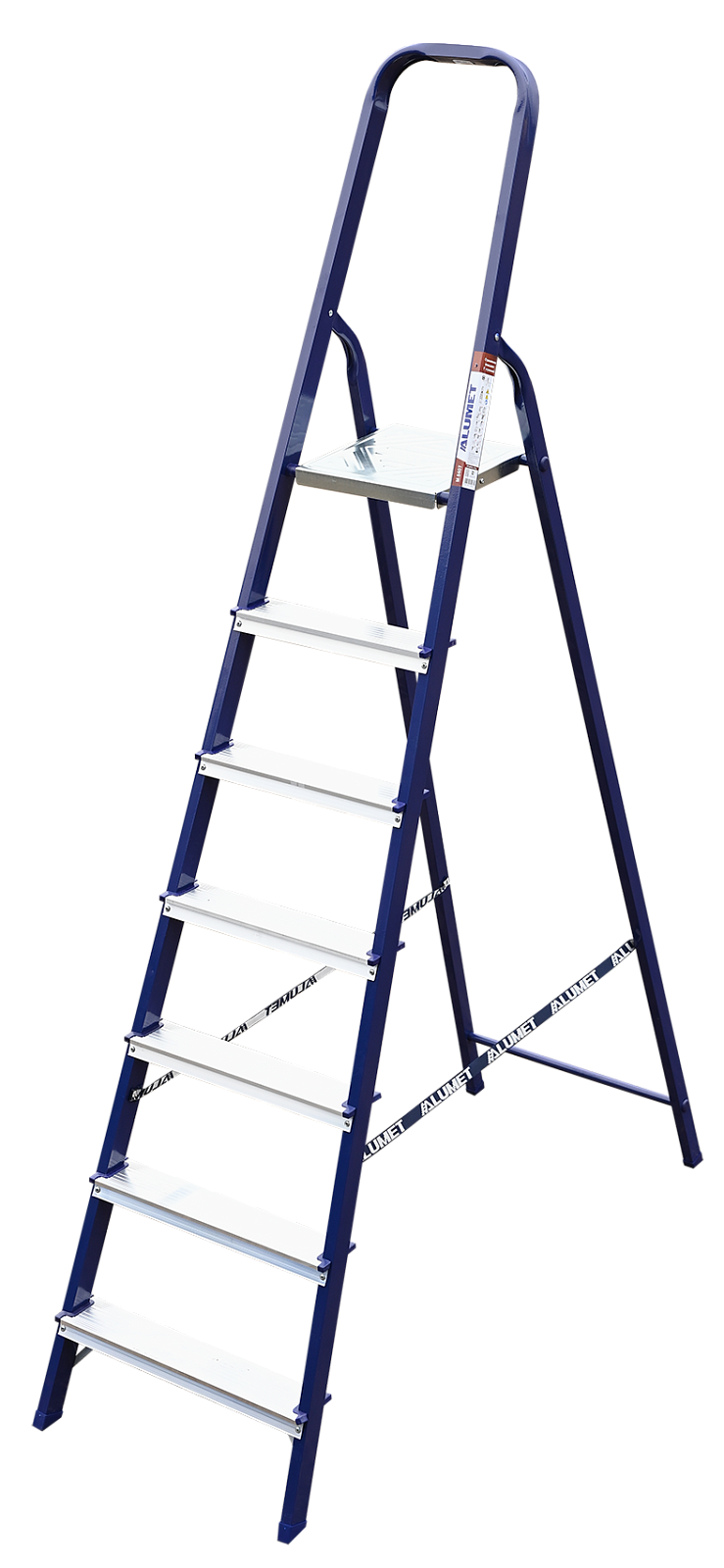

M 8407

Vendor code M 8407
Number of steps 7
Height 1.45
Length 2.23
Height max 3.55
Width 0.51
Front arch profile 40x20
Rear leg profile 30x20

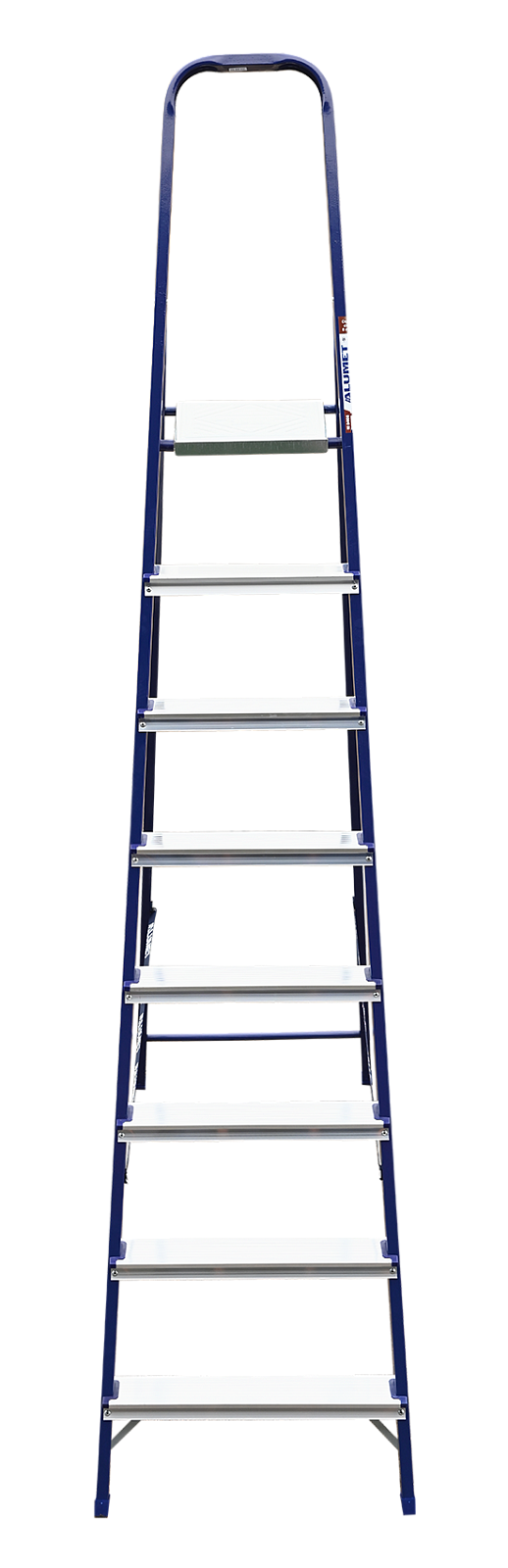

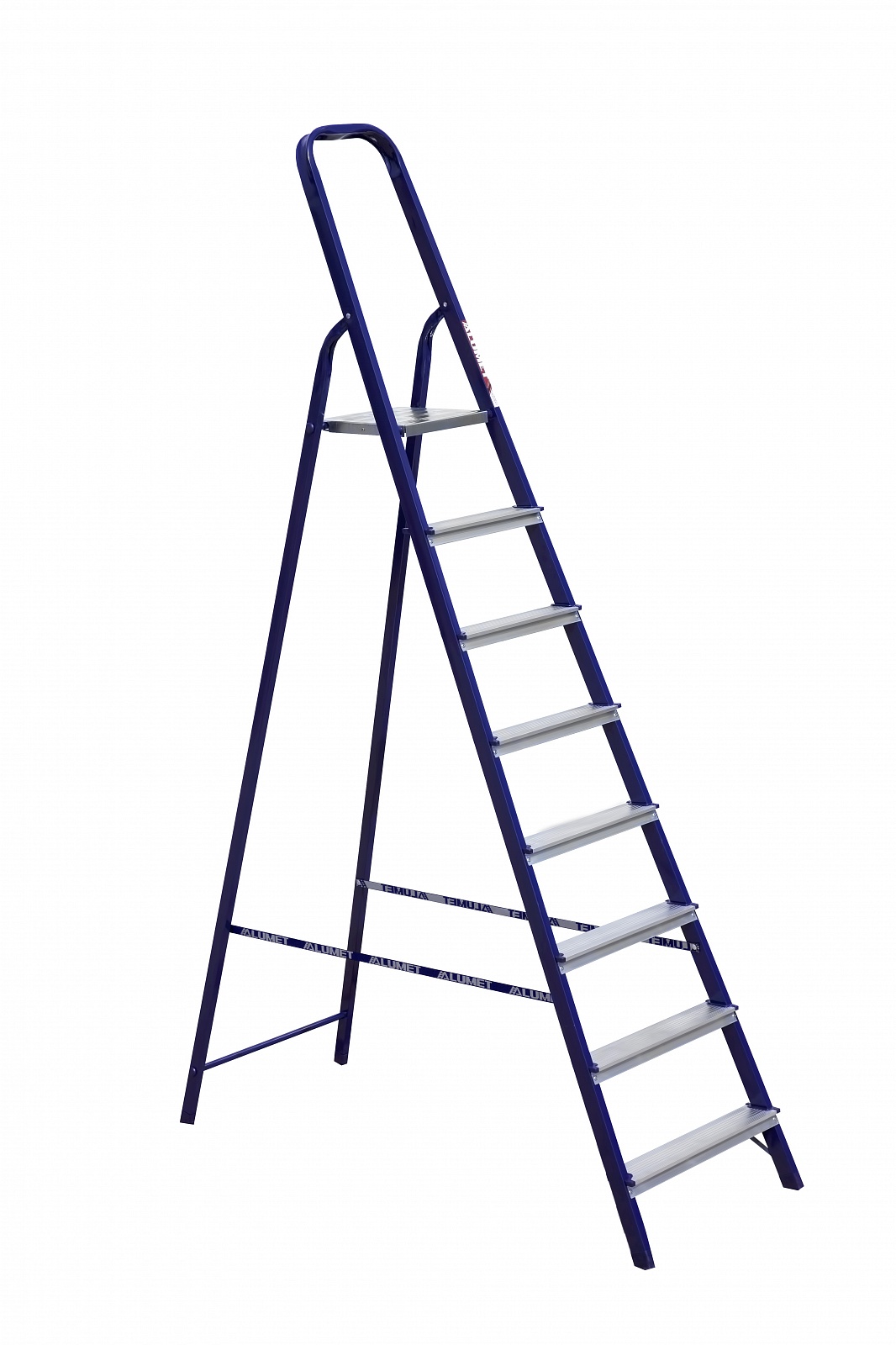

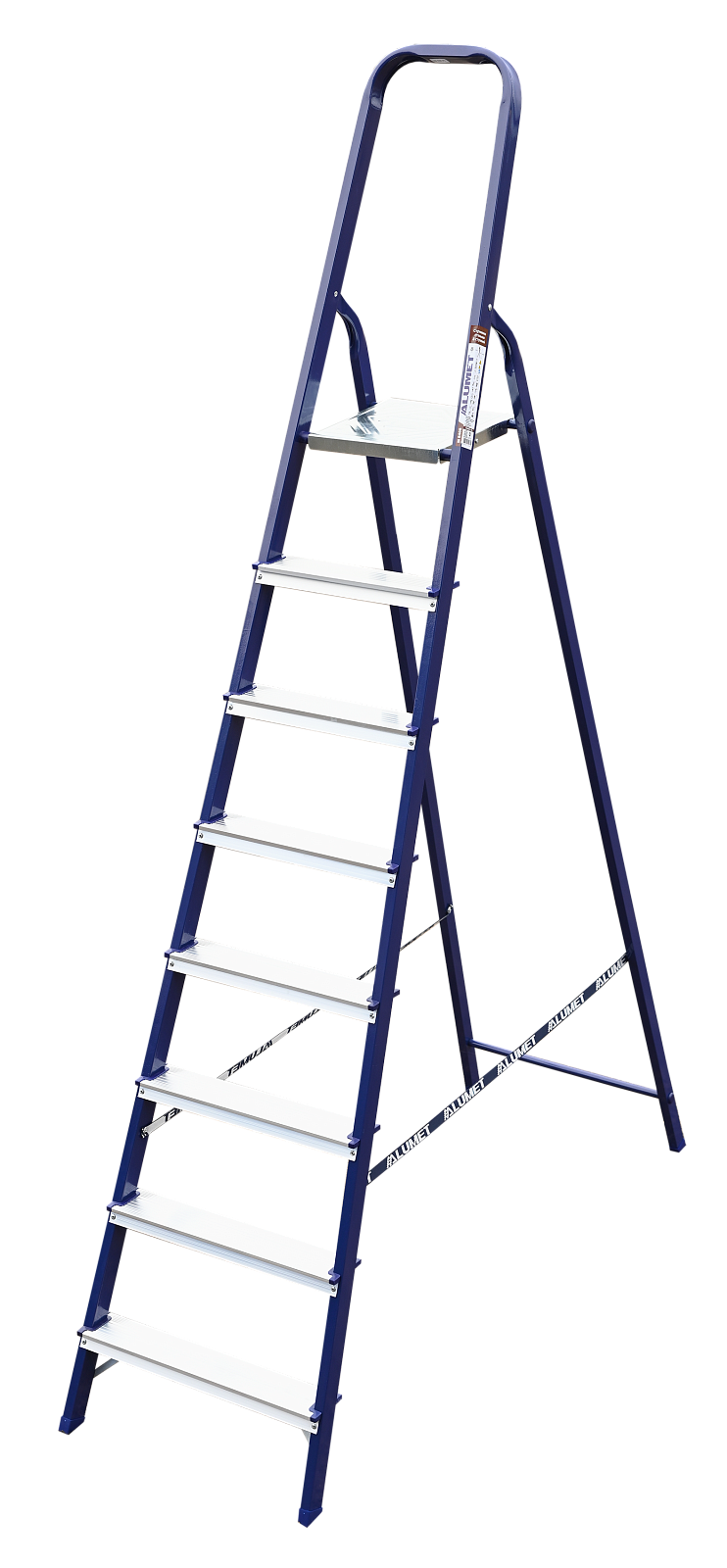

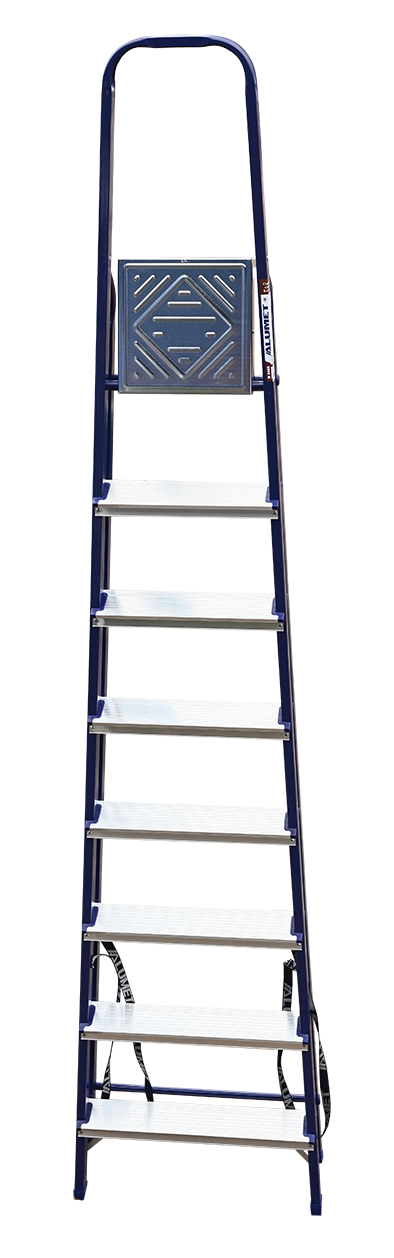

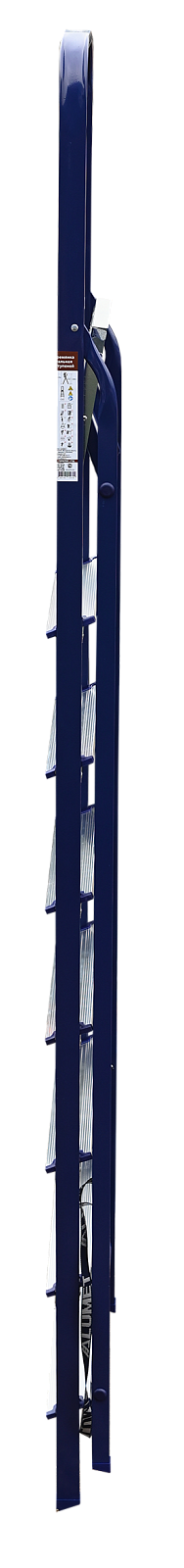

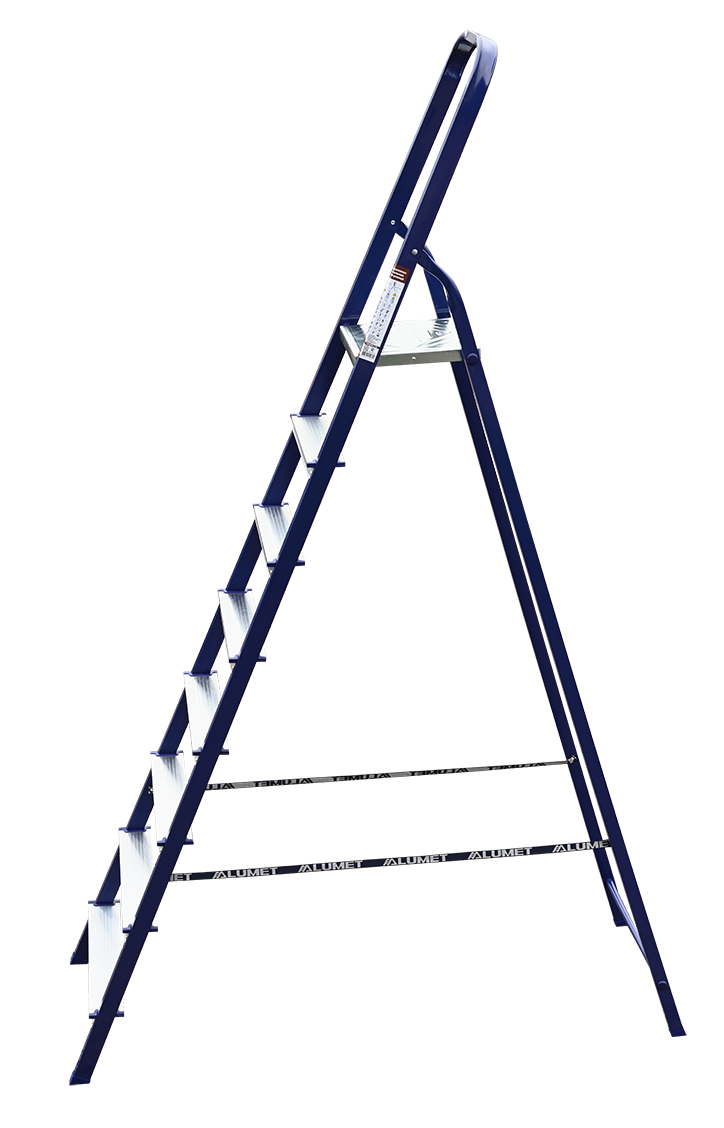

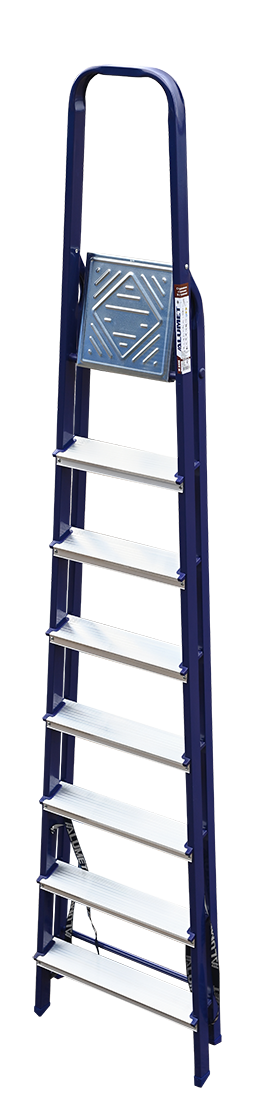

M 8408

Vendor code M 8408
Number of steps 8
Height 1.66
Length 2.46
Height max 3.76
Width 0.54
Front arch profile 40x20
Rear leg profile 30x20

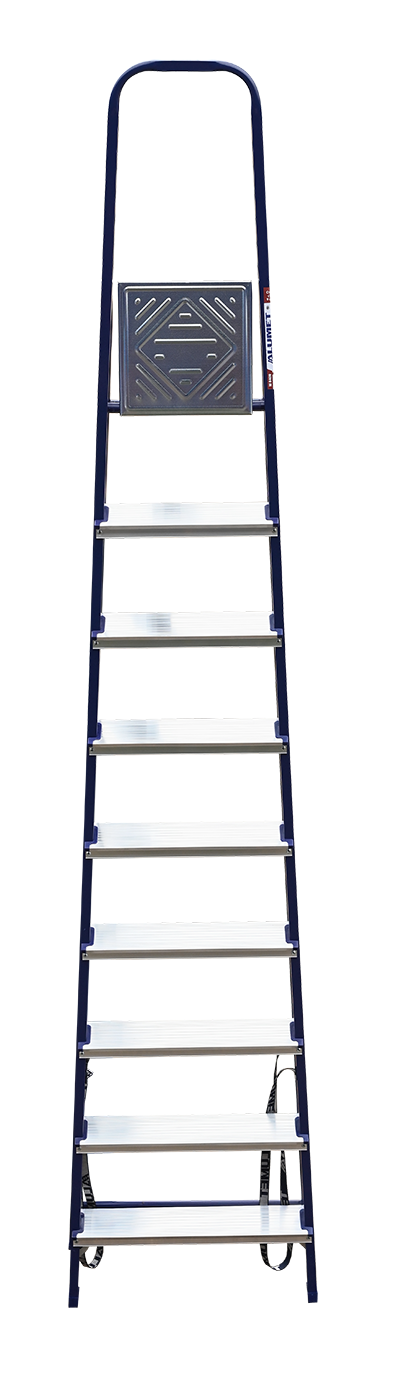

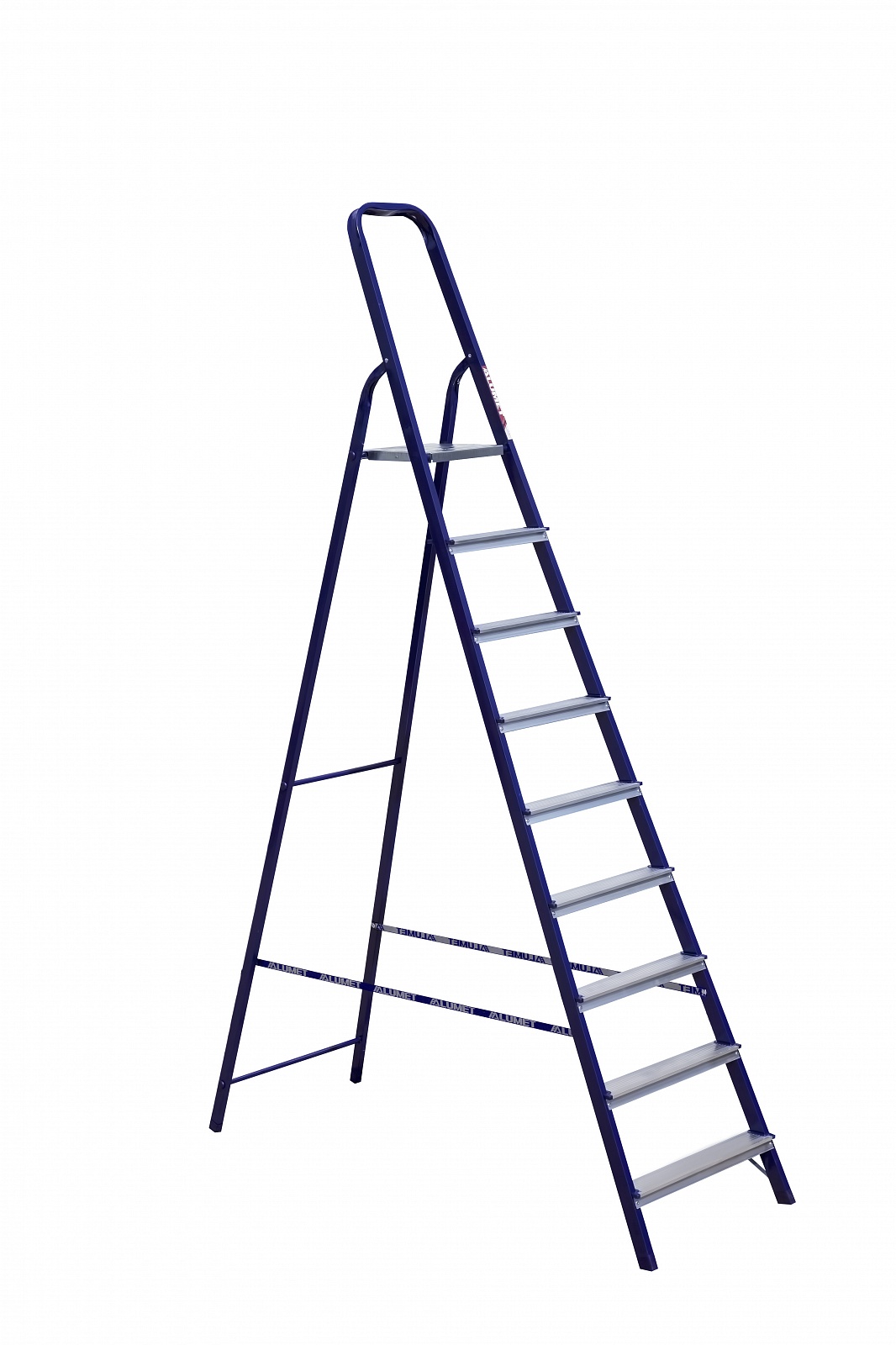

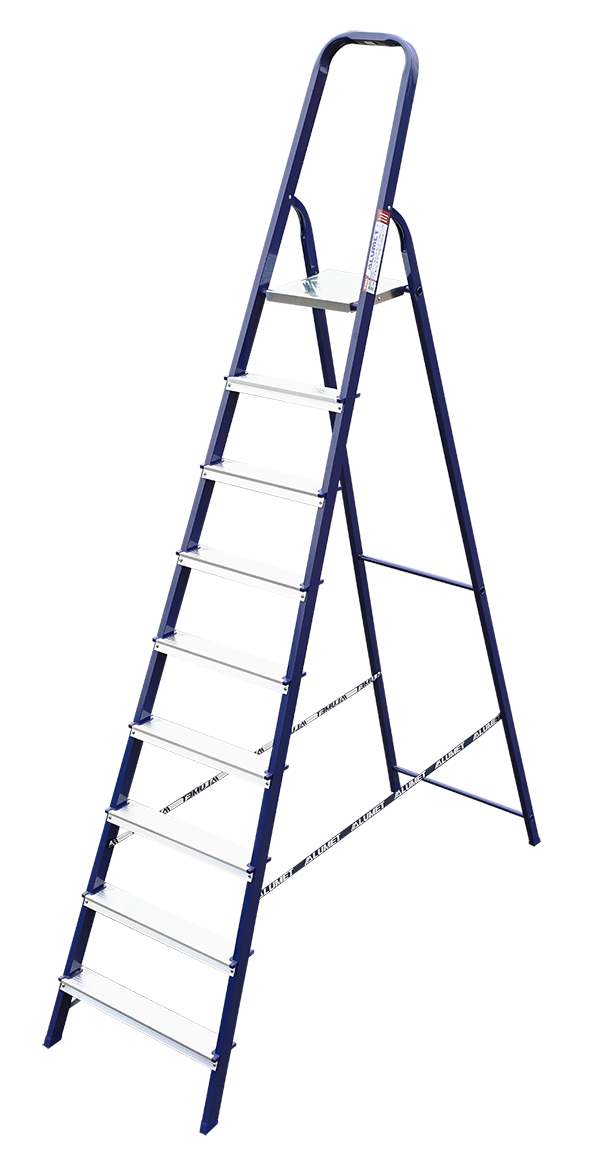

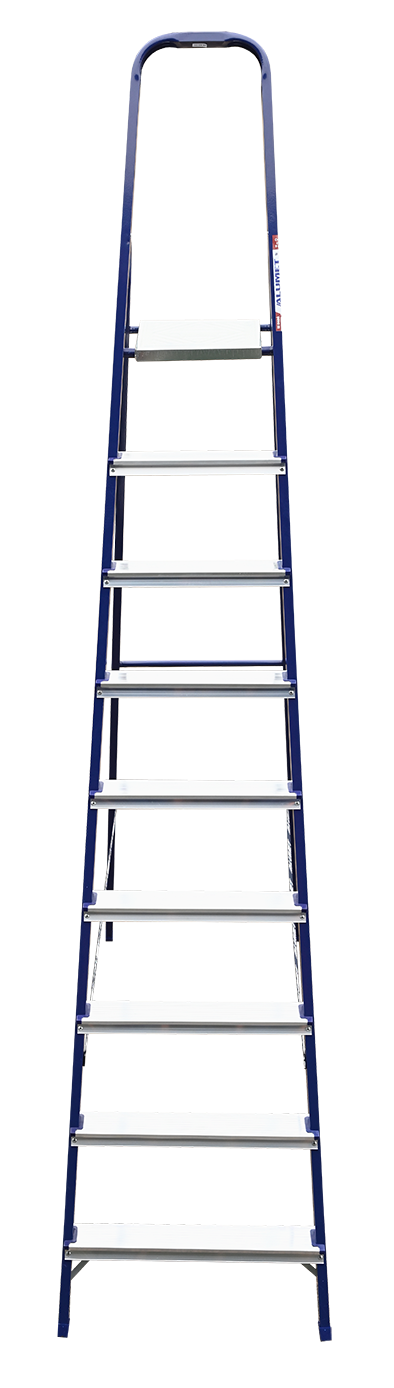

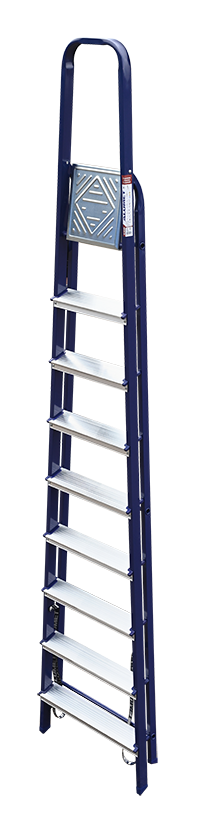

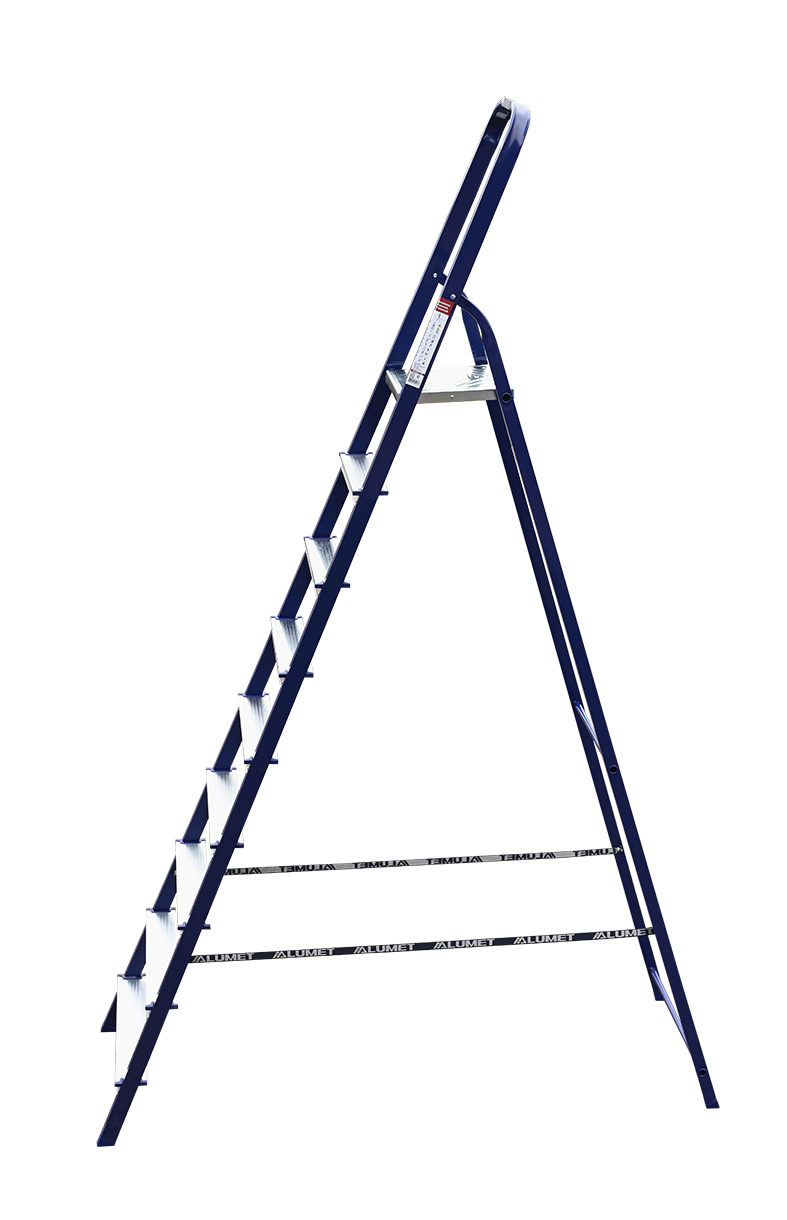

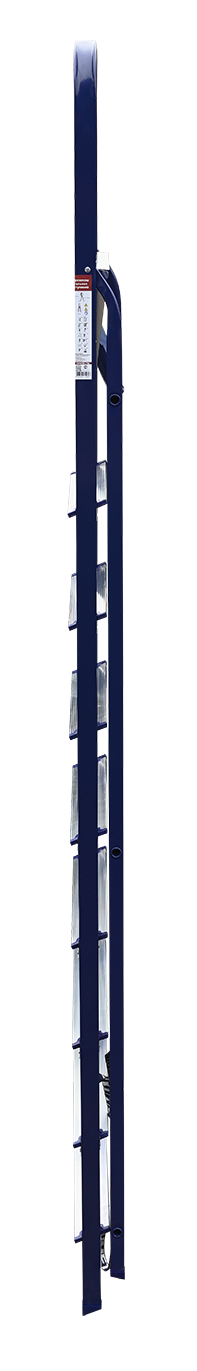

M 8409

Vendor code M 8409
Number of steps 9
Height 1.87
Length 2.69
Height max 3.97
Width 0.56
Front arch profile 40x20
Rear leg profile 30x20

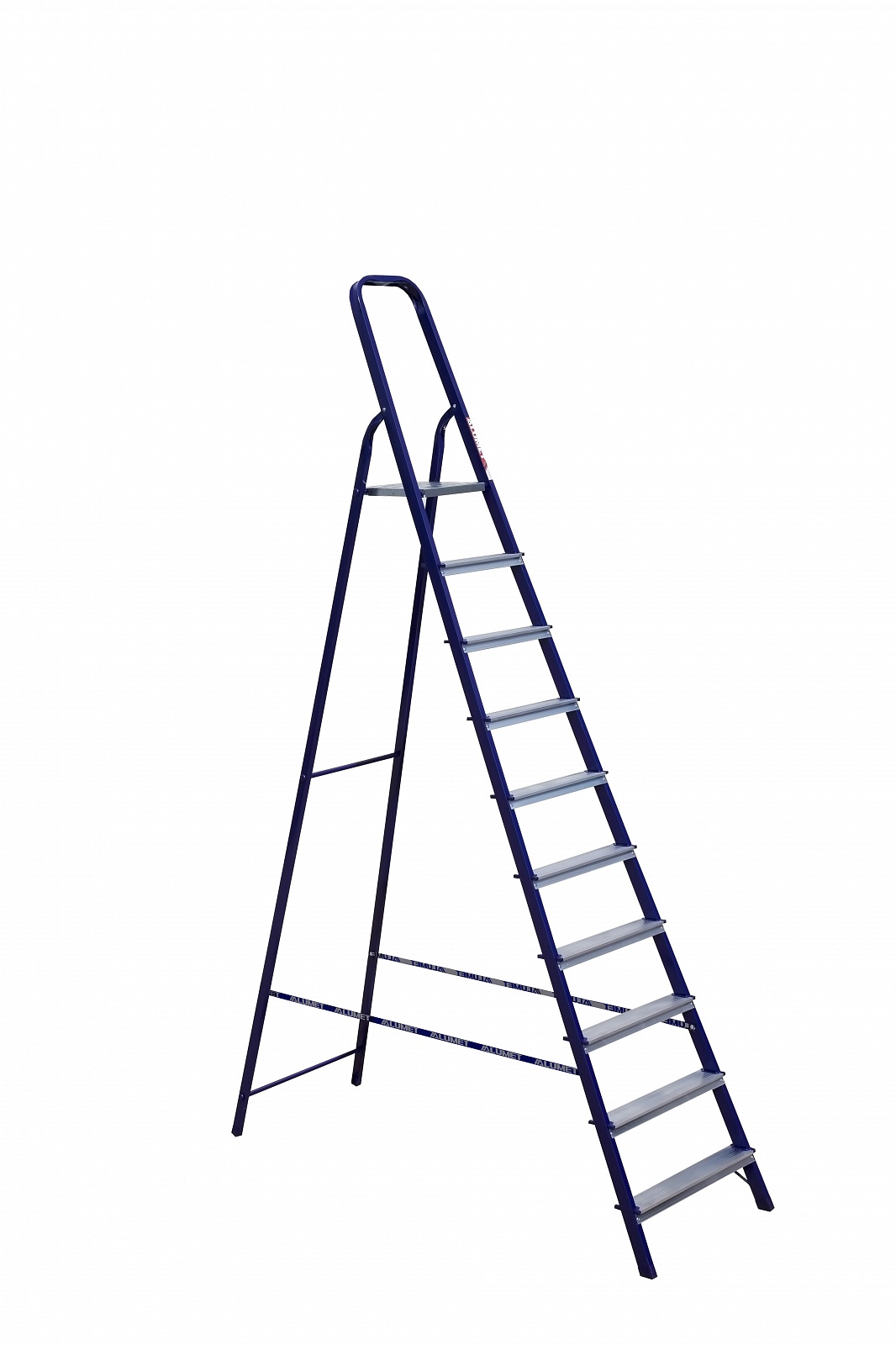

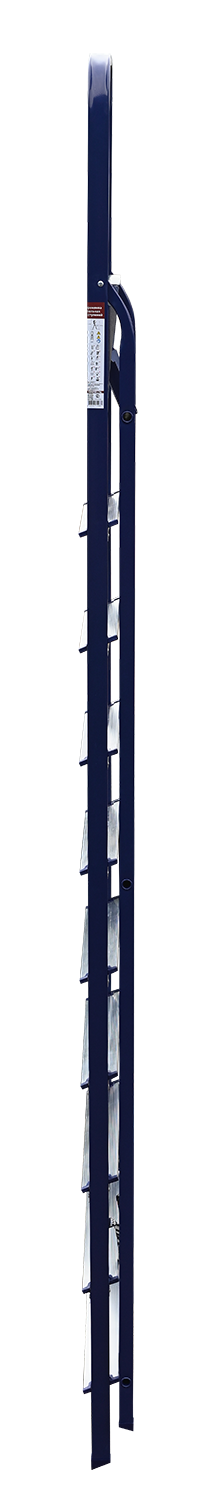

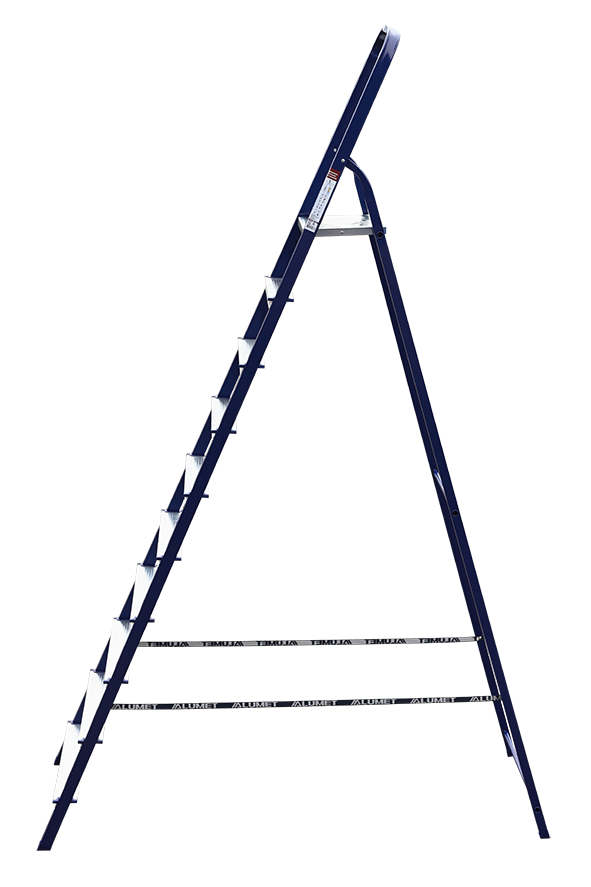

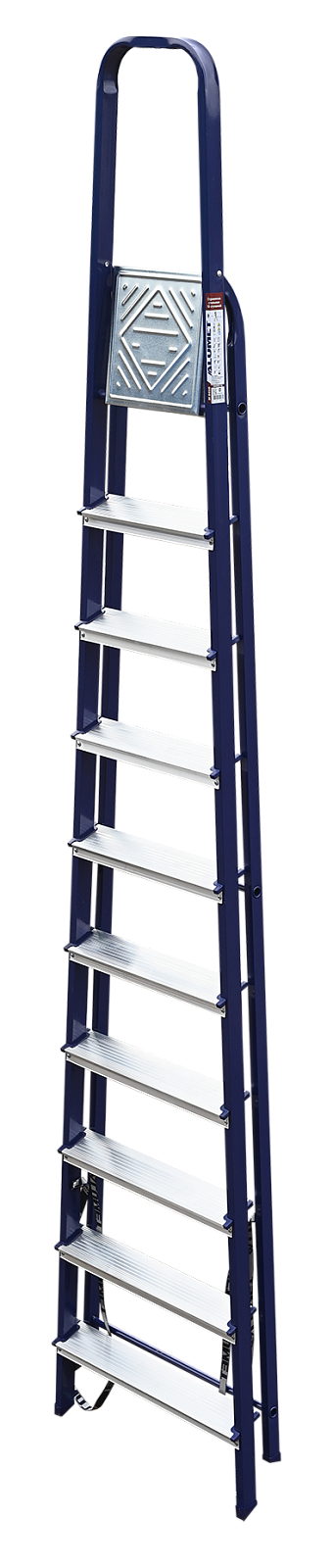

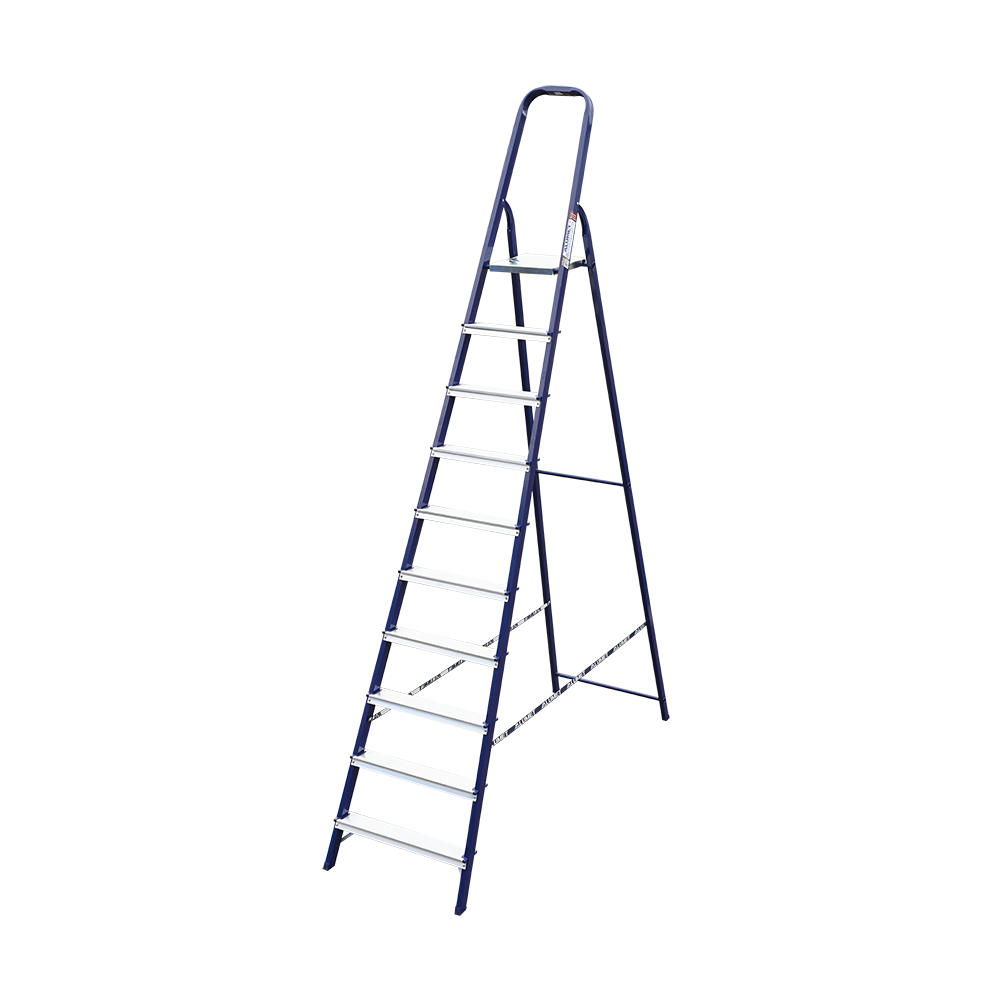

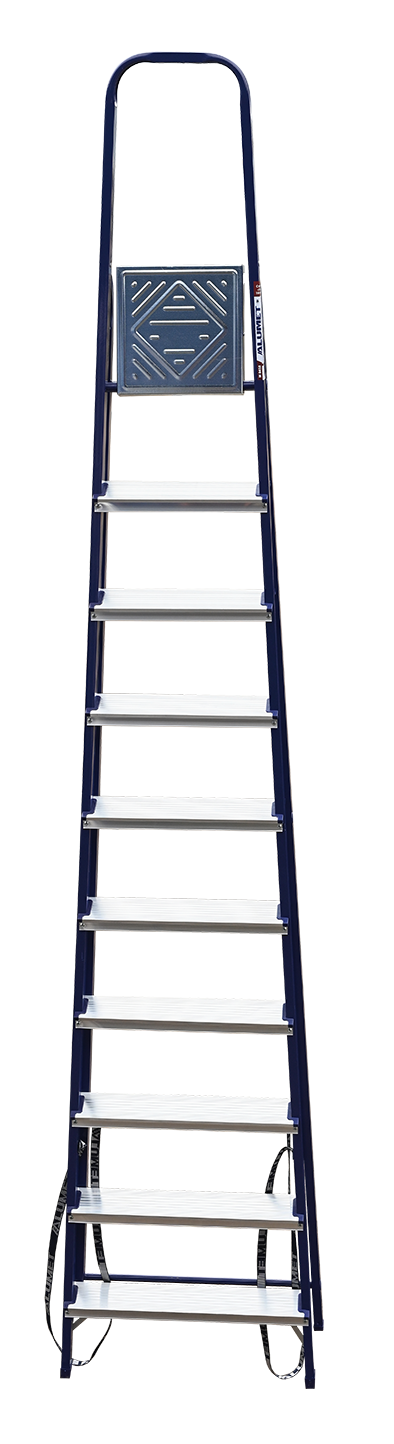

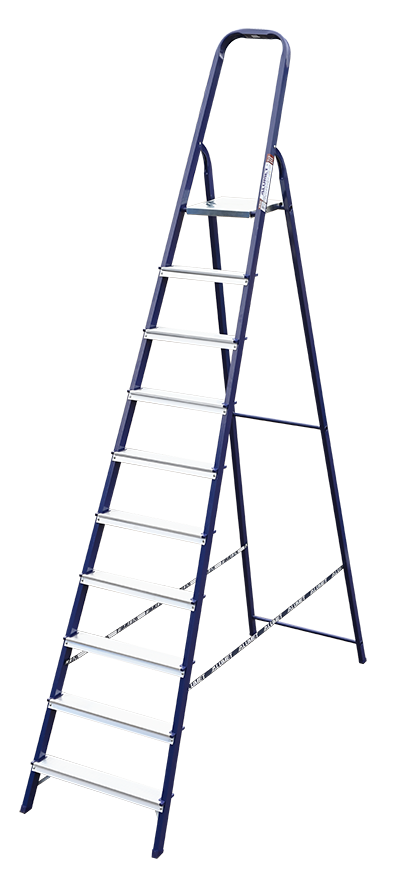

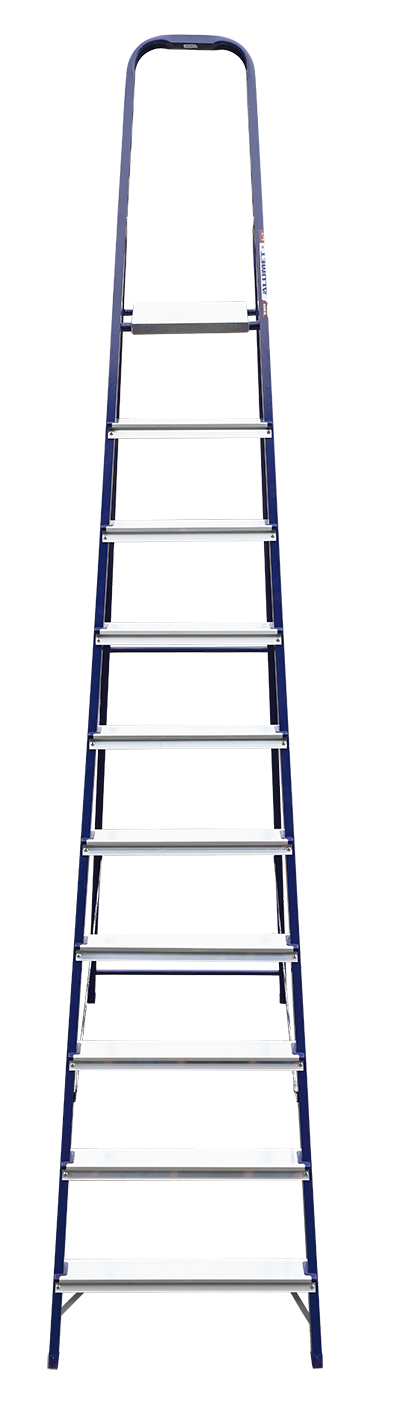

M 8410

Vendor code M 8410
Number of steps 10
Height 2.08
Length 2.92
Height max 4.18
Width 0.58
Front arch profile 40x20
Rear leg profile 30x20

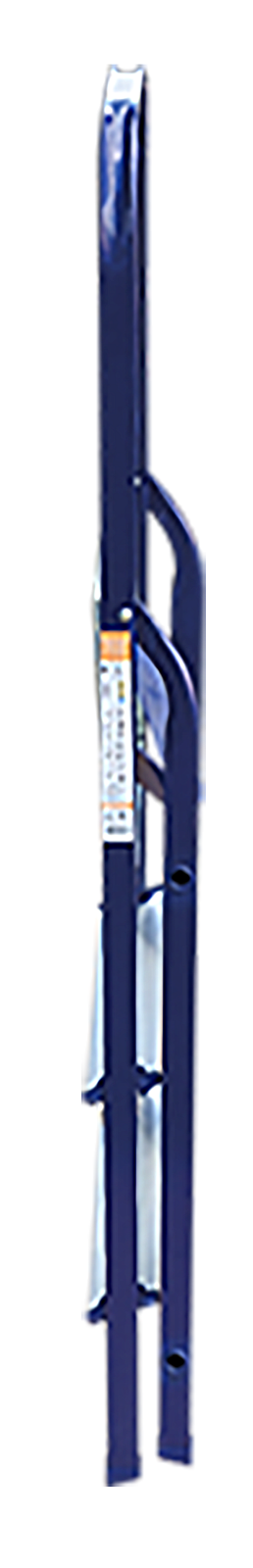

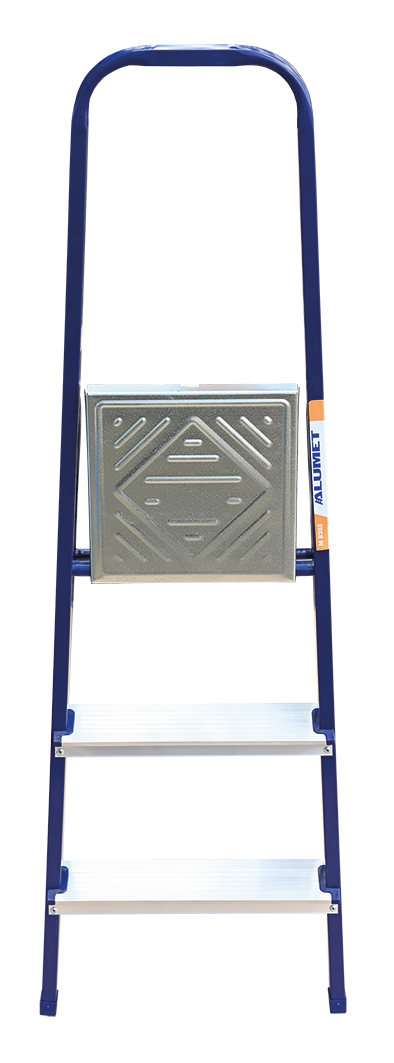

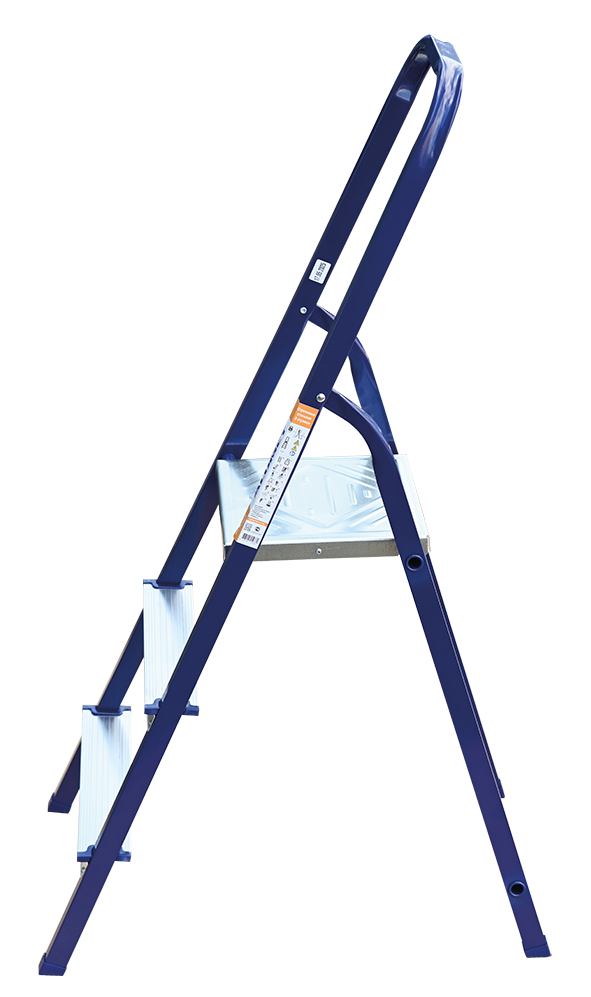

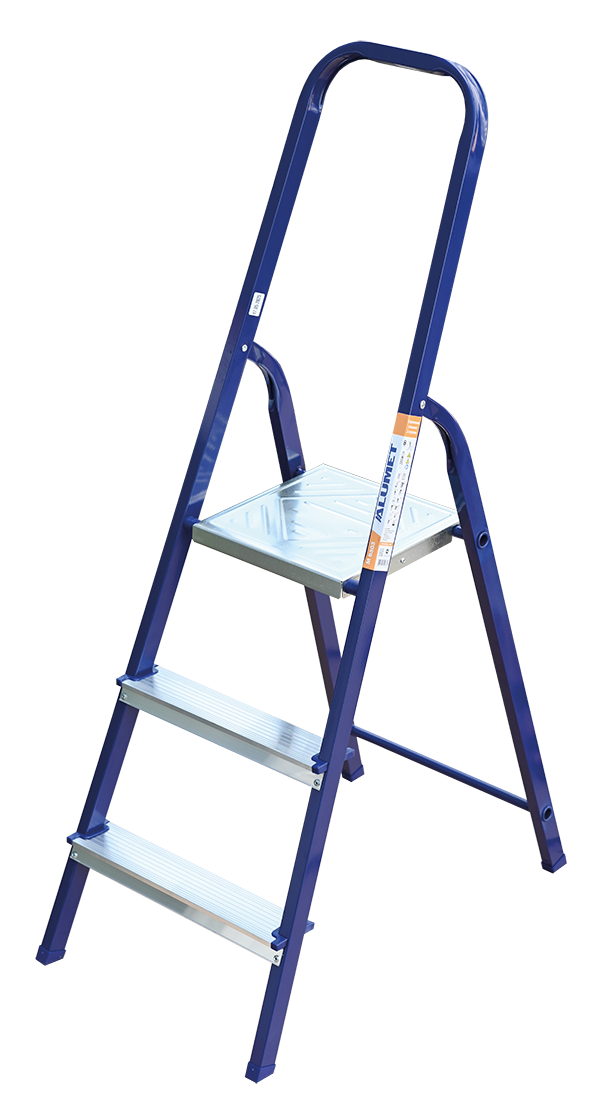

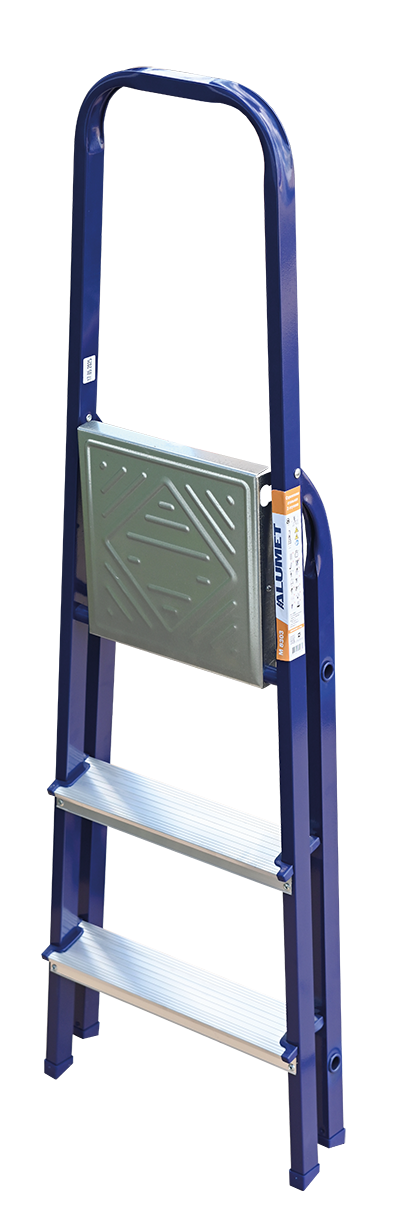

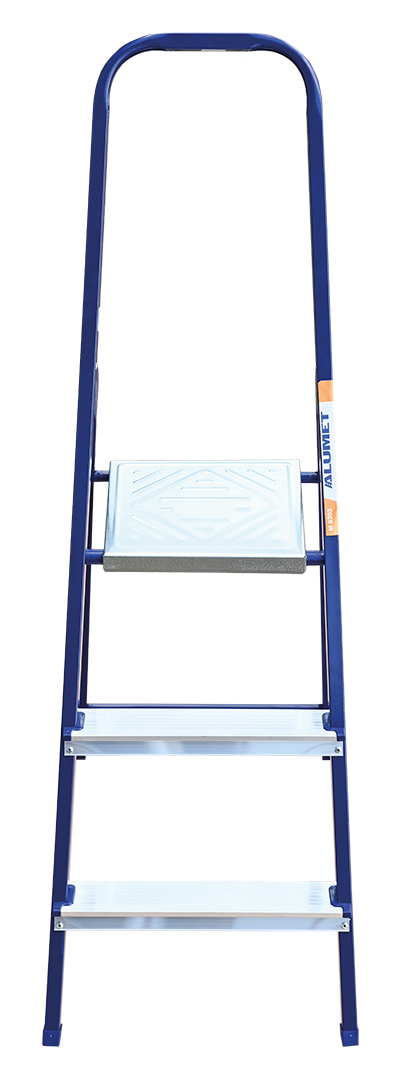

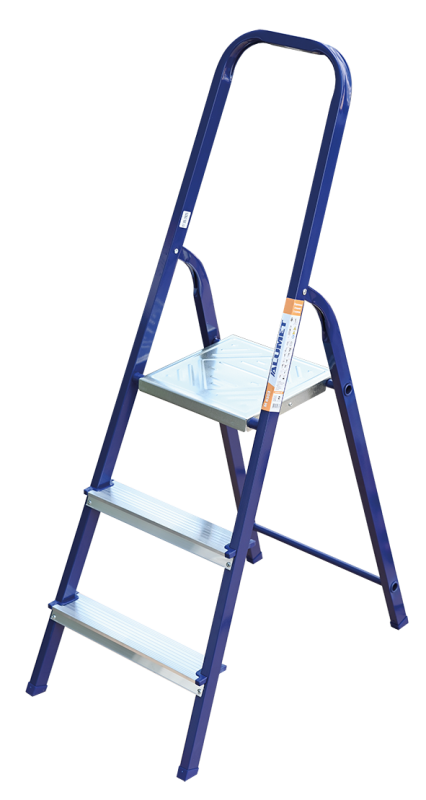

M 8303

Vendor code M 8303
Number of steps 3
Height 0.60
Length 1.31
Height max 2.70
Width 0.42
Front arch profile 30x20
Rear leg profile 30x20

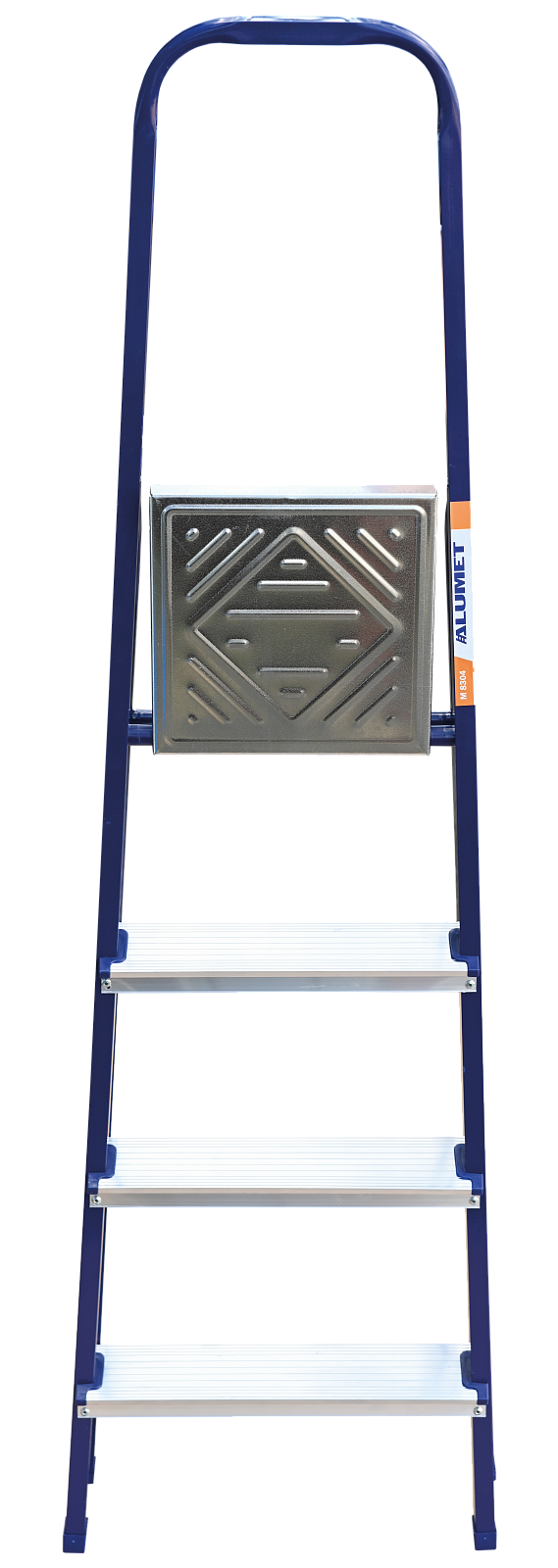

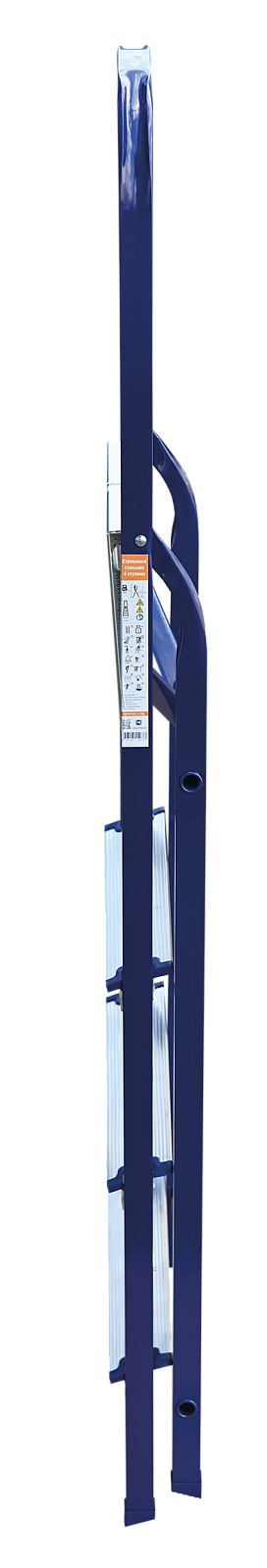

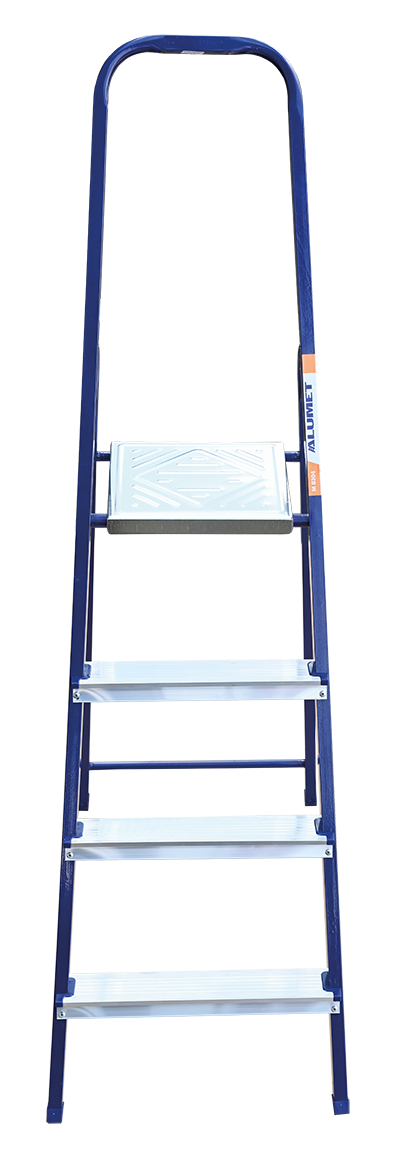

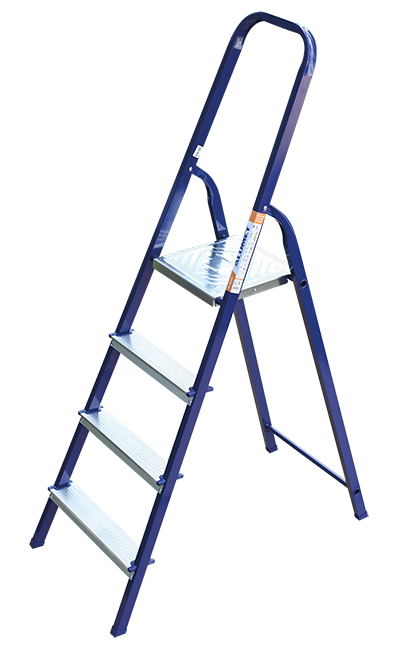

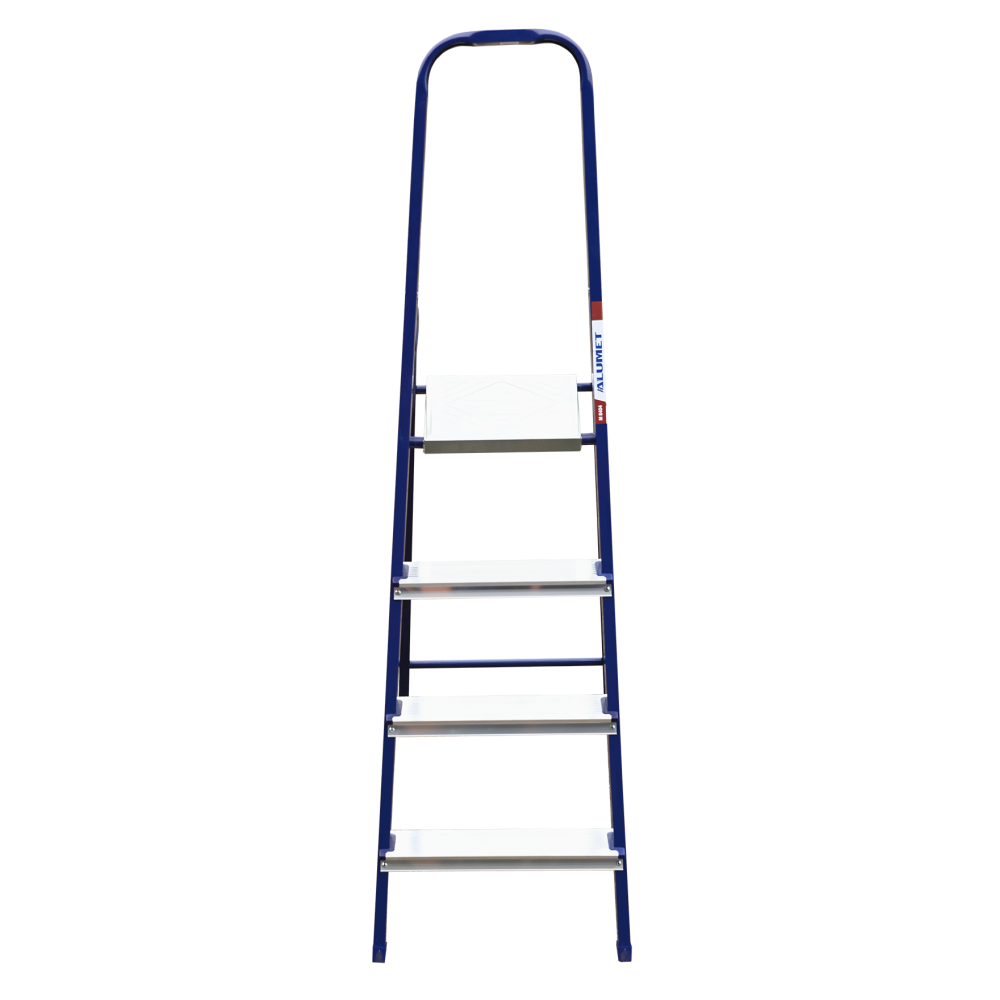

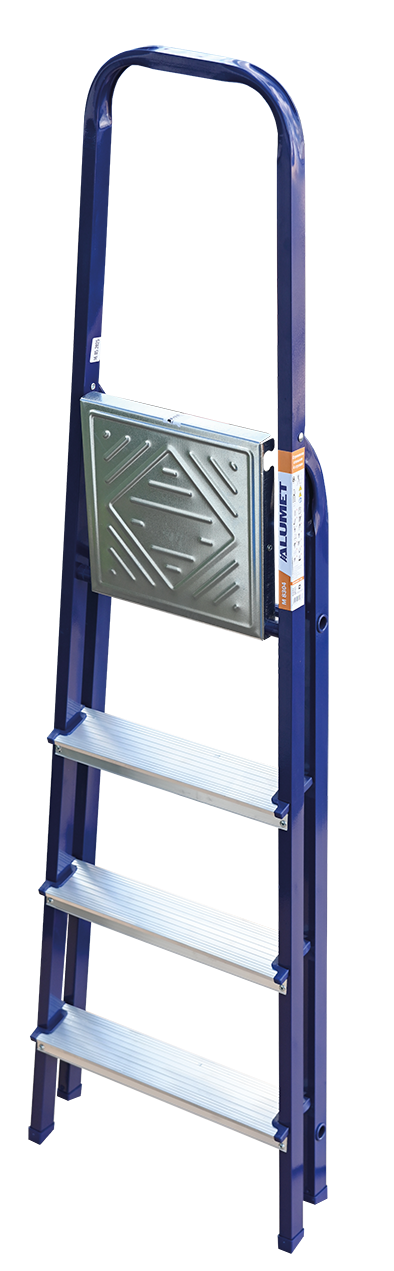

M 8304

Vendor code M 8304
Number of steps 4
Height 0.81
Length 1.54
Height max 2.91
Width 0.44
Front arch profile 30x20
Rear leg profile 30x20

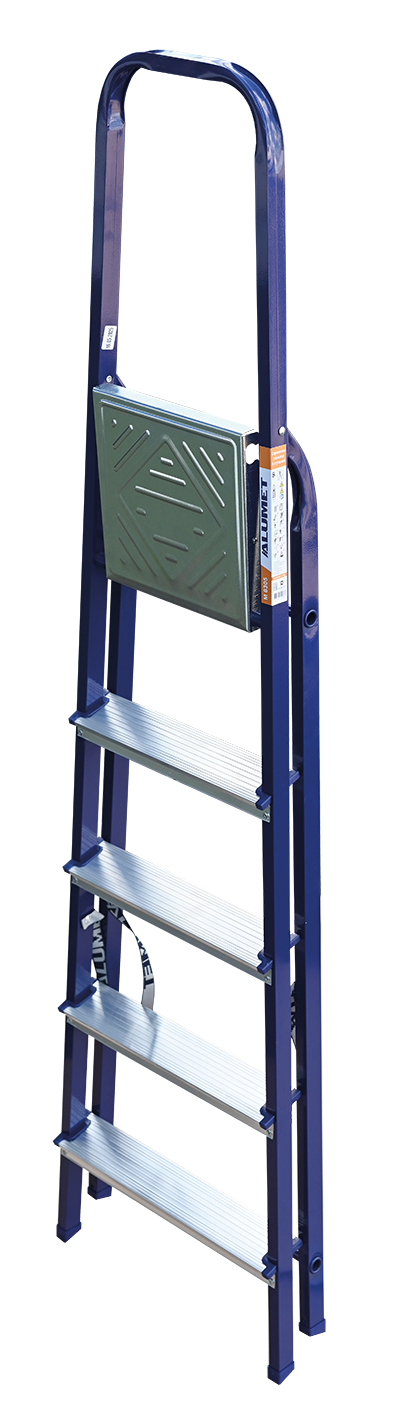

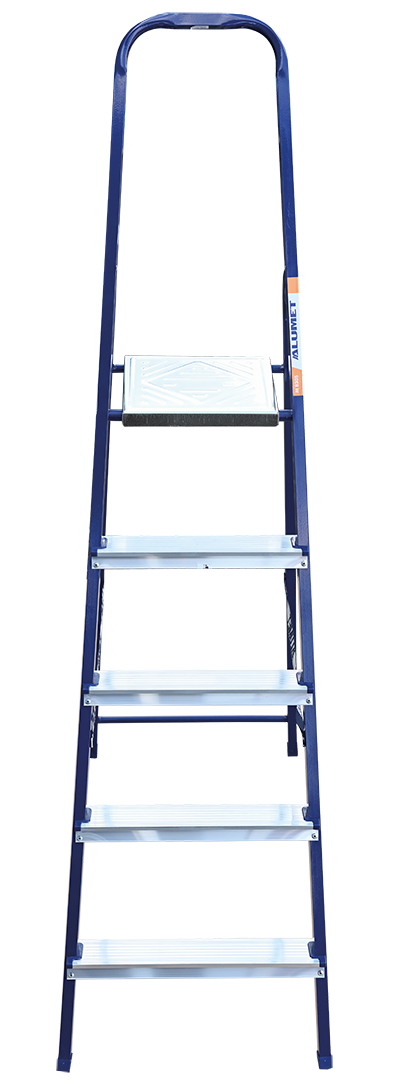

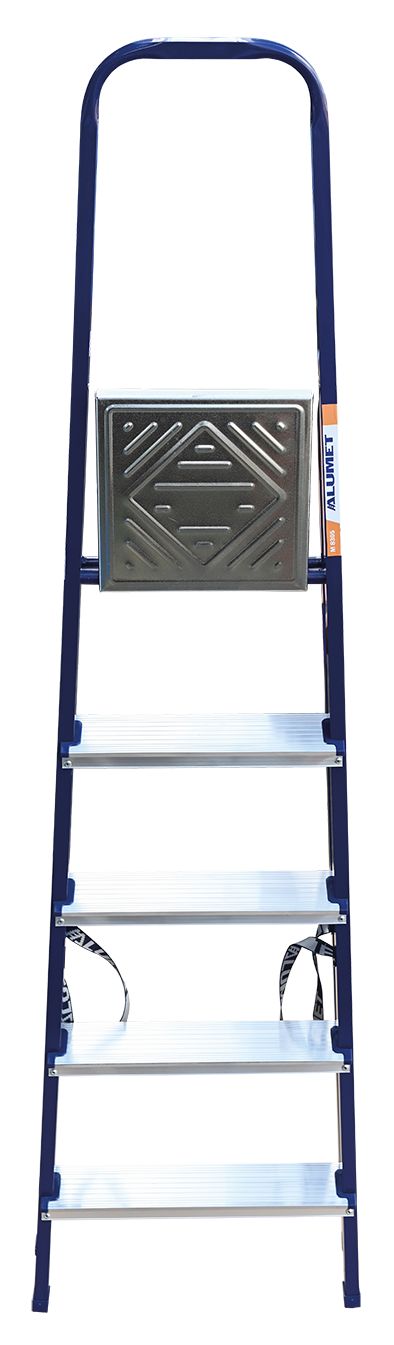

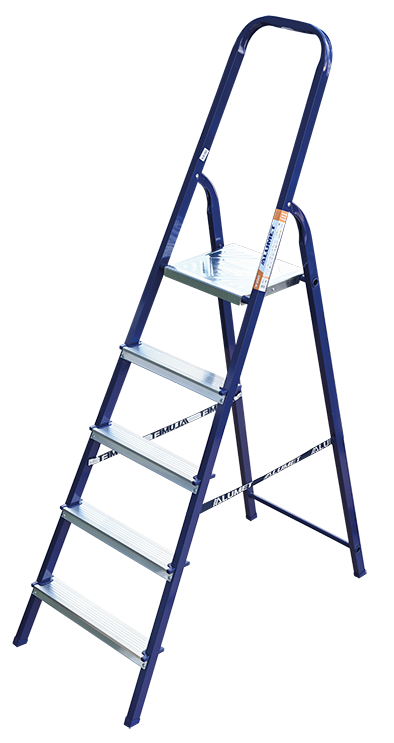

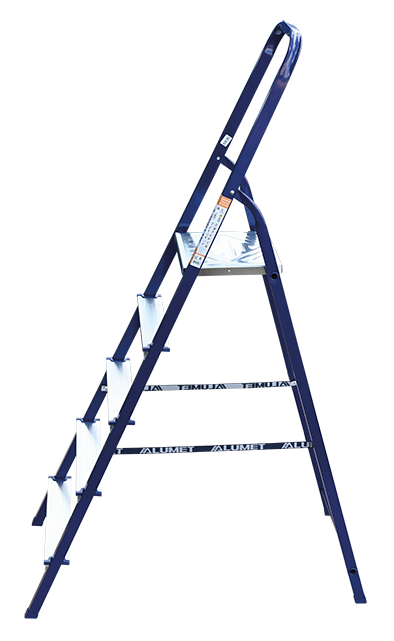

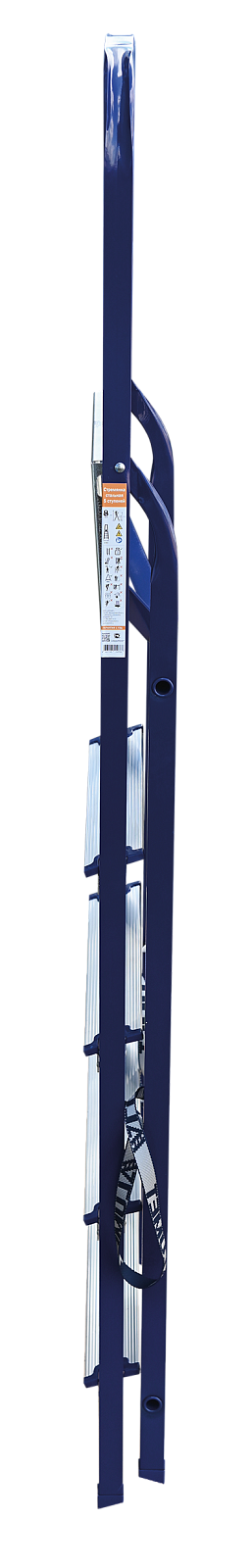

M 8305

Vendor code M 8305
Number of steps 5
Height 1.03
Length 1.77
Height max 3.12
Width 0.46
Front arch profile 30x20
Rear leg profile 30x20

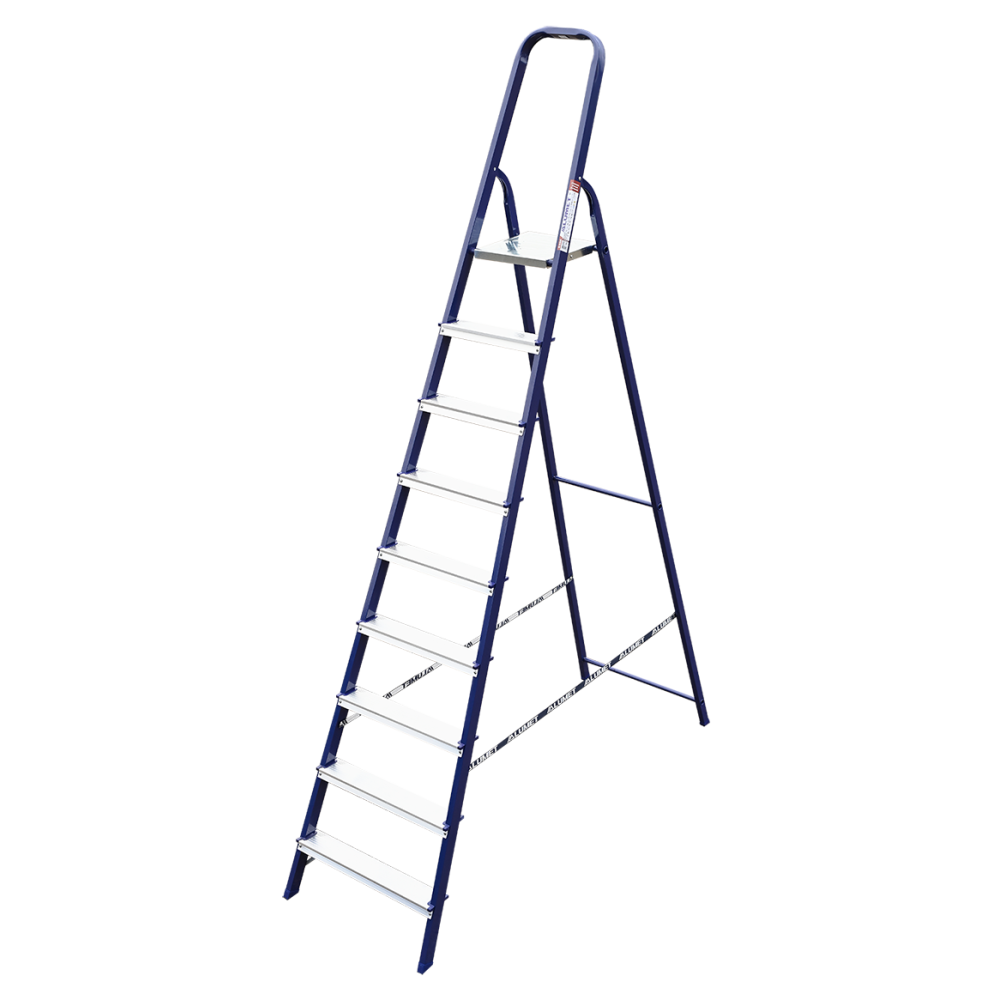

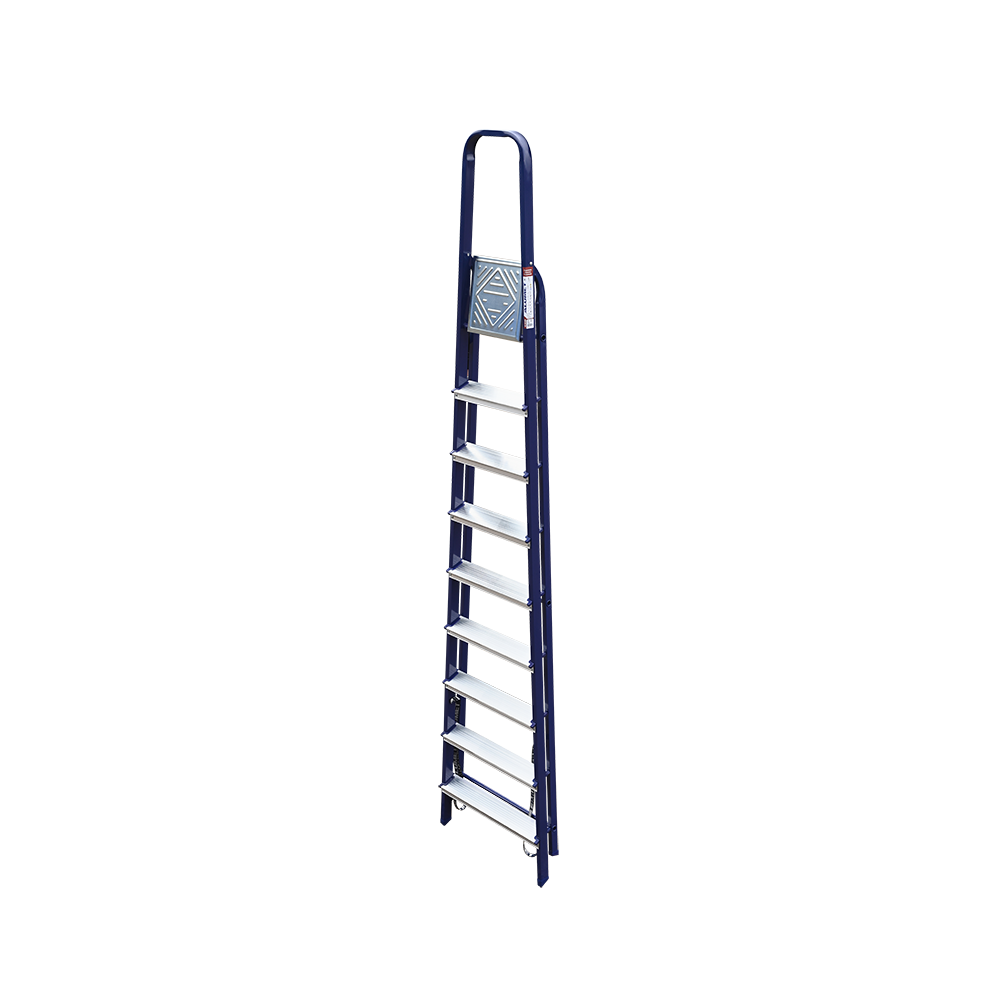

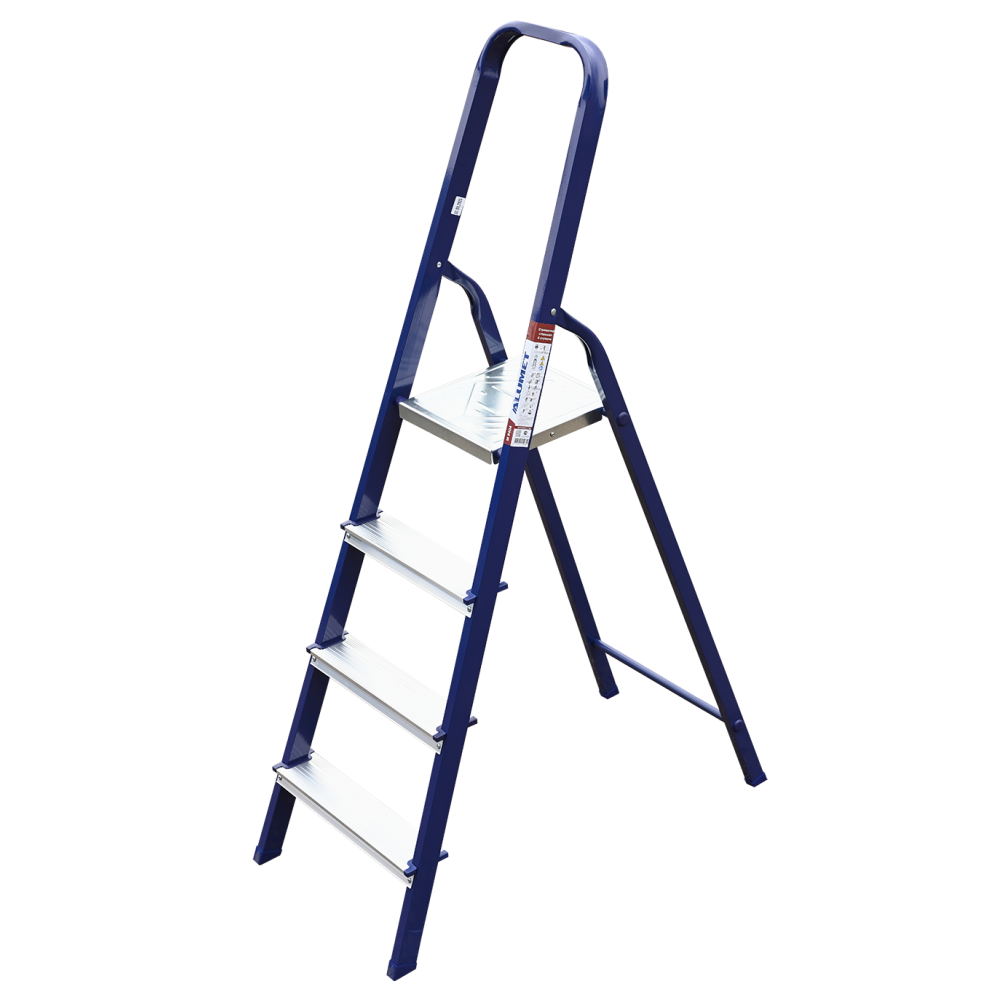

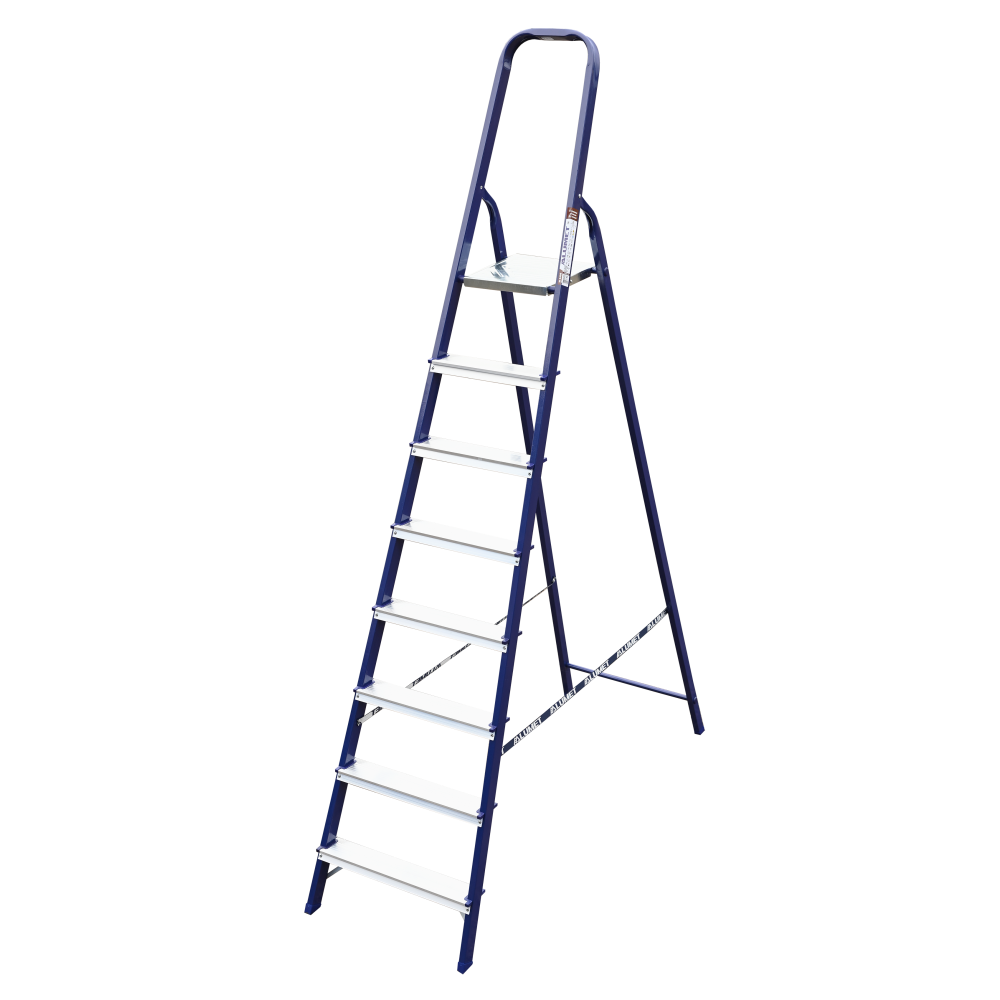

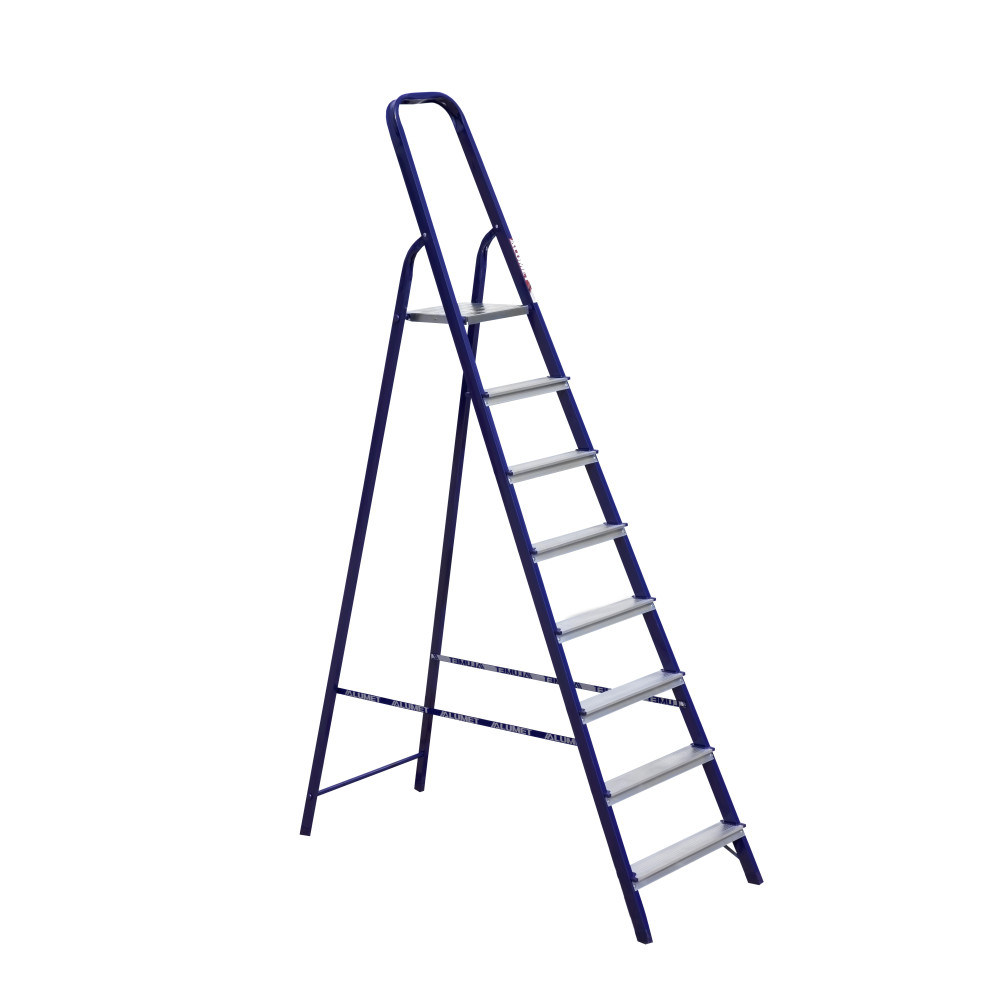

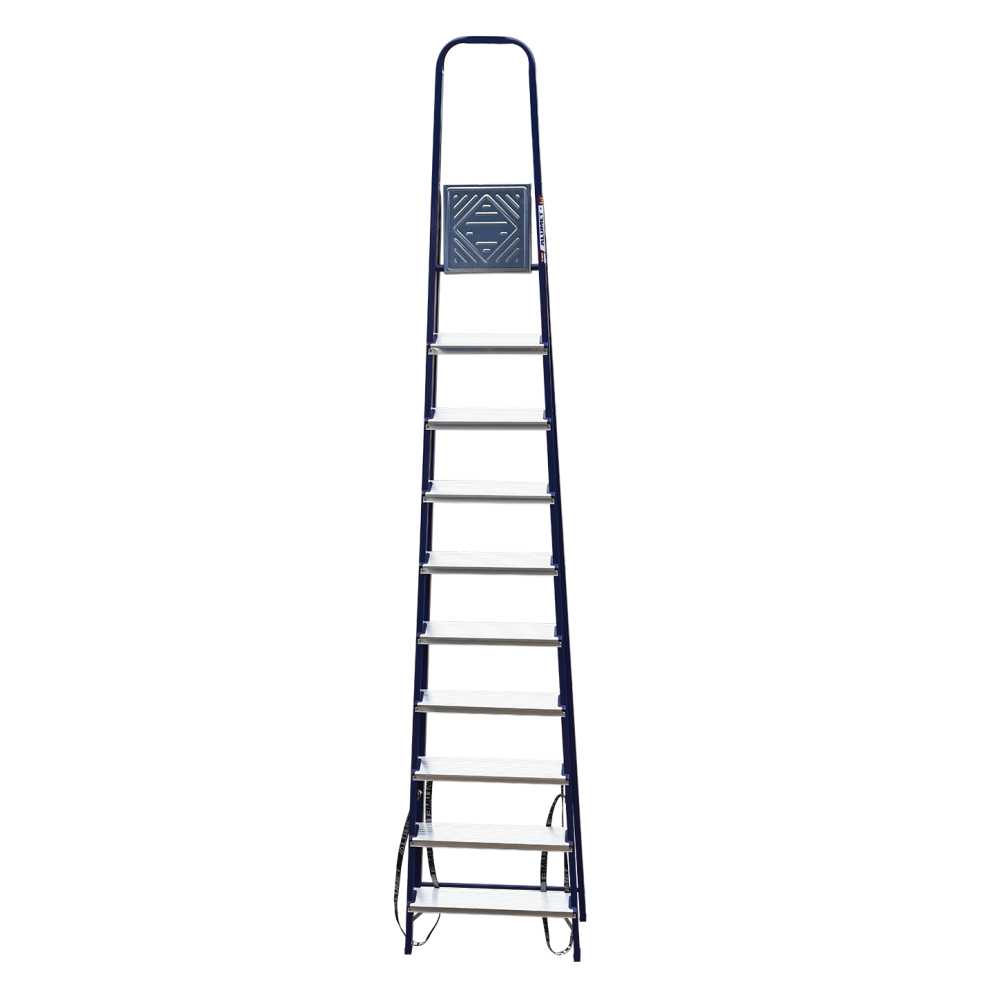

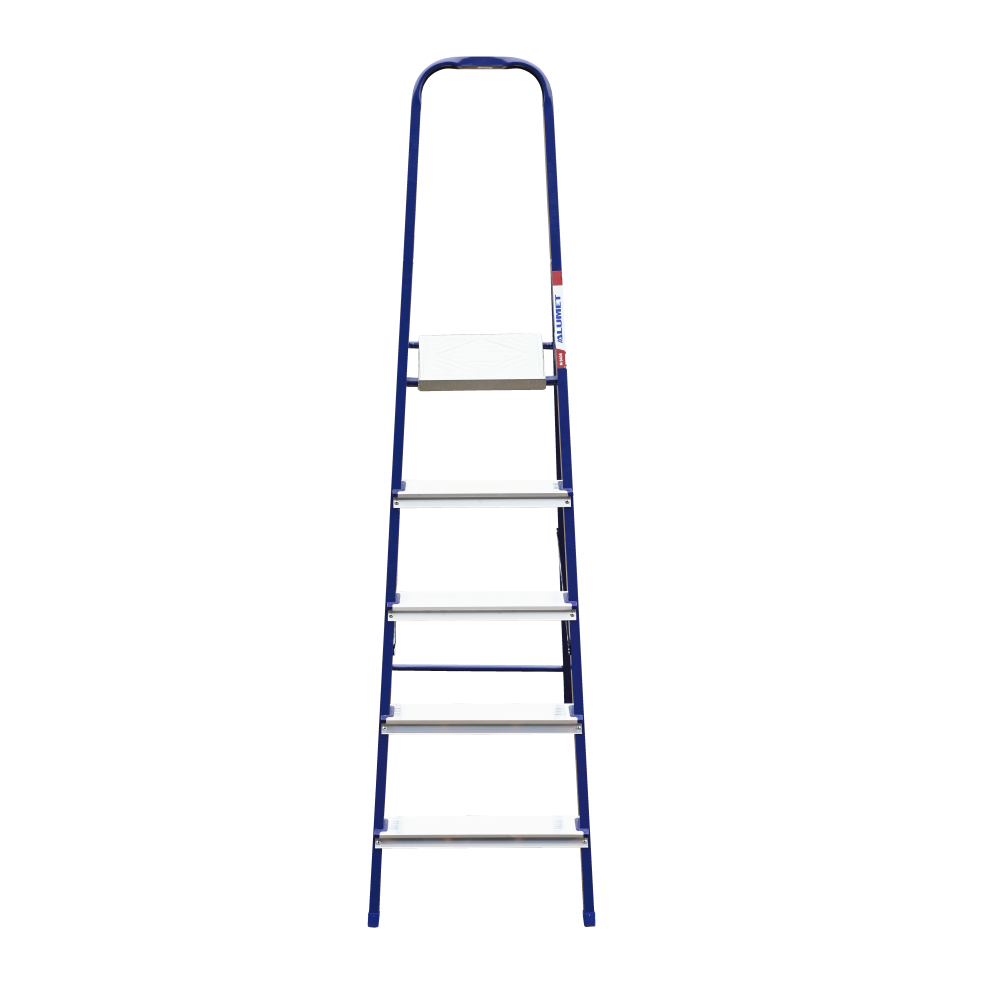

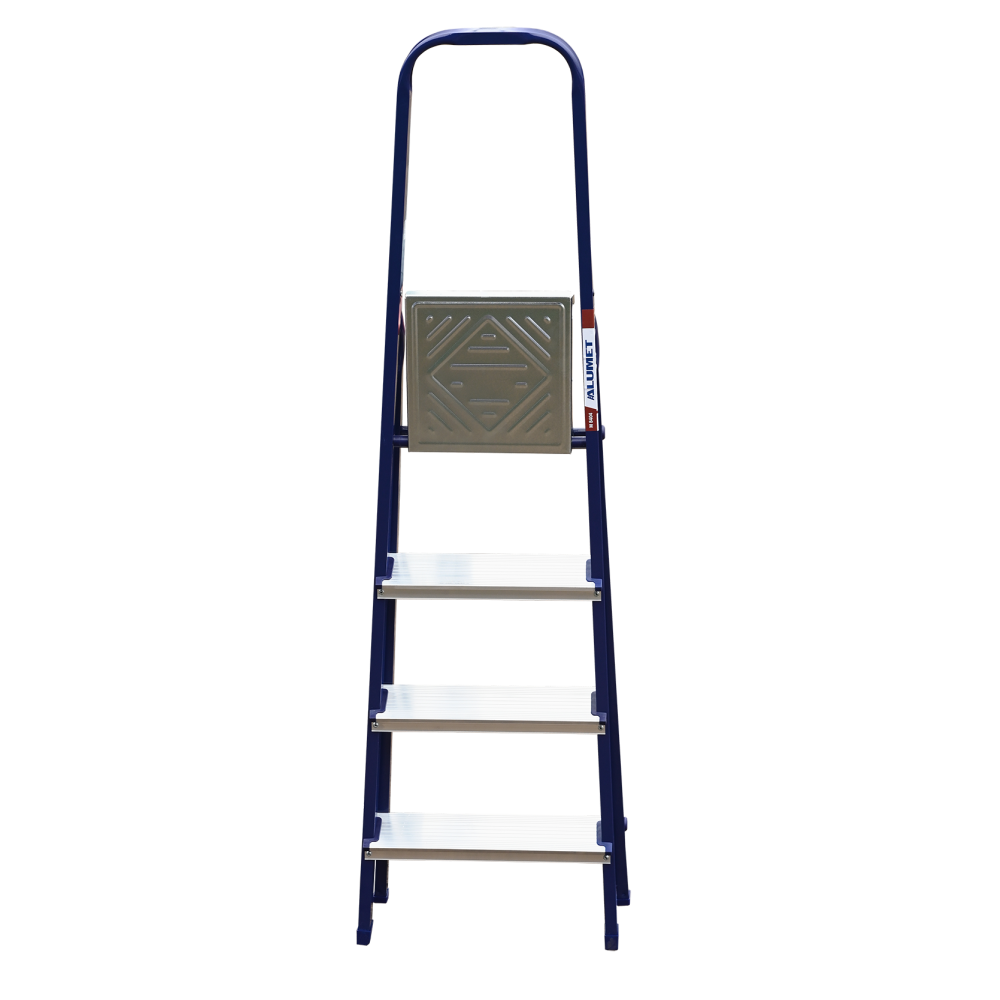

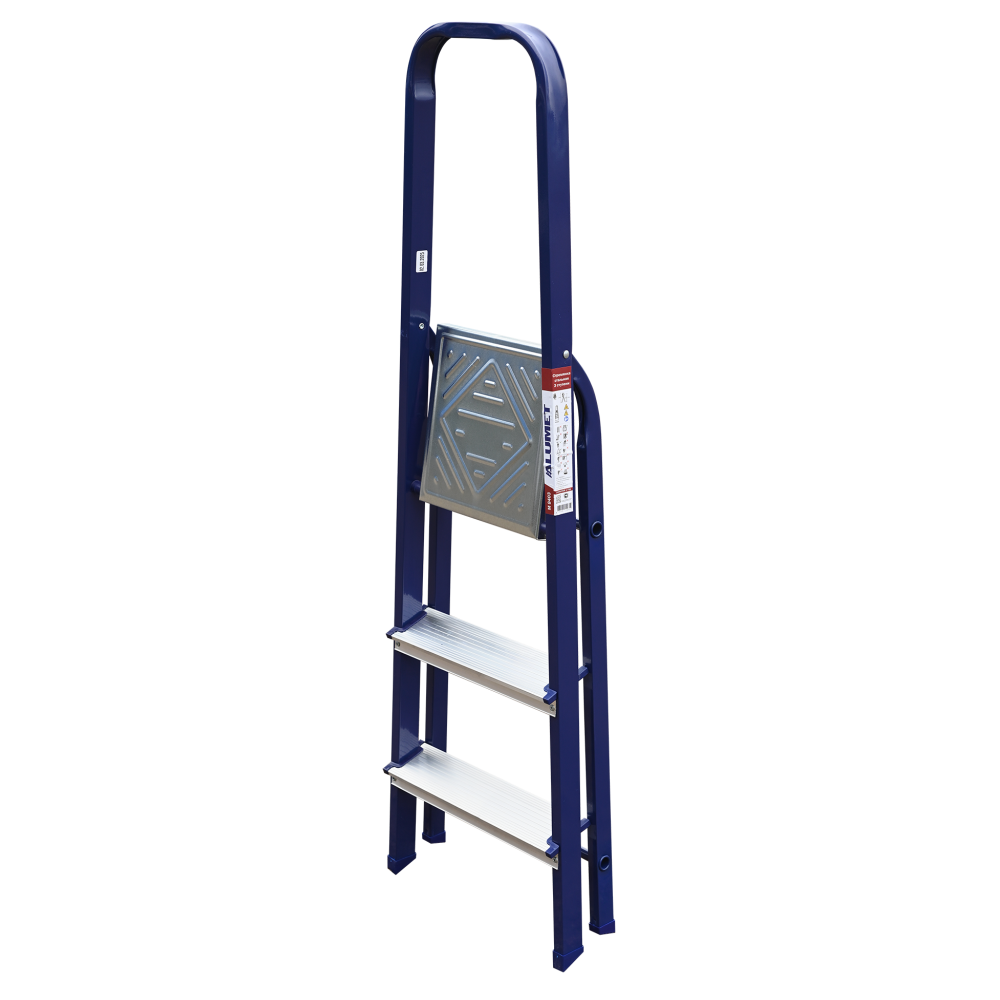

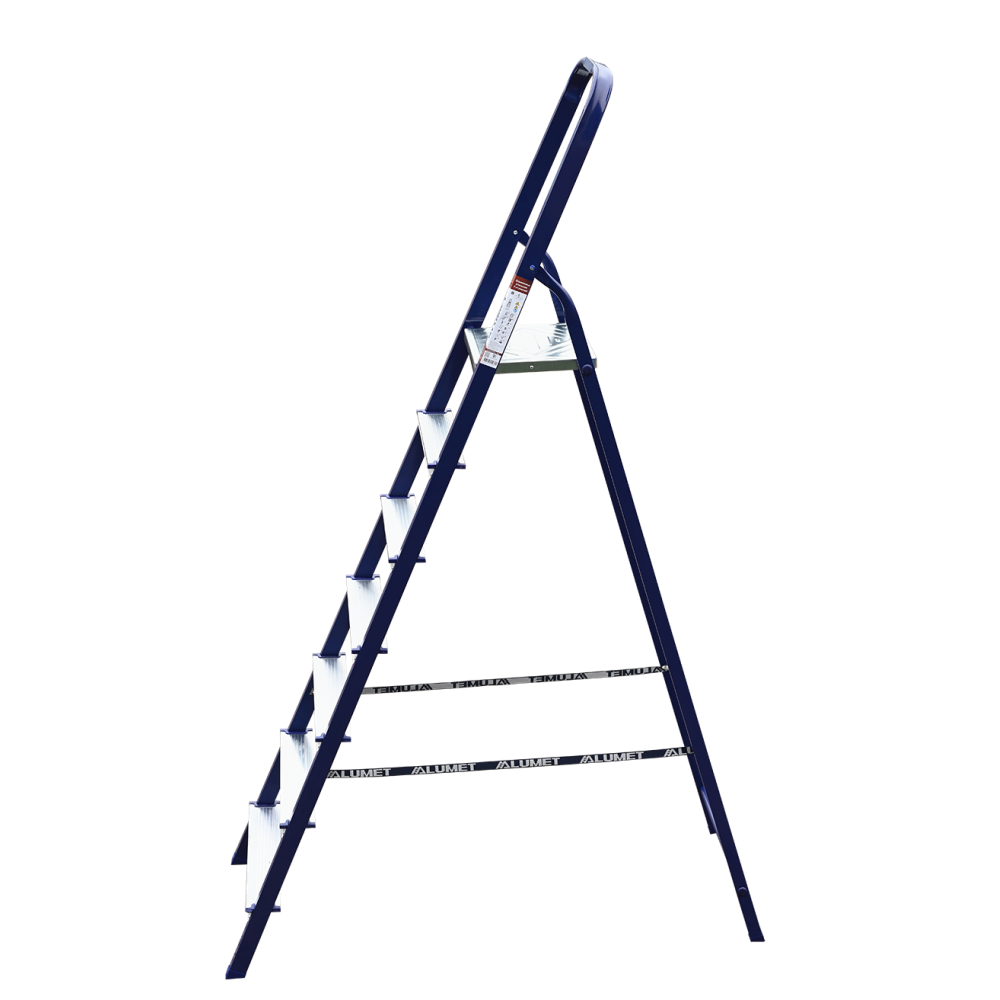

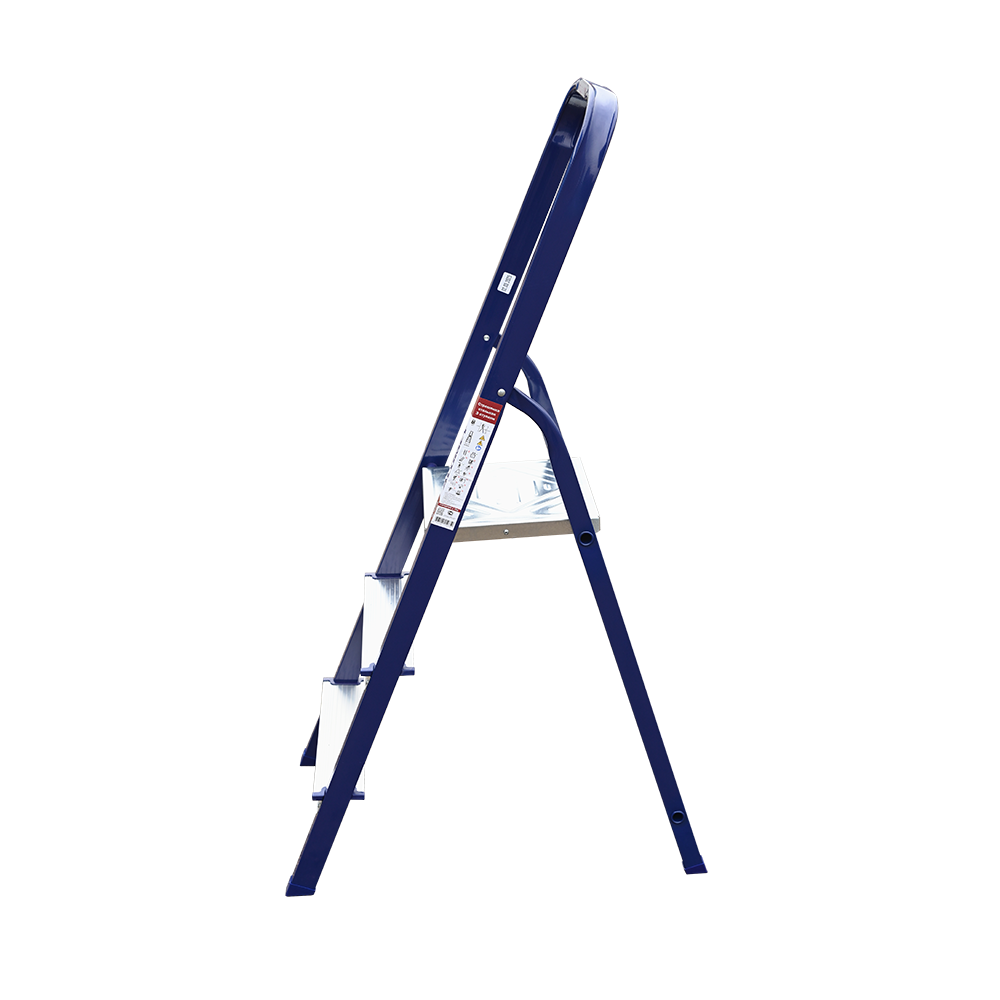

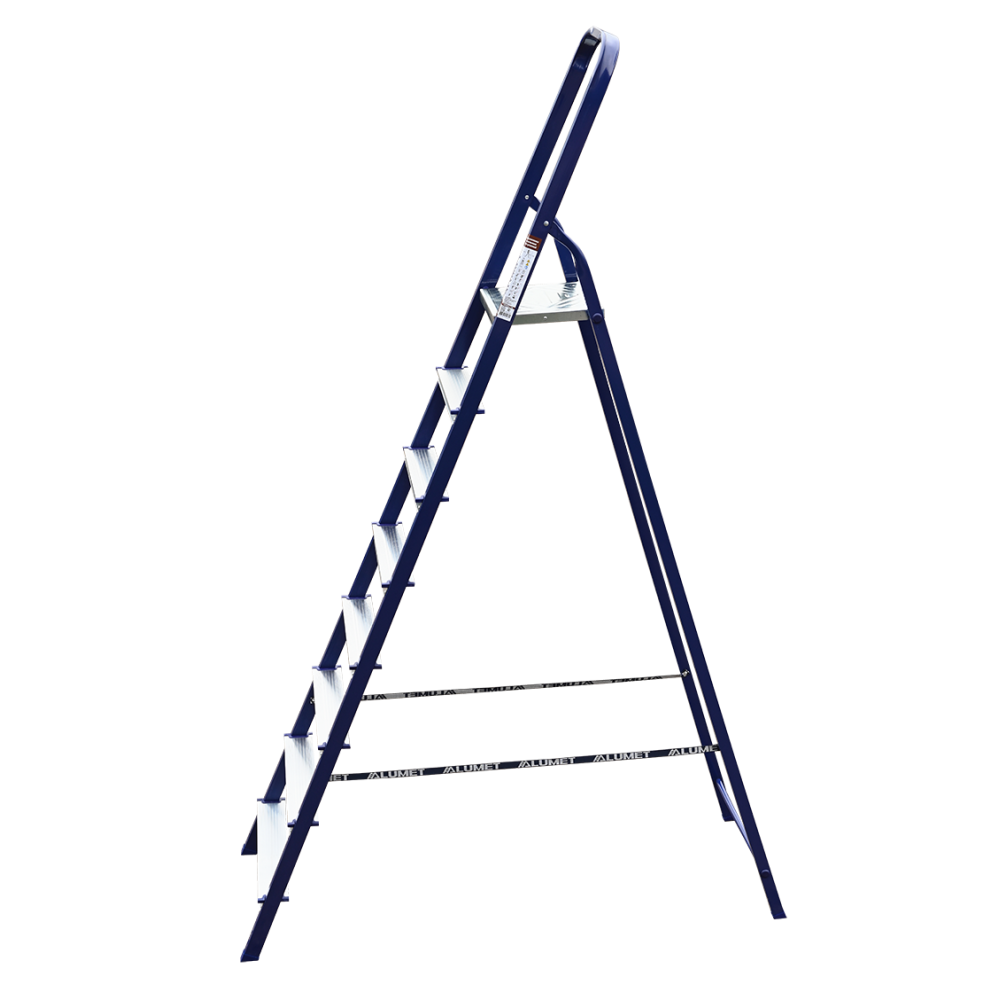

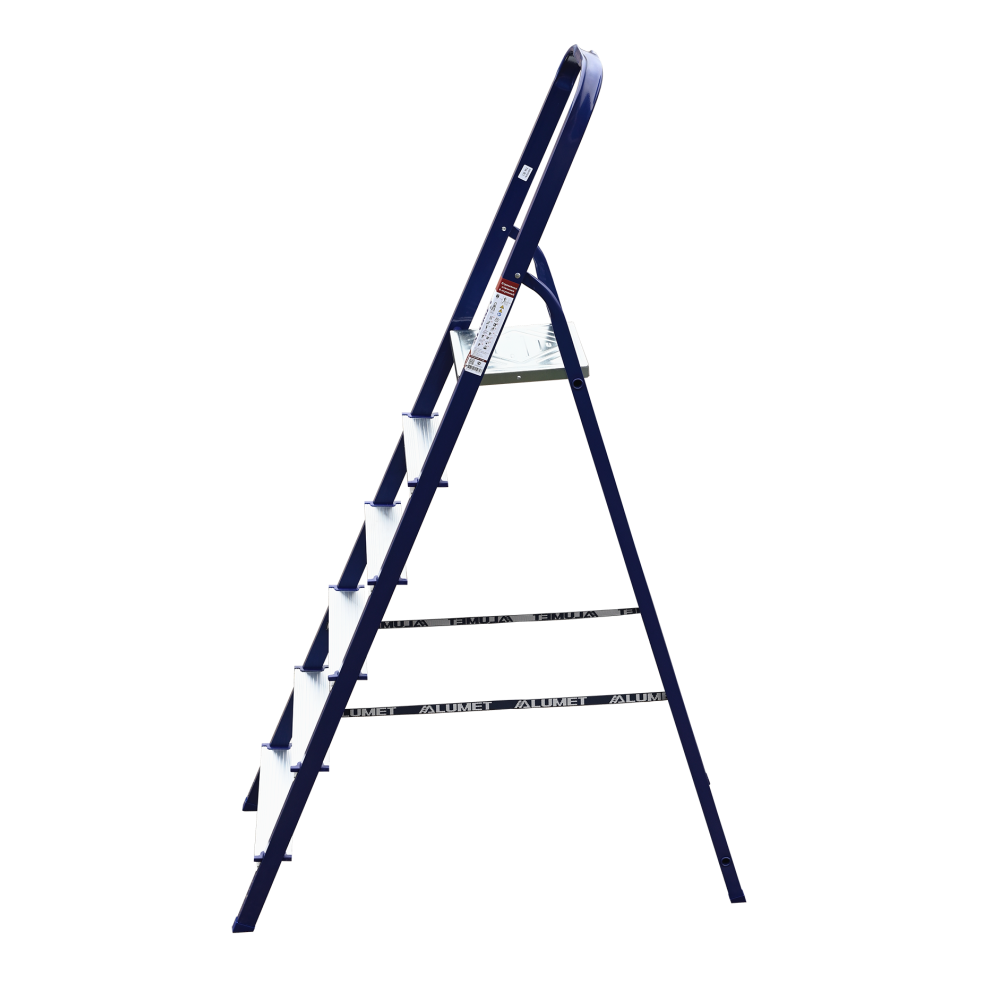

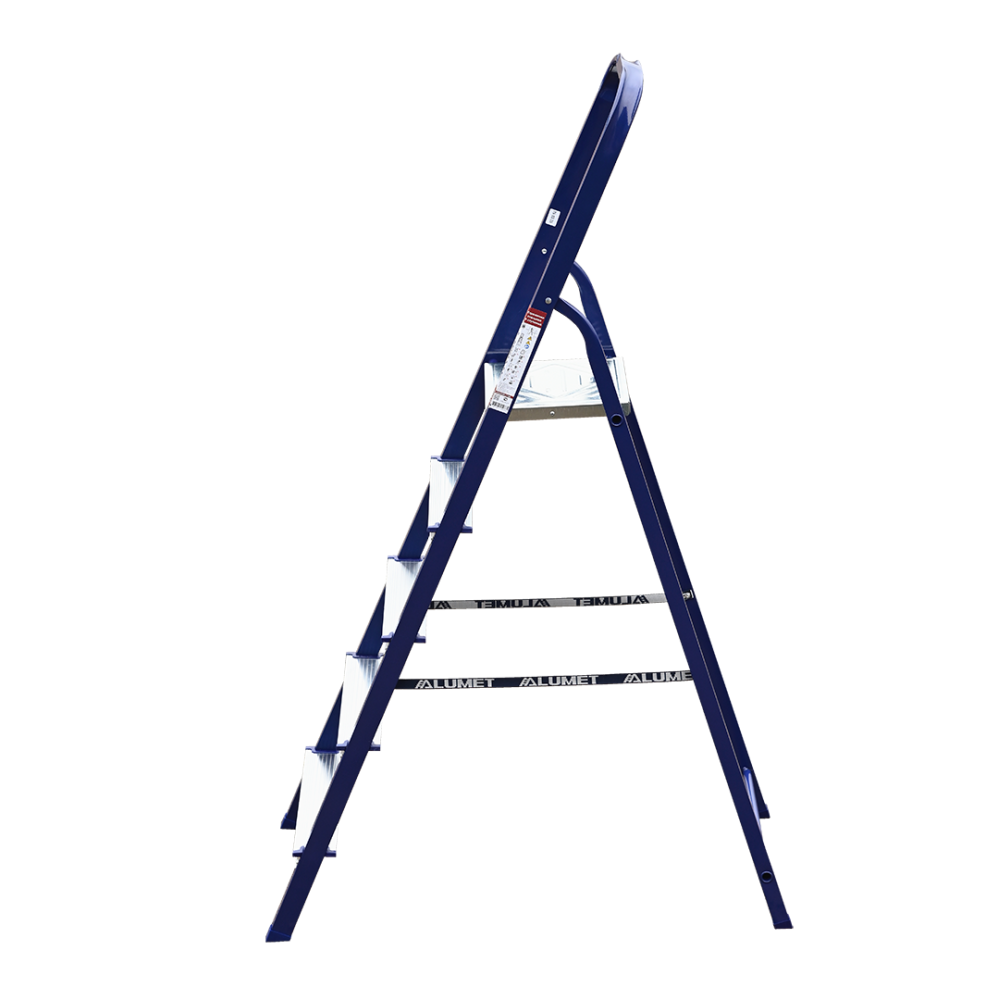

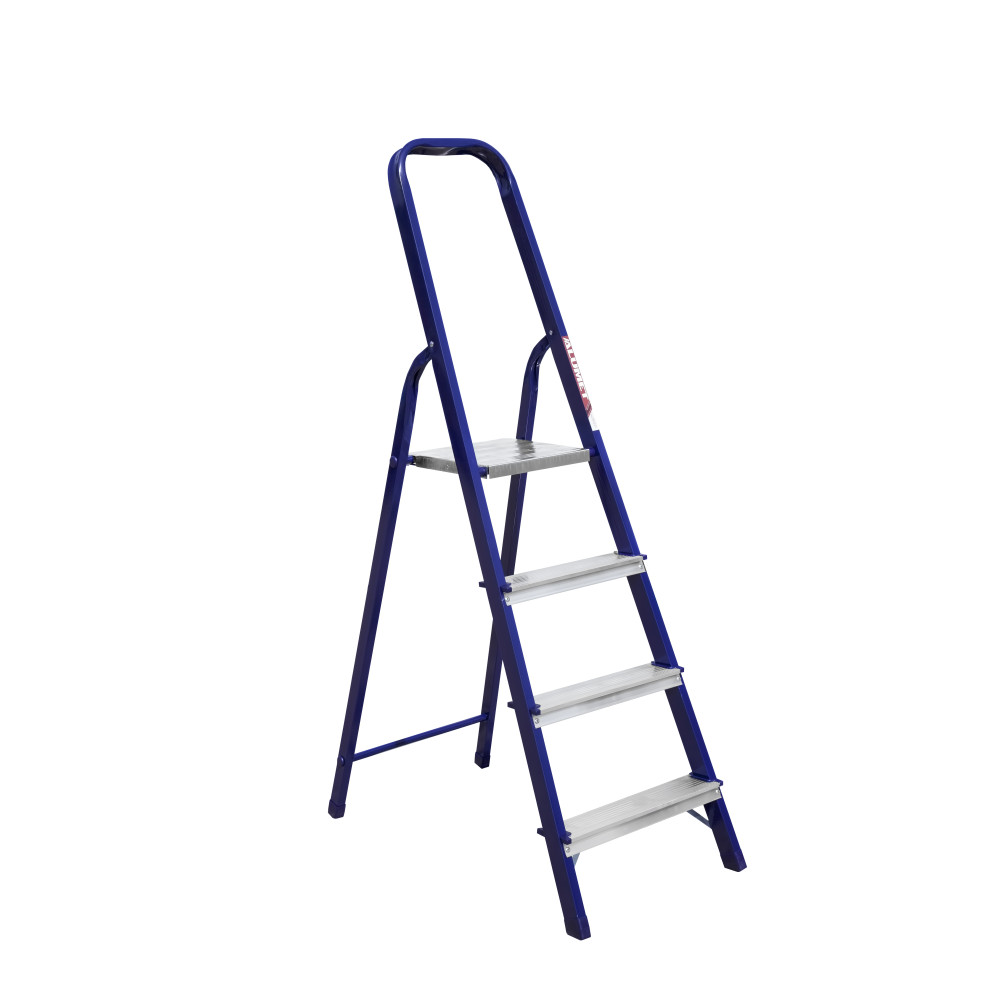

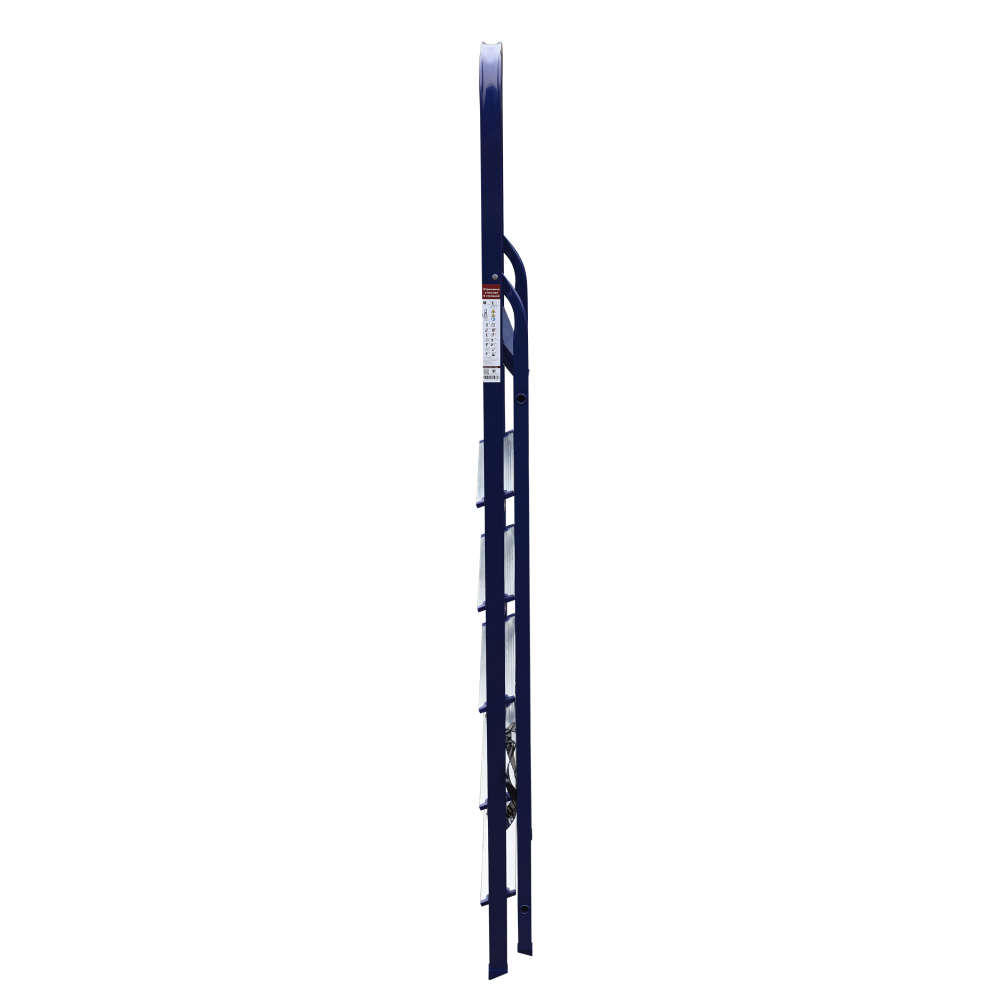

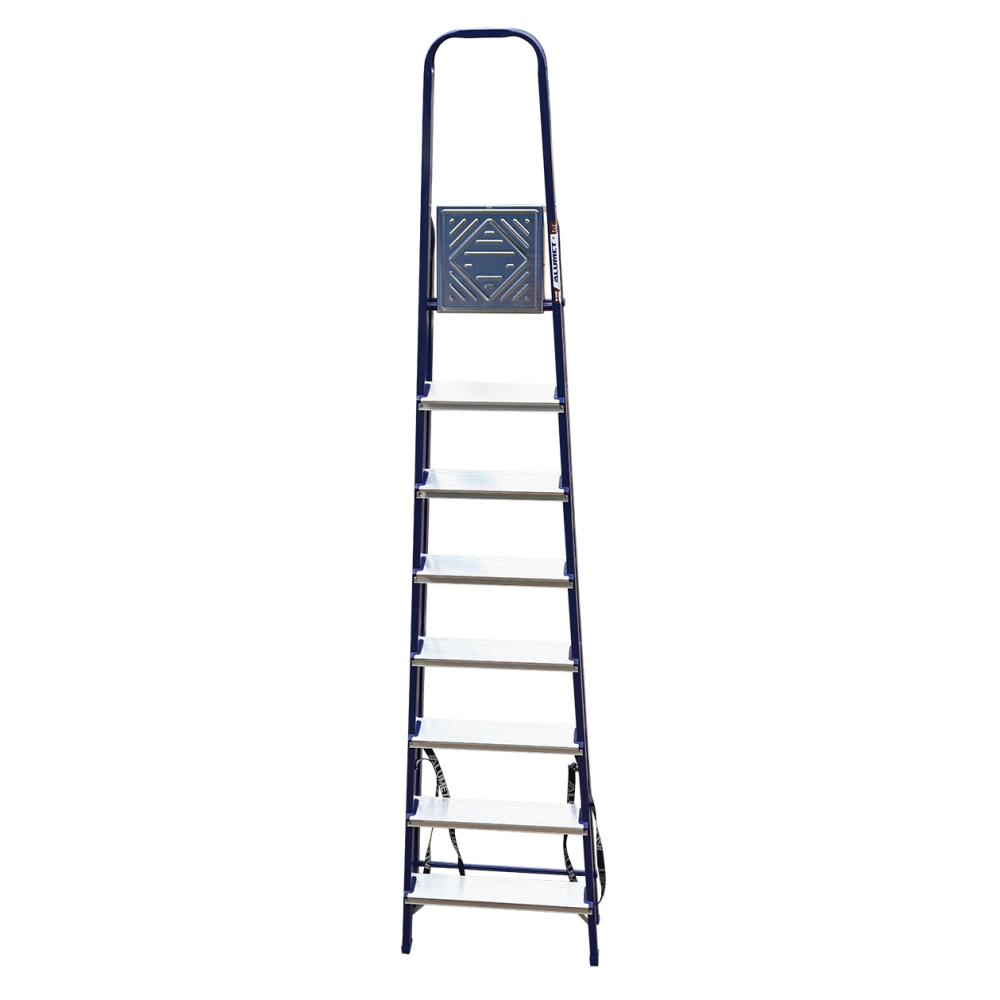

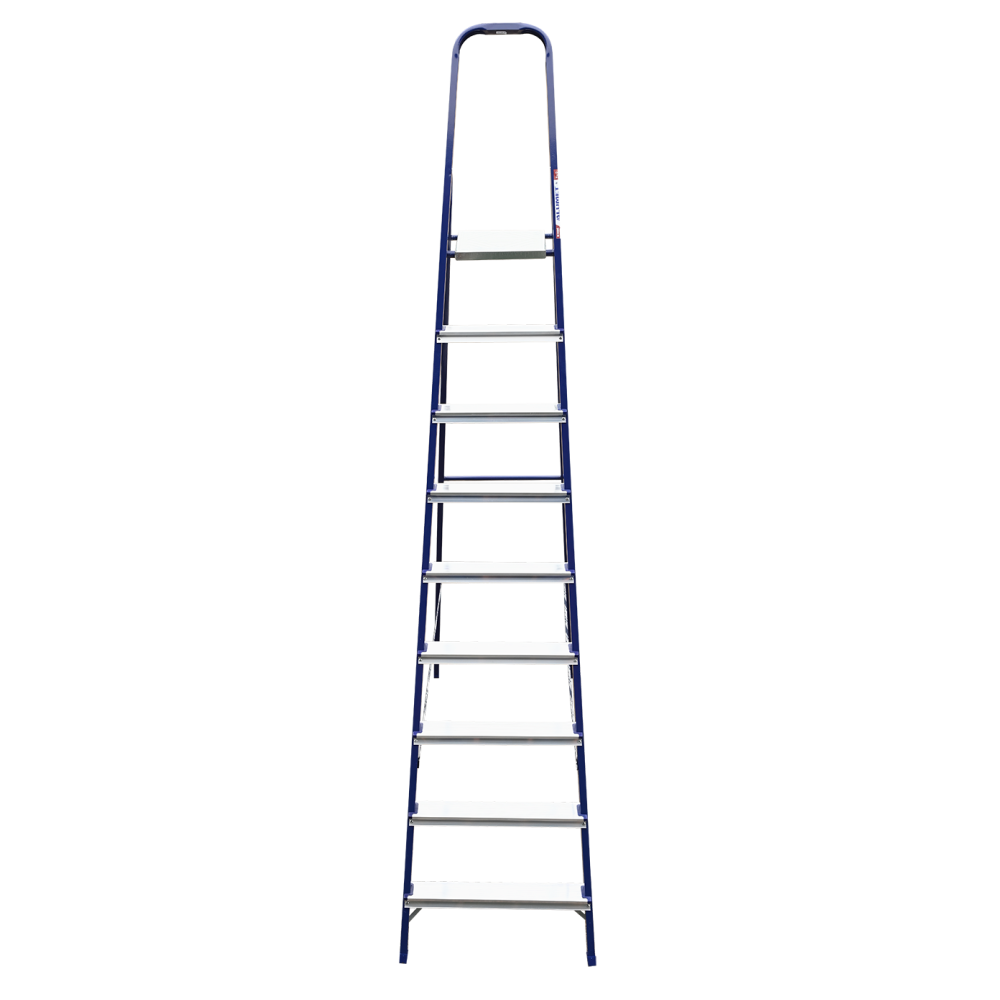

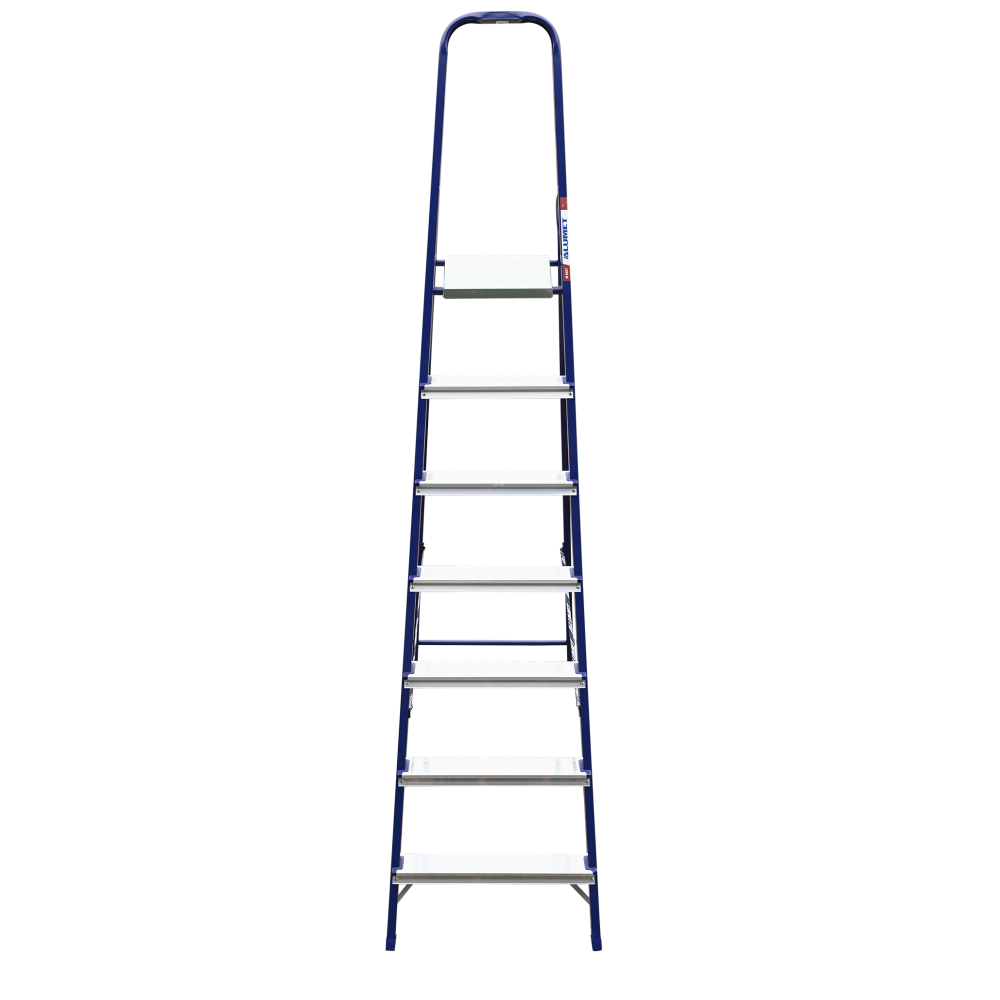

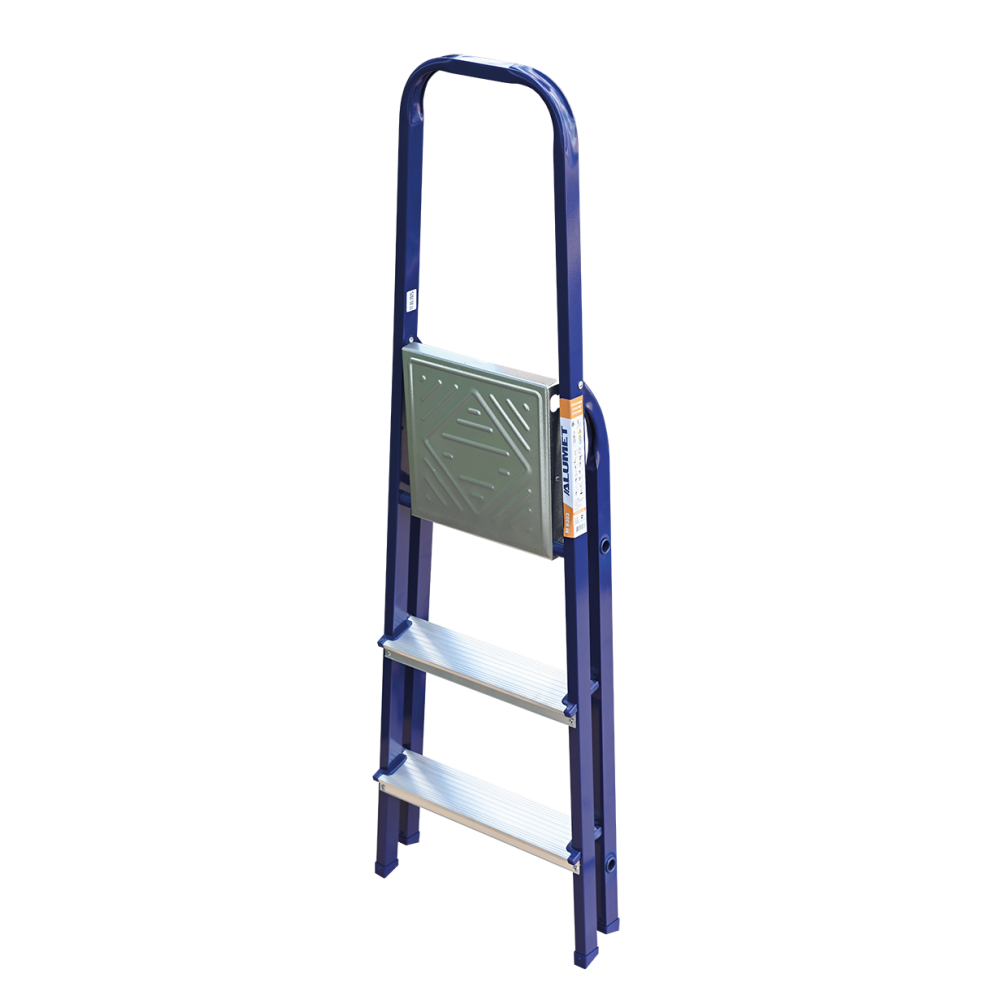

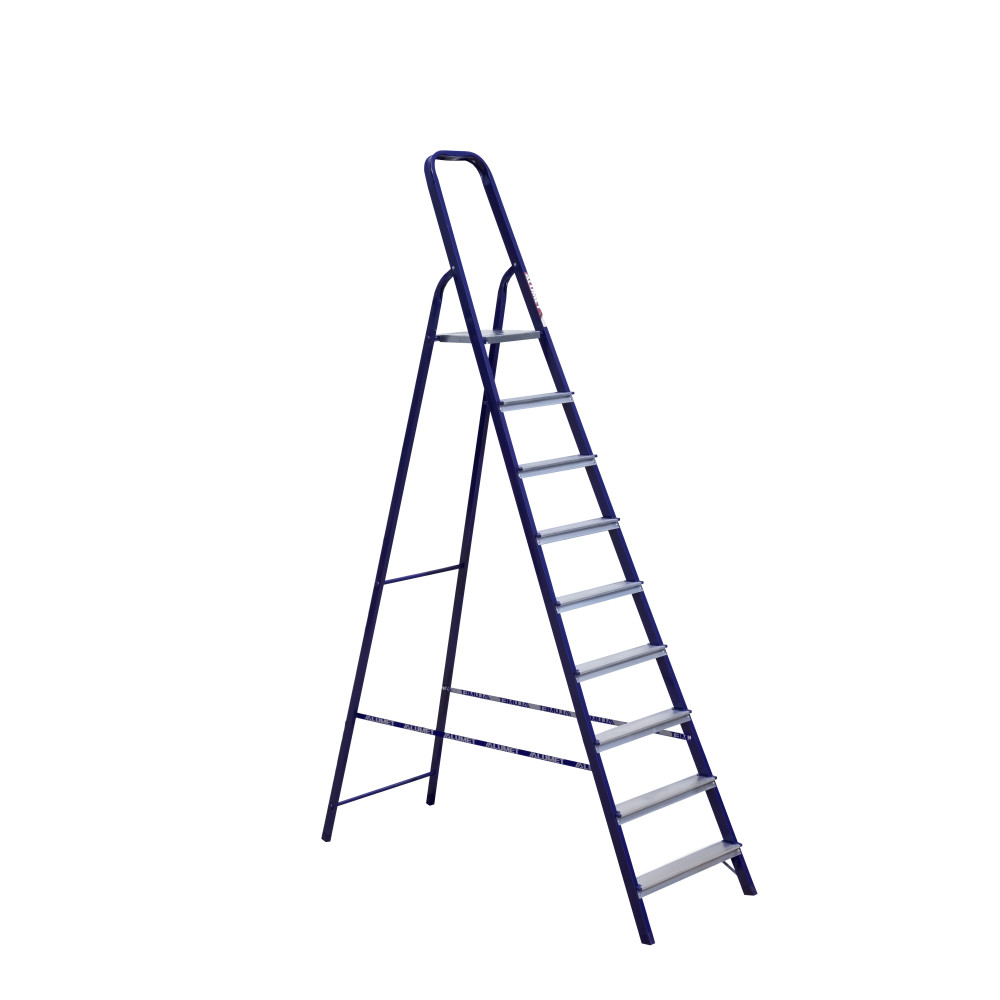

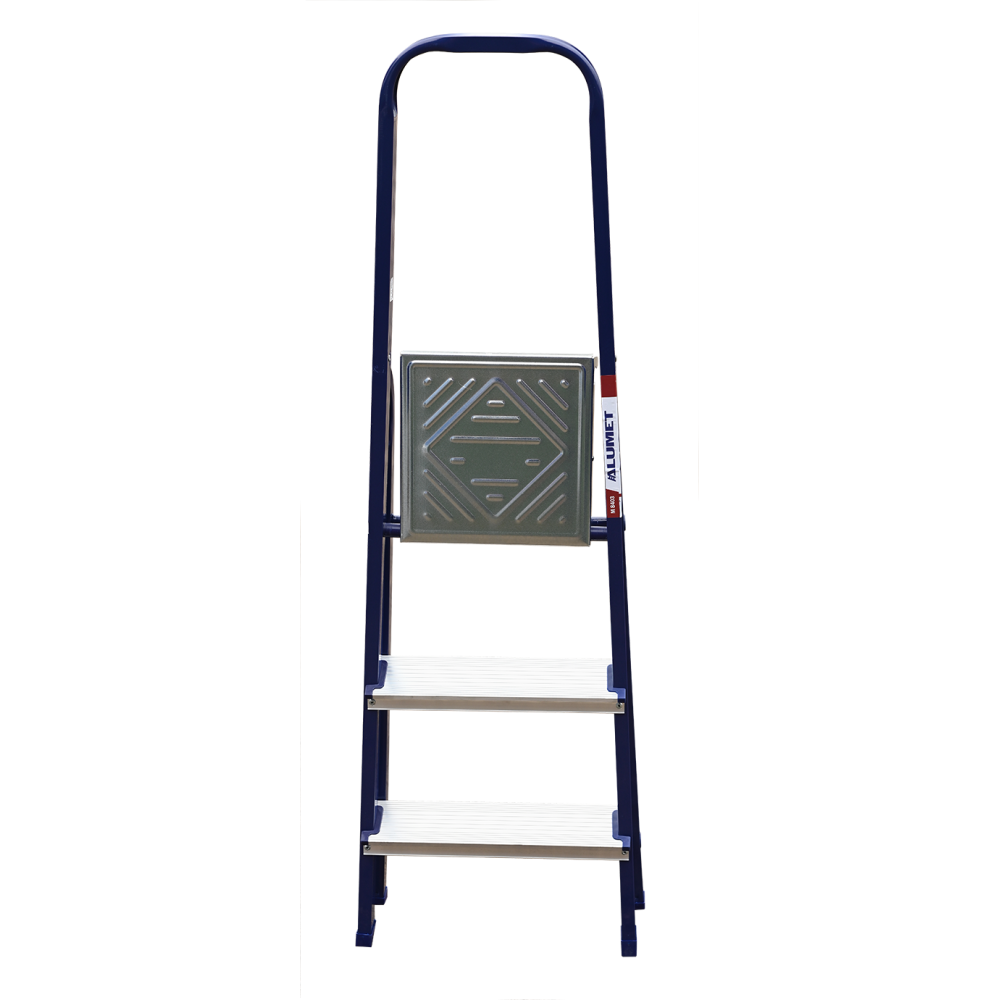

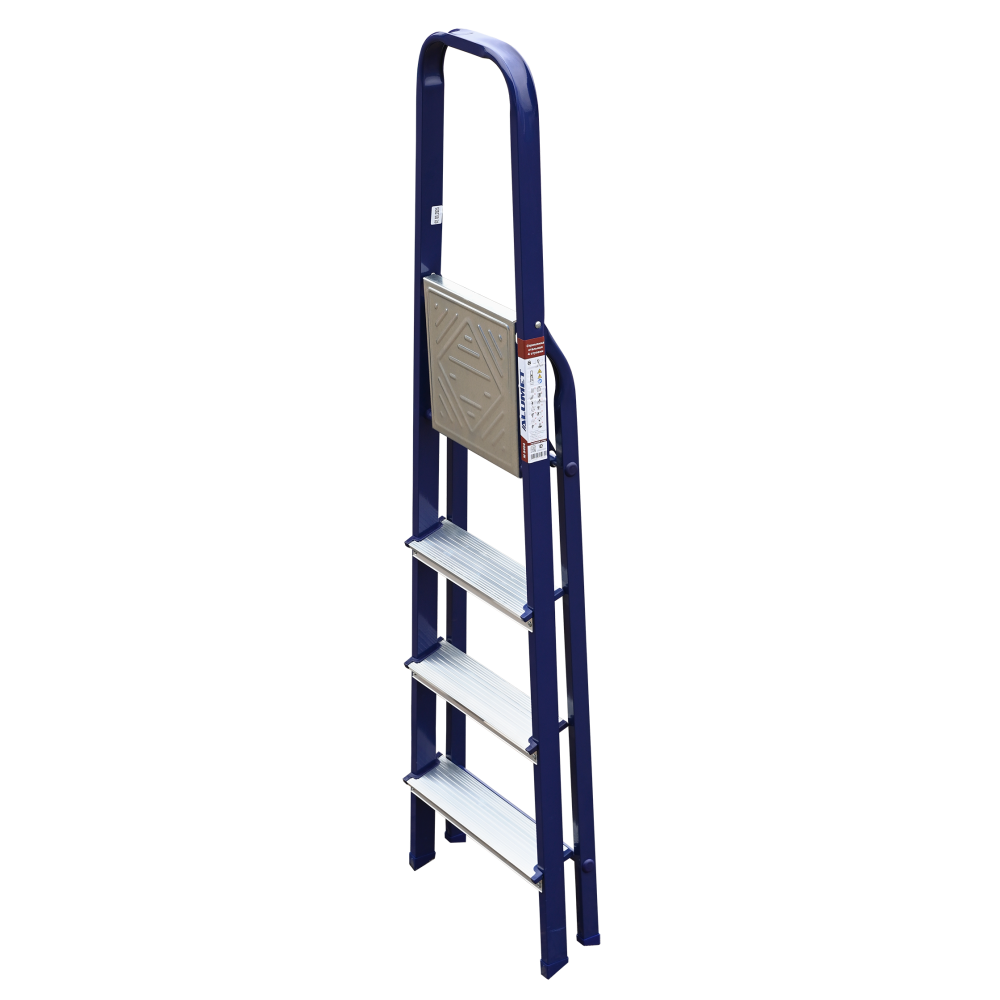

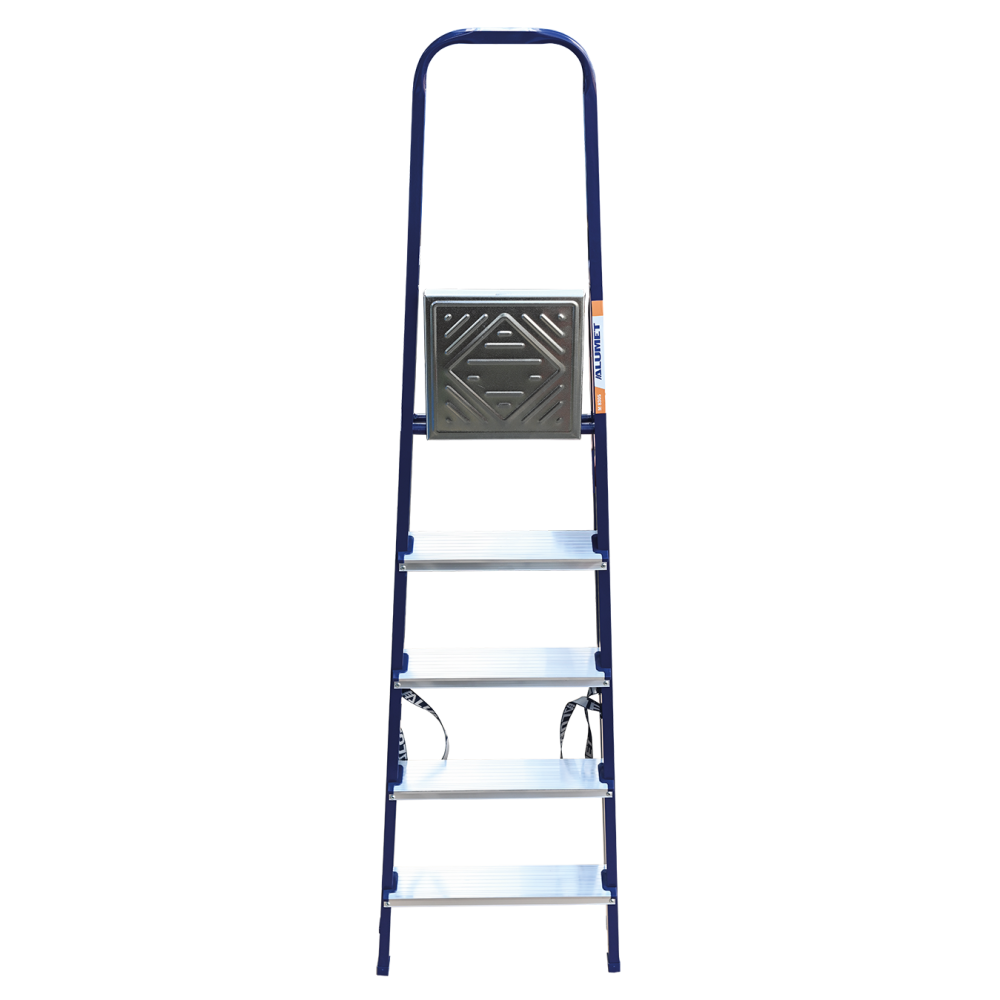

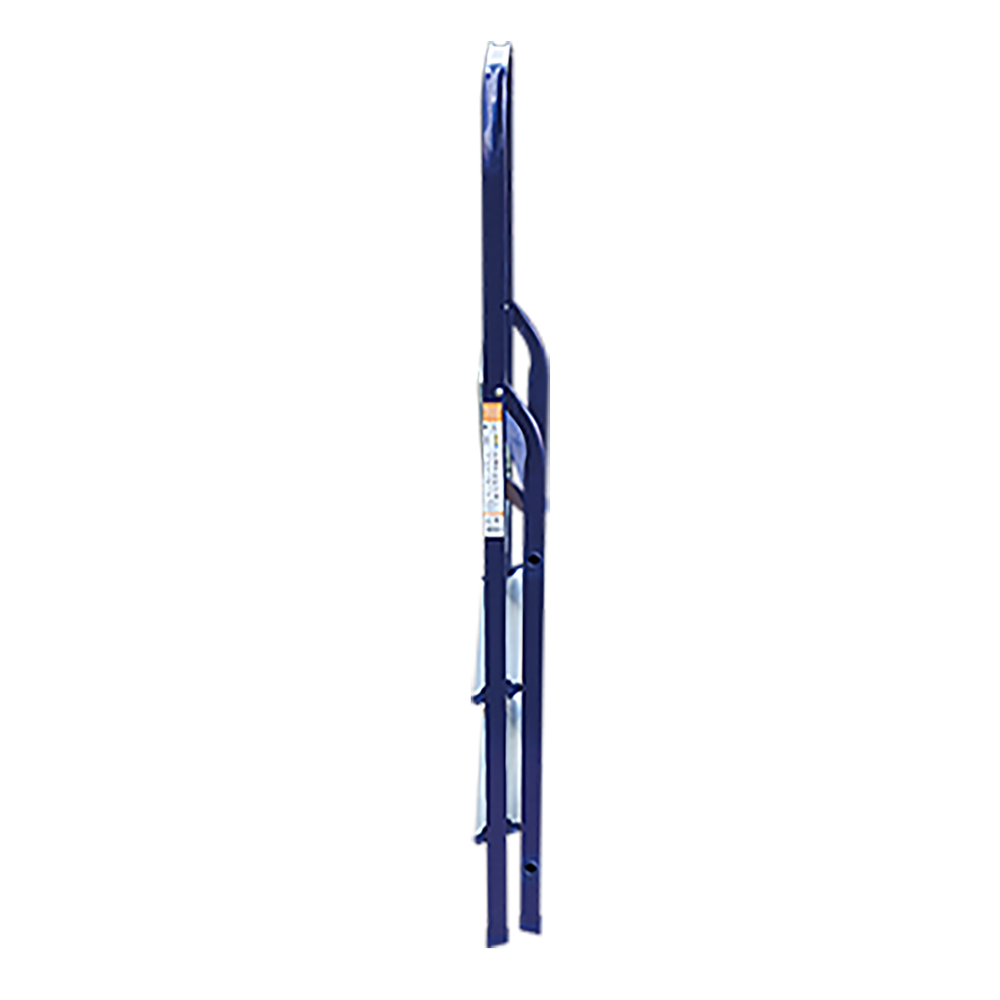

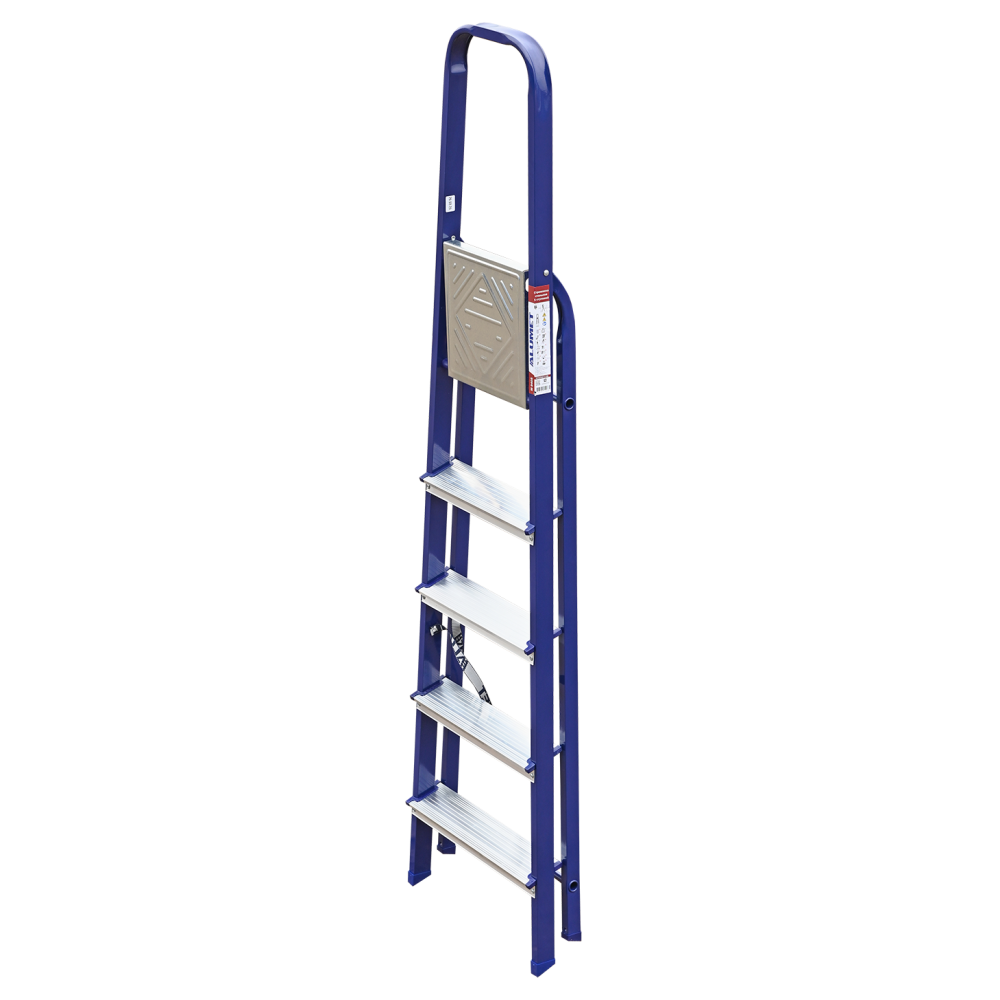

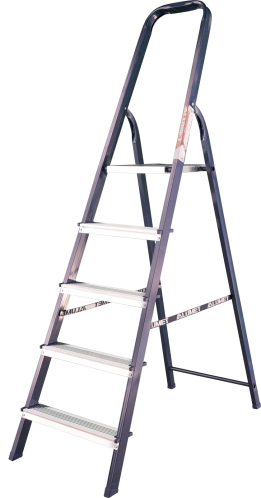

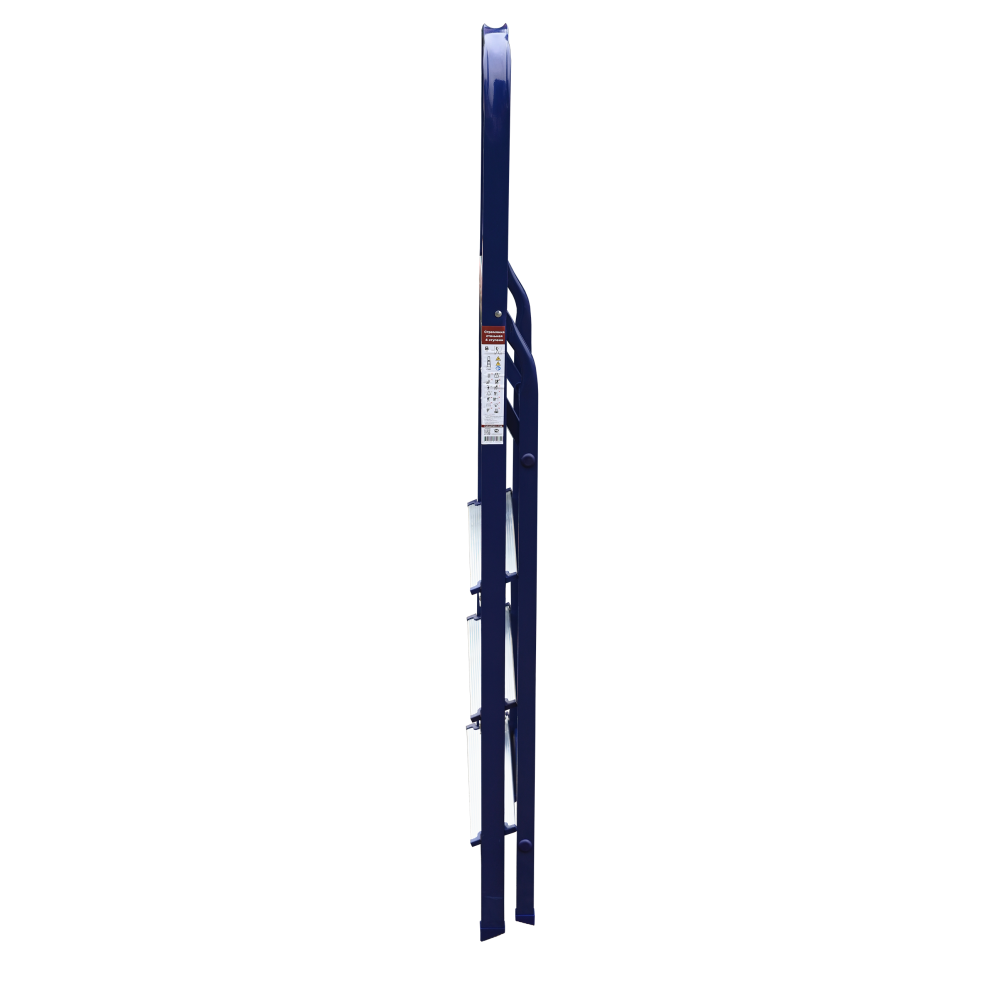

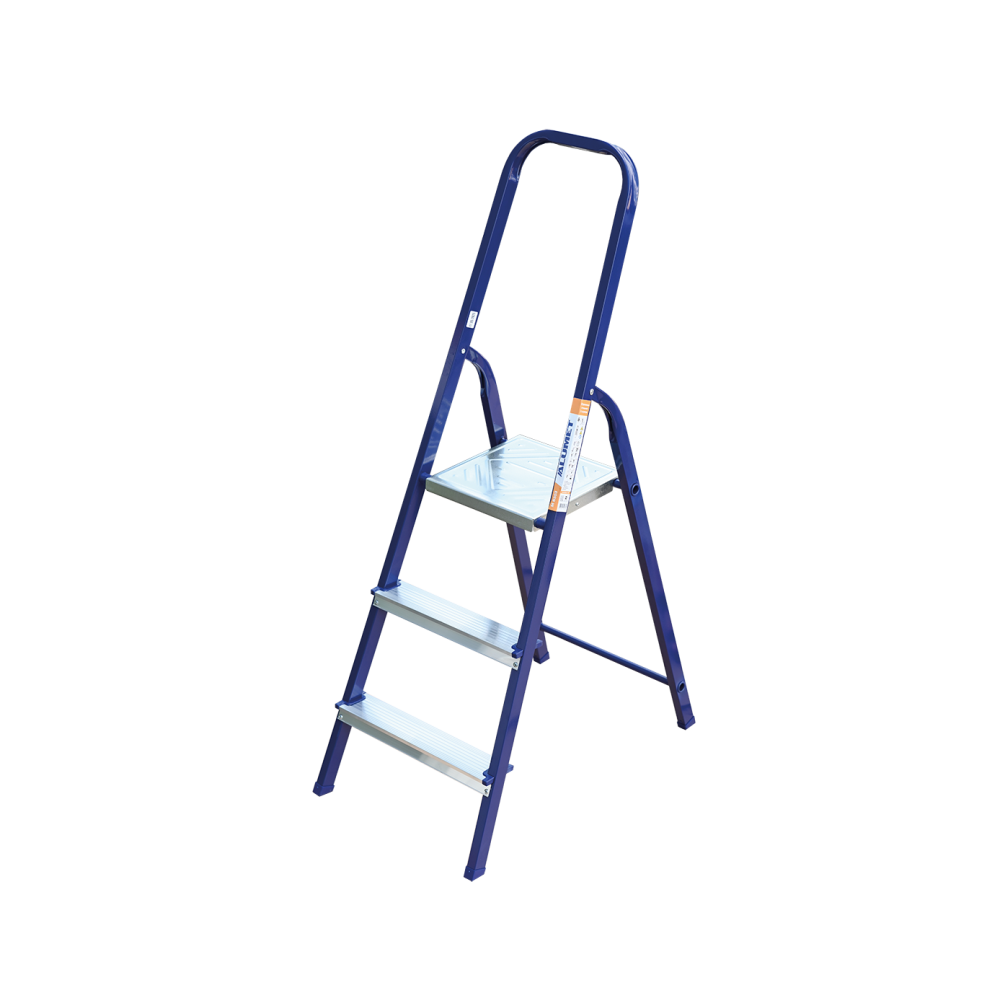

The step ladder is a self-supporting portable ladder, tapering off to the top, having a front side (a front foot), a support side (a support foot), and a work platform and spreading out for a specific task. The safety rail is structurally made in conjunction with the front side. The strings of the step ladder are made of a high-strength steel shape protected against corrosion by epoxy powder enamel. The back and front legs are interconnected. The work platform is made of galvanized steel. The rungs have a serrated surface and are made of a high-strength aluminum shape. The shoes are made of high strength plastic. The step ladder in the working position is secured by the work platform; and for step ladders with five rungs and higher – by safety ropes. The number of rungs – from 3 to 10. M series aluminum step ladder is designed for various types of domestic and industrial work at a height of up to 4 m. It should be noted that the production of step ladders has been automated, which excluded the influence of the ‘human error’ on product quality. At the same time, the step ladders acquired additional strength, increased reliability and durability.

Technical specifications

Vendor code	Number of steps	Height	Length	Height max	Width	Front arch profile	Rear leg profile	Weight
M 8403	3	0.60	1.31	2.70	0.42	40x20	30x20	4.3
M 8404	4	0.81	1.54	2.91	0.44	40x20	30x20	5.0
M 8405	5	1.02	1.77	3.12	0.46	40x20	30x20	5.8
M 8406	6	1.23	2.00	3.33	0.49	40x20	30x20	6.6
M 8407	7	1.45	2.23	3.55	0.51	40x20	30x20	7.4
M 8408	8	1.66	2.46	3.76	0.54	40x20	30x20	8.2
M 8409	9	1.87	2.69	3.97	0.56	40x20	30x20	9.2
M 8410	10	2.08	2.92	4.18	0.58	40x20	30x20	10.2

Vendor code	Number of steps	Height	Length	Height max	Width	Front arch profile	Rear leg profile	Weight
M 8303	3	0.60	1.31	2.70	0.42	30x20	30x20	3.9
M 8304	4	0.81	1.54	2.91	0.44	30x20	30x20	4.6
M 8305	5	1.03	1.77	3.12	0.46	30x20	30x20	5.3
