Серия APE

Professional Step Ladder

Article:

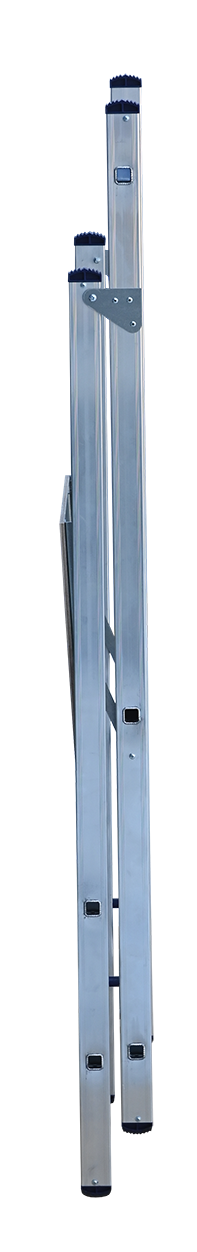

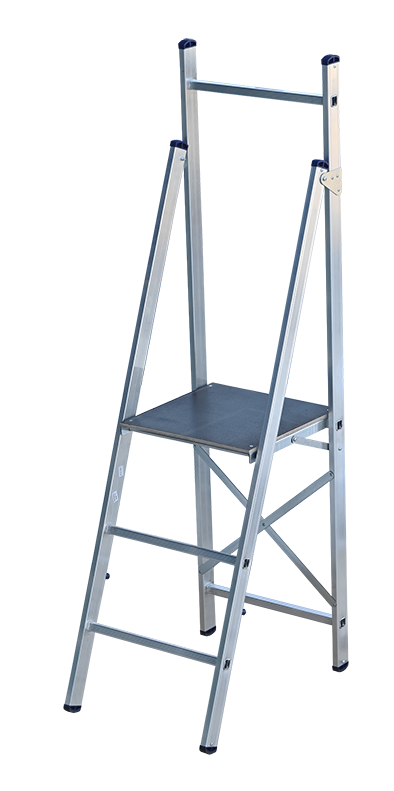

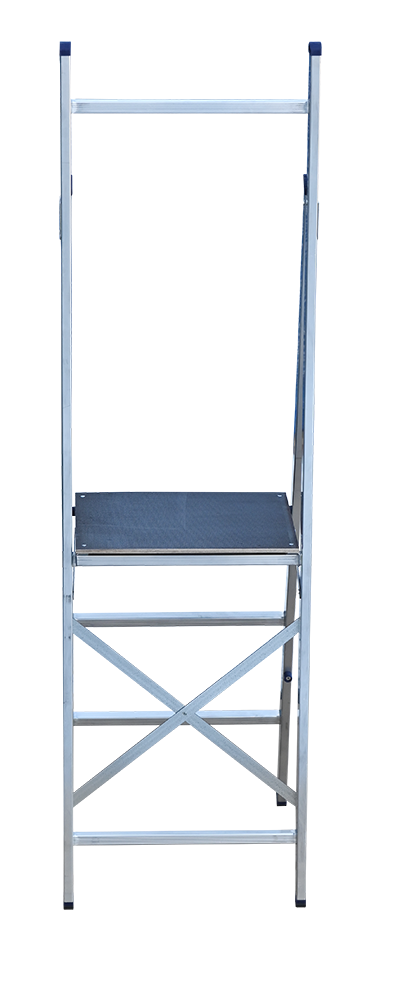

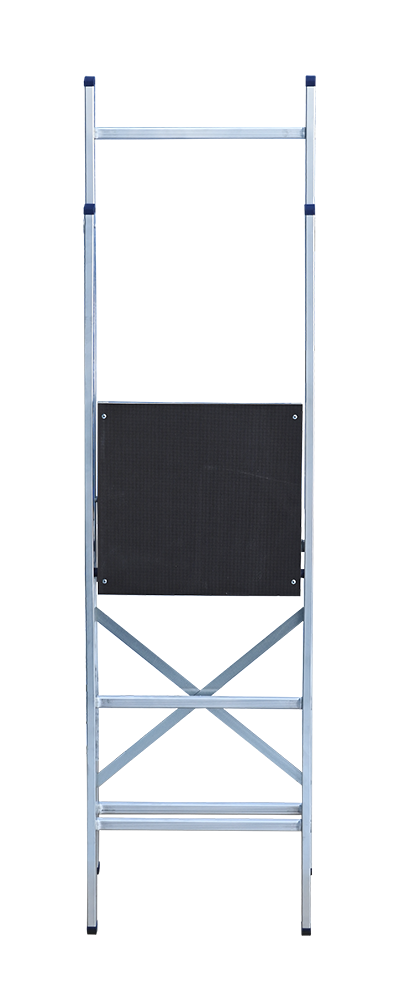

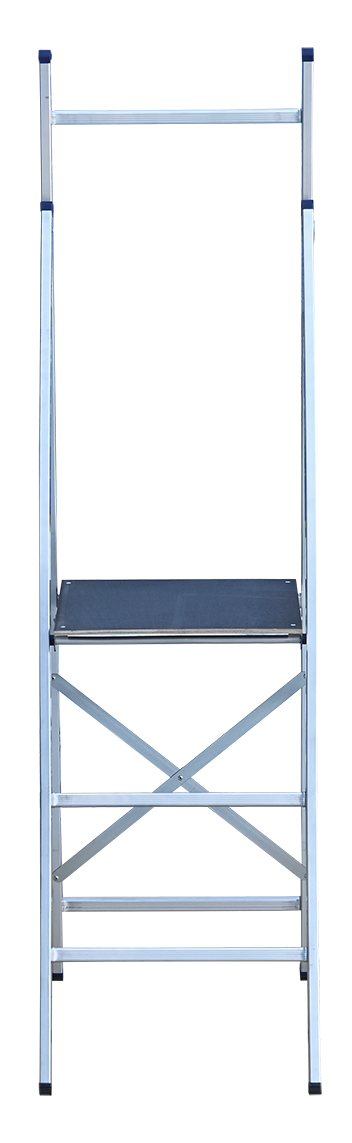

APE 1403

Vendor code APE 1403
Number of steps 3
Height 0.80
Width 0.5
Height max 2.90
Length 1.91
Stabilizer Width ---

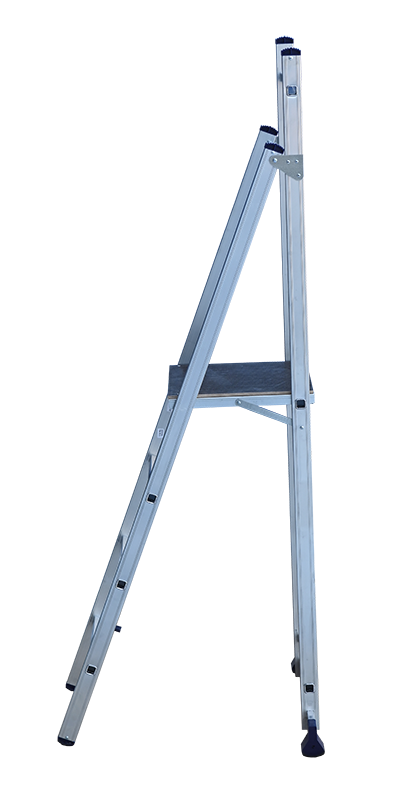

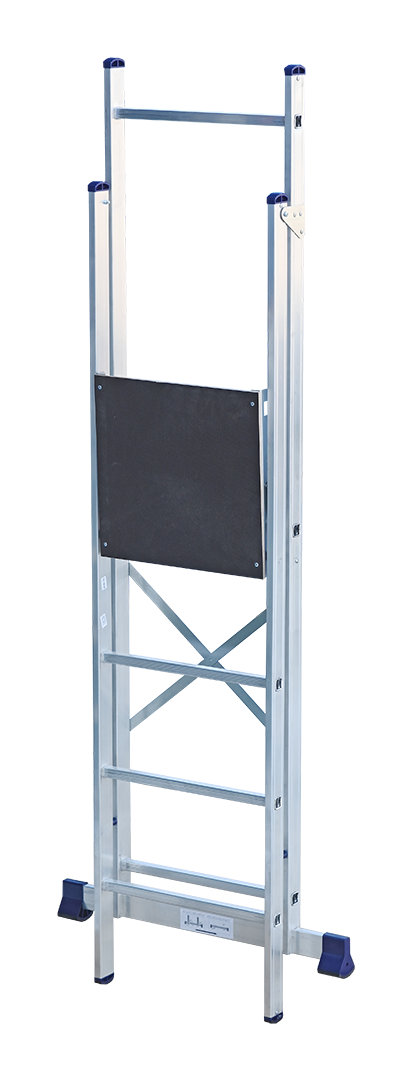

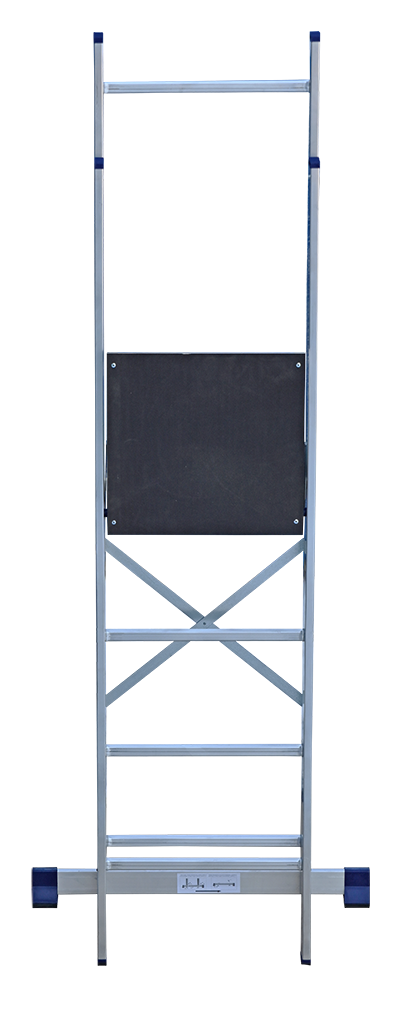

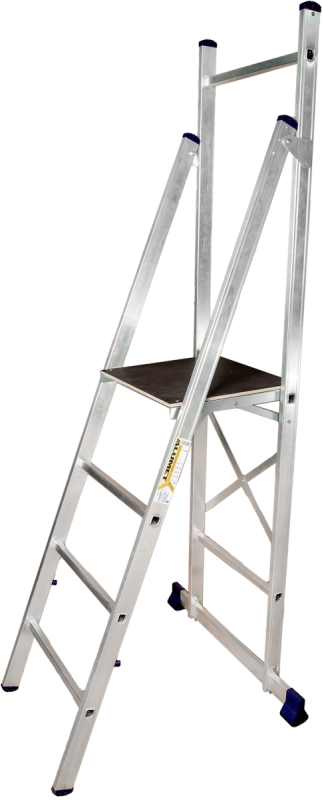

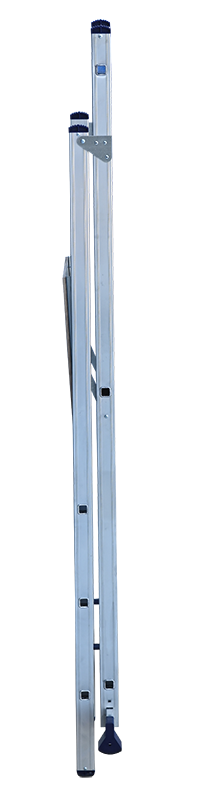

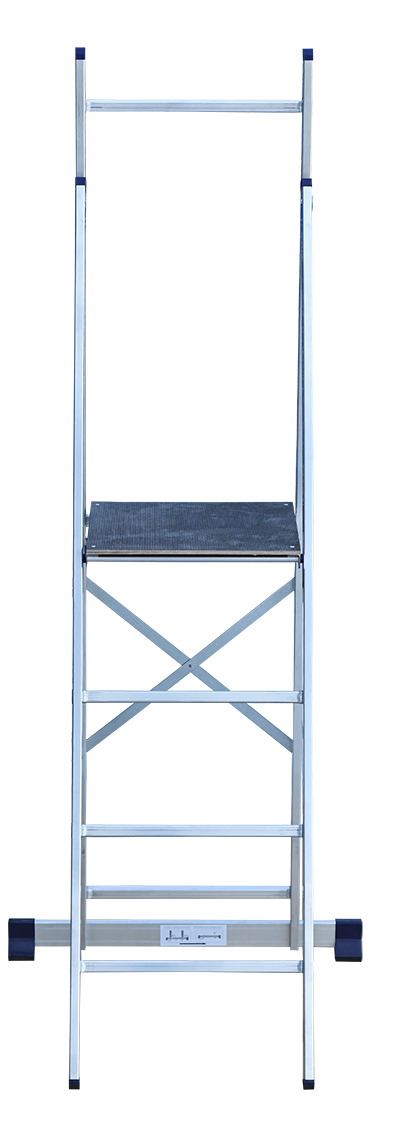

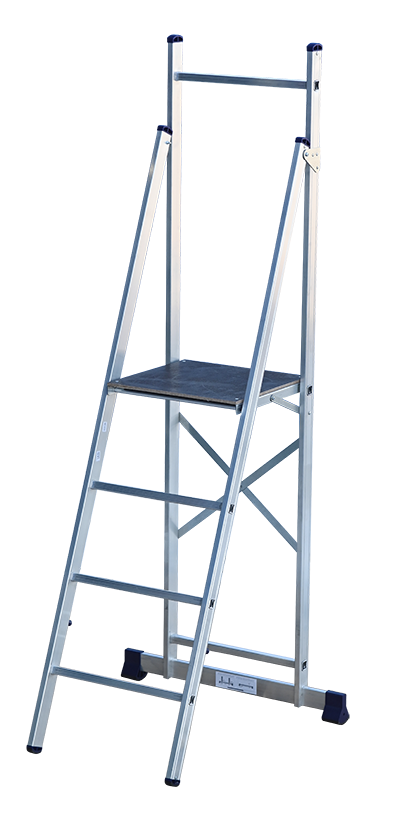

APE 1404

Vendor code APE 1404
Number of steps 4
Height 1.07
Width 0.5
Height max 3.17
Length 2.21
Stabilizer Width 0.8

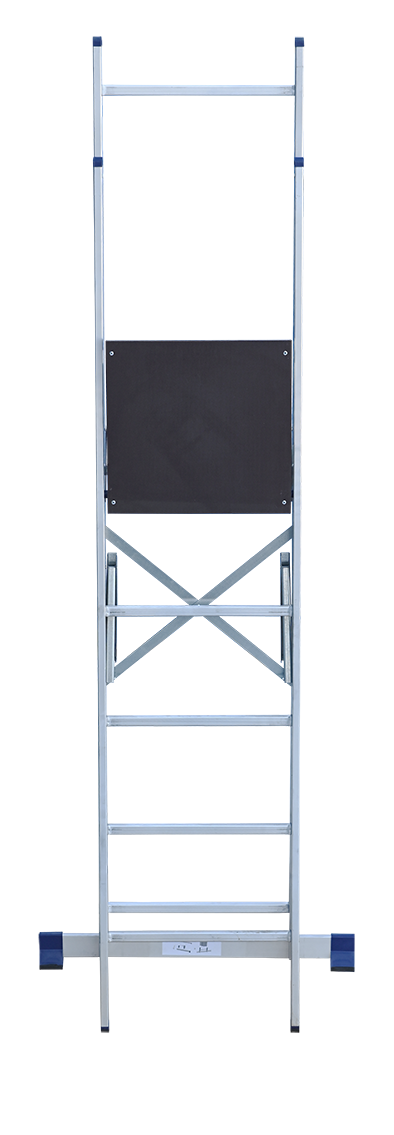

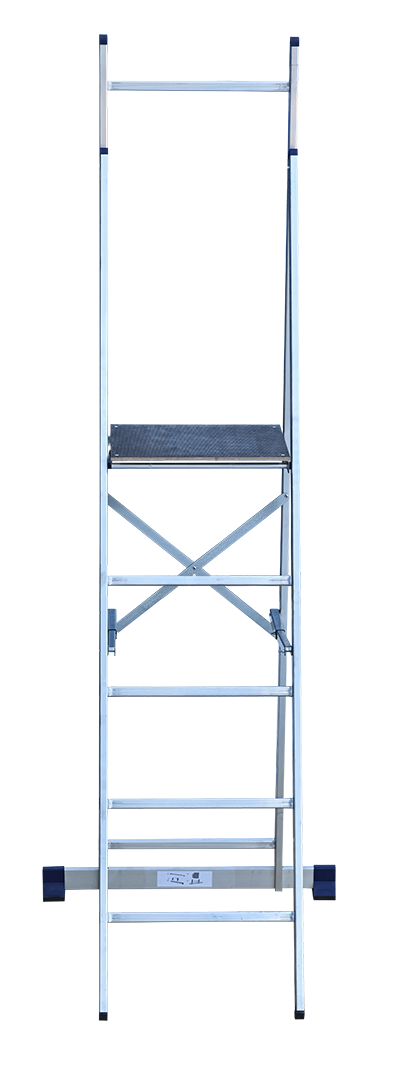

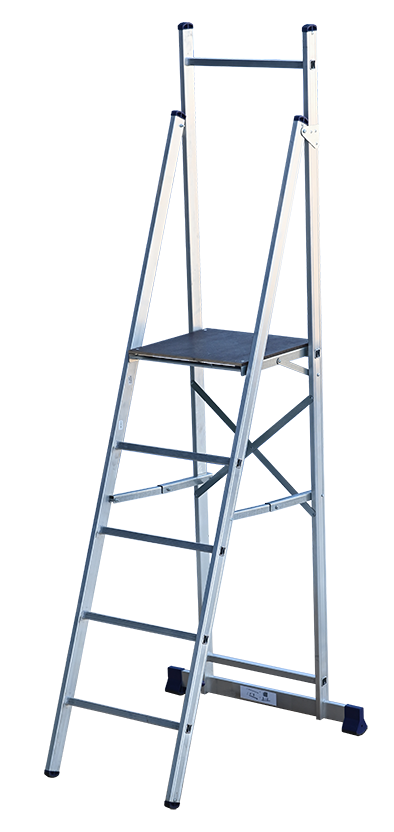

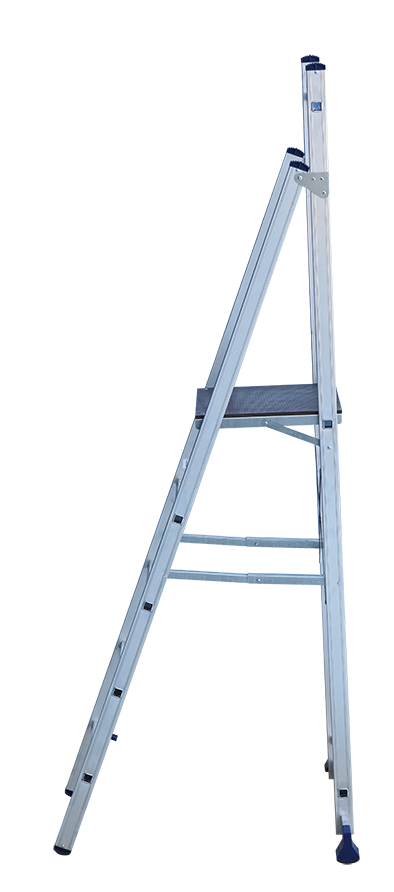

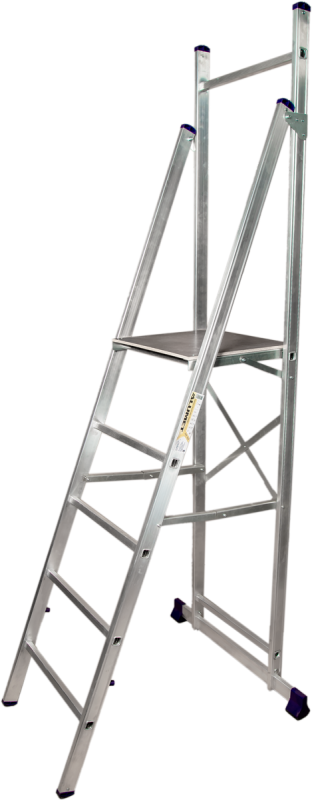

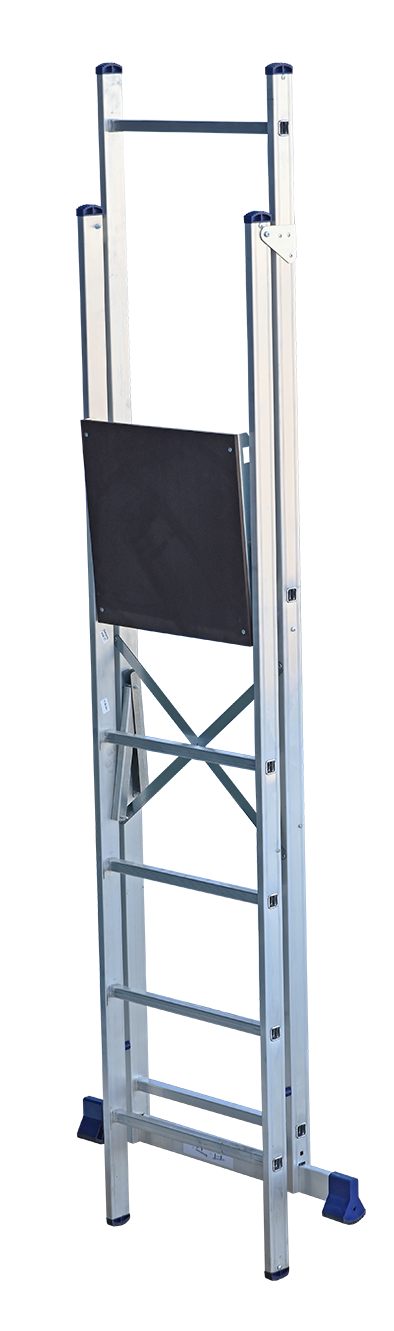

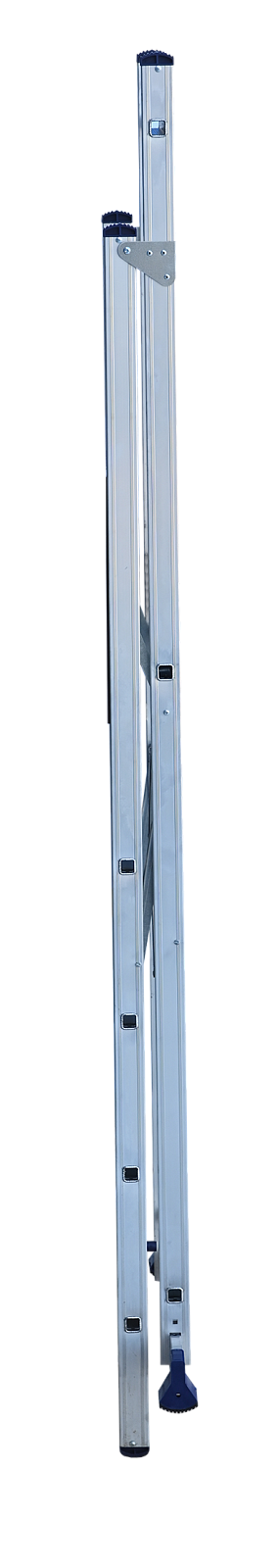

APE 1405

Vendor code APE 1405
Number of steps 5
Height 1.33
Width 0.5
Height max 3.43
Length 2.46
Stabilizer Width 0.8

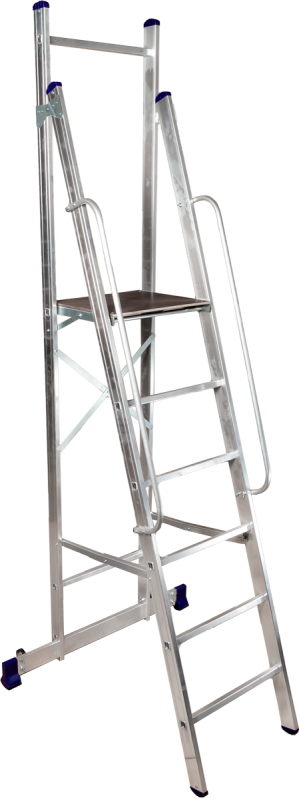

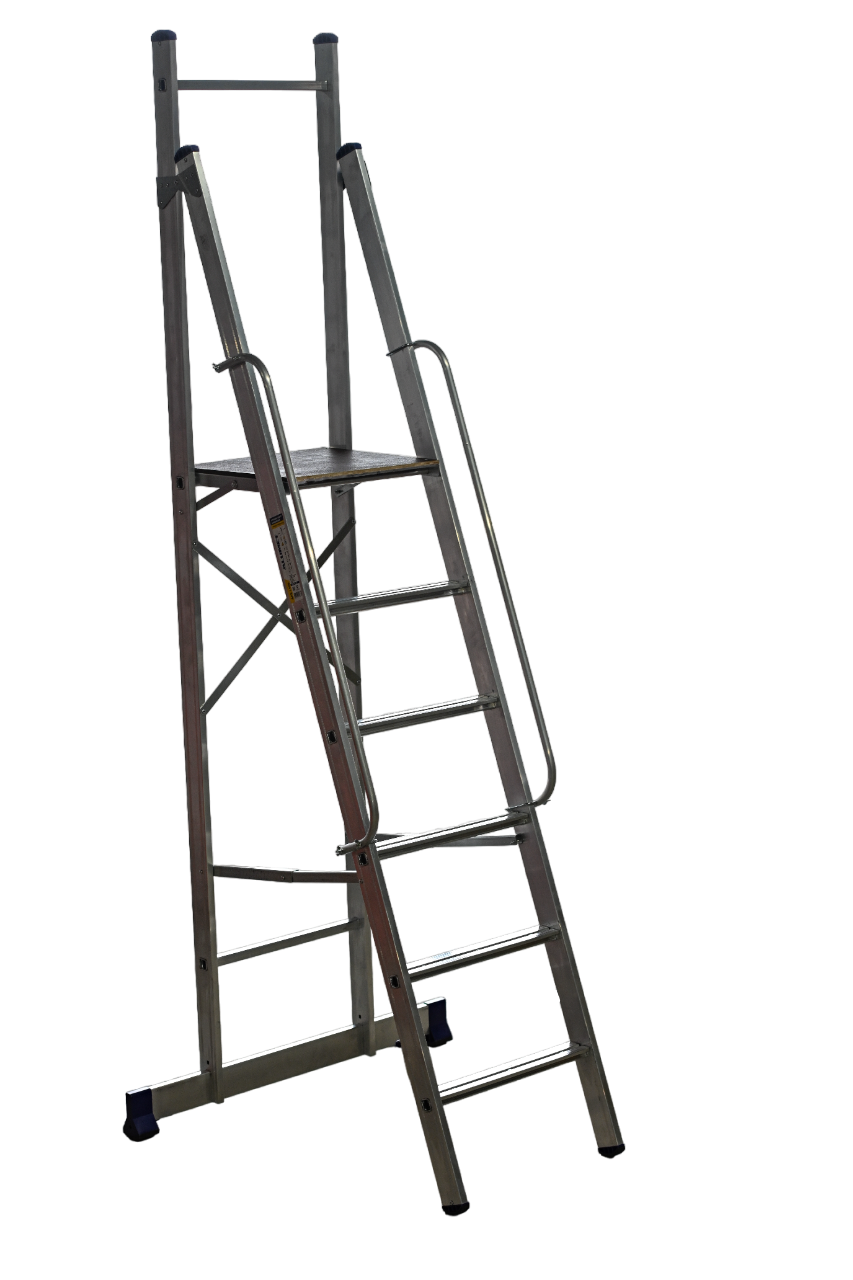

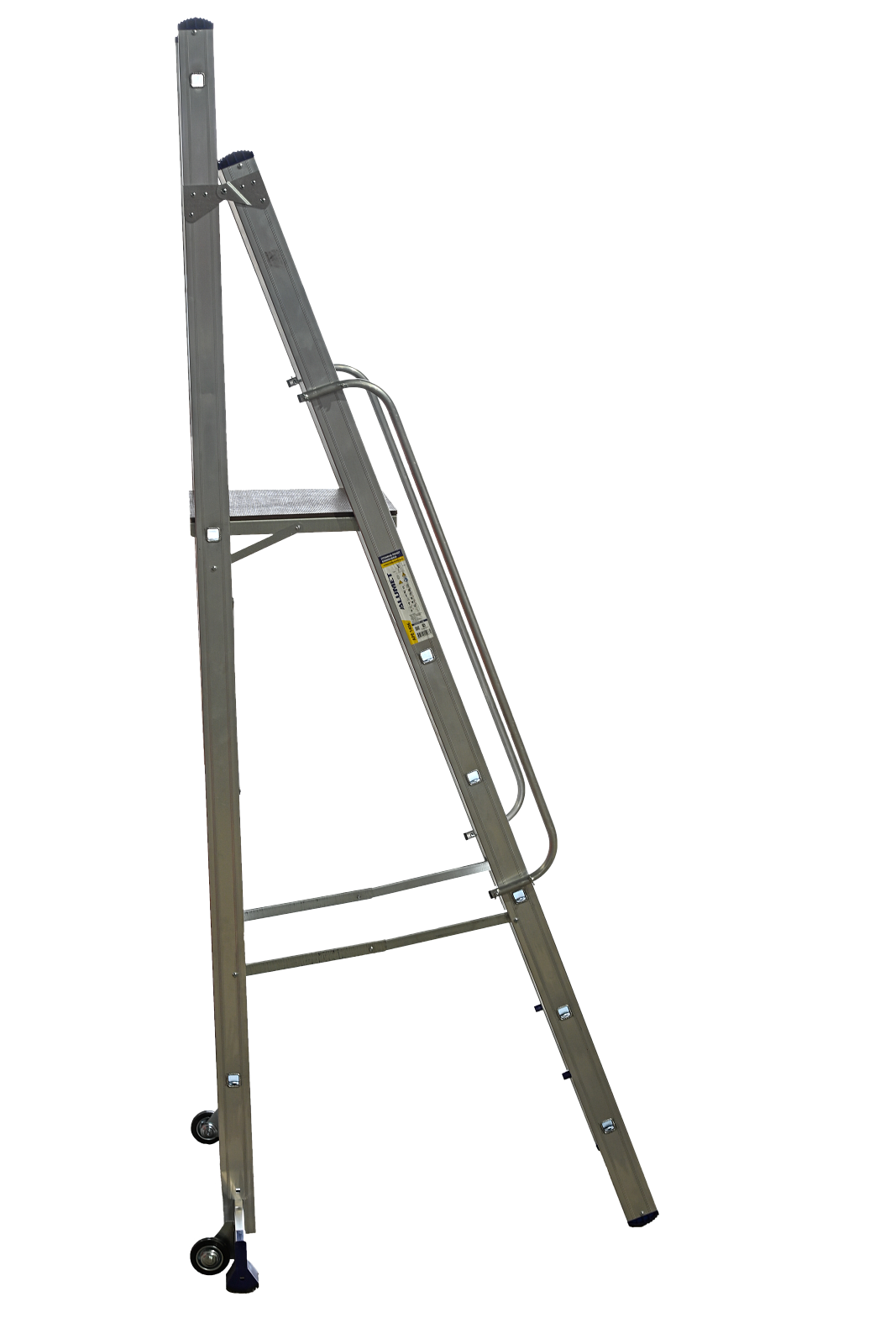

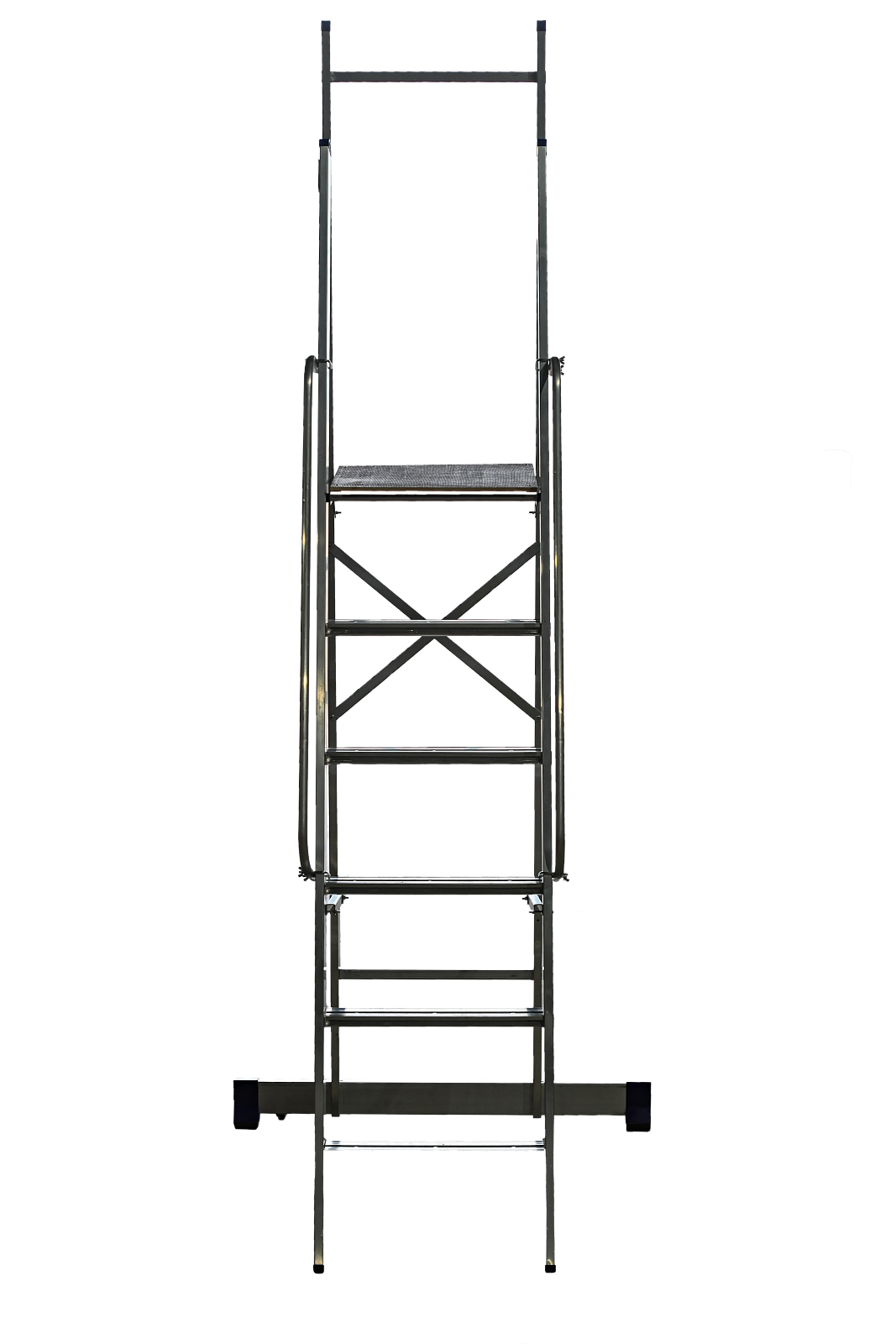

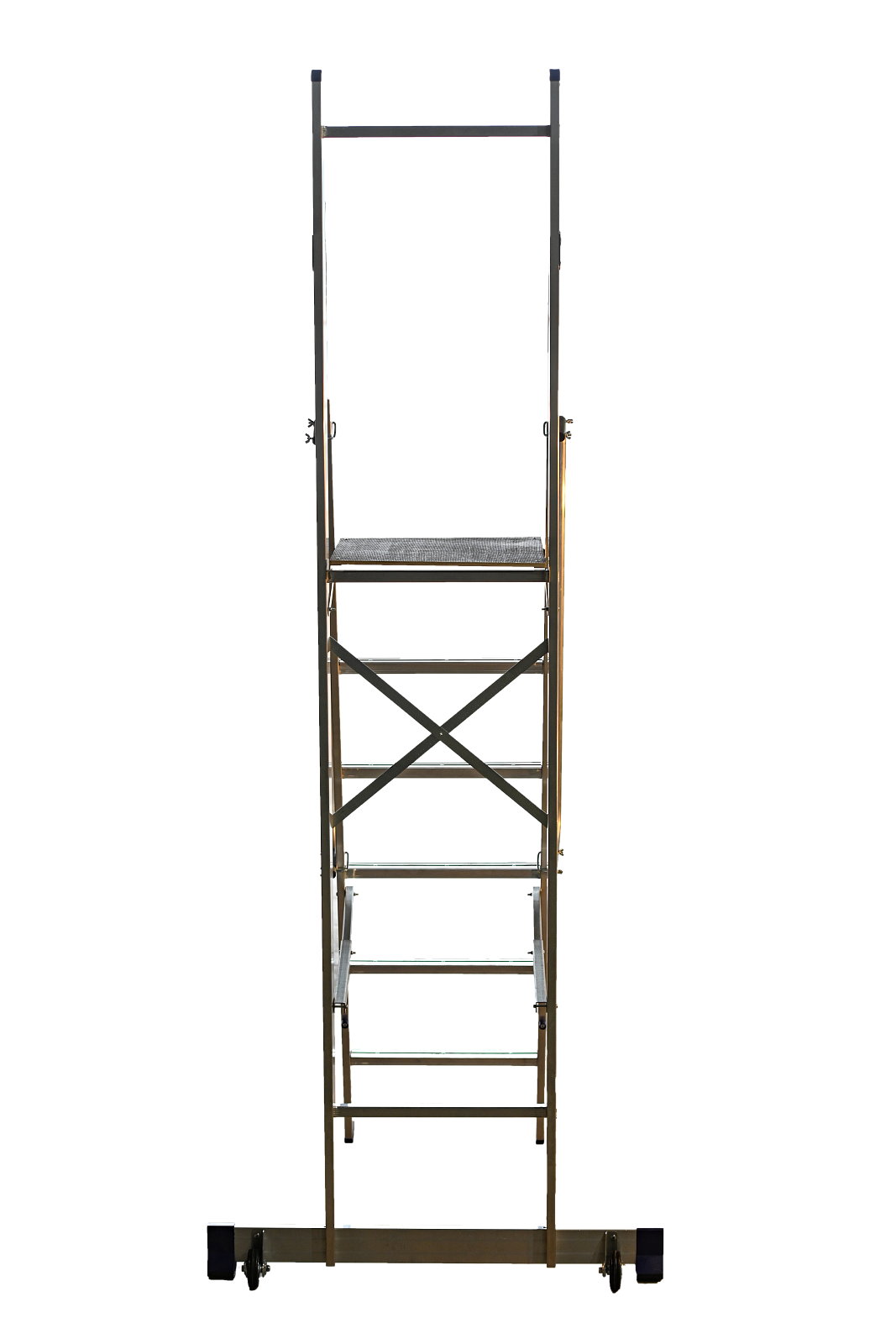

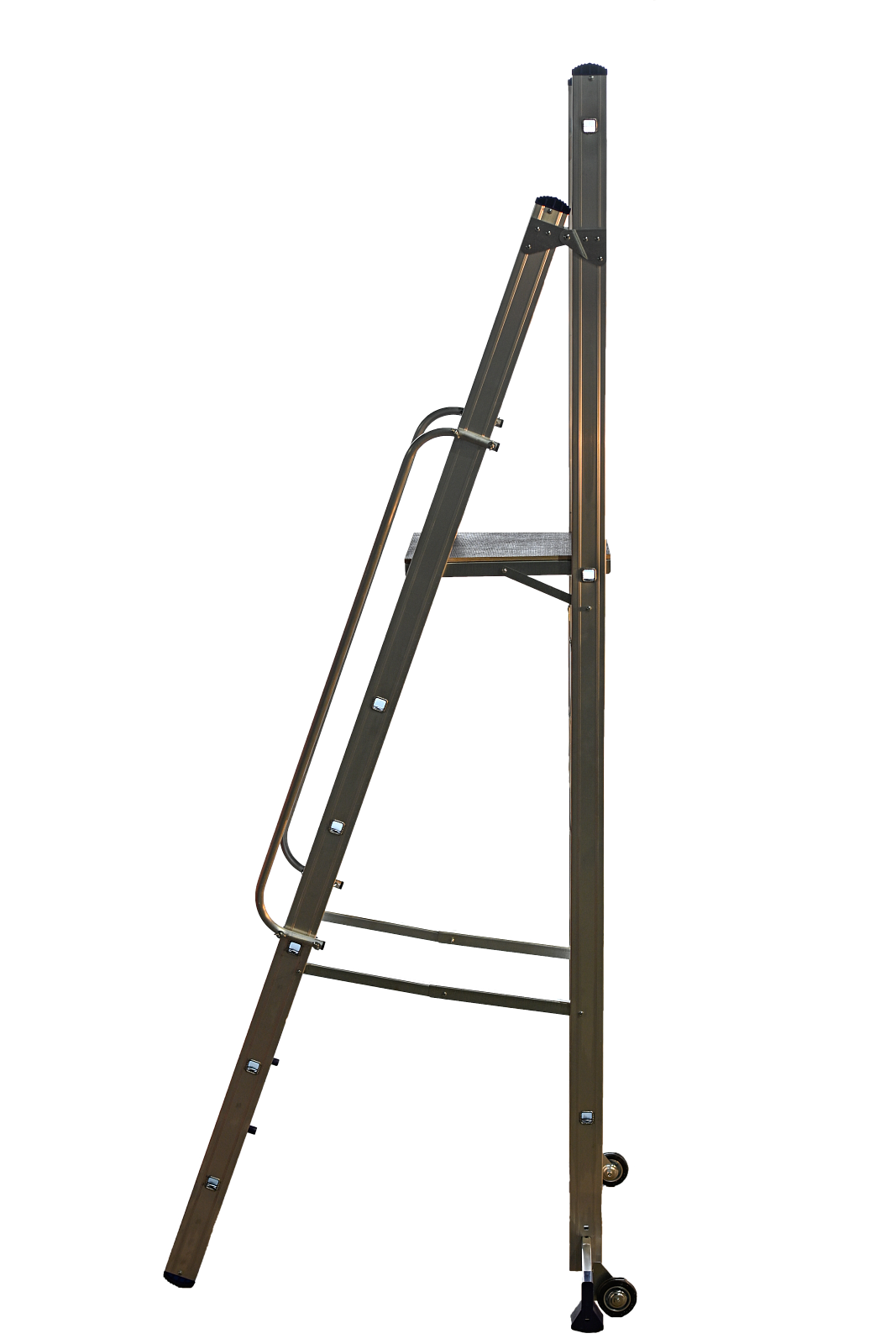

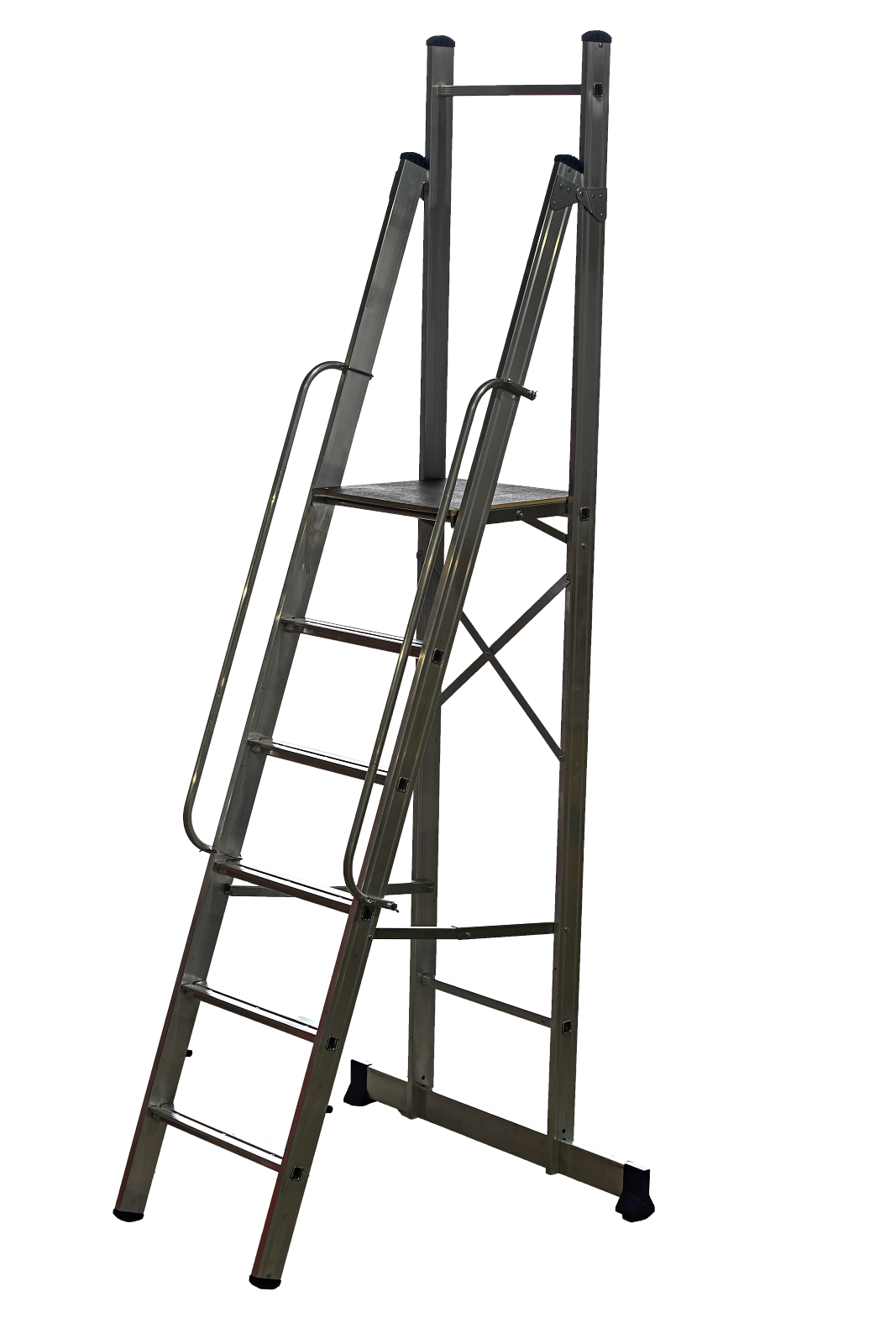

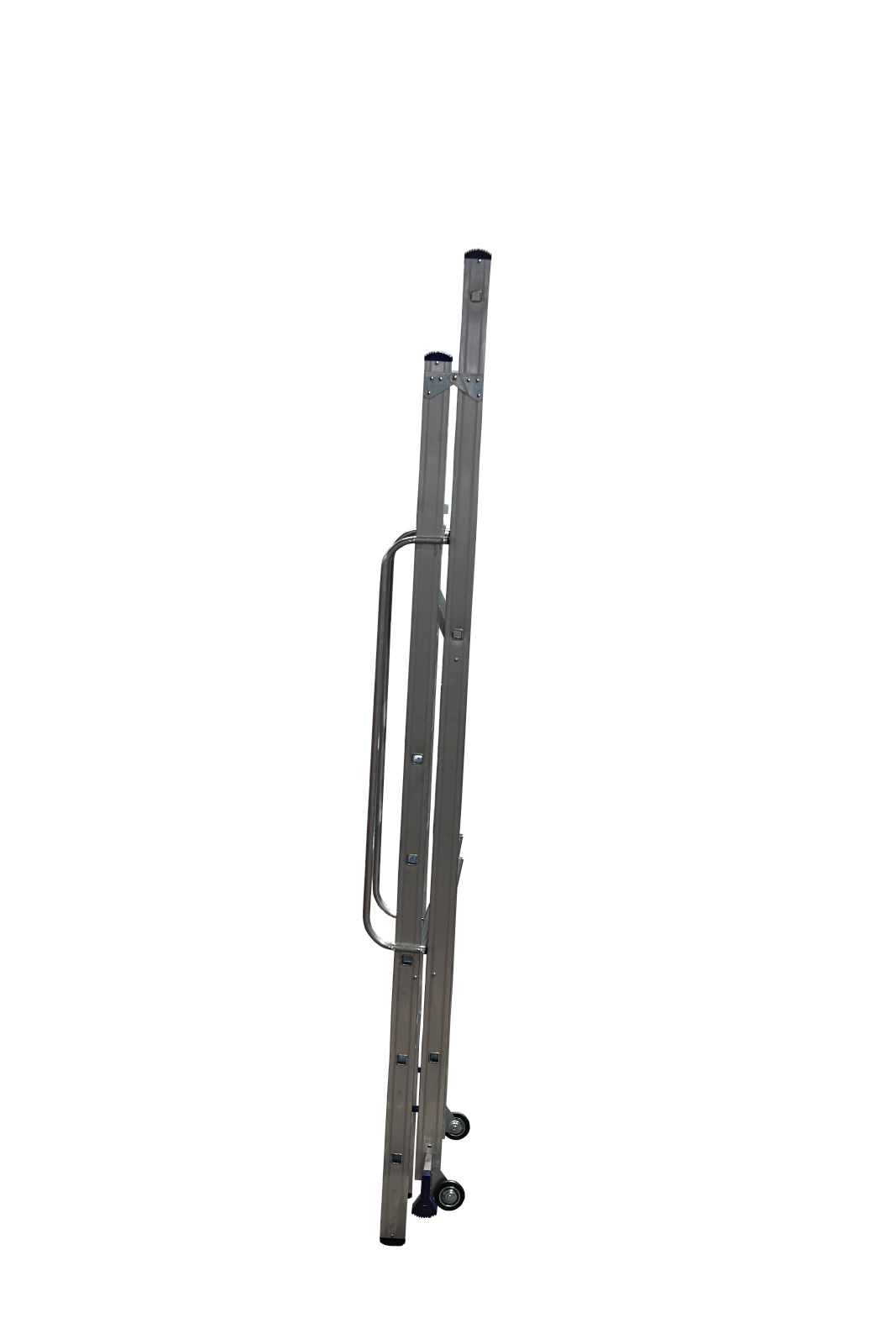

APE 1406*

Vendor code APE 1406*
Number of steps 6
Height 1.6
Width 0.5
Height max 3.7
Length 2.76
Stabilizer Width 1

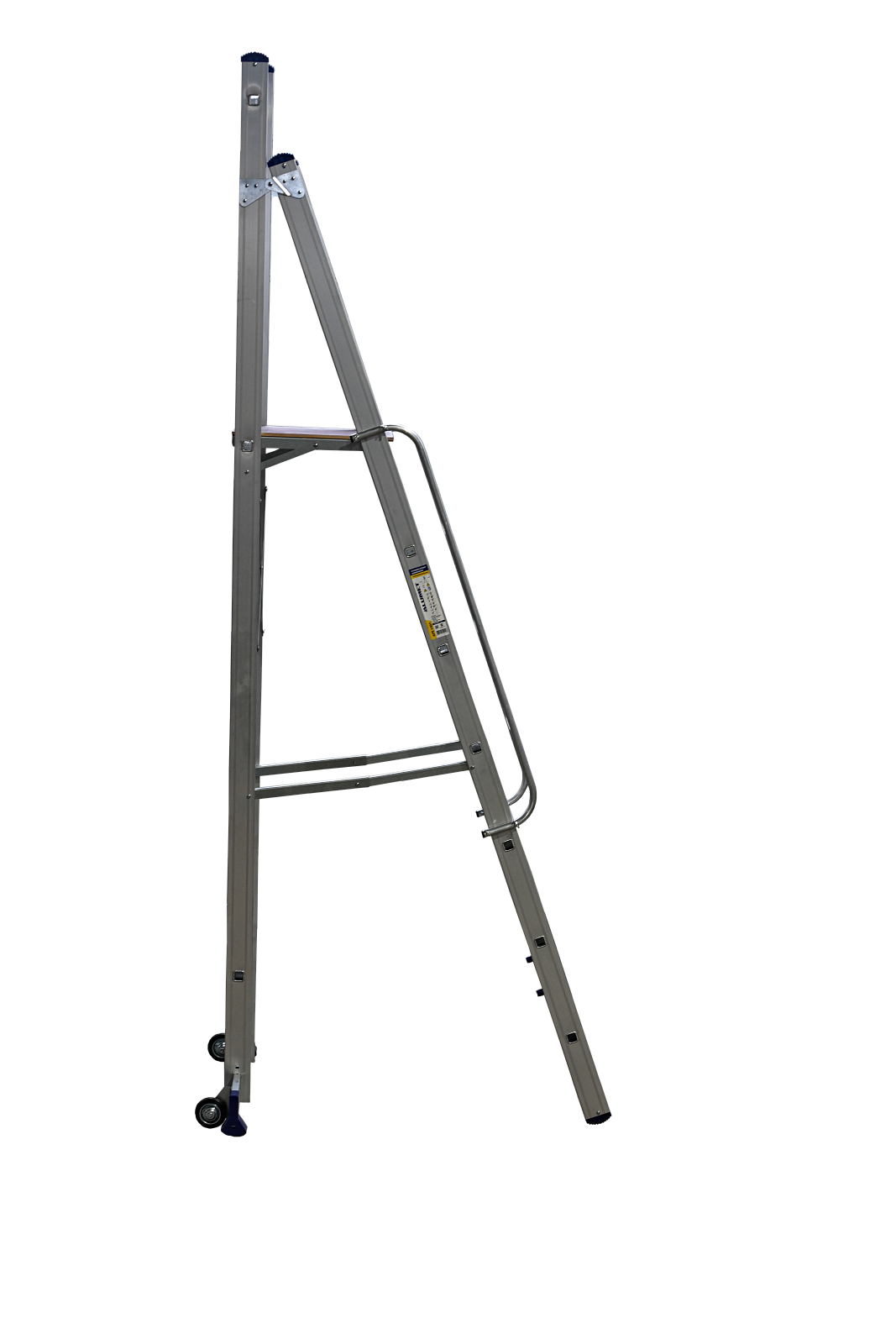

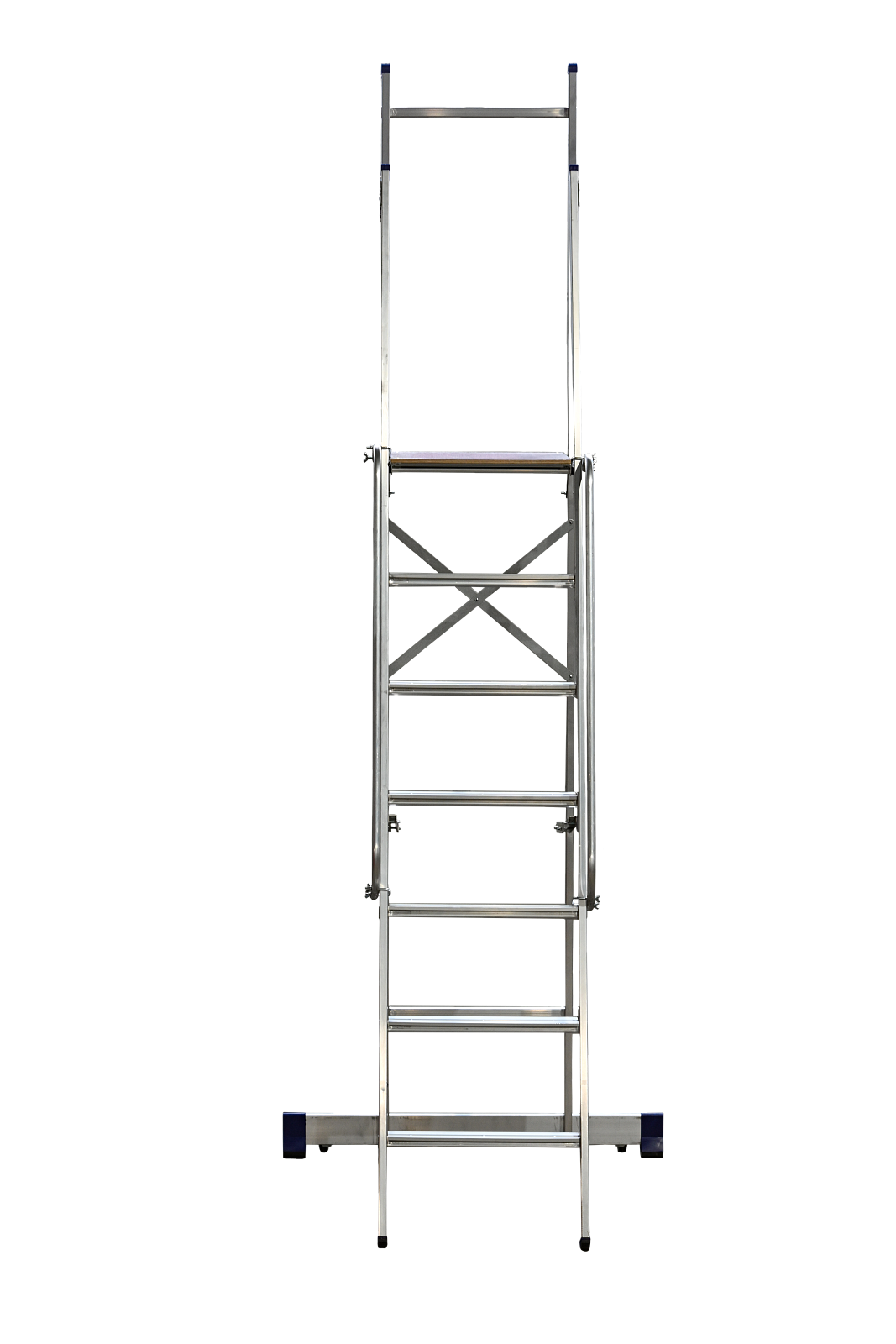

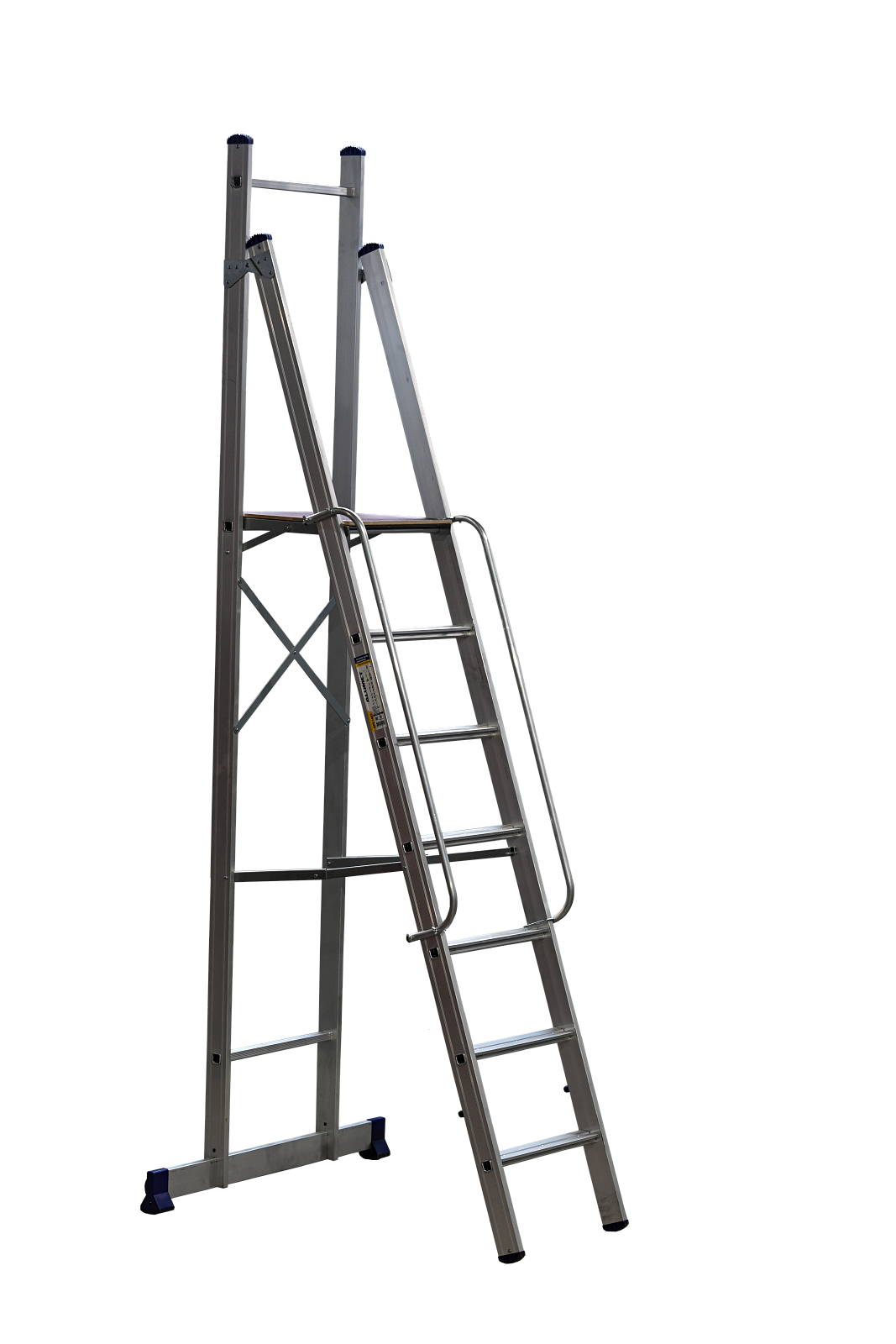

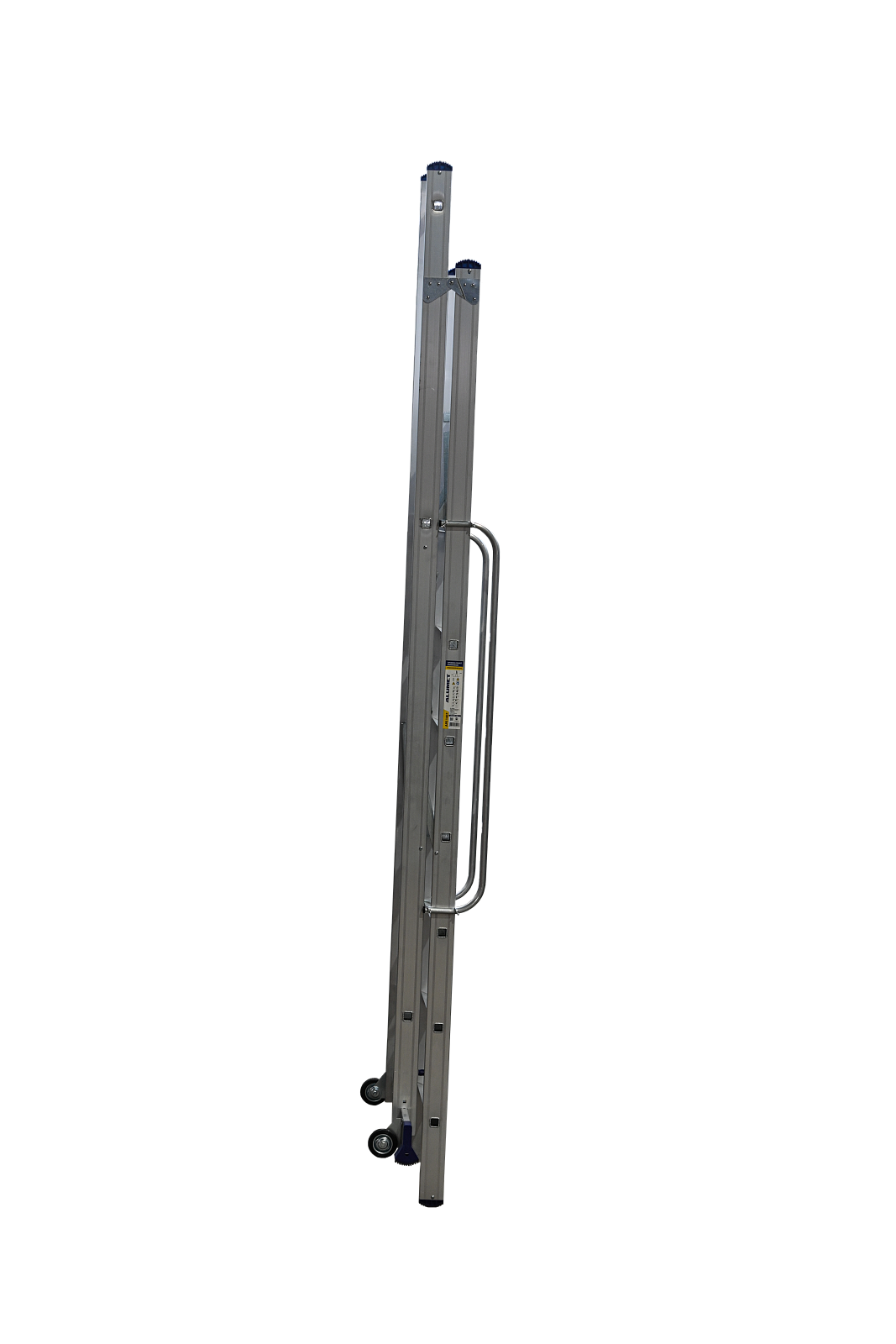

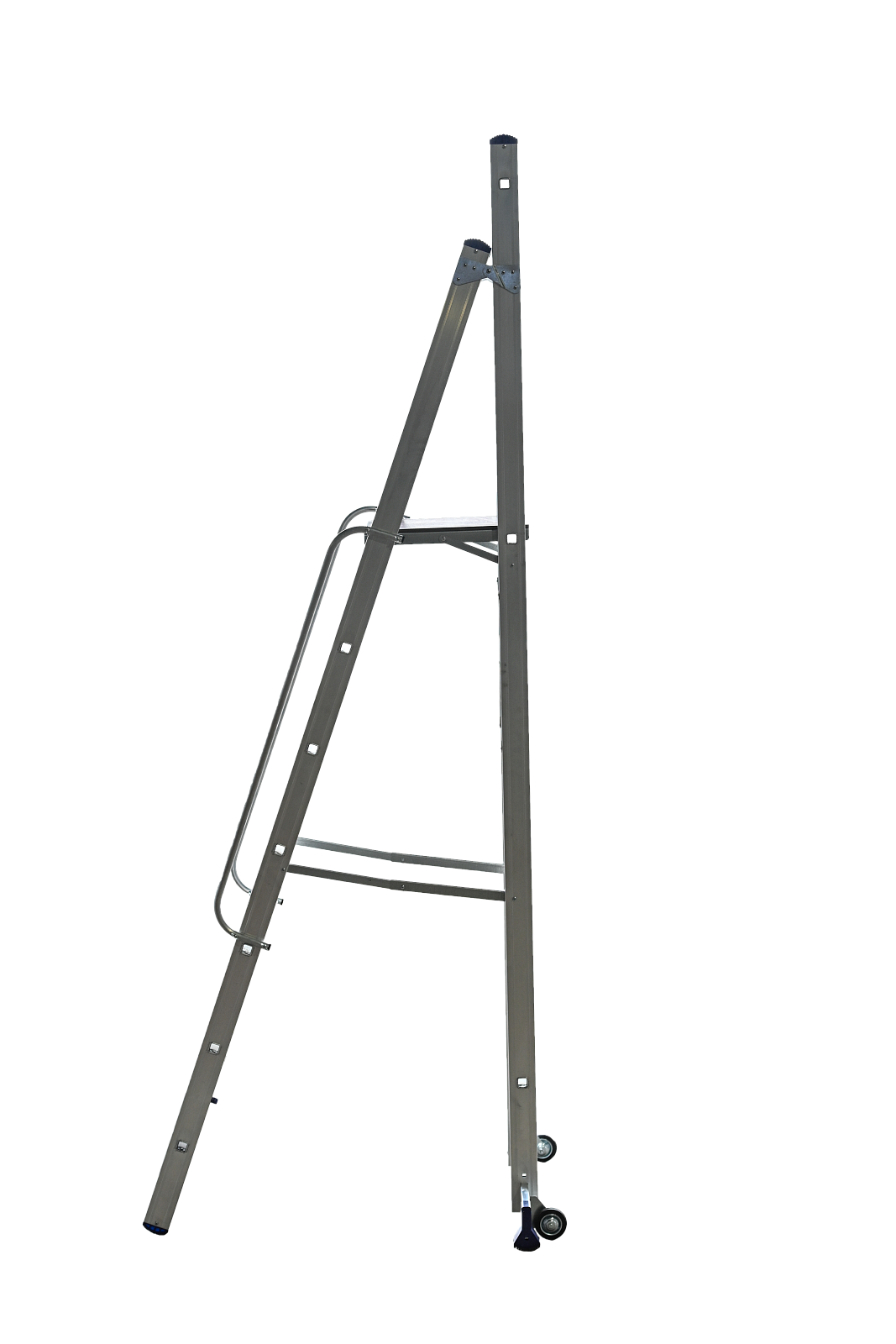

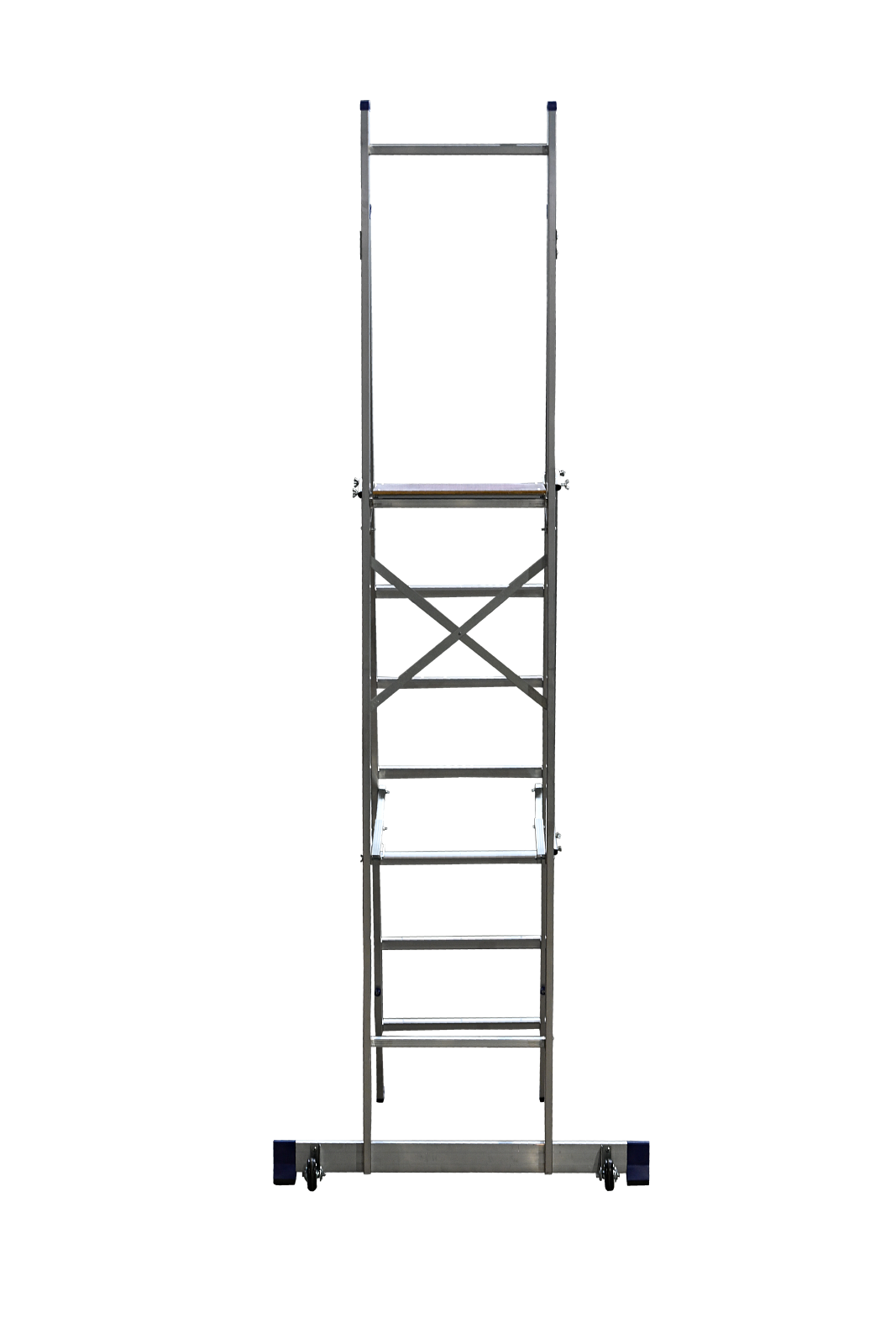

APE 1407*

Vendor code APE 1407*
Number of steps 7
Height 1.86
Width 0.5
Height max 3.96
Length 0.04
Stabilizer Width 1

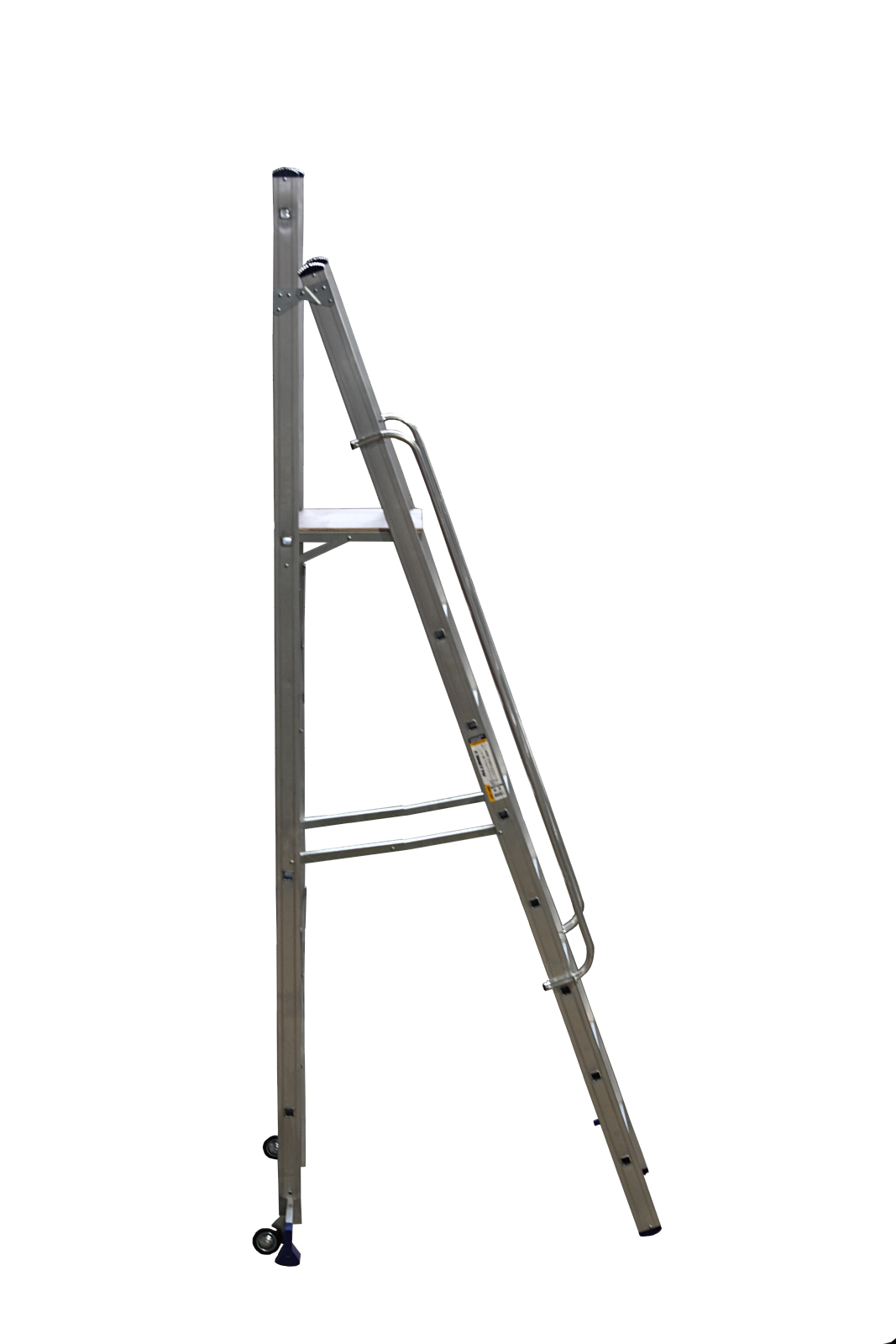

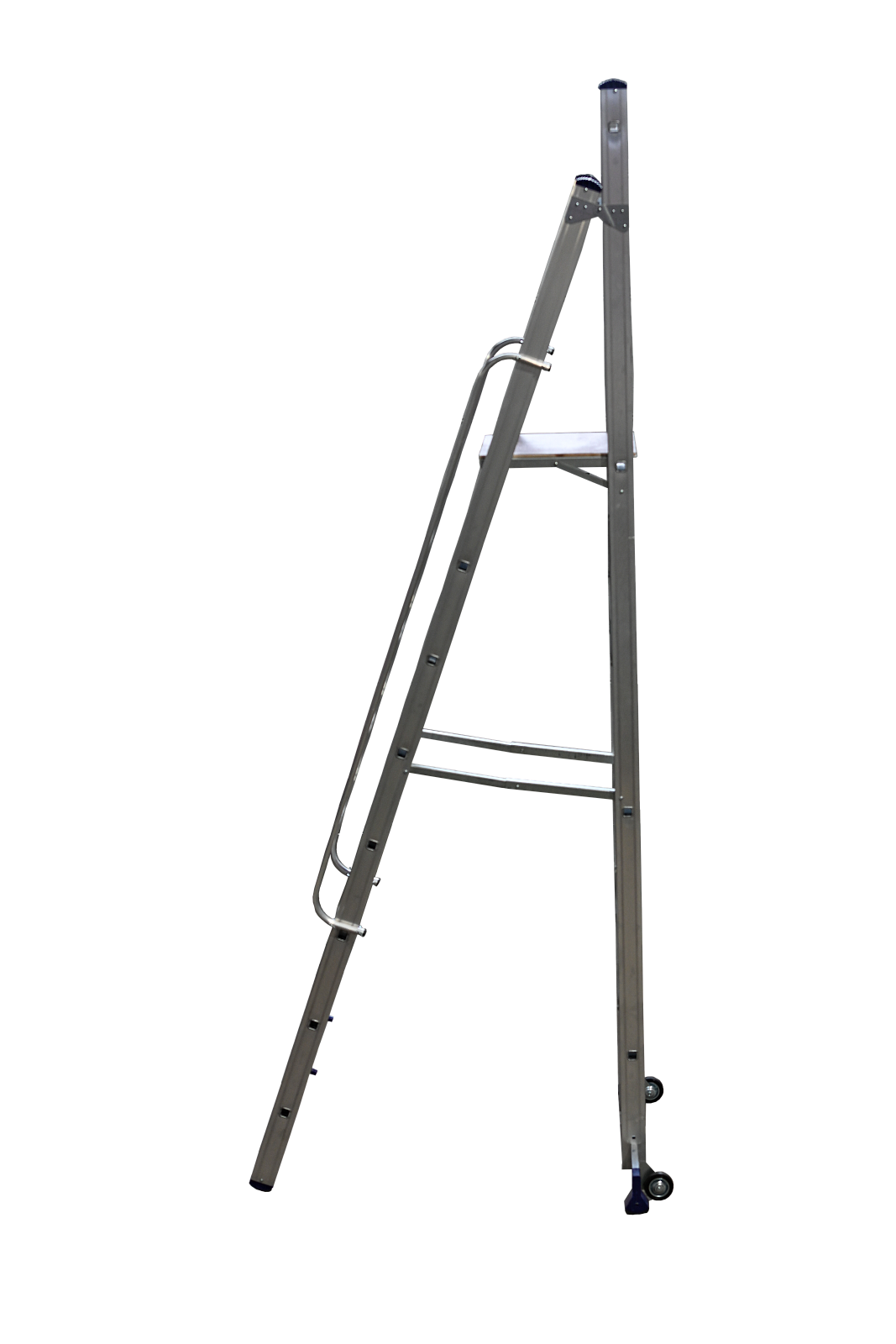

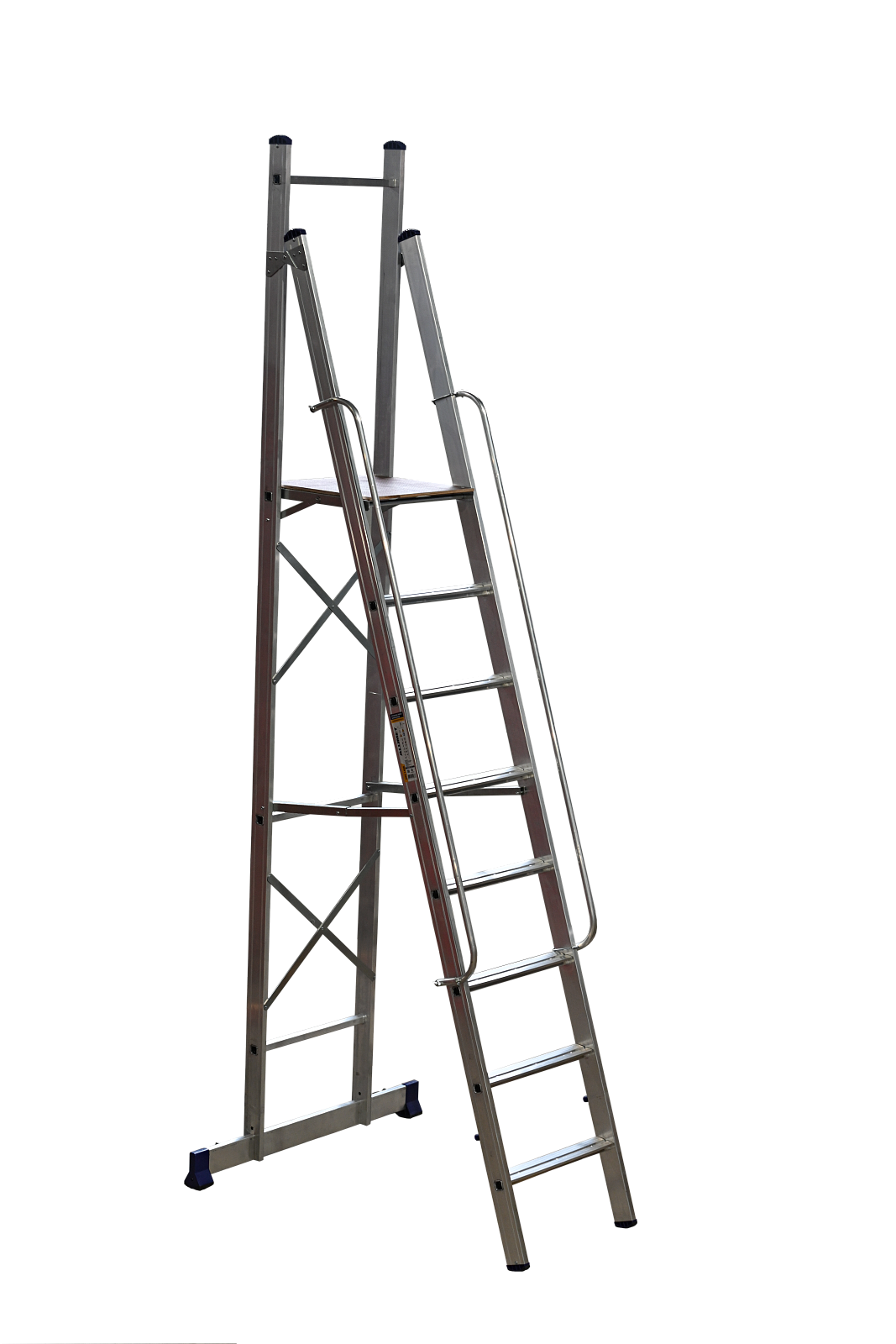

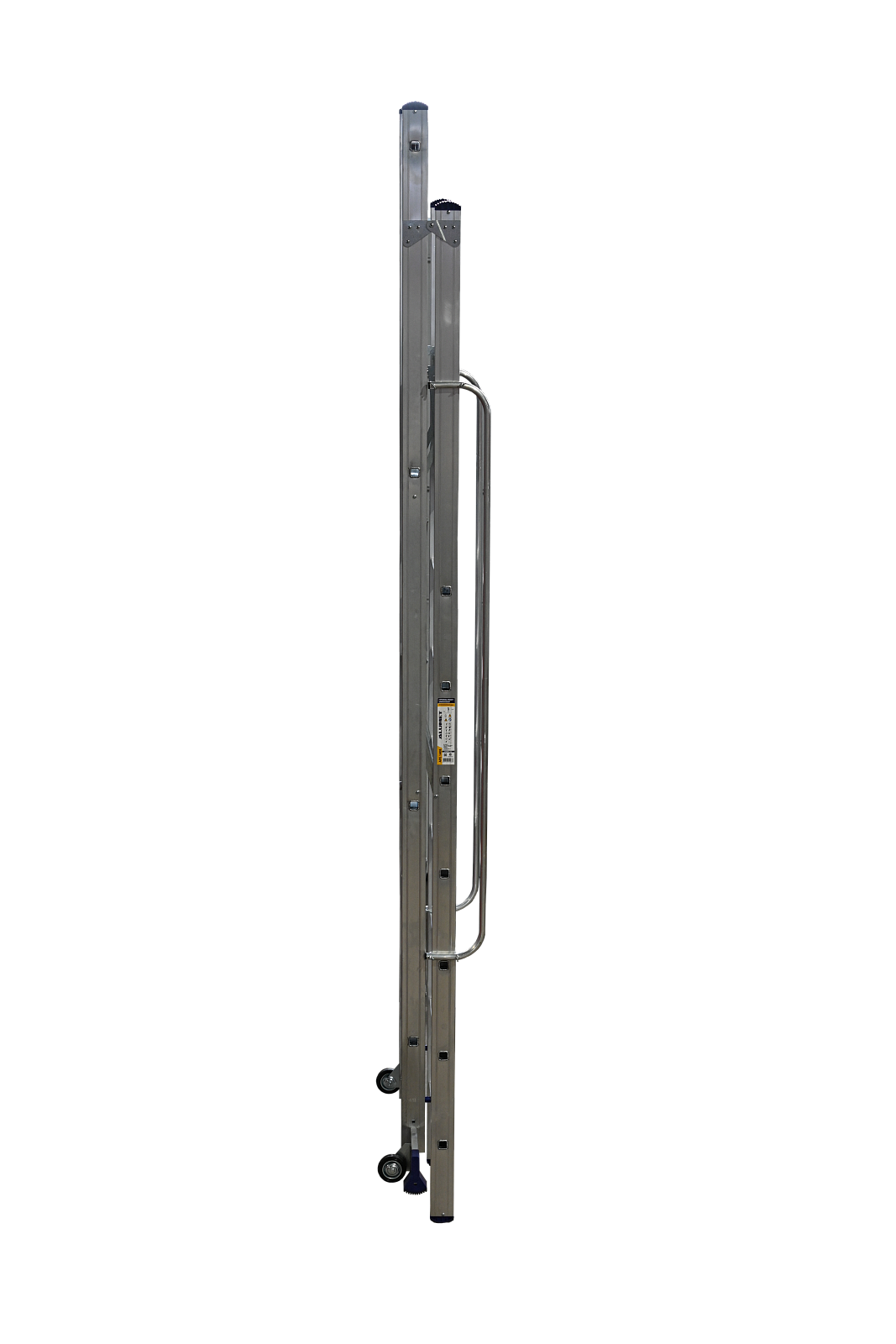

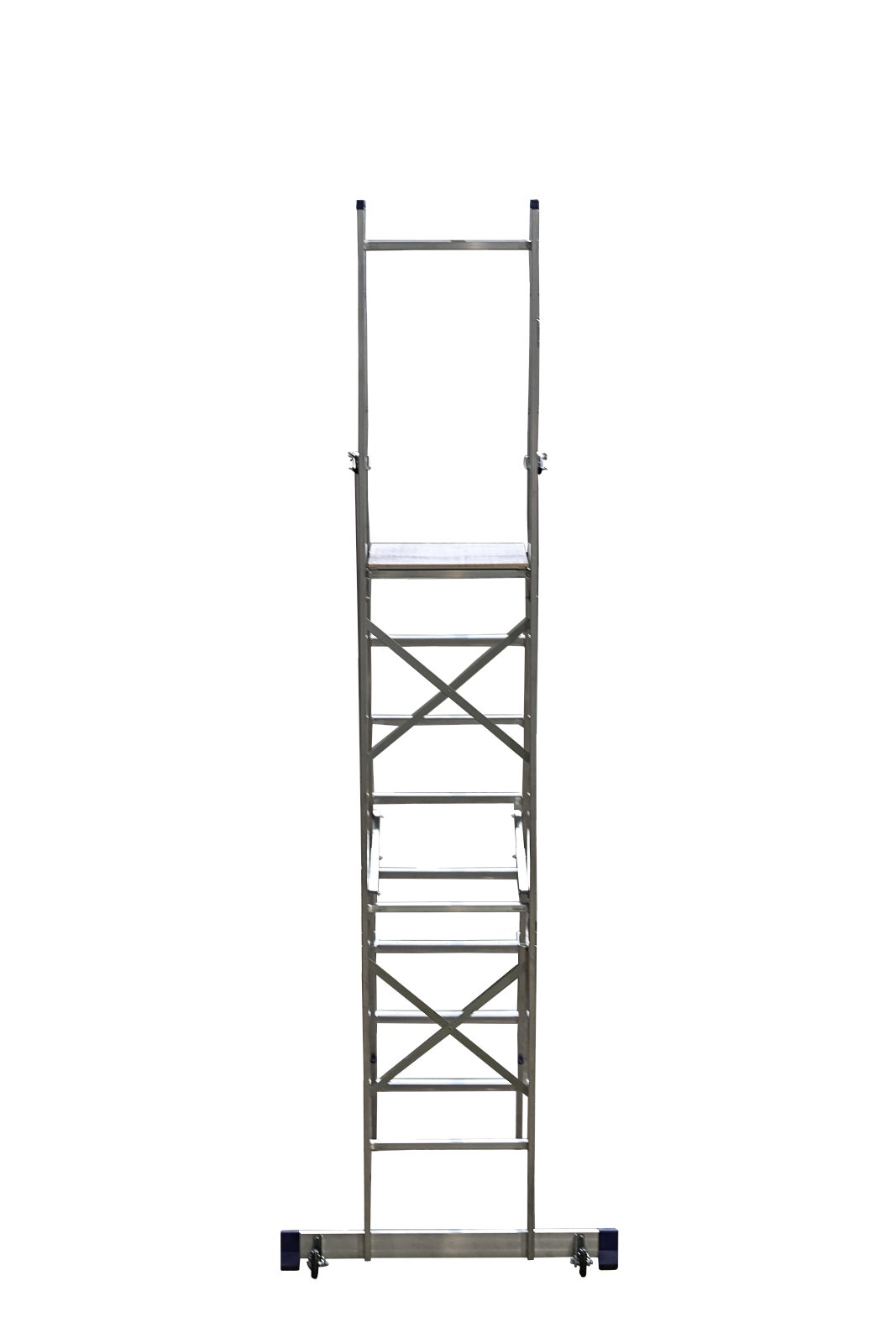

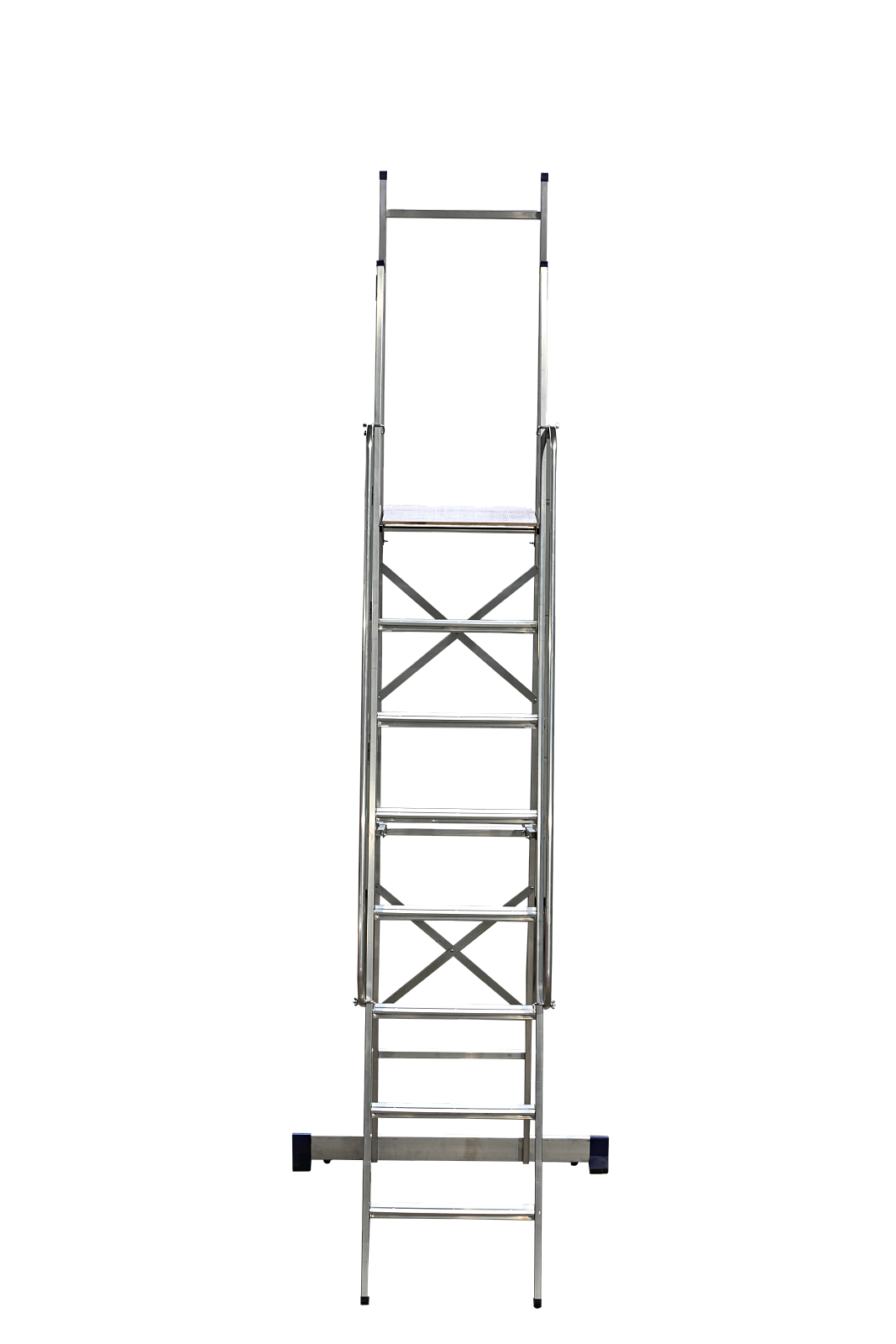

APE 1408*

Vendor code APE 1408*
Number of steps 8
Height 2.12
Width 0.5
Height max 4.22
Length 3.32
Stabilizer Width 1

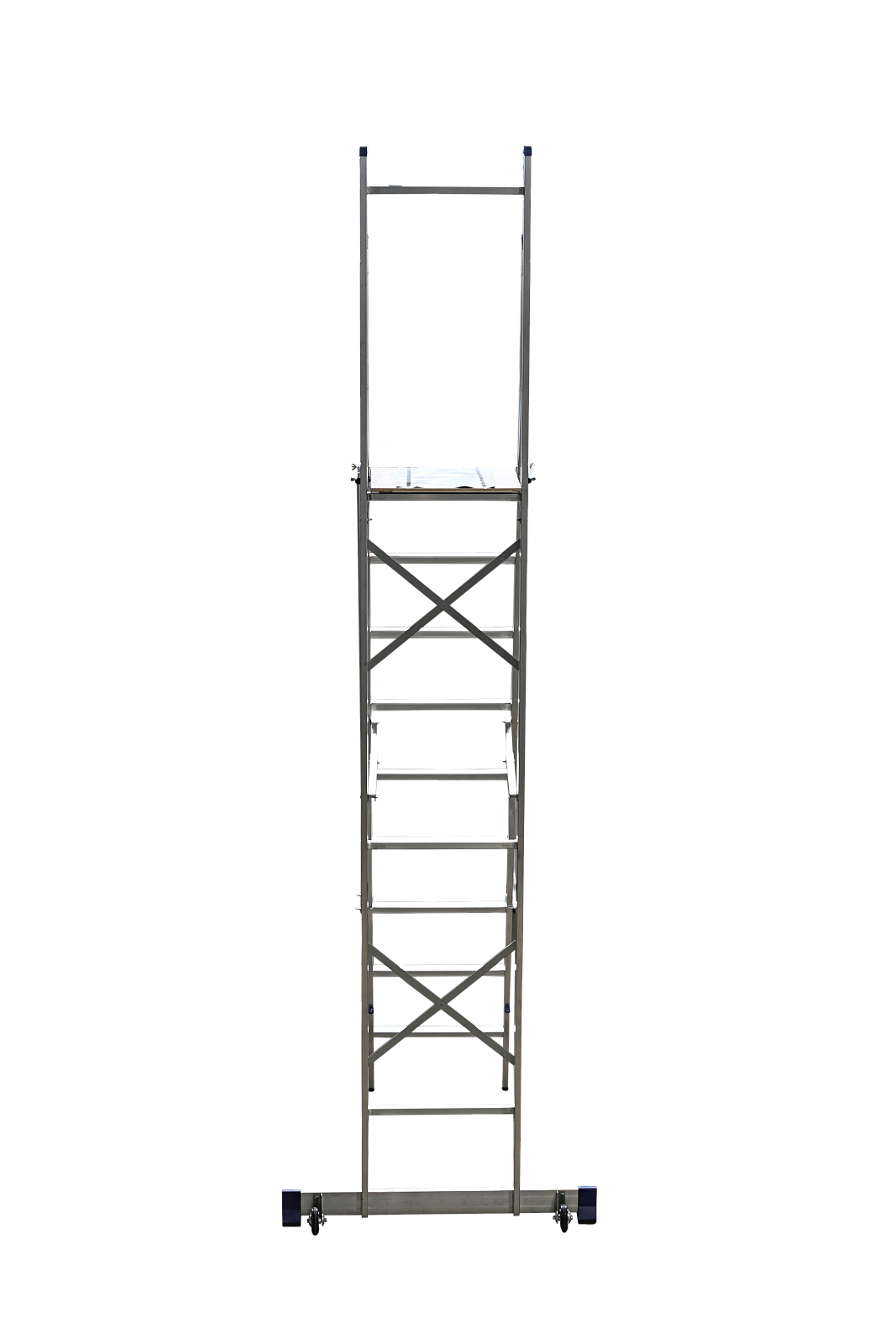

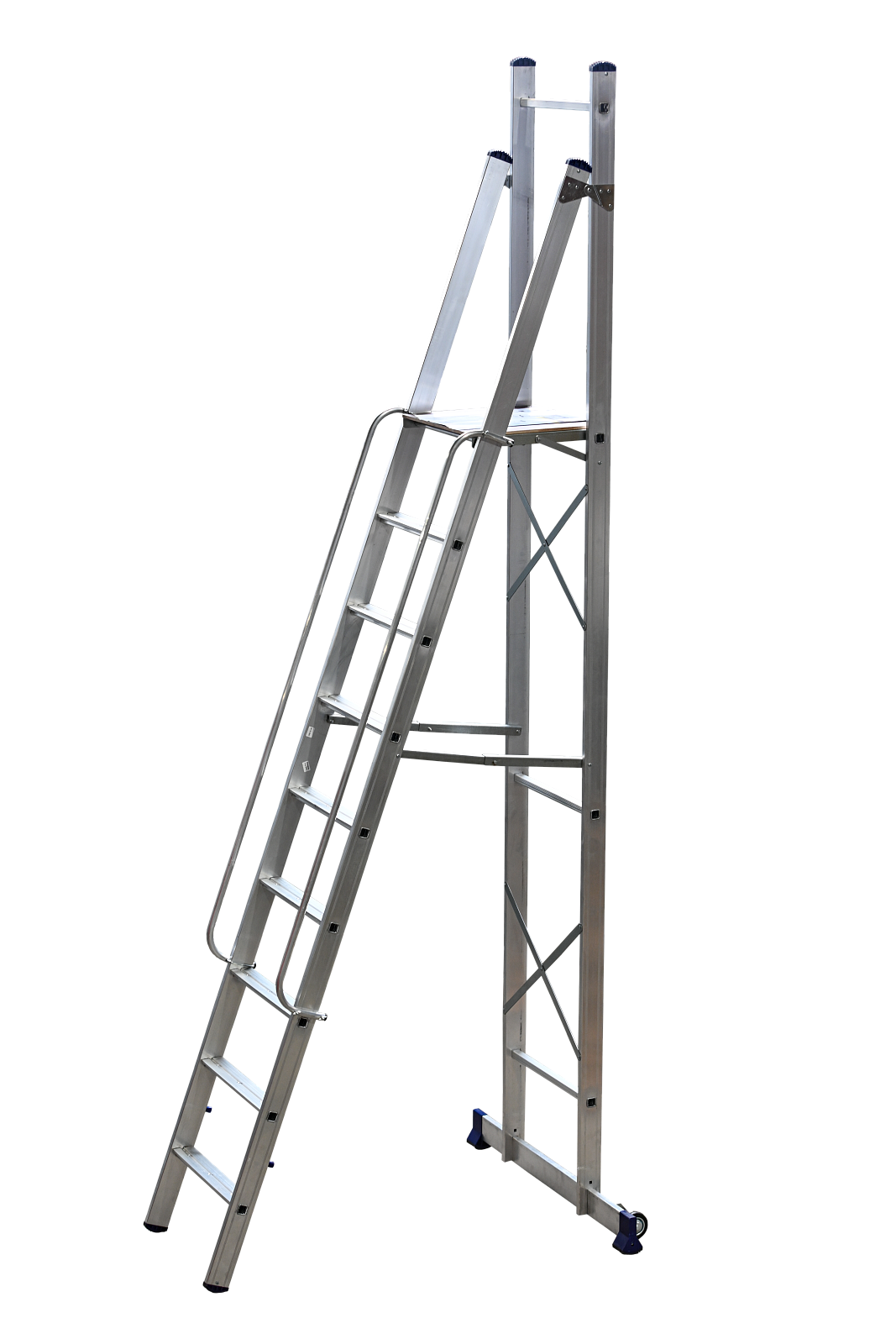

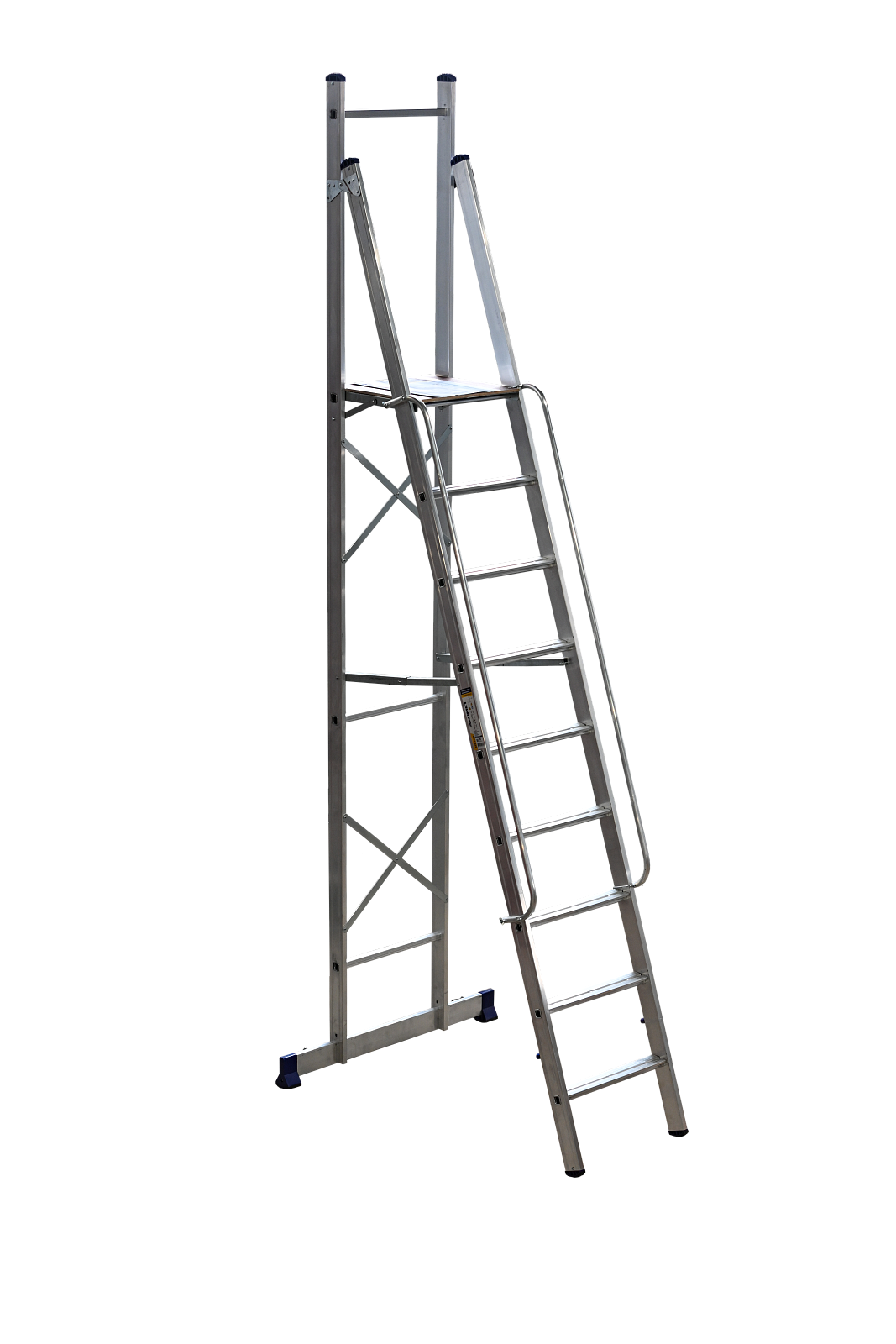

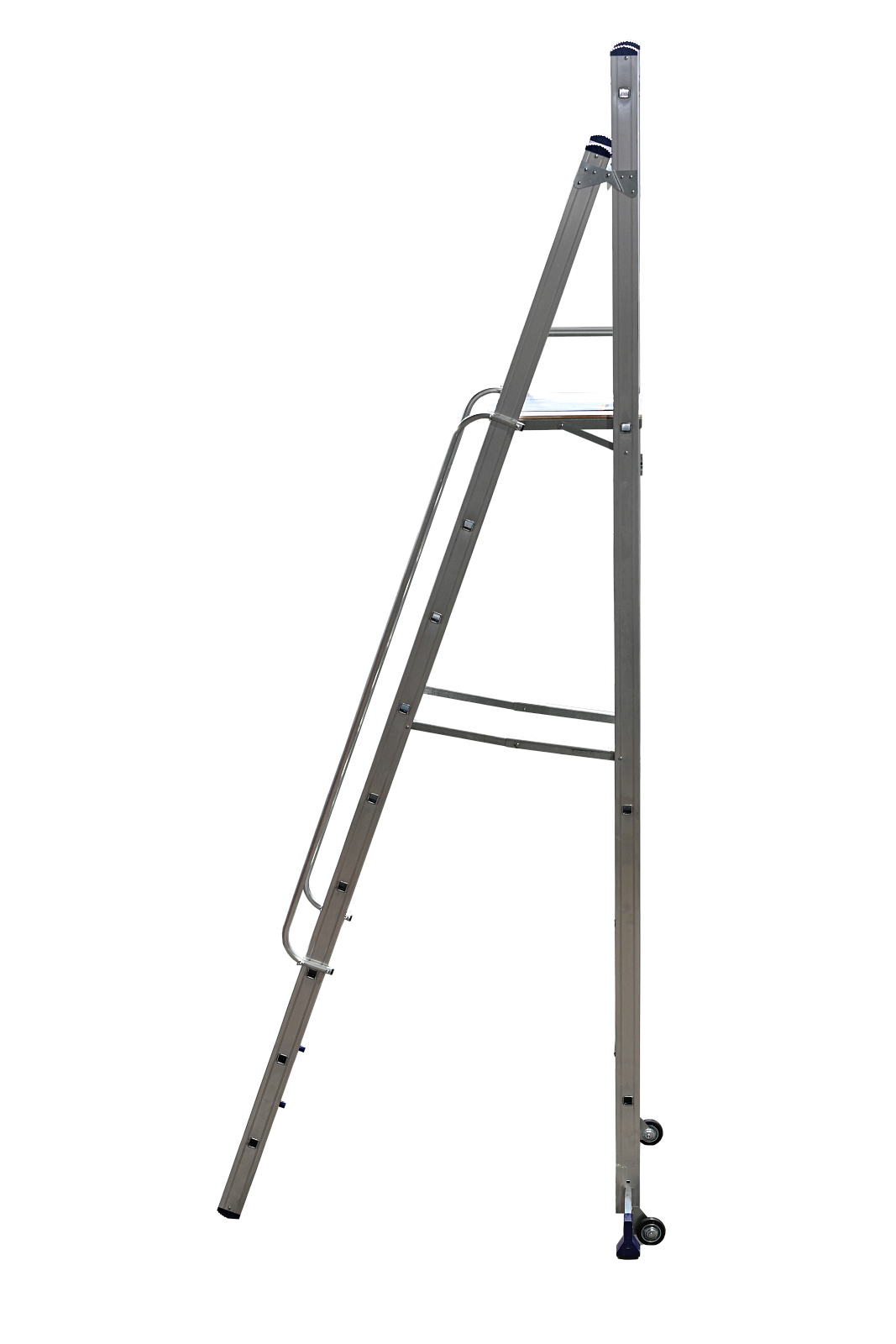

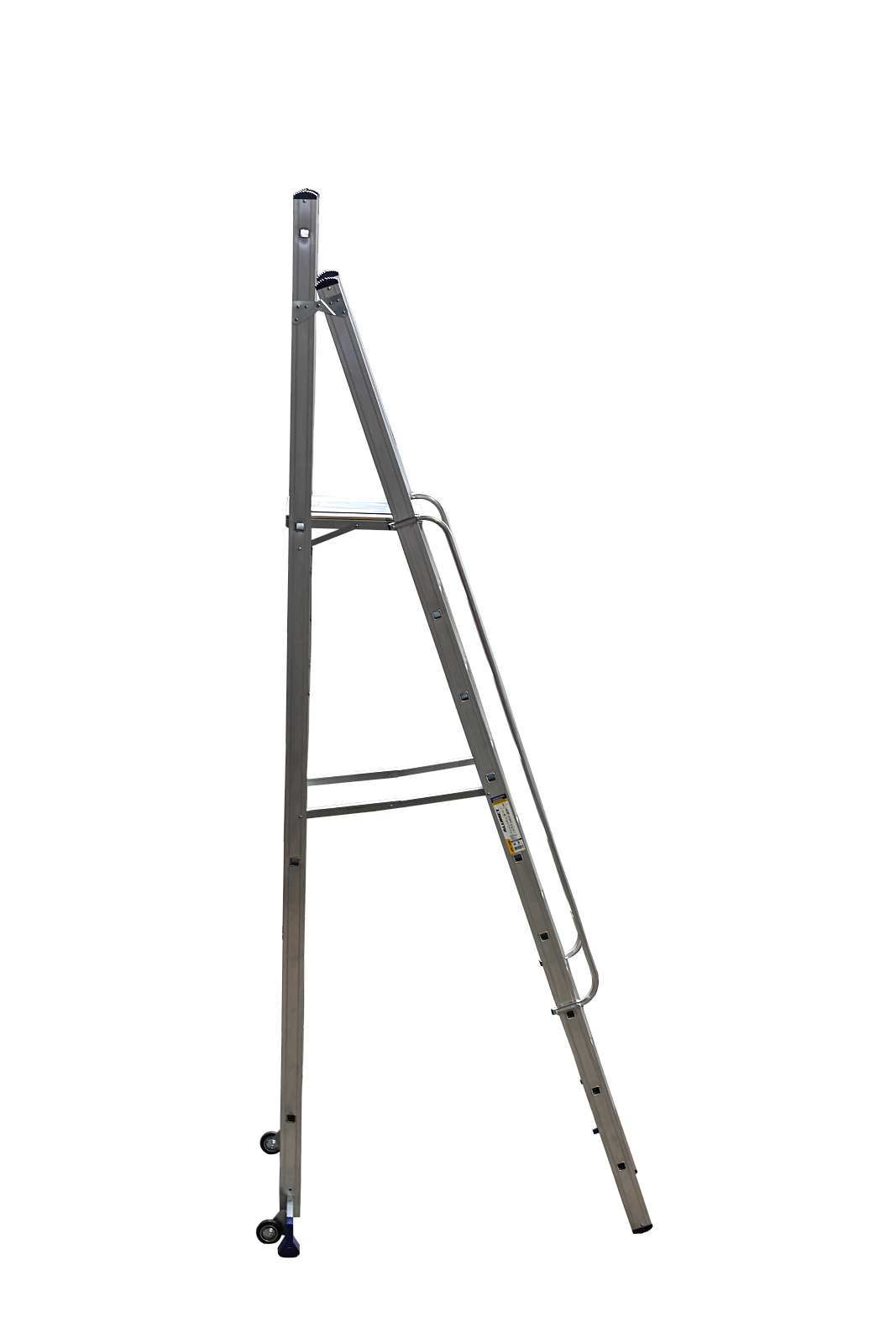

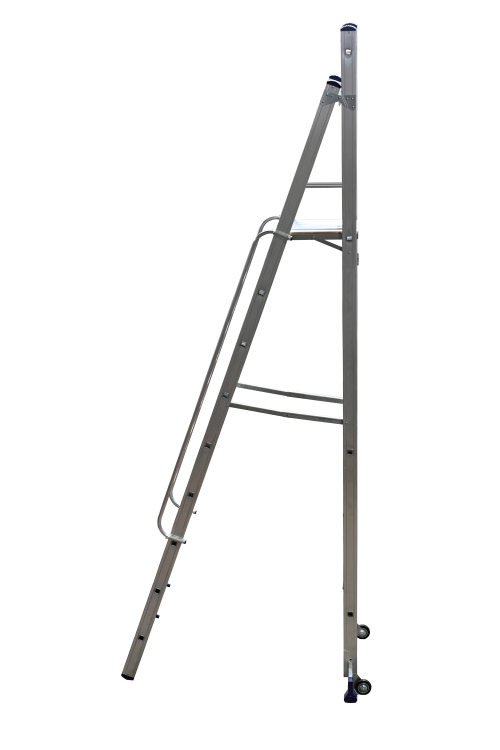

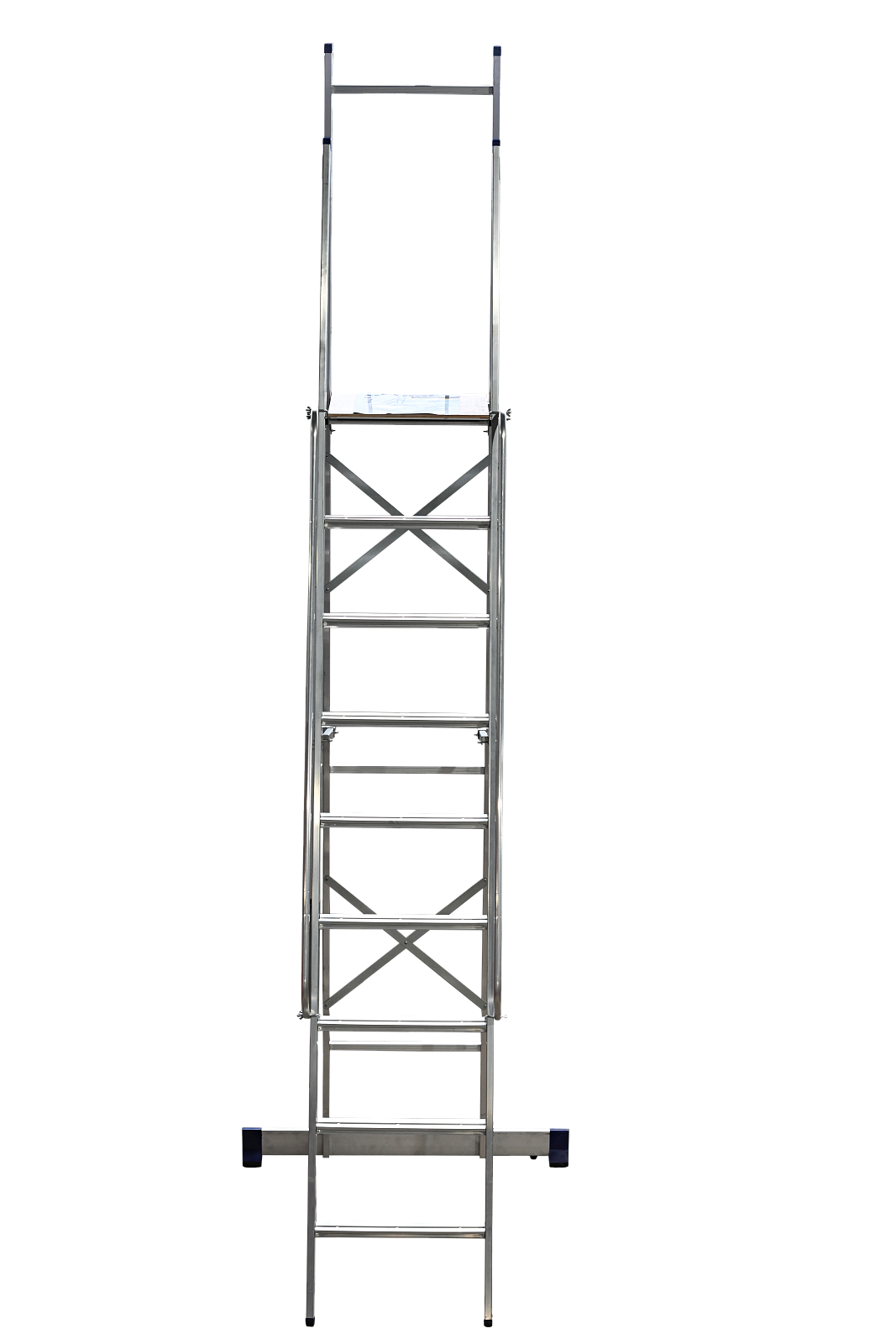

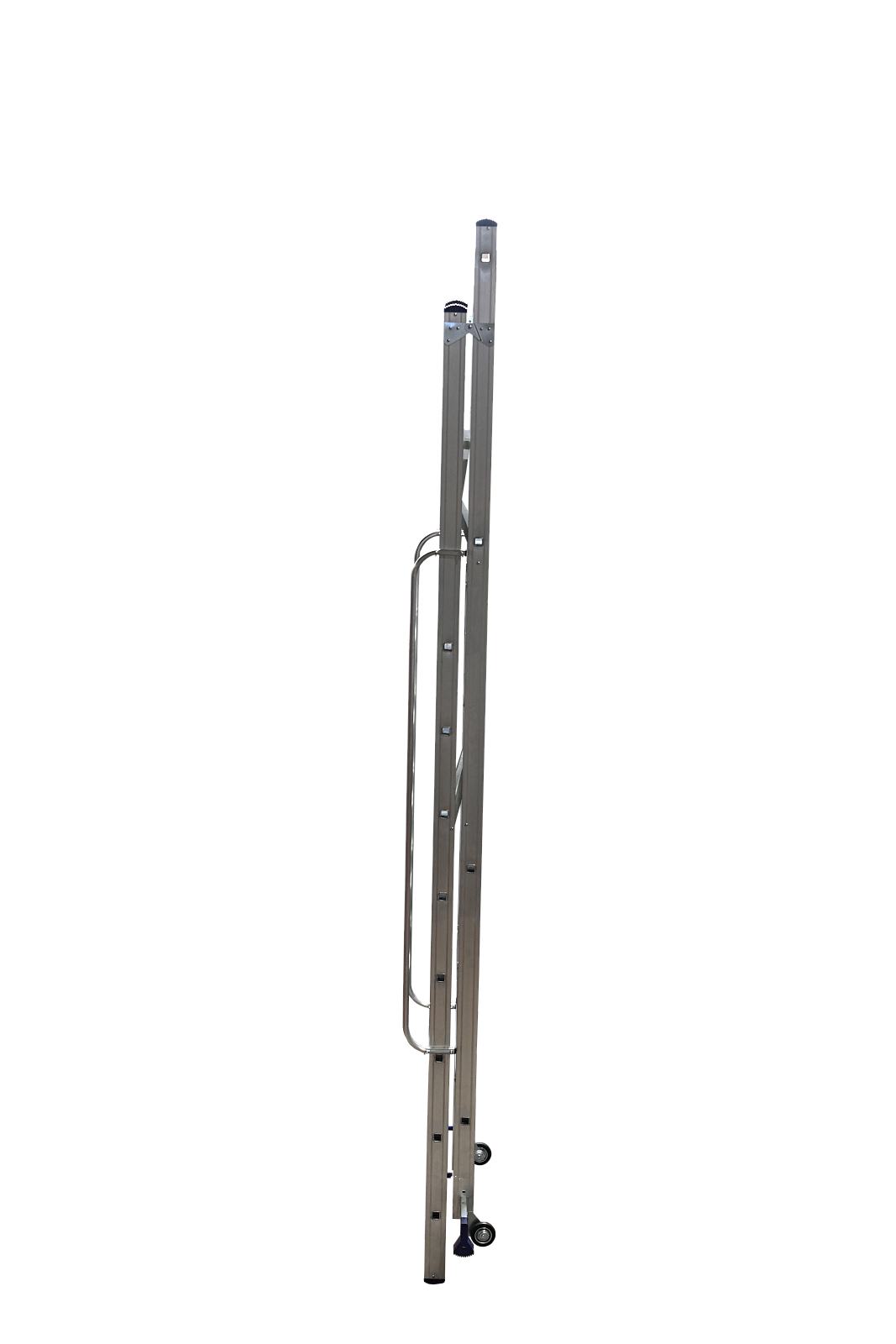

APE 1409*

Vendor code APE 1409*
Number of steps 9
Height 2.38
Width 0.5
Height max 4.48
Length 3.6
Stabilizer Width 1

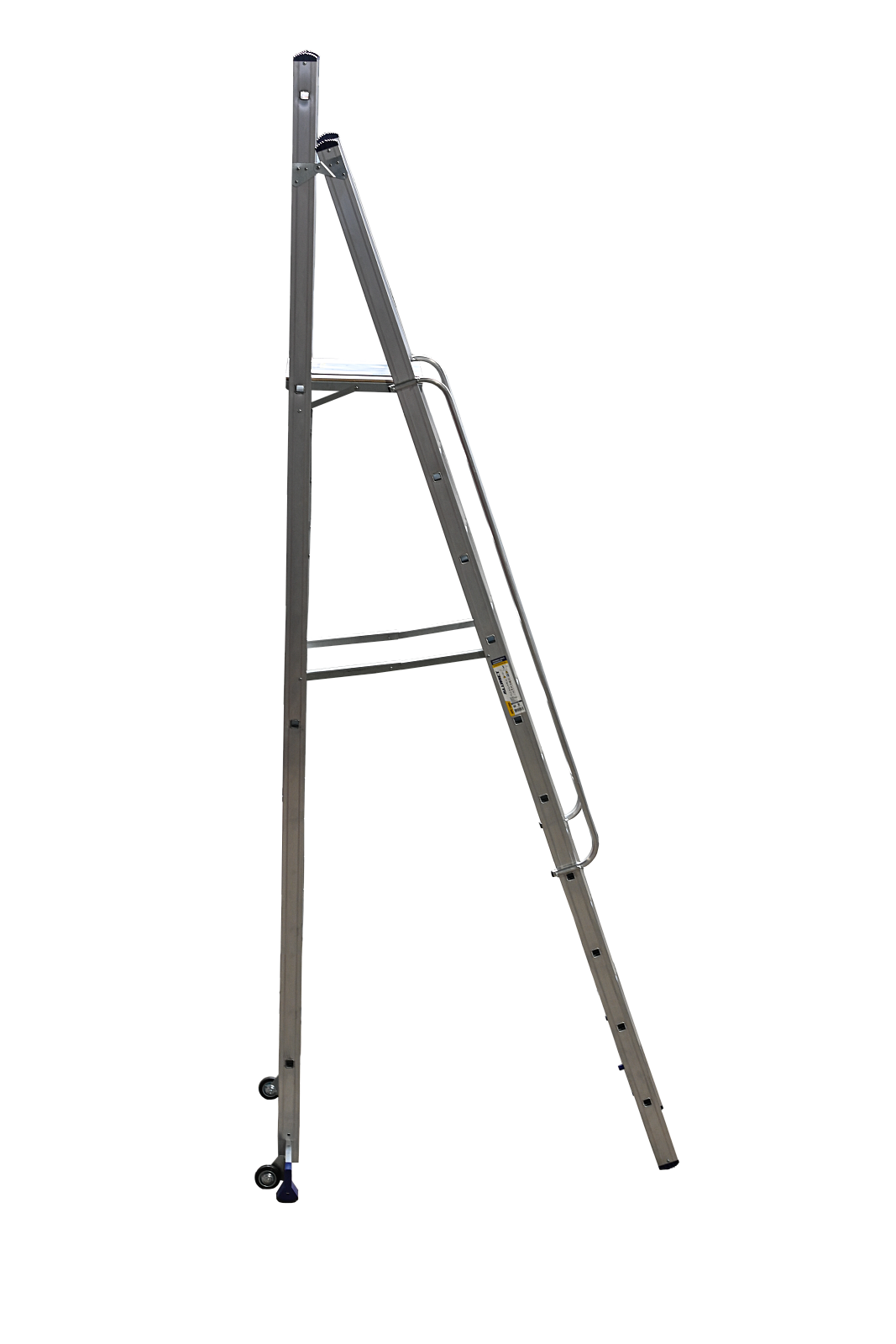

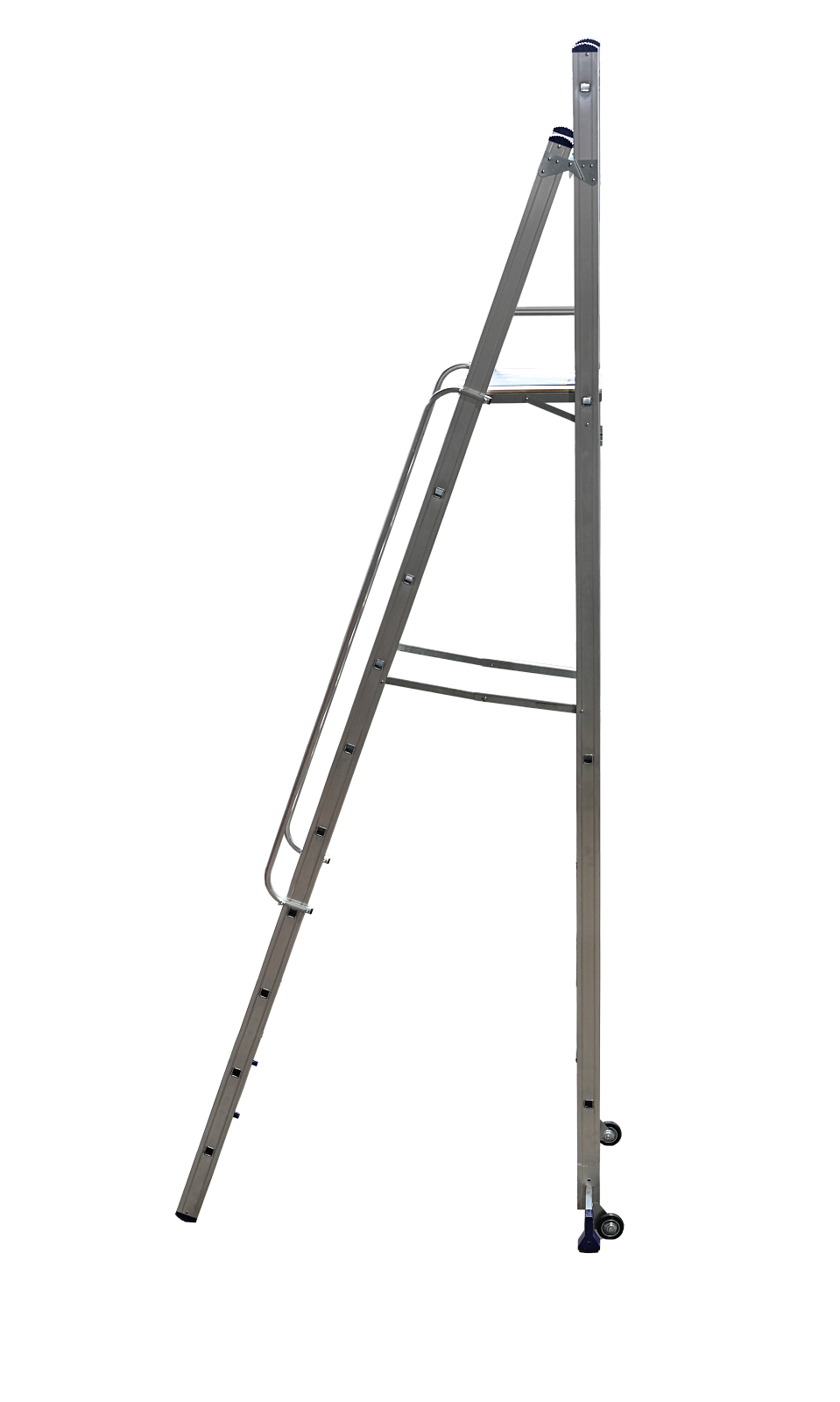

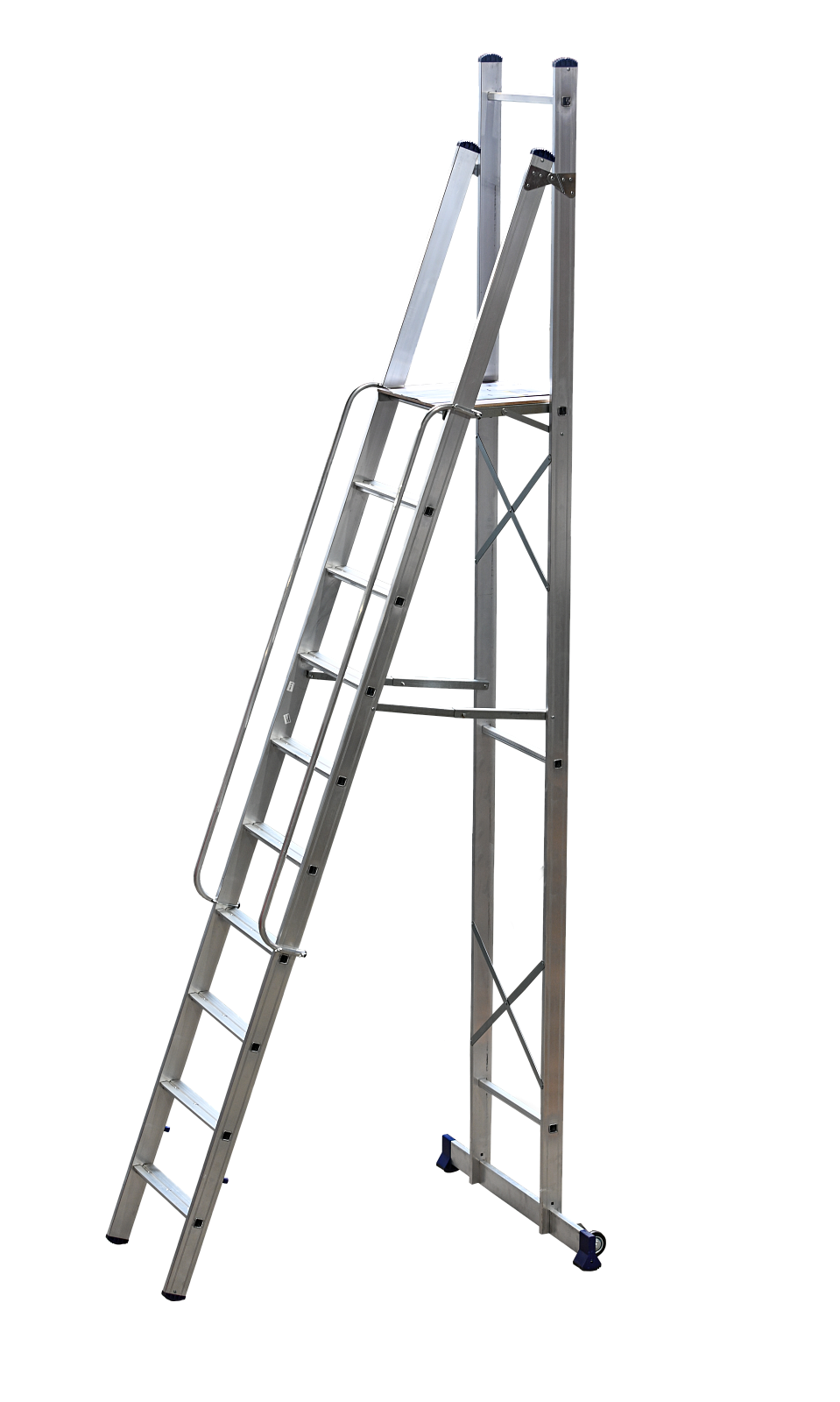

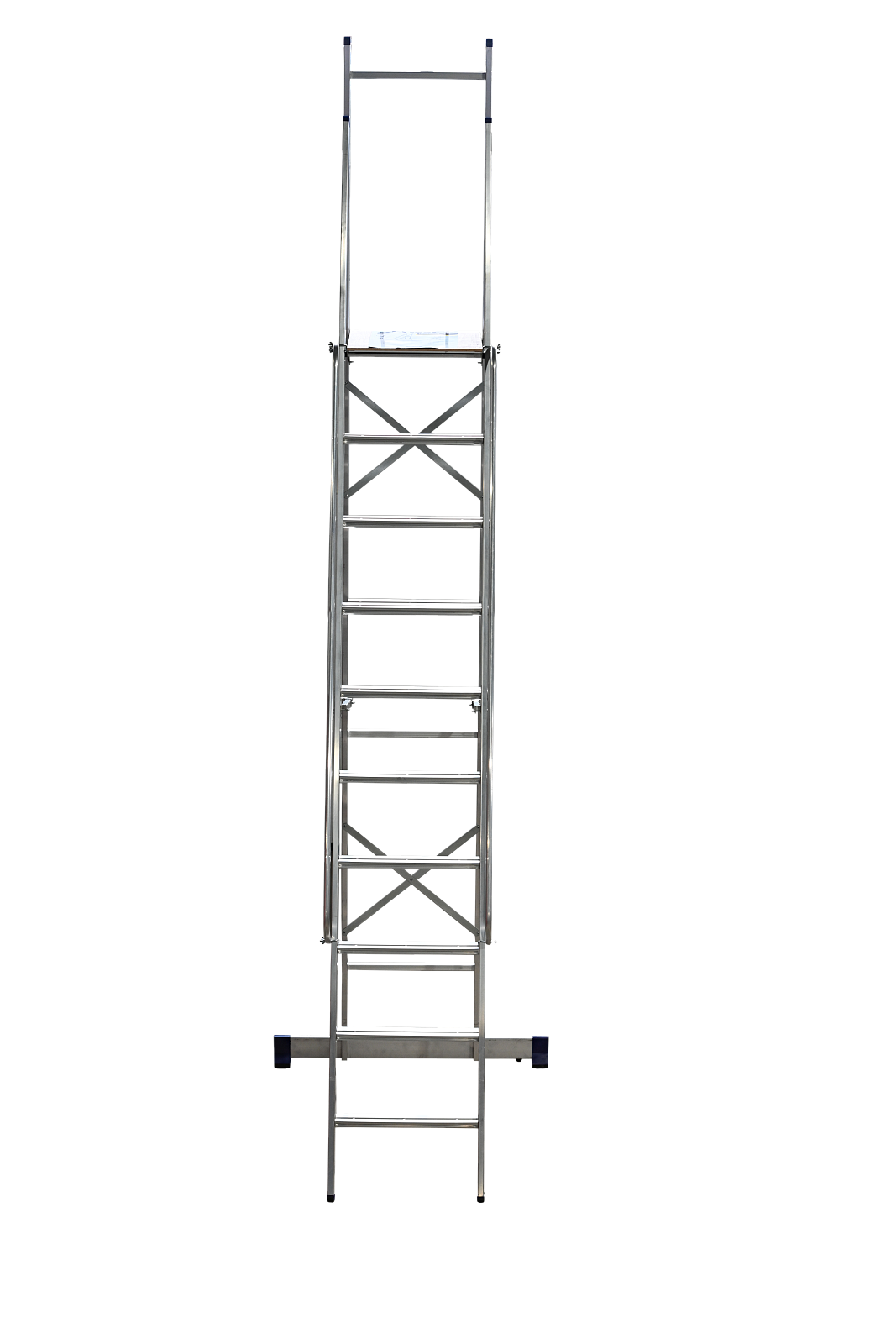

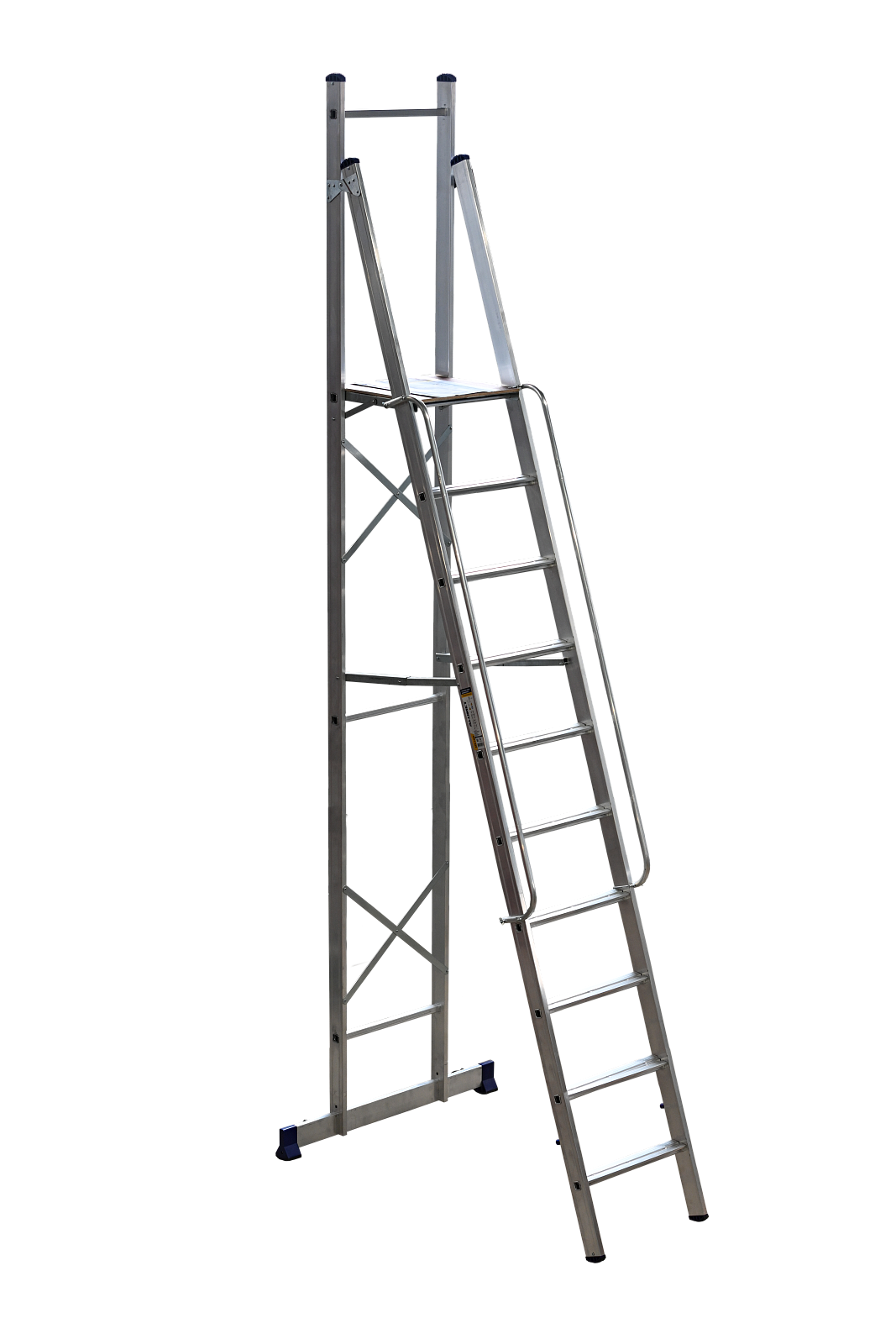

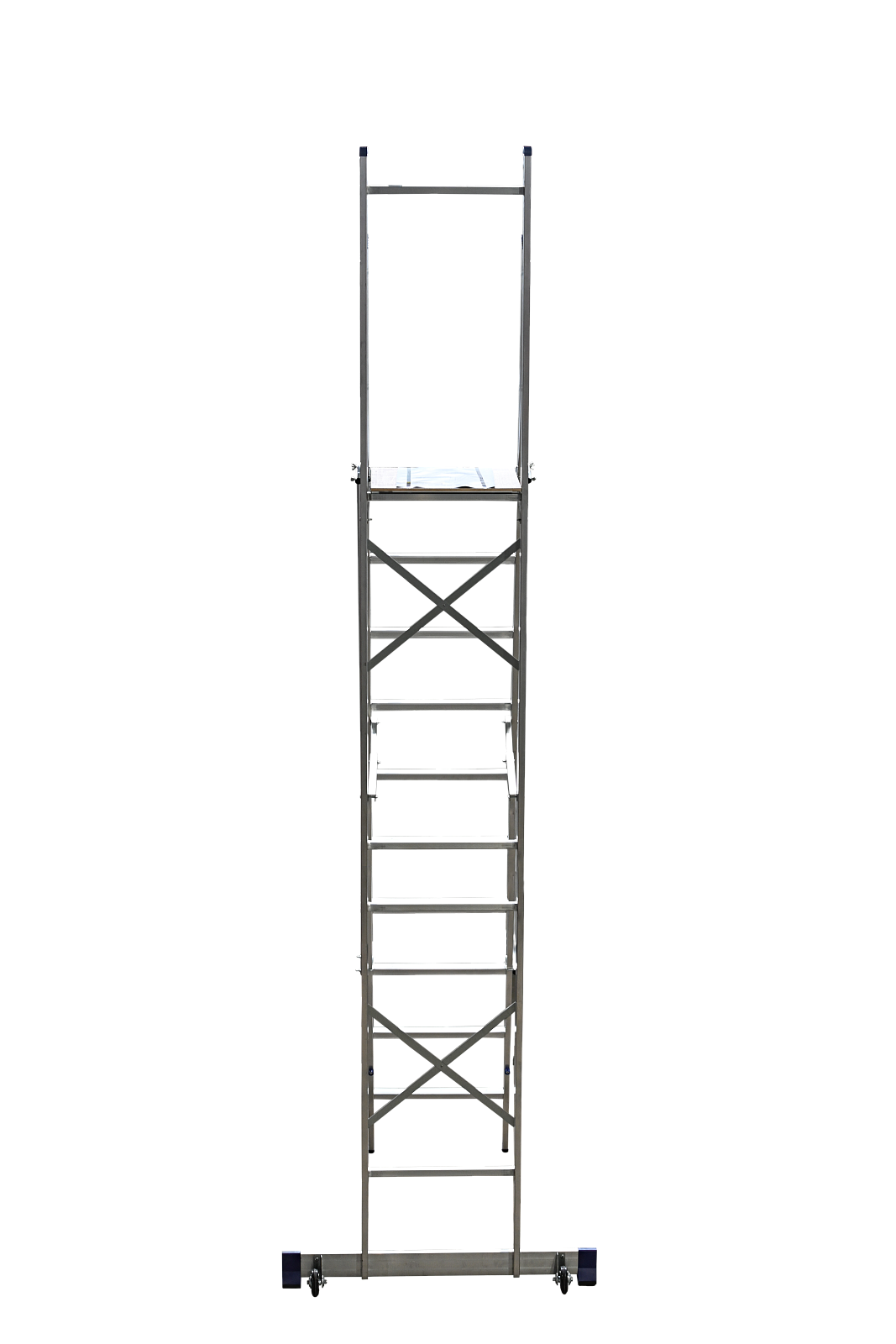

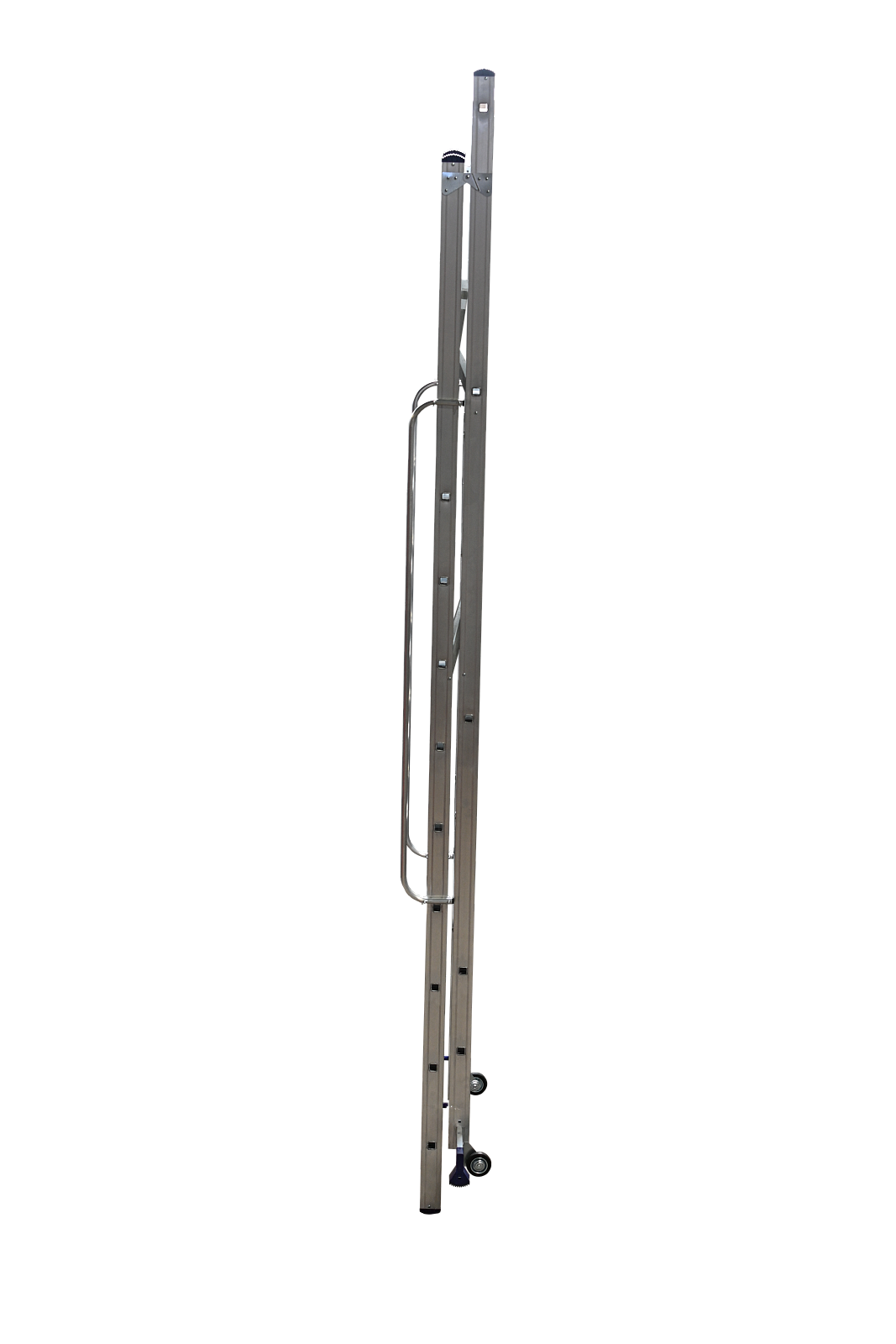

APE 1410*

Vendor code APE 1410*
Number of steps 10
Height 2.65
Width 0.5
Height max 4.75
Length 3.66
Stabilizer Width 1.0

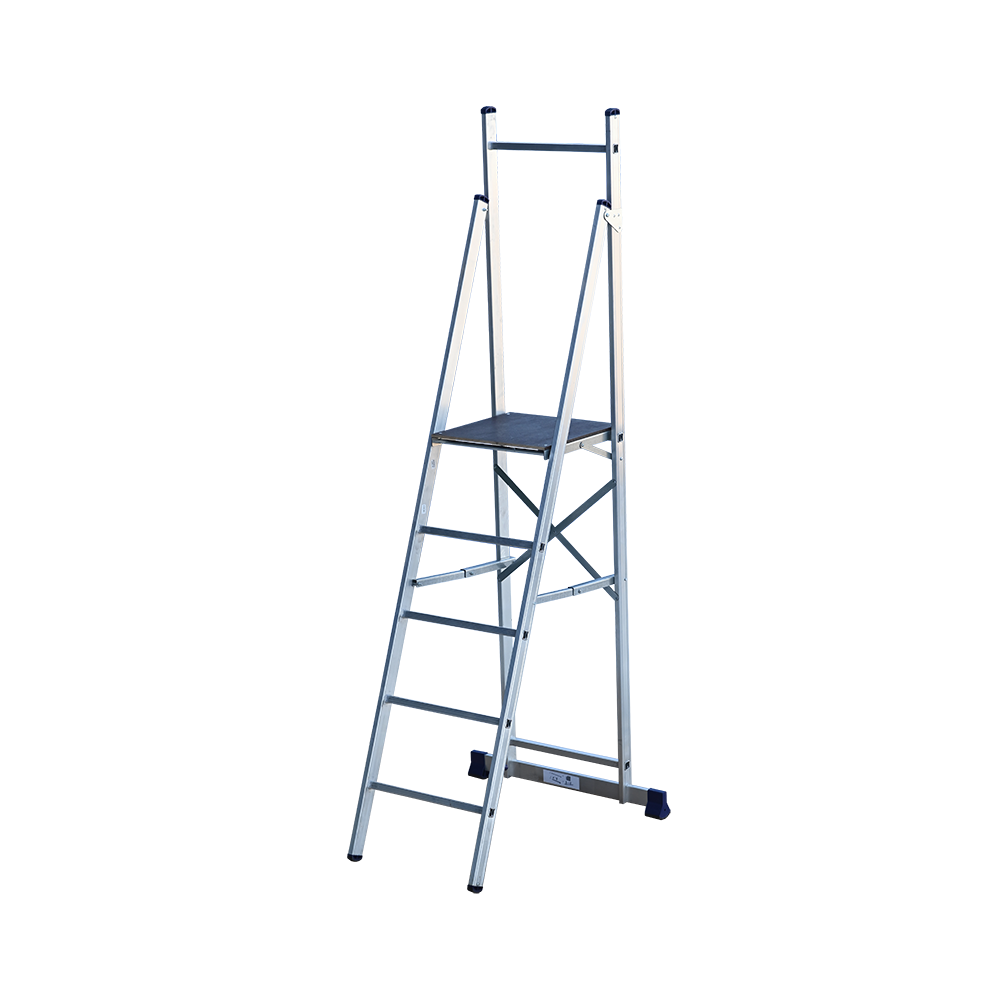

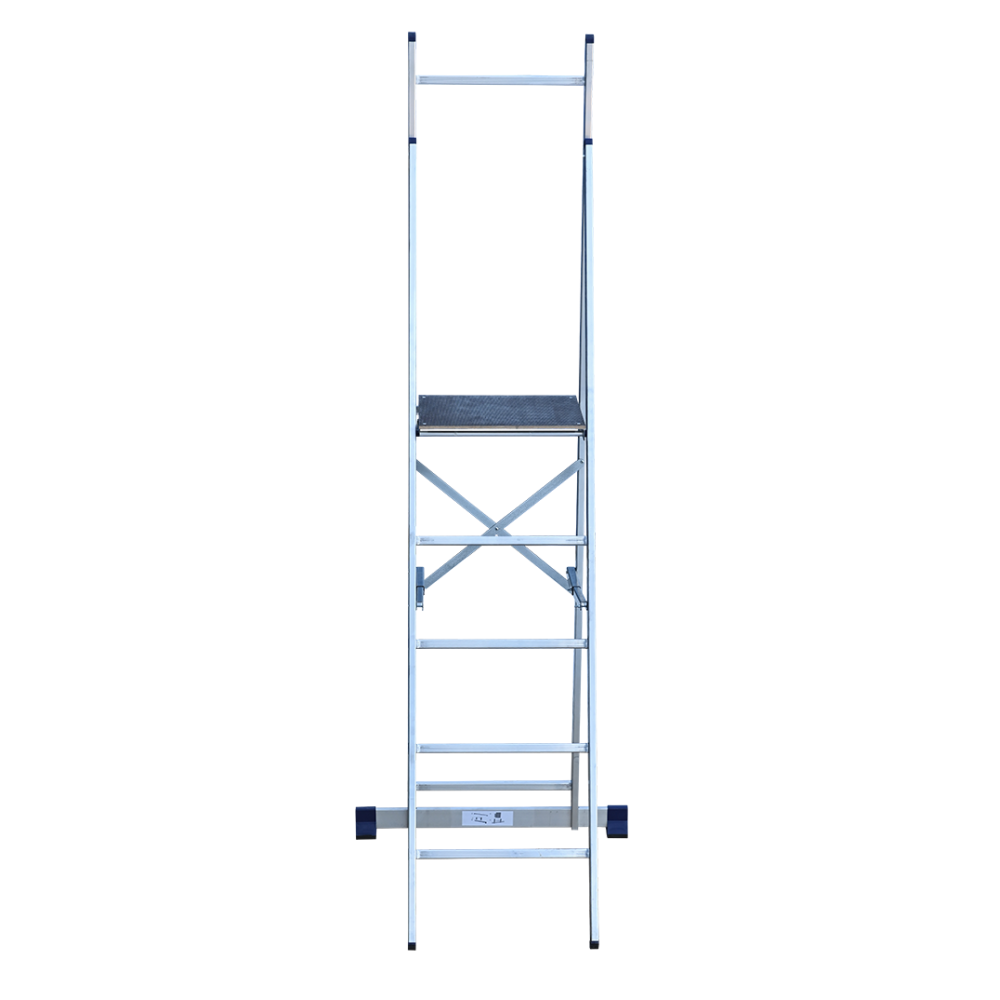

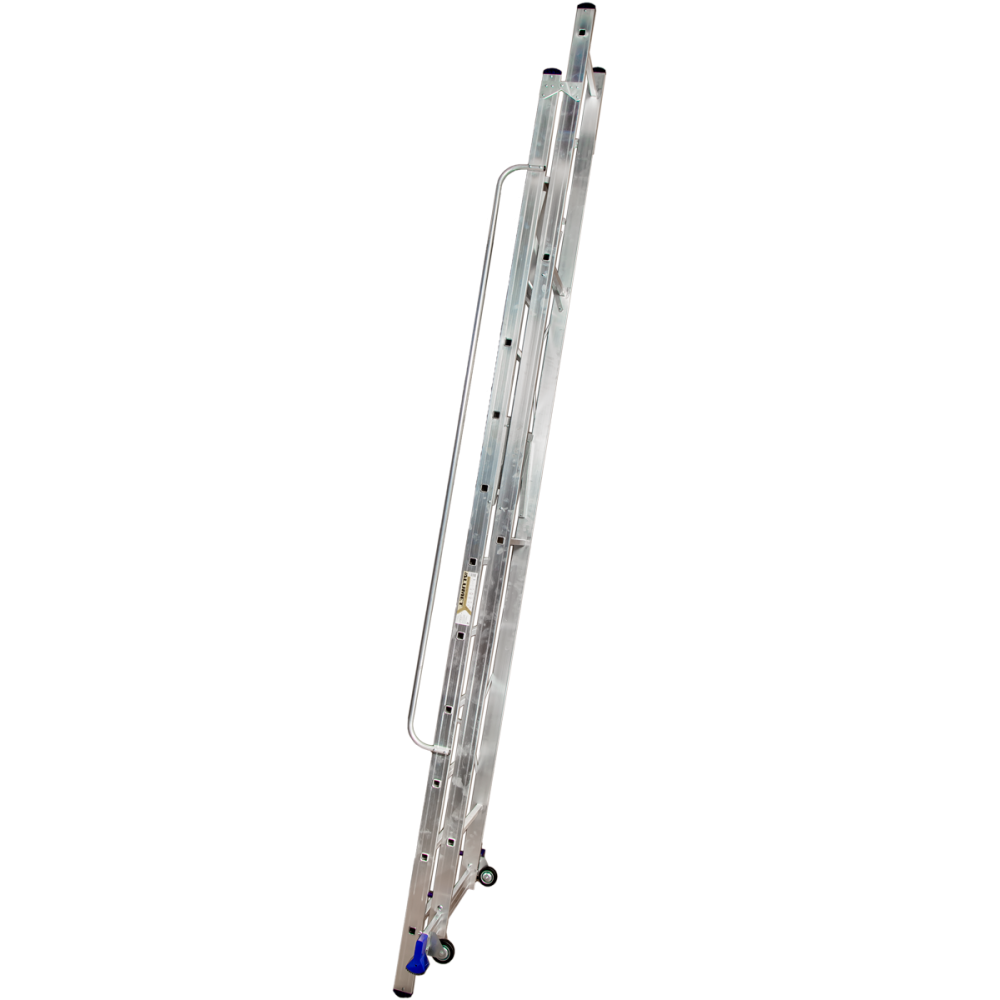

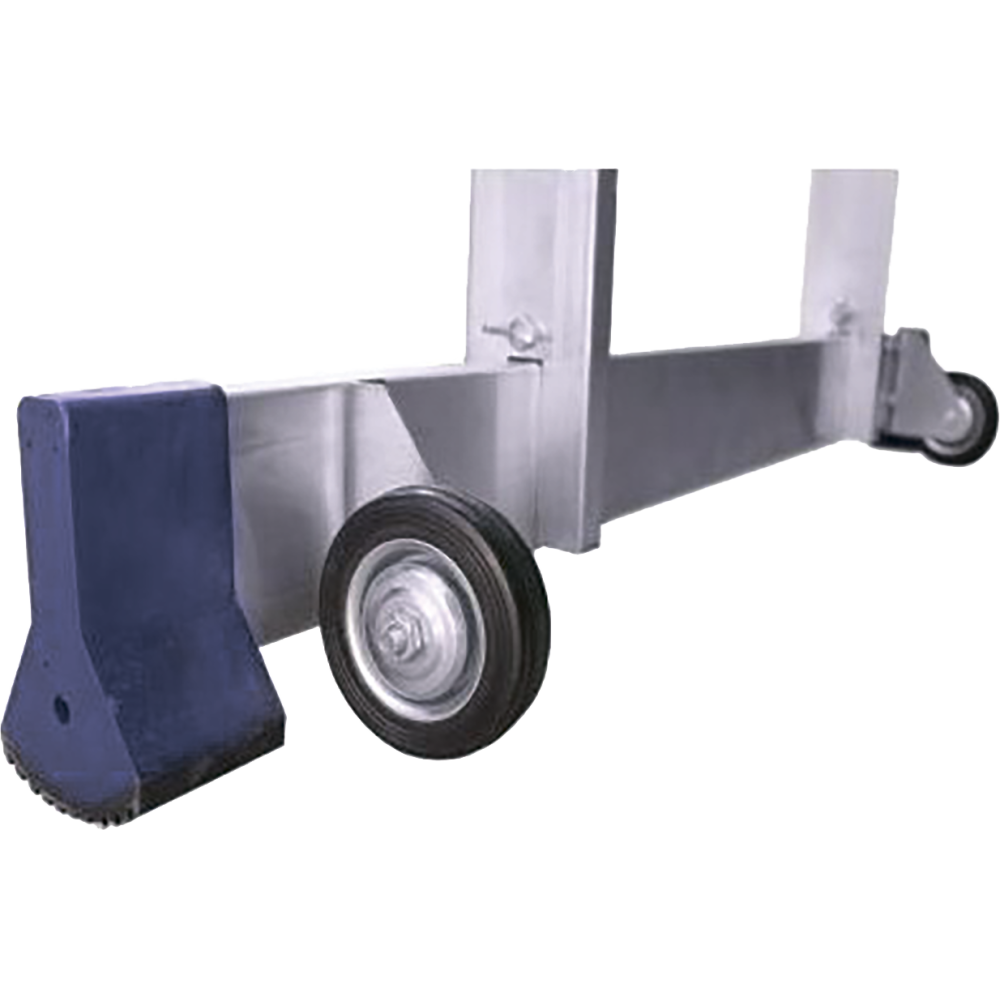

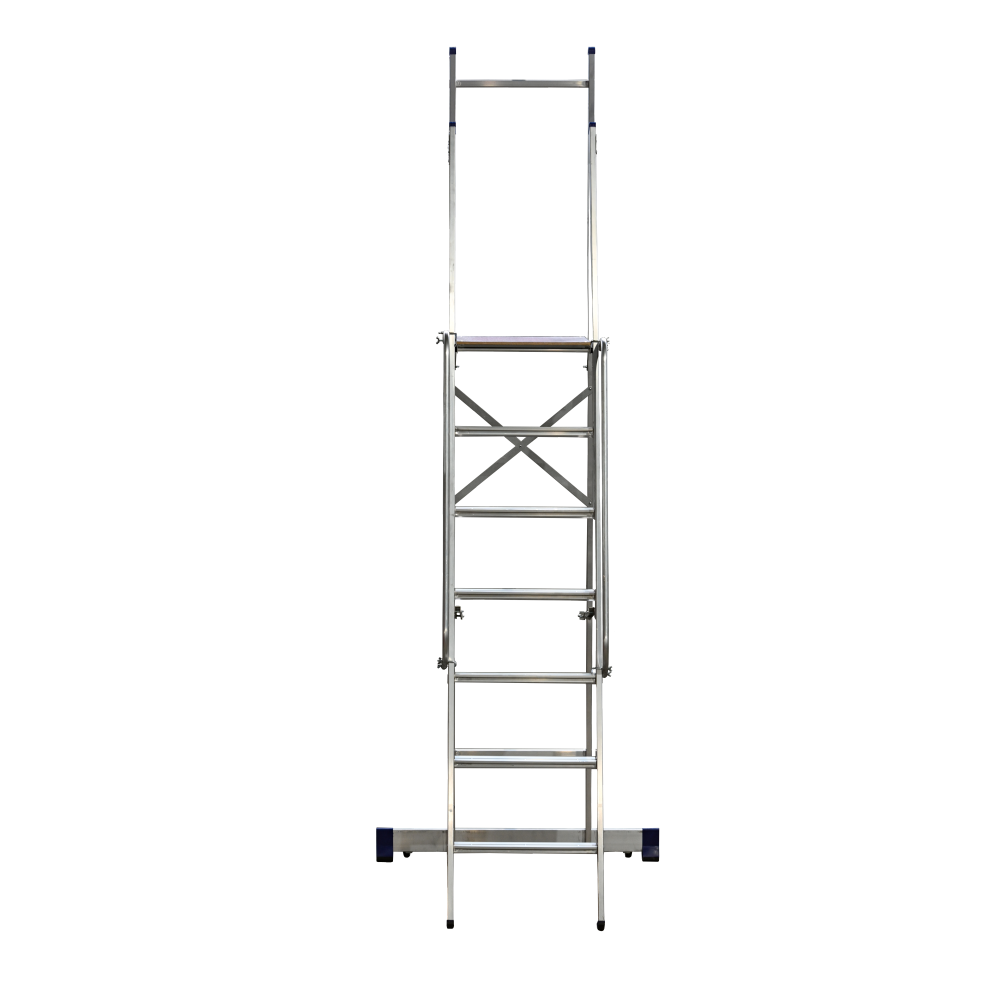

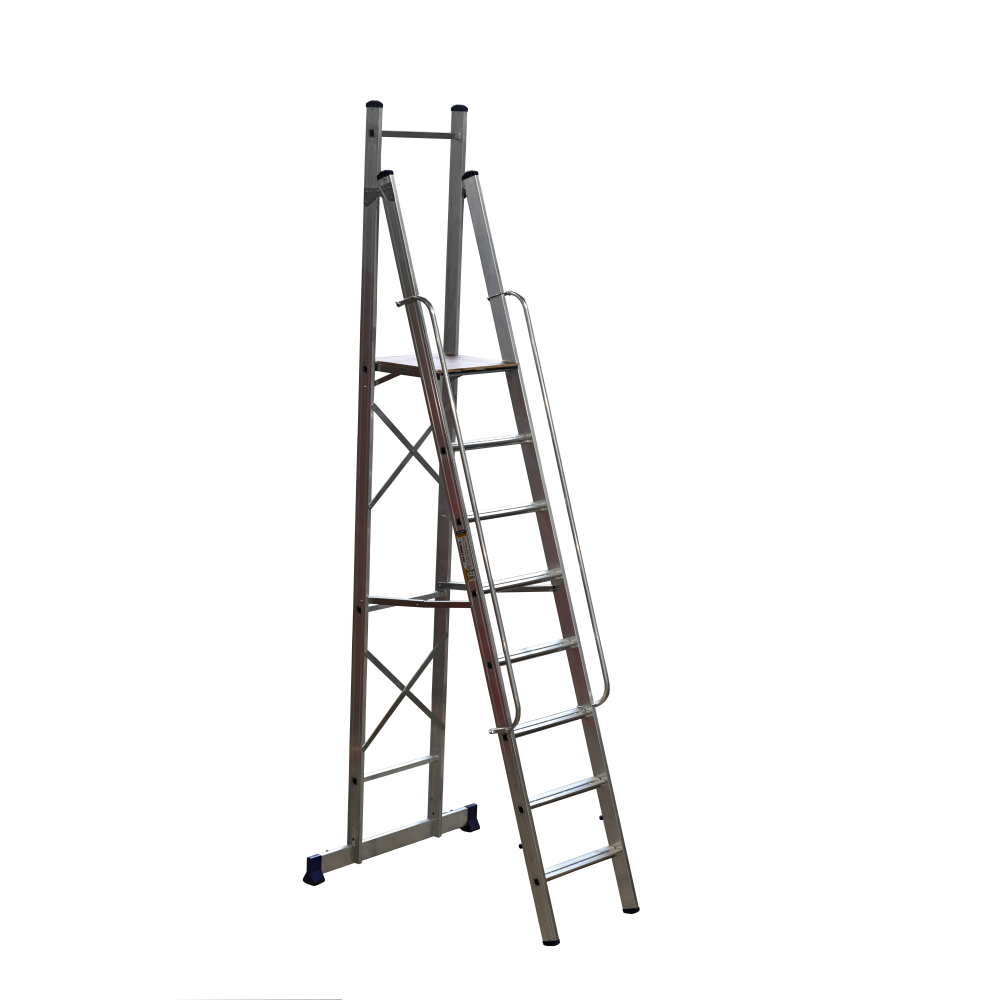

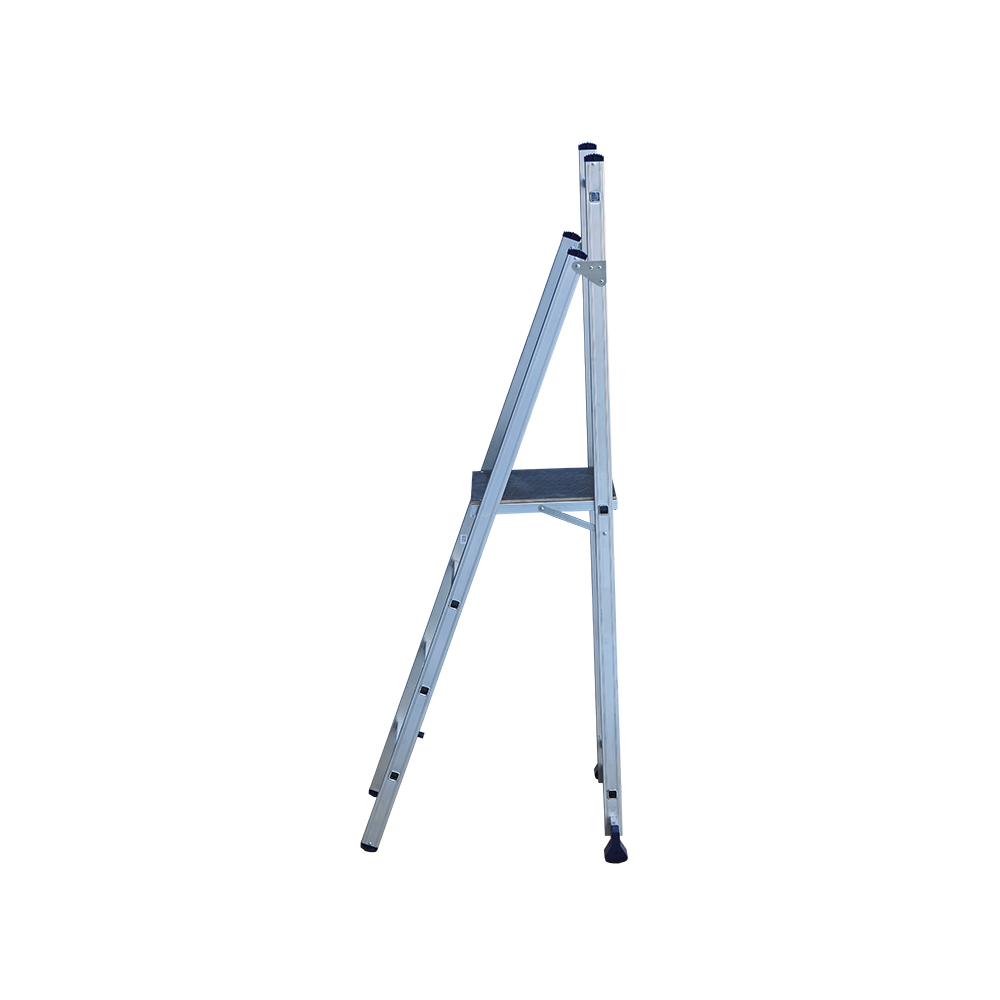

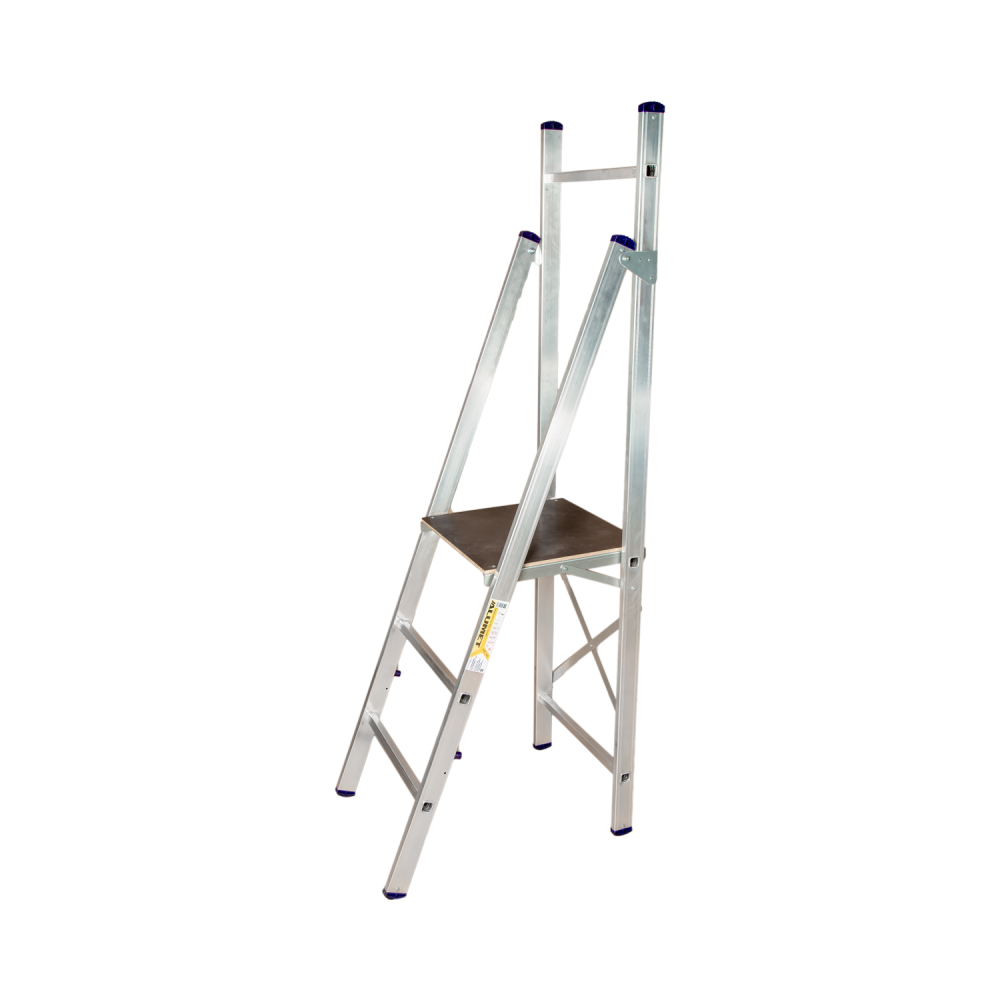

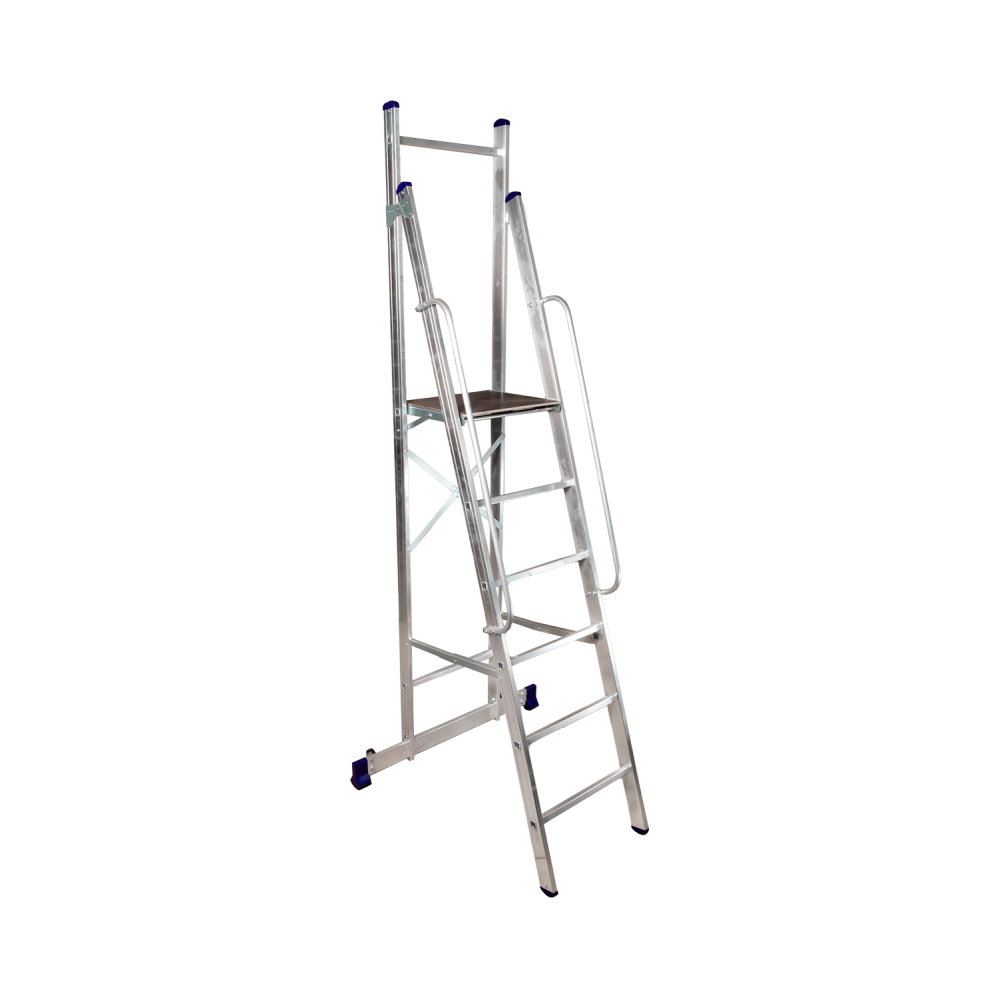

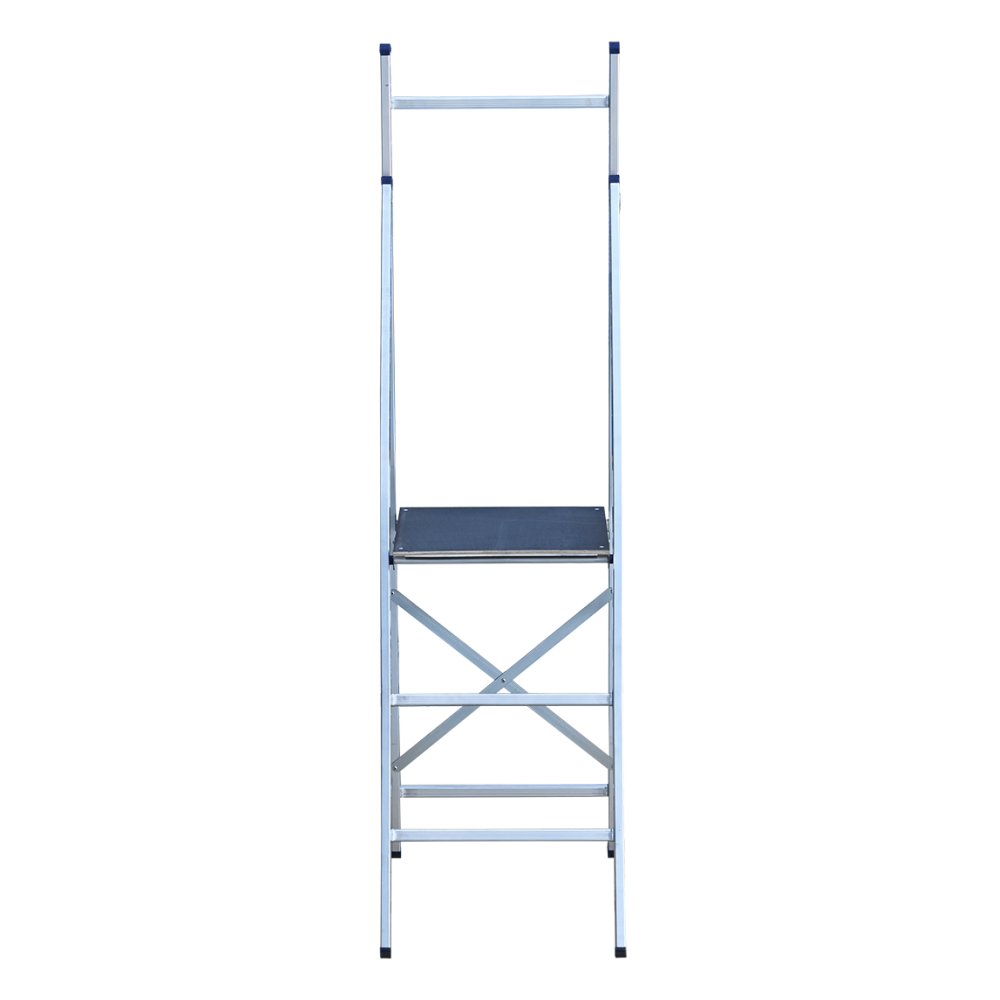

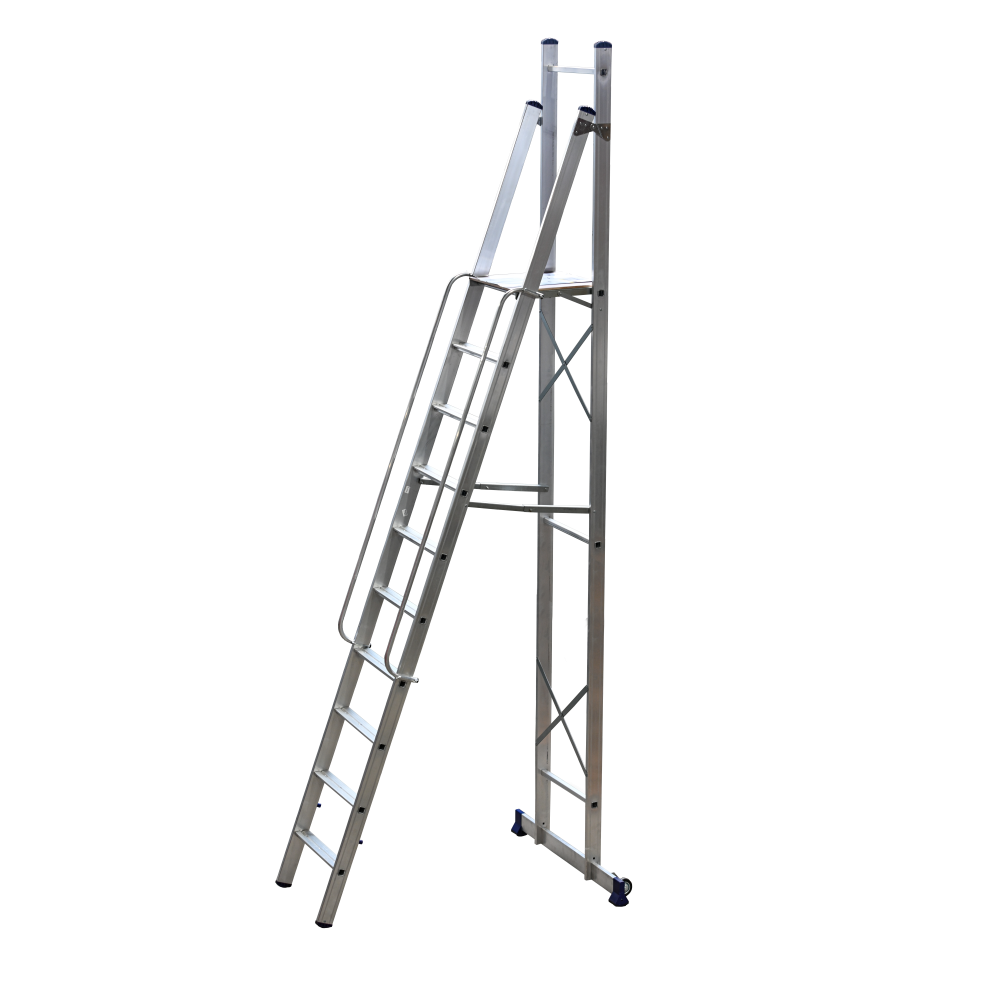

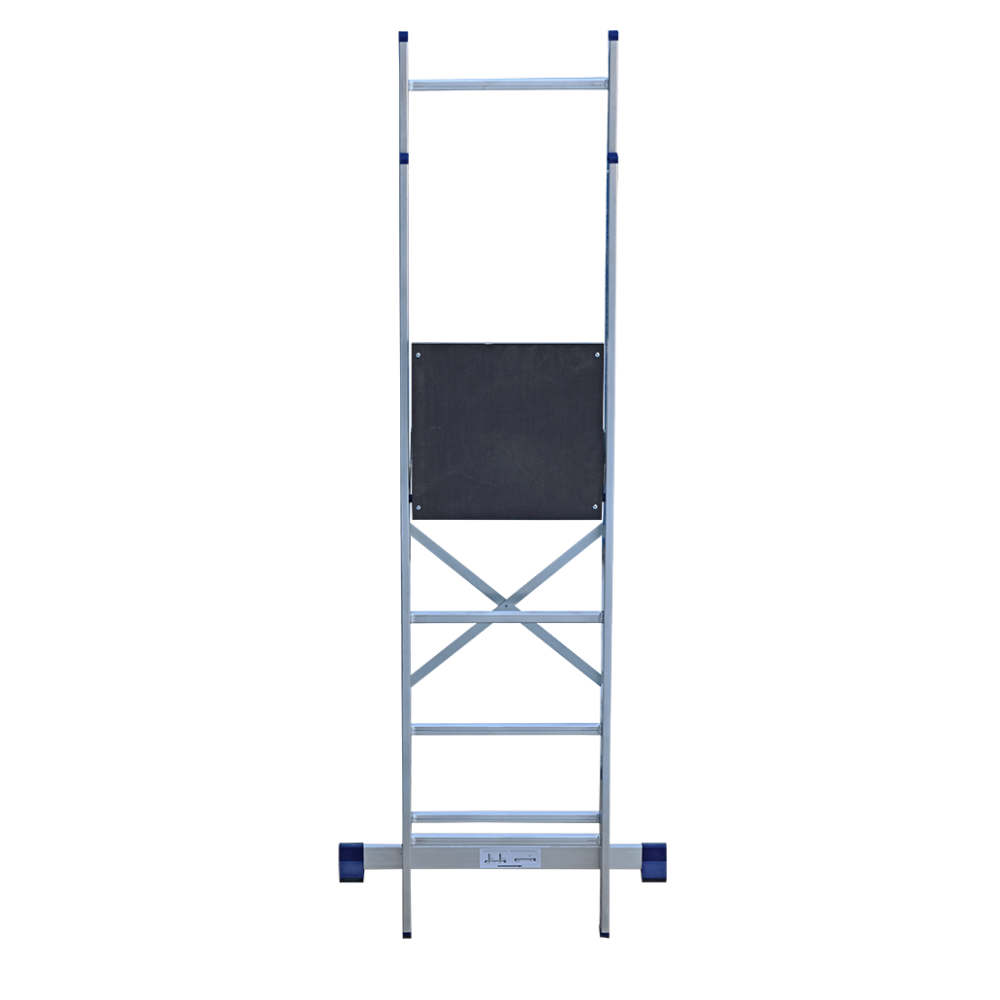

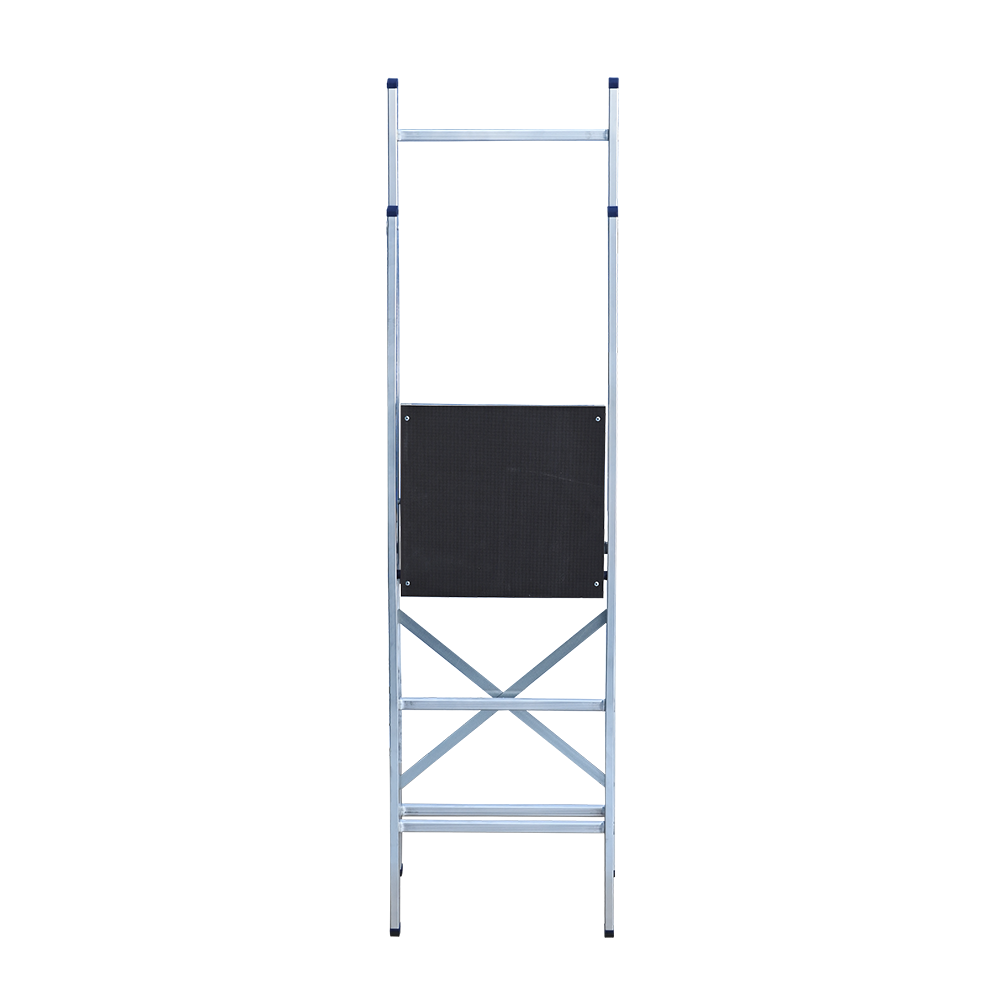

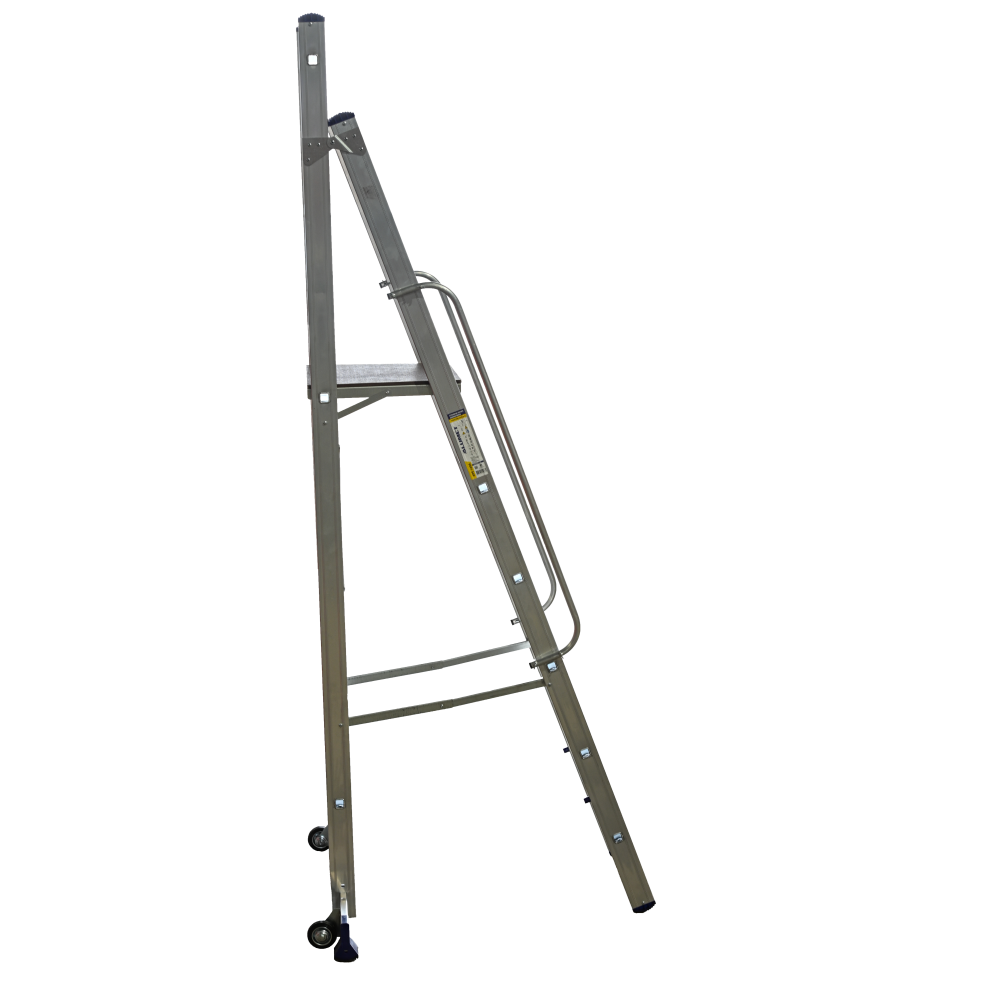

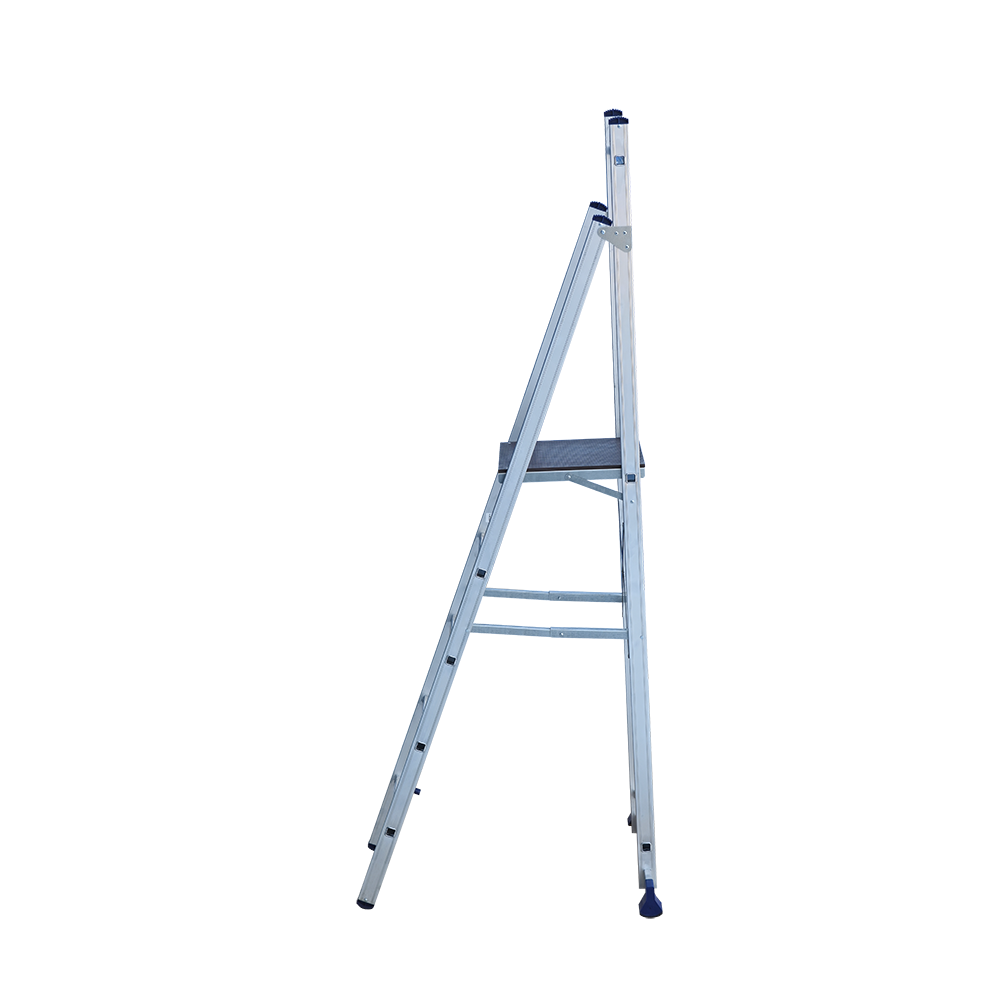

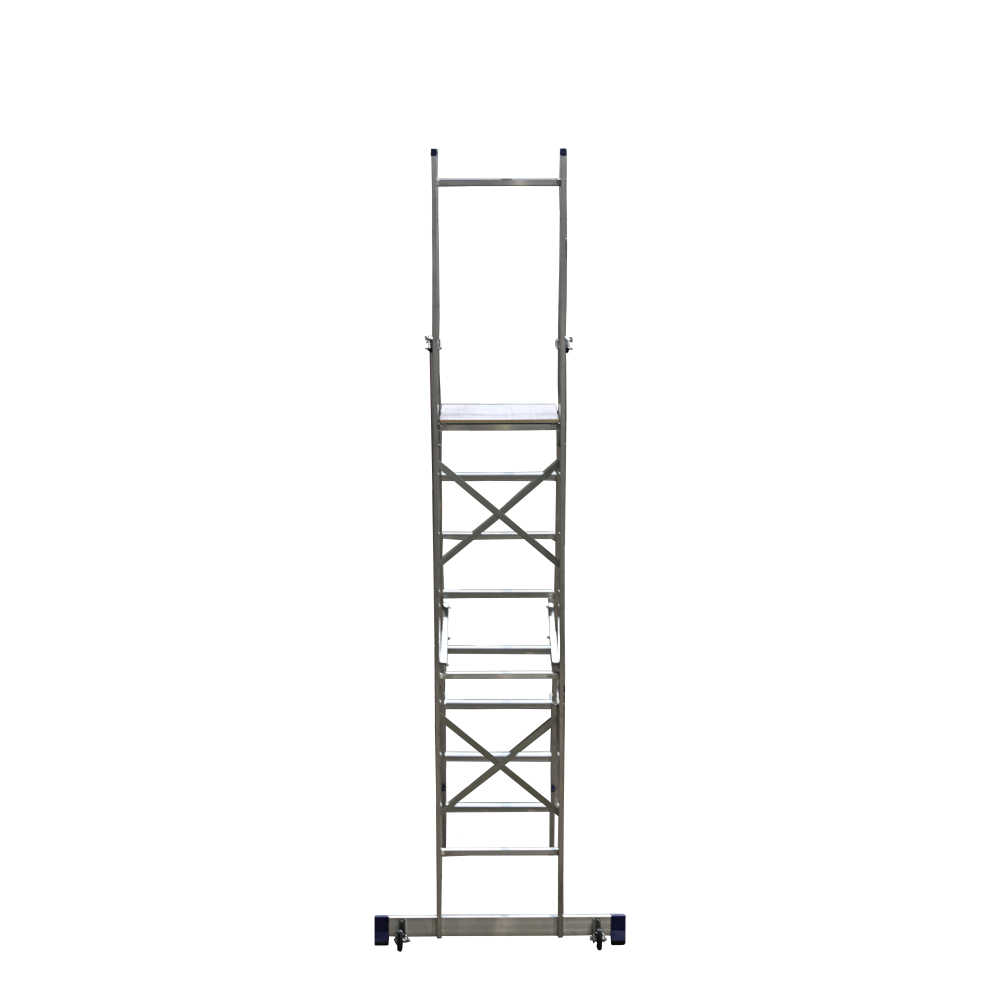

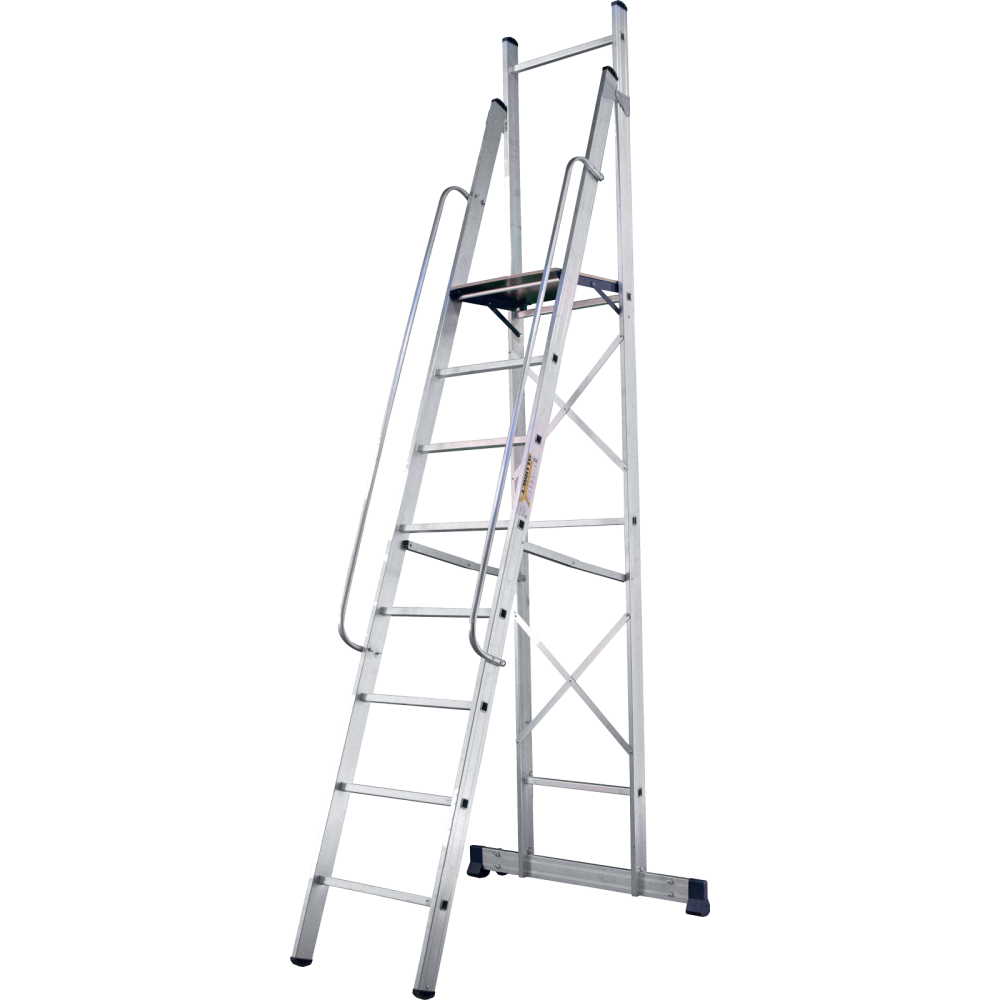

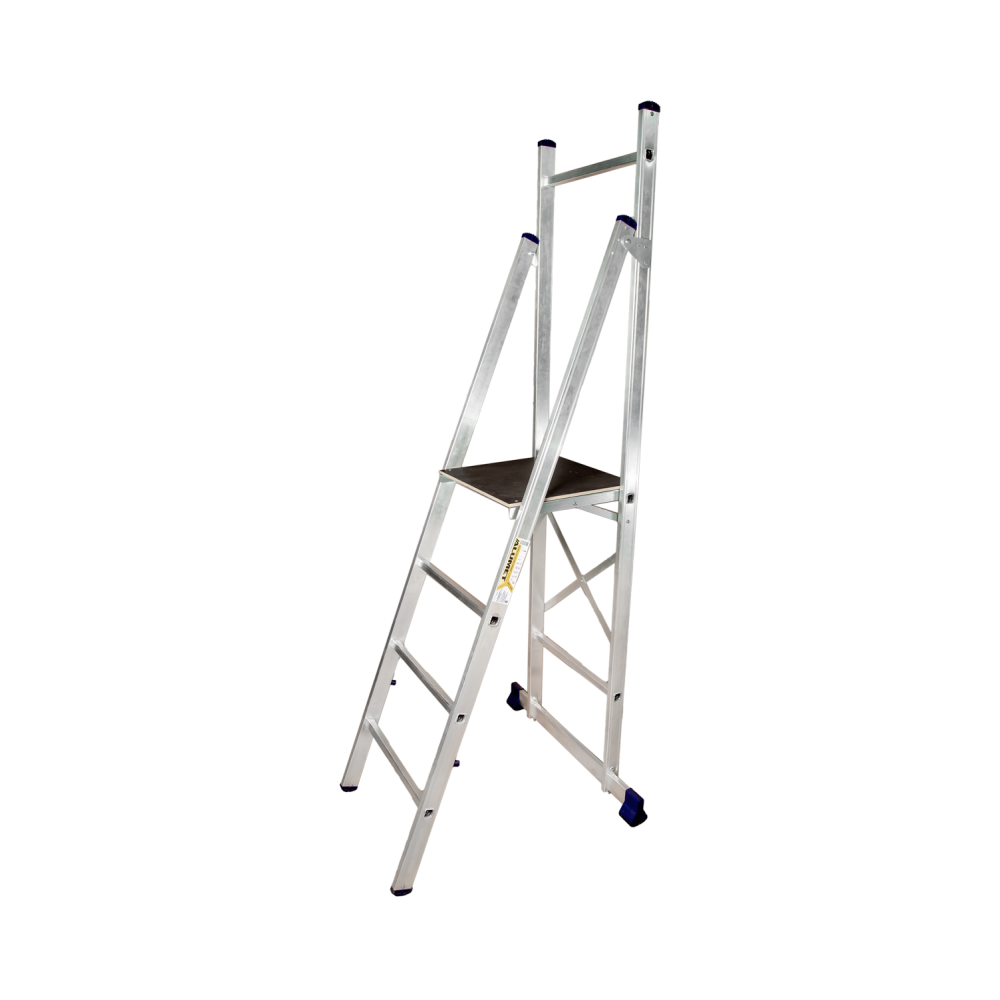

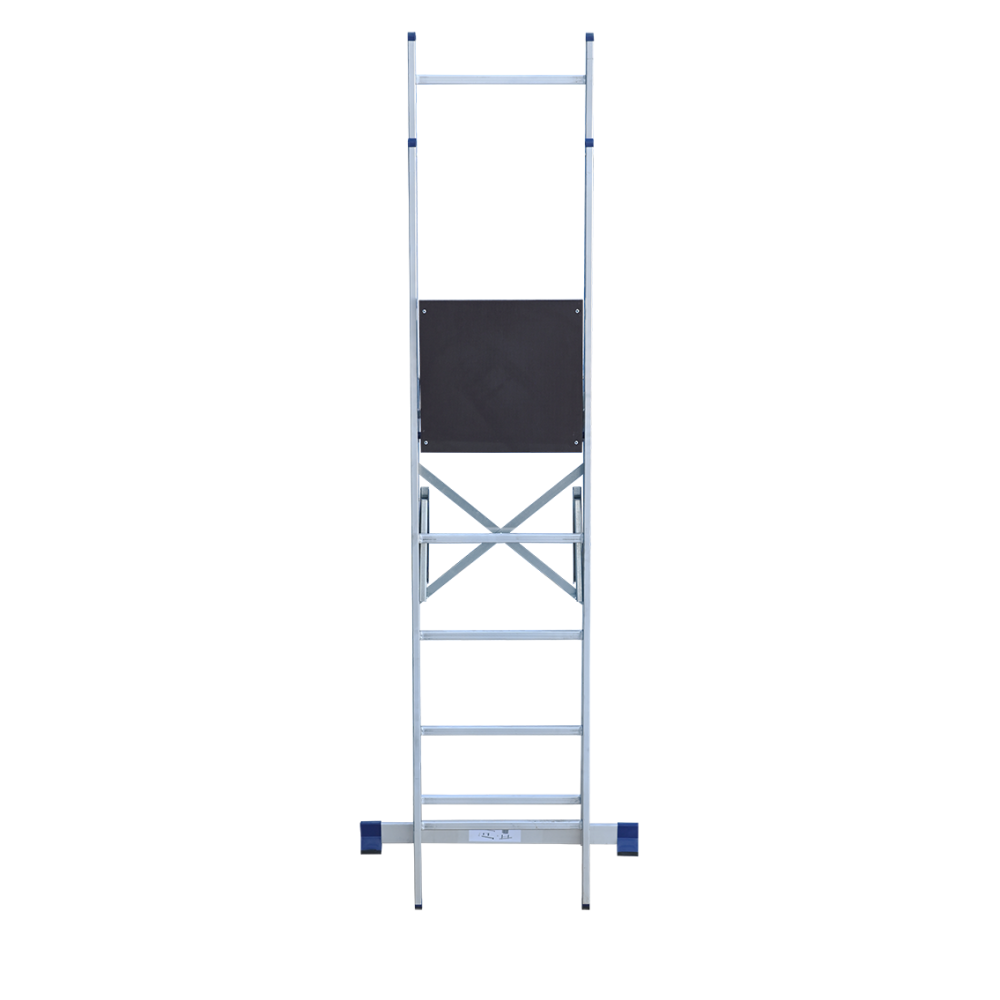

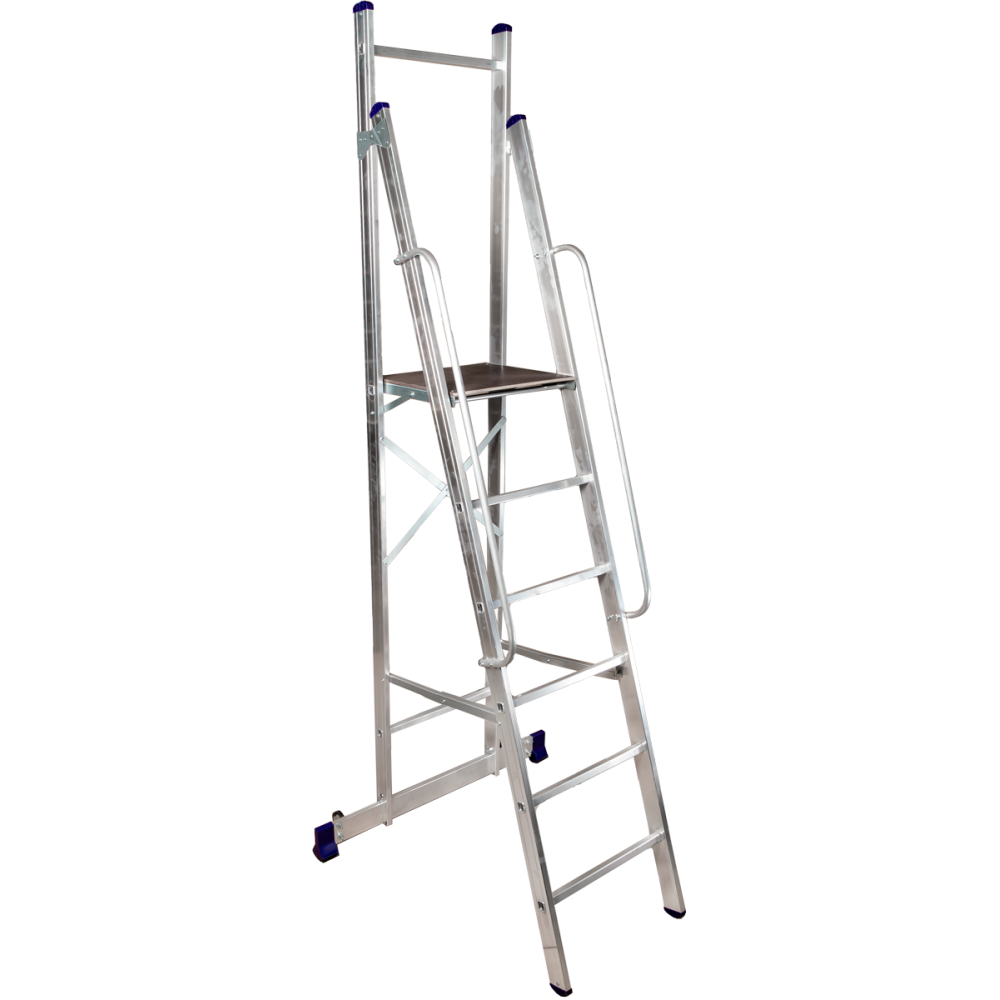

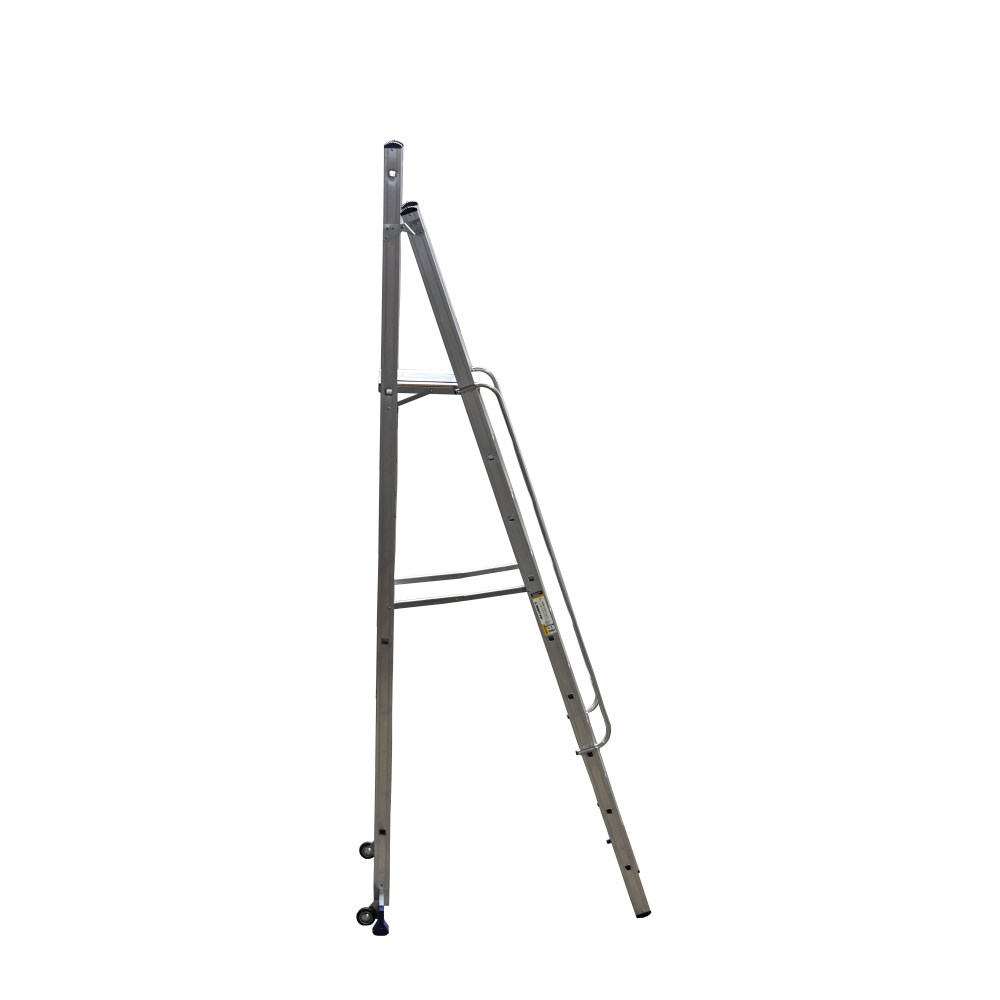

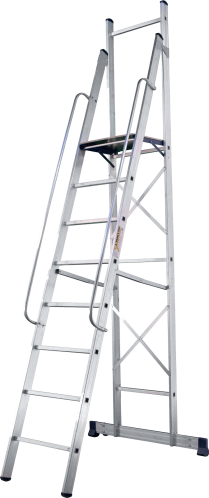

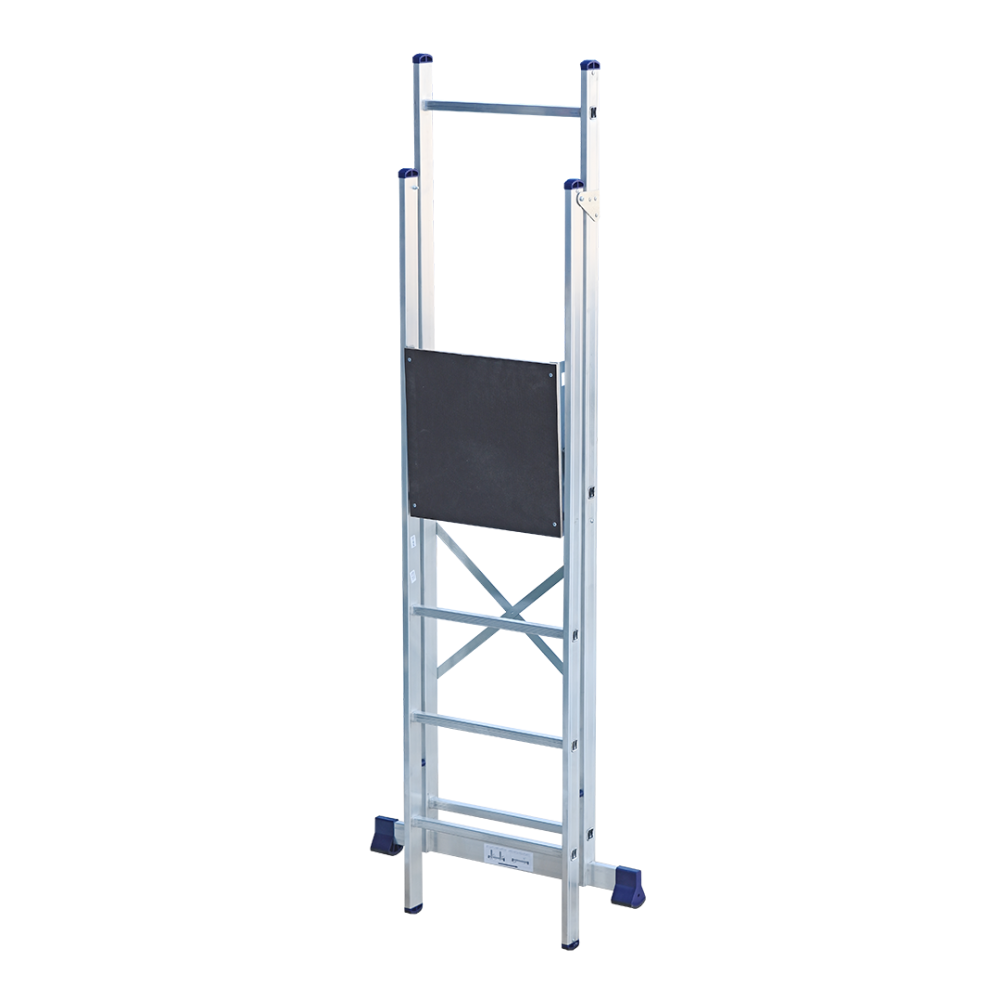

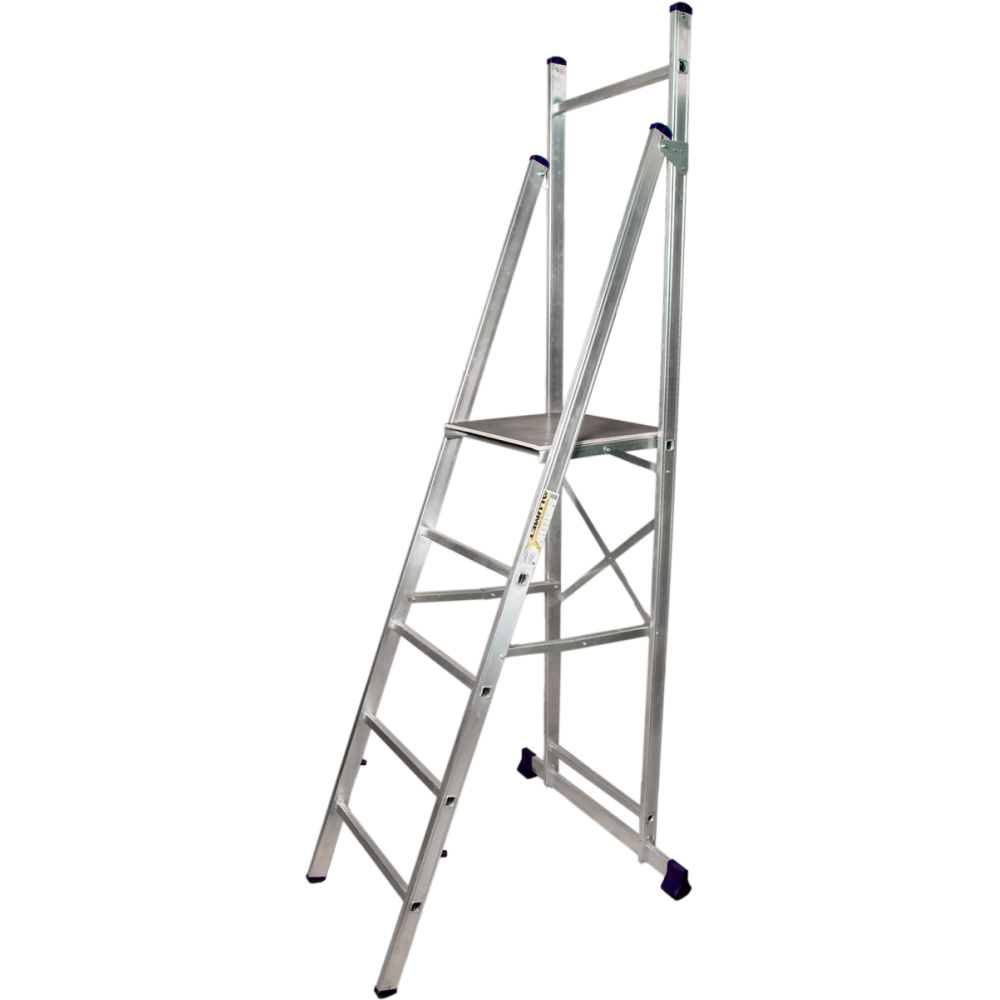

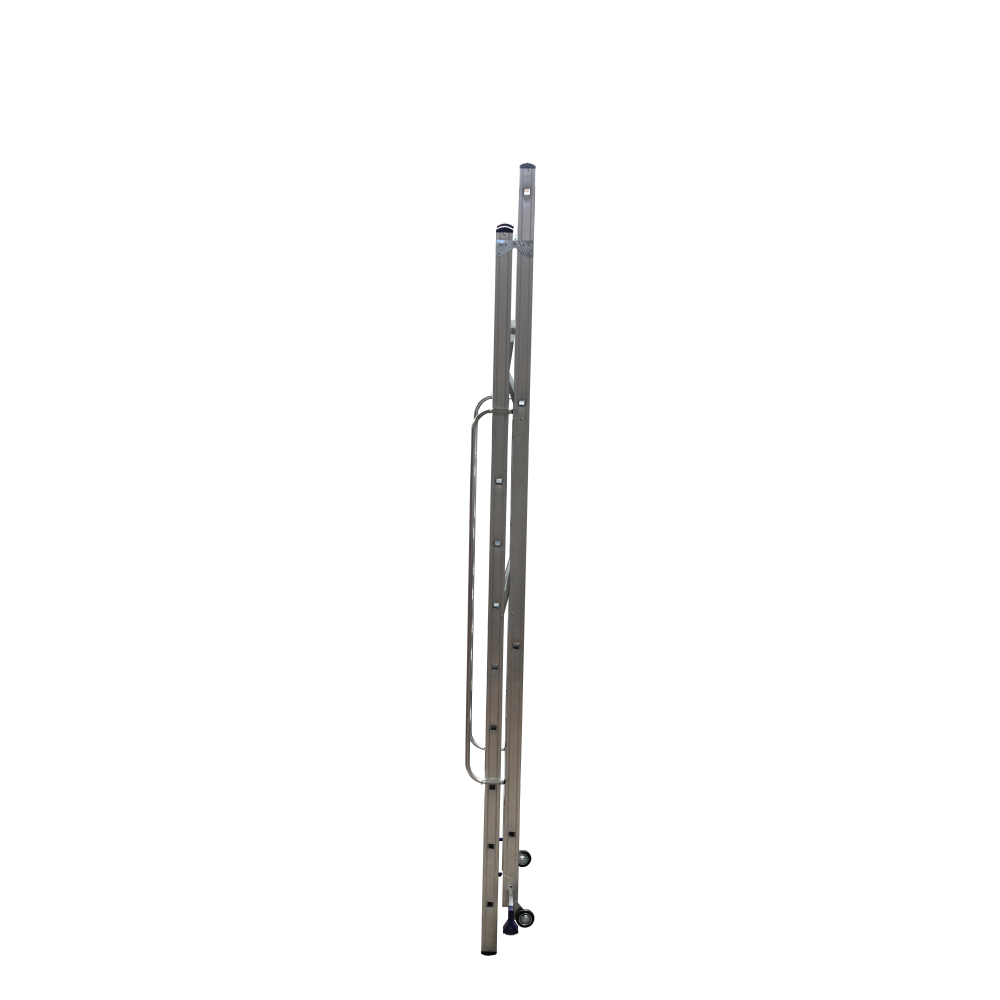

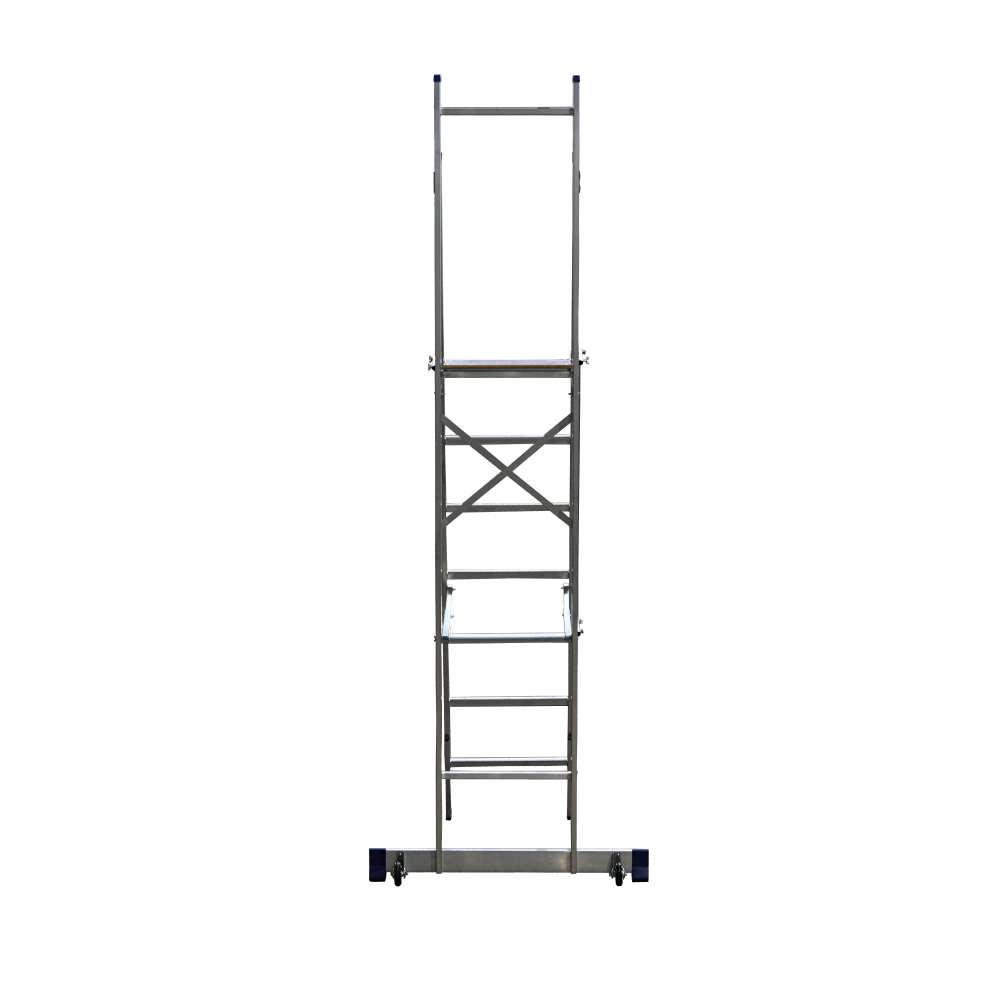

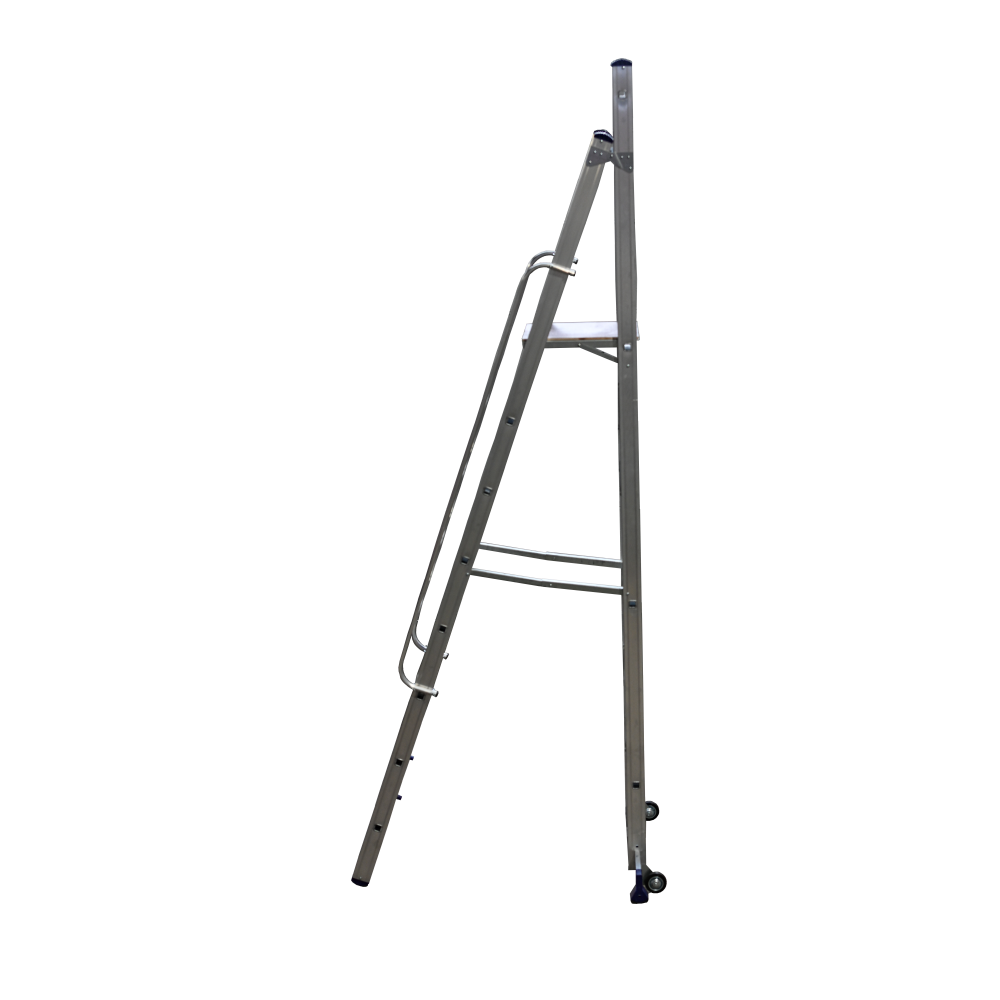

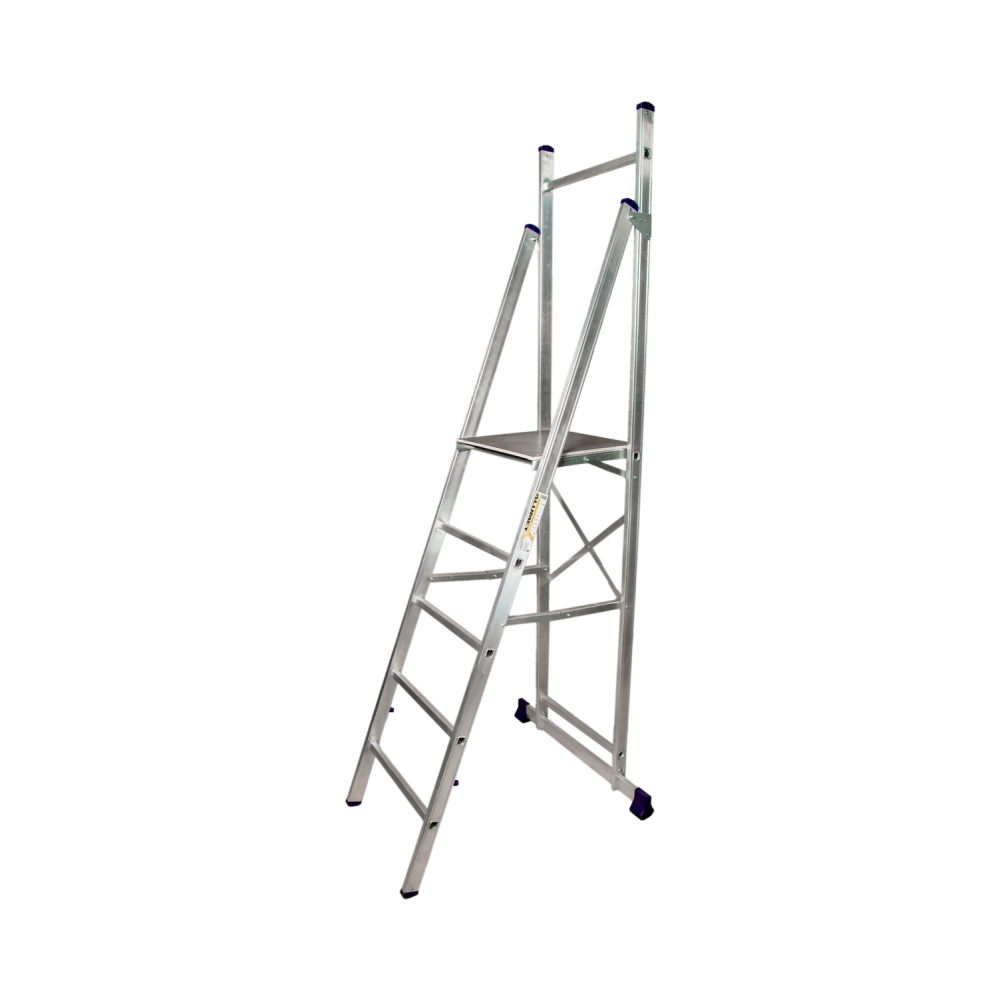

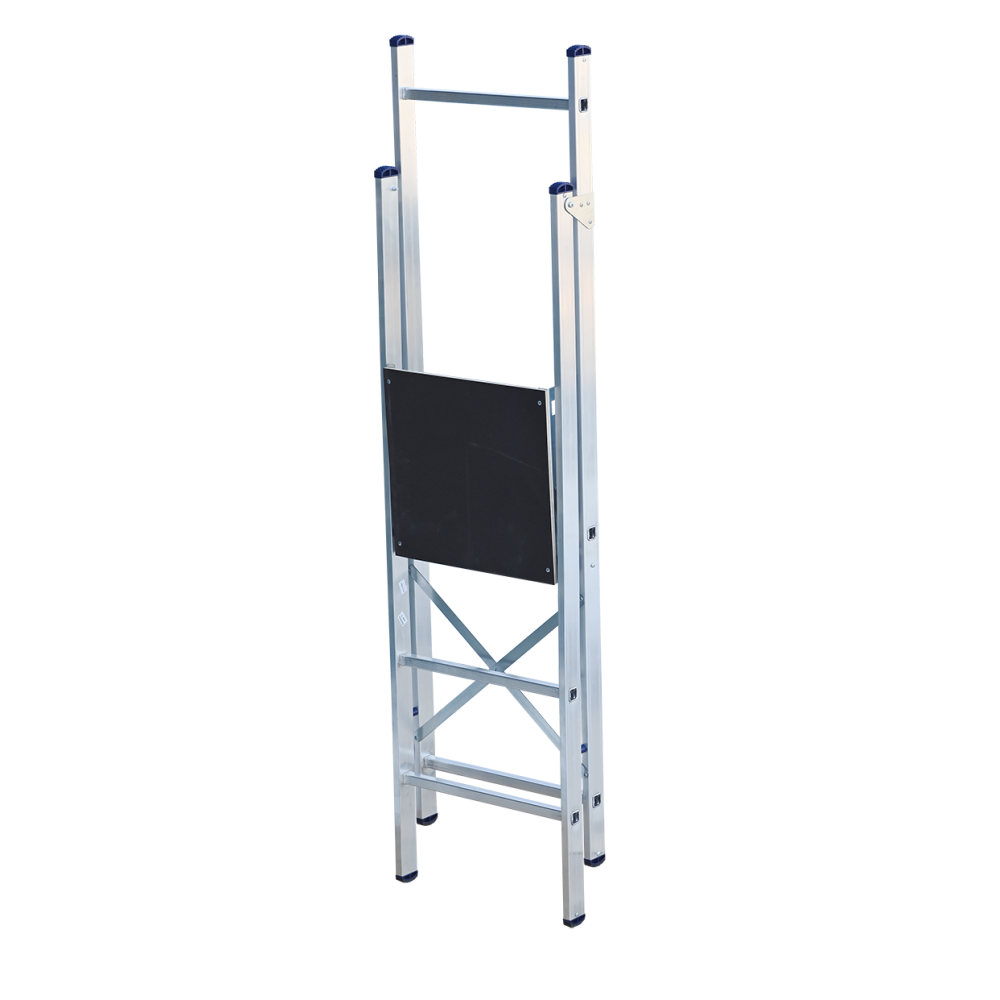

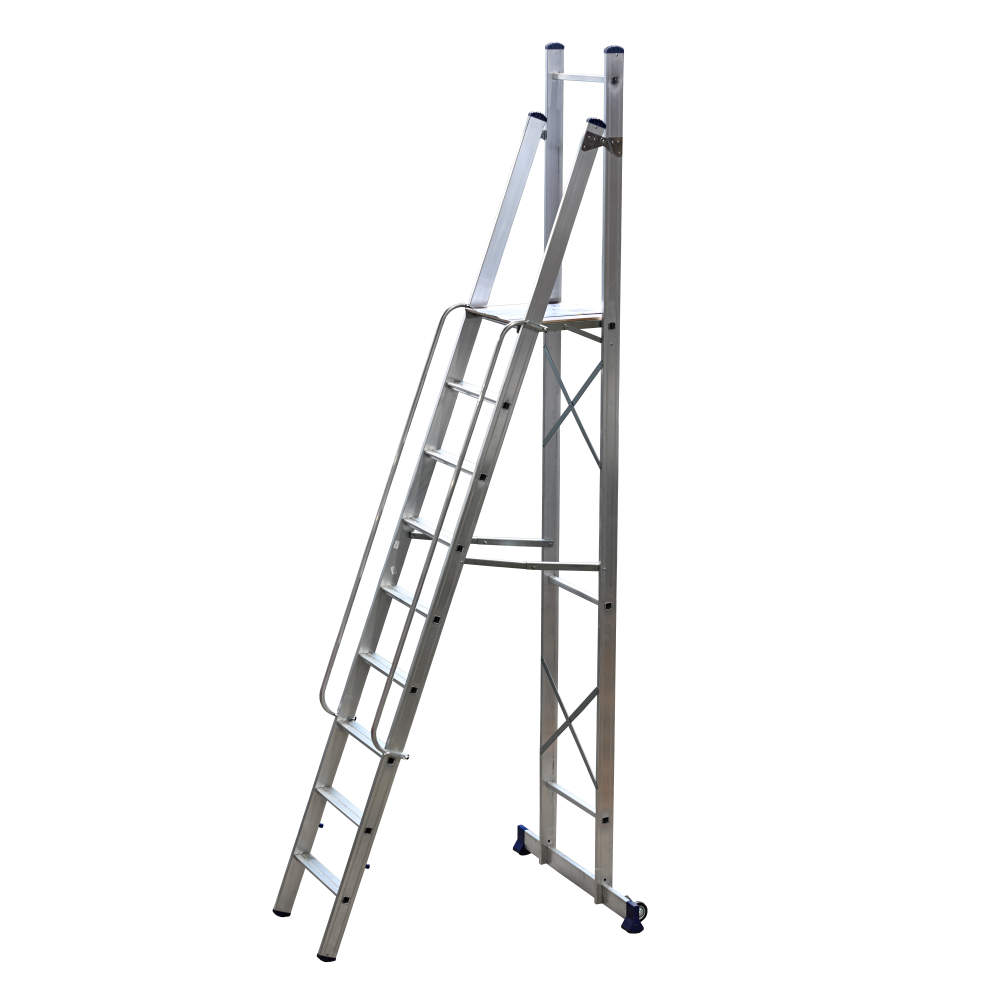

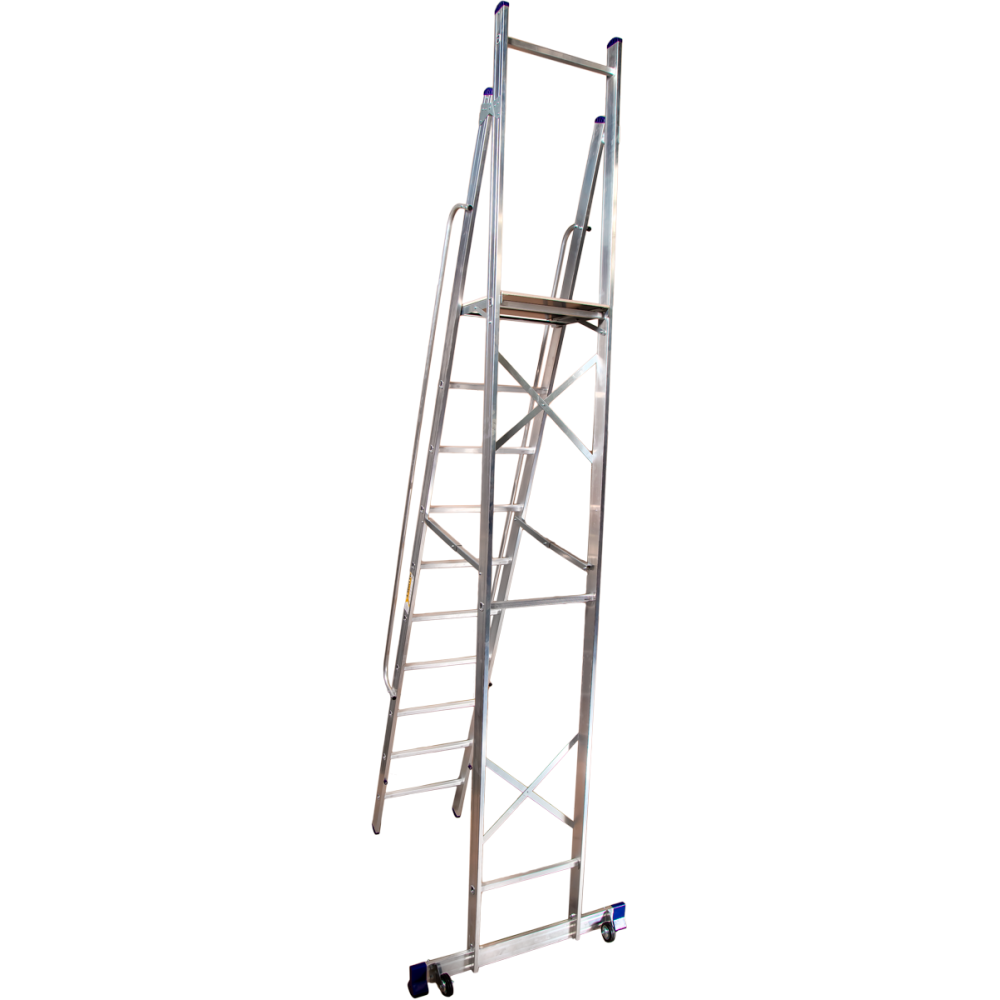

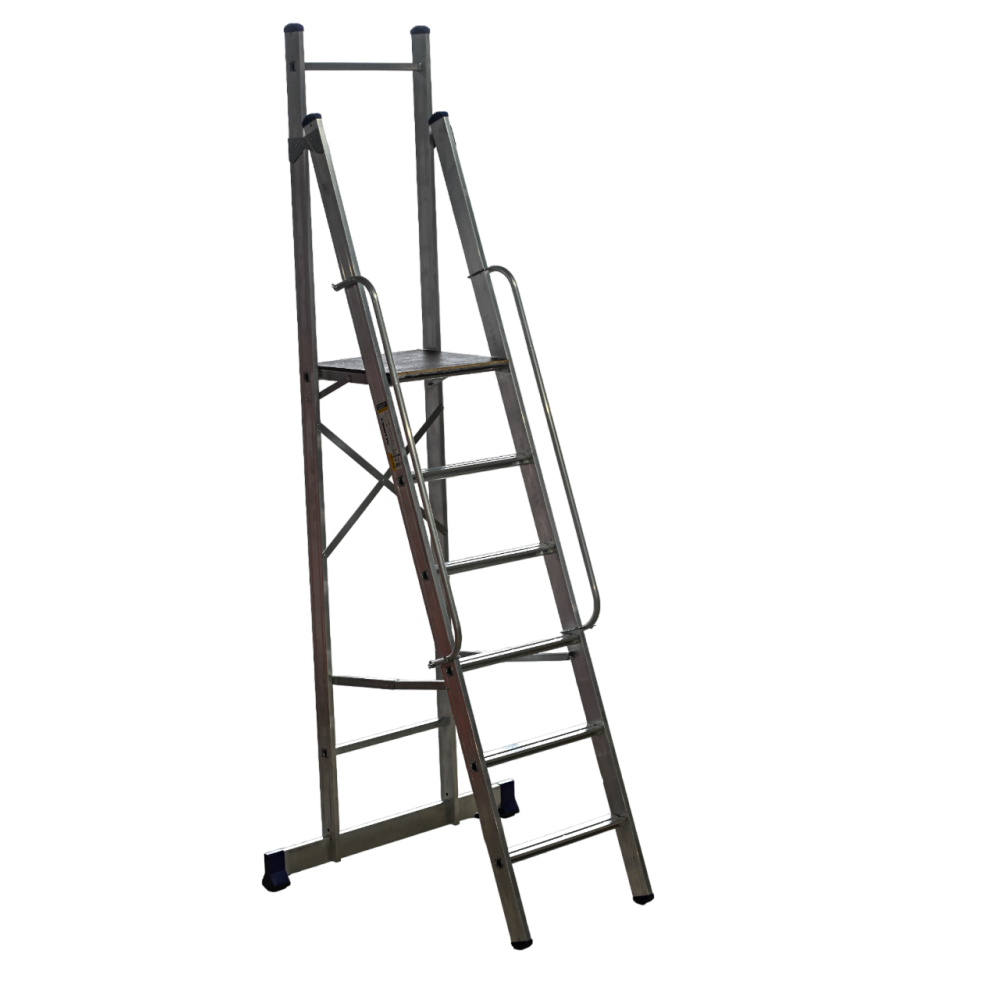

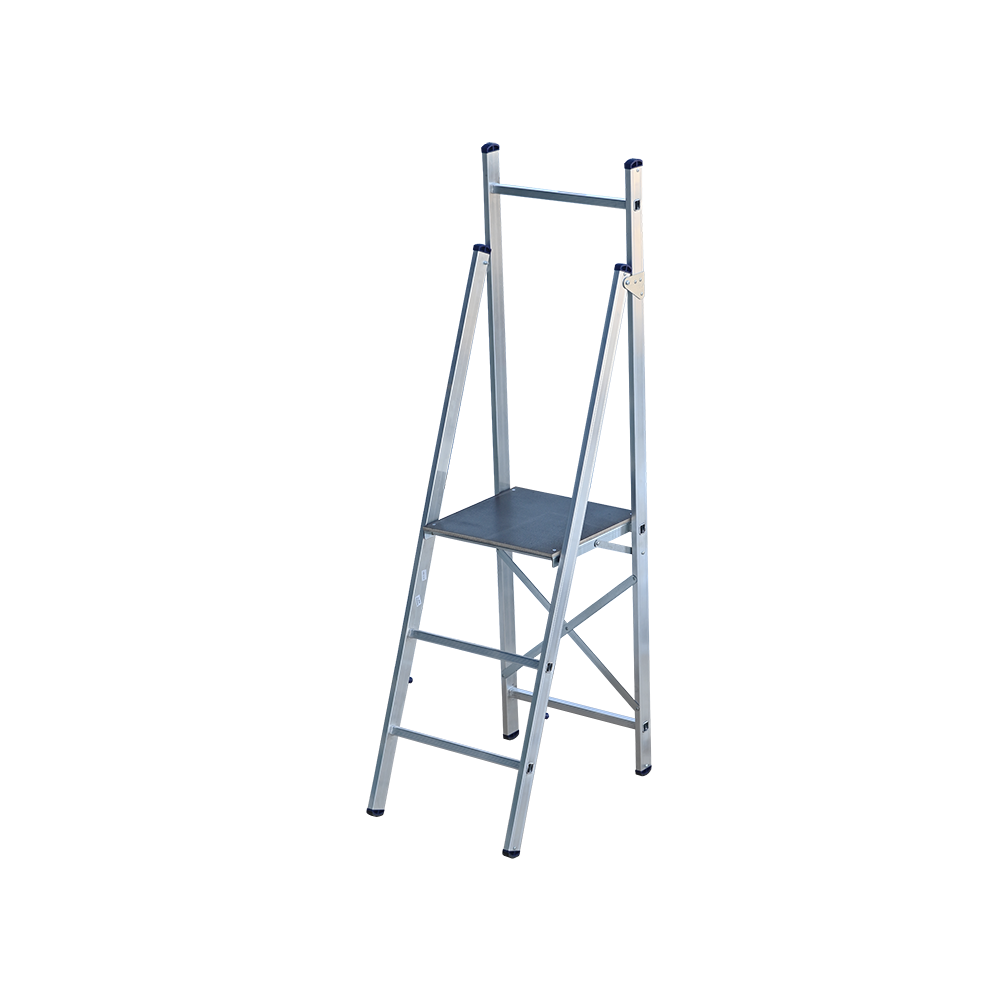

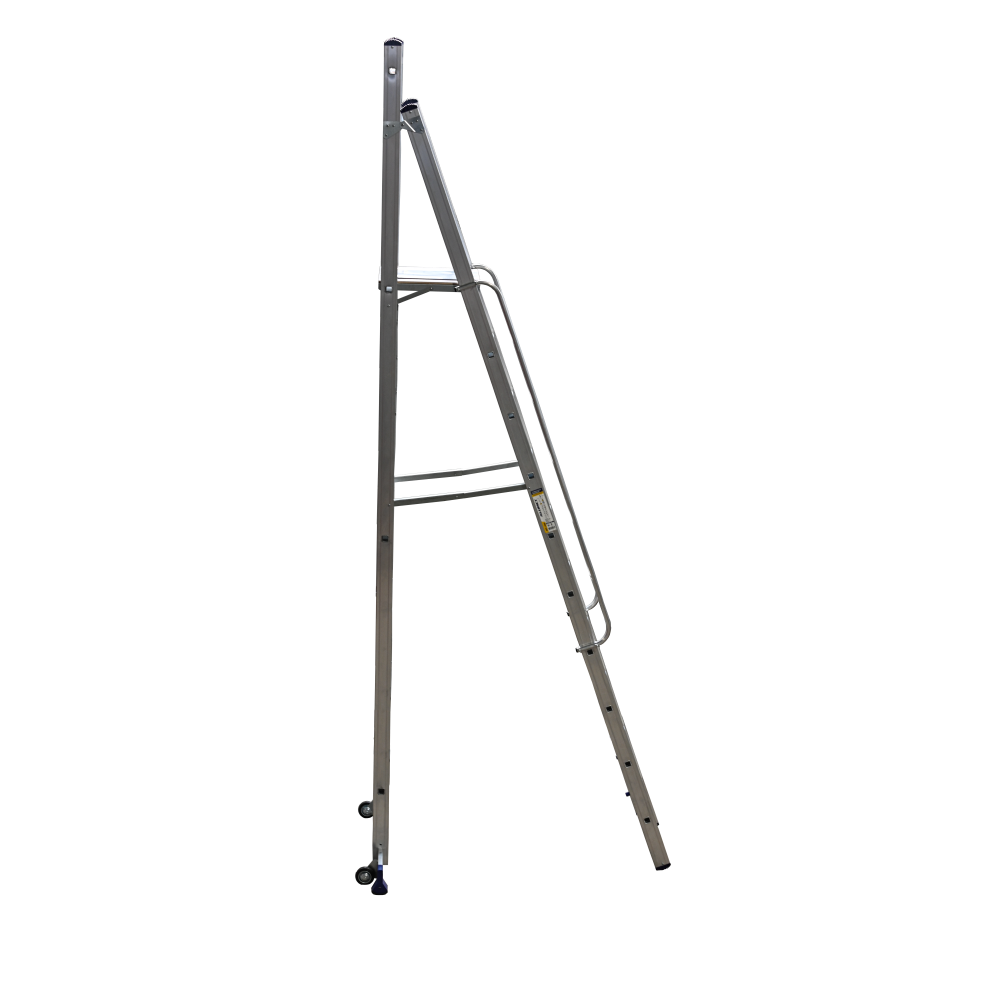

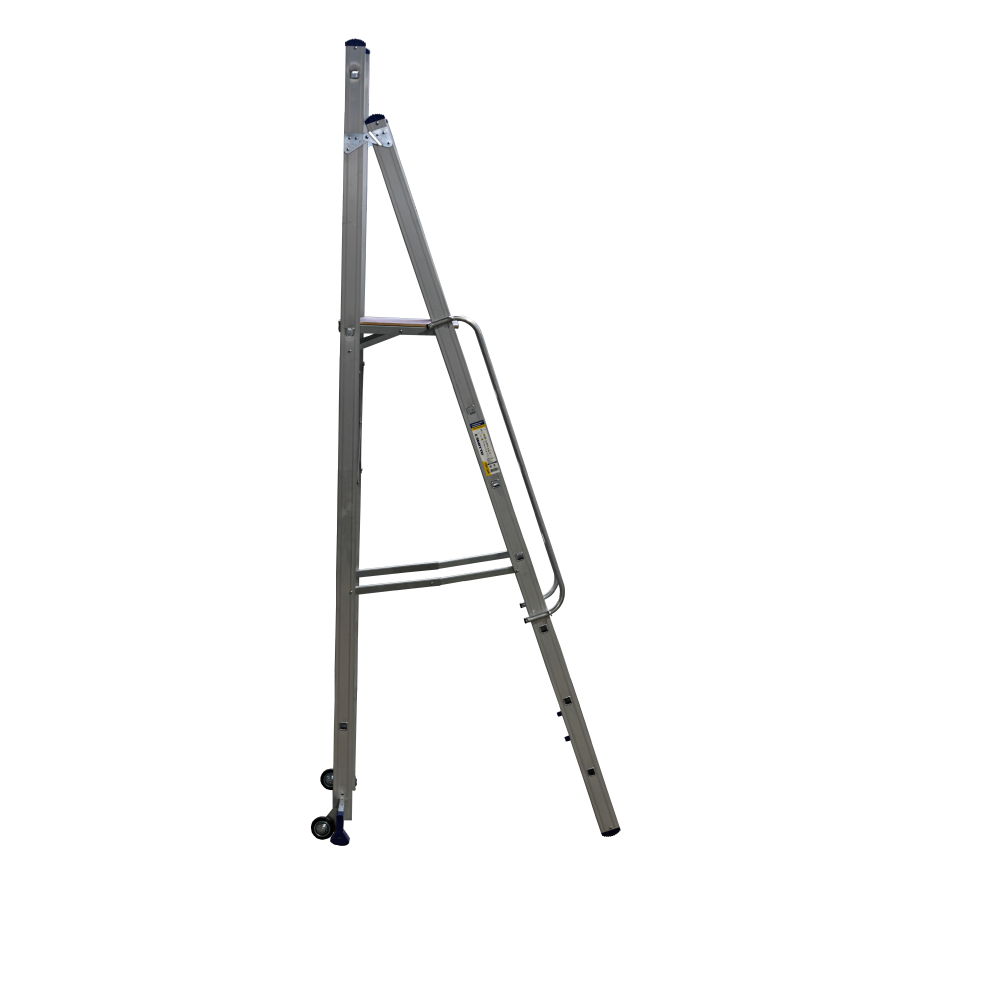

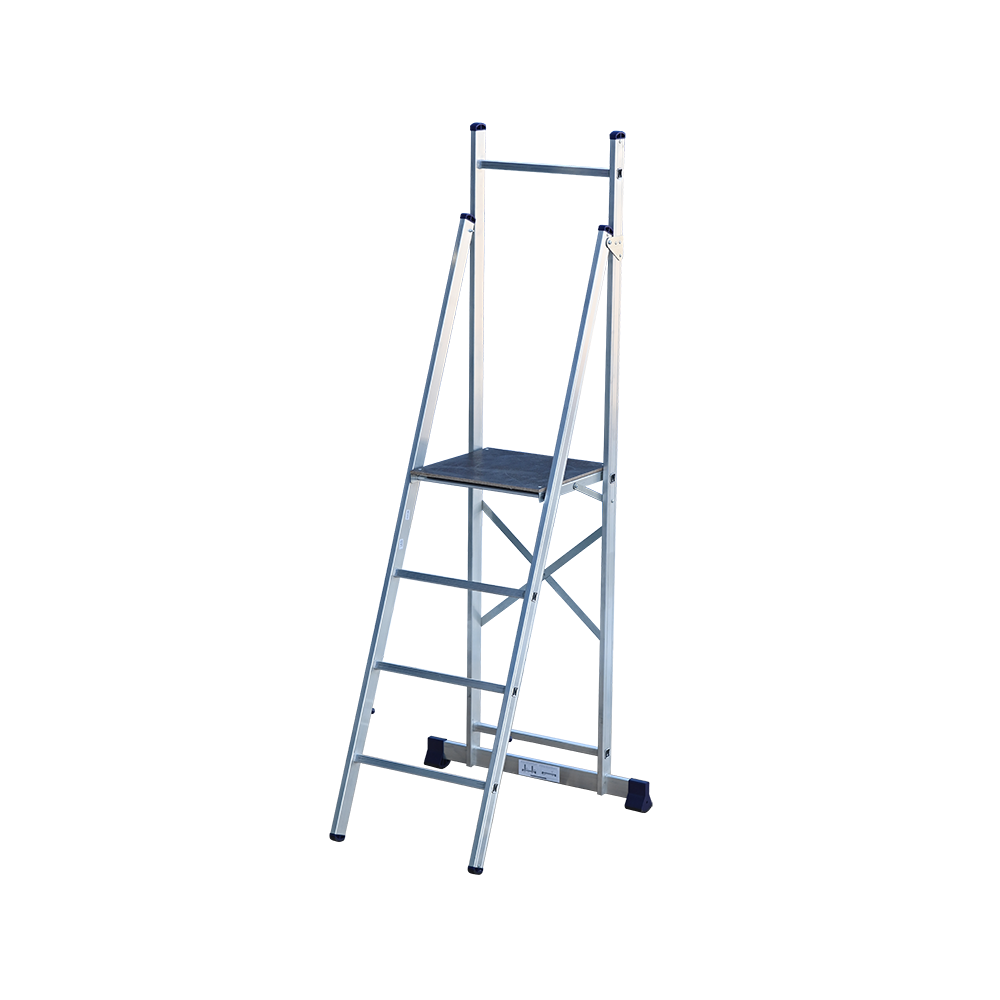

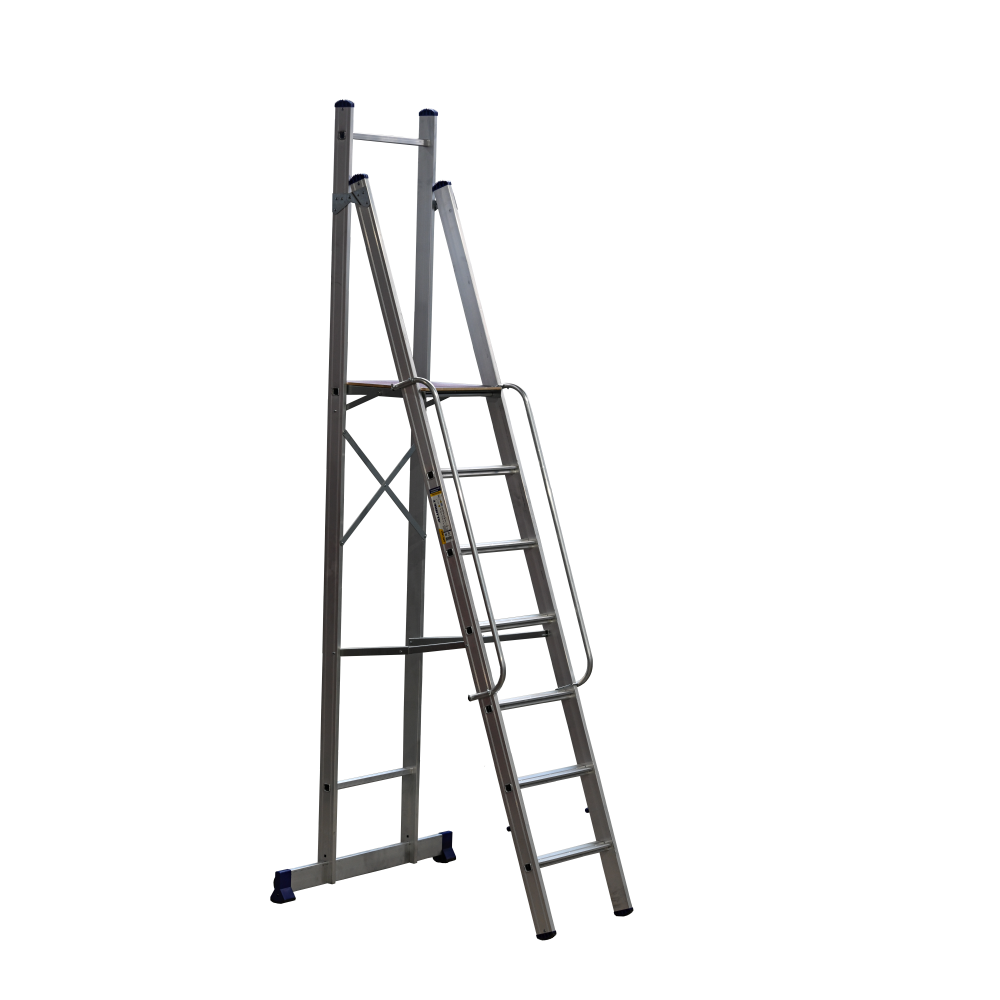

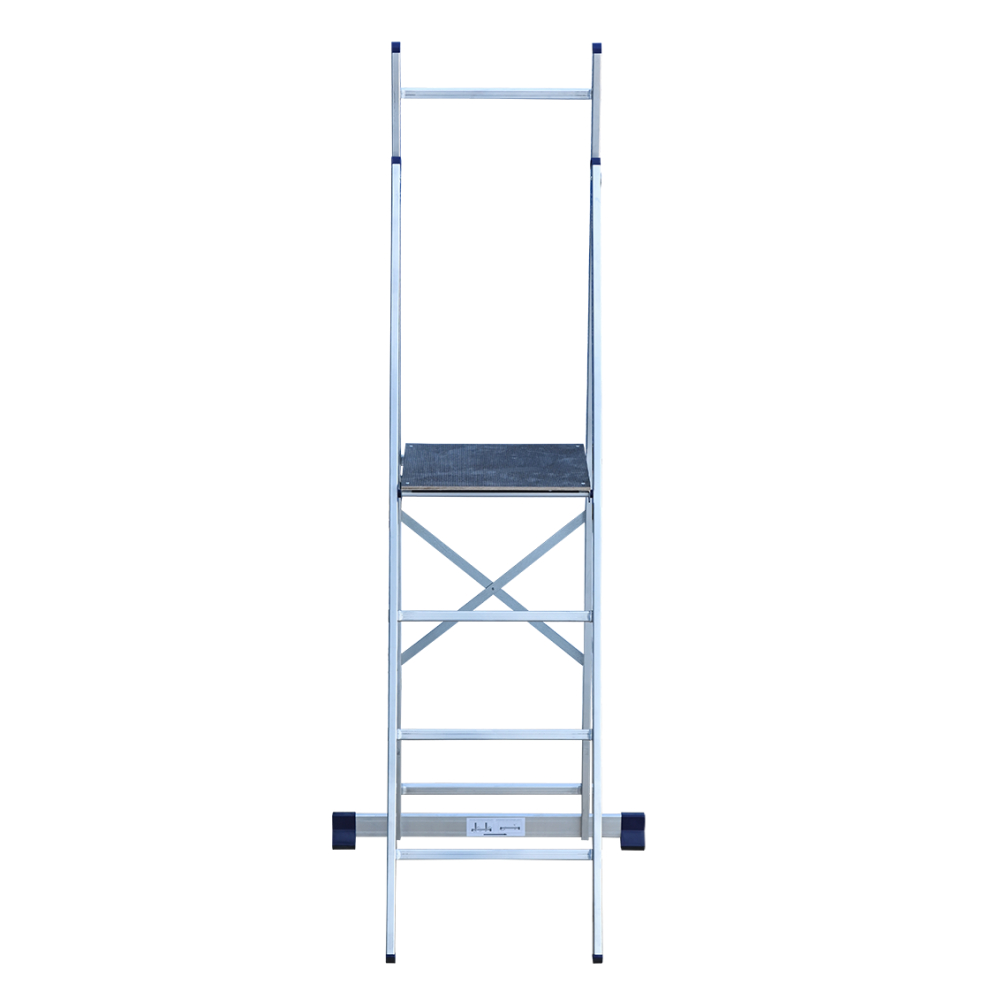

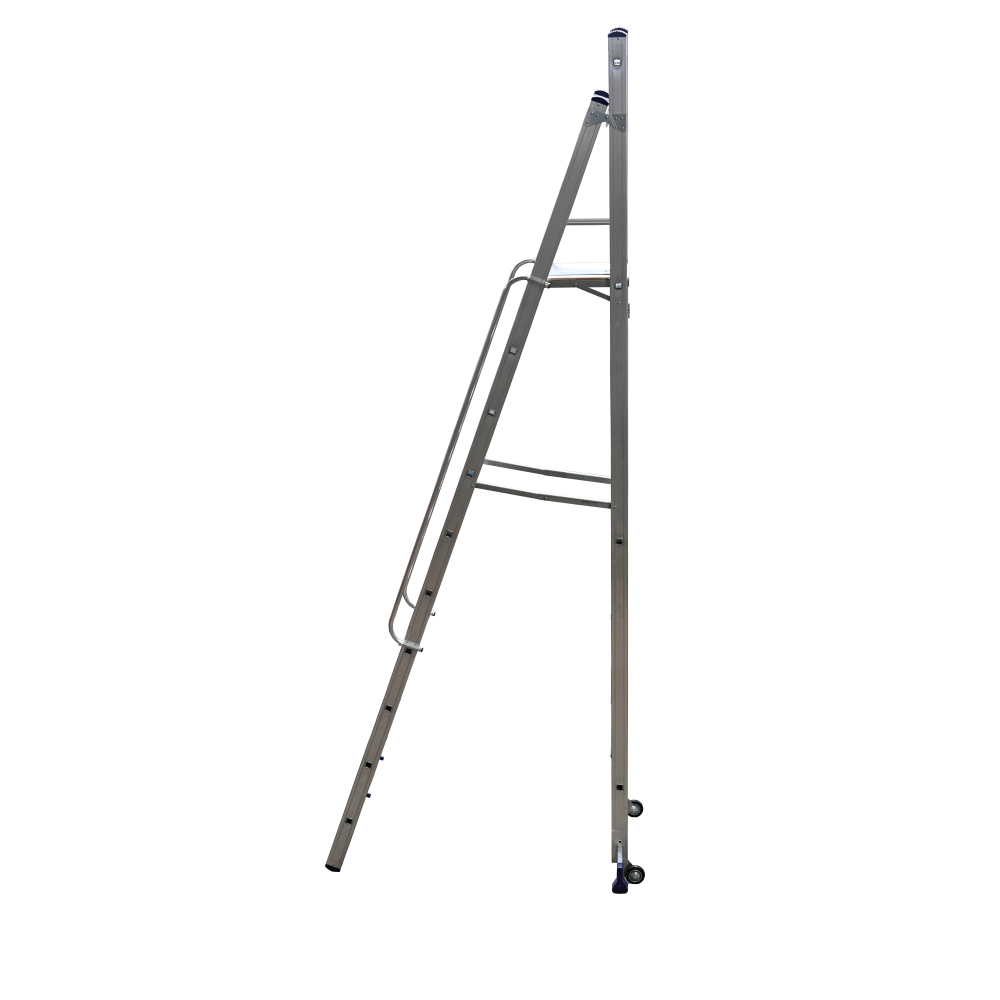

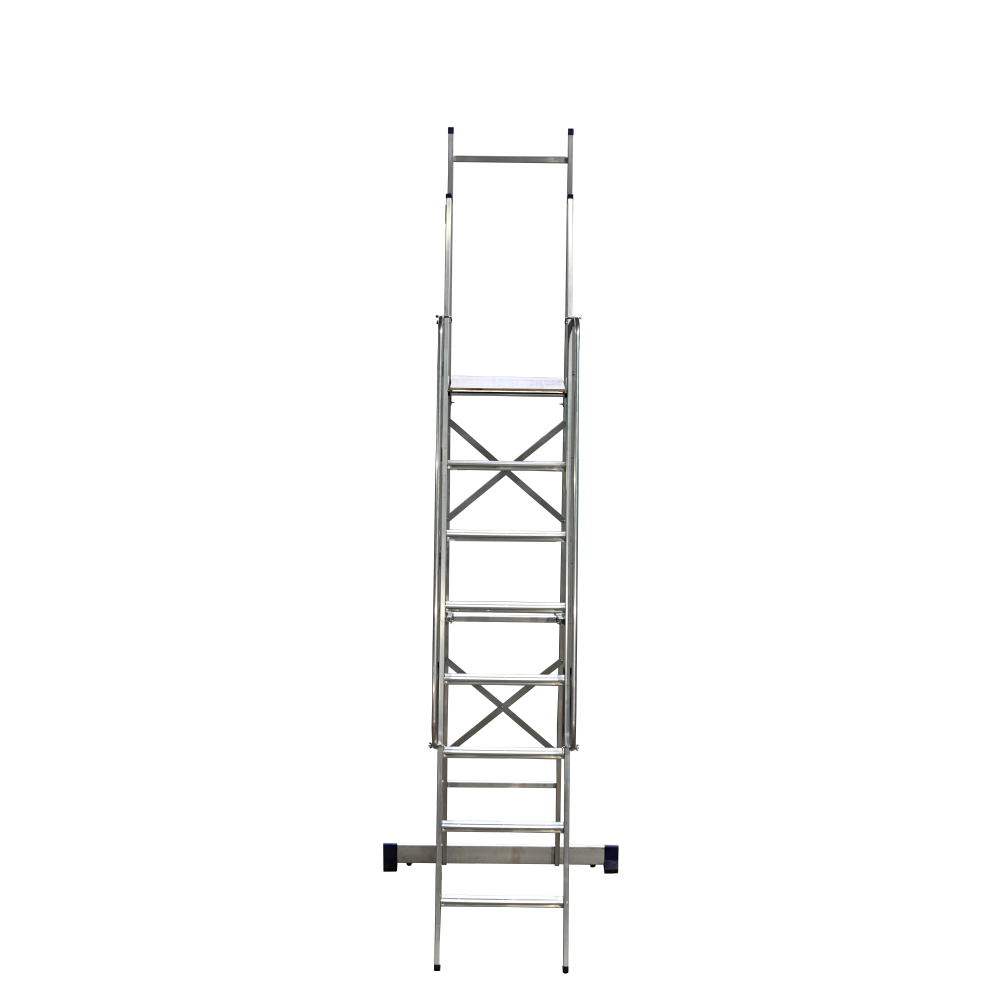

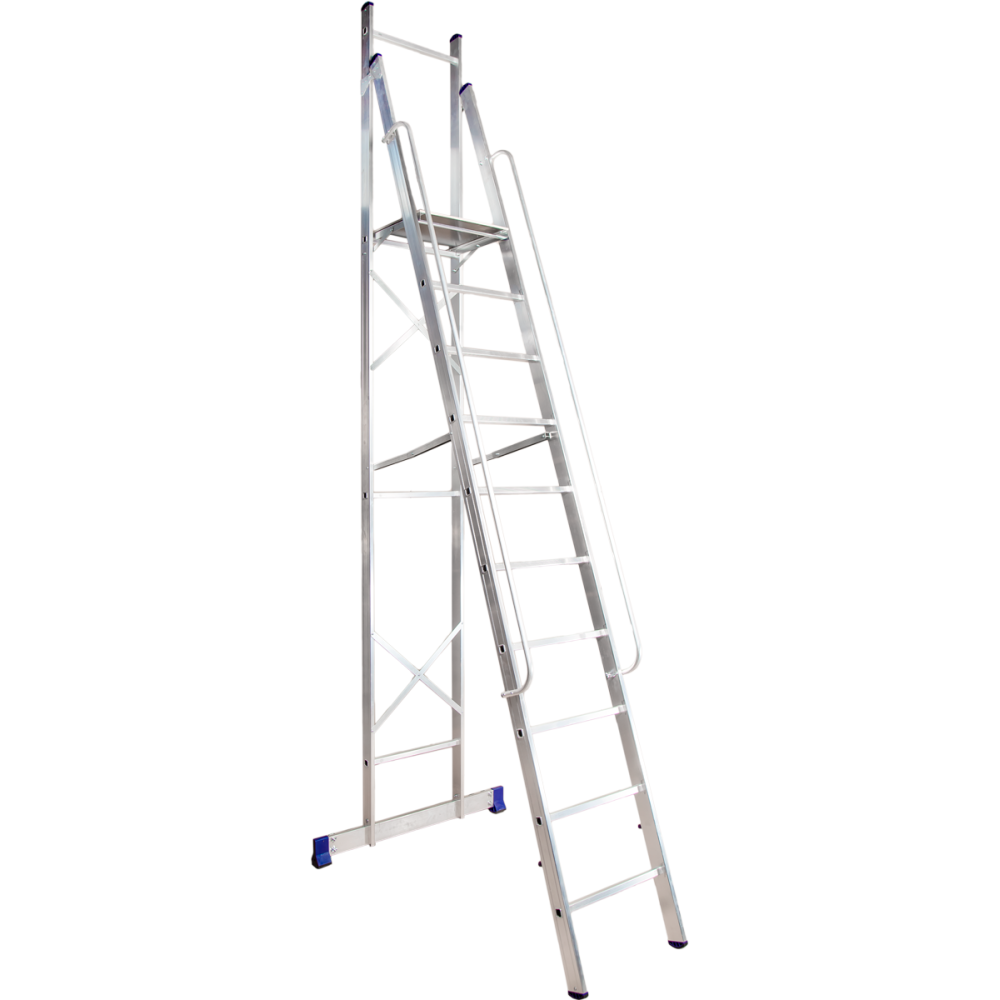

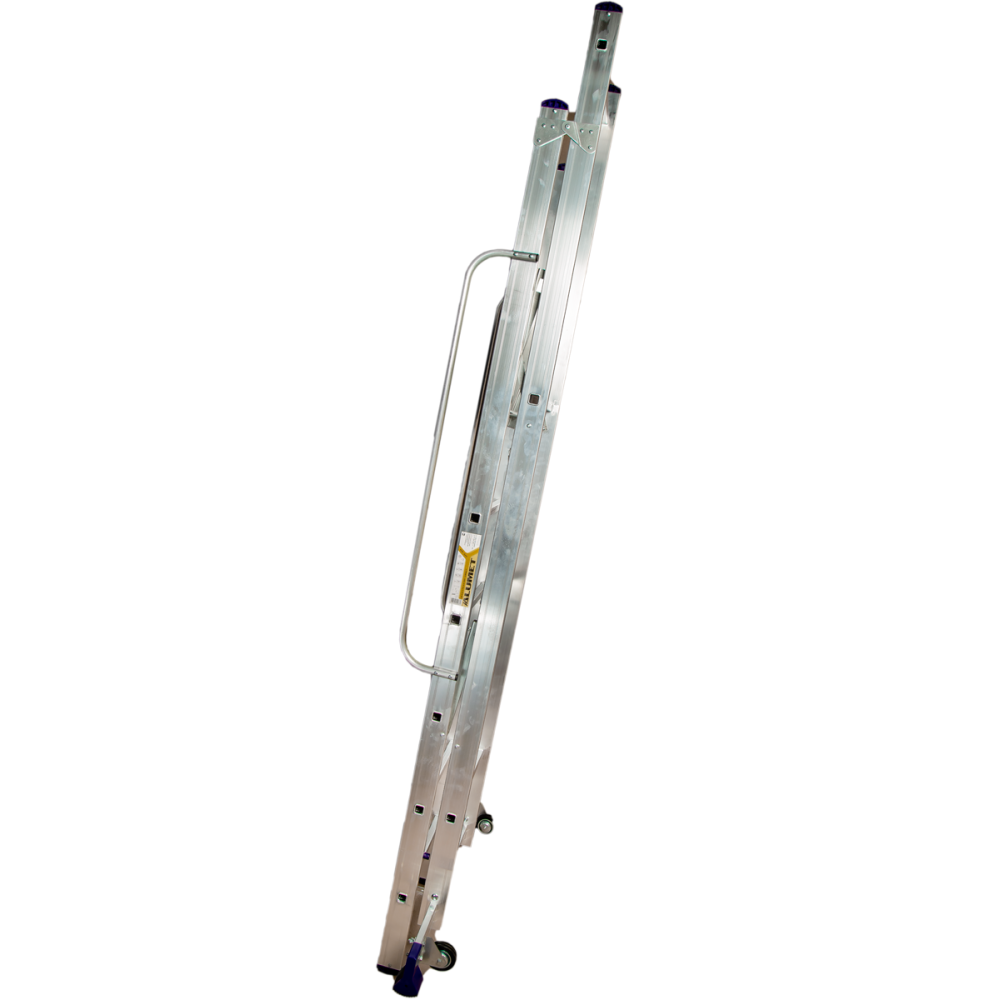

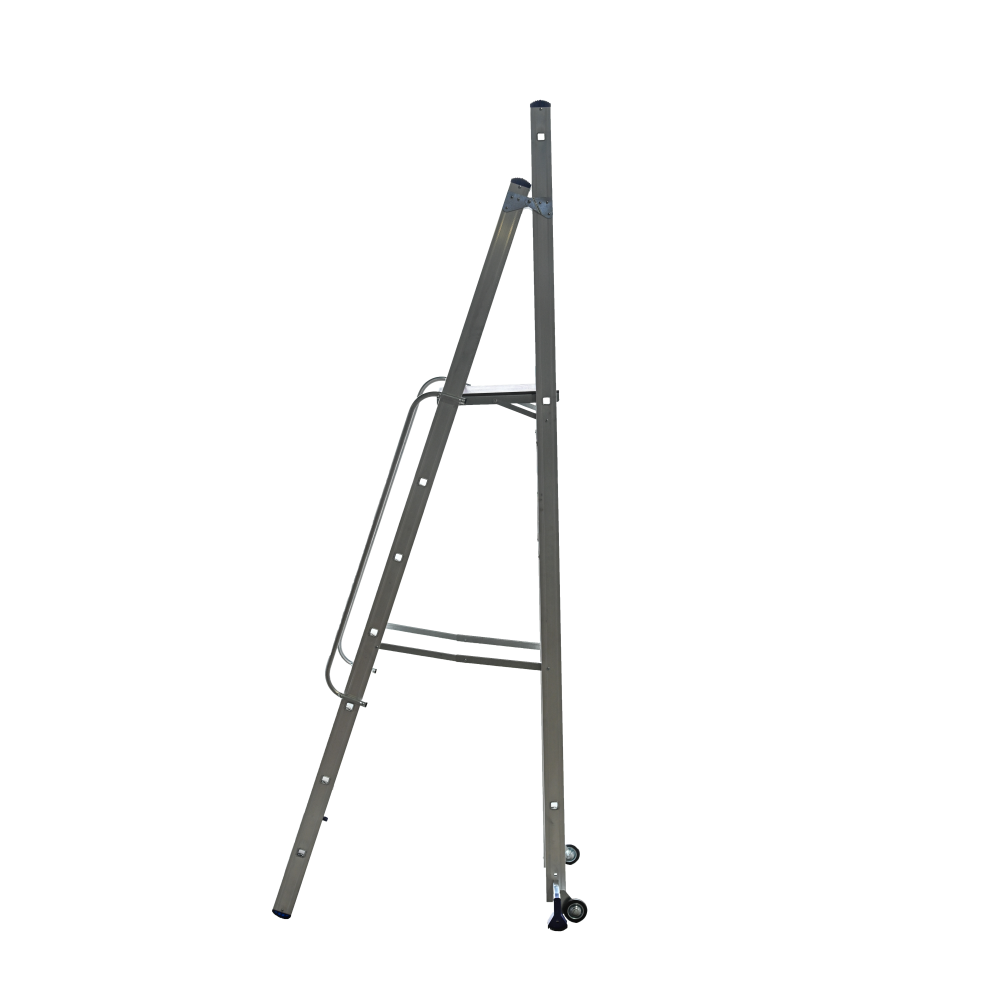

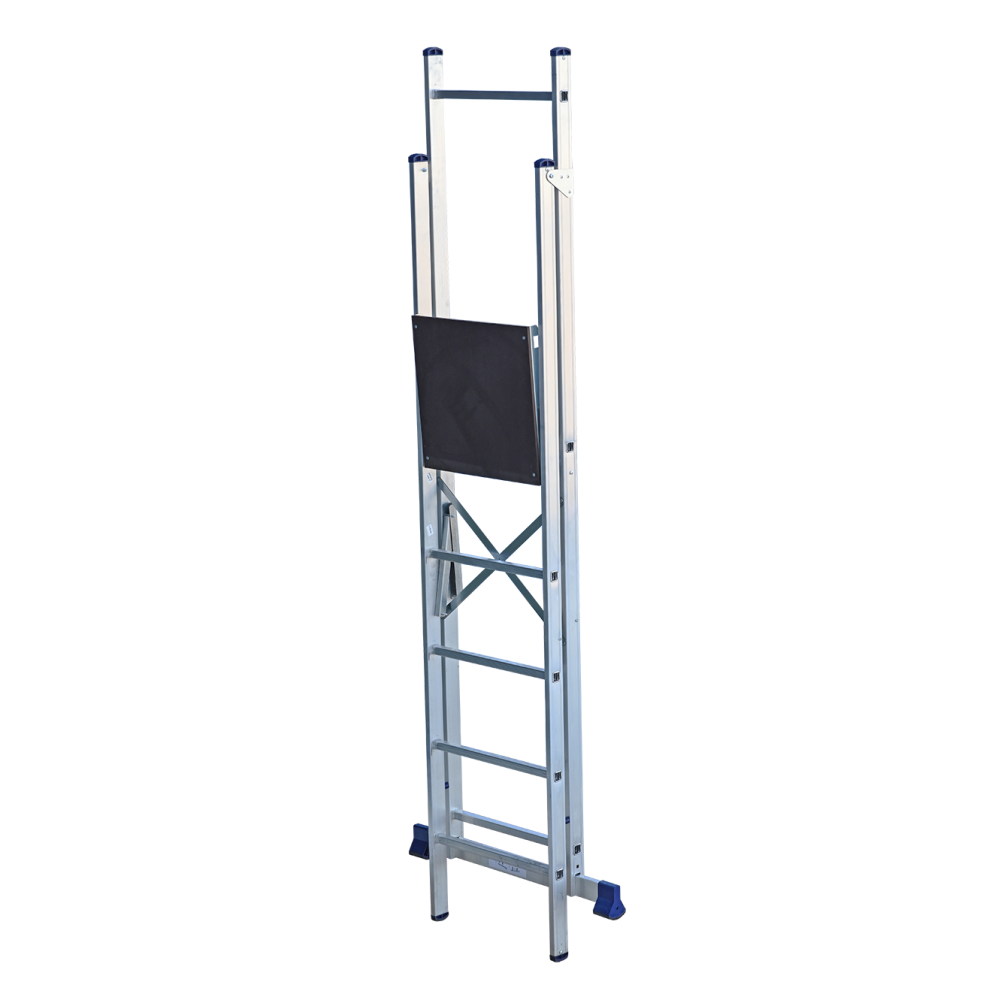

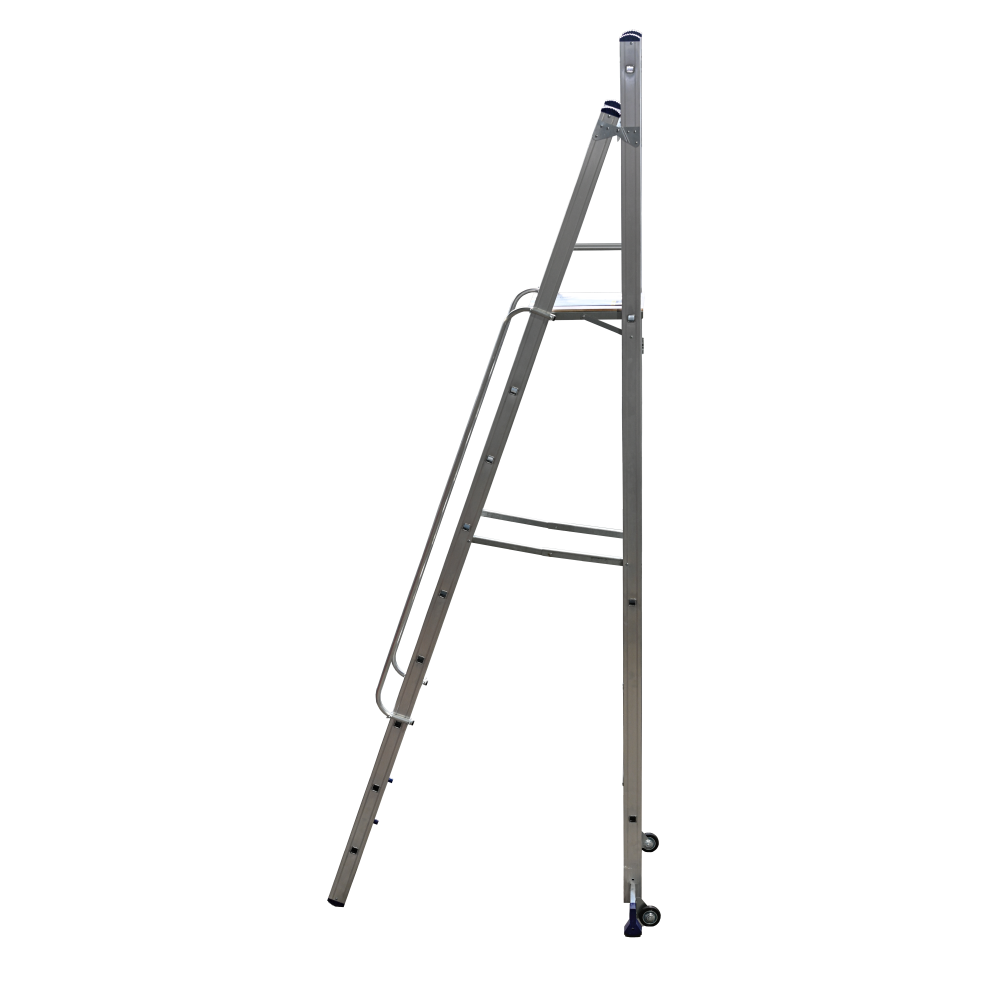

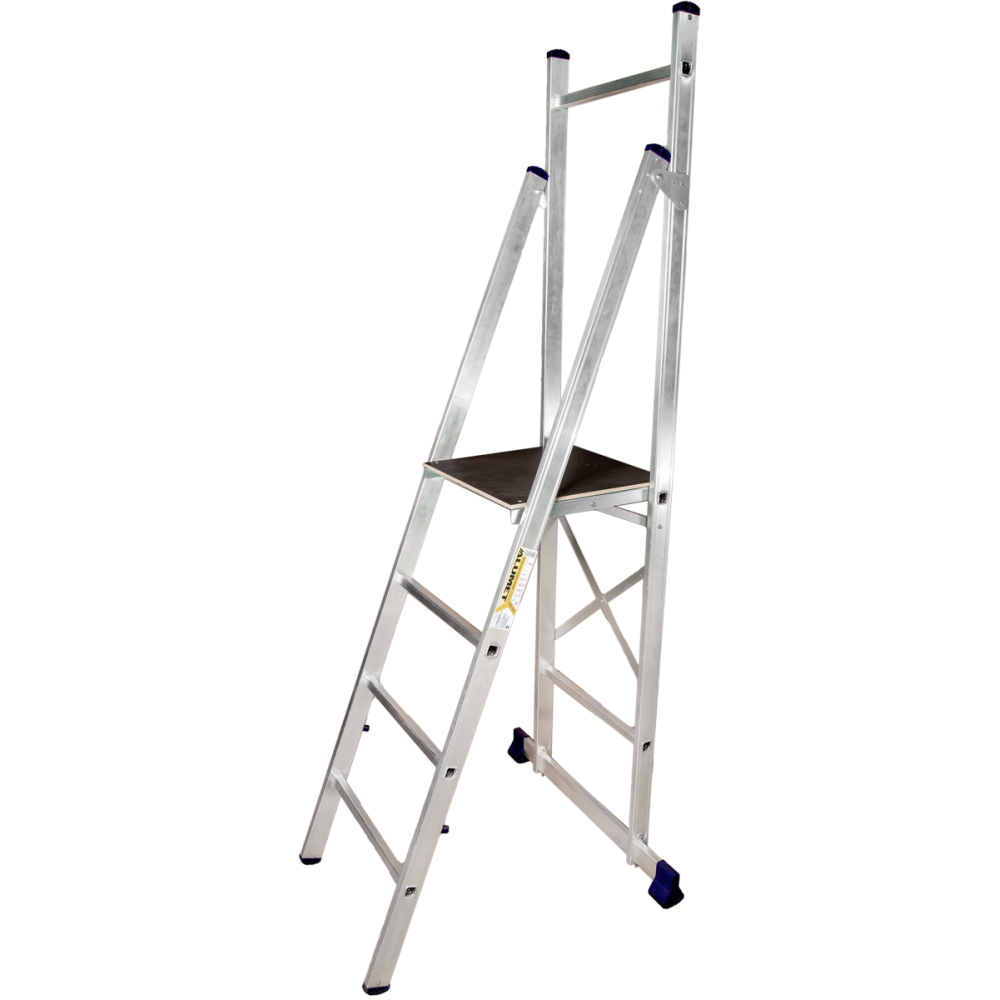

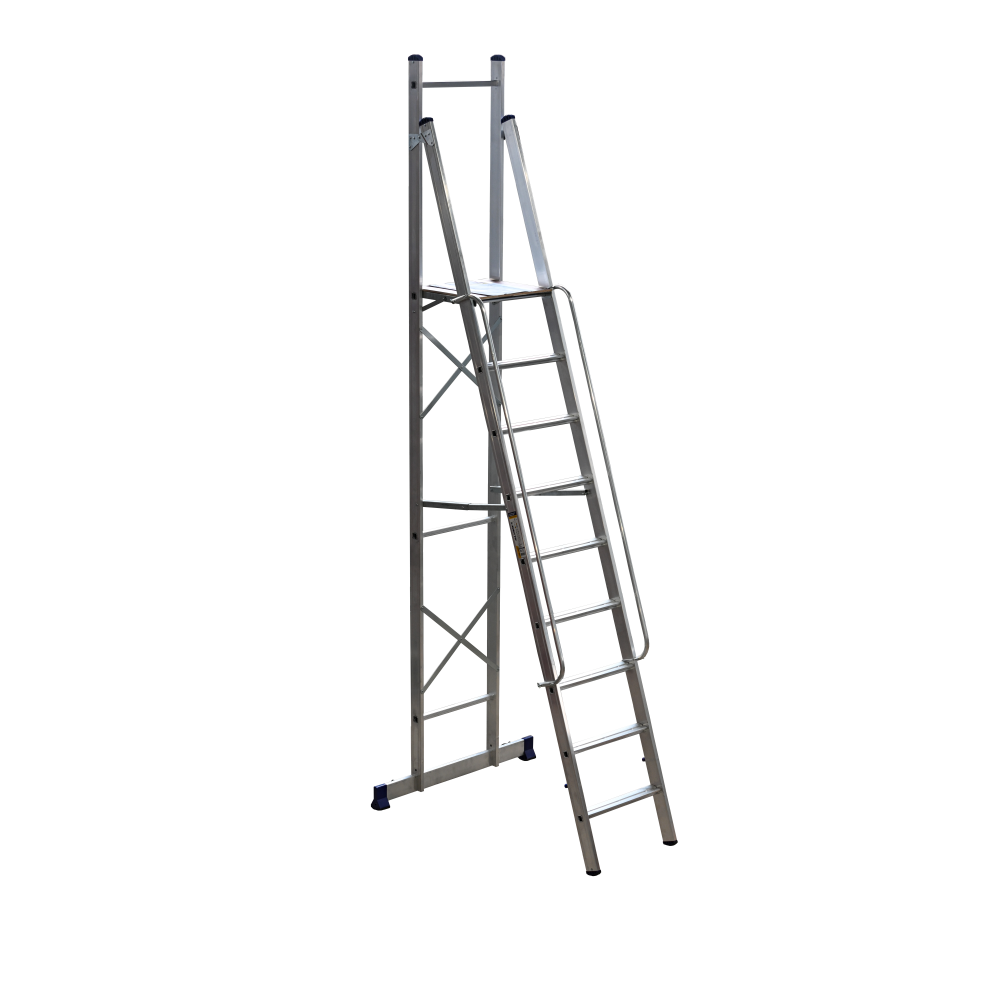

Stepladder-platform aluminum professional ARE series is designed for various types of work at a height of up to 4.75 m, both at home and at work. The ladder - platform is a free-standing portable ladder having a lifting side (front leg), a support side (back leg), a working platform and a folding one for lifting to a height. In the upper part of the back leg of the stepladder there is a crossbar that acts as a railing and ensures safety at work. For rigidity, there are diagonals on the back leg. On the back leg at the bottom there is a stabilizer with wheels for ARE 1406, ARE1407, ARE 1408, ARE1409, ARE 1410, for ARE 1404, ARE 1405 – a stabilizer without wheels (ARE1403 – without stabilizer). The back and front legs are connected to each other. For the convenience of lifting, handrails are attached to the bowstrings of the front leg (except ARE1403, ARE 1404, ARE1405). The stepladder in the working position is securely fixed by the working platform and safety folding metal ties (except ARE 1403, ARE 1404). The working platform is made of moisture-resistant laminated non-slip plywood, which is attached to steel corners. The bowstrings and steps of the stepladder are made of high-strength aluminum profile. The steps have a grooved surface. The massive shoes are made of high-strength rubberized plastic. In working condition, the ladder-platform can be tightly attached to the wall or other objects.

Technical specifications

Vendor code	Number of steps	Height	Width	Height max	Length	Stabilizer Width	Weight
APE 1403	3	0.80	0.5	2.90	1.91	---	6.2
APE 1404	4	1.07	0.5	3.17	2.21	0.8	7.6
APE 1405	5	1.33	0.5	3.43	2.46	0.8	9.8
APE 1406*	6	1.6	0.5	3.7	2.76	1	14.6
APE 1407*	7	1.86	0.5	3.96	0.04	1	15.5
APE 1408*	8	2.12	0.5	4.22	3.32	1	17.3
APE 1409*	9	2.38	0.5	4.48	3.6	1	18.1
APE 1410*	10	2.65	0.5	4.75	3.66	1.0	18.8
